Aftermarket Stereo Replacement Add-On SiriusXM-Vehicle Tuner
Connect, control and enjoy SiriusXM though the vehicle's in-dash audio system; no special translators or cable adapters are needed.
Compact size hides discreetly behind the dash for a fully integrated look.
Single interface cable connection to SiriusXM-Ready car stereo simplifies installation.
Pause, Rewind and Replay up to 60 minutes of live Satellite Radio.*
Automatically start songs from the beginning on your favorite channels with TuneStart™.*
Use TuneMix™ to hear a mix of songs from your favorite channel.*
Use TuneScan™ to preview songs that you have not yet heard on your favorite channels.*
Keep up with the big plays for your favorite teams with SportsFlash™.*
Keep Moving with the most current updates using Traffic & Weather Now™.*
Get alerts when your favorite song, artist or team is playing.*
Discover new music and tag for purchase with iTunes® radio tagging.*
Compatible with all SiriusXM-Ready car stereo receivers from leading manufacturers. Look for the SiriusXM-Ready logo.
Includes: SXV300 Tuner and Magnetic Mount Antenna.
*Consult car stereo receiver manufacturer for detailed description of features and operations and capabilities.
Connect, control and enjoy all the wonders of satellite radio on the fly. The compact SXV300 tuner is truly plug-and-play with compatible car stereos and installs easily and discreetly behind the dash for a fully integrated look.
SiriusXM SXV300V1 Manual
12-Inch x 12-Inch Stealth-Black Foil-Sheets with Self-Adhesive Butyl-Backing
The HushMat 10200 sound proofing adhesive squares can be applied anywhere in your vehicle to reduce acoustic vibration and the road noise that distorts the quality of your audio system. These 12" x 12" butyl backed self adhesive sheets can be easily cut to fit, are flexible and can be molded to fit the curvature of the application area. Great for eliminating vibrations in your car doors, headliner, floor boards and trunk area.
10 Sheets per box
Priced and sold by the sheet

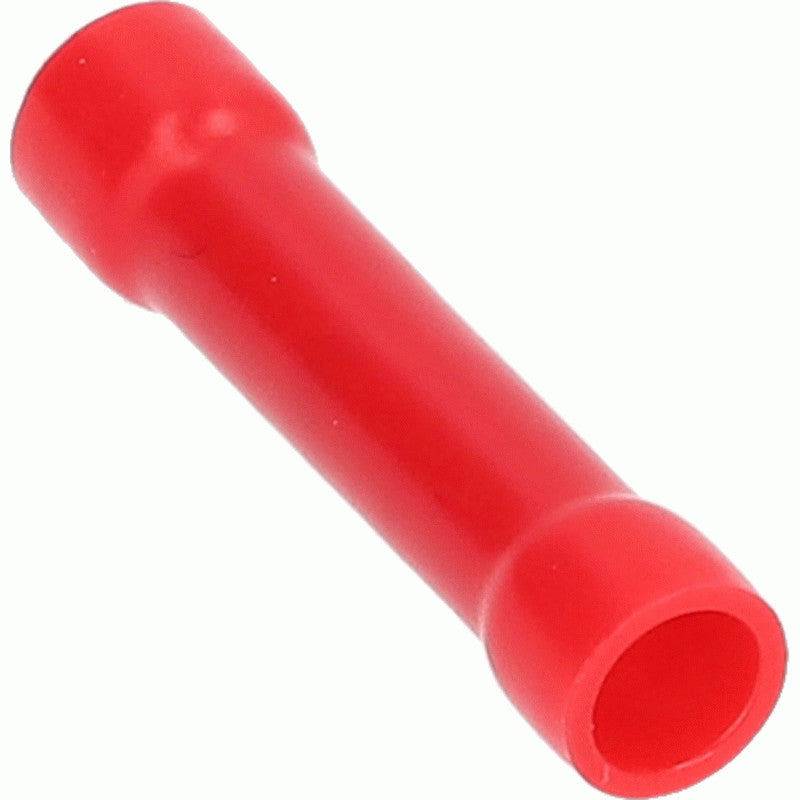

Red Vinyl Butt Connector 22-18 Gauge - Package of 100
Vinyl butt splices can connect two or more wires in an abrasion and impact resistant connection. They are a safe and convenient way to create secure electrical connections. Used by the automotive, marine and audio industries, due to their ease of use, they are simple to crimp.
Accepts wire size 22 AWG – 18 AWG
Abrasion and impact resistant
Vinyl insulation, color Red
Package of 100 pcs
Vinyl Electrical Tape 3/4 inch X 60 feet - 10 Pack
3M™ Temflex™ Tape 1776 is a 7 mil thick, economical, general purpose, vinyl, insulating tape that is made in the USA. It provides primary electrical insulation for all wires and cable splices up to 600V and excellent mechanical protection with the combination of a rubber resin adhesive and PVC backing. This flame retardant tape withstands a temperature range of 32 to 176 °F (0 to 80 °C) and is highly resistant to moisture, alkalis, acids, copper, corrosion and varying weather conditions. This tape is ideal for harnessing cables/wires and indoor/outdoor applications. CSA Certified, UL Listed and RoHS 2011/65/EU Compliant.
The combination of the rubber-resin adhesive and the PVC backing offers electrical and mechanical protection
Made of black durable PVC
Withstands a temperature range of 32 to 176 °F (0 to 80 °C)
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
10 Pack - Sold individually by the Roll
v6 Series Single-Channel Video Cable
Single-channel
True 75-ohm video cable
Ultra-flexible PVC blended jacket
High tolerance compact molded ABS end
Dual split tip for maximum contact area
Packaged in resealable retail polybag

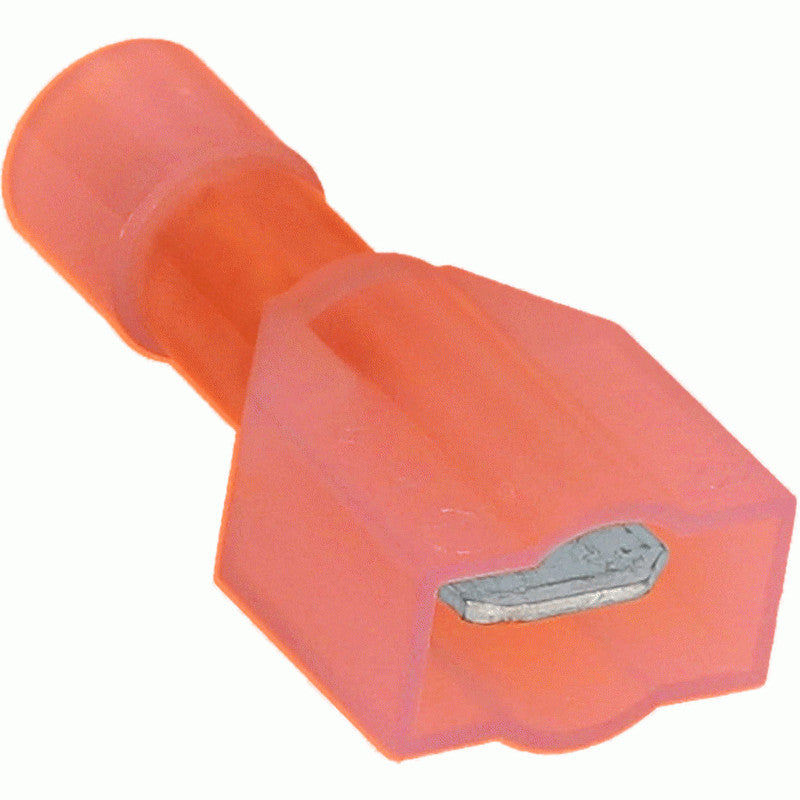

Red Nylon Quick Disconnect 22-18 Gauge .250
Nylon Quick Disconnect terminals are designed to be connected and separated quickly and easily. They can be pulled apart if needed. They are a safe and convenient way to create secure electrical connections. Used by the automotive and marine industries, due to their ease of use, and resistance to abrasion and impacts. Nylon Quick Disconnect terminals can be installed quickly and last for years.
Accepts wire size 22 AWG – 18 AWG
Connects to female terminal – size .250
Fully insulated
Nylon insulation, color Red
Package of 100 pcs
Split Loom Tubing 1/2 Inch Diameter 200 Ft Dispenser Box
Black Polyethylene
.471in (11.97MM) ID
.645in (16.39MM) OD
200ft Dispenser Box - Sold by the linear foot
4-Gauge Power Cable, 100% Copper, Red
Economically priced
Oxygen free copper wire
Super flex translucent jacket
4AWG
100ft Spool
Red
Sold by the linear foot.
Aftermarket Backup or Forward Facing Surface-Mountable Recessed Add-on Camera with Night Vision
The CM-CKH5 is Rydeen's Keyhole style camera. Recessed bullet style cameras are small cylinder shaped cameras that are great for flush mounting in a vehicles bumper. Bullet cameras have many mounting options and are great for covert or concealed uses. The camera itself comes in a black, waterproof casing with an IP67 rating, 170° viewable angle, and a full color standard resolution display to assist with blind spot visibility.
The CM-CKH5 is equipped with Rydeen's Super CMOS IV Sensor with NightVision Technology, and 480 TV Lines. The CVBS video resolution gives a high quality image for detailed viewing. This high-tech backup camera is a perfect choice where low visual impact on the vehicle is desired, due to it’s barely being visible when flush with the bumper.
Resolution (TV LINES): 480
Minimum illumination: < 0.3 Lux
Viewing Angle: 170o
Operating Voltage: 9 – 16V
Water-proof: IP67
Video System: NTSC (color)
Image: Mirror / Standard Selectable
Selectable Parking Line Display
Body Color: Black (B)
Rydeen CM-CKH5 Manual
3M™ Red T-Tap 22-18 Gauge Package of 100
3M™ Scotchlok™ Insulation Displacement Connectors are quick slide t-tap disconnects used to electrically tap into a wire in mid span without cutting or stripping the wire. They feature nylon insulation, making them ideal for use in light fixtures, appliances and other electrical OEMapplications.
for 22-18 AWG wire
Rated for 600V building wire and 1000V rated for signs, fixtures and luminaires
The connector withstands temperatures of 221 degrees F (105 degrees C)
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
Package of 100
XDM-Series Five-Channel Class-D Marine-Grade Amplifier, 75-Watts x Four-Channels @ 4-Ohm and 600-Watt Mono @ 2-Ohm
The XDM1000/5 delivers up to 1000W of clean power and is ideal for an audiophile-grade, subwoofer + four satellite system. With this potent powerhouse, you can drive two pairs of quality component speaker systems with plenty of clean power (75W x 4 @ 4Ω), while also generating a stout 600W of power for a subwoofer system. The technology that makes this much power possible in such a small chassis is JL-Audio's high-speed NexD switching amplifier design.
Suitable for car or boat installations, the XDM1000/5 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.
The XDM1000/5 includes a 12dB / octave high-pass filter for one main channel pair, a 12dB octave high-pass or bandpass filter for the other main channel pair, plus a variable slope low-pass filter for its subwoofer channel. All three filters offer continuously variable cutoff frequency selection from 50-500Hz. This amplifier's filters can also be configured as a true 3-way crossover, with a low-pass filter for the subwoofer channel, a bandpass filter on Ch. 3 & 4, and a high-pass filter on Ch. 1 & 2. An "x10" multiplier switch on the Ch. 1 & 2 high-pass filter allows its cutoff frequency to be adjusted from 50-500Hz or 500-5000Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), you have the ability to adjust the level of all amplifier channels or just the subwoofer channel directly from the driver's seat or helm.
Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
Specifications
Main Channels @ 4 Ω
75 W RMS x 4 @ 14.4V
Main Channels @ 2 Ω
100 W RMS x 4 @ 14.4V
Main Channels - Bridged @ 4Ω
200 W RMS x 2 @ 14.4V
Subwoofer Channel @ 4 Ω
400 W RMS x 1 @ 14.4V
Subwoofer Channel @ 3 Ω
500 W RMS x 1 @ 14.4V
Subwoofer Channel @ 2 Ω
600 W RMS x 1 @ 14.4V
Subwoofer Channel @ 1.5 Ω
N/A
Main Channels @ 4 Ω
60 W RMS x 4 @ 12.5V
Main Channels @ 2 Ω
90 W RMS x 4 @ 12.5V
Main Channels - Bridged @ 4Ω
180 W RMS x 2 @ 12.5V
Subwoofer Channel @ 4 Ω
360 W RMS x 1 @ 12.5V
Subwoofer Channel @ 3 Ω
480 W RMS x 1 @ 12.5V
Subwoofer Channel @ 2 Ω
600 W RMS x 1 @ 12.5V
Subwoofer Channel @ 1.5 Ω
N/A
Frequency Response (Main Channels)
12 Hz - 22 kHz (+0, -1dB)
Frequency Response (Subwoofer Channel)
10 Hz - 1 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power (Main Channels)
>104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W
>84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω
>150 / 50 Hz
Damping Factor @ 2 Ω
>75 / 50 Hz
THD+N @ Rated Power (Main Channels)
<1% @ 2 Ω per Ch.
THD+N @ Rated Power (Subwoofer Channels)
<1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs
200 mV - 4 V RMS
Min.Copper Power / Ground Wire Gauge
4 AWG wire
Fuse Rating
80 A (AFS, AGU or MaxiFuse™)
Filter Mode(s): Channels 1 & 2 (front)
High-Pass only
Filter Slope(s): Channels 1 & 2 (front)
12 dB/octave
Filter Frequency Range: Channels 1 & 2 (front)
50 Hz - 5 kHz
Filter Mode(s): Channels 3 & 4 (rear)
High-Pass or Bandpass
Filter Slope(s): Channels 3 & 4 (rear)
12 dB/octave
Filter Frequency Range: Channels 3 & 4
50 Hz - 500 Hz
Filter Mode(s): Subwoofer Channel
Low-Pass only
Filter Slope(s): Subwoofer Channel
12/24 dB/octave
Filter Frequency Range: Subwoofer Channel
50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometers
Yes
Filter Defeat Function
Yes
Infrasonic Filter: Subwoofer Channel
none
Remote Level Control
Optional HD-RLC or MHD-RLC (water-resistant)
Remote Level Modes
Sub Ch. or All Channels
Channel Input Mode Switch
Yes (2/4/6 ch.)
Pass-Through Preamp Output
None
Source Channel Selection for PreOuts
N/A
Height (H)
2.05 in / 52 mm
Width (W)
14.73 in / 374 mm
Depth (D)
7.09 in / 180 mm
JL Audio XDM1000/5v2 Manual
MM-Series 400-Watt RMS 10-Inch Subwoofer Driver, 4-Ohm SVC
The fiberglass-reinforced ABS basket resists flexing during heavy excursion, so your sub hits hard without distorting. Ultra-Marine certification and an IP56 rating.
Specifications
10" 4-ohm subwoofer
Titanium-plated composite cone
Butyl rubber surround
Fiberglass-reinforced ABS basket
IP56 rating
Power handling: 400W RMS
Peak power handling: 1200W
Frequency response: 28-2000Hz
Sensitivity: 86dB @ 1W/1M
Top mounting depth: 4.35"
Cutout diameter: 9.1"
Grille not included
Warranty: 1 year
Polk Audio MM1 Subwoofer Manual
Split Loom Tubing 1/4 Inch Diameter 500 Ft Dispenser Box
Black Polyethylene
.256in (6.5MM) ID
.373in (9.47MM) OD
500 Ft Dispenser Box - Sold by the linear foot
Red Nylon Female Quick Disconnect 22-18 Gauge .250
Nylon Quick Disconnect terminals are designed to be connected and separated quickly and easily. They can be pulled apart if needed. They are a safe and convenient way to create secure electrical connections. Used by the automotive and marine industries, due to their ease of use, and resistance to abrasion and impacts. Nylon Quick Disconnect terminals can be installed quickly and last for years.
Accepts wire size 22 AWG – 18 AWG
Connects to male terminal – size .250
Fully insulated
Nylon insulation, color Red
Package of 100 pcs
Black Insulation Displacement Connector 26/22 Ga - 100Pk
Metra T-Tap quick splice connectors are used to tap into a wire, mid run without cutting or stripping the wire. They have a brass conductor inside a nylon, color coded, insulative clam shell for quick identification and installation.
Black connector is for use on 26-22 AWG wire
Package of 100
Ten-Inch Black-Mesh Grille for Select JL-Audio Subwoofer-Drivers
Provide attractive, sturdy protection to your Subwoofer with this fine steel mesh grille insert, powder-coated in a satin black finish. The insert is designed to fit snugly onto the woofer's grille receiver ring.
Fits: 10WX, 10WXv2, 10W0v2, 10W0v3, 10W1v2, 10W1v3, 10W3v3
