Alpine Spare-Tire Rear-View Camera has a 7-inch diameter footprint and fits directly onto the spare tire mount, along with the tire itself. The result is a clean, integrated look that eliminates the need to drill holes to mount the camera into the bumper. The 6.25” W x 2” H LED third brake light provides added safety, while an additional reverse LED light illuminates the camera’s viewing angle for increased image visibility when your Wrangler is backing up. The optimized camera angle provides visibility for near and far objects behind your Jeep Wrangler; straight down and rear view (+5° up from horizontal which can be displayed on a factory or aftermarket in-dash screen (sold separately).
The HCE-TCAM1-WRA is ready for your off-road adventures. The camera is waterproof and, dust-proof (at IP66 ratings), and the camera’s angle is optimized for viewing both near and far objects. The camera housing has a matte black finish with gun metal gray powder coat accents.
Specifications
Compatible with most Aftermarket and OEM wheels using spare tire mount
Works with Aftermarket or OEM in-dash display
P66 waterproof and dust-proof rugged camera system design
Built-in brake and reverse lights for increased visibility
Lug nut mounting for easy removal and wheel locking
Optimized camera angle for near and far objects
3 mounting posts included for wheel/tire depth
Alpine HCE-TCAM1-WRA Manual
Replacement Tip-Sleeve Microphone for Select Alpine Head-Units
Replacement Microphone for Bluetooth enabled Alpine stereos with a tip and sleeve connector.

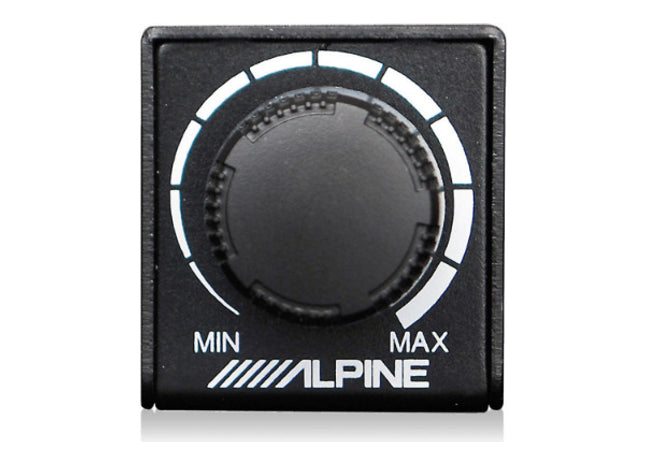

Alpine Amplifier Bass Control Knob
The optional RUX-KNOB remote bass control knob plugs right in to select Alpine amplifiers for quick direct subwoofer control to make bass adjustments on the fly.
The HCE-RCAM-WRA lets you easily add an Alpine rear-view camera to your 2007-2018 Jeep Wrangler JK. It is compatible with Alpine in-dash screen systems, the factory Jeep screen or other aftermarket screens. If used with the factory screen, you can add the Alpine SGS-CH01 Camera Interface (sold separately) with Active Guide Lines, – without factory screen re-programming.
With tons of wheel choices for the Wrangler, you need a versatile camera that works with any of them. The HCE-RCAM-WRA consists of the HCE-C1100 Rear-View Camera and bracket that is mounted between the spare tire and the Wrangler’s 5x5 wheel pattern. The upper portion of the bracket can be positioned to the left or right of the wheel’s spokes, ensuring that the attached camera has a clear line of sight behind the vehicle and is not blocked by the wheel.
Backing out of garages or riding through shady trails can be tough on a back-up camera. Standard cameras have difficulty managing changes in light, causing images to wash out and making it difficult to see what’s behind you at times. The HCE-RCAM-WRA has High Dynamic Range (HDR) technology for improved image quality. HDR technology can manage a wider range of luminance through the camera’s sensor as compared to standard cameras. Bright and dark areas are captured and adjusted for even exposure and white balance, preventing the image from being washed-out or too dark as you drive between sunlight and low-light conditions.
Specifications
Includes HCE-C1100 Rear Camera
Adjustable bracket positions the camera in-between the wheel spokes
Adjustable camera angle and height
Alpine HCE-RCAM-WRA Manual
The ALP-HRN-CAMCH is a Wrangler JK specific custom wiring harness and is just the correct length (4-foot RCA Input Cable) to reach down to the passenger side kick panel where the connection is made. It is a perfect match for the Jeep Wrangler specific Spare Tire Rear View Camera System (HCE-TCAM1-WRA). It also works with any Alpine rear view camera system that has a universal connection, like the HCE-C114, HCE-C125, or the HCE-C305R. After installation, the factory radio will require programming to activate the camera input. Programming to open the camera input required by your local Jeep dealership.
Alpine ALP-HRN-CAMCH Manual
Front and Rear Camera with view mode selection by external control button (included)
2 Direct Inputs for front and rear cameras
1 RCA Input for other cameras (Exclusive with Direct Input Rear Camera)
Universal RCA Output for other display devices
Compatible with all Alpine direct and universal cameras (sold separately)
Easily control your single view camera or Alpine direct multi-view cameras with the KCX-C2600B Front and Rear Camera Switcher.
Use the two-button controller to choose the desired camera and toggle through the various viewing modes from the camera (when connected to a multi-view camera). The controller can be mounted on your dashboard for easy access.
The KCX-C2600B features two direct inputs for the front and rear cameras, and one RCA input for a non-Alpine rear camera. It also has one universal RCA output for other display devices such as a factory screen (third party factory camera interface required).
Alpine KCX-C2600B Manual
Does your vehicle have electrical controls such as a winch, lights, air suspension, automatic trunk, motorized tonneau cover, etc? No need to add switches that clutter your dash anymore. Now you can conveniently control these accessories directly from your Alpine Dash System* touchscreen!
The KAC-001 Accessory Controller turns your Alpine Dash System* into a hub to connect and control these accessories. This module includes eight individual outputs are available to control eight relay-connected 12V accessories, and the accessories can be configured as Pulsed, Latched or Momentary Outputs. Graphical icons can be assigned to each accessory for quick identification on the screen.
Specifications
(8) 250mA (-) accessory outputs
Pulsed, latched, or momentary output selection
Compatible with Alpine Head Units like the X209 series, i209 series, i207-WRA, iLX-107, iLX-207, iLX-F309, X110-SLV, X110-SRA, X109D, X108U, INE-W967HD
Alpine KAC-001 Manual
Allows up to 3 cameras to be added to Alpine Head Units like the X209 series, i209-WRA, INE-W977HD and iLX-2077 3M direct camera input cable included
No Manual Available
