Six-Channel Water Resistant Line-Converter with DSP and Optional Add-on Hi-Res Digital Output, Bluetooth Media Player Upgradable
Upgrade your sound system with this universal DSP “Lite” designed for outdoor vehicles. It features a water-resistant enclosure and zip tie mounts to keep it in place and protected from the elements. This solution is ideal for motorcycles, powersports vehicles, boats, and other outdoor vehicles that could expose the DSP to moisture and heavy vibration. This DSP can be used with OE or aftermarket radios and has an internal header port for adding a wireless streaming interface module (the AXDSPL-BT, which is sold separately) if the vehicle does not have a receiver/head unit.
2-Channel Digital Output Upgradeable with AXDSP-SP (sold separately)Convertible to a Media Receiver with AXDSPL-BT (sold separately)
15 Band graphic EQ
4 inputs and 6 individually assignable outputs
Independent equalization for front, rear, and sub
Independent crossover for front, rear, and sub
Selectable slope (12, 24, 36, or 48db per octave)
Front and rear channels can be delayed independently up to 10ms
Easy behind the radio installation in most applications
Water resistant enclosure with zip tie mounts included
Can be used with OE and aftermarket radios
Chime control for GM/Chrysler vehicles
Clipping detection and limiting circuits
Internal header port for adding a Bluetooth interface module
Bass knob included
Retains OE voice prompts (SYNC® and OnStar®)
Retains factory chimes including parking sensor and cross path
detection alerts
Settings adjusted via Bluetooth® in a smart device application (tablet or mobile phone), compatible with both Android™ and Apple® devices
Read, write, and store configurations for future recall
Password protect feature available in the mobile app
Micro-B USB updatable
Axxess AXDSPL-WR Manual

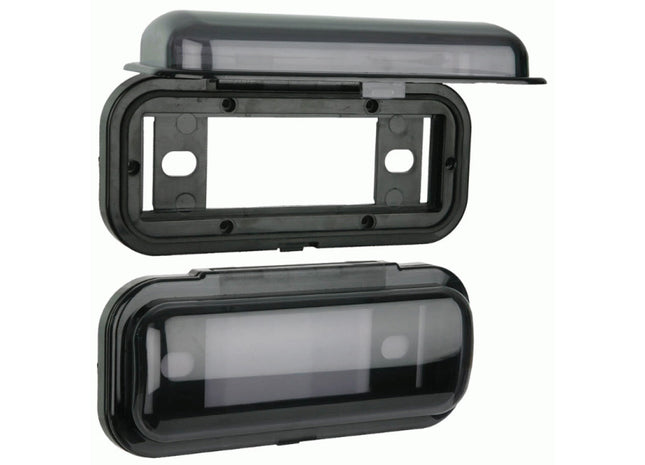

DIN-Size Marine-Grade Head-Unit Cover-Plate, Smoke
Positive spring loaded detent lock
Longer life heavy duty low friction hinges
Dual spring support while cover is open
Accu view tinted cover
Black finish

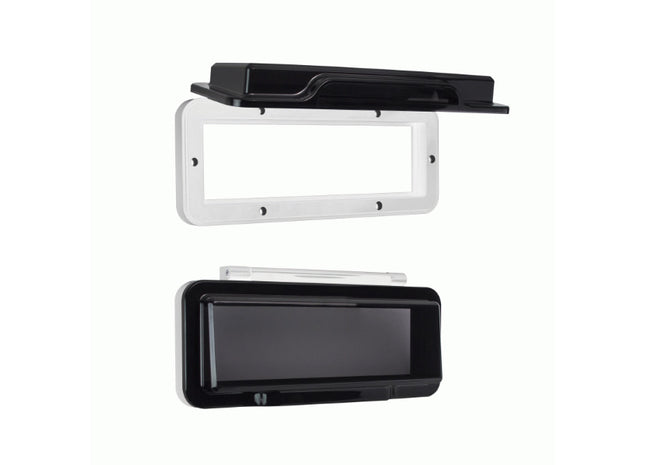

DIN-Size Marine-Grade Head-Unit Cover-Plate, White
White base with a transparent smoke tinted door
Magnetic latch – No pushbuttons to break or stick
Magnetic seal held in place with 3M adhesive
Retention hinged so the door will stay open and in position when needed
No other Marine cover uses this style of hinge
Universal design accommodates most DIN radios
High-temp and UV resistant poly-carbonate body construction
Stainless steel mounting hardware included
Dimensions: 8 3/4" width, 4" height (3 3/4" without hinge), 1.5" depth
