Alpine HDZ-Series 100-Watt RMS Hi-Resolution Aftermarket 6-1/2-Inch 2-Way Coaxial Door Speaker System
Using expertise gleaned from over five decades of crafting premium car audio products and trickle-down engineering and design from the Ultra Hi-Res AlpineF#1Status system technologies, the Alpine Status system features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand-picked from the highest- quality materials for the highest in-class audio performance, that when used as a complete system, can achieve 192kHz/24bit playback.
Drawing inspiration from the AlpineF#1Status system, the HDZ-65 features a unified carbon composite cone construction throughout the speaker components for a unified timbre identity. Alpine Proprietary Double Gathered Edge Surround technology gives the speakers ultra-low distortion and linear diaphragm movement that reproduces music true to the artist’s original intentions.
Custom developed for Hi-Res Audio Playback, the HDZ-65 has an ultra-wide bandwidth of 55Hz-40kHz which is perfectly suited for accurate reproduction of even the highest quality of studio recordings. Each speaker component is designed to cover a wider range of playback spectrum giving the tuner a wider range of adjustability.
The Alpine Status speaker line features two fitments for flexible installation options including a custom-fix model for custom applications and factory-fit models that were intentionally designed to fit into most factory speaker holes without custom work. The HDZ-65 is a factory-fit model that includes a 6.5-inch mid-bass driver and a 1-inch coaxial high-range driver.
The Alpine Status System is sold separately and can be used to build a custom sound system. Three sets of true 4V preamp outputs are included to add additional amplifiers if more power is needed. For best results, install the complete Alpine Status system together as a full system to achieve the highest in-class audio performance only second to the Ultra High-Resolution AlpineF#1System.
Features
Hi-Res Audio Playback (192kHz/24Bit) w/full Alpine Status system
Carbon Composite Diaphragm Material
Alpine Proprietary Double Gathered Edge Surround
6.5” Mid-Bass Driver (16.5cm)
1” Coaxial Tweeter (2.5cm)
Specifications
100W RMS
300W Peak Power Handling
Frequency response: 55Hz – 40kHz
Sensitivity: 88dB
Sold by the Pair
Alpine HDZ-65 Manual
Alpine R2-Series 100-Watt RMS Coaxial 6-1/2 Inch Aftermarket Door Speakers
Using “trickle-down” technology, inspired design, and performance cues from the Ultra-High-Resolution AlpineF#1Status systems, the Next-Generation R-Series Speakers are Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This ultra-wide bandwidth brings music even closer to the original source while the classic R-Series design maintains the “loud and fun” performance quality that long-time fans have come to enjoy.
The new lightweight and rigid glass fiber-reinforced cone material allows for extreme movement and low distortion which results in an incredibly accurate and clean sound during playback.
The Next-Generation R-Series speakers utilize a ferrite magnet, different from the neodymium from previous generations, and a larger motor structure that contributes to more mid-bass during the playback. Despite the larger motor structure, the speakers still maintain the same depth for easy installation.
Continuing with the Next-Generation R-Series speaker line is Alpine-exclusive High Amplitude Multi-Roll (HAMR) surround technology that increased excursions while maintaining linearity for more accurate music reproduction.
The Next-Generation R-Series speaker line offers two pathways for performance: the “Pro” and “Standard” models. The R2-S65 is a standard coaxial speaker set that includes a 6.5” Mid-Range and 1” Coaxial Tweeter with a flexible in-line crossover network that simplifies installation.
Sold as a pair.
Features
Hi-Res Audio Certified
Glass Fiber Reinforced Cone
Ferrite Magnet Structure
High-Amplitude Multi-Roll (H.A.M.R.) Surround
2 Premium-Grade Crossover Networks
Magnesium Hard-Dome Tweeters with Swivel Mount Design and Threaded Removable Housing
Protective Open Mesh Grille Pair Included
Specifications
6.5” Mid-Bass with 1” Tweeter
Frequency Response: 65Hz -40kHz
Power Handling: 100W RMS / 300W Peak
Alpine R2-Series 100-Watt RMS Coaxial 6-Inch x 9-Inch Aftermarket Door Speakers
Using “trickle-down” technology, inspired design, and performance cues from the Ultra-High-Resolution AlpineF#1Status systems, the Next-Generation R-Series Speakers are Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This ultra-wide bandwidth brings music even closer to the original source while the classic R-Series design maintains the “loud and fun” performance quality that long-time fans have come to enjoy.
The new lightweight and rigid glass fiber-reinforced cone material allows for extreme movement and low distortion which results in an incredibly accurate and clean sound during playback.
The Next-Generation R-Series speakers utilize a ferrite magnet, different from the neodymium from previous generations, and a larger motor structure that contributes to more mid-bass during the playback. Despite the larger motor structure, the speakers still maintain the same depth for easy installation.
Continuing with the Next-Generation R-Series speaker line is Alpine-exclusive High Amplitude Multi-Roll (HAMR) surround technology that increased excursions while maintaining linearity for more accurate music reproduction.
The Next-Generation R-Series speaker line offers two pathways for performance: the “Pro” and “Standard” models. The R2-S69 is a standard coaxial speaker set that includes a 6x9” Mid-Range and 1” Tweeter with a flexible in-line crossover network that simplifies installation.
Sold as a pair.
Features
Hi-Res Audio Certified
Glass Fiber Reinforced Cone
Die-Cast Aluminum Basket
Ferrite Magnet Structure
High-Amplitude Multi-Roll (H.A.M.R.) Surround
2 Premium-Grade Full Passive Performance Crossover Networks
Magnesium Hard-Dome Tweeters with Swivel Mount Design and Threaded Removable Housing
Protective Open Mesh Grille Pair Included
Specifications
6x9” Mid-Bass with 1” Tweeter
Frequency Response: 60Hz -40kHz
Power Handling: 100W RMS / 300W Peak
Alpine S-Series 6X9-Inch Coaxial 2-Way Speakers, 85-Watt RMS
The S-Series speakers have a large voice coil. The 6.5-inch and 6x9-inch models have a 35-mm voice coil, and this large voice coil size increases their driving power and control of the motor. The S-Series speakers are the first in the industry to use a material called CFRP (Carbon Fiber Reinforced Plastic), a very lightweight yet rigid material. On a standard, off-the-shelf oval cone, the edges are naturally weaker than the center due to the elongated shape. Since the CFRP material is directional, it can be manipulated during the molding process to strengthen the areas of the cone that are normally weak. The result is rigidity throughout the cone that delivers accurate and efficient performance. The ability to manipulate the CFRP material during the molding process is currently exclusive to Alpine and the S-Series speakers. Alpine has three patent-pending procedures in support of this innovative manufacturing process.
Alpine’s patented H.A.M.R. (High Amplitude Multi-Roll) surround is now found on the S-Series speakers. This proven technology increases excursion while maintaining accuracy and linearity. The multi-roll design allows for an even unfolding of the surround which creates incredible linearity and colorization rejection.
Specificatons
85W RMS/260W Peak
Nominal Impedance 4Ω
Frequency Response: 65-22kHz
1” Silk Dome Tweeter
CFRP (Carbon Fiber Reinforced Plastic) Cone
H.A.M.R. Surround
CustomStamped Steel Frame
35mm voice coil
Optional grille sold separately (KTE-S69G)
Alpine S2-Series 4-Inch 2-Way Coaxial Speakers, 45-Watts RMS
Using “trickle-down” technology, inspired design, and performance cues from the Ultra-High-Resolution AlpineF#1Status system, the Next-Generation Alpine S-Series Speakers are now Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This new benchmark in sound quality elevates the Next-Gen S-Series Speakers resulting in a more accurate and natural sound at an entry-level price point.
Crafted with a unique combination of Poly Propylene, Glass Fiber, and Mica Cone materials, the S2-S40 is designed for lightweight construction, high output, and low distortion, giving you a clean and accurate audio experience.
Alpine-exclusive High Amplitude Multi-Roll (HAMR) surround technology is integrated into the speaker design which allows for maximum cone movement, delivering powerful and accurate bass notes.
Features
Hi-Res Audio Certified (Up to 40kHz)
Poly Propylene, Glass Fiber, and Mica Cone Material
Lightweight Design with High Output and Low Distortion
High-Amplitude Multi-Roll (H.A.M.R.) Surround
Integrated 3/4” Tweeters (Coaxial)
Specifications
Woofer Size: 4”
Tweeter Size: 3/4” (Coaxial)
Power Handling: 45W RMS / 140W Peak
Frequency Response: 97Hz - 40kHz (Hi-Res)
Sensitivity: 86dB
Alpine S2-Series 5-1/4" Coaxial 2-Way Speakers, 80-Watts RMS
Using “trickle-down” technology, inspired design, and performance cues from the Ultra-High-Resolution AlpineF#1Status system, the Next-Generation Alpine S-Series Speakers are now Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This new benchmark in sound quality elevates the Next-Gen S-Series Speakers resulting in a more accurate and natural sound at an entry-level price point.
Crafted with a unique combination of Poly Propylene, Glass Fiber, and Mica Cone materials, the S2-S50 is designed for lightweight construction, high output, and low distortion, giving you a clean and accurate audio experience.
Alpine-exclusive High Amplitude Multi-Roll (HAMR) surround technology is integrated into the speaker design which allows for maximum cone movement, delivering powerful and accurate bass notes.
The S-Series S2-S50 is compatible with the KTE-S50G Speaker Grille (sold separately). This sleek and stylish grille will not only add a visual upgrade to your speakers but also provide protection against any damage.
Features
Hi-Res Audio Certified (Up to 40kHz)
Poly Propylene, Glass Fiber, and Mica Cone Material
Lightweight Design with High Output and Low Distortion
High-Amplitude Multi-Roll (H.A.M.R.) Surround
Integrated 3/4” Tweeters (Coaxial)
Compatible with KTE-S50G Speaker Grille (sold separately)
Specifications
Woofer Size: 5 1/4”
Tweeter Size: 3/4” (Coaxial)
Power Handling: 55W RMS / 170W Peak
Frequency Response: 80Hz - 40kHz (Hi-Res)
Sensitivity: 87dB
Alpine S2-Series 6-1/2-Inch Coaxial 2-Way Speakers, 80-Watt RMS
Newly redesigned and Hi-Res Audio Certified, the Next-Generation S-Series S2-S65 6.5” Coaxial Speakers offer a new standard in entry-level sound performance.
Using “trickle-down” technology, inspired design, and performance cues from the Ultra-High-Resolution AlpineF#1Status system, the Next-Generation Alpine S-Series Speakers are now Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This new benchmark in sound quality elevates the Next-Gen S-Series Speakers resulting in a more accurate and natural sound at an entry-level price point.
Crafted with a unique combination of Poly Propylene, Glass Fiber, and Mica Cone materials, the S2-S65 is designed for lightweight construction, high output, and low distortion, giving you a clean and accurate audio experience.
Alpine-exclusive High Amplitude Multi- Roll (HAMR) surround technology is integrated into the speaker design which allows for maximum cone movement, delivering powerful and accurate bass notes.
The S-Series S2-S65 is compatible with the KTE-S65G Speaker Grille (sold separately). This sleek and stylish grille will not only add a visual upgrade to your speakers but also provide protection against any damage.
Specifications
Hi-Res Audio Certified (Up to 40kHz)
Poly Propylene, Glass Fiber, and Mica Cone Material
Lightweight Design with High Output and Low Distortion
High-Amplitude Multi-Roll (H.A.M.R.) Surround
Integrated 1” Tweeters (Coaxial)
Compatible with KTE-S65G Speaker Grille (sold separately)
Woofer Size: 6.5”
Tweeter Size: 1” (Coaxial)
Power Handling: 80W RMS / 240W Peak
Frequency Response: 70Hz - 40kHz (Hi-Res)
Sensitivity: 88dB

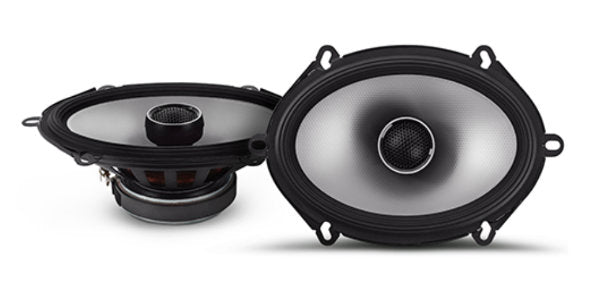

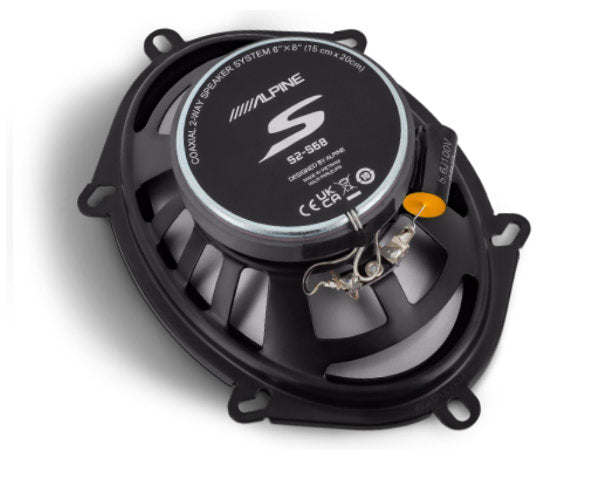

Alpine S2-Series 6x8-Inch Coaxial 2-Way Speakers, 75-Watt RMS
Using “trickle-down” technology, inspired design, and performance cues from the Ultra-High-Resolution AlpineF#1Status system, the Next-Generation Alpine S-Series Speakers are now Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This new benchmark in sound quality elevates the Next-Gen S-Series Speakers resulting in a more accurate and natural sound at an entry-level price point.
Crafted with a unique combination of Poly Propylene, Glass Fiber, and Mica Cone materials, the S2-S68 is designed for lightweight construction, high output, and low distortion, giving you a clean and accurate audio experience.
Alpine-exclusive High Amplitude Multi-Roll (HAMR) surround technology is integrated into the speaker design which allows for maximum cone movement, delivering powerful and accurate bass notes.
Features
Hi-Res Audio Certified (Up to 40kHz)
Poly Propylene, Glass Fiber, and Mica Cone Material
Lightweight Design with High Output and Low Distortion
High-Amplitude Multi-Roll (H.A.M.R.) Surround
Integrated 1” Tweeters (Coaxial)
Specifications
Woofer Size: 6x8”
Tweeter Size: 1” (Coaxial)
Power Handling: 75W RMS / 230W Peak
Frequency Response: 73Hz - 40kHz (Hi-Res)
Sensitivity: 88dB
Alpine S2-Series 6X9-Inch Coaxial 2-Way Speakers, 85-Watt RMS
Using “trickle-down” technology, inspired design, and performance cues from the Ultra-High-Resolution AlpineF#1Status system, the Next-Generation Alpine S-Series Speakers are now Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This new benchmark in sound quality elevates the Next-Gen S-Series Speakers resulting in a more accurate and natural sound at an entry-level price point.
Crafted with a unique combination of Poly Propylene, Glass Fiber, and Mica Cone materials, the S2-S69 is designed for lightweight construction, high output, and low distortion, giving you a clean and accurate audio experience.
Alpine-exclusive High Amplitude Multi-Roll (HAMR) surround technology is integrated into the speaker design which allows for maximum cone movement, delivering powerful and accurate bass notes.
The S-Series S2-S69 is compatible with the KTE-S69G Speaker Grille (sold separately). This sleek and stylish grille will not only add a visual upgrade to your speakers but also provide protection against any damage.
Features
Hi-Res Audio Certified (Up to 40kHz)
Poly Propylene, Glass Fiber, and Mica Cone Material
Lightweight Design with High Output and Low Distortion
High-Amplitude Multi-Roll (H.A.M.R.) Surround
Integrated 1” Tweeters (Coaxial)
Compatible with KTE-S69G Speaker Grille (sold separately)
Specifications
Woofer Size: 6x9”
Tweeter Size: 1” (Coaxial)
Power Handling: 85W RMS / 260W Peak
Frequency Response: 85Hz - 40kHz (Hi-Res)
Sensitivity: 90dB
Alpine 75-Watt 2-Way Component Speaker-System for 2007-2018 Jeep Wrangler-JK
These 6.5-inch speakers in the SPV-65X-WRA are tuned specifically for the JK’s in-cabin environment and fit into the factory speaker locations for an easy update that will impress your ears.
The SPV-65X-WRA comes with adapters that allow the speakers to be installed as a component set by mounting the tweeters into the tombstones of older JKs or onto the dash for newer JKs. For older JKs that have a sound bar, the adapters convert the speakers into a coaxial design so they can be installed into the sound bar.
Driving with the top off is part of the fun of owning a Wrangler, but sometimes you get caught off-guard with the top down and inclement weather. The SPV-65X-WRA is weather resistant and rated IP55, so it’s protected from limited dust ingress and low-pressure water spray from any direction.
Specifications
6.5” Component or Coaxial 2-Way Speaker System w/ Convertible Design
Weather Resistant (IP55 rating)
Power Handling: 75W RMS/225W Peak
Nominal Impedance 4Ω
Frequency Response: 65-22kHz
1” Teteron Dome Tweeter
CustomSteel Frame w/ factory speaker mounting tabs
OEM speaker connectors
C1-Series 4-Inch 35-Watt Coaxial Speaker System
C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles.
To facilitate fit, breakaway mounting tabs on the woofer frame allow the C1-400x to be installed in four-hole or two-hole mounting configurations.
C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-400x is a proprietary, stamped, steel 4-inch (100 mm) frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered spider at the top of the voice coil, to precisely control motion and prevent impact between the voice coil and the back plate. Tinsel leads are carefully routed and attached to the spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.
Equipped with a true, edge-driven, aluminum dome tweeter, C1 speakers stand further apart from others in its category with superior high-frequency clarity and definition. The tweeter’s design has inherently excellent off-axis response and high-frequency extension. It also benefits from the damping of a silk surround suspension and Ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit. A true, 2nd order high-pass filter is employed to further enhance smoothness and improve power handling.
When it comes to value, C1 is the real deal!
Sold as a pair. Grilles not available.
General Specifications
Continuous Power Handling (RMS)
35 W
Peak Music Power
105 W
Recommended Amplifier Power (RMS)
10 - 50 W / Ch.
System Efficiency
84.5 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
64 Hz - 24 KHz ± 3 dB
JL Audio C1-400x Manual
C1-Series 5.25-Inch 50-Watt Coaxial Speaker System
C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles.
C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-525x is a proprietary, stamped, steel 5.25-inch (130 mm) frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control motion and prevent impact between the voice coil and the back plate. Tinsel leads are carefully routed and attached to the spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.
Equipped with a true, edge-driven, aluminum dome tweeter, C1 speakers stand further apart from others in its category with superior high-frequency clarity and definition. The tweeter’s design has inherently excellent off-axis response and high-frequency extension. It also benefits from the damping of a silk surround suspension and Ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit. A true, 2nd order high-pass filter is employed to further enhance smoothness and improve power handling.
When it comes to value, C1 is the real deal!
Sold as a pair. Grilles not available.
General Specifications
Continuous Power Handling (RMS)
50 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
10 - 75 W / Ch.
System Efficiency
89.0 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
54 Hz - 24 KHz ± 3 dB
JL Audio C1-525x Manual

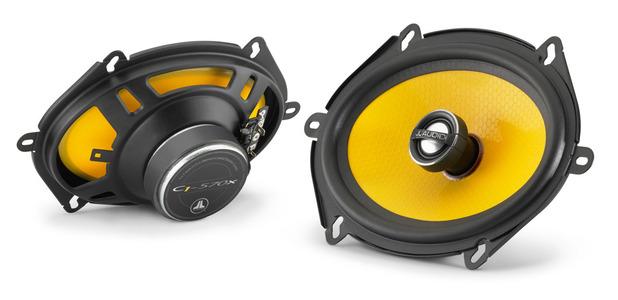

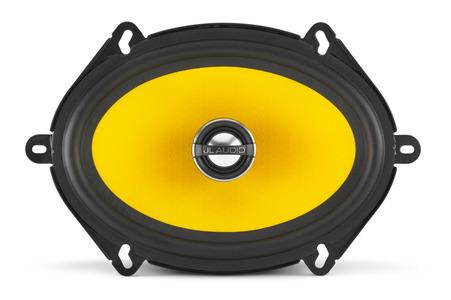

C1-Series 5x7-Inch 50-Watt Coaxial Speaker System
C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles.
To facilitate fit, spacer/adaptor rings are included, allowing the C1-570x to be installed in bottom-mount applications. The speaker baskets are also equipped with slotted mounting holes to fit into 6 x 8-inch factory speaker locations.
C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-570x is a proprietary, stamped, steel 5 x 7-inch (125 x 180 mm) oval frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control motion and prevent impact between the voice coil and the back plate. Tinsel leads are carefully routed and attached to the spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.
Equipped with a true, edge-driven, aluminum dome tweeter, C1 speakers stand further apart from others in its category with superior high-frequency clarity and definition. The tweeter’s design has inherently excellent off-axis response and high-frequency extension. It also benefits from the damping of a silk surround suspension and Ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit. A true, 2nd order high-pass filter is employed to further enhance smoothness and improve power handling.
When it comes to value, C1 is the real deal!
Sold as a pair. Grilles not available.
General Specifications
Continuous Power Handling (RMS)
50 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
10 - 75 W / Ch.
System Efficiency
90.5 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
40 Hz - 24 KHz ± 3 dB
JL Audio C1-570x Manual
C1-Series 6.5-Inch 50-Watt Coaxial Speaker System
C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles.
To facilitate fit, multi-application adaptor rings are included with the C1-650x allowing easy, drop-in installation in vehicles equipped with oversized 6.5-inch and 6.75-inch speaker openings. Without the ring, the speaker will fit into many "6-inch" speaker locations as well.
C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-650x is a proprietary, stamped, steel 6.50-inch (165 mm) frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control the voice coil's motion. Tinsel leads are carefully routed and attached to the spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.
Equipped with a true, edge-driven, aluminum dome tweeter, C1 speakers stand further apart from others in its category with superior high-frequency clarity and definition. The tweeter’s design has inherently excellent off-axis response and high-frequency extension. It also benefits from the damping of a silk surround suspension and Ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit. A true, 2nd order high-pass filter is employed to further enhance smoothness and improve power handling.
When it comes to value, C1 is the real deal!
Sold as a pair. Grilles not available.
General Specifications
Continuous Power Handling (RMS)
50 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
10 - 75 W / Ch.
System Efficiency
90.5 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
48 Hz - 24 KHz ± 3 dB
JL Audio C1-650x Manual
C1-Series 6x9-Inch 60-Watt Coaxial Speaker System, 3-Way
C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles.
To facilitate fit, spacer adaptor rings are included allowing the C1-690tx to be installed in bottom-mount applications.
C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-690tx is a proprietary, stamped, steel 6 x 9-inch (150 x 230 mm) oval frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control motion and prevent impact between the voice coil and the back plate. Tinsel leads are carefully routed and attached to the spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.
Equipped with dual true, edge-driven, aluminum dome tweeters, the C1-690tx stands apart from others in its category with superior high-frequency clarity and separation. The design of each tweeter delivers inherently excellent off-axis response and high-frequency extension. Both high-frequency drivers also benefit from the damping of silk surround suspensions and Ferrofluid in the voice coil gaps, along with the superior strength of neodymium magnetics. A true, mixed order filter network is employed to further enhance smoothness and improve power handling.
When it comes to value, C1 is the real deal!
Sold as a pair. Grilles not available.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
10 - 100 W / Ch.
System Efficiency
90.5 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
36 Hz - 24 KHz ± 3 dB
JL Audio C1-690tx Manual
C1-Series 6x9-Inch 60-Watt Coaxial Speaker System
C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles.
To facilitate fit, spacer/adaptor rings are included allowing the C1-690x to be installed in bottom-mount applications.
C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-690x is a proprietary, stamped, steel 6 x 9-inch (150 x 230 mm) oval frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control motion and prevent impact between the voice coil and the back plate. Tinsel leads are carefully routed and attached to the spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.
Equipped with a true, edge-driven, aluminum dome tweeter, C1 speakers stand further apart from others in its category with superior high-frequency clarity and definition. The tweeter’s design has inherently excellent off-axis response and high-frequency extension. It also benefits from the damping of a silk surround suspension and Ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit. A true, 2nd order high-pass filter is employed to further enhance smoothness and improve power handling.
When it comes to value, C1 is the real deal!
Sold as a pair. Grilles not available.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
10 - 100 W / Ch.
System Efficiency
91.5 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
39 Hz - 22 KHz ± 3 dB
JL Audio C1-690x Manual

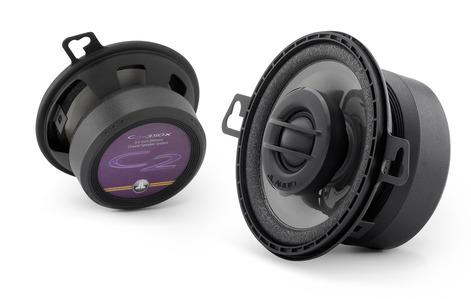

C2-Series 3.5-Inch 25-Watt Coaxial Speaker System
The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and precision-engineered woofer designs.
The C2-350x system features 3.5-inch (90 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
Tweeters are coaxially mounted and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles.
Speaker grilles are not available for this speaker system.
Sonic character: Clean and Dynamic
Sold as a pair.
General Specifications
Continuous Power Handling (RMS)
25 W
Peak Music Power
75 W
Recommended Amplifier Power (RMS)
10 - 40 W / Ch.
System Efficiency
83 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
130 Hz - 22 KHz ± 3 dB
JL Audio C2-350x Manual
C2-Series 4-Inch 35-Watt Coaxial Speaker System
The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and precision-engineered woofer designs.
The C2-400x system features 4-inch (100 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
Breakaway mounting tabs on the woofer frame allow the C2-400x to be installed in four-hole or two-hole configurations. Injection-Molded adaptor plates are also included to allow mounting of the C2-400x speakers into a 4 x 6 (100 x 150 mm) speaker location.
Tweeters are coaxially mounted and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles.
Speaker grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Dynamic
Sold as a pair.
General Specifications
Continuous Power Handling (RMS)
35 W
Peak Music Power
105 W
Recommended Amplifier Power (RMS)
10 - 50 W / Ch.
System Efficiency
84.5 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
71 Hz - 22 KHz ± 3 dB
JL Audio C2-400x Manual
C2-Series 5.25-Inch 60-Watt Coaxial Speaker System
The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and precision-engineered woofer designs.
The C2-525x system features 5.25-inch (130 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
Tweeters are coaxially mounted and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles.
Speaker grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Dynamic
Sold as a pair.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
15 - 100 W / Ch.
System Efficiency
89.0 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
63 Hz - 22 KHz ± 3 dB
JL Audio C2-525x Manual

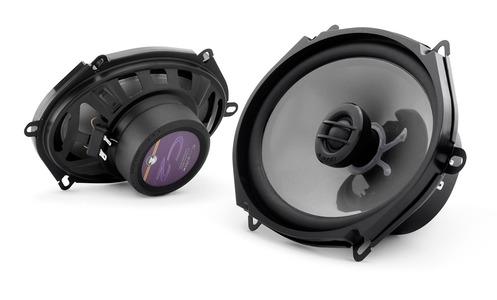

C2-Series 5x7-Inch 60-Watt Coaxial Speaker System
The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and precision-engineered woofer designs.
Many people mistakenly believe that an oval speaker cannot perform as well as a round one, leading to many instances of 5.25-inch speakers being installed into 5 x 7-inch openings. JL Audio has put in the engineering time and effort to create fantastic-sounding speakers that drop into oval openings and deliver equivalent performance to JL's 6.5-inch (165 mm) round speaker systems... guaranteed. So, don't make the mistake of losing cone area and efficiency by stepping down to a smaller round speaker... these ovals are as impressive as our round format systems.
The C2-570x system features 5 x 7 / 6 x 8-inch (125 x 180 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
Tweeters are coaxially mounted and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles.
Grilles are not available for this speaker system.
Sonic character: Clean and Dynamic
Sold as a pair.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
15 - 100 W / Ch.
System Efficiency
90.5 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
53 Hz - 22 KHz ± 3 dB
JL Audio C2-570x Manual

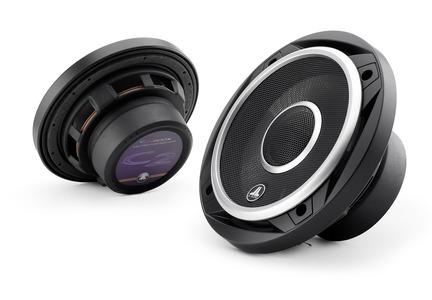

C2-Series 6-Inch 60-Watt Coaxial Speaker System
The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and precision-engineered woofer designs.
The C2-600x system features 6-inch (150 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
The 6-inch (150 mm) format is a direct fit in many vehicles. Multiple mounting patterns are provided on the woofer frame for easy installation into most vehicles that accept a 6.5-inch (165 mm) speaker.
Tweeters are coaxially mounted and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles.

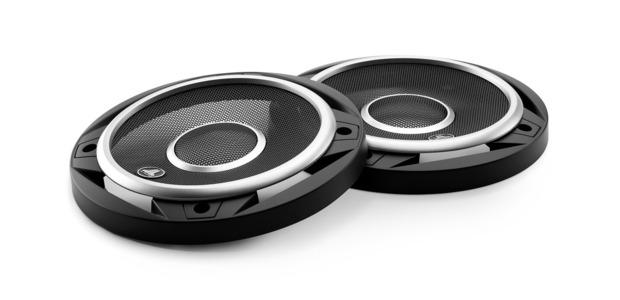

Woofer grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Dynamic
Sold as a pair.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
15 - 100 W / Ch.
System Efficiency
90.5 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
59 Hz - 22 KHz ± 3 dB
JL Audio C2-600x Manual

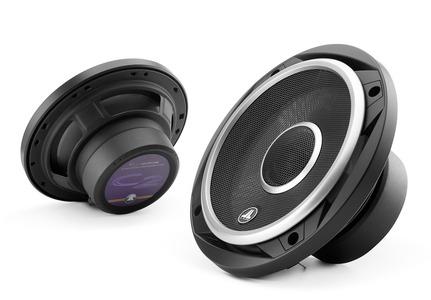

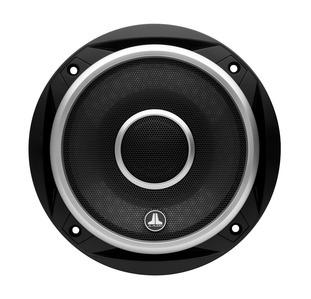

C2-Series 6.5-Inch 60-Watt Coaxial Speaker System
The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and precision-engineered woofer designs.
The C2-650x system features 6.5-inch (165 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
The 6.5-inch (165 mm) format is a direct fit in many vehicles. Multiple mounting patterns are provided on the woofer frame for easy installation into most vehicles that accept a 6.5-inch (165 mm) speaker.
Tweeters are coaxially mounted and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles.
Woofer grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Dynamic
Sold as a pair.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
15 - 100 W / Ch.
System Efficiency
91 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
59 Hz - 22 KHz ± 3 dB
JL Audio C2-650x Manual
C2-Series 6x9" 70-Watt 3-Way Coaxial Speaker System
The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and precision-engineered woofer designs.
The C2-690tx system features 6 x 9-inch (150 x 230 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
The 6 x 9-inch (150 x 230 mm) format is a direct fit in many vehicles.
The Mid-Range driver is ferrofluid-cooled, with a 2-inch Mylar® cone diaphragm to smoothly bridge the gap between the woofer and the dome tweeter.
Tweeters are mounted next to the mid-range driver and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles.
Woofer grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Dynamic
Sold as a pair.
General Specs
Continuous Power Handling (RMS)
70 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
15 - 125 W / Ch.
System Efficiency
93 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
53 Hz - 22 KHz ± 3 dB
JL Audio C2-690tx Manual
C2-Series 6x9" 70-Watt 3-Way Coaxial Speaker System
The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and precision-engineered woofer designs.
The C2-690tx system features 6 x 9-inch (150 x 230 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
The 6 x 9-inch (150 x 230 mm) format is a direct fit in many vehicles.
The Mid-Range driver is ferrofluid-cooled, with a 2-inch Mylar® cone diaphragm to smoothly bridge the gap between the woofer and the dome tweeter.
Tweeters are mounted next to the mid-range driver and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles.
Woofer grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Dynamic
Sold as a pair.
General Specs
Continuous Power Handling (RMS)
70 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
15 - 125 W / Ch.
System Efficiency
93 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
53 Hz - 22 KHz ± 3 dB
JL Audio C2-690tx Manual
C3-Series 5.25-Inch 75-Watt Convertible Component Speaker System
There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.
The C3-525 system features 5.25-inch (130 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cones and injection-molded polymer baskets. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
The C3 tweeters are built with 1-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. They can also be mounted onto the woofers in a coaxial format using the included fixtures.
C3 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Four levels of tweeter attenuation are provided, as well as three levels of mid-range presence adjustment, for twelve possible voicing combinations!
Woofer grilles are included, each consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Powerful
Sold as a pair.
General Specifications
Continuous Power Handling (RMS)
75 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
25 - 150 W / Ch.
System Efficiency
90.0 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
48 Hz - 25 KHz ± 3 dB
JL Audio C3-525 Manual
C3-Series 5x7" 75-Watt Convertible Component Speaker System
There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.
Many people mistakenly believe that an oval speaker cannot perform as well as a round one, leading to many instances of 5.25-inch speakers being installed into 5 x 7-inch openings. JL Audio has put in the engineering time and effort to create fantastic-sounding speakers that drop into oval openings and deliver equivalent performance to our 6.5-inch (165 mm) round speaker systems... guaranteed. So, don't make the mistake of losing cone area and efficiency by stepping down to a smaller round speaker... these ovals are as impressive as our round format systems.
The C3-570 system features 5 x 7 / 6 x 8-inch (125 x 180 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cones and injection-molded polymer baskets. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
The C3 tweeters are built with 1-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. They can also be mounted onto the woofers in a coaxial format using the included fixtures.
C3 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Four levels of tweeter attenuation are provided, as well as three levels of mid-range presence adjustment, for twelve possible voicing combinations!
Woofer grilles are not available for this product.
Sonic character: Clean and Powerful
Sold as a pair.
General Specifications
Continuous Power Handling (RMS)
75 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
25 - 150 W / Ch.
System Efficiency
90.0 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
48 Hz - 25 KHz ± 3 dB
JL Audio C3-570 Manual
C3-Series 6-Inch 75-Watt Convertible Component Speaker System
There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.
The new C3-600 expands the C3 lineup with a direct-fit product for many Japanese vehicles that will not accept a full-size 6.5-inch speaker.
The C3-600 system features 6-inch (150 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cones and injection-molded polymer baskets. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
The C3 tweeters are built with 1-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. They can also be mounted onto the woofers in a coaxial format using the included fixtures.
C3 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Four levels of tweeter attenuation are provided, as well as three levels of mid-range presence adjustment, for twelve possible voicing combinations!
Woofer grilles are included, each consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Powerful
Sold as a pair.
General Specifications
Continuous Power Handling (RMS)
75 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
25 - 150 W / Ch.
System Efficiency
89.5 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
50 Hz - 25 KHz ± 3 dB
JL Audio C3-600 Manual
C3-Series 6.5-Inch 75-Watt Convertible Component Speaker System
There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.
The C3-650 system features 6.5-inch (165 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cones and injection-molded polymer baskets. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
The C3 tweeters are built with 1-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. They can also be mounted onto the woofers in a coaxial format using the included fixtures.
C3 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Four levels of tweeter attenuation are provided, as well as three levels of mid-range presence adjustment, for twelve possible voicing combinations!
Woofer grilles are included, each consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Powerful
Sold as a pair.
General Specifications
Continuous Power Handling (RMS)
75 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
25 - 150 W / Ch.
System Efficiency
90.0 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
48 Hz - 25 KHz ± 3 dB
JL Audio C3-650 Manual
5.25-Inch 50-Watt Coaxial Motorcycle Speakers, 2-Ohm or 4-Ohm Voice Coil
Kicker 10PS5250 speakers are designed by bike riders and power-sports enthusiasts to sound good and last through every kind of weather.
The Kicker PS 5.25 Inch 2Ω Motorcycle Coaxial Speaker is built to sound great on the road or the trail.These 5 1/4" Motorcycle speakers are weatherproof with a lightweight design featuring titanium tweeters and neodymium magnets. These Kicker 50 watt speakers deliver clean and crisp sound even through road, wind and motor noise. Add a Kicker PXA weatherproof amplifier and you will be ready for the road or the trail.These Kicker 10PS5250 speakers work best with 50 watts of recommended power.
Specifications
Woofer
5 1/4", 133mm
Tweeters
3/4", 20mm
Impedance
2Ω or 4Ω
Max Rec Amp Power (watts PEAK/RMS)
100W/50W
Sensitivity
88.3dB @ 1w/1m
Frequency Response
60Hz - 20kHz
Mounting Hole Diameter
4 7/8", 124mm
Mounting Depth
2 3/16", 56mm
Weight
12.6oz, 358g
Grilles
Yes (H-D Bat-wing)
Kicker 10PS5250 Manual
4-Inch 50-Watt RMS Coaxial Motorcycle Speakers, 2-Ohm or 4-Drivers
The 40PS4 motorcycle speakers by Kicker are designed by bike riders and powersports enthusiasts, to sound good while remaining lightweight and weatherproof. These drivers are the perfect solution for motorcycles, ATV’s and Side by Sides.
The 40PS42 and 40PS44 are weatherproof speakers and are made to deliver clean, crisp music, on the road and off – even through a helmet. Kicker construction that stands up to the elements is combined with high-grade sound quality, without modifying your motorcycle speaker fairing or adding unwanted weight to your power sport machine. Add a Kicker PXA amplifier to your bike to complement the rough roads, and rougher trails.These PSM speakers work best with 50 watts of recommended power.
Specifications
Woofer (in, mm)
4, 100
Tweeters (in, mm)
3/4, 20
Impedance (Ohms)
2
Max Rec Amp Power (watts PEAK/RMS)
100/50
Sensitivity (dB 1w/1m)
85.8
Frequency Response (Hz)
100 - 20k
Mounting Hole Diameter (in, mm)
3 5/8, 93
Mounting Depth (in, mm)
1 11/16, 43
Weight (oz, g)
11.9, 338
Grilles
Yes
Kicker 40PS4 Manual
6 x 9-Inch 90-Watt RMS Coaxial Motorcycle Speakers, 2-Ohm or 4-Ohm Drivers
The 6x9" P40PS motorcycle coaxial speakers by Kicker are designed by bike riders and power-sports enthusiasts to sound good and last while retaining a weatherproof rating. These 90W Kicker speakers are the perfect solution for motorcycles, ATV’s and Side-by-Sides.
The Kicker PS 6x9" Coaxial Speaker
Includes One Pair Of 6x9" Speakers
2 or 4 Ohm Voice Coil
Recommended Power 90 Watts - Peak 180 Watts
High-Efficiency Titanium Tweeter
Perfect Fairing Drop-Ins
The Kicker 40PS692 and 40PS694 weather-proof drivers are a perfect fairing drop-in on many motorcycles. Use these 6x9-inch speakers with UTV, ATV, marine, or outdoor systems. The rugged PS69 system utilizes heavy-duty ceramic magnets for high power handling and volume for ultra-clear music reproduction through helmets - even at highway speeds.
Specifications
Woofer (in, mm)
6 x 9, 150 x 230
Tweeters (in, mm)
1, 25
Impedance (Ohms)
2
Max Rec Amp Power (watts PEAK/RMS)
180/90
Sensitivity (dB 1w/1m)
87.3
Frequency Response (Hz)
40 - 20k
Mounting Hole Diameter (in, mm)
5/8 x 8-7/16, 143 x 214
Mounting Depth (in, mm)
3 1/4, 83
Weight (oz, g)
43.5, 1233
Grilles
Yes
Kicker 40PS69 Manual
6-3/4" 100-Watt Coaxial Speakers
This pair of QS series 6.75" coaxial audiophile speaker drivers by Kicker feature neodymium magnets on the woofer and tweeter, and are bi-amp capable.
Incased within the speaker chassis is you will find a 25mm Teteron® dome tweeter with Kicker's custom wave guide technology for near perfect phase alignment for smooth frequency response. The injection-molded Polypropylene cone of this coaxial door speaker is impregnated with carbon-fiber for tight, accurate midrange. An NBR rubber surround provides superior damping, and complemented by a signature blue double surround stitching.
The independent 18dB crossover has been optimized for size, and features built-in tweeter protection. Utilizing Metallized Polypropylene capacitors, high-powered resistors and audiophile-grade air-core inductors, the crossover delivers outstanding overall sound quality and easy mounting in a door or under a seat.
These Kicker QS 6-and-3/4 inch door speakers have an amplified RMS power range of 100W. This pair of drivers also has speaker adaptor rings, allowing them to be installed using select factory location mounting.
Specifications
Woofer (in., mm)
6 ¾, 165
Tweeter (in., mm)
1, 25
Tweeter dome material
Teteron®
Rated Impedance [Ω]
4
Recommended Amplifier Power (watts RMS)
100
Peak Power (watts, per ANSI/CTA-2031-A)
200
Sensitivity [1W, 1m]
86dB
Frequency Response [Hz]
40-20k
Woofer Mounting Hole Diameter [in, mm]
5 9/16, 141
Woofer Mounting Depth [in, mm]
2 9/16, 64.9
High Pass [dB], at Frequency [Hz]
18, 5.5k
Low Pass [dB], at Frequency [Hz]
18, 5.5k
Comments
Crossover is bi-amp capable.
Kicker QS Series Coaxial Speaker Manual
6x9-Inch 100-Watt Coaxial Speakers
This pair of QS series 6x9" coaxial audiophile speaker drivers by Kicker feature neodymium magnets on the woofer and tweeter, and are bi-amp capable.
Incased within the speaker chassis is you will find a 25mm Teteron® dome tweeter with Kicker's custom wave guide technology for near perfect phase alignment for smooth frequency response. The injection-molded Polypropylene cone of this coaxial door speaker is impregnated with carbon-fiber for tight, accurate midrange. An NBR rubber surround provides superior damping, and complemented by a signature blue double surround stitching.
The independent 18dB crossover has been optimized for size, and features built-in tweeter protection. Utilizing Metallized Polypropylene capacitors, high-powered resistors and audiophile-grade air-core inductors, the crossover delivers outstanding overall sound quality and easy mounting in a door or under a seat.
These Kicker QS 6x9 inch door speakers have an amplified RMS power range of 100W. This pair of drivers also has speaker adaptor rings, allowing them to be installed using select factory location mounting.
Specifications
Woofer (in., mm)
6x9, 160x230
Tweeter (in., mm)
1, 25
Tweeter dome material
Teteron®
Rated Impedance [Ω]
4
Recommended Amplifier Power (watts RMS)
100
Peak Power (watts, per ANSI/CTA-2031-A)
200
Sensitivity [1W, 1m]
88dB
Frequency Response [Hz]
30-20k
Woofer Mounting Hole Diameter [in, mm]
4-13/16x8-5/8, 121.9x219
Woofer Mounting Depth [in, mm]
3, 76.2
High Pass [dB], at Frequency [Hz]
18, 5.5k
Low Pass [dB], at Frequency [Hz]
18, 5.5k
Comments
Crossover is bi-amp capable.
Kicker QS Series Coaxial Speaker Manual
30-Watt 3.5-Inch Coaxial Speakers, 4-Ohm
These CS series 3.5" coaxial speakers by Kicker are a significant upgrade in your sound. A stamped-steel speaker driver chassis supports a rigid polypropylene cone and UV-treated foam surrounds that stand up to heat and direct sunlight. These 30W coaxial's have neodymium tweeter magnets allow for increased volume in high frequencies.
These Kicker CS series 3 and a 1/2" speakers work best with 30 watts of recommended power.
Specifications
Speaker Design
2 - way
Woofer Size | in [mm]
3 1/2 [89]
Tweeter Size | in [mm]
1/2 [13]
DC Resistance | ohm
3.2
Peak Power | Watts
90
Continuous Power | Watts, RMS
30
Sensitivity [SPLo] | dB @ 1W, 1m
88
Effective Frequency Range | Hz
80-20k
Mounting Hole Diameter | in [mm]
3 [78]
Top Mount Depth | in [mm]
1/4 [6]
Bottom Mount Depth | in [mm]
1 11/16 [42]
Tweeter Protrusion | in [mm]
1/8 [3]
Grilles
No
Tweeter Magnet Material
Neodymium
Tweeter Dome Material
PEI [polyether imide]
Tweeter Design
Balanced dome
Woofer Cone Material
Polypropylene
Woofer Surround Material
Polyester foam
Kicker CS Series Coaxial Speaker Manual
4-Inch 50-Watt Coaxial Speakers, 4-Ohm
These CS series 4" coaxial speakers by Kicker are a significant upgrade in your sound. A stamped-steel speaker driver chassis supports a rigid polypropylene cone and UV-treated foam surrounds that stand up to heat and direct sunlight. These 50W coaxial's have neodymium tweeter magnets allow for increased volume in high frequencies.
These Kicker CS series 4" speakers work best with 50 watts of recommended power.
Specifications
Speaker Design
2 - way
Woofer Size | in [mm]
4 [100]
Tweeter Size | in [mm]
1/2 [13]
DC Resistance | ohm
3.5
Peak Power | Watts
150
Continuous Power | Watts, RMS
50
Sensitivity [SPLo] | dB @ 1W, 1m
88
Effective Frequency Range | Hz
60-20k
Mounting Hole Diameter | in [mm]
3 3/4 [95]
Top Mount Depth | in [mm]
1/4 [6]
Bottom Mount Depth | in [mm]
1 13/16 [46]
Tweeter Protrusion | in [mm]
0
Grilles
Yes
Tweeter Magnet Material
Neodymium
Tweeter Dome Material
PEI [polyether imide]
Tweeter Design
Balanced dome
Woofer Cone Material
Polypropylene
Woofer Surround Material
Polyester foam
Kicker CS Series Coaxial Speaker Manual
50-Watt 4x6-Inch Coaxial Speakers, 4-Ohm
These CS series 4x6" coaxial speakers by Kicker are a significant upgrade in your sound. A stamped-steel speaker driver chassis supports a rigid polypropylene cone and UV-treated foam surrounds that stand up to heat and direct sunlight. These 50W coaxial's have neodymium tweeter magnets allow for increased volume in high frequencies.
These Kicker CS series 4 by 6" speakers work best with 50 watts of recommended power.
Specifications
Speaker Design
2 - way
Woofer Size | in [mm]
4x6 [100x160]
Tweeter Size | in [mm]
1/2 [13]
DC Resistance | ohm
3.3
Peak Power | Watts
150
Continuous Power | Watts, RMS
50
Sensitivity [SPLo] | dB @ 1W, 1m
88
Effective Frequency Range | Hz
50-20k
Mounting Hole Diameter | in [mm]
4 x 6 [101x152]
Top Mount Depth | in [mm]
5/16 [7]
Bottom Mount Depth | in [mm]
1 11/16 [43]
Tweeter Protrusion | in [mm]
0
Grilles
No
Tweeter Magnet Material
Neodymium
Tweeter Design
Balanced dome
Woofer Cone Material
Polypropylene
Woofer Surround Material
Polyester foam
Kicker CS Series Coaxial Speaker Manual
75-Watt 5 1/4-Inch Coaxial Speakers, 4-Ohm
These CS series 5.25" coaxial speakers by Kicker are a significant upgrade in your sound. A stamped-steel speaker driver chassis supports a rigid polypropylene cone and UV-treated foam surrounds that stand up to heat and direct sunlight. These 75W coaxial's have neodymium tweeter magnets allow for increased volume in high frequencies.
The Kicker CS series 5 and a 1/4" speakers work best with 75 watts of recommended power.
Specifications
Speaker Design
2 - way
Woofer Size | in [mm]
5 1/4 [130]
Tweeter Size | in [mm]
1/2 [13]
DC Resistance | ohm
3.4
Peak Power | Watts
225
Continuous Power | Watts, RMS
75
Sensitivity [SPLo] | dB @ 1W, 1m
90
Effective Frequency Range | Hz
45-20k
Mounting Hole Diameter | in [mm]
4 1/2 [115]
Top Mount Depth | in [mm]
1/4 [7]
Bottom Mount Depth | in [mm]
1 3/4 [45]
Tweeter Protrusion | in [mm]
0
Grilles
Yes
Tweeter Magnet Material
Neodymium
Tweeter Design
Balanced dome
Woofer Cone Material
Polypropylene
Woofer Surround Material
Polyester foam
100-Watt 6.5-Inch Coaxial Speakers, 4-Ohm
These CS series 6.5" coaxial speakers by Kicker are a significant upgrade in your sound. A stamped-steel speaker driver chassis supports a rigid polypropylene cone and UV-treated foam surrounds that stand up to heat and direct sunlight. These 100W coaxial's have neodymium tweeter magnets allow for increased volume in high frequencies.
These Kicker CS series 6 and a 1/2" speakers work best with 100 watts of recommended power.
Specifications
Speaker Design
2 - way
Woofer Size | in [mm]
6 1/2 [160]
Tweeter Size | in [mm]
1/2 [13]
DC Resistance | ohm
3.3
Peak Power | Watts
300
Continuous Power | Watts, RMS
100
Sensitivity [SPLo] | dB @ 1W, 1m
90
Effective Frequency Range | Hz
40-20k
Mounting Hole Diameter | in [mm]
4 13/16 [123]
Top Mount Depth | in [mm]
3/8 [9]
Bottom Mount Depth | in [mm]
1 11/16 [43]
Tweeter Protrusion | in [mm]
0
Grilles
Yes
Tweeter Magnet Material
Neodymium
Tweeter Dome Material
PEI [polyether imide]
Tweeter Design
Balanced dome
Woofer Cone Material
Polypropylene
Woofer Surround Material
Polyester foam
Kicker CS Series Coaxial Speaker Manual
100-Watt 6.75-Inch Coaxial Speakers, 4-Ohm
These CS series 6.75" coaxial speakers by Kicker are a significant upgrade in your sound. A stamped-steel speaker driver chassis supports a rigid polypropylene cone and UV-treated foam surrounds that stand up to heat and direct sunlight. These 100W coaxial's have neodymium tweeter magnets allow for increased volume in high frequencies.
The Kicker CS series 6 and a 3/4" speakers work best with 100 watts of recommended power.
Specifications
Speaker Design
2 - way
Woofer Size | in [mm]
6 3/4 [165]
Tweeter Size | in [mm]
1/2 [13]
DC Resistance | ohm
3.3
Peak Power | Watts
300
Continuous Power | Watts, RMS
100
Sensitivity [SPLo] | dB @ 1W, 1m
90
Effective Frequency Range | Hz
40-20k
Mounting Hole Diameter | in [mm]
5 1/2 [140]
Top Mount Depth | in [mm]
3/16 [4]
Bottom Mount Depth | in [mm]
1 13/16 [47]
Tweeter Protrusion | in [mm]
0
Grilles
Yes
Tweeter Magnet Material
Neodymium
Tweeter Dome Material
PEI [polyether imide]
Tweeter Design
Balanced dome
Woofer Cone Material
Polypropylene
Woofer Surround Material
Polyester foam
75-Watt 6x8-Inch Coaxial Speakers, 4-Ohm
These CS series 6x8" coaxial speakers by Kicker are a significant upgrade in your sound. A stamped-steel speaker driver chassis supports a rigid polypropylene cone and UV-treated foam surrounds that stand up to heat and direct sunlight. These 75W coaxial's have neodymium tweeter magnets allow for increased volume in high frequencies.
These Kicker CS series 6 by 8" speakers work best with 75 watts of recommended power.
Specifications
Speaker Design
2 - way
Woofer Size | in [mm]
6x8 [160x200]
Tweeter Size | in [mm]
1/2 [13]
DC Resistance | ohm
3.5
Peak Power | Watts
225
Continuous Power | Watts, RMS
75
Sensitivity [SPLo] | dB @ 1W, 1m
90
Effective Frequency Range | Hz
45-20k
Mounting Hole Diameter | in [mm]
5 x 7 3/16 [126x182]
Top Mount Depth | in [mm]
3/8 [9]
Bottom Mount Depth | in [mm]
2 3/16 [56]
Tweeter Protrusion | in [mm]
0
Grilles
No
Tweeter Magnet Material
Neodymium
Tweeter Dome Material
PEI [polyether imide]
Tweeter Design
Balanced dome
Woofer Cone Material
Polypropylene
Woofer Surround Material
Polyester foam
Kicker CS Series Coaxial Speaker Manual
150-Watt 6x9-Inch Coaxial Speakers, 4-Ohm
These CS series 6x9" coaxial speakers by Kicker are a significant upgrade in your sound. A stamped-steel speaker driver chassis supports a rigid polypropylene cone and UV-treated foam surrounds that stand up to heat and direct sunlight. These 150W coaxial's have neodymium tweeter magnets allow for increased volume in high frequencies.
These Kicker CS series 6 by 9" speakers work best with 150 watts of recommended power.
Specifications
Speaker Design
3 - way
Woofer Size | in [mm]
6x9 [160x230]
Mid Size | in [mm]
2 [50]
Tweeter Size | in [mm]
1/2 [13]
DC Resistance | ohm
3.5
Peak Power | Watts
450
Continuous Power | Watts, RMS
150
Sensitivity [SPLo] | dB @ 1W, 1m
92
Effective Frequency Range | Hz
30-20k
Mounting Hole Diameter | in [mm]
5 5/8 x 8 7/16 [143x215]
Top Mount Depth | in [mm]
7/16 [12]
Bottom Mount Depth | in [mm]
3 3/16 [81]
Tweeter Protrusion | in [mm]
1/16 [1]
Grilles
Yes
Tweeter Magnet Material
Electric Crystal Motor
Tweeter Dome Material
PEI [polyether imide]
Tweeter Design
Balanced dome
Woofer Cone Material
Polypropylene
Woofer Surround Material
Polyester foam
Kicker CS Series Coaxial Speaker Manual
3-1/2" Coaxial Speaker Drivers, 50-Watt RMS
The Kicker KS series three-and-a-half-inch coaxial speakers let you play at concert-like volume, yet maintain the smoothness and subtlety to please even the most selective ear. They work best with 15 to 50 watts of recommended power.
High power handling
Tough rubber surrounds
Thin-mount design easily fits behind factory grilles
Specifications
Speaker Design
2-Way
Woofer [in, mm]
3-½, 89
Tweeter [in, mm]
½, 13
Rated Impedance [Ω]
4
Recommended Amplifier Power [Watts RMS]
15-50
Sensitivity [1W, 1m]
88
Frequency Response [Hz]
80-20k
Mounting Hole Diameter [in, mm]
3-1⁄16, 78
Top Mount Depth [in, mm]
1-5⁄8, 41.5
Bottom Mount Depth [in,mm]
1-7⁄8, 49
Tweeter Protrusion [in,mm]
3/16, 4
Grilles
No
Tweeter Magnet Material
Neodymium
Tweeter Dome Material
Silk
Woofer Cone Material
Polypropylene
Woofer Surround Material
Rubber
Kicker KS Series Coaxial Speaker Manual
Four-Inch Coaxial Midrange-Tweeter Drivers, 75-Watt RMS
The Kicker KS series four-inch coaxial speakers come with a custom bracket option built specifically to fit in today’s GM, Chrysler, Subaru, Toyota and Jeep factory speaker locations.
KS series speakers let you play at concert-like volume, yet maintain the smoothness and subtlety to please even the most selective ear. They work best with 15 to 75 watts of recommended power.
High power handling
Tough rubber surrounds
Thin-mount design easily fits behind factory grilles
Brackets for select GM/Chrysler/Subaru/Jeep and Toyota included
Specifications
Speaker Design
2-Way
Woofer [in, mm]
4, 100
Tweeter [in, mm]
½, 13
Rated Impedance [Ω]
4
Recommended Amplifier Power [Watts RMS]
15-75
Sensitivity [1W, 1m]
88
Frequency Response [Hz]
60-20k
Mounting Hole Diameter [in, mm]
3-11⁄16, 94
Top Mount Depth [in, mm]
1-13⁄16, 46
Bottom Mount Depth [in,mm]
2-1⁄16, 51
Tweeter Protrusion [in,mm]
1/8, 3
Grilles
Yes
Tweeter Magnet Material
Neodymium
Tweeter Dome Material
Silk
Woofer Cone Material
Polypropylene
Woofer Surround Material
Rubber
Kicker KS Series Coaxial Speaker Manual
Four-by-Ten-Inch Coaxial Speaker Drivers, 75-Watt RMS
KS series speakers let you play at concert-like volume, yet maintain the smoothness and subtlety to please even the most selective ear. They work best with 15 to 75 watts of recommended power.
High power handling
Tough rubber surrounds
Thin-mount design easily fits behind factory grilles
Specifications
Speaker Design
2-Way
Woofer [in, mm]
4x10, 100x250
Tweeter [in, mm]
½, 13
Rated Impedance [Ω]
4
Recommended Amplifier Power [Watts RMS]
15-75
Sensitivity [1W, 1m]
88
Frequency Response [Hz]
45-20k
Mounting Hole Diameter [in, mm]
3-7/8 x 9-3/8, 99 x 238
Top Mount Depth [in, mm]
2-3/8, 61
Bottom Mount Depth [in,mm]
2-13/16, 71
Tweeter Protrusion [in,mm]
0
Grilles
No
Tweeter Magnet Material
Neodymium
Tweeter Dome Material
Silk
Woofer Cone Material
Polypropylene
Woofer Surround Material
Rubber
Kicker KS Series Coaxial Speaker Manual
Four-by-Six-Inch Coaxial Speaker Drivers, 75-Watt RMS
The Kicker KS series 4x6-inch coaxial speakers let you play at concert-like volume, yet maintain the smoothness and subtlety to please even the most selective ear. They work best with 15 to 75 watts of recommended power.
High power handling
Tough rubber surrounds
Thin-mount design easily fits behind factory grilles
Specifications
Speaker Design
2-Way
Woofer [in, mm]
4x6, 100x160
Tweeter [in, mm]
½, 13
Rated Impedance [Ω]
4
Recommended Amplifier Power [Watts RMS]
15-75
Sensitivity [1W, 1m]
88
Frequency Response [Hz]
50-20k
Mounting Hole Diameter [in, mm]
4x5-5⁄16, 101x151
Top Mount Depth [in, mm]
1-11⁄16, 44
Bottom Mount Depth [in,mm]
2, 51
Tweeter Protrusion [in,mm]
1/16, 2
Grilles
No
Tweeter Magnet Material
Neodymium
Tweeter Dome Material
Silk
Woofer Cone Material
Polypropylene
Woofer Surround Material
Rubber
Kicker KS Series Coaxial Speaker Manual
5-1/4-Inch Coaxial Speaker Drivers, 75-Watt RMS
The Kicker KS series five-and-a-quarter-inch coaxial speakers come with three custom bracketing options, built specifically to fit in today’s GM, Chrysler, Subaru, Toyota and Jeep factory speaker locations.
KS series speakers let you play at concert-like volume, yet maintain the smoothness and subtlety to please even the most selective ear. They work best with 15 to 75 watts of recommended power.
High power handling
Tough rubber surrounds
Thin-mount design easily fits behind factory grilles
Brackets for select GM/Chrysler/Subaru/Jeep and Toyota included
Specifications
Speaker Design
2-Way
Woofer [in, mm]
5-1/4, 130
Tweeter [in, mm]
¾, 20
Rated Impedance [Ω]
4
Recommended Amplifier Power [Watts RMS]
15-75
Sensitivity [1W, 1m]
90
Frequency Response [Hz]
45-21k
Mounting Hole Diameter [in, mm]
4-1/2, 115
Top Mount Depth [in, mm]
1-3/4, 45
Bottom Mount Depth [in,mm]
2, 52
Tweeter Protrusion [in,mm]
1/4, 6
Grilles
Yes
Tweeter Magnet Material
Neodymium
Tweeter Dome Material
Silk
Woofer Cone Material
Polypropylene
Woofer Surround Material
Rubber
Kicker KS Series Coaxial Speaker Manual
6-1/2-Inch Coaxial Speaker Drivers, 100-Watt RMS
The Kicker KS series six-and-a-half-inch coaxial speakers come with three custom bracketing options, built specifically to fit in today’s GM, Chrysler, Subaru, Toyota and Jeep factory speaker locations.
KS series speakers let you play at concert-like volume, yet maintain the smoothness and subtlety to please even the most selective ear. They work best with 15 to 100 watts of recommended power.
High power handling
Tough rubber surrounds
Thin-mount design easily fits behind factory grilles
Brackets for select GM/Chrysler/Subaru/Jeep and Toyota included
Specifications
Speaker Design
2-Way
Woofer [in, mm]
6-1/2, 160
Tweeter [in, mm]
¾, 20
Rated Impedance [Ω]
4
Recommended Amplifier Power [Watts RMS]
15-100
Sensitivity [1W, 1m]
90
Frequency Response [Hz]
43-21k
Mounting Hole Diameter [in, mm]
4-13/16, 123
Top Mount Depth [in, mm]
1-13/16, 46
Bottom Mount Depth [in,mm]
2-3/16, 54
Tweeter Protrusion [in,mm]
5/16, 8
Grilles
Yes
Tweeter Magnet Material
Neodymium
Tweeter Dome Material
Silk
Woofer Cone Material
Polypropylene
Woofer Surround Material
Rubber
Kicker KS Series Coaxial Speaker Manual
6.75-Inch Coaxial Speaker Drivers, 100-Watt RMS
The Kicker KS series six-and-three-quarter-inch coaxial speakers come with three custom bracketing options, built specifically to fit in today’s GM, Chrysler, Subaru, Toyota and Jeep factory speaker locations.
KS series speakers let you play at concert-like volume, yet maintain the smoothness and subtlety to please even the most selective ear. They work best with 15 to 100 watts of recommended power.
High power handling
Tough rubber surrounds
Thin-mount design easily fits behind factory grilles
Brackets for select GM/Chrysler/Subaru/Jeep and Toyota included
Specifications
Speaker Design
2-Way
Woofer [in, mm]
6-3/4, 165
Tweeter [in, mm]
¾, 20
Rated Impedance [Ω]
4
Recommended Amplifier Power [Watts RMS]
15-100
Sensitivity [1W, 1m]
90
Frequency Response [Hz]
40-21k
Mounting Hole Diameter [in, mm]
5-9/16, 141
Top Mount Depth [in, mm]
1-13/16, 46
Bottom Mount Depth [in,mm]
2, 50
Tweeter Protrusion [in,mm]
3/8, 10
Grilles
Yes
Tweeter Magnet Material
Neodymium
Tweeter Dome Material
Silk
Woofer Cone Material
Polypropylene
Woofer Surround Material
Rubber
Kicker KS Series Coaxial Speaker Manual
