C1-Series 6.5-Inch 50-Watt Component Speaker System
C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles.
To facilitate fit, multi-application adaptor rings are included for the C1-650 woofers, allowing easy, drop-in installation in vehicles equipped with oversized 6.5-inch and 6.75-inch speaker openings. Without the ring, the woofers will also fit into many "6-inch" speaker locations as well. Surface and flush mounts are included with C1 tweeters for maximum installation versatility.
C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-650 is a proprietary, stamped, steel 6.50-inch (165 mm) frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control the voice coil's motion. Tinsel leads are carefully routed and attached to the spiders to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.
Equipped with a true, edge-driven, aluminum dome tweeter, C1 speakers stand further apart from others in its category with superior high-frequency clarity and definition. The tweeter’s design has inherently excellent off-axis response and high-frequency extension. It also benefits from the damping of a silk surround suspension and Ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit. An in-line, outboard 2nd order high-pass filter, with Advanced Tweeter Protection Circuitry, is included to further enhance smoothness and improve power handling.
When it comes to value, C1 is the real deal!
Sold as a pair. Grilles not available.
General Specifications
Continuous Power Handling (RMS)
50 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
10 - 75 W / Ch.
System Efficiency
91.0 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
59 Hz - 22 KHz ± 3 dB
JL Audio C1-650 Manual
C1-Series 6x9-Inch 60-Watt Component Speaker System
C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles.
To facilitate fit, spacer/adaptor rings are included allowing the C1-690 woofers to be installed in bottom-mount applications. Surface and flush mounts are included with C1 tweeters for maximum installation versatility.
C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-690 is a proprietary, stamped, steel 6 x 9-inch (150 x 230 mm) oval frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control motion and prevent impact between the voice coil and the back plate. Tinsel leads are carefully routed and attached to the spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.
Equipped with a true, edge-driven, 1-inch aluminum dome tweeter, the C1-690 stands further apart from others in its category with superior high-frequency clarity and definition. The tweeter’s design has inherently excellent off-axis response and high-frequency extension. It also benefits from the damping of a silk surround suspension and Ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit. An in-line, outboard 2nd order high-pass filter, with Advanced Tweeter Protection Circuitry, is included to further enhance smoothness and improve power handling.
When it comes to value, C1 is the real deal!
Sold as a pair. Grilles not available.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
10 - 100 W / Ch.
System Efficiency
89.0 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
39 Hz - 22 KHz ± 3 dB
JL Audio C1-690 Manual
C1-Series 6.5-Inch 50-Watt Coaxial Speaker System
C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles.
To facilitate fit, multi-application adaptor rings are included with the C1-650x allowing easy, drop-in installation in vehicles equipped with oversized 6.5-inch and 6.75-inch speaker openings. Without the ring, the speaker will fit into many "6-inch" speaker locations as well.
C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-650x is a proprietary, stamped, steel 6.50-inch (165 mm) frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control the voice coil's motion. Tinsel leads are carefully routed and attached to the spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.
Equipped with a true, edge-driven, aluminum dome tweeter, C1 speakers stand further apart from others in its category with superior high-frequency clarity and definition. The tweeter’s design has inherently excellent off-axis response and high-frequency extension. It also benefits from the damping of a silk surround suspension and Ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit. A true, 2nd order high-pass filter is employed to further enhance smoothness and improve power handling.
When it comes to value, C1 is the real deal!
Sold as a pair. Grilles not available.
General Specifications
Continuous Power Handling (RMS)
50 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
10 - 75 W / Ch.
System Efficiency
90.5 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
48 Hz - 24 KHz ± 3 dB
JL Audio C1-650x Manual
6-1/2-Inch Coaxial Speaker Drivers, 100-Watt RMS
The Kicker KS series six-and-a-half-inch coaxial speakers come with three custom bracketing options, built specifically to fit in today’s GM, Chrysler, Subaru, Toyota and Jeep factory speaker locations.
KS series speakers let you play at concert-like volume, yet maintain the smoothness and subtlety to please even the most selective ear. They work best with 15 to 100 watts of recommended power.
High power handling
Tough rubber surrounds
Thin-mount design easily fits behind factory grilles
Brackets for select GM/Chrysler/Subaru/Jeep and Toyota included
Specifications
Speaker Design
2-Way
Woofer [in, mm]
6-1/2, 160
Tweeter [in, mm]
¾, 20
Rated Impedance [Ω]
4
Recommended Amplifier Power [Watts RMS]
15-100
Sensitivity [1W, 1m]
90
Frequency Response [Hz]
43-21k
Mounting Hole Diameter [in, mm]
4-13/16, 123
Top Mount Depth [in, mm]
1-13/16, 46
Bottom Mount Depth [in,mm]
2-3/16, 54
Tweeter Protrusion [in,mm]
5/16, 8
Grilles
Yes
Tweeter Magnet Material
Neodymium
Tweeter Dome Material
Silk
Woofer Cone Material
Polypropylene
Woofer Surround Material
Rubber
Kicker KS Series Coaxial Speaker Manual
5-1/4-Inch Coaxial Speaker Drivers, 75-Watt RMS
The Kicker KS series five-and-a-quarter-inch coaxial speakers come with three custom bracketing options, built specifically to fit in today’s GM, Chrysler, Subaru, Toyota and Jeep factory speaker locations.
KS series speakers let you play at concert-like volume, yet maintain the smoothness and subtlety to please even the most selective ear. They work best with 15 to 75 watts of recommended power.
High power handling
Tough rubber surrounds
Thin-mount design easily fits behind factory grilles
Brackets for select GM/Chrysler/Subaru/Jeep and Toyota included
Specifications
Speaker Design
2-Way
Woofer [in, mm]
5-1/4, 130
Tweeter [in, mm]
¾, 20
Rated Impedance [Ω]
4
Recommended Amplifier Power [Watts RMS]
15-75
Sensitivity [1W, 1m]
90
Frequency Response [Hz]
45-21k
Mounting Hole Diameter [in, mm]
4-1/2, 115
Top Mount Depth [in, mm]
1-3/4, 45
Bottom Mount Depth [in,mm]
2, 52
Tweeter Protrusion [in,mm]
1/4, 6
Grilles
Yes
Tweeter Magnet Material
Neodymium
Tweeter Dome Material
Silk
Woofer Cone Material
Polypropylene
Woofer Surround Material
Rubber
Kicker KS Series Coaxial Speaker Manual
Six-by-Eight-Inch Coaxial Speaker Drivers, 75-Watt RMS
The Kicker KS series six-by-8-inch coaxial speakers let you play at concert-like volume, yet maintain the smoothness and subtlety to please even the most selective ear. They work best with 15 to 75 watts of recommended power.
High power handling
Tough rubber surrounds
Thin-mount design easily fits behind factory grilles
Brackets for select GM/Chrysler/Subaru/Jeep and Toyota included
Specifications
Speaker Design
2-Way
Woofer [in, mm]
6 x 8, 160 x 200
Tweeter [in, mm]
¾, 20
Rated Impedance [Ω]
4
Recommended Amplifier Power [Watts RMS]
15-75
Sensitivity [1W, 1m]
90
Frequency Response [Hz]
45-21k
Mounting Hole Diameter [in, mm]
5 x 7-3/16, 127 x 182
Top Mount Depth [in, mm]
2-1/4, 58
Bottom Mount Depth [in,mm]
2-5/8, 67
Tweeter Protrusion [in,mm]
1/16, 2
Grilles
No
Tweeter Magnet Material
Neodymium
Tweeter Dome Material
Silk
Woofer Cone Material
Polypropylene
Woofer Surround Material
Rubber
Kicker KS Series Coaxial Speaker Manual
100-Watt 6.5-Inch Coaxial Speakers, 4-Ohm
These CS series 6.5" coaxial speakers by Kicker are a significant upgrade in your sound. A stamped-steel speaker driver chassis supports a rigid polypropylene cone and UV-treated foam surrounds that stand up to heat and direct sunlight. These 100W coaxial's have neodymium tweeter magnets allow for increased volume in high frequencies.
These Kicker CS series 6 and a 1/2" speakers work best with 100 watts of recommended power.
Specifications
Speaker Design
2 - way
Woofer Size | in [mm]
6 1/2 [160]
Tweeter Size | in [mm]
1/2 [13]
DC Resistance | ohm
3.3
Peak Power | Watts
300
Continuous Power | Watts, RMS
100
Sensitivity [SPLo] | dB @ 1W, 1m
90
Effective Frequency Range | Hz
40-20k
Mounting Hole Diameter | in [mm]
4 13/16 [123]
Top Mount Depth | in [mm]
3/8 [9]
Bottom Mount Depth | in [mm]
1 11/16 [43]
Tweeter Protrusion | in [mm]
0
Grilles
Yes
Tweeter Magnet Material
Neodymium
Tweeter Dome Material
PEI [polyether imide]
Tweeter Design
Balanced dome
Woofer Cone Material
Polypropylene
Woofer Surround Material
Polyester foam
Kicker CS Series Coaxial Speaker Manual
Alpine S2-Series 6-1/2-Inch Coaxial 2-Way Speakers, 80-Watt RMS
Newly redesigned and Hi-Res Audio Certified, the Next-Generation S-Series S2-S65 6.5” Coaxial Speakers offer a new standard in entry-level sound performance.
Using “trickle-down” technology, inspired design, and performance cues from the Ultra-High-Resolution AlpineF#1Status system, the Next-Generation Alpine S-Series Speakers are now Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This new benchmark in sound quality elevates the Next-Gen S-Series Speakers resulting in a more accurate and natural sound at an entry-level price point.
Crafted with a unique combination of Poly Propylene, Glass Fiber, and Mica Cone materials, the S2-S65 is designed for lightweight construction, high output, and low distortion, giving you a clean and accurate audio experience.
Alpine-exclusive High Amplitude Multi- Roll (HAMR) surround technology is integrated into the speaker design which allows for maximum cone movement, delivering powerful and accurate bass notes.
The S-Series S2-S65 is compatible with the KTE-S65G Speaker Grille (sold separately). This sleek and stylish grille will not only add a visual upgrade to your speakers but also provide protection against any damage.
Specifications
Hi-Res Audio Certified (Up to 40kHz)
Poly Propylene, Glass Fiber, and Mica Cone Material
Lightweight Design with High Output and Low Distortion
High-Amplitude Multi-Roll (H.A.M.R.) Surround
Integrated 1” Tweeters (Coaxial)
Compatible with KTE-S65G Speaker Grille (sold separately)
Woofer Size: 6.5”
Tweeter Size: 1” (Coaxial)
Power Handling: 80W RMS / 240W Peak
Frequency Response: 70Hz - 40kHz (Hi-Res)
Sensitivity: 88dB
Alpine S2-Series 6X9-Inch Component 2-Way Speakers, 85-Watt RMS
Newly redesigned and Hi-Res Audio Certified, the Next-Generation S-Series S2-S69C 6x9” Component Speakers offer a new standard in entry-level sound performance.
Using “trickle-down” technology, inspired design, and performance cues from the Ultra- High-Resolution AlpineF#1Status system, the Next-Generation Alpine S-Series Speakers are now Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This new benchmark in sound quality elevates the Next-Gen S-Series Speakers resulting in a more accurate and natural sound at an entry- level price point.
Crafted with a unique combination of Poly Propylene, Glass Fiber, and Mica Cone materials, the S2-S69C is designed for lightweight construction, high output, and low distortion, giving you a clean and accurate audio experience.
Experience a fuller and richer sound with the S2-S69C's unique 3" midrange speakers with built-in 3/4" tweeters. Designed to capture the midrange frequencies present in vocals and acoustic instruments, this added midrange speaker enhances your music like never before.
Alpine-exclusive High Amplitude Multi- Roll (HAMR) surround technology is integrated into the speaker design which allows for maximum cone movement, delivering powerful and accurate bass notes.
The S-Series S2-S69C is compatible with the KTE-S69G Speaker Grille (sold separately). This sleek and stylish grille will not only add a visual upgrade to your speakers but also provide protection against any damage.
Features
Hi-Res Audio Certified (Up to 40kHz)
Poly Propylene, Glass Fiber, and Mica Cone Material
Lightweight Design with High Output and Low Distortion
High-Amplitude Multi-Roll (H.A.M.R.) Surround
Included 3” Mid-Range with built-in 3/4" Tweeter (Coaxial)
OEM Fitment with In-Line Crossovers
Compatible with KTE-S69G Speaker Grille (sold separately)
Specifications
Woofer Size: 6x9”
Mid-Range/Tweeter: 3" with built-in 3/4” Tweeters (Coaxial)
Power Handling: 85W RMS / 260W Peak
Frequency Response: 65Hz - 40kHz (Hi-Res)
Sensitivity: 90dB
C3-Series 6.5-Inch 75-Watt Convertible Component Speaker System
There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.
The C3-650 system features 6.5-inch (165 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cones and injection-molded polymer baskets. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
The C3 tweeters are built with 1-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. They can also be mounted onto the woofers in a coaxial format using the included fixtures.
C3 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Four levels of tweeter attenuation are provided, as well as three levels of mid-range presence adjustment, for twelve possible voicing combinations!
Woofer grilles are included, each consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Powerful
Sold as a pair.
General Specifications
Continuous Power Handling (RMS)
75 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
25 - 150 W / Ch.
System Efficiency
90.0 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
48 Hz - 25 KHz ± 3 dB
JL Audio C3-650 Manual

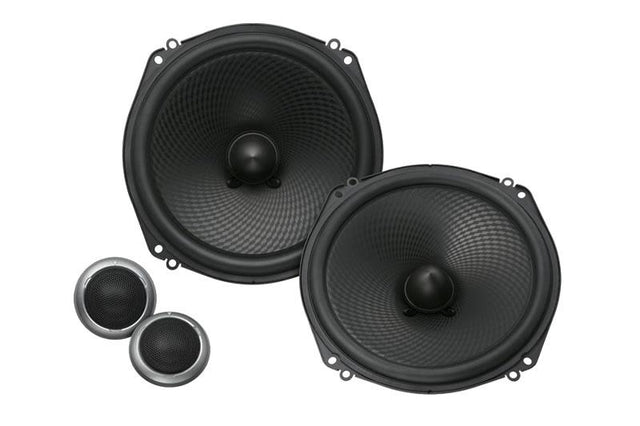

6x9-Inch 125-Watt Component or Coaxial Mountable Speaker System
Kicker KS-Series door-speakers let you play at concert-like volume while pleasing even the most selective ear. Internally dampened polypropylene cones and durable rubber surrounds assist the woofers in creating precise midrange and bass, while high-quality silk-dome tweeters deliver natural, detailed highs.
These 6x9" Kicker speakers component system with separate tweeters, or convert them to a coaxial system. The woofers’ removable bullet-style phase plug is replaced with a special adapter, allowing the 25 millimeter, silk-dome tweeters to rotate and tilt. You get more system design options and superior off-axis performance. They work best with 15 to 125 watts of recommended power. See below for more details.
High power handling
Silk-dome tweeters for a smooth sound
Polypropylene woofer and tough rubber surrounds
Thin-mount design easily fits behind factory grilles
Four tweeter mounting options
Articulating tweeter pod included
Smaller crossover makes mounting even easier
Grilles included
Specifications
Woofer [in, mm]
6x9, 160x230
Tweeter [in,mm]
1, 25
Dome Material
Silk
Rated Impedance [Ω]
4
Recommended Amplifier Power [Watts RMS]
15-150
Sensitivity [1W, 1m]
92
Frequency Response [Hz]
35-21k
Woofer Mounting Hole Diameter [in, mm]
5-5⁄8x8-7⁄16, 143x215
Woofer Bottom Mount Depth [in, mm]
2-15⁄16, 75
Flush Mount Tweeter Hole Diameter [in,mm]
1-¾, 45
Flush Mount Tweeter Depth [in,mm]
11⁄16 , 17
High Pass [dB], at Frequency [Hz]
12, 4,000
Low Pass [dB], at Frequency [Hz]
none
High Frequency Output Attenuation [dB]
0, 4.5, 9
Kicker KS Series Component Speaker Manual
150-Watt 6x9-Inch Coaxial Speakers, 4-Ohm
These CS series 6x9" coaxial speakers by Kicker are a significant upgrade in your sound. A stamped-steel speaker driver chassis supports a rigid polypropylene cone and UV-treated foam surrounds that stand up to heat and direct sunlight. These 150W coaxial's have neodymium tweeter magnets allow for increased volume in high frequencies.
These Kicker CS series 6 by 9" speakers work best with 150 watts of recommended power.
Specifications
Speaker Design
3 - way
Woofer Size | in [mm]
6x9 [160x230]
Mid Size | in [mm]
2 [50]
Tweeter Size | in [mm]
1/2 [13]
DC Resistance | ohm
3.5
Peak Power | Watts
450
Continuous Power | Watts, RMS
150
Sensitivity [SPLo] | dB @ 1W, 1m
92
Effective Frequency Range | Hz
30-20k
Mounting Hole Diameter | in [mm]
5 5/8 x 8 7/16 [143x215]
Top Mount Depth | in [mm]
7/16 [12]
Bottom Mount Depth | in [mm]
3 3/16 [81]
Tweeter Protrusion | in [mm]
1/16 [1]
Grilles
Yes
Tweeter Magnet Material
Electric Crystal Motor
Tweeter Dome Material
PEI [polyether imide]
Tweeter Design
Balanced dome
Woofer Cone Material
Polypropylene
Woofer Surround Material
Polyester foam
Kicker CS Series Coaxial Speaker Manual
Alpine S2-Series 6-1/2-Inch Component 2-Way Speakers, 80-Watt RMS
Newly redesigned and Hi-Res Audio Certified, the Next-Generation S-Series S2-S65C 6.5” Component Speakers offer a new standard in entry-level sound performance.
Using “trickle-down” technology, inspired design, and performance cues from the Ultra- High-Resolution AlpineF#1Status system, the Next-Generation Alpine S-Series Speakers are now Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This new benchmark in sound quality elevates the Next-Gen S-Series Speakers resulting in a more accurate and natural sound at an entry- level price point.
Crafted with a unique combination of Poly Propylene, Glass Fiber, and Mica Cone materials, the S2-S65 is designed for lightweight construction, high output, and low distortion, giving you a clean and accurate audio experience.
Alpine-exclusive High Amplitude Multi- Roll (HAMR) surround technology is integrated into the speaker design which allows for maximum cone movement, delivering powerful and accurate bass notes.
Engineered for versatility, these speakers offer seamless OEM fitment and simplified installation. With in-line crossovers, you can achieve optimal sound separation and precise tuning. The adjustable tweeters feature a flush mount housing that is removable allowing for installations in small OEM tweeter locations.
The S-Series S2-S65 is compatible with the KTE-S65G Speaker Grille (sold separately). This sleek and stylish grille will not only add a visual upgrade to your speakers but also provide protection against any damage.
Specifications
Hi-Res Audio Certified (Up to 40kHz)
Poly Propylene, Glass Fiber, and Mica Cone Material
Lightweight Design with High Output and Low Distortion
High-Amplitude Multi-Roll (H.A.M.R.) Surround
Included 1” Adjustable Tweeters with Threaded Removable Housing (Component)
OEM Fitment with In-Line Crossovers
Compatible with KTE-S65G Speaker Grille (sold separately)
Woofer Size: 6.5”
Tweeter Size: 1” (Component)
Power Handling: 80W RMS / 240W Peak
Frequency Response: 70Hz - 40kHz (Hi-Res)
Sensitivity: 88dB
Alpine R2-Series 100-Watt RMS 2-Way Component 6-1/2 Inch Aftermarket Door Speakers
Using “trickle-down” technology, inspired design, and performance cues from the Ultra-High-Resolution AlpineF#1Status systems, the Next-Generation R-Series Speakers are Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This ultra-wide bandwidth brings music even closer to the original source while the classic R-Series design maintains the “loud and fun” performance quality that long-time fans have come to enjoy.
The new lightweight and rigid glass fiber-reinforced cone material allows for extreme movement and low distortion which results in an incredibly accurate and clean sound during playback.
The Next-Generation R-Series speakers utilize a ferrite magnet, different from the neodymium from previous generations, and a larger motor structure that contributes to more mid-bass during the playback. Despite the larger motor structure, the speakers still maintain the same depth for easy installation.
Continuing with the Next-Generation R-Series speaker line is Alpine-exclusive High Amplitude Multi-Roll (HAMR) surround technology that increased excursions while maintaining linearity for more accurate music reproduction.
Magnesium, hard-dome tweeters contribute to the “loud and fun” R-series sound signature and feature a swivel- mount design for optimal listening positioning and threaded removable housing for flexible factory applications.
The Next-Generation R-Series speaker line offers two pathways for performance: the “Pro” and “Standard” models. The R2-S65C is a standard component speaker set that includes a 6.5” Mid-Range and 1” Tweeter with a flexible in-line crossover network that simplifies installation.
Sold as a pair.
Features
Hi-Res Audio Certified
Glass Fiber Reinforced Cone
Ferrite Magnet Structure
High-Amplitude Multi-Roll (H.A.M.R.) Surround
2 Premium-Grade In-Line Crossover Networks
Magnesium Hard-Dome Tweeters with Swivel Mount Design and Threaded Removable Housing
Protective Open Mesh Grille Pair Included
Specifications
6.5” Mid-Bass with 1” Tweeter
Frequency Response: 65Hz -40kHz
Power Handling: 100W RMS / 300W Peak
3-1/2" Coaxial Speaker Drivers, 50-Watt RMS
The Kicker KS series three-and-a-half-inch coaxial speakers let you play at concert-like volume, yet maintain the smoothness and subtlety to please even the most selective ear. They work best with 15 to 50 watts of recommended power.
High power handling
Tough rubber surrounds
Thin-mount design easily fits behind factory grilles
Specifications
Speaker Design
2-Way
Woofer [in, mm]
3-½, 89
Tweeter [in, mm]
½, 13
Rated Impedance [Ω]
4
Recommended Amplifier Power [Watts RMS]
15-50
Sensitivity [1W, 1m]
88
Frequency Response [Hz]
80-20k
Mounting Hole Diameter [in, mm]
3-1⁄16, 78
Top Mount Depth [in, mm]
1-5⁄8, 41.5
Bottom Mount Depth [in,mm]
1-7⁄8, 49
Tweeter Protrusion [in,mm]
3/16, 4
Grilles
No
Tweeter Magnet Material
Neodymium
Tweeter Dome Material
Silk
Woofer Cone Material
Polypropylene
Woofer Surround Material
Rubber
Kicker KS Series Coaxial Speaker Manual
6.5-Inch 125-Watt Component or Coaxial Mountable Speaker System
Kicker KS-Series door-speakers let you play at concert-like volume while pleasing even the most selective ear. Internally dampened polypropylene cones and durable rubber surrounds assist the woofers in creating precise midrange and bass, while high-quality silk-dome tweeters deliver natural, detailed highs.
These 6.5" Kicker speakers component system with separate tweeters, or convert them to a coaxial system. The woofers’ removable bullet-style phase plug is replaced with a special adapter, allowing the 25 millimeter, silk-dome tweeters to rotate and tilt. You get more system design options and superior off-axis performance. They work best with 15 to 125 watts of recommended power. See below for more details.
High power handling
Silk-dome tweeters for a smooth sound
Polypropylene woofer and tough rubber surrounds
Thin-mount design easily fits behind factory grilles
Four tweeter mounting options
Articulating tweeter pod included
Smaller crossover makes mounting even easier
Grilles included
Specifications
Woofer [in, mm]
6-½, 160
Tweeter [in,mm]
1, 25
Dome Material
Silk
Rated Impedance [Ω]
4
Recommended Amplifier Power [Watts RMS]
15-125
Sensitivity [1W, 1m]
90
Frequency Response [Hz]
35-21k
Woofer Mounting Hole Diameter [in, mm]
4-13⁄16 , 123
Woofer Bottom Mount Depth [in, mm]
1-13⁄16 , 46
Flush Mount Tweeter Hole Diameter [in,mm]
1-¾, 45
Flush Mount Tweeter Depth [in,mm]
11⁄16 , 17
High Pass [dB], at Frequency [Hz]
12, 4,000
Low Pass [dB], at Frequency [Hz]
none
High Frequency Output Attenuation [dB]
0, 4.5, 9
Kicker KS Series Component Speaker Manual
Alpine R2-Series 100-Watt RMS 3-Way Component 6-1/2-Inch Aftermarket Door Speakers
Using “trickle-down” technology, inspired design, and performance cues from the Ultra-High-Resolution AlpineF#1Status systems, the Next-Generation R-Series Speakers are Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This ultra-wide bandwidth brings music even closer to the original source while the classic R-Series design maintains the “loud and fun” performance quality that long-time fans have come to enjoy.
The Next-Generation R-Series speakers now come in upgraded 'Pro' models in addition to the standard model lineup. The pro models utilize a highly rigid, die-cast aluminum basket that eliminates flexing and resonance during playback to ensure the highest quality sound performance.
The new lightweight and rigid glass fiber-reinforced cone material allows for extreme movement and low distortion which results in an incredibly accurate and clean sound during playback.
The Next-Generation R-Series speakers utilize a ferrite magnet, different from the neodymium from previous generations, and a larger motor structure that contributes to more mid-bass during the playback. Despite the larger motor structure, the speakers still maintain the same depth for easy installation.
Continuing with the Next-Generation R-Series speaker line is Alpine-exclusive High Amplitude Multi-Roll (HAMR) surround technology that increased excursions while maintaining linearity for more accurate music reproduction.
Magnesium, hard-dome tweeters contribute to the “loud and fun” R-series sound signature and feature a swivel- mount design for optimal listening positioning and threaded removable housing for flexible factory applications.
The Next-Generation R-Series speaker line offers two pathways for performance: the “Pro” and “Standard” models. The R2-S65C is a standard component speaker set that includes a 6.5” Mid-Range and 1” Tweeter with a flexible in-line crossover network that simplifies installation.
Sold as a pair.
Features
Hi-Res Audio Certified
Glass Fiber Reinforced Cone
Die-Cast Aluminum Basket
Ferrite Magnet Structure
High-Amplitude Multi-Roll (H.A.M.R.) Surround
2 Premium-Grade Full Passive Performance Crossover Networks
Magnesium Hard-Dome Tweeters with Swivel Mount Design and Threaded Removable Housing
Protective Open Mesh Grille Pair Included
Specifications
6.5” Mid-Bass with 1” Tweeter
Frequency Response: 65Hz -40kHz
Power Handling: 100W RMS / 300W Peak
Alpine S-Series 1-Inch Type-S Silk Dome Tweeter Set, 80-Watts RMS
The S-S10TW Tweeter’s motor structure was designed to reduce distortion and increase output at high volumes, so you can turn your music up and still experience crystal clear sound. Brighten up your sound stage without sounding overpowering or compromising sound quality. The silk dome design minimizes harsh highs and instead produces a warm and mellow tone.
The S-S10TW includes a small, in-line crossover made of high-grade electrical components that seamlessly rolls off your midrange while also passively protecting your tweets from low frequency damage. The small size of the crossover also makes installation fast and convenient.
Features
Two (2) 1” Tweeters
High-Grade Neodymium Motor Structure
Silk Dome Tweeter Design
Removeable Alpine Logo
Includes a 15-degree Swivel Flush Cup Housing
Includes a height adjustable stealth OEM mount
Compatible with Alpine’s S-Series
Specifications
Max RMS Power Capacity: 80W
Peak Power Capacity: 240W
Material: Silk
Magnet Type: Neodymium
Voice Coil Type: Copper Clad Aluminum
Crossover: Passive 12dB/Octave High-Pass Filter
Frequency Response: 1kHz-22kHz
Sensitivity: 88dB (1W / 1m)
Impedance: 6 Ohm
Flush Mounting Depth: 17.6mm
Cutout Diameter: 51mm
C2-Series 5x7-Inch 60-Watt Coaxial Speaker System
The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and precision-engineered woofer designs.
Many people mistakenly believe that an oval speaker cannot perform as well as a round one, leading to many instances of 5.25-inch speakers being installed into 5 x 7-inch openings. JL Audio has put in the engineering time and effort to create fantastic-sounding speakers that drop into oval openings and deliver equivalent performance to JL's 6.5-inch (165 mm) round speaker systems... guaranteed. So, don't make the mistake of losing cone area and efficiency by stepping down to a smaller round speaker... these ovals are as impressive as our round format systems.
The C2-570x system features 5 x 7 / 6 x 8-inch (125 x 180 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
Tweeters are coaxially mounted and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles.
Grilles are not available for this speaker system.
Sonic character: Clean and Dynamic
Sold as a pair.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
15 - 100 W / Ch.
System Efficiency
90.5 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
53 Hz - 22 KHz ± 3 dB
JL Audio C2-570x Manual
Alpine R2-Series 100-Watt RMS 2-Way Component 6-Inch x 9-Inch Aftermarket Door Speakers
Using “trickle-down” technology, inspired design, and performance cues from the Ultra-High-Resolution AlpineF#1Status systems, the Next-Generation R-Series Speakers are Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This ultra-wide bandwidth brings music even closer to the original source while the classic R-Series design maintains the “loud and fun” performance quality that long-time fans have come to enjoy.
The new lightweight and rigid glass fiber-reinforced cone material allows for extreme movement and low distortion which results in an incredibly accurate and clean sound during playback.
The Next-Generation R-Series speakers utilize a ferrite magnet, different from the neodymium from previous generations, and a larger motor structure that contributes to more mid-bass during the playback. Despite the larger motor structure, the speakers still maintain the same depth for easy installation.
Continuing with the Next-Generation R-Series speaker line is Alpine-exclusive High Amplitude Multi-Roll (HAMR) surround technology that increased excursions while maintaining linearity for more accurate music reproduction.
Magnesium, hard-dome tweeters contribute to the “loud and fun” R-series sound signature and feature a swivel- mount design for optimal listening positioning and threaded removable housing for flexible factory applic
The Next-Generation R-Series speaker line offers two pathways for performance: the “Pro” and “Standard” models. The R2-S69 is a standard coaxial speaker set that includes a 6x9” Mid-Range and 1” Tweeter with a flexible in-line crossover network that simplifies installation.
Sold as a pair.
Features
Hi-Res Audio Certified
Glass Fiber Reinforced Cone
Die-Cast Aluminum Basket
Ferrite Magnet Structure
High-Amplitude Multi-Roll (H.A.M.R.) Surround
2 Premium-Grade Full Passive Performance Crossover Networks
Magnesium Hard-Dome Tweeters with Swivel Mount Design and Threaded Removable Housing
Protective Open Mesh Grille Pair Included
Specifications
6x9” Mid-Bass with 1” Tweeter
Frequency Response: 60Hz -40kHz
Power Handling: 100W RMS / 300W Peak
Four-by-Six-Inch Coaxial Speaker Drivers, 75-Watt RMS
The Kicker KS series 4x6-inch coaxial speakers let you play at concert-like volume, yet maintain the smoothness and subtlety to please even the most selective ear. They work best with 15 to 75 watts of recommended power.
High power handling
Tough rubber surrounds
Thin-mount design easily fits behind factory grilles
Specifications
Speaker Design
2-Way
Woofer [in, mm]
4x6, 100x160
Tweeter [in, mm]
½, 13
Rated Impedance [Ω]
4
Recommended Amplifier Power [Watts RMS]
15-75
Sensitivity [1W, 1m]
88
Frequency Response [Hz]
50-20k
Mounting Hole Diameter [in, mm]
4x5-5⁄16, 101x151
Top Mount Depth [in, mm]
1-11⁄16, 44
Bottom Mount Depth [in,mm]
2, 51
Tweeter Protrusion [in,mm]
1/16, 2
Grilles
No
Tweeter Magnet Material
Neodymium
Tweeter Dome Material
Silk
Woofer Cone Material
Polypropylene
Woofer Surround Material
Rubber
Kicker KS Series Coaxial Speaker Manual
2-3/4" Coaxial Midrange-Tweeter Drivers, 50-Watt RMS
The Kicker KS series two-and-three-quarter-inch coaxial speakers come with three custom bracketing options, built specifically to fit in today’s GM, Chrysler, Subaru, Toyota and Jeep factory speaker locations.
KS series speakers let you play at concert-like volume, yet maintain the smoothness and subtlety to please even the most selective ear. They work best with 15 to 50 watts of recommended power.
High power handling
Tough rubber surrounds
Thin-mount design easily fits behind factory grilles
Brackets for select GM/Chrysler/Subaru/Jeep and Toyota included
Specifications
Speaker Design
Midrange
Midrange [in, mm]
2-¾, 70
Rated Impedance [Ω]
4
Recommended Amplifier Power [Watts RMS]
15-50
Sensitivity [1W, 1m]
85
Frequency Response [Hz]
300-20k
Mounting Hole Diameter [in, mm]
3-1⁄16, 78
Top Mount Depth [in, mm]
1-5⁄8, 41.5
Bottom Mount Depth [in,mm]
1-7⁄8, 48.5
Grilles
No
Woofer Cone Material
Treated Paper for UV resistance
Woofer Surround Material
Rubber
Kicker KS Series Coaxial Speaker Manual
Alpine S-Series 6X9-Inch Coaxial 2-Way Speakers, 85-Watt RMS
The S-Series speakers have a large voice coil. The 6.5-inch and 6x9-inch models have a 35-mm voice coil, and this large voice coil size increases their driving power and control of the motor. The S-Series speakers are the first in the industry to use a material called CFRP (Carbon Fiber Reinforced Plastic), a very lightweight yet rigid material. On a standard, off-the-shelf oval cone, the edges are naturally weaker than the center due to the elongated shape. Since the CFRP material is directional, it can be manipulated during the molding process to strengthen the areas of the cone that are normally weak. The result is rigidity throughout the cone that delivers accurate and efficient performance. The ability to manipulate the CFRP material during the molding process is currently exclusive to Alpine and the S-Series speakers. Alpine has three patent-pending procedures in support of this innovative manufacturing process.
Alpine’s patented H.A.M.R. (High Amplitude Multi-Roll) surround is now found on the S-Series speakers. This proven technology increases excursion while maintaining accuracy and linearity. The multi-roll design allows for an even unfolding of the surround which creates incredible linearity and colorization rejection.
Specificatons
85W RMS/260W Peak
Nominal Impedance 4Ω
Frequency Response: 65-22kHz
1” Silk Dome Tweeter
CFRP (Carbon Fiber Reinforced Plastic) Cone
H.A.M.R. Surround
CustomStamped Steel Frame
35mm voice coil
Optional grille sold separately (KTE-S69G)
C1-Series 6x9-Inch 60-Watt Coaxial Speaker System, 3-Way
C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles.
To facilitate fit, spacer adaptor rings are included allowing the C1-690tx to be installed in bottom-mount applications.
C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-690tx is a proprietary, stamped, steel 6 x 9-inch (150 x 230 mm) oval frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control motion and prevent impact between the voice coil and the back plate. Tinsel leads are carefully routed and attached to the spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.
Equipped with dual true, edge-driven, aluminum dome tweeters, the C1-690tx stands apart from others in its category with superior high-frequency clarity and separation. The design of each tweeter delivers inherently excellent off-axis response and high-frequency extension. Both high-frequency drivers also benefit from the damping of silk surround suspensions and Ferrofluid in the voice coil gaps, along with the superior strength of neodymium magnetics. A true, mixed order filter network is employed to further enhance smoothness and improve power handling.
When it comes to value, C1 is the real deal!
Sold as a pair. Grilles not available.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
10 - 100 W / Ch.
System Efficiency
90.5 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
36 Hz - 24 KHz ± 3 dB
JL Audio C1-690tx Manual
C2-Series 5.25-Inch 60-Watt Component Woofer, with Grille
The C2-525cw is a 5.25-inch (130 mm) component woofer capable of accurate reproduction between 63 Hz and 8 kHz. It features a mineral-filled polypropylene cone and stamped steel basket. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
A grille is included, consisting of a black grille tray and a black steel mesh grille.
Sonic character: Clean and Powerful
Sold individually.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power
150 W
Recommended Amplifier Power (RMS)
15 - 100 W / Ch.
System Efficiency
89.0 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
63 Hz - 8 KHz ± 3 dB
JL Audio C2-525 Manual
C2-Series 6.5-Inch Component Speaker System
The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and long linear excursion woofer designs.
The C2-650 system features 6.5-inch (165 mm) component woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
The 6.5-inch (165 mm) format is a direct fit in many vehicles. Multiple mounting patterns are provided on the woofer frame for easy installation into most vehicles that accept a 6.5-inch (165 mm) speaker.
The C2 component tweeters are built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs.
C2 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Three levels of tweeter attenuation are provided, as well as a tweeter protector.
Woofer grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Dynamic
Sold as a pair.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
15 - 100 W / Ch.
System Efficiency
91.0 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
59 Hz - 22 KHz ± 3 dB
JL Audio C2-650 Manual
C2-Series 6.5-Inch 60-Watt Coaxial Speaker System
The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and precision-engineered woofer designs.
The C2-650x system features 6.5-inch (165 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
The 6.5-inch (165 mm) format is a direct fit in many vehicles. Multiple mounting patterns are provided on the woofer frame for easy installation into most vehicles that accept a 6.5-inch (165 mm) speaker.
Tweeters are coaxially mounted and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles.
Woofer grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Dynamic
Sold as a pair.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
15 - 100 W / Ch.
System Efficiency
91 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
59 Hz - 22 KHz ± 3 dB
JL Audio C2-650x Manual
C2-Series 6-Inch 60-Watt Coaxial Speaker System
The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and precision-engineered woofer designs.
The C2-600x system features 6-inch (150 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
The 6-inch (150 mm) format is a direct fit in many vehicles. Multiple mounting patterns are provided on the woofer frame for easy installation into most vehicles that accept a 6.5-inch (165 mm) speaker.
Tweeters are coaxially mounted and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles.
Woofer grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Dynamic
Sold as a pair.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
15 - 100 W / Ch.
System Efficiency
90.5 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
59 Hz - 22 KHz ± 3 dB
JL Audio C2-600x Manual
C2-Series 6x9" 70-Watt 3-Way Coaxial Speaker System
The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and precision-engineered woofer designs.
The C2-690tx system features 6 x 9-inch (150 x 230 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
The 6 x 9-inch (150 x 230 mm) format is a direct fit in many vehicles.
The Mid-Range driver is ferrofluid-cooled, with a 2-inch Mylar® cone diaphragm to smoothly bridge the gap between the woofer and the dome tweeter.
Tweeters are mounted next to the mid-range driver and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles.
Woofer grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Dynamic
Sold as a pair.
General Specs
Continuous Power Handling (RMS)
70 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
15 - 125 W / Ch.
System Efficiency
93 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
53 Hz - 22 KHz ± 3 dB
JL Audio C2-690tx Manual
Alpine R2-Series 100-Watt RMS 2-Way Component 6-1/2-Inch Aftermarket Door Speakers
Using “trickle-down” technology, inspired design, and performance cues from the Ultra-High-Resolution AlpineF#1Status systems, the Next-Generation R-Series Speakers are Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This ultra-wide bandwidth brings music even closer to the original source while the classic R-Series design maintains the “loud and fun” performance quality that long-time fans have come to enjoy.
The Next-Generation R-Series speakers now come in upgraded 'Pro' models in addition to the standard model lineup. The pro models utilize a highly rigid, die-cast aluminum basket that eliminates flexing and resonance during playback to ensure the highest quality sound performance.
The new lightweight and rigid glass fiber-reinforced cone material allows for extreme movement and low distortion which results in an incredibly accurate and clean sound during playback.
The Next-Generation R-Series speakers utilize a ferrite magnet, different from the neodymium from previous generations, and a larger motor structure that contributes to more mid-bass during the playback. Despite the larger motor structure, the speakers still maintain the same depth for easy installation.
Continuing with the Next-Generation R-Series speaker line is Alpine-exclusive High Amplitude Multi-Roll (HAMR) surround technology that increased excursions while maintaining linearity for more accurate music reproduction.
Magnesium, hard-dome tweeters contribute to the “loud and fun” R-series sound signature and feature a swivel- mount design for optimal listening positioning and threaded removable housing for flexible factory applications.
The Next-Generation R-Series speaker line offers two pathways for performance: the “Pro” and “Standard” models. The R2-S652 is a standard component speaker set that includes a 6.5” Mid-Range and 1” Tweeter with an outboard crossover network the professional installation.
Sold as a pair.
Features
Hi-Res Audio Certified
Glass Fiber Reinforced Cone
Die-Cast Aluminum Basket
Ferrite Magnet Structure
High-Amplitude Multi-Roll (H.A.M.R.) Surround
2 Premium-Grade Full Passive Performance Crossover Networks
Magnesium Hard-Dome Tweeters with Swivel Mount Design and Threaded Removable Housing
Protective Open Mesh Grille Pair Included
Specifications
6.5” Mid-Bass with 1” Tweeter
Frequency Response: 65Hz -40kHz
Power Handling: 100W RMS / 300W Peak
C2-Series 0.75-Inch 60-Watt Silk Dome Tweeters
The silk dome tweeter is prized by audiophiles for delivering realistic, non-fatiguing, high-frequency performance.
The C2 component tweeters are built with 0.75-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs.
Inline 12 dB / octave high-pass filters with tweeter protectors are included with this kit. The C2-075ct is designed to operate above 4 kHz with a minimum high-pass slope of 12 dB / octave.
Sonic character: Clean and Powerful
Sold as a pair.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power*
150 W
Recommended Amplifier Power (RMS)
25 - 100 W / Ch.
System Efficiency
91.0 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
4 kHz - 22 KHz ± 3 dB
JL Audio C2-075ct Manual
Four-Inch Coaxial Midrange-Tweeter Drivers, 75-Watt RMS
The Kicker KS series four-inch coaxial speakers come with a custom bracket option built specifically to fit in today’s GM, Chrysler, Subaru, Toyota and Jeep factory speaker locations.
KS series speakers let you play at concert-like volume, yet maintain the smoothness and subtlety to please even the most selective ear. They work best with 15 to 75 watts of recommended power.
High power handling
Tough rubber surrounds
Thin-mount design easily fits behind factory grilles
Brackets for select GM/Chrysler/Subaru/Jeep and Toyota included
Specifications
Speaker Design
2-Way
Woofer [in, mm]
4, 100
Tweeter [in, mm]
½, 13
Rated Impedance [Ω]
4
Recommended Amplifier Power [Watts RMS]
15-75
Sensitivity [1W, 1m]
88
Frequency Response [Hz]
60-20k
Mounting Hole Diameter [in, mm]
3-11⁄16, 94
Top Mount Depth [in, mm]
1-13⁄16, 46
Bottom Mount Depth [in,mm]
2-1⁄16, 51
Tweeter Protrusion [in,mm]
1/8, 3
Grilles
Yes
Tweeter Magnet Material
Neodymium
Tweeter Dome Material
Silk
Woofer Cone Material
Polypropylene
Woofer Surround Material
Rubber
Kicker KS Series Coaxial Speaker Manual
C1-Series 5.25-Inch 50-Watt Coaxial Speaker System
C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles.
C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-525x is a proprietary, stamped, steel 5.25-inch (130 mm) frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control motion and prevent impact between the voice coil and the back plate. Tinsel leads are carefully routed and attached to the spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.
Equipped with a true, edge-driven, aluminum dome tweeter, C1 speakers stand further apart from others in its category with superior high-frequency clarity and definition. The tweeter’s design has inherently excellent off-axis response and high-frequency extension. It also benefits from the damping of a silk surround suspension and Ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit. A true, 2nd order high-pass filter is employed to further enhance smoothness and improve power handling.
When it comes to value, C1 is the real deal!
Sold as a pair. Grilles not available.
General Specifications
Continuous Power Handling (RMS)
50 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
10 - 75 W / Ch.
System Efficiency
89.0 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
54 Hz - 24 KHz ± 3 dB
JL Audio C1-525x Manual
Alpine S2-Series 6x8-Inch Coaxial 2-Way Speakers, 75-Watt RMS
Using “trickle-down” technology, inspired design, and performance cues from the Ultra-High-Resolution AlpineF#1Status system, the Next-Generation Alpine S-Series Speakers are now Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This new benchmark in sound quality elevates the Next-Gen S-Series Speakers resulting in a more accurate and natural sound at an entry-level price point.
Crafted with a unique combination of Poly Propylene, Glass Fiber, and Mica Cone materials, the S2-S68 is designed for lightweight construction, high output, and low distortion, giving you a clean and accurate audio experience.
Alpine-exclusive High Amplitude Multi-Roll (HAMR) surround technology is integrated into the speaker design which allows for maximum cone movement, delivering powerful and accurate bass notes.
Features
Hi-Res Audio Certified (Up to 40kHz)
Poly Propylene, Glass Fiber, and Mica Cone Material
Lightweight Design with High Output and Low Distortion
High-Amplitude Multi-Roll (H.A.M.R.) Surround
Integrated 1” Tweeters (Coaxial)
Specifications
Woofer Size: 6x8”
Tweeter Size: 1” (Coaxial)
Power Handling: 75W RMS / 230W Peak
Frequency Response: 73Hz - 40kHz (Hi-Res)
Sensitivity: 88dB
Alpine S2-Series 6X9-Inch Coaxial 2-Way Speakers, 85-Watt RMS
Using “trickle-down” technology, inspired design, and performance cues from the Ultra-High-Resolution AlpineF#1Status system, the Next-Generation Alpine S-Series Speakers are now Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This new benchmark in sound quality elevates the Next-Gen S-Series Speakers resulting in a more accurate and natural sound at an entry-level price point.
Crafted with a unique combination of Poly Propylene, Glass Fiber, and Mica Cone materials, the S2-S69 is designed for lightweight construction, high output, and low distortion, giving you a clean and accurate audio experience.
Alpine-exclusive High Amplitude Multi-Roll (HAMR) surround technology is integrated into the speaker design which allows for maximum cone movement, delivering powerful and accurate bass notes.
The S-Series S2-S69 is compatible with the KTE-S69G Speaker Grille (sold separately). This sleek and stylish grille will not only add a visual upgrade to your speakers but also provide protection against any damage.
Features
Hi-Res Audio Certified (Up to 40kHz)
Poly Propylene, Glass Fiber, and Mica Cone Material
Lightweight Design with High Output and Low Distortion
High-Amplitude Multi-Roll (H.A.M.R.) Surround
Integrated 1” Tweeters (Coaxial)
Compatible with KTE-S69G Speaker Grille (sold separately)
Specifications
Woofer Size: 6x9”
Tweeter Size: 1” (Coaxial)
Power Handling: 85W RMS / 260W Peak
Frequency Response: 85Hz - 40kHz (Hi-Res)
Sensitivity: 90dB
Alpine S2-Series 4-Inch 2-Way Coaxial Speakers, 45-Watts RMS
Using “trickle-down” technology, inspired design, and performance cues from the Ultra-High-Resolution AlpineF#1Status system, the Next-Generation Alpine S-Series Speakers are now Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This new benchmark in sound quality elevates the Next-Gen S-Series Speakers resulting in a more accurate and natural sound at an entry-level price point.
Crafted with a unique combination of Poly Propylene, Glass Fiber, and Mica Cone materials, the S2-S40 is designed for lightweight construction, high output, and low distortion, giving you a clean and accurate audio experience.
Alpine-exclusive High Amplitude Multi-Roll (HAMR) surround technology is integrated into the speaker design which allows for maximum cone movement, delivering powerful and accurate bass notes.
Features
Hi-Res Audio Certified (Up to 40kHz)
Poly Propylene, Glass Fiber, and Mica Cone Material
Lightweight Design with High Output and Low Distortion
High-Amplitude Multi-Roll (H.A.M.R.) Surround
Integrated 3/4” Tweeters (Coaxial)
Specifications
Woofer Size: 4”
Tweeter Size: 3/4” (Coaxial)
Power Handling: 45W RMS / 140W Peak
Frequency Response: 97Hz - 40kHz (Hi-Res)
Sensitivity: 86dB
Alpine S2-Series 5-1/4" Coaxial 2-Way Speakers, 80-Watts RMS
Using “trickle-down” technology, inspired design, and performance cues from the Ultra-High-Resolution AlpineF#1Status system, the Next-Generation Alpine S-Series Speakers are now Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This new benchmark in sound quality elevates the Next-Gen S-Series Speakers resulting in a more accurate and natural sound at an entry-level price point.
Crafted with a unique combination of Poly Propylene, Glass Fiber, and Mica Cone materials, the S2-S50 is designed for lightweight construction, high output, and low distortion, giving you a clean and accurate audio experience.
Alpine-exclusive High Amplitude Multi-Roll (HAMR) surround technology is integrated into the speaker design which allows for maximum cone movement, delivering powerful and accurate bass notes.
The S-Series S2-S50 is compatible with the KTE-S50G Speaker Grille (sold separately). This sleek and stylish grille will not only add a visual upgrade to your speakers but also provide protection against any damage.
Features
Hi-Res Audio Certified (Up to 40kHz)
Poly Propylene, Glass Fiber, and Mica Cone Material
Lightweight Design with High Output and Low Distortion
High-Amplitude Multi-Roll (H.A.M.R.) Surround
Integrated 3/4” Tweeters (Coaxial)
Compatible with KTE-S50G Speaker Grille (sold separately)
Specifications
Woofer Size: 5 1/4”
Tweeter Size: 3/4” (Coaxial)
Power Handling: 55W RMS / 170W Peak
Frequency Response: 80Hz - 40kHz (Hi-Res)
Sensitivity: 87dB
C6-Series 6.5-Inch 75-Watt Component Audiophile Speaker System
Born from shared technologies used in JL's flagship C7 speakers, the C6-650 component system combines the smoothness and transparency of a premium silk dome tweeter with a top-flight component woofer to create a loudspeaker system with exceptional refinement and dynamic capability.
Benefiting from vast woofer design experience and advanced modeling systems of JL Audio, the 6.5" (165 mm) C6 component woofers feature purpose-engineered, cast alloy frames outfitted with our Elevated Frame Cooling technology. A DMA-optimized, forged and machined motor system generates outstanding midbass impact with ultra-low distortion.
The 1" (25 mm) C6 component tweeters feature edge-driven pure silk dome diaphragms for smooth high-frequency performance with remarkable off-axis response and damping. Neodymium motors and ferrofluid cooling provide high-magnetic flux and improved reliability with extended response from a very compact motor system. Surface- and flush-mount fixtures are included to fit a wide variety of installation applications.
Premium passive crossover networks are included with each C6-650 component system. Featuring four levels of tweeter adjustment, these outboard filter networks are equipped with premium polyester film and electrolytic capacitors as well as low-loss air-core inductors — all accessible beneath a protective, polycarbonate cover. Each C6 passive crossover also includes an advanced electronic tweeter protection circuit designed to minimize the possibility of tweeter failure.
C6 Woofer Features:
Forged and machined motor plates with DMA-optimized geometries to create linear motor force under power, leading to outstanding mid-bass impact, linearity and low distortion
Large diameter, linear profile, flat spider for linear compliance and outstanding excursion capability
Center cap designed to optimize the high-frequency response of the woofer for seamless transition to a tweeter’s response
Oversized voice coil for extended power handling capability, minimizing thermal compression and distortion at higher listening levels
Cast alloy frame with JL's Elevated Frame Cooling feature
Includes fine mesh grilles
C6 Tweeter Features:
Edge-driven pure silk dome design delivers smooth high-frequency performance, with excellent off-axis response and damping
Neodymium motor delivers high magnetic flux from a compact motor design
Ferrofluid cooling and damping improves reliability and response smoothness
Includes surface- and flush-mount fixtures
Woofer grilles are included, each consisting of a black grille tray and a fine steel mesh grille with an electroformed JL Audio badge logo.
Speakers are sold as a pair.
General Specifications
Continuous Power Handling (RMS)
100 W
Recommended Amplifier Power (RMS)
25 - 150 W / Ch.
System Efficiency
87.37 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
53 Hz – 21 KHz ± 3 dB
JL Audio C6-650 Manual
Hybrid Integra Series 6-1/2" 100-Watt RMS 2-Way Coaxial Door Speakers
Embracing Morel’s legendary craftsmanship, engineering, and innovation, the latest Hybrid systems define an ever-evolving concept of high-fidelity speaker design. Now in their fifth generation, the new Hybrid and Hybrid Integra systems give a further refined listening experience, captivating you with the raw emotions of listening to live music. Their subtle balance of resolution, power, and efficiency has been further optimized to exceed expectations regardless of what genre of music you enjoy.
The Integra, Morel’s point source system, is an innovative landmark in speaker design. It utilizes point-source topology to eliminate acoustic problems inherent in conventional coaxial systems. By creating a single sound source on the same axis, the tweeter and woofer seamlessly integrate, generating Omni-directional time alignment, heightened imaging, and sound dispersion.
Now the Hybrid is available in 2-way and Integra point source (coaxial) solutions, as well as a new 3-way system to fit nearly any system requirement.
CONTROLLED ACOUSTIC RESISTANCEThe C.A.R. Filter™ improves the acoustic loading by controlling airflow within the driver, mimicking the effects of a cabinet while improving power handling by 30%. This provides greater control over the cone movement for improved bass dynamics.
EVC MOTORMorel speakers with EVC™ technology utilize voice coils that are up to three times larger than those used in conventional loudspeakers, enabling improved heat dissipation, power handling and linearity. The EVC™ design moves the magnetic motor system to within the voice coil, eliminating stray magnetic flux by effectively directing all the magnetic energy to the voice coil. The EVC architecture is over 90% more efficient than conventional design, magnetically shielded, and highly compact.
HEXATECH™ ALUMINIUM VOICE COILMade from 100% aluminum wire shaped like a honeycomb, the Hexatech™ voice coil reduces air gaps in the coil windings, thereby increasing efficiency by up to 20%. Being lightweight, Hexatech™ voice coils are largely responsible for the extraordinary fast transient response Morel drive units are known for.
HYBRID MAGNET MOTORThe Hybrid motor drive system uses a ferrite magnet together with a very powerful neodymium magnet. Combined they create a compact, lightweight motor system that is up to four times more powerful than conventional designs of the same size. With Hybrid, more amplified power is converted into sonic energy for flawless performance, even in a small driver.
INTEGRADerived from the word “integrate”, Integra is a speaker consisting of both a woofer and tweeter that share a common chassis. Unlike a coaxial, its recessed tweeter is concentrically aligned with the woofer cone. This minimizes phase error and allows the sound field to be constant in all directions, creating a near-perfect time alignment.
PAPER CONEIn use since the first loudspeakers, the paper continues to be an exceptional material of choice. Morel’s latest paper composite cones are ultra-lightweight, making them an exceptional pairing for drivers using smaller motors and voice coils.
Sold by the Pair
Specifications
MODEL
SIZE & CONFIGURATION
POWER HANDLING (WRMS) / PEAK POWER (W)
SENSITIITY (2.83V/1M)(DB)
FREQUENCY RESPONSE (HZ)
CROSSOVER
HYBRID INTEGRA 42
4" 2-way
80 /250
92
80-25000
MXR250.4i
HYBRID INTEGRA 52
5¼" 2-way
120 / 500
90
45-25000
MXR250.4i
HYBRID INTEGRA 62
6½" 2-way
140 / 600
91
35-25000
MXR250.4i
Morel Hybrid Integra Series Door Speaker Manual
Hybrid Series 6-1/2" 140-Watt RMS 2-Way Component Door Speakers
Embracing Morel’s legendary craftsmanship, engineering, and innovation, the latest Hybrid systems define an ever-evolving concept of high-fidelity speaker design. Now in their fifth generation, the new Hybrid and Hybrid Integra systems give a further refined listening experience, captivating you with the raw emotions of listening to live music. Their subtle balance of resolution, power, and efficiency has been further optimized to exceed expectations regardless of what genre of music you enjoy. Now the Hybrid is available in 2-way and Integra point source (coaxial) solutions, as well as a new 3-way system to fit nearly any system requirement.
CONTROLLED ACOUSTIC RESISTANCEThe C.A.R. Filter™ improves the acoustic loading by controlling airflow within the driver, mimicking the effects of a cabinet while improving power handling by 30%. This provides greater control over the cone movement for improved bass dynamics.
EVC MOTORMorel speakers with EVC™ technology utilize voice coils that are up to three times larger than those used in conventional loudspeakers, enabling improved heat dissipation, power handling and linearity. The EVC™ design moves the magnetic motor system to within the voice coil, eliminating stray magnetic flux by effectively directing all the magnetic energy to the voice coil. The EVC architecture is over 90% more efficient than conventional design, magnetically shielded, and highly compact.
HANDCRAFTED ACUFLEX SOFT DOMEA specially engineered damping compound hand-applied to the soft domes, adding rigidity and damping, which greatly improves the clarity and bandwidth of the tweeter/mid-range. The Acuflex™ diaphragm exhibits controlled cancelling break up (accurate–flexing), meaning each break-up mode is counteracted by another in the opposite direction, enabling smooth frequency response.
HEXATECH™ ALUMINIUM VOICE COILMade from 100% aluminum wire shaped like a honeycomb, the Hexatech™ voice coil reduces air gaps in the coil windings, thereby increasing efficiency by up to 20%. Being lightweight, Hexatech™ voice coils are largely responsible for the extraordinary fast transient response Morel drive units are known for.
HYBRID MAGNET MOTORThe Hybrid motor drive system uses a ferrite magnet together with a very powerful neodymium magnet. Combined they create a compact, lightweight motor system that is up to four times more powerful than conventional designs of the same size. With Hybrid, more amplified power is converted into sonic energy for flawless performance, even in a small driver.
PAPER CONEIn use since the first loudspeakers, the paper continues to be an exceptional material of choice. Morel’s latest paper composite cones are ultra-lightweight, making them an exceptional pairing for drivers using smaller motors and voice coils.
Sold by the Pair
Specifications
MODEL
SIZE & CONFIGURATION
POWER HANDLING (WRMS) / PEAK POWER (W)
SENSITIITY (2.83V/1M)(DB)
FREQUENCY RESPONSE (HZ)
CROSSOVER
HYBRID 42
4" 2-way
100 / 300
89
50-25000
MXR240.4
HYBIRD 52
5¼" 2-way
120 / 500
90
45-25000
MXR240.4
HYBRID 62
6½" 2-way
140 / 600
91
35-25000
MXR240.4
Morel Hybrid Series Door Speaker Manual
C3-Series 5.25-Inch 75-Watt Component Woofer with Grille
There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.
The C3-525cw is a 5.25-inch (130 mm) component woofer with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cones and injection-molded polymer basket. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
Woofer grilles are included, each consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Powerful
Sold individually.
Includes Component Phase Plug and Tweeter Post (Tweeter sold separately).
General Specifications
Continuous Power Handling (RMS)
75 W
Recommended Amplifier Power (RMS)
25 - 150 W / Ch.
System Efficiency
90.0 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
48 Hz - 25 KHz ± 3 dB
Physical Specifications
Frame Outer Diameter* (A)
5.80 in / 147 mm
Grille Tray Outer Diameter (B)
6.00 in / 152 mm
Motor Outer Diameter** (C)
3.38 in / 86 mm
Frontal Coaxial Tweeter Protrusion*** (D)
0.69 in / 18 mm
Frontal Grille Protrusion**** (E)
1.00 in / 25 mm
Mounting Hole Diameter (F)
4.56 in / 116 mm
Mounting Depth (G)
2.27 in / 58 mm
JL Audio C3-525cw Manual
C3-Series 5x7-Inch 75-Watt Component Woofer with Grille
There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.
Many people mistakenly believe that an oval speaker cannot perform as well as a round one, leading to many instances of 5.25-inch speakers being installed into 5 x 7-inch openings. JL Audio has put in the engineering time and effort to create fantastic-sounding speakers that drop into oval openings and deliver equivalent performance to our 6.5-inch (165 mm) round speaker systems... guaranteed. So, don't make the mistake of losing cone area and efficiency by stepping down to a smaller round speaker... these ovals are as impressive as our round format systems.
The C3-570cw is a 5 x 7 / 6 x 8-inch (125 x 180 mm) component woofer with oversized 1.2-inch (30.5 mm) voice coil, mineral-filled polypropylene cone and injection-molded polymer basket. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
Woofer grilles are not available for this product.
Sonic character: Clean and Powerful
Sold individually.
Includes Component Phase Plug and Tweeter Post (Tweeter sold separately).
General Specifications
Continuous Power Handling (RMS)
75 W
Recommended Amplifier Power (RMS)
25 - 150 W / Ch.
System Efficiency
90.0 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
48 Hz - 25 KHz ± 3 dB
Physical Specifications
Frame Outer Diameter* (A)
5.52 x 7.68 in / 140 x 195 mm
Grille Tray Outer Diameter (B)
N/A
Motor Outer Diameter (C)
4.08 in / 104 mm
Frontal Coaxial Tweeter Protrusion** (D)
0.78 in / 20 mm
Frontal Grille Protrusion (E)
N/A
Mounting Hole Diameter (F)
N/A
Mounting Depth (G)
2.52 in / 64 mm
JL Audio C3-570cw Manual
C3-Series 6-Inch 75-Watt Component Woofer with Grille
There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.
The new C3-600cw expands the C3 lineup with a direct-fit product for many Japanese vehicles that will not accept a full-size 6.5-inch speaker.
The C3-600 system features 6-inch (150 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cone and injection-molded polymer basket. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
A woofer grille is included, consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Powerful
Sold individually.
Includes Component Phase Plug and Tweeter Post (Tweeter sold separately).
General Specifications
Continuous Power Handling (RMS)
75 W
Recommended Amplifier Power (RMS)
25 - 150 W / Ch.
System Efficiency
89.5 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
50 Hz - 25 KHz ± 3 dB
Physical Specifications
Frame Outer Diameter (A)
6.21 in. / 157.7 mm
Grille Tray Outer Diameter (B)
6.46 in. / 164.1 mm
Motor Outer Diameter (C)
4.08 in. / 103.6 mm
Frontal Coaxial Tweeter Protrusion* (D)
0.81 in. / 20.6 mm
Frontal Grille Protrusion** (E)
1.03 in. / 26.2 mm
Mounting Hole Diameter (F)
5.00 in. / 127 mm
Mounting Depth (G)
2.49 in. / 63 mm
JL Audio C3-600cw Manual
C3-Series 6.5-Inch 75-Watt Component Woofer with Grille
There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.
The C3-650cw is a 6.5-inch (165 mm) component woofer with an oversized 1.2-inch (30.5 mm) voice coil, mineral-filled polypropylene cone and injection-molded polymer basket. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
A woofer grille is included, consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Powerful
Sold individually.
Includes Component Phase Plug and Tweeter Post (Tweeter sold separately).
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power
150 W
Recommended Amplifier Power (RMS)
15 - 100 W / Ch.
System Efficiency
91.0 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
59 Hz - 6 KHz ± 3 dB
Physical Specifications
Frame Outer Diameter (A)
6.50 in / 165 mm
Grille Tray Outer Diameter (B)
6.74 in / 171 mm
Motor Outer Diameter (C)
4.08 in / 104 mm
Frontal Coaxial Tweeter Protrusion* (D)
0.75 in / 19 mm
Frontal Grille Protrusion** (E)
1.03 in / 26 mm
Mounting Hole Diameter (F)
5.56 in / 141 mm
Mounting Depth (G)
2.55 in / 65 mm
JL Audio C3-650cw Manual
Alpine R2-Series 100-Watt RMS Coaxial 6-Inch x 9-Inch Aftermarket Door Speakers
Using “trickle-down” technology, inspired design, and performance cues from the Ultra-High-Resolution AlpineF#1Status systems, the Next-Generation R-Series Speakers are Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This ultra-wide bandwidth brings music even closer to the original source while the classic R-Series design maintains the “loud and fun” performance quality that long-time fans have come to enjoy.
The new lightweight and rigid glass fiber-reinforced cone material allows for extreme movement and low distortion which results in an incredibly accurate and clean sound during playback.
The Next-Generation R-Series speakers utilize a ferrite magnet, different from the neodymium from previous generations, and a larger motor structure that contributes to more mid-bass during the playback. Despite the larger motor structure, the speakers still maintain the same depth for easy installation.
Continuing with the Next-Generation R-Series speaker line is Alpine-exclusive High Amplitude Multi-Roll (HAMR) surround technology that increased excursions while maintaining linearity for more accurate music reproduction.
The Next-Generation R-Series speaker line offers two pathways for performance: the “Pro” and “Standard” models. The R2-S69 is a standard coaxial speaker set that includes a 6x9” Mid-Range and 1” Tweeter with a flexible in-line crossover network that simplifies installation.
Sold as a pair.
Features
Hi-Res Audio Certified
Glass Fiber Reinforced Cone
Die-Cast Aluminum Basket
Ferrite Magnet Structure
High-Amplitude Multi-Roll (H.A.M.R.) Surround
2 Premium-Grade Full Passive Performance Crossover Networks
Magnesium Hard-Dome Tweeters with Swivel Mount Design and Threaded Removable Housing
Protective Open Mesh Grille Pair Included
Specifications
6x9” Mid-Bass with 1” Tweeter
Frequency Response: 60Hz -40kHz
Power Handling: 100W RMS / 300W Peak
Alpine R2-Series 100-Watt RMS Coaxial 6-1/2 Inch Aftermarket Door Speakers
Using “trickle-down” technology, inspired design, and performance cues from the Ultra-High-Resolution AlpineF#1Status systems, the Next-Generation R-Series Speakers are Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This ultra-wide bandwidth brings music even closer to the original source while the classic R-Series design maintains the “loud and fun” performance quality that long-time fans have come to enjoy.
The new lightweight and rigid glass fiber-reinforced cone material allows for extreme movement and low distortion which results in an incredibly accurate and clean sound during playback.
The Next-Generation R-Series speakers utilize a ferrite magnet, different from the neodymium from previous generations, and a larger motor structure that contributes to more mid-bass during the playback. Despite the larger motor structure, the speakers still maintain the same depth for easy installation.
Continuing with the Next-Generation R-Series speaker line is Alpine-exclusive High Amplitude Multi-Roll (HAMR) surround technology that increased excursions while maintaining linearity for more accurate music reproduction.
The Next-Generation R-Series speaker line offers two pathways for performance: the “Pro” and “Standard” models. The R2-S65 is a standard coaxial speaker set that includes a 6.5” Mid-Range and 1” Coaxial Tweeter with a flexible in-line crossover network that simplifies installation.
Sold as a pair.
Features
Hi-Res Audio Certified
Glass Fiber Reinforced Cone
Ferrite Magnet Structure
High-Amplitude Multi-Roll (H.A.M.R.) Surround
2 Premium-Grade Crossover Networks
Magnesium Hard-Dome Tweeters with Swivel Mount Design and Threaded Removable Housing
Protective Open Mesh Grille Pair Included
Specifications
6.5” Mid-Bass with 1” Tweeter
Frequency Response: 65Hz -40kHz
Power Handling: 100W RMS / 300W Peak
Alpine HDZ-Slim-Series 100-Watt RMS Hi-Resolution Aftermarket 6-1/2-Inch 3-Way Component Door Speaker System
Using expertise gleaned from over five decades of crafting premium car audio products and trickle-down engineering and design from the Ultra Hi-Res AlpineF#1Status system technologies, the Alpine Status system features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand-picked from the highest-quality materials for the highest in-class audio performance, that when used as a complete system, can achieve 192kHz/24bit playback.
Drawing inspiration from the AlpineF#1Status system, the HDZ-653S features a unified carbon composite cone construction throughout the speaker components for a unified timbre identity. Alpine Proprietary Double Gathered Edge Surround technology gives the speakers ultra-low distortion and linear diaphragm movement that reproduces music true to the artist’s original intentions.
Custom developed for Hi-Res Audio Playback, the HDZ-653S has an ultra-wide bandwidth of 55Hz-40kHz which is perfectly suited for accurate reproduction of even the highest quality of studio recordings. Each speaker component is designed to cover a wider range of playback spectrum giving the tuner a wider range of adjustability.
The Alpine Status speaker line features two fitments for flexible installation options including a custom-fix model for custom applications and factory-fit models that were intentionally designed to fit into most factory speaker holes without custom work. The HDZ-653S is a custom-fit model that includes a 6.5- inch Mid-Bass driver, a 3.5-inch Midrange driver, and 1.25-inch High-Range driver.
The Alpine Status System is sold separately and can be used to build a custom sound system. Three sets of true 4V preamp outputs are included to add additional amplifiers if more power is needed. For best results, install the complete Alpine Status system together as a full system to achieve the highest in-class audio performance only second to the Ultra High-Resolution AlpineF#1System.
Features
Hi-Res Audio Playback (192kHz/24Bit) w/full Alpine Status system
Carbon Composite Diaphragm Material
Alpine Proprietary Double Gathered Edge Surround
6.5” Mid-Bass Driver (16.5cm)
3.5" Midrange Driver (8.5cm)
1.25” High Range Driver (3.2cm)
Specifications
100W RMS
300W Peak Power Handling
Frequency response: 55Hz – 40kHz
Sensitivity: 88dB
Sold by the Pair
Alpine HDZ-653S Manual
Alpine HDZ-Series 100-Watt RMS Hi-Resolution Aftermarket 6-1/2-Inch 3-Way Component Door Speaker System
Using expertise gleaned from over five decades of crafting premium car audio products and trickle-down engineering and design from the Ultra Hi-Res AlpineF#1Status system technologies, the Alpine Status system features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand-picked from the highest-quality materials for the highest in-class audio performance, that when used as a complete system, can achieve 192kHz/24bit playback.
Drawing inspiration from the AlpineF#1Status system, the HDZ-653 features a unified carbon composite cone construction throughout the speaker components for a unified timbre identity. Alpine Proprietary Double Gathered Edge Surround technology gives the speakers ultra-low distortion and linear diaphragm movement that reproduces music true to the artist’s original intentions.
Custom developed for Hi-Res Audio Playback, the HDZ-653 has an ultra-wide bandwidth of 55Hz-40kHz which is perfectly suited for accurate reproduction of even the highest quality of studio recordings. Each speaker component is designed to cover a wider range of playback spectrum giving the tuner a wider range of adjustability.
The Alpine Status speaker line features two fitments for flexible installation options including a custom-fix model for custom applications and factory-fit models that were intentionally designed to fit into most factory speaker holes without custom work. The HDZ-653 is a custom-fit model that includes a 6.5- inch Mid-Bass driver, a 3.5-inch Midrange driver, and 1.25-inch High-Range driver.
The Alpine Status System is sold separately and can be used to build a custom sound system. Three sets of true 4V preamp outputs are included to add additional amplifiers if more power is needed. For best results, install the complete Alpine Status system together as a full system to achieve the highest in-class audio performance only second to the Ultra High-Resolution AlpineF#1System.
Features
Hi-Res Audio Playback (192kHz/24Bit) w/full Alpine Status system
Carbon Composite Diaphragm Material
Alpine Proprietary Double Gathered Edge Surround
6.5” Mid-Bass Driver (16.5cm)
3.5" Midrange Driver (8.5cm)
1.25” High Range Driver (3.2cm)
Specifications
100W RMS
300W Peak Power Handling
Frequency response: 55Hz – 40kHz
Sensitivity: 88dB
Sold by the Pair
Alpine HDZ-653 Manual
