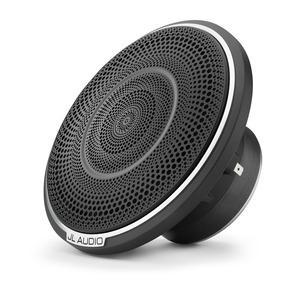

Automotive Component Woofers

Automotive Replacement and Upgradeable Car Audio Component Woofers

Replacement and Upgradeable Car Audio Component Woofers

8 products

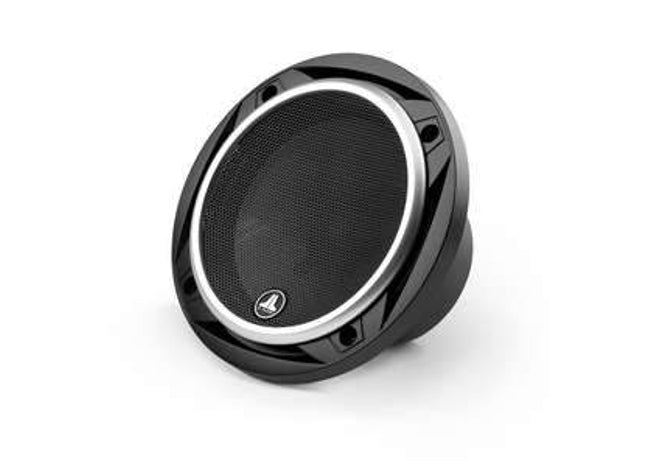

  • JL Audio C2-525cw : 5.25" Component Woofer - 60W RMS

    JL Audio C2-525cw : 5.25" Component Woofer, 60W RMS

    Pre-Order Today!

    C2-Series 5.25-Inch 60-Watt Component Woofer, with Grille The C2-525cw is a 5.25-inch (130 mm) component woofer capable of accurate reproduction between 63 Hz and 8 kHz. It features a mineral-filled polypropylene cone and stamped steel basket. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems. A grille is included, consisting of a black grille tray and a black steel mesh grille. Sonic character: Clean and Powerful Sold individually. General Specifications Continuous Power Handling (RMS) 60 W Peak Music Power 150 W Recommended Amplifier Power (RMS) 15 - 100 W / Ch. System Efficiency 89.0 dB @ 1 W / 1 m System Nominal Impedance 4 Ω System Frequency Response 63 Hz - 8 KHz ± 3 dB JL Audio C2-525 Manual

    Pre-Order Today!

    $149.99

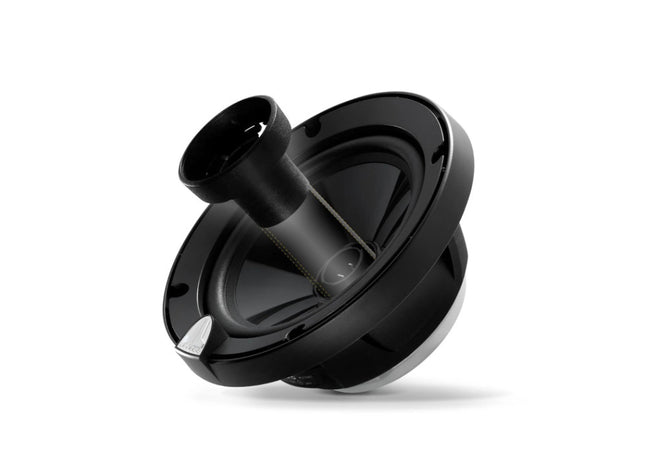

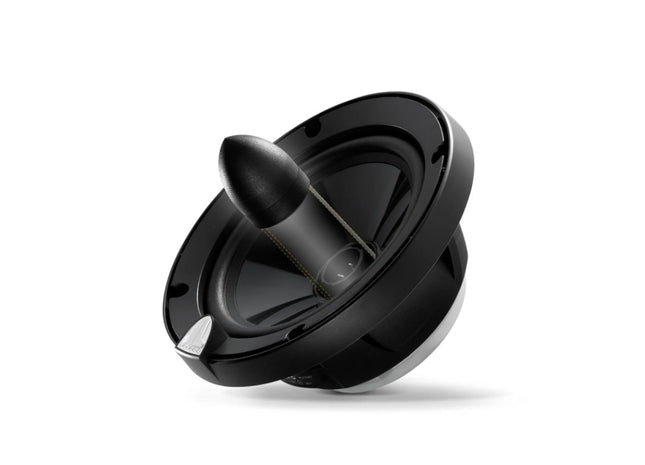

  • JL Audio C3-525cw : C3 5.25" Component Woofer, 75W RMS JL Audio C3-525cw : C3 5.25" Component Woofer, shown with tweeter adapter.

    JL Audio C3-525cw : C3 5.25" Component Woofer, 75W RMS

    Pre-Order Today!

    C3-Series 5.25-Inch 75-Watt Component Woofer with Grille There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application. The C3-525cw is a 5.25-inch (130 mm) component woofer with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cones and injection-molded polymer basket. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems. Woofer grilles are included, each consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo. Sonic character: Clean and Powerful Sold individually. Includes Component Phase Plug and Tweeter Post (Tweeter sold separately). General Specifications Continuous Power Handling (RMS) 75 W Recommended Amplifier Power (RMS) 25 - 150 W / Ch. System Efficiency 90.0 dB @ 1 W / 1 m System Nominal Impedance 4 Ω System Frequency Response 48 Hz - 25 KHz ± 3 dB Physical Specifications Frame Outer Diameter* (A) 5.80 in / 147 mm Grille Tray Outer Diameter (B) 6.00 in / 152 mm Motor Outer Diameter** (C) 3.38 in / 86 mm Frontal Coaxial Tweeter Protrusion*** (D) 0.69 in / 18 mm Frontal Grille Protrusion**** (E) 1.00 in / 25 mm Mounting Hole Diameter (F) 4.56 in / 116 mm Mounting Depth (G) 2.27 in / 58 mm JL Audio C3-525cw Manual

    Pre-Order Today!

    $179.99

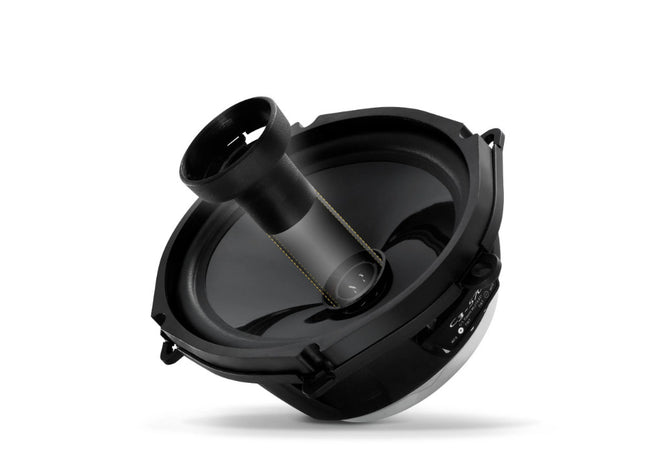

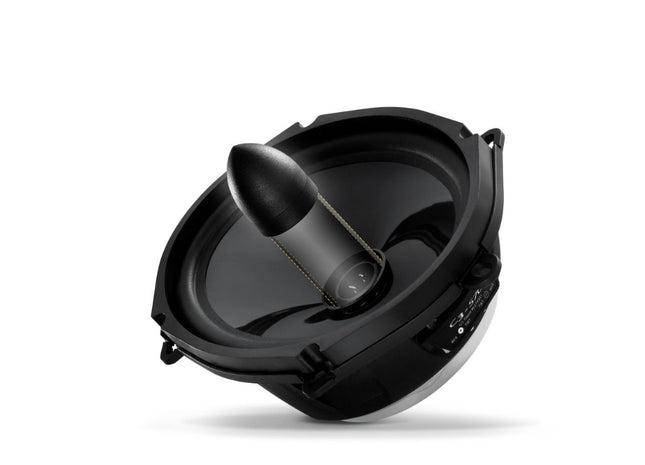

  • JL Audio C3-570cw : C3 5x7" Component Woofer, 75W RMS JL Audio C3-570cw : C3 5x7" Component Woofer, shown with tweeter adapter.

    JL Audio C3-570cw : C3 5x7" Component Woofer, 75W RMS

    Pre-Order Today!

    C3-Series 5x7-Inch 75-Watt Component Woofer with Grille There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application. Many people mistakenly believe that an oval speaker cannot perform as well as a round one, leading to many instances of 5.25-inch speakers being installed into 5 x 7-inch openings. JL Audio has put in the engineering time and effort to create fantastic-sounding speakers that drop into oval openings and deliver equivalent performance to our 6.5-inch (165 mm) round speaker systems... guaranteed. So, don't make the mistake of losing cone area and efficiency by stepping down to a smaller round speaker... these ovals are as impressive as our round format systems. The C3-570cw is a 5 x 7 / 6 x 8-inch (125 x 180 mm) component woofer with oversized 1.2-inch (30.5 mm) voice coil, mineral-filled polypropylene cone and injection-molded polymer basket. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems. Woofer grilles are not available for this product. Sonic character: Clean and Powerful Sold individually. Includes Component Phase Plug and Tweeter Post (Tweeter sold separately). General Specifications Continuous Power Handling (RMS) 75 W Recommended Amplifier Power (RMS) 25 - 150 W / Ch. System Efficiency 90.0 dB @ 1 W / 1 m System Nominal Impedance 4 Ω System Frequency Response 48 Hz - 25 KHz ± 3 dB Physical Specifications Frame Outer Diameter* (A) 5.52 x 7.68 in / 140 x 195 mm Grille Tray Outer Diameter (B) N/A Motor Outer Diameter (C) 4.08 in / 104 mm Frontal Coaxial Tweeter Protrusion** (D) 0.78 in / 20 mm Frontal Grille Protrusion (E) N/A Mounting Hole Diameter (F) N/A Mounting Depth (G) 2.52 in / 64 mm JL Audio C3-570cw Manual

    Pre-Order Today!

    $179.99

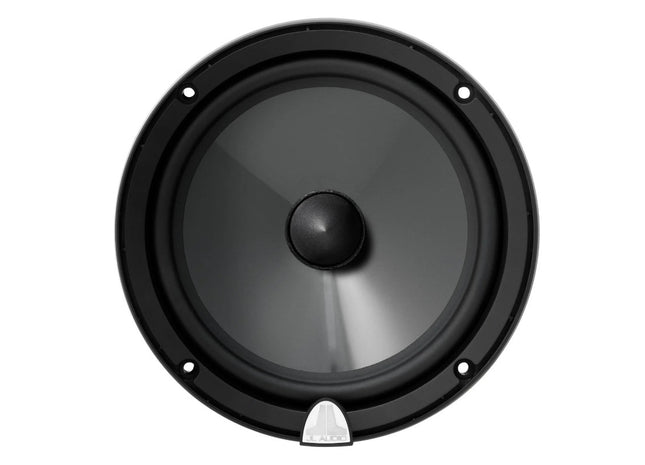

  • JL Audio C3-600cw : C3 6" Component Woofer. JL Audio C3-600cw : C3 6" Component Woofer, 75W RMS

    JL Audio C3-600cw : C3 6" Component Woofer, 75W RMS

    Pre-Order Today!

    C3-Series 6-Inch 75-Watt Component Woofer with Grille There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application. The new C3-600cw expands the C3 lineup with a direct-fit product for many Japanese vehicles that will not accept a full-size 6.5-inch speaker. The C3-600 system features 6-inch (150 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cone and injection-molded polymer basket. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems. A woofer grille is included, consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo. Sonic character: Clean and Powerful Sold individually. Includes Component Phase Plug and Tweeter Post (Tweeter sold separately). General Specifications Continuous Power Handling (RMS) 75 W Recommended Amplifier Power (RMS) 25 - 150 W / Ch. System Efficiency 89.5 dB @ 1 W / 1 m System Nominal Impedance 4 Ω System Frequency Response 50 Hz - 25 KHz ± 3 dB Physical Specifications Frame Outer Diameter (A) 6.21 in. / 157.7 mm Grille Tray Outer Diameter (B) 6.46 in. / 164.1 mm Motor Outer Diameter (C) 4.08 in. / 103.6 mm Frontal Coaxial Tweeter Protrusion* (D) 0.81 in. / 20.6 mm Frontal Grille Protrusion** (E) 1.03 in. / 26.2 mm Mounting Hole Diameter (F) 5.00 in. / 127 mm Mounting Depth (G) 2.49 in. / 63 mm JL Audio C3-600cw Manual

    Pre-Order Today!

    $179.99

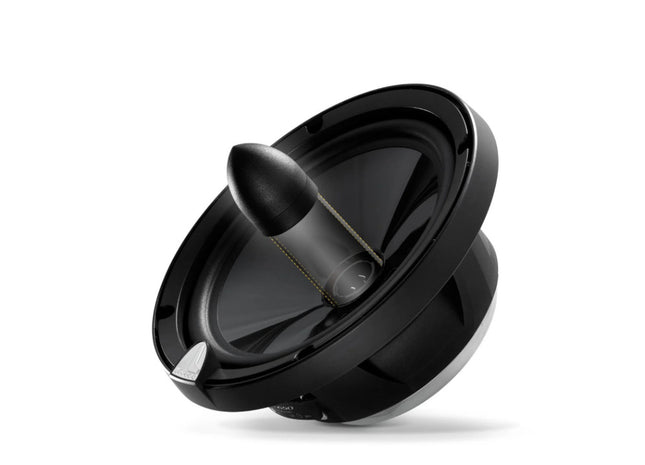

  • JL Audio C3-650cw : C3 6.5" Component Woofer, side view. JL Audio C3-650cw : C3 6.5" Component Woofer, 75W RMS

    JL Audio C3-650cw : C3 6.5" Component Woofer, 75W RMS

    Pre-Order Today!

    C3-Series 6.5-Inch 75-Watt Component Woofer with Grille There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application. The C3-650cw is a 6.5-inch (165 mm) component woofer with an oversized 1.2-inch (30.5 mm) voice coil, mineral-filled polypropylene cone and injection-molded polymer basket. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems. A woofer grille is included, consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo. Sonic character: Clean and Powerful Sold individually. Includes Component Phase Plug and Tweeter Post (Tweeter sold separately). General Specifications Continuous Power Handling (RMS) 60 W Peak Music Power 150 W Recommended Amplifier Power (RMS) 15 - 100 W / Ch. System Efficiency 91.0 dB @ 1 W / 1 m System Nominal Impedance 4 Ω System Frequency Response 59 Hz - 6 KHz ± 3 dB Physical Specifications Frame Outer Diameter (A) 6.50 in / 165 mm Grille Tray Outer Diameter (B) 6.74 in / 171 mm Motor Outer Diameter (C) 4.08 in / 104 mm Frontal Coaxial Tweeter Protrusion* (D) 0.75 in / 19 mm Frontal Grille Protrusion** (E) 1.03 in / 26 mm Mounting Hole Diameter (F) 5.56 in / 141 mm Mounting Depth (G) 2.55 in / 65 mm JL Audio C3-650cw Manual

    Pre-Order Today!

    $179.99

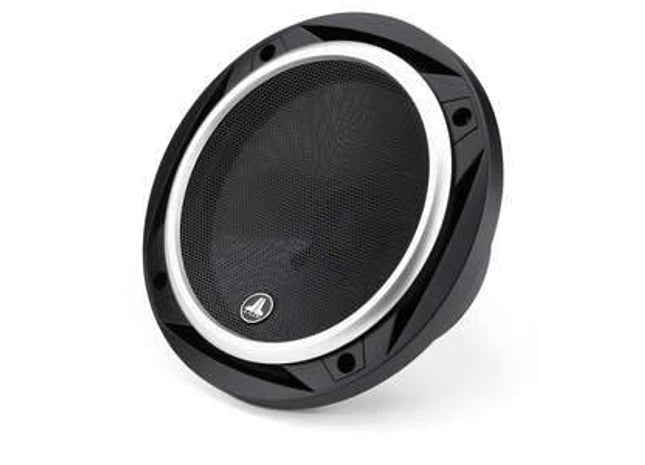

  • JL Audio C2-650cw : C2 6.5" Component Woofer - 60W RMS

    JL Audio C2-650cw : C2 6.5" Component Woofer, 60W RMS

    Pre-Order Today!

    C2-Series 6.5-Inch 60-Watt Component Woofer with Grille The C2-650cw is a 6.5-inch (165 mm) component woofer capable of accurate reproduction between 59 Hz and 6 kHz. It features a mineral-filled polypropylene cone and stamped steel basket. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems. A grille is included, consisting of a black grille tray and a black steel mesh grille. Sonic character: Clean and Powerful Sold individually. General Specifications Continuous Power Handling (RMS) 60 W Peak Music Power 150 W Recommended Amplifier Power (RMS) 15 - 100 W / Ch. System Efficiency 91.0 dB @ 1 W / 1 m System Nominal Impedance 4 Ω System Frequency Response 59 Hz - 6 KHz ± 3 dB JL Audio C2-650 Manual

    Pre-Order Today!

    $149.99

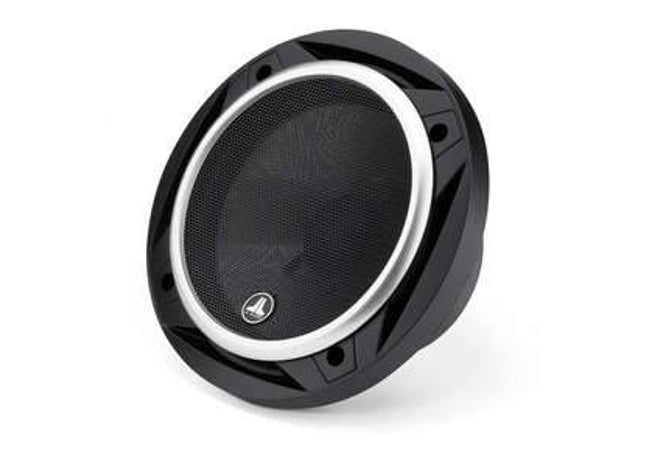

  • JL Audio C2-600cw : 6" Component Woofer - 60W RMS

    JL Audio C2-600cw : 6" Component Woofer, 60W RMS

    Pre-Order Today!

    C2-Series 6-Inch 60-Watt Component Woofer, with Grille The C2-600cw is a 6-inch (150 mm) component woofer capable of accurate reproduction between 59 Hz and 7 kHz. It features a mineral-filled polypropylene cone and stamped steel basket. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems. A grille is included, consisting of a black grille tray and a black steel mesh grille. Sonic character: Clean and Powerful Sold individually. General Specifications Continuous Power Handling (RMS) 60 W Peak Music Power 150 W Recommended Amplifier Power (RMS) 15 - 100 W / Ch. System Efficiency 90.5 dB @ 1 W / 1 m System Nominal Impedance 4 Ω System Frequency Response 59 Hz - 7 KHz ± 3 dB JL Audio C2-600 Manual

    Pre-Order Today!

    $149.99

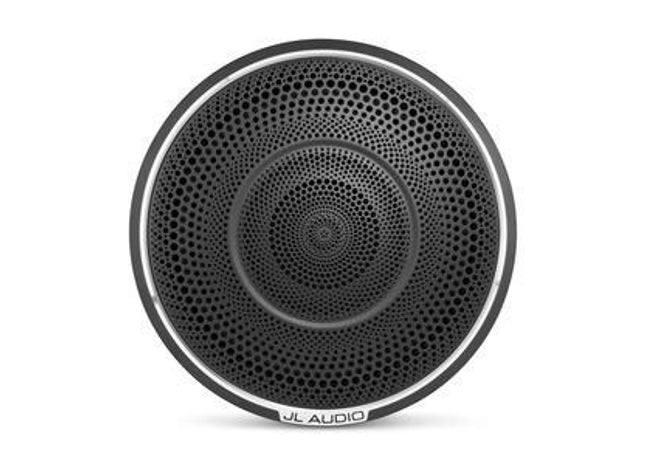

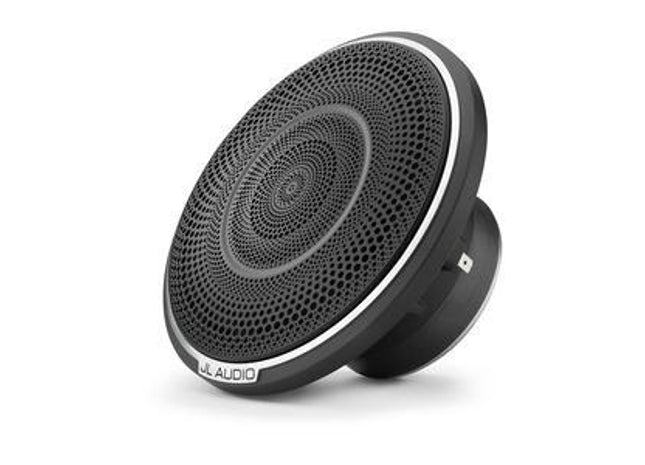

  • JL Audio C7-650cw : 6.5" Component Woofer - 125W RMS JL Audio C7-650cw : 6.5" Component Woofer top side.

    JL Audio C7-650cw : 6.5" Component Woofer, 125W RMS

    Pre-Order Today!

    C7-Series 6.5-Inch 125-Watt Component Woofer with Grille C7 is the pinnacle of JL Audio automotive loudspeaker design, benefiting from their most advanced development tools and a complete commitment to precision manufacturing. The C7-650cw component woofer is capable of operating in a 3-way system, with a midrange and tweeter, or with only a tweeter in a 2-way configuration. Engineered from the ground up, it has exceptional linear excursion capability and outstanding linearity, resulting in solid mid-bass and pure, precise, mid-range performance. Distortion and non-linearities have been minimized through critical optimization of dynamic motor and suspension behaviors. Passive crossover networks are not included with C7 drivers, as they are designed for active systems. Instead, we recommend a high-quality tuning DSP, such as the JL Audio TwK™ 88 or D8, and a dedicated amplifier channel for each C7 loudspeaker in the system. Precise setup of equalization, delay and crossover filters will ensure optimal in-vehicle performance. C7-650cw Design Notes:Cone and Dust Cap: Vacuum-formed, mineral-filled polypropylene material offers excellent damping and low mass. The cone body features a gentle curvilinear profile to optimize response. A specially shaped dust cap attaches to the cone body and the voice coil former to improve high frequency behavior. Suspension design: The moving assembly is suspended and damped via a large-diameter, linear profile spider formed from a Nomex®/polycotton blend, and a positive-roll, rubber surround. The two combine to provide optimum damping without prematurely restricting the C7-650cw's outstanding excursion capability. Motor Design: The C7-650cw employs a high-density magnetic circuit with a high-grade Y35 Strontium-ferrite magnet, and a specially machined, T-Yoke motor topology. Motor magnetics have been precisely optimized utilizing advanced FEA tools to reduce distortion and provide linear motor force throughout the driver's performance range. A 32 mm (1.27 inch) diameter, overhung voice coil is employed, wound with copper wire onto a fiberglass voice coil former. The oversized voice coil offers extended power handling capability, minimizing thermal compression and distortion at higher listening levels. Chassis Design: A purpose-engineered cast alloy basket is employed, featuring thin spokes to maximize rear open area, and our Patented Elevated Frame Cooling technology. Design Bandwidth: With 48 dB/octave filters: 50 Hz - 5 kHz With 24 dB/octave filters: 60 Hz - 5 kHz With 12 dB/octave filters: 70 Hz - 5 kHz Built in USA with Global Components Sold individually, with a cast-alloy grille tray, one fine mesh steel grille insert and one spiral steel grille insert. The performance of every C7 driver is tested and verified, then assigned a unique serial number. Register your C7 loudspeaker online to receive a copy of its specific Acoustical Test Report. General Specifications Continuous Power Handling (RMS) 125 W Peak Music Power 225 W Recommended Amplifier Power (RMS) 50 - 175 W / Ch. Nominal Impedance 4 Ω Frequency Response 50 Hz - 5 KHz ± 3 dB JL Audio C7-650cw Manual

    Pre-Order Today!

    $599.99
