Automotive 4 Channel Amplifiers

45W RMS x 4 (4Ω/2Ω, 14.4V, ≤ 1% THD+N) 82dB S/N (ref: 1W into 4Ω) Compact size (fits easily inside dashboard of most vehicles) Works with any aftermarket and most OEM head units Bridgeable Gain, high-pass crossovers and input select Add higher output and more dynamic response with this easy-to-install Universal Power Pack upgrade. Compact size lets the KTP-445U fit where most amplifiers won’t. The KTP-445U comes equipped with the RCA and Auto-Sensing-Speaker level connectors and it fits behind the head unit in the dash of most vehicles. It's small and compact at only 7-7/16” x 1-1/2” x 2-1/2”. The size and flexible wires make the Power Pack an easy choice to save space. High-Pass selectable switches for Front & Rear allow frequency filtering for a wide variety of speakers. Choose from full range to selectable range: 60Hz, 80Hz or 120Hz to fine-tune your crossover points. Need configurable options for Speaker-Level or RCA inputs to the Power Pack? On the bottom panel of the Power Pack there are selectable input options to accommodate Speaker-Level (0.5V-10V) or RCA (0.2V – 4V) inputs. Selectable 2 Channel and 4 Channel options give you the control to determine source inputs, and can eliminate the need for Y-adapters. The Power Pack provides simple variable gain controls on the end panel for flexibility and a wide variety of system applications. In order to ensure that Alpine sound quality is heard at your ears, we’ve created a platform that offers an unbelievably low noise floor, taking extra care to ensure a clean signal path, with no extraneous interference. The end result: The Power Pack boasts 1 Watt Signal-to-Noise Ratio of 82dB or better. Uniquely, the Power Pack distortion actually decreases at higher frequencies, resulting in a clean and clear signal where your ear is most sensitive to distortion. - < 0.03% THD+N @ 1W, 1% THD+N @ rated power. Alpine KTP-445U Manual

Read more less

45W RMS x 4 (4Ω/2Ω, 14.4V, ≤ 1% THD+N) 82dB S/N (ref: 1W into 4Ω) Compact size (fits easily inside dashboard of most vehicles) Works with select 2005+Alpine head units The KTP-445A Power Pack amplifies power output on select 2005 and newer Alpine head units, resulting in up to a 150 percent power increase over the original power from the head unit's built-in amplifier. Compact size lets the KTP-445A fit where most amplifiers won’t. The KTP-445A comes equipped with direct plug-in connectors for select 2005 and newer Alpine head units and it fits behind the dash of most vehicles. It's small and compact at only 7-7/16” x 1-1/2” x 2-1/2”. Its size and flexible wires make the Power Pack an easy choice to save space. In order to ensure that Alpine sound quality is heard, we’ve created a platform that offers an unbelievably low noise floor, taking extra care to ensure a clean signal path, with no extraneous interference. The end result: The Power Pack boasts 1 Watt Signal-to-Noise Ratio of 82dB or better. No Manual Avialable

Read more less

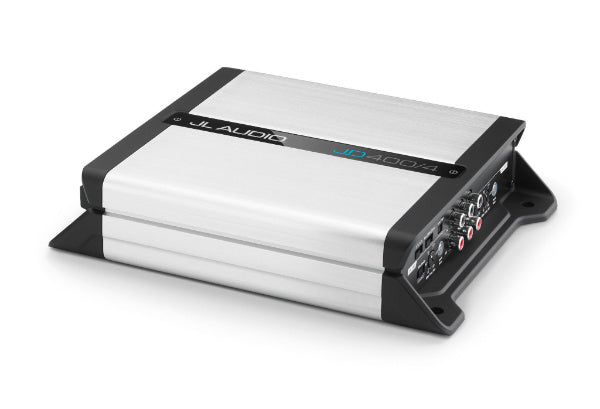

JD-Series 75-Watt x 4-Channel Class-D Full-Range Amplifier Utilizing JL Audio's exclusive NexD™ high-speed switching technologies, the JD400/4 amplifier is engineered to deliver loads of clean power, with excellent efficiency and low distortion. This little guy churns out 100 watts of audio from each of its four channels into 2 ohms (14.4V, 1% THD) and is fully bridgeable, so it can be used as a 3-channel amplifier, or as a 2-channel amplifier producing a whopping 200W x 2 into 4 ohms. The JD400/4’s controls can be found on the input panel of the amplifier, with all speaker and power connections located along the opposite end of the extruded aluminum chassis. Signal processing features include high or low-pass 12 dB / octave filters (defeatable) for each channel pair, with continuously variable frequency selection from 50-500 Hz, and dual-range, differential-balanced inputs capable of accepting line-level or speaker-level signals. Automatic turn-on capability (via signal sensing or DC-offset sensing) is standard equipment. Onboard LED-clipping indicators are also included surrounding each input sensitivity control. This convenient feature lets you set your amplifier’s input sensitivity, quickly and accurately, without special equipment. You will also find a set of buffered, pass-through preamp outputs on-board, so you can pass signals to another amplifier. General Specifications @ 4 Ω 75 W RMS x 4 @ 2 Ω 100 W RMS x 4 Bridged @ 4Ω 200 W RMS x 2 Frequency Response 12 Hz - 22 kHz (+0, -1dB) S/N Ratio, referred to highest rated power >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Damping Factor @ 4 Ω >150 / 50 Hz Damping Factor @ 2 Ω >75 / 50 Hz THD+N @ Rated Power <1% @ 2 Ω per Ch. Input Voltage Range @ RCA Inputs Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High) Min.Copper Power / Ground Wire Gauge 4 AWG wire Fuse Rating 40 A (AFS, AGU or MaxiFuse™) Filter Mode(s) Low-Pass or High-Pass Filter Slope(s) 12 dB/octave Filter Frequency Range 50 Hz - 500 Hz Detented, Calibrated Filter Freq. Potentiometers No Filter Defeat Function Yes Remote Level Control No Remote Level Modes N/A Channel Input Mode Switch Yes (2/4 ch.) Pass-Through Preamp Output Buffered Source Channel Selection for PreOuts No (always 2 Ch) JL Audio JD400/4 Manual

Read more less

The R-Series amplifiers utilize Alpine’s advanced amplifier platform that takes the classic Class-D amplifier circuit and adds dual post-filter feedback loops for unmatched accuracy and control. This technology., originally launched in the premium X-Series amplifiers,, produces efficient power with enhanced dynamic range, qualifying the R-Series amplifiers to be Hi-Resolution Audio compliant. This new technology minimizes audible imperfections like excessive phase shift and internal noise which can deteriorate sound quality. With an incredibly low phase shift of 46°, the R-A60F 4-channel amplifier delivers accurate imaging compared to well over 100° of phase shift by a competitive amplifier model. This superior phase curve ensures a proper sound stage among the singers and instruments. Specifications Alpine's Class D amplifier circuit 100W RMS x 4 (4Ω, 14.4V, ≤ 1% THD+N) 150W RMS x 4 (2Ω, 14.4V, ≤  1% THD+N) Bridged: 300W x 2 (4Ω, 14.4V, ≤ 1% THD+N) S/N >85dB (ref. 1W into 4Ω) • THD+N≤ 0.03% (ref. 1W into 4Ω) Frequency response =10Hz to 45kHz (+/- 3dB) Damping Factor >500 Alpine R-A60F Manual

Read more less

XDM-Series Six-Channel Class-D Marine-Grade Amplifier, 100-Watts x Six-Channels @ 2-Ohm or 75-Watts x 6-Channels @ Four-Ohm The incredibly flexible XDM600/6 packs a serious full-range wallop and delivers a stunning 100-watts to each of its six channels into 2-ohms (14.4V, 1% THD). The technology that makes this much power possible in such a compact chassis is Jl's advanced NexD high-speed switching design, which permits full bandwidth Class D operation with extremely low distortion and remarkable efficiency. Suitable for car or boat installations, the XDM600/6 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades. With the XDM600/6, you have plenty of great use options. Configure it as a six-channel satellite amplifier with 75W x 6 @ 4Ω, or bridge four of its channels to create a staggered power four-channel amplifier with 200W x 2 @ 4Ω for your front satellites and 75W x 2 @ 4Ω for your rear satellites. You can also drive two subwoofers with 200W each, plus a pair of satellites with 75W x 2. The XDM600/6 includes a 12dB / octave filter for each channel bank, which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), you have the ability to adjust the level of two, four, or all six amplifier channels directly from the driver's seat or cockpit. Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access. Specifications @ 4 Ω 75 W RMS x 6 @ 14.4V @ 2 Ω 100 W RMS x 6 @ 14.4V Bridged @ 4Ω 200 W RMS x 3 @ 14.4V @ 4 Ω 60 W RMS x 6 @ 12.5V @ 2 Ω 90 W RMS x 6 @ 12.5V Bridged @ 4Ω 180 W RMS x 3 @ 12.5V Frequency Response 12 Hz - 22 kHz (+0, -1dB) S/N Ratio, referred to highest rated power >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Damping Factor @ 4 Ω >150 / 50 Hz Damping Factor @ 2 Ω >75 / 50 Hz THD+N @ Rated Power <1% @ 2 Ω per Ch. Input Voltage Range @ RCA Inputs 200 mV - 4 V RMS Min.Copper Power / Ground Wire Gauge 4 AWG wire Fuse Rating 50 A (AFS, AGU or MaxiFuse™) Filter Mode(s) Low-Pass or High-Pass Filter Slope(s) 12 dB/octave Filter Frequency Range 50 Hz - 500 Hz Detented, Calibrated Filter Freq. Potentiometers Yes Filter Defeat Function Yes Remote Level Control Optional HD-RLC or MHD-RLC (water-resistant) Remote Level Modes 2 or 4 or All Channels Channel Input Mode Switch Yes (2/4/6 ch.) Pass-Through Preamp Output None Source Channel Selection for PreOuts N/A Height (H) 2.05 in / 52 mm Width (W) 10.23 in / 260 mm Depth (D) 7.09 in / 180 mm Net Weight 5.8 lb / 2.63 kg JL Audio XDM600/6v2 Manual

Read more less

Using expertise gleaned from over five decades of crafting premium car audio products and trickle-down engineering and design from the Ultra Hi-Res AlpineF#1Status system technologies, the Alpine Status System features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand-picked from the highest-quality materials for the highest in-class audio performance, that when used as a complete system, can achieve 192kHz/24Bit playback. Powering a Hi-Res sound system without contributing noise during playback requires efficiency and precision and the HDA-F60 was intentionally designed to provide impressive power output to the system while ensuring the purest audio performance. The amplifier’s wide dynamic range capability provides impressive output in a compact chassis that fits most vehicle applications. The HDA-F60 features a high-efficiency digital circuit design that ensures ultra- low distortion levels for precise sound reproduction and superb sound quality. Intentional designs, like a copper-plated chassis and black circuit board, bring the signal-to-noise ratio up to 83dB and minimize noise and distortion during playback for complete music fidelity that’s true to the original source. Featuring technology unique to Alpine, the amplifier features Alpine’s dual negative feedback control circuit to improve linearity for the most accurate sound amplification. This technology also stabilizes the amplifier output while driving the speakers for ultimate reliability. The HDA-F60 features Alpine’s quick- connect power and speaker connectors for quick and safe installation. The one- sided terminal layout and top-panel sound controls give the user quick access to controls on the amplifier. The Alpine Status System is sold separately and can be used to build a custom sound system. Three sets of true 4V preamp outputs are included to add additional amplifiers if more power is needed. For best results, install the complete Alpine Status system together as a full system to achieve the highest in-class audio performance only second to the Ultra High-Resolution AlpineF#1System. Features Hi-Res Audio Playback (192kHz/24Bit) 4-Channel Amplifier High-Efficiency Digital Circuit Design Alpine’s Dual Negative Feedback Control Circuit High Bandwidth Amplifier Alpine’s Premium Class D Circuit Design Copper-plated chassis Black circuit board One-sided terminal layout Top panel sound controls Quick connect power and speaker terminals Optional Remote bass knob compatible (requires RUX-KNOB.2 or RUX-H01, sold separately) Specifications Dimensions: 11.4375” x 7.5” x 2.125” Power Rating: (14.4V, ≤1.0% THD+N) 100W x 4 @ 4Ω 150W x 4 @ 2Ω Bridged: 300W x 2 @ 4Ω THD+N: 0.02% (10W into 4ohm) S/N Ratio: 87dB (1W into 4ohm) Frequency response: 10-60kHz (-3dB) Damping factor: 500 Selectable input level – HI/LO Selectable 2/4ch input Variable High pass / Low pass crossover Auto-turn on with remote sensing Alpine HDA-F60 Manual

Read more less

XDM-Series Four-Channel Class-D Marine-Grade Amplifier, 100-Watts x Four-Channels @ 2-Ohm or 75-Watts x 4-Channels @ Four-Ohm The ultra-compact XDM400/4 packs a serious full-range punch, generating a whopping 100-watts to each of its four channels into 2-ohms (14.4V, 1% THD). The technology that makes this much power possible in such a compact chassis is our advanced NexD high-speed switching design, which permits full bandwidth Class-D operation with extremely low distortion and remarkable efficiency. Suitable for car or boat installations, the XDM400/4 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades. Combine the XDM400/4 with our XDM600/1 monoblock to build a stunning 1000W amplification system to power four satellites and a subwoofer... and fit the whole thing under a seat or deck. Or, use the XDM400/4 by itself to power two satellites, plus a subwoofer.  The XDM400/4 includes a 12dB / octave filter for each channel bank, which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), you have the ability to adjust the level of all amplifier channels or just the rear channels directly from the driver's seat or cockpit. Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access. Specifications @ 4 Ω 75 W RMS x 4 @ 14.4V @ 2 Ω 100 W RMS x 4 @ 14.4V Bridged @ 4Ω 200 W RMS x 2 @ 14.4V @ 4 Ω 60 W RMS x 4 @ 12.5V @ 2 Ω 90 W RMS x 4 @ 12.5V Bridged @ 4Ω 180 W RMS x 2 @ 12.5V Frequency Response 12 Hz - 22 kHz (+0, -1dB) S/N Ratio, referred to highest rated power >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Damping Factor @ 4 Ω >150 / 50 Hz Damping Factor @ 2 Ω >75 / 50 Hz THD+N @ Rated Power <1% @ 2 Ω per Ch. Input Voltage Range @ RCA Inputs 200 mV - 4 V RMS Min.Copper Power / Ground Wire Gauge 4 AWG wire Fuse Rating 40 A (AFS, AGU or MaxiFuse™) Filter Mode(s) Low-Pass or High-Pass Filter Slope(s) 12 dB/octave Filter Frequency Range 50 Hz - 500 Hz Detented, Calibrated Filter Freq. Potentiometers Yes Filter Defeat Function Yes Remote Level Control Optional HD-RLC or MHD-RLC (water-resistant) Remote Level Modes 2 or All channels Channel Input Mode Switch Yes (2/4 ch.) Pass-Through Preamp Output Buffered Source Channel Selection for PreOuts Yes Filter Mode(s) Low-Pass or High-Pass Filter Slope(s) 12 dB/octave Filter Frequency Range 50 Hz - 500 Hz Detented, Calibrated Filter Freq. Potentiometers Yes Filter Defeat Function Yes Remote Level Control Optional HD-RLC or MHD-RLC (water-resistant) Remote Level Modes 2 or All channels Channel Input Mode Switch Yes (2/4 ch.) Pass-Through Preamp Output Buffered Source Channel Selection for PreOuts Yes JL Audio XDM400/4v2 Manual

Read more less

4-Channel Amplifier with Automatic DSP and Built-In EQ/Processor, 50-Watts RMS @ 4-Ohms x 4ch Kicker KEY series amplifiers use a powerful internal computer to deliver dramatic improvements in realism and soundstage. A massive 40-band equalizer improves tonality, and a 24dB crossover re-defines the capabilities of each speaker. The KEY200.4 delivers 200 watts RMS of power to your speakers. Measuring less than eight inches long and only two inches high, the KEY200.4 fits nearly anywhere. Mount it behind your radio, under the seat, or in your trunk with ease.  If the temperature reaches the threshold, the Kicker KEY200.4's dynamic power-management algorithms kick into gear! Instead of hearing the amplifier's volume “pumping” or blowing a fuse – KEY technology engages a nearly inaudible limiter/compressor, applied only to the peaks of the music for as little as milliseconds at a time. The amplifier quickly cools, which deactivates the compressor. Music returns to its full dynamic range without a moment’s interruption! Specifications Power (watts/ch), 4 Ohm stereo 50 x 4 Microphone/Kicker EQ button included Standard dimensions(H x W x L) 1-11/16 x 2-3/4 x 7-3/8 Metric dimensions(H x W x L) 4.3 x 7 x18.7 Frequency Response (Hz): 20-20k, +0/-1dB Input Sensitivity: high level 250mV-10V Signal-to-Noise Ratio: >90dB, a-weighted, re: rated power Active Crossover: 24dB/octave, selective high pass or all pass @60,80, or 120Hz What's in the Box: 1 - 4 channel power amplifier1 - microphone1 - microphone cable with switch1 - fuse holder1 - manual and installation hardware Kicker 47KEY2004 Manual

Read more less

Four-Channel Amplifier, 90-Watts x 4ch at 2-Ohm, 65-Watts x 4ch at 4-Ohm This CX-Series 4-channel amplifier by Kicker has an optimized circuit layout and the highest-grade internal components. Highly efficient heat sinks keep the amp cool with a sophisticated new look. Mono amps offer an optional remote level control to adjust your bass right from the dash. Efficient Class-D amplifier Three-second turn-on/off delay to eliminate unwanted interference Variable 12dB crossovers provides control to dial in perfect sound KickEQ™ 6dB variable bass boost for those additional low frequencies 24dB subsonic filter for protection from potentially damaging frequencies FIT+™ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio Accepts up to 40-volt input signal Small footprint for easier installation Vertical mounting hardware included for another unique look This Kicker 46CXA3604t amplifier delivers as much as 90W into 4 audio channels. Specifications MODEL CXA360.4 Power (watts/ch) 4 Ohm Stereo 65x4 Power (watts/ch) 2 Ohm Stereo 90x4 Power (watts/ch) 4 Ohm Mono 180x2 CXRC Remote Bass Capable (sold sep.) yes Dimensions (in, cm) (all models 2-3/8, 5.9H x 6-3/4, 17W x ...L)12-1/2, 31.7 Frequency Response (Hz): 10Hz-20kHz Input Sensitivity: 250mV-10V (Low Level)1V-40V (High Level) Signal-to-Noise Ratio: 95dB Active Crossover: HI, LO or OFF; Variable 50–200Hz @ 12dB/Octave Subsonic Filter: n/a KickEQ™ Boost Variable 0-6dB @40Hz Kicker 46CXA3604t Manual

Read more less

The KTA-F30W is perfect for when you want to boost your sound system but don’t have the space for a large amplifier. It is compatible with an aftermarket or factory head unit and adds up to 4 times the power over the head unit's original built-in power. The KTA-30FW features Alpine’s exclusive Dynamic Peak Power (DPP) technology which uses a new dynamic power supply design that delivers bursts of power during rigorous musical passages. When the amplifier senses that more power is required, the power supply quickly increases the internal gain level, effectively doubling the power for a significant increase in dynamic range at high music volumes. Specifications Alpine's Class D amplifier circuit w/ Dynamic Peak Power (DPP) 75W RMS x 4 @ 2Ω/4Ω, 14.4V, ≤ 1% THD+N 150W DPP x 4 @ 2Ω/4Ω, 14.4V, ≤ 1% THD+N >85dB S/N (ref. 1W into 4Ω) >0.1% THD (ref. 1W into 4Ω) 20-20kHz Frequency response (+/-1dB) Weather resistant (IP66 rating) OEM-grade connector wire harness Speaker/RCA inputs (selectable, High range=0.5-10V, Low range=0.2-4V) Sound control: Crossovers – Off/HP/LP, Fc=50-400Hz @ -12dB/Oct. (variable); Input gain settings (variable); 2ch/4ch input (selectable) Alpine KTA-30FW Manual

Read more less

Alpine S-Series 55-Watt x 4-Channel Power Amplifier The S-Series amplifiers are designed to fit anywhere.  Measuring at 8”, these amplifiers can be mounted under seats or behind panels.  Though they sport a compact footprint on the outside, they produce impressive power on the inside The S-A32F 4-Channel Amplifier boasts the perfect amount of power to drive the newly redesigned S-Series speakers to their optimal performance for clean and accurate sound. The S-Series amplifiers contain technology that was previously only available in our premium line up of amplifiers, the R- and X-Series models. The S-Series models are based on Alpine’s intelligent amplifier platform that ensures superior sound reproduction and precision imaging. With an improved heat sink, and protection circuit design that eliminates thermal shut-down, your music will keep playing no matter where your drive takes you. Specifications Alpine's Class D amplifier circuit 55W RMS x 4 (4Ω, 14.4V, ≤ 1% THD+N) 80W RMS x 4 (2Ω, 14.4V, ≤ 1% THD+N) Bridged: 160W RMS x 2 (4Ω, 14.4V, ≤ 1% THD+N) S/N >83dB (ref. 1W into 4Ω) THD+N ≤ 0.03% (ref. 1W into 4Ω) Frequency response =10Hz to 30kHz (+/-3dB) Damping Factor >100 Alpine S-A32F Manual

Read more less

MX-Series 4-Channel Marine-Grade Amplifier, 125-Watts x 4ch @ 2-Ohm or 70-Watts x 4ch @ 4-Ohm Engineered specifically for powersports applications, the 4-channel MX500/4 amplifier employs JL's high-speed NexD™ switching design to deliver plenty of clean power, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles. Generating a solid 70W x 4 into 4 ohms (14.4V, 1% THD), the MX500/4 is fully bridgeable, so it can be used as a 3-channel amplifier, or as a 2-channel amplifier producing a potent 250W x 2 into 4 ohms. Other features include independent front and rear crossovers with selectable full-range, high-pass or low-pass filter controls and a dual-range input section that accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals. This amplifier features a black powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability. Specifications Frequency Response 20 Hz - 20 kHz (+0, -1dB) S/N Ratio, referred to highest rated power >88 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W >70.5 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Damping Factor @ 4 Ω >92 / 50 Hz Damping Factor @ 2 Ω >43 / 50 Hz THD+N @ Rated Power <1% @ 2 Ω per Ch. Input Voltage Range @ RCA Inputs Switchable from 250 mV - 4 V RMS (Low) to 750 mV - 15 V RMS (High) Min.Copper Power / Ground Wire Gauge 4 AWG wire Fuse Rating 50 A (AFS, AGU or MaxiFuse™) @ 4 Ω 70 W RMS x 4 @ 2 Ω 125 W RMS x 4 Bridged @ 4Ω 250 W RMS x 2 JL Audio MX500/4 Manual

Read more less

MX-Series 4-Channel Class-D Marine-Grade Amplifier, 70-Watts x 4ch @ 2-Ohm or 50-Watts x 4ch @ 4-Ohm Engineered specifically for powersports applications, the 4-channel MX280/4 amplifier employs JL's high-speed NexD™ switching design to deliver plenty of clean power, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles. Generating a solid 50W x 4 into 4 ohms (14.4V, 1% THD), the MX280/4 is fully bridgeable, so it can be used as a 3-channel amplifier, or as a 2-channel amplifier producing a potent 140W x 2 into 4 ohms. Other features include independent front and rear crossovers with selectable full-range, high-pass or low-pass filter controls and a dual-range input section that accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals. This amplifier features a black powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability. Specifications Frequency Response 20 Hz - 20 kHz (+0, -1dB) S/N Ratio, referred to highest rated power >89.5 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W >68 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Damping Factor @ 4 Ω >60 / 50 Hz Damping Factor @ 2 Ω >30 / 50 Hz THD+N @ Rated Power <1% @ 2 Ω per Ch. Input Voltage Range @ RCA Inputs Switchable from 250 mV - 4 V RMS (Low) to 750 mV - 15 V RMS (High) Min.Copper Power / Ground Wire Gauge 8 AWG wire Fuse Rating 35 A (AFS, AGU or MaxiFuse™) @ 4 Ω 50 W RMS x 4 @ 2 Ω 70 W RMS x 4 Bridged @ 4Ω 140 W RMS x 2 JL Audio MX280/4 Manual

Read more less

RD-Series 75-Watts x 4-Channel Automotive Amplifier @ 4-Ohms Utilizing JL Audio's exclusive NexD™ high-speed switching technologies, the ultra-compact RD400/4 amplifier is engineered to deliver loads of audio output power, with incredible efficiency and low distortion. Don’t let its modern styling and small size fool you though, this little powerhouse churns out 100 watts of crystal-clear audio from each of its four channels into 2 ohms (14.4V, 1% THD) and is fully bridgeable, so it can be used as a 3-channel amplifier, or as a 2-channel amplifier producing a whopping 200W x 2 into 4 ohms. For your convenience, the RD400/4’s controls can be found on top of the amplifier, beneath a protective cover, with all connections located along one side of its chassis. Studio-grade signal processing features include high or low-pass 12 dB / octave filters (defeatable) for each channel pair, with continuously variable frequency selection from 50-500 Hz, and dual-range, differential-balanced inputs capable of accepting most input voltage levels. Automatic turn-on capability (via signal sensing or DC-offset sensing) is standard equipment, along with all-new input type switches for bridging of stereo output channels without needing to use Y-adaptors. Onboard LED-clipping indicators are also included with your RD400/4. This all-new, innovative feature lets you easily set your amplifier’s input sensitivity settings, quickly and accurately, with no special equipment needed. You’ll also find a set of preamp outputs on-hand, so you can pass signals to another amplifier, almost effortlessly. The RD400/4 features a durable, black powder-coated finish and a top-mounted, dual-color LED light strip that reports the overall status and condition. Specifications Frequency Response 12 Hz - 22 kHz (+0, -1dB) S/N Ratio, referred to highest rated power >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Damping Factor @ 4 Ω >150 / 50 Hz Damping Factor @ 2 Ω >75 / 50 Hz THD+N @ Rated Power <1% @ 2 Ω per Ch. Input Voltage Range @ RCA Inputs Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High) Min.Copper Power / Ground Wire Gauge 4 AWG wire Fuse Rating 40 A (AFS, AGU or MaxiFuse™) @ 4 Ω 75 W RMS x 4 @ 2 Ω 100 W RMS x 4 Bridged @ 4Ω 200 W RMS x 2 JL Audio RD400/4 Manual

Read more less

HD-Series 4-Channel Class-D Full-Range Amplifier, 150-Watts x 4ch @ 1.5-4-Ohms This compact multi-channel powerhouse employs JL's Single-Cycle Control switching design and R.I.P.S. technology to deliver 150W x4 or 300 W x 2. Tight power supply regulation keeps distortion down and maximizes sound quality. When using the HD750/1 or HD1200/1 to drive a subwoofer system, the HD600/4 is the ideal satellite amplifier, delivering huge dynamics with pristine resolution. From a pure sound quality perspective, JL invites you to compare the real-world, in-car performance of this amplifier to any other amplifier on the market, of any type, at any price. It can also be deployed on its own as a very capable 3-channel system amplifier with 150W x 2 to the satellites and 300W x 1 to a subwoofer system. This amplifier features a brushed aluminum finish with black powder-coated cast alloy heat sinks and bottom panel. A black powder-coated, gasketed cover is also provided to protect the controls. General Specifications Frequency Response 6 Hz - 30 kHz (+0, -1dB) S/N Ratio, referred to highest rated power >110 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W >88.2 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Damping Factor @ 4 Ω >300 / 50 Hz Damping Factor @ 2 Ω >150 / 50 Hz THD+N @ Rated Power <0.03% @ 4 Ω per Ch. Input Voltage Range @ RCA Inputs Switchable from 200 mV - 2 V RMS to 800 mV - 8 V RMS Min.Copper Power / Ground Wire Gauge 4 AWG wire Fuse Rating 50 A (AFS, AGU or MaxiFuse™) @ 4 Ω 150 W RMS x 4 @ 3 Ω 150 W RMS x 4 @ 2 Ω 150 W RMS x 4 @ 1.5 Ω 150 W RMS x 4 Bridged @ 8 Ω 300 W RMS x 2 Bridged @ 4 Ω 300 W RMS x 2 JL Audio HD600/4 Manual

Read more less

4-Channel Class-D Full-Range Amplifier with Integrated DSP, 100-Watt x 4 @2-Ohm / 75-Watt x 4 @ 4-Ohm Designed to simplify great audio, every VXi amplifier combines JL's advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor. With JL's second-generation NexD2™ technology, the VX400/4i full-range amplifier outputs up to 75 watts per channel into 4 ohms, or 100 watts into 2 ohms. It can also be bridged into 4 ohms, producing up to 200 W x 2. The NexD2™ full-range technology in this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. The amplifier chassis is ultra-compact, with all connections on one side, to greatly simplify installation into tight spaces. Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN™ Software application installed. Amplifier includes: Power Connector (for 4 AWG wire), Analog Input/Pre-Out Harness, Speaker Output Harness, 6 ft A/B USB Cable TüN™ Software Applications Intuitive setup and tuning, all at your fingertips. Automatically recognizes connected amplifier and displays appropriate interface. TüN™ is available for download for free in a variety of applications, for computers and most handheld devices. Unprecedented, Onboard DSP Tuning Power Premium, triple-core AKM® DSP with an optimized configuration, developed in collaboration with AKM® Hi-Res audio processing at 24 bit/96 kHz High-performance AKM® A/D and D/A converters 10 Bands of fully parametric EQ, per output channel, including pre-outs Shelving EQ option for Band 1 and Band 10 High-Pass & Low-Pass Filters for each output channel, with selectable alignments and slopes: Linkwitz-Riley: 12, 24, 48 dB/octaveButterworth: 6, 12, 18, 24, 36, 48 dB/octave Signal Delay in 0.01 millisecond steps (equivalent to 1/8-inch, 3 mm) All-Pass Filter (Phase EQ), with variable "Q" and corner frequency Polarity Reversal (0 or 180 deg.) Output Level Trim in 0.1 dB steps NexD2™ Switching Amplifier Technology JL's latest generation of high-speed switching technology delivers superb low frequency power and efficiency. Specially optimized for subwoofer applications Ultra-Versatile Analog and Digital Inputs High-performance, differential-balanced analog inputs for outstanding noise rejection Accepts speaker level signals from 200 mV, up to 16V RMS, including those from many factory systems Optical Digital (Toslink) input permits direct connection of S/PDIF digital sources, bypassing A/D converter. Accepts up to 24 bit/192 kHz input. Independently configurable RCA analog and digital pre-outs (24 bit/96 kHz) Automatic turn-on options via Signal-Sensing or DC-Offset sensing Functional Compact Chassis Design Solid cast alloy main unibody and bottom plate deliver superb EMI performance and shielding All connections utilize compact mating connectors for maximum integrity and fitment into tight spaces. Configurable LED logo ring displays status and can display audio preset color code or user-defined color Logo badge can be oriented in 90 degree increments Corner caps engineered to conceal mounting holes and hardware JLid™ System Command and Control with Networking Capabilities JL Audio's digital protocol provides control interface and communication between VXi amplifiers and optional JLid™ accessories, including: DRC-100/DRC-200/DRC-205 Digital Remote Controllers: Offers convenient level and DSP preset control from the driver's seat. VXi-BTC Bluetooth® Communicator: Permits wireless configuration of VXi amplifiers using your compatible Apple® or Android® device. VXi-HUB Optical Network Hub: Provides network connectivity for up to five slave VXi amplifiers, allowing synchronization of DRC controllers and DSP presets. Up to two VXi-HUBs can be daisy-chained to network up to ten VXi amplifiers. Specifications Frequency Response 12 Hz - 24 kHz (+0, -1dB) S/N Ratio, referred to highest rated power(Analog Inputs) 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W(Analog Inputs) 80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to highest rated power(Digital Inputs) 101 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W(Digital Inputs) 81 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Damping Factor @ 4 Ω >100 / 50 Hz Damping Factor @ 2 Ω >50 / 50 Hz THD+N @ Rated Power <1% @ 2 Ω per Ch. Input Voltage Range @ RCA Inputs 200 mV - 16 V RMS Min.Copper Power / Ground Wire Gauge 4 AWG wire Fuse Rating 40 A (AFS, AGU or MaxiFuse™) @ 4 Ω 75 W RMS x 4 @ 2 Ω 100 W RMS x 4 Bridged @ 4Ω 200 W RMS x 2 JL Audio VX400/4i Manual

Read more less
