MM-Series 400-Watt RMS 10-Inch Subwoofer Driver, 4-Ohm SVC
The fiberglass-reinforced ABS basket resists flexing during heavy excursion, so your sub hits hard without distorting. Ultra-Marine certification and an IP56 rating.
Specifications
10" 4-ohm subwoofer
Titanium-plated composite cone
Butyl rubber surround
Fiberglass-reinforced ABS basket
IP56 rating
Power handling: 400W RMS
Peak power handling: 1200W
Frequency response: 28-2000Hz
Sensitivity: 86dB @ 1W/1M
Top mounting depth: 4.35"
Cutout diameter: 9.1"
Grille not included
Warranty: 1 year
Polk Audio MM1 Subwoofer Manual

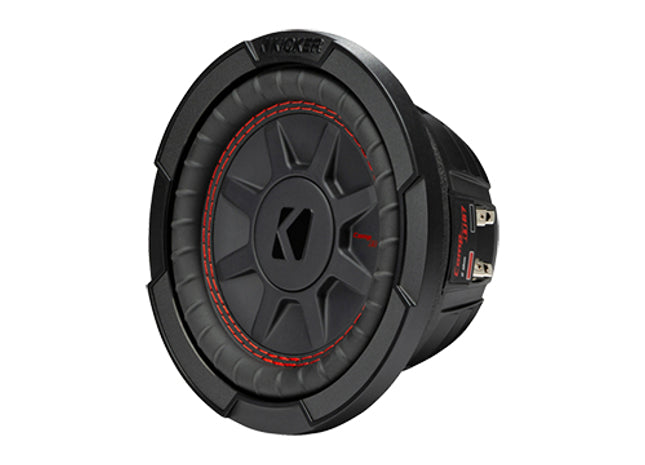

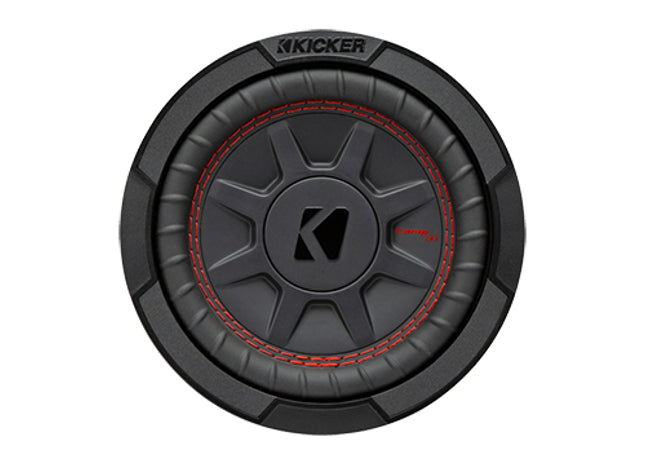

6.75-Inch 150-Watt Thin Subwoofer Driver, 1-Ohm or 2-Ohm DVC
The CompRT 6.75" thin subwoofer by Kicker is a weather resistant thin sub with a 1Ω or 2Ω dual voice coil design. This thin 6.75 inch sub magnet structure delivers 150W RMS of power with a chassis mounting depth of 2 3/4". The Kicker designed UniPlate™ back plate and solid pole piece serve as a single heat-absorbing unit to keep this 6.75" CompRT thin subwoofer driver nice and cool.The CompRT 6.75-Inch subwoofer works best with a sealed or ported enclosure and 150 watts of recommended power.
Specifications
SIZE [in, cm]:
6 13/16, 17.3
IMPEDANCE [Ohms]:
2 or 4 DVC
Recommended Amplifier Power (watts RMS)
150
Peak Power (watts, per ANSI/CTA-2031-A)
300
SENSITIVITY [dB 1w/1m]:
82.6
MOUNTING DEPTH [in, cm]:
2 3/4, 7
MOUNTING DIAMETER [in, cm]:
5 5/8, 14.3
MIN SEALED BOX VOL [cu. ft, L]:
0.18, 5.1
MAX SEALED BOX VOL [cu. ft, L]:
0.75, 21.24
Kicker CompRT Subwoofer Manual

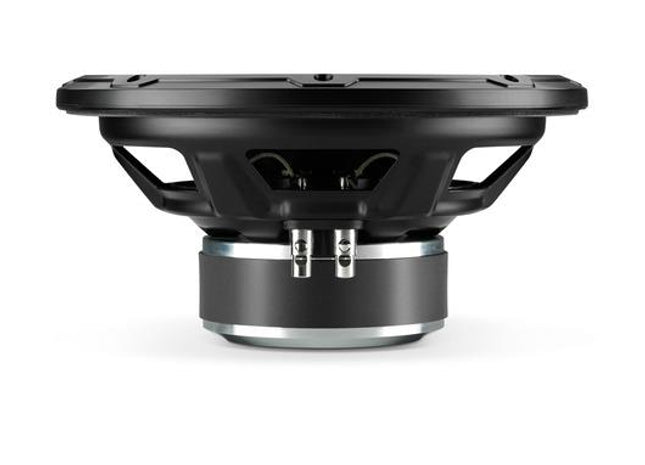

W1-Series 10-Inch 300-Watt Subwoofer Driver, 2-Ohm or 4-Ohm SVC
The JL Audio 10" W1v3 subwoofer driver is a very suitable option when space is limited with smaller amplifiers. It features a low mounting depth of 4.6 inches and a compact motor structure that allows it to comfortably fit in tight mounting locations. There is no pole vent on the rear of the subwoofer which allows the motor structure to be placed directly against an enclosure boundary. Excellent excursion capability and linearity allow the 10W1v3 to reproduce sub-bass with shocking extension and quality.
The JL Audio 10W1v3 is best used with an amplifier in the 75W - 300W RMS range and is optimized to operate in a compact 0.55 cu. ft. (15.57 l) sealed enclosure.
General Specifications
Continuous Power Handling
300W RMS
Recommended Amplifier Power
75W - 300W RMS
Nominal Impedance
2Ω/4Ω
JL Audio 10W1v3 Manual
BassWedge-Series 12-Inch 300-Watt Enclosed Subwoofer System, 4Ω Ported Enclosure
This powerful slot-ported BassWedge™ subwoofer system delivers awesome output at an unsurpassed value.
The slot-port runs along the bottom of the enclosure and fires on the same plane as the woofer to produce excellent extension and response smoothness. The port mouth is flared to minimize air-flow noises.
The ultra-versatile BassWedge™ shape has extended sides so that it can be placed with the woofer firing out or straight down, off the floor of the vehicle. The shape works equally well in forward or rear-firing installations. This gives you plenty of options for tweaking the loading of the enclosure into your vehicle.
This subwoofer system is shipped wired, loaded and ready to connect via a push-button terminal.
Finish: Dark gray, high-grade automotive carpet with "JL AUDIO" embroidery on the top edge and "Slot-Ported BassWedge™" embroidered on the port mouth.
Construction: MDF
Recommended amplifier power: 75 - 300WNominal Impedance: 4 Ω
General Specifications
Continuous Power Handling (RMS)
300 W
System Nominal Impedance
4 Ω
Enclosure Type
Slot-ported
Finish
Gray carpet
Grille Included
No
Physical Specifications
External Width (W)
16.31 in / 414 mm
External Height (H)
15.18 in / 386 mm
External Depth (D1)
20.3 in / 516 mm
External Top Surface Depth (D2)
15.75 in / 400 mm
Net Weight
33.1 lb / 15 kg
JL Audio CP112-W0v3 Brochure

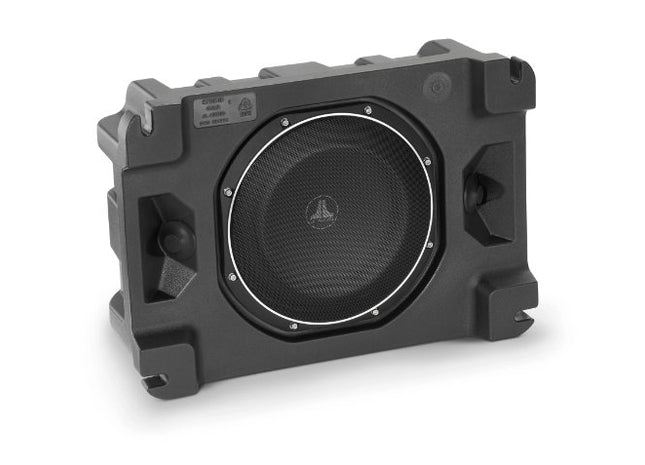

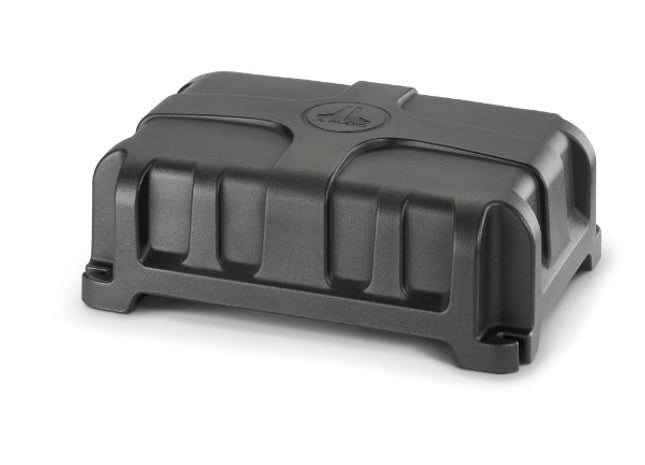

StowAway-Series 10-Inch 300-Watt Enclosed Subwoofer System, 2-Ohm or 4-Ohm Downfiring Sealed Enclosure
JL-Audio StowAway subwoofer systems are engineered to deliver amazing subwoofer performance in challenging environments and applications.
Featuring a down-firing hard-shell design, StowAway subwoofers are well suited for mounting areas shared with cargo or exposed to the elements. Constructed from marine-grade materials, this low-profile enclosure design harnesses the incredible small box requirements of the TW1 subwoofer to generate smooth and powerful bass from a remarkably compact enclosure. Slotted mounting feet located at each corner of the enclosure’s base assist with “off-the-floor” installations or in tight spaces where access is limited.
The StowAway subwoofer system is prewired with selectable harness exits located underneath at opposite ends.
Finish: black texture with debossed logo on top; a protective mesh grille is included to protect the subwoofer
Recommended amplifier power: 75–300 watts
Nominal impedance: 2 ohms
Note: Mounting hardware is not included with StowAway systems. The installation method and mounting hardware used will vary based on the requirements of your specific application. The final mounting method must affix the enclosure securely to prevent movement and vibration.
General Specifications
Continuous Power Handling (RMS)
300 W
System Nominal Impedance
2 Ω
Enclosure Type
Sealed
Finish
Black Texture
Grille Included
Yes
Physical Specifications
Height (H)
7.0 in / 178 mm
Width (W)
18.0 in / 457 mm
Depth (D)
12.5 in / 318 mm
JL Audio PES110-TW1 Manual
W1-Series 12-Inch 300-Watt Subwoofer Driver, 2-Ohm or 4-Ohm SVC
The 12" W1v3 automotive subwoofer driver by JL Audio is a lightweight 12-inch driver with excellent performance capabilities at a moderate 300-Watts. The design of the chassis allows an average mounting depth with no pole-vent on the back side of the magnet so the rear of the motor structure can be placed directly against an enclosure boundary. This 12" subwoofer can reproduce sub-bass with shocking extension and quality.
The JL Audio 12W1v3-2 and 12W1v3-4 subwoofers are best used with an amplifier in the 75W - 300W range and is optimized to operate in a compact 1.10 cu. ft. (31.5 l) sealed enclosure.
General Specifications
Continuous Power Handling
300W RMS
Recommended Amplifier Power
75W - 300W RMS
Nominal Impedance
2Ω
JL Audio 12W1v3 Manual

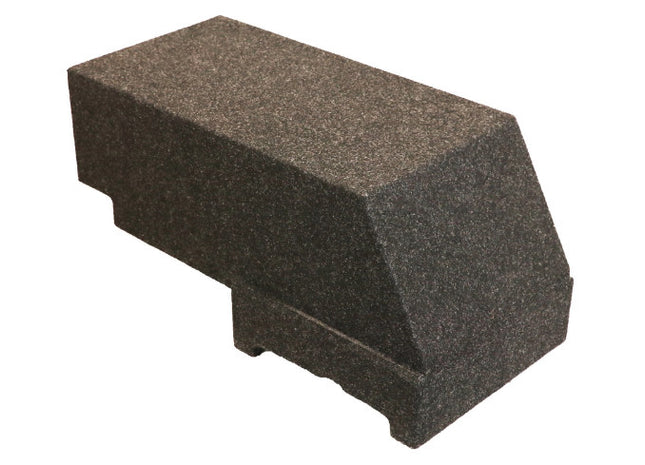

Single 10-Inch Sealed Carpeted Subwoofer-Enclosure for Select 2010-2015 Toyota-Tacoma Access-Cab Pickups
CLICK HERE TO VIEW SUBWOOFERS THAT FIT THIS BOX!
Fits: 2010-2015 Toyota Tacoma Access Cab Trucks
Installs between rear center seats
Mounting Depth: 8.5"
Volume: .96 cu.ft
Installation Note: Removal of the rear armrest is required along with Temporary removal of the front console which helps during installation. Does not affect rear seating.
Single 400-Watt 2-Ohm 10-Inch Stealthbox Subwoofer Enclosure for Select 2015-UP Ford F-150 SuperCab and 2017-UP SuperDuty SuperCab Trucks
Benefitting from JL's revolutionary thin-woofer technology, this Stealthbox® for F-150 SuperCab and SuperDuty SuperCab trucks is designed to install neatly under the rear seat with no intrusion on cab space.
Featuring an all-fiberglass, sealed enclosure design, JL's Stealthbox® houses a 10-inch TW3 thin-line subwoofer and fills your truck with loads of deep bass output. Seat folding and reclining are unaffected, and JL even incorporated a recess on the Stealthbox’s top for mounting an amplifier, if desired.
The Hard Data: Contains one 10TW3-D4 subwoofer in a sealed enclosure. 400 watt power handling. Wired for 2 ohm mono. Installs under rear bench seat and requires removal of the storage divider panel. Stealthbox® includes a steel-mesh grille to protect the driver. Does not affect folding or reclining of seat.
Stealthbox® products are built to order and generally ship within 5-6 business days of receiving your order.
JL Audio SB-F-F150SPRCB/10TW3 Installation Manual

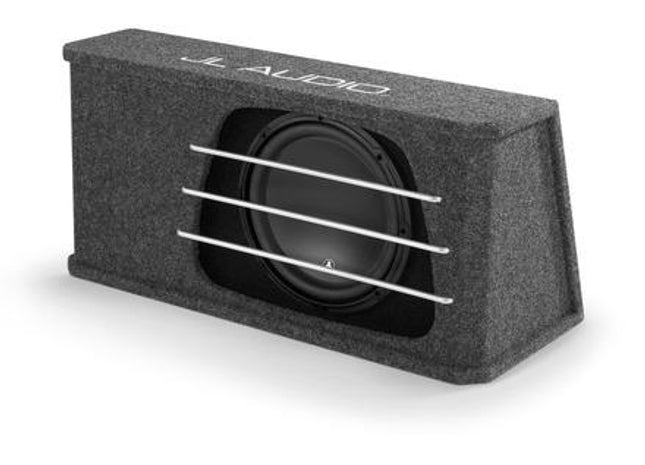

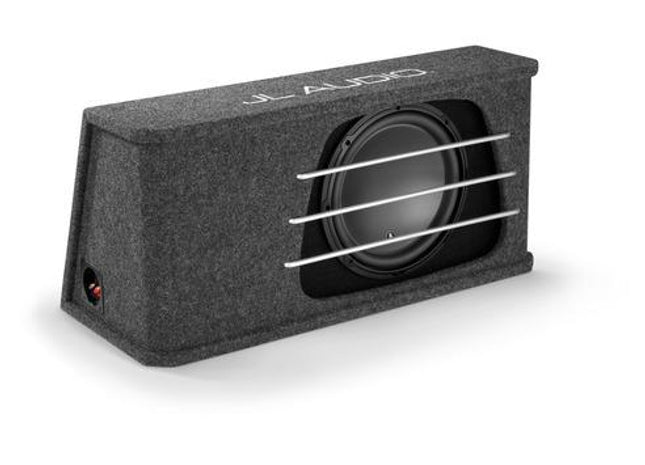

High Output Series 12-Inch 500-Watt Enclosed Subwoofer System, 2Ω Ported Enclosure
JL Audio's patented High Output Enclosures are designed to deliver the ultimate high-performance bass experience with a rare combination of superb sound quality and awesome output.
JL Audio's patented, chamber-coupled port design (U.S. patent #6,625,292) wraps around the inner enclosure boundary and terminates on one side of the woofer, coupling the port output to the woofer's direct output. This also provides the necessary surface area and port length to maximize the performance of the W3v3 driver.
This enclosure design has been carefully engineered to the optimum ported alignment for the 12W3v3, and has been fine-tuned through extensive real-world listening. This efficient system will produce superb output with as little as 150W of amplifier power, but performs best with 300 - 500W of power.
This subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal. Three solid aluminum bars provide stylish and rugged woofer protection.
The angled-back design saves precious cargo space by allowing the enclosure to fit tightly against the back of a vehicle's rear seat.
Finish: Dark gray, high-grade automotive carpet, with black carpet on woofer baffle. "JL AUDIO" is embroidered in silver on the top surface of the enclosure.
Construction: CNC-Cut High-Grade MDF
Recommended amplifier power: 150 - 500WNominal Impedance: 2Ω
General Specifications
Continuous Power Handling (RMS)
500 W
System Nominal Impedance
2 Ω
Enclosure Type
Chamber-coupled, slot-ported, rear-firing design
Finish
Dark gray carpet with black insert
Grille Included
Aluminum Bar Grille
Physical Specifications
External Width (W)
32.25 in / 819 mm
External Height (H)
15.25 in / 387 mm
External Depth (D1)
13.5 in / 343 mm
External Top Surface Depth (D2)
7.5 in / 190.5 mm
Net Weight
46.9 lb / 21.27 kg
JL Audio HO112RG-W3v3 Brochure

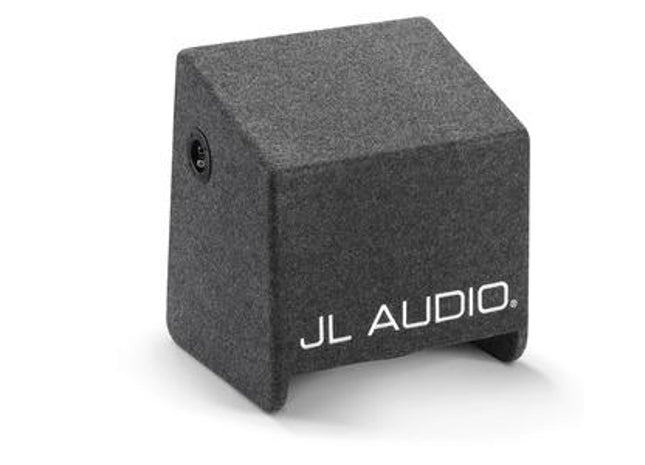

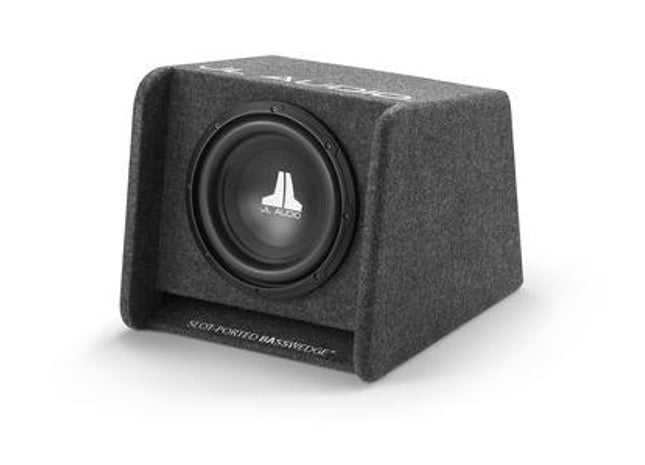

BassWedge-Series 10-Inch 300-Watt Enclosed Subwoofer System, 4Ω Ported Enclosure
This powerful slot-ported BassWedge™ subwoofer system delivers awesome output at an unsurpassed value.
The slot-port runs along the bottom of the enclosure and fires on the same plane as the woofer to produce excellent extension and response smoothness. The port mouth is flared to minimize air-flow noises.
The ultra-versatile BassWedge™ shape has extended sides so that it can be placed with the woofer firing out or straight down, off the floor of the vehicle. The shape works equally well in forward or rear-firing installations. This gives you plenty of options for tweaking the loading of the enclosure into your vehicle.
This subwoofer system is shipped wired, loaded and ready to connect via a push-button terminal.
Finish: Dark gray, high-grade automotive carpet with "JL AUDIO" embroidery on the top edge and "Slot-Ported BassWedge™" embroidered on the port mouth.
Construction: MDF
Recommended amplifier power: 75 - 300WNominal Impedance: 4 Ω
General Specifications
Continuous Power Handling (RMS)
300 W
System Nominal Impedance
4 Ω
Enclosure Type
Slot-ported
Finish
Gray carpet
Grille Included
No
Physical Specifications
External Width (W)
15.51 in / 394 mm
External Height (H)
13.77 in / 350 mm
External Depth (D1)
17.38 in / 441 mm
External Top Surface Depth (D2)
14 in / 356 mm
Net Weight
29 lb / 13.15 kg
JL Audio CP110-W0v3 Brochure
12-Inch 300-Watt Subwoofer Driver, 4-Ohm SVC or 4-Ohm DVC
This CompC 12" sub driver from Kicker has a thick stamped steel basket that holds an injection-molded polypropylene cone with stabilizing ribs in the surround.
The 44CWCS124 and 44CWCD124 12-Inch subs are available in a 4Ω Single Voice or 4Ω Dual Voice coil design with spring loaded speaker terminals. These CompC drivers are rated for 300W RMS of amplified power.
Specifications
Size (IN.,CM)
12, 30
Impedance (OHMS)
4 SVC or 4 DVC
Recommended Amplifier Power (watts RMS)
300
Peak Power (watts, per ANSI/CTA-2031-A)
600
Sensitivity (dB 1w/1m)
88.3
Frequency Response (Hz)
27-500
Mounting Depth (in, cm)
5-3/8, 13.6
Mounting Cutout (in, cm)
11, 27.9
Min Sealed Box Vol (cu. ft, L)
1.25, 35.4
Max Sealed Box Vol (cu. ft, L)
3.5, 99.1
Min Vented Box Vol (cu. ft, L)
1.75, 49.6
Max Vented Box Vol (cu. ft, L)
2.25, 63.7
Kicker CompC Subwoofer Manual

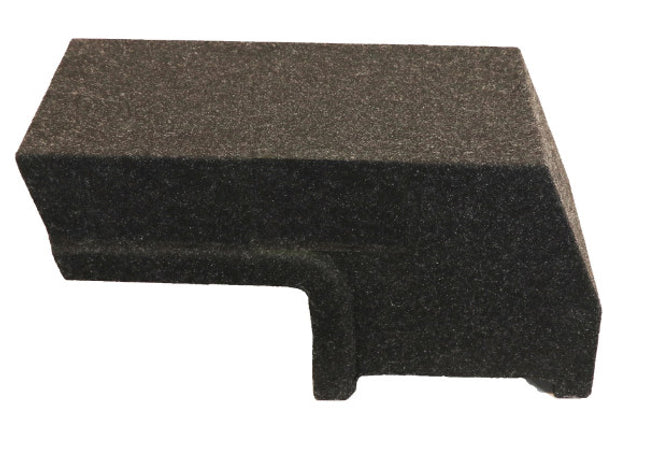

Single 10-Inch Sealed Carpeted Subwoofer-Enclosure for Select 2005-2009 Toyota-Tacoma Access-Cab Pickups
CLICK HERE TO VIEW SUBWOOFERS THAT FIT THIS BOX
Fits: 2005-2009 Toyota Tacoma Access Cab Trucks
Installs on center hump behind front console and contours up over rear seats.
Mounting Depth: 9"
Volume: .82 cu.ft
Additional Note: This box fits directly behind the front console and extends over the rear bench for increased volume. As an added bonus, the top of the box serves as a great armrest for the rear passengers--or mount your amp on top if you like. The box fits perfectly in the space provided and is designed to lock itself into place, but can also be easily moved if needed. This box is a down fire box meaning the sub faces the floor. What this means is that your bass will reflect off the floor for an even greater bass response. There is 2" of clearance between the baffle and the hump, so no worries about your sub contacting the floor. This setup is not only a solid performer but is also very stealthy since the woofer cannot be seen.

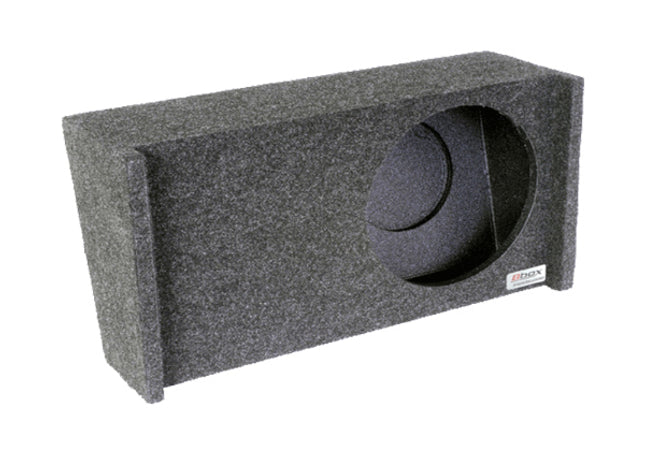

Single 10-Inch Sealed Carpeted Subwoofer-Enclosure for Select 2009-2018 Ford F-150 & 2017-2018 F-250, F-350 and F-450 SuperCrew and Super-Cab Pickups
CLICK HERE TO VIEW SUBWOOFERS THAT FIT THIS BOX!
Designed specifically for 2009-2018 Ford F150 Super Crew/Super Cab
Will also work in 2017 - 2018 F250/350/450 Super Crew / Super Cab
Premium Carpeted Finish
3/4" Hardwood MDF
Glued and Braced construction
CNC Grooved custom finish
Rounded edges
Silver spring loaded terminal cups
Subwoofer mounting depth: 4.5"
Box volume: 0.8 cubic feet (per chamber)
Sub Cut Out: 9.125”, Width:26”, Height: 9”, Depth: 13.25”
Specifications
Configuration: Single Sealed
Finish: Charcoal Carpeted
Width:26.00"
Height:4.63"
Depth:13.25"
Max Mounting Depth:4.50"
Gross VolumePer Sub:1.37
Net Volume Per Sub:0.92

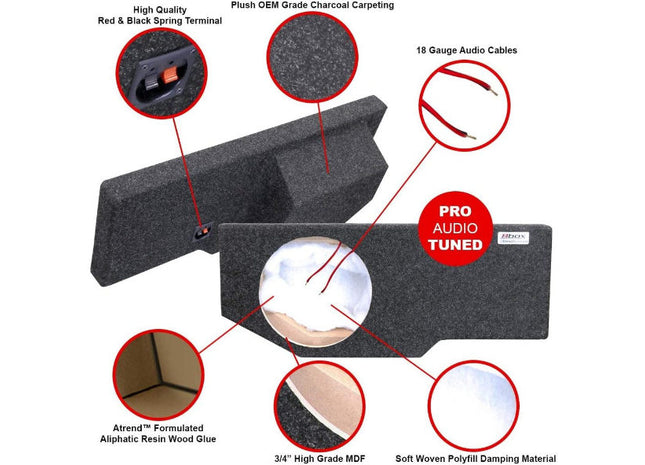

Single 12-Inch Sealed Carpeted Subwoofer-Enclosure for Select 2002-2018 Ram Quad-Cab Pickups
CLICK HERE TO VIEW SUBWOOFERS THAT FIT THIS BOX!
Accu-Tuned 11” single sealed subwoofer enclosure designed for optimum bass response and low-frequency reproduction which is ideal for lower profile sound quality subwoofers.
Premium Carpet Finish
OEM-Fit is designed and engineered specifically for the 2002-2018 Dodge Ram Quad Cab *2019 Legacy trucks to ensure an OEM fit without impeding the operation of the back seat.
Soft Woven Polyfill Damping Material helps create a flatter frequency response, low bass extension, and simulates a larger net volume air space.
Specially Formulated Aliphatic Wood Glue to ensure an airtight seal between all MDF parts with the second application of glue around all internal joints after final assembly.
Dimensions Sub cut out: 9.125”, mounting depth:6”, height: 7.25”, width: 32.7”, depth: 13.25”
May work with Legacy 2019 Vehicle Models
Specifications
Configuration: Single Sealed
Finish: Charcoal Carpeted
Width:32.75"
Height:7.25"
Depth:13.25"
Max Mounting Depth:6.00"
Gross VolumePer Sub:0.63
Net Volume Per Sub:0.63

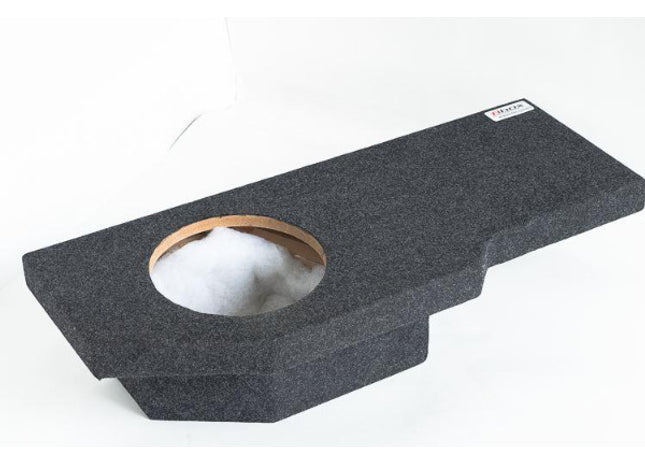

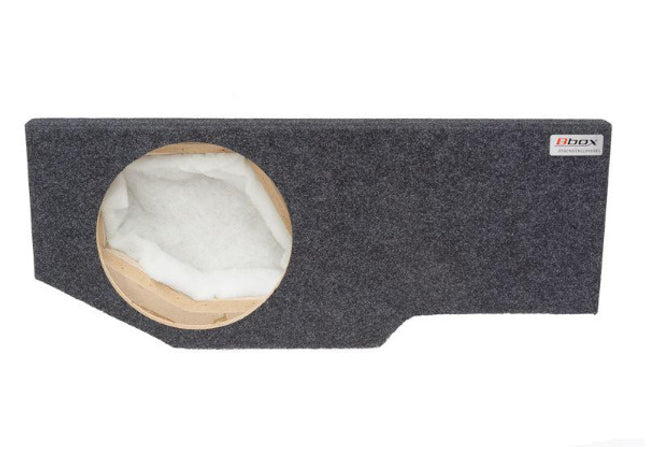

Single 10-Inch Sealed Carpeted Subwoofer-Enclosure for Select 2002-2018 Ram Quad-Cab Pickups
CLICK HERE TO VIEW SUBWOOFERS THAT FIT THIS BOX!
Accu-Tuned 10” single sealed subwoofer enclosure designed for optimum bass response and low-frequency reproduction which is ideal for lower profile sound quality subwoofers.
Premium Carpet Finish
OEM-Fit is designed and engineered specifically for the 2002-2018 Dodge Ram Quad Cab *2019 Legacy trucks to ensure an OEM fit without impeding the operation of the back seat.
Soft Woven Polyfill Damping Material helps create a flatter frequency response, low bass extension, and simulates a larger net volume air space.
Specially Formulated Aliphatic Wood Glue to ensure an airtight seal between all MDF parts with the second application of glue around all internal joints after final assembly.
Dimensions Sub cut out: 9.125”, mounting depth: 6”, height: 7.25”, width: 32.7”, depth: 13.25”
May work with Legacy 2019 Vehicle Models
Specifications
Configuration: Single Sealed
Finish: Charcoal Carpeted
Width: 32.75"
Height: 7.25"
Depth:13.25"
Max Mounting Depth: 6.00"
Gross VolumePer Sub: 0.63
Net Volume Per Sub: 0.63

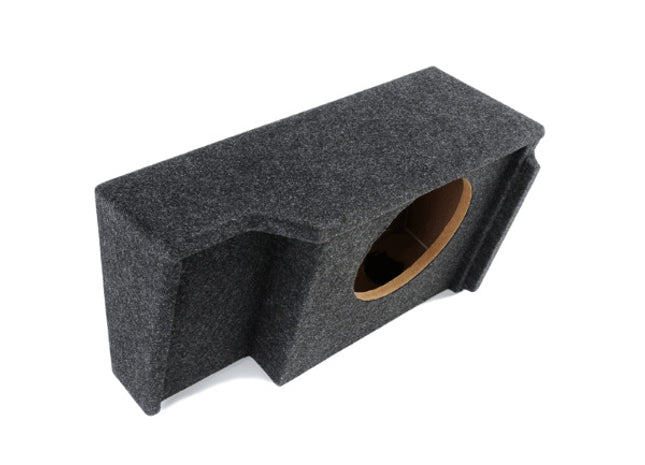

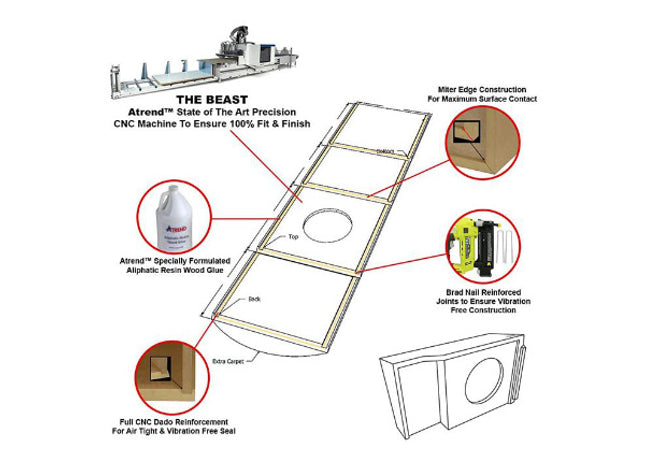

Single 12-Inch Sealed Carpeted Subwoofer-Enclosure for Select 1999-2007 Chevrolet-Silverado or GMC-Sierra Extended-Cab Pickups
CLICK HERE TO VIEW SUBWOOFERS THAT FIT THIS BOX!
Custom down fire fit under rear driver side seat. No modification required. Doesn't affect rear seat latching.
Single 12" Carpeted Finish Subwoofer Enclosure
Designed specifically for 1999-2007 Chevy Silverado and GMC Sierra Extended Cab Trucks
Premium Carpeted Finish
3/4" Mounting Baffle
Hardwood MDF construction
Rounded edges
Glued and Braced construction
Subwoofer mounting depth: 7.25"
Box volume: 0.93 cubic feet (per chamber)
Specifications
Width
24
Height
9.125
Depth
14.75
Mounting Depth
7.25
Gross Cubic Feet Per Side
0.93
Net Cubic Feet Per Side
0.93
Excursion
1.625

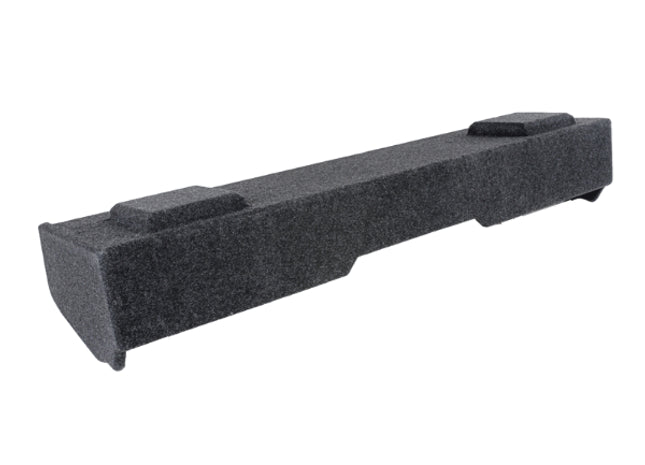

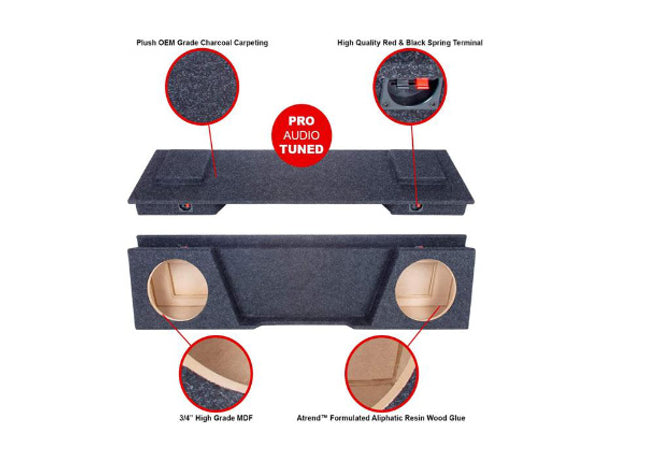

Dual 10-Inch Sealed Carpeted Subwoofer-Enclosure for Select 2007-2014 Chevrolet-Silverado or GMC-Sierra Extended-Cab Trucks
CLICK HERE TO VIEW SUBWOOFERS THAT FIT THIS BOX!
Custom downfire fit under rear seat. Fits bench style, 60/40 style seats
Designed specifically for 2007-2014 Chevy Silverado and GMC Sierra Extended Cab Trucks
Dual 10" Subwoofer Enclosure
Premium Carpet Finish
3/4" Mounting Baffle
Hardwood MDF construction
Rounded edges
Glued and Braced construction
Subwoofer mounting depth: 6.25"
Box volume: 0.8 cubic feet (per chamber)
Specifications
Width
52.75
Height
6.875
Depth
11.875
Mounting Depth
6.25
Gross Cubic Feet Per Side
0.8
Net Cubic Feet Per Side
0.8
Excursion
3.625

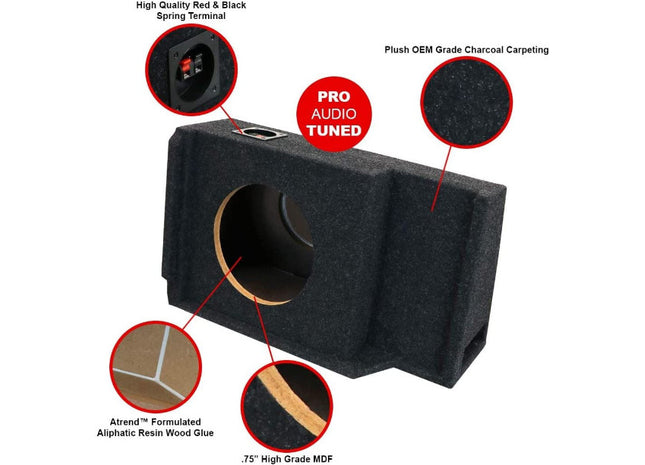

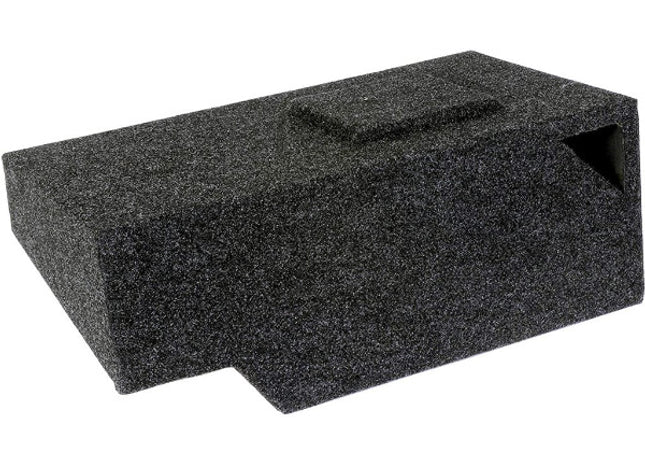

Single 10-Inch Vented Carpeted Subwoofer-Enclosure for Select 1999-2007 Chevrolet-Silverado or GMC-Sierra Extended-Cab Trucks
CLICK HERE TO VIEW SUBWOOFERS THAT FIT THIS BOX!
Accu-Tuned 10” Single vented subwoofer enclosure designed for optimum bass response and low-frequency reproduction which is ideal for lower profile sound quality subwoofers.
OEM-Fit is designed and engineered specifically for the 1999-2007 Chevrolet / GMC trucks to ensure an OEM fit without impeding the operation of the back seat.
Specially Formulated Aliphatic Wood Glue to ensure an airtight seal between all MDF parts with a second application of glue around all internal joints after final assembly.
Pneumatic Applied Brad Nails to pull tight and hold the MDF parts during the glue drying process and help assure a no-leak, no-rattle air chamber.
Dimensions Sub Cut Out: 9.125”, Mounting Depth: 7.25”, Width: 24”, Height: 9.125”, Depth: 24”
Specifications
Width
24
Height
9.125
Depth
24
Vent Width
1.25
Vent Height
5
Vent Depth
9
Mounting Depth
7.25
Gross Cubic Feet Per Side
1
Net Cubic Feet Per Side
0.93
HZ
41
Excursion
1.625
10-Inch 300-Watt 2-Ohm or 4-Ohm Thin Subwoofer-Enclosure for Select 2018-2023 Jeep Wrangler-Unlimited, Passenger-Side
Combining JL's advanced thin-line subwoofer technology with a form fitting enclosure design, these Stealthbox® systems deliver outstanding sub-bass performance in your 4-door Wrangler, without consuming excess cargo space.
Constructed from 100% fiberglass, each Stealthbox® houses a 10TW1 thin-line subwoofer and mounts solidly above each rear wheel well. A matching trim panel and sturdy steel-mesh grille are included, so you can carry plenty of gear without worrying about damage. Separate driver and passenger side Stealthbox® models are available, each with 2 or 4 ohm drivers.
The Hard Data: Contains one 10TW1 in a sealed enclosure with 300 watt power handling. Choose from 2 ohm or 4 ohm models, driver or passenger side. Each enclosure installs above one rear wheel well. Black steel mesh grille is included with each.
If vehicle is factory-equipped with Premium Audio, passenger side Stealthbox® installation requires removal of OEM “subwoofer” and purchase of interior trim parts from Jeep®.
Will not fit any "JK" Jeep® model or 2-Door "JL" models.
Soft-top models: Stealthbox® installation does not interfere with normal top operation, except for the final position where the top mechanism is detached from the rails.
Jeep Part #CFWLR-74-24 carpet needs to be ordered from jeep to remove the Factor Subwoofer.
Stealthbox® products are built to order and generally ship within 5-6 business days of receiving your order.
JL Audio SB-J-JL4DPAS/10TW1-2 Installation Manual
Dual 10-Inch 2-Ohm 800-Watt Thin Subwoofer-Enclosure for Select 2019-UP Chevrolet-Silverado and GMC-Sierra Double-Cab Trucks
The fourth generation of GM’s full-size truck boasts major enhancements in technology and power, all packed in a larger body with a refined interior. Sadly, the factory audio options are still deficient in the bass delivery department.
JL Audio's Stealthbox® for the Double Cab version features an all-fiberglass, sealed enclosure design that mounts under the rear seat and requires no holes to be drilled for installation. Outfitted with a pair of JL's revolutionary 10TW3 thin-line subwoofers, this Stealthbox® fills your truck with stunning amounts of JL Audio bass, with no intrusion on cab space. They even left a recess on the Stealthbox's top for amplifier installation, if desired.
The Hard Data: Contains two 10TW3-D8 subwoofers in a down-firing sealed enclosure. 800 watt power handling. Wired for a 2 ohm load. Installs under rear bench seat. Will not affect the folding of the rear seat or rear leg room. Requires removal of under-seat storage tray, if so equipped.
Stealthbox® products are built to order and generally ship within 5-6 business days of receiving your order.
JL Audio SB-GM-SLVD4/10TW3 Installation Manual
10-Inch 2-Ohm 300-Watt Subwoofer-Enclosure for Select 2007-2013 Chevrolet and GMC Full-Size SUV’s or Trucks with Front-Bucket-Seats
This generation of GM's big trucks and SUV's sets new standards for interior quality and luxury. There also isn't much wasted space in which to install a conventional subwoofer design without giving up cargo and people space.
JL's Stealthbox® solution installs inside the forward section of the factory center console for complete invisibility. Intense, up-front bass is produced by a down-firing 10-inch subwoofer in a sealed enclosure. The console's functionality and storage space is unaffected by the Stealthbox®.
The Hard Data: Contains one 10W1v3-2 in a sealed enclosure. 300 watt power handling. Wired for 2 ohm mono. Stealthbox® installs inside forward-most portion of front center console and replaces the OEM “subwoofer” system, if vehicle is so equipped. Will not fit Trucks with AC vents on the back of the center console or vehicles with deep storage area in front of cup holders. Will not fit Full-Size “Classic” Trucks, Chevrolet SSR, Cadillac Escalade, Cadillac Escalade ESV, Cadillac Escalade EXT, Hummer H2, Hummer H2 SUT.
Applications
CHEVROLET
Avalanche
2007-2013
Silverado 1500, 2500 HD, 3500 HD
2007-2013
Suburban
2007-2013
Tahoe
2007-2013
Yukon
2007-2013
Yukon XL
2007-2013
GMC
Sierra 1500, 2500 HD, 3500 HD
2007-2013
Stealthbox® products are built to order and generally ship within 5-6 business days of receiving your order.
JL Audio SB-GM-TAHOCNSL/10W1v3 Installation Manual
BassWedge-Series Dual 12-Inch 600-Watt Enclosed Subwoofer System, 2Ω Ported Enclosure
This powerful slot-ported BassWedge™ subwoofer system delivers awesome output at an unsurpassed value.
The slot-port runs along the bottom of the enclosure and fires on the same plane as the woofers to produce excellent extension and response smoothness. The port mouth is flared to minimize air-flow noises.
The ultra-versatile BassWedge™ shape has extended sides so that it can be placed with the woofers firing out or straight down, off the floor of the vehicle. The shape works equally well in forward or rear-firing installations. This gives you plenty of options for tweaking the loading of the enclosure into your vehicle.
This subwoofer system is shipped wired, loaded and ready to connect via a push-button terminal.
Finish: Dark gray, high-grade automotive carpet with "JL AUDIO" embroidery on the top edge and "Slot-Ported BassWedge™" embroidered on the port mouth.
Construction: MDF
Recommended amplifier power: 150 - 600WNominal Impedance: 2 Ω
General Specifications
Continuous Power Handling (RMS)
600 W
System Nominal Impedance
2 Ω
Enclosure Type
Slot-ported
Finish
Gray carpet
Grille Included
No
Physical Specifications
External Width (W)
31.375 in / 797 mm
External Height (H)
15.18 in / 386 mm
External Depth (D1)
20.3 in / 516 mm
External Top Surface Depth (D2)
15.75 in / 400 mm
Net Weight
60.3 lb / 27.35 kg
JL Audio CP212-W0v3 Brochure
PowerWedge-Series 10-Inch 400-Watt Enclosed Subwoofer System, 2Ω Sealed Enclosure
In this sealed Truck PowerWedge™ subwoofer system, JL harnesses the performance of the 10TW3 to deliver amazing sub-bass from an enclosure that is only 6.25 in. (159 mm) deep at its base and 4.1 in. (104 mm) at the top.
This enclosure design has been carefully engineered to the optimum sealed enclosure alignment for the 10TW3 and has been fine-tuned through extensive real-world listening.
This subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal.
Finish: Black, high-grade automotive carpet with "JL AUDIO" embroidered in silver on the front baffle. A steel mesh grille is included to protect the subwoofer driver.
Construction: CNC-Cut High-Grade MDF
Recommended amplifier power: 100 - 400WNominal Impedance: 2 Ω
General Specifications
Continuous Power Handling (RMS)
400 W
System Nominal Impedance
2 Ω
Enclosure Type
Sealed, truck enclosure
Finish
Black carpet
Grille Included
Black Steel Mesh
Physical Specifications
External Width (W)
19 in / 483 mm
External Height (H)
12.375 in / 314 mm
External Depth (D1)
6.25 in / 159 mm
External Top Surface Depth (D2)
4.1 in / 104 mm
Net Weight
21.2 lb / 9.6 kg
JL Audio CS110TG-TW3 Brochure
Dual 10-Inch 2-Ohm 1000-Watt Thin Subwoofer-Enclosure for Select 2002-UP Ram Pickup Trucks
Dual L7T Truck-Specific Enclosures provide impactful bass and install under the back seat to retain cab space and legroom.
Requires amp and handles 1,000 watts RMS
Single 2-Ohm terminal
Dual KICKER Solo-Baric L7T Square Subwoofers
Thick black carpeting
Protective grilles included
MDF construction and heavy internal bracing
Made from thick MDF and formed specifically to fit every contour of your RAM, this custom enclosure features a pair of up-firing L7T 10-inch subwoofers and grilles with a monstrous 1,000-watts of recommended power. See details below.
It’s simple – more cone area means more air moves – for more bass and up to 20% more cone area than a conventional round sub. KICKER acoustic engineers put the largest voice coil and magnet we’ve ever integrated into a thin sub, then added a next-level top-plate design, unique heat management system and our signature cone stitching all help to give you deep bass and outstanding reliability in a single, mind-blowing design that gives you max output!
Fits*:RAM 1500 Quad Cab (2002-2018)RAM 1500 Crew Cab (2009-2018)RAM 2500/3500 Quad Cab (2003-newer)RAM 2500/3500 Crew Cab (2009-newer)RAM 1500 Classic Quad/Crew Cab (2019-newer)*Items such as inverters, storage compartments, spare tire tools or floor mats may require removal.
Specifications
TYPE:
Truck-specific
Design:
Dual Up-Fire with grilles
WOOFER SIZE (in, cm):
10, 25
IMPEDANCE (Ohms):
2
Recommended Amplifier Power (watts RMS):
1000
FREQUENCY RESPONSE (Hz):
25-100
BOX DIMENSIONS:
Width: 58-7/16” [148.4cm]
Height: 7-9/16” [19.2cm]
Depth: 16-7/16” [41.7cm]
Kicker 51KFDL7T102 Manual
Dual 10-Inch 2-Ohm 1000-Watt Thin Subwoofer-Enclosure for Select 2009-UP Ford F-150 and 2017-UP Ford SuperDuty Trucks
Dual L7T Truck-Specific Enclosures provide impactful bass and install under the back seat to retain cab space and legroom.
Requires amp and handles 1,000 watts RMS
Single 2-Ohm terminal
Dual KICKER Solo-Baric L7T Square Subwoofers
Thick black carpeting
MDF construction and heavy internal bracing
Made from thick MDF and formed specifically to fit every contour of your F-150 and SuperDuty, this custom enclosure features a pair of down-firing L7T 10-inch subwoofers with a monstrous 1,000-watts of recommended power. See details below.
It’s simple – more cone area means more air moves – for more bass and up to 20% more cone area than a conventional round sub. KICKER acoustic engineers put the largest voice coil and magnet we’ve ever integrated into a thin sub, then added a next-level top-plate design, unique heat management system and our signature cone stitching all help to give you deep bass and outstanding reliability in a single, mind-blowing design that gives you max output!Fits*:Ford F-150 Crew Cab (2009-newer)Ford SuperDuty Crew Cab (2017-newer)*Items such as inverters, storage compartments, spare tire tools or floor mats may require removal.
Specifications
TYPE:
Truck-specific
Design:
Dual Down-Fire
WOOFER SIZE (in, cm):
10, 25
IMPEDANCE (Ohms):
2
Recommended Amplifier Power (watts RMS):
1000
FREQUENCY RESPONSE (Hz):
25-100
BOX DIMENSIONS:
Width: 55-1/8” [140cm]
Height: 8-1/4” [21cm]
Depth: 13-3/8” [34cm]
Kicker 51KFDL7T102 Manual
Dual 12-Inch 2-Ohm 1200-Watt Thin Subwoofer-Enclosure for Select 2008-UP Chevrolet-Silverado and GMC-Sierra Crew-Cab Trucks
Dual L7T Truck-Specific Enclosures provide impactful bass and install under the back seat to retain cab space and legroom.
Requires amp and handles 1,200 watts RMS
Single 2-Ohm terminal
Dual KICKER Solo-Baric L7T Square Subwoofers
Thick black carpeting
MDF construction and heavy internal bracing
Made from thick MDF and formed specifically to fit every contour of your Silverado or Sierra, this custom enclosure features a pair of down-firing L7T 12-inch subwoofers with a monstrous 1,200-watts of recommended power. See details below.
It’s simple – more cone area means more air moves – for more bass and up to 20% more cone area than a conventional round sub. KICKER acoustic engineers put the largest voice coil and magnet we’ve ever integrated into a thin sub, then added a next-level top-plate design, unique heat management system and our signature cone stitching all help to give you deep bass and outstanding reliability in a single, mind-blowing design that gives you max output!
Fits*:Chevy Silverado/GMC Sierra Crew Cab (2008-newer)*Items such as inverters, storage compartments, spare tire tools or floor mats may require removal. GM Trucks 2019-newer Enclosures do fit but not as perfectly.
Specifications
TYPE:
Truck-specific
Design:
Dual Down-Fire
WOOFER SIZE (in, cm):
12, 30
IMPEDANCE (Ohms):
2
Recommended Amplifier Power (watts RMS):
1200
FREQUENCY RESPONSE (Hz):
25-100
BOX DIMENSIONS:
Width: 52” [132.1cm]
Height: 7-7/16” [18.9cm]
Depth: 15-1/2” [39.4cm]
Kicker 51KGMDL7T122 Installation Manual
StowAway-Series 12-Inch 300-Watt Enclosed Subwoofer System, 2-Ohm or 4-Ohm Downfiring Sealed Enclosure
JL-Audio StowAway subwoofer systems are engineered to deliver amazing subwoofer performance in challenging environments and applications.
Featuring a down-firing hard-shell design, StowAway subwoofers are well suited for mounting areas shared with cargo or exposed to the elements. Constructed from marine-grade materials, this low-profile enclosure design harnesses the incredible small box requirements of the TW1 subwoofer to generate smooth and powerful bass from a remarkably compact enclosure. Slotted mounting feet located at each corner of the enclosure’s base assist with “off-the-floor” installations or in tight spaces where access is limited.
The StowAway subwoofer system is prewired with selectable harness exits located underneath at opposite ends.
Finish: black texture with debossed logo on top; a protective mesh grille is included to protect the subwoofer
Recommended amplifier power: 75–300 watts
Nominal impedance: 2 ohms
Note: Mounting hardware is not included with StowAway systems. The installation method and mounting hardware used will vary based on the requirements of your specific application. The final mounting method must affix the enclosure securely to prevent movement and vibration.
General Specifications
Continuous Power Handling (RMS)
300 W
System Nominal Impedance
2 Ω
Enclosure Type
Sealed
Finish
Black Texture
Grille Included
Yes
Physical Specifications
Height (H)
8.23 in / 209 mm
Width (W)
21.78 in / 553 mm
Depth (D)
15.16 in / 385 mm
JL Audio PES112-TW1 Manual
BassWedge-Series 12-Inch 300-Watt Enclosed Subwoofer System, 4Ω Ported Enclosure
This powerful slot-ported BassWedge™ subwoofer system delivers awesome output at an unsurpassed value.
The slot-port runs along the bottom of the enclosure and fires on the same plane as the woofer to produce excellent extension and response smoothness. The port mouth is flared to minimize air-flow noises.
The ultra-versatile BassWedge™ shape has extended sides so that it can be placed with the woofer firing out or straight down, off the floor of the vehicle. The shape works equally well in forward or rear-firing installations. This gives you plenty of options for tweaking the loading of the enclosure into your vehicle.
This subwoofer system is shipped wired, loaded and ready to connect via a push-button terminal.
Finish: Dark gray, high-grade automotive carpet with "JL AUDIO" embroidery on the top edge and "Slot-Ported BassWedge™" embroidered on the port mouth.
Construction: MDF
Recommended amplifier power: 75 - 300WNominal Impedance: 4 Ω
General Specifications
Continuous Power Handling (RMS)
300 W
System Nominal Impedance
4 Ω
Enclosure Type
Slot-ported
Finish
Gray carpet
Grille Included
No
Physical Specifications
External Width (W)
16.31 in / 414 mm
External Height (H)
15.18 in / 386 mm
External Depth (D1)
20.3 in / 516 mm
External Top Surface Depth (D2)
15.75 in / 400 mm
Net Weight
33.1 lb / 15 kg
JL Audio CP112-W0v3 Brochure
W3-Series 10-Inch 500-Watt Subwoofer Driver, 2-Ohm SVC
The JL Audio 10W3v3 subwoofer driver has excellent power handling, reasonable enclosure requirements, and a long excursion for its chassis to deliver excellent bass reproduction in 500W RMS power applications. JL Audio technologies and proprietary assembly designs in the 10W3v3-2 and 10W3v3-4 subwoofers enhance linearity and reliable performance results.
The JL Audio 10W3v3 is best used with an amplifier in the 150W - 500W RMS range and is optimized to operate in a compact 0.625 cu. ft. (17.7 l) sealed enclosure, or a 1.25 cu. ft. (35.4 l) ported enclosure.
General Specifications
Continuous Power Handling
500W RMS
Recommended Amplifier Power
150- 500W RMS
Nominal Impedance
2Ω
JL Audio 10W3v3 Manual
W1-Series 10-Inch 300-Watt Subwoofer Driver, 2-Ohm SVC
The JL Audio 10" W1v3 subwoofer driver is a very suitable option when space is limited with smaller amplifiers. It features a low mounting depth of 4.6 inches and a compact motor structure that allows it to comfortably fit in tight mounting locations. There is no pole vent on the rear of the subwoofer which allows the motor structure to be placed directly against an enclosure boundary. Excellent excursion capability and linearity allow the 10W1v3 to reproduce sub-bass with shocking extension and quality.
The JL Audio 10W1v3 is best used with an amplifier in the 75W - 300W RMS range and is optimized to operate in a compact 0.55 cu. ft. (15.57 l) sealed enclosure.
General Specifications
Continuous Power Handling
300W RMS
Recommended Amplifier Power
75W - 300W RMS
Nominal Impedance
2Ω
JL Audio 10W1v3 Manual
W1-Series 12-Inch 300-Watt Subwoofer Driver, 2-Ohm or 4-Ohm SVC
The 12" W1v3 automotive subwoofer driver by JL Audio is a lightweight 12-inch driver with excellent performance capabilities at a moderate 300-Watts. The design of the chassis allows an average mounting depth with no pole-vent on the back side of the magnet so the rear of the motor structure can be placed directly against an enclosure boundary. This 12" subwoofer can reproduce sub-bass with shocking extension and quality.
The JL Audio 12W1v3-2 and 12W1v3-4 subwoofers are best used with an amplifier in the 75W - 300W range and is optimized to operate in a compact 1.10 cu. ft. (31.5 l) sealed enclosure.
General Specifications
Continuous Power Handling
300W RMS
Recommended Amplifier Power
75W - 300W RMS
Nominal Impedance
2Ω
JL Audio 12W1v3 Manual
W0-Series 10-Inch 300-Watt Subwoofer Driver, 4-Ohm SVC
The JL Audio 10" W0v3 subwoofer driver is a rugged performer with excellent excursion capability and linearity while sporting a 2 inch diameter voice coil and JL's patented Elevated Frame Cooling design for enhanced power handling and reliability.
This 10 inch subwoofer is best used with an amplifier in the 75W - 300W range and is optimized to operate in a compact 0.65 cu. ft. (18.4 l) sealed enclosure, or a 1.125 cu. ft. (31.9 l) ported enclosure.
General Specifications
Continuous Power Handling (RMS)
300W RMS
Recommended Amplifier Power (RMS)
75W - 300W RMS
Nominal Impedance (Znom)
4Ω
JL Audio 10W0v3 Manual
W0-Series 12-Inch 300-Watt Subwoofer Driver, 4-Ohm SVC
The 12" W0v3 subwoofer driver by JL Audio delivers excellent efficiency, excursion capability and linearity. This 12" subwoofer comes with a price point under $150.00 while supporting a beefy 2 in. diameter voice coil and JL's patented Elevated Frame Cooling design for enhanced power handling and reliability.
The JL Audio 12W0v3-4 sub is best used with amplifier power in the 75W - 300W range and is optimized to operate in a moderately sized 1.375 cu. ft. (38.9 l) sealed enclosure, or a 1.75 cu. ft. (49.6 l) ported enclosure.
General Specifications
Continuous Power Handling
300W RMS
Recommended Amplifier Power
75W - 300W RMS
Nominal Impedance
4Ω
JL Audio 12W0v3 Manual
Alpine S2-Series 300-Watt 8-Inch Subwoofer Driver, 2Ω or 4Ω Dual Voice Coil
With a power handling of 300W RMS and a peak power handling of 900W, the Next-Gen 8” S-Series Subwoofers deliver outstanding performance value. Boasting a wide frequency response range of 23Hz to 215Hz and a sensitivity of 83dB (1W/1m), these subs ensure powerful and accurate bass reproduction across a diverse range of music genres.
Featuring the lightweight yet sturdy combination of carbon fiber and polypropylene, the Next-Gen S-Series Subwoofer cone delivers deep, low-distortion bass that enhances the depth and richness of your music.
The Next-Generation S-Series Subwoofers contain Alpine's High Amplitude Multi-Roll (H.A.M.R.) Surround Technology. This rubber surround allows the subwoofer cone to efficiently move air while staying cool. This technology allows for 15mm of one-way excursion that creates incredible accuracy from the subwoofer.
A Dual Voice Coil (DVC) with easy configuration jumpers make installing the S-Series subwoofers a breeze. A new twist-lock grille mounting system makes it easy to install and remove an optional grille without mounting screws for added protection to the cone.
Maximize the potential of your S-Series subwoofers with Alpine's perfectly power-matched S-Series amps. Power up to two S2-W8D4 subwoofers effortlessly with the 600W S2-A60M mono amplifier, or for an even bigger impact, pair up to four $2-W8D4 subs with the powerful 1200W S2-A120M amp to ensure optimal sound quality and performance.
Features
Dual Voice Coil Subwoofers with Configuration Jumpers
Carbon Fiber / Poly Propylene Cone
Poly Propylene / Ceramic Dust Cap
High-Grade Strontium Ferrite Magnets
Twist-Lock Grille Mount System
High-Amplitude Multi-Roll (H.A.M.R.) Surround
Push-Type Speaker Terminals (Up to 8AWG Wire Size)
Specifications
Power Handling: 300W RMS / 900W Peak
Nominal Impedance: 4Ω
Frequency Response: 23Hz - 215Hz
Sensitivity (1W/1M): 82.7dB
Voice Coil: 1.4"
X-Max (1-Way): 13mm
Magnet Weight: 34oz
Alpine S2-Series 600-Watt 10-Inch Subwoofer Driver, 2Ω or 4Ω Dual Voice Coil
With an impressive power handling of 600W RMS and a peak power handling of 1800W, the Next-Gen 10” S-Series Subwoofers deliver outstanding performance value. Boasting a wide frequency response range of 25Hz to 215Hz and a sensitivity of 85dB (1W/1m), these subs ensure powerful and accurate bass reproduction across a diverse range of music genres.
Featuring the lightweight yet sturdy combination of carbon fiber and polypropylene, the Next-Gen S-Series Subwoofer cone delivers deep, low-distortion bass that enhances the depth and richness of your music.
The Next-Generation S-Series Subwoofers contain Alpine's High Amplitude Multi-Roll (H.A.M.R.) Surround Technology. This rubber surround allows the subwoofer cone to efficiently move air while staying cool. This technology allows for 15mm of one-way excursion that creates incredible accuracy from the subwoofer.
A Dual Voice Coil (DVC) with easy configuration jumpers make installing the S-Series subwoofers a breeze. A new twist-lock grille mounting system makes it easy to install and remove an optional grille without mounting screws for added protection to the cone.
Maximize the potential of your S-Series subwoofers with Alpine's perfectly power-matched S-Series amps. Power a single S2-W10DVC subwoofer effortlessly with the 600W S2-A60M mono amplifier, or for an even bigger impact, pair two or more S2-W10DVC subs with the powerful 1200W S2- A120M amp to ensure optimal sound quality and performance.
Features
Dual Voice Coil Subwoofers with Configuration Jumpers
Carbon Fiber / Poly Propylene Cone
Poly Propylene / Ceramic Dust Cap
High-Grade Strontium Ferrite Magnets
Twist-Lock Grille Mount System
High-Amplitude Multi-Roll (H.A.M.R.) Surround
Push-Type Speaker Terminals (Up to 8AWG Wire Size)
Specifications
Power Handling: 600W RMS / 1800W Peak
Nominal Impedance: 4Ω
Frequency Response: 25Hz - 215Hz
Sensitivity (1W/1M): 84.9dB
Voice Coil: 2.6"
X-Max (1-Way): 15mm
Magnet Weight: 64oz
Alpine S2-Series 600-Watt 12-Inch Subwoofer Driver, 2Ω or 4Ω Dual Voice Coil
With an impressive power handling of 600W RMS and a peak power handling of 1800W, the Next-Gen 12” S-Series Subwoofers deliver outstanding performance value. Boasting a wide frequency response range of 23Hz to 215Hz and a sensitivity of 86dB (1W/1m), these subs ensure powerful and accurate bass reproduction across a diverse range of music genres.
Featuring the lightweight yet sturdy combination of carbon fiber and polypropylene, the Next-Gen S-Series Subwoofer cone delivers deep, low-distortion bass that enhances the depth and richness of your music.
The Next-Generation S-Series Subwoofers contain Alpine's High Amplitude Multi-Roll (H.A.M.R.) Surround Technology. This rubber surround allows the subwoofer cone to efficiently move air while staying cool. This technology allows for 15mm of one-way excursion that creates incredible accuracy from the subwoofer.
A Dual Voice Coil (DVC) with easy configuration jumpers make installing the S-Series subwoofers a breeze. A new twist-lock grille mounting system makes it easy to install and remove an optional grille without mounting screws for added protection to the cone.
Maximize the potential of your S-Series subwoofers with Alpine's perfectly power-matched S-Series amps. Power a single S2-W12DVC subwoofer effortlessly with the 600W S2-A60M mono amplifier, or for an even bigger impact, pair two or more S2-W12DVC subs with the powerful 1200W S2- A120M amp to ensure optimal sound quality and performance.
Features
Dual Voice Coil Subwoofers with Configuration Jumpers
Carbon Fiber / Poly Propylene Cone
Poly Propylene / Ceramic Dust Cap
High-Grade Strontium Ferrite Magnets
Twist-Lock Grille Mount System
High-Amplitude Multi-Roll (H.A.M.R.) Surround
Push-Type Speaker Terminals (Up to 8AWG Wire Size)
Specifications
Power Handling: 600W RMS / 1800W Peak
Nominal Impedance: 4Ω
Frequency Response: 23Hz - 215Hz
Sensitivity (1W/1M): 86.2dB
Voice Coil: 2.6"
X-Max (1-Way): 15mm
Magnet Weight: 64oz
EVL Series 6-1/2-Inch 200-Watt Subwoofer Driver, 2-Ohm or 4-Ohm Dual Voice Coil
The Skar Audio EVL-65 D2 subwoofer was designed to be the most responsive, powerful, and efficient 6.5 inch subwoofer on the market. Don't be fooled by the size, the EVL-65 is one monster of a subwoofer, featuring a 4-layer 2" pure copper voice coil, and a powerful 39 Oz single slug ferrite motor. The small size of this driver allows it to be very versatile, as it can be used in a variety of applications where adding a woofer might not otherwise be possible.
Conservatively rated at 200 watts RMS Power, and 400 watts max power, the EVL-65 features an aluminum diecast chassis which utilizes an advanced air flow cooling system to help dissipate heat. The suspension design of this subwoofer is highlighted by its unique yellow spider - which connects to the coil former with premium stitched lead wires. All of these incredible features make the EVL-65 the obvious choice when looking for a versatile 6.5-inch car subwoofer.
Specifications
Size
6.5"
Type
Car Subwoofer
Cone Type
Competition Grade Pressed Paper Cone
RMS Power
200 Watts
Peak Power
400 Watts
Surround Type
High Roll Rubber Surround
Voice Coil Size
2.00"
Magnet Slug Count
Single
Voice Coil Layers
4
Voice Coil Material
Black Coated Copper (Pure Copper)
Voice Coil Impedance
Dual 2 Ω
T/S Parameters
Bl
13.0 n/a
Fs
61.0 Hz
Re
Dual 2 Ω
Sd
113.0 cm2
Cms
0.126 mm/N
Mms
52.8 gr
Qes
0.43
Qms
4.48
Qts
0.39
Vas
2.3 L
Nref
0.12%
Xmax
6.25 mm (one-way)
Sensitvity
83.1 dB
Single 10-Inch 300-Watt Subwoofer-Enclosure for Select 2020-Up Tesla Model-Y Vehicles
Tesla’s popular compact crossover delivers quick acceleration and a roomy cabin with plenty of space for both passengers and cargo. Sadly though, the factory audio options offer very little to satisfy in the bass reproduction department. Featuring an all-fiberglass, custom-formed, sealed enclosure, this Stealthbox houses JL Audio's innovative, 10-inch TW1 thin-line subwoofer. Designed to drop into the driver’s side, rear storage compartment, this Stealthbox solution produces amazing amounts of deep bass output, while practically vanishing into its surroundings.The Hard Data: Contains one 10TW1-2 Subwoofer in a sealed enclosure. 300 watt power handling. Wired for 2 ohm mono. Fits two-row, 5-seat vehicles only. Use of driver's side, rear storage compartment is lost with installation.
Stealthbox® products are built to order and generally ship within 5-6 business days of receiving your order.
JL Audio SB-TE-YG1-10TW1 Installation Manual
Single 10-Inch 300-Watt 2-Ohm Subwoofer-Enclosure for Select 2017-2023 Tesla Model-3 Vehicles
Tesla’s electric, midsize sedan offers a fun driving experience with athletic handling and remarkable acceleration potential. Unfortunately, the factory audio systems are unable to produce enough bass to match its performance capabilities. Constructed from 100% fiberglass, this Stealthbox houses a 10-inch TW1 thin-line driver in a custom-formed, sealed enclosure. Engineered to address the Model 3’s vault-like, sealed trunk design, this Stealthbox is suspended above the floor, mounted within the rear deck, and generates astonishing amounts of bass output, without sacrificing any precious cargo space.The Hard Data: Contains one 10TW1-2 Subwoofer in a sealed enclosure. 300 watt power handling. Wired for 2 ohm mono. Installs within the rear deck and requires permanent modification to the rear deck and to the interior rear deck panel.
Stealthbox® products are built to order and generally ship within 5-6 business days of receiving your order.
JL Audio SB-TE-3G1-10TW1 Installation Manual
Single 300-Watt 2-Ohm Thin 10-Inch Stealthbox Subwoofer-Enclosure for Select 2018-Up Ford Expedition Vehicles, with OEM Subwoofer
Ford's full-sized SUV delivers first-rate comfort with outstanding gear-hauling capability and towing capacity. This is why JL's Stealthbox solution is designed to retain 100% of your cargo space, while delivering first-class bass performance.
This model replaces the stock subwoofer and installs discreetly behind the factory cargo area trim to protect and hide its 10-inch subwoofer.
The Hard Data: Contains one 10TW1-2 subwoofer in a sealed enclosure. 300 watt power handling. Wired for 2 ohm mono. Installs behind driver side panel in the cargo area. Requires removal of the OEM "subwoofer".
Stealthbox® products are built to order and generally ship within 5-6 business days of receiving your order.
JL Audio SB-F-EXPED4G/10TW1 Installation Manual
ProWedge-Series 13-Inch 1500-Watt Enclosed Subwoofer System, 1.5Ω Sealed Enclosure
For those who seek the ultimate in compact-enclosure sub-bass fidelity, we offer this sealed ProWedge™ system, in which the superb performance capabilities of the W7AE Subwoofer are harnessed within a compact, sealed enclosure. This system has it all: extension, impact, detail and smooth response... at any listening level.
This enclosure design has been carefully engineered to the optimum sealed enclosure alignment for the 13W7AE-D1.5 and has been fine-tuned through extensive real-world listening.
This subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal.
The angled-back design saves precious cargo space by allowing the enclosure to fit tightly against the back of a vehicle's rear seat.
Finish: Black, high-grade automotive carpet, with gloss-black laminated decorative front baffle trim. Three solid aluminum bars provide stylish and rugged woofer protection.
Construction: CNC-Cut High-Grade MDF
Recommended amplifier power: 500 - 1500WNominal Impedance: Dual 1.5 Ω
General Specifications
Continuous Power Handling (RMS)
1500 W
System Nominal Impedance
3 Ω
Enclosure Type
Sealed, rear-firing design
Finish
Black carpet / laminate
Grille Included
Aluminum Bar Grille
Physical Specifications
External Width (W)
22.5 in / 572 mm
External Height (H)
18.25 in / 464 mm
External Depth (D1)
18.25 in / 464 mm
External Top Surface Depth (D2)
11.50 in / 292 mm
Net Weight
103.2 lb / 46.79 kg
JL Audio CLS113RG-W7AE Brochure
W3-Series 13-Inch 600-Watt Subwoofer Driver, 2-Ohm or 4-Ohm Single Voice Coil
If you have the space, it makes a tremendous sense to maximize your subwoofer system's piston area to enhance efficiency (and output). It gets even better when the larger driver delivers additional power handling and excursion. For the preceding reasons, the 13W3v3 can be the best choice for those seeking high output with great sound quality at medium power levels.
As with the smaller W3v3's, several exclusive JL Audio technologies and proprietary assembly techniques are applied to the 13W3v3 to enhance linearity and reliability.
The 13W3v3 2Ω or 4Ω model is best used with an amplifier powered in the 150W - 600W range and is optimized to operate in a moderate size 1.5 cu. ft. (42.5 l) sealed enclosure, or a 2.25 cu. ft. (63.7 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.
General Specifications
Continuous Power Handling (RMS)
600W
Recommended Amplifier Power (RMS)
150 - 600W
Nominal Impedance (Znom)
4Ω
Nominal Diameter
13.5 in / 345 mm
Overall Diameter (A)
14.0 in / 356 mm
Mounting Hole Diameter (B)
12.5625 in / 319 mm
Bolt Hole Circle Diameter (C)
13.2 in / 335 mm
Motor Outer Diameter (D)
5.79 in / 147 mm
Mounting Depth (E)
7.63 in / 194 mm
Driver Displacement
0.096 cu ft / 2.72 liters
Net Weight
17.75 lb / 8.05 kg
Free Air Resonance (Fs)
23.66 Hz
Electrical “Q” (Qes)
0.465
Mechanical “Q” (Qms)
6.774
Total Speaker “Q” (Qts)
0.435
Equivalent Compliance (Vas)
4.793 cu ft / 135.74 L
One-Way Linear Excursion (Xmax)*
0.610 in / 15.5 mm
Reference Efficiency (no)
0.37%
Efficiency (1 W / 1 m)**
87.90 dB SPL
Effective Piston Area (Sd)
103.850 sq in / 0.0670 sq m
DC Resistance (Re)
3.569 Ω
JL Audio 13W3v3 Manual
Alpine R2-Series Dual 8-Inch 750-Watt 2-Ohm Loaded Under-Seat Truck Subwoofer Enclosure System
From towing to travel, you depend on your truck to get you where you want to go, but can you rely on getting the best performance from your sound system? Now you can add deep, accurate bass in your truck without compromising valuable cabin space with the new R2-DB8V-TRK dual 8” Alpine Halo R-Series preloaded truck subwoofer enclosure with the ProLink system and amplifier space.
The enclosures were intentionally crafted to fit most full-size trucks. Two 8” subwoofers are preloaded into a compact enclosure for under the seat installation and linked with a ProLink bracket that can adjust from 51”-40”. Centered on the enclosures is an integrated amplifier mount tray that’s optimized for Alpine’s S-A75M Mono Power Amplifier (sold separately). Rubber “feet” are adjustable in height to accommodate uneven truck floors.
These ported subwoofer enclosures feature the next-generation 8” R-Series subwoofers with a more powerful motor that creates deeper bass while Alpine’s High Amplitude Multi-Roll (HAMR) surround technology allows the subwoofer cone to efficiently move air while staying cool for incredible accuracy. A new ceramic composite dust cap has higher heat resistance that ensures non-stop bass performance.
Alpine’s new preloaded truck subwoofer enclosures join the Alpine Halo family with a premium, unmistakable design. The enclosure pulls design cues from the Alpine Halo display with unique, curved edges outlined by a silver trim and a front link bracket cover with an Alpine logo badge. The 5/8” MDF enclosures are covered in a premium black carpet that will elevate the look of your truck.
With two preloaded R2-W8D2 8” R- Series subwoofers that are tuned to 36Hz, R2-DB8V-TRK is optimized to perform with Alpine’s R-Series sound system line. Dual voice coils are wired in parallel for a 2Ω load that’s compatible with Alpine’s R-Series R2-A75M mono power amplifier.
Features
Groundbreaking Alpine Halo Design
ProLink™ Ported Enclosure
Expandable Width from 40" to 51"
Compact, Under-the-Seat Installation in Most Full-Size Trucks
Integrated Amplifier Tray (not applicable with all vehicles)
Rubber, Modular Stackable Foot Design Accommodates Uneven Truck Floor Areas
Ported Enclosures with High-Performance S-Series Subwoofers
Front Link Alpine Branded Bracket
Side-Firing Cabin Loading Ports
Premium Alpine Wire Terminals
CARB Compliant 5/8" MDF Construction
Premium Black Carpet
Specifications
Dimensions: 40"-51" (Adjustable Width) x 8-3/4” (H) x 13-3/4” (D)
750W RMS
Frequency Response: 32Hz-200Hz
Sensitivity: 84dB
Dual voice coils Wired in Parallel for a 2Ω Load (Compatible with R-A75M)
Vented Enclosure Tuning Frequency: 36Hz
Custom spring-loaded speaker terminals fit up to 12AWG speaker wire
Alpine R2-DB8V-TRK BrochureAlpine R2-DB8V-TRK Manual
Alpine S-Series Dual 8-Inch 600-Watt 2-Ohm Loaded Under-Seat Truck Subwoofer Enclosure System
From towing to travel, you depend on your truck to get you where you want to go, but can you rely on getting the best performance from your sound system? Now you can add deep, accurate bass in your truck without compromising valuable cabin space with the new S-DB8V-TRK dual 8” Alpine Halo S-Series preloaded truck subwoofer enclosure with the ProLink system and amplifier space.
The enclosures were intentionally crafted to fit most full-size trucks. Two 8” subwoofers are preloaded into a compact enclosure for under the seat installation and linked with a ProLink bracket that can adjust from 51”-40”. Centered on the enclosures is an integrated amplifier mount tray that’s optimized for Alpine’s S-A60M Mono Power Amplifier (sold separately). Rubber “feet” are adjustable in height to accommodate uneven truck floors.
The enclosures are designed for the unique cabin environment of your truck. The ported subwoofer enclosures feature Alpine’s reliable 8” S-Series subwoofers. The subwoofers are designed with an improved voice coil that brings out the full potential of the subwoofer. The custom-stamped steel frame is designed to withstand the rigors of the strong S-Series motor. Frame leg vents, as well as a vented backplate, keep the subwoofer cool for non-stop bass performance.
Alpine’s new preloaded truck subwoofer enclosures join the Alpine Halo family with a premium, unmistakable design. The enclosure pulls design cues from the Alpine Halo display with unique, curved edges outlined by a silver trim and a front link bracket cover with an Alpine logo badge. The 5/8” MDF enclosures are covered in a premium black carpet that will elevate the look of your truck.
With two preloaded S-W8D2 8” S- Series subwoofers that are tuned to 36Hz, the S-DB8V-TRK is optimized to perform with Alpine’s S-Series sound system line. Dual voice coils are wired in parallel for a 2Ω load that’s compatible with Alpine’s S-Series S-A60M mono power amplifier.
Features
Groundbreaking Alpine Halo Design
ProLink™ Ported Enclosure
Expandable Width from 40" to 51"
Compact, Under-the-Seat Installation in Most Full-Size Trucks
Integrated Amplifier Tray (not applicable with all vehicles)
Rubber, Modular Stackable Foot Design Accommodates Uneven Truck Floor Areas
Ported Enclosures with High-Performance S-Series Subwoofers
Front Link Alpine Branded Bracket
Side-Firing Cabin Loading Ports
Premium Alpine Wire Terminals
CARB Compliant 5/8" MDF Construction
Premium Black Carpet
Specifications
Dimensions: 40"-51" (Adjustable Width) x 8-3/4” (H) x 13-3/4” (D)
600W RMS
Frequency Response: 34Hz-200Hz
Sensitivity: 84dB
Dual voice coils Wired in Parallel for a 2Ω Load (Compatible with S-A60M)
Vented Enclosure Tuning Frequency: 36Hz
Custom spring-loaded speaker terminals fit up to 12AWG speaker wire
Alpine S-DB8V-TRK BrochureAlpine S-DB8V-TRK Manual
