Description
12-Inch 300-Watt Subwoofer Driver, 4-Ohm SVC or 4-Ohm DVC

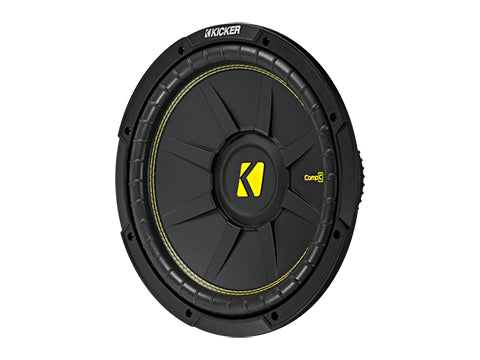

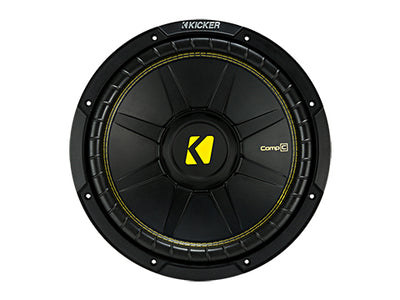

This CompC 12" sub driver from Kicker has a thick stamped steel basket that holds an injection-molded polypropylene cone with stabilizing ribs in the surround.

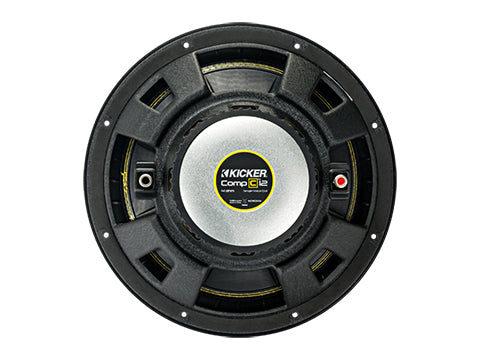

The 44CWCS124 and 44CWCD124 12-Inch subs are available in a 4Ω Single Voice or 4Ω Dual Voice coil design with spring loaded speaker terminals. These CompC drivers are rated for 300W RMS of amplified power.
Specifications
-
| Size (IN.,CM) |
12, 30 |
| Impedance (OHMS) |
4 SVC or 4 DVC |
| Recommended Amplifier Power (watts RMS) |
300 |
| Peak Power (watts, per ANSI/CTA-2031-A) |
600 |
| Sensitivity (dB 1w/1m) |
88.3 |
| Frequency Response (Hz) |
27-500 |
| Mounting Depth (in, cm) |
5-3/8, 13.6 |
| Mounting Cutout (in, cm) |
11, 27.9 |
| Min Sealed Box Vol (cu. ft, L) |
1.25, 35.4 |
| Max Sealed Box Vol (cu. ft, L) |
3.5, 99.1 |
| Min Vented Box Vol (cu. ft, L) |
1.75, 49.6 |
| Max Vented Box Vol (cu. ft, L) |
2.25, 63.7 |
