Automotive Component Mid-Range Speakers

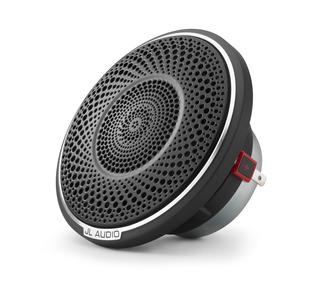

C7-Series 3.5-Inch 100-Watt Component Midrange Speaker with Grille C7 is the pinnacle of JL Audio automotive loudspeaker design, benefiting from their most advanced development tools and a complete commitment to precision manufacturing. The C7-350cm component midrange is designed to operate in a 3-way system, with a woofer and tweeter. Conceived and purpose-built from the ground up, it offers exceptional transient response and outstanding linearity, resulting in unsurpassed clarity and natural mid-range reproduction. Distortion and non-linearities have been minimized through critical optimization of dynamic motor and suspension behaviors. Passive crossover networks are not included with C7 drivers, as they are designed for active systems. Instead, we recommend a high-quality tuning DSP, such as the JL Audio TwK™ 88 or D8, and a dedicated amplifier channel for each C7 loudspeaker in the system. Precise setup of equalization, delay and crossover filters will ensure optimal in-vehicle performance. C7-350cm Design Notes:Cone and Dust Cap: Vacuum-formed, mineral-filled polypropylene material offers excellent damping and low mass. The cone body features a gentle curvilinear profile to optimize response. A concave dust cap further improves high frequency behavior. Suspension design: The moving assembly is suspended and damped via a linear profile spider formed from a Nomex®/polycotton blend, and a positive-roll, rubber surround. The two combine to provide optimum damping without prematurely restricting excursion. Motor Design: The C7-350cm employs a high-density magnetic circuit with a high-grade, neodymium magnet, and a specially machined, U-Yoke motor topology. Motor magnetics have been precisely optimized utilizing advanced FEA tools to reduce distortion and provide linear motor force throughout the driver's performance range. A 36 mm (1.42 inch) diameter, overhung voice coil is employed, wound with copper-clad aluminum wire onto a fiberglass voice coil former. The oversized voice coil offers extended power handling capability, minimizing thermal compression and distortion at higher listening levels. Chassis Design: A purpose-engineered cast alloy basket is employed, featuring thin spokes to maximize rear open area. Design Bandwidth:With 48 dB/octave filters: 300 Hz - 10 kHzWith 24 dB/octave filters: 400 Hz - 10 kHzWith 12 dB/octave filters: 500 Hz - 10 kHz Built in USA with Global ComponentsSold individually, with a cast-alloy grille tray, one fine mesh steel grille insert and one spiral steel grille insert. The performance of every C7 driver is tested and verified, then assigned a unique serial number. Register your C7 loudspeaker online to receive a copy of its specific Acoustical Test Report. General Specifications Continuous Power Handling (RMS) 100 W Peak Music Power 200 W Recommended Amplifier Power (RMS) 50 - 150 W / Ch. Nominal Impedance 4 Ω Frequency Response 300 Hz - 10 KHz ± 3 dB JL Audio C7-350cm Manual

Read more less

C6-Series 2.75-Inch 50-Watt Single Component Mid-Tweeter Born from the same DNA as the JL Audio flagship C7 speakers, the C6 series component drivers let you team premium, pure silk dome tweeters with highly linear woofers to create a loudspeaker system of exceptional refinement, precision and dynamic capability. Pairing full-frame 6.5-inch or 2.75-inch woofers with 1-inch silk dome tweeters, the C6 series drivers offer advanced sound technology for an exceptional car audio listening experience. Passive crossover networks are not included with the C6 drivers, as they are designed for active systems. Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar sound quality. The woofer’s center cap is designed to optimize its high-frequency response for seamless tweeter transition. A high-quality tuning Digital Signal Processor (DSP) — such as the TwK® DSP or a VXi amplifier with built-in DSP — is recommended. Using individual amplifier channels for each C6 speaker enables the system designer to achieve precise setup of equalization, delay and crossover filters for optimal in-vehicle performance. Sold as a single speaker. General Specifications SIZES 1", 2.75", 6.5" CONTINUOUS POWER HANDLING (RMS) 1": 75W, 2.75": 50W, 6.5": 100W SENSITIVITY (SPL @ 1 W/1 M) 1": 90dB, 2.75": 83.50dB, 6.5": 87.37dB SENSITIVITY (SPL @ 1 W/0.5 M) 1": 96dB SENSITIVITY (SPL @ 2.83 V/1 M) 1": 93dB, 2.75": 86.50dB, 6.5": 90.33dB FREQUENCY RESPONSE (+/- 3 DB) 1": 3kHz-21KHz, 2.75": 350 Hz-4.KHz, .5": 55Hz-6KHz NOMINAL IMPEDANCE 4 Ω RECOMMENDED AMPLIFIER POWER (RMS) 1": 25-100W Channel, 2.75": 25-80W Channel, 6.5": 25-150W Channel VOICE COIL DIAMETER 2.75": 0.8" (20.5mm), 6.5": 1.27" (32mm) CONE MATERIAL Vacuum-formed, mineral-filled polypropylene TWEETER TYPE Silk Dome TWEETER SIZE 1" (25mm) GRILLE(S) INCLUDED yes WARRANTY 1 year CONNECTIONS SPEAKER CONNECTIONS Spade connectors MOUNTING DIMENSIONS FRAME OUTER DIAMETER 2.75": 2.52" (77mm), 6.5": 6.5" (165mm) MOUNTING DEPTH CLEARANCE 2.75": 1.42" (36mm), 6.5": 2.60" (66mm) FRONTAL GRILLE PROTRUSION 2.75": 0.47" (12mm), 6.5": 1" (25mm) MOUNTING HOLE 2.75": 2.52" (64mm), 6.5": 5.46" (139mm) GRILLE TRAY OUTER DIAMETER 2.75": 3.58" (91mm), 6.5": 6.76" (172mm) BOLT HOLE CIRCLE 2.75": 3.03" (77mm), 6.5": 6.12" (156mm) MOTOR OUTER DIAMETER 2.75": 2.75" (69mm), 6.5": 3.54" (90mm) PARMETERS FREE AIR RESONANCE (FS) 1": 1500Hz, 2.75": 185Hz, 6.5": 52.8Hz ELECTRICAL “Q” (QES) 2.75": 0.769, 6.5": 0.647 MECHANICAL “Q” (QMS) 2.75": 7.848, 6.5": 5.076 TOTAL “Q” (QTS) 2.75": 0.700, 6.5": 0.574 EQUIVALENT COMPLIANCE (VAS) 2.75": 0.0353 cu ft (0.125L), 6.5": 0.532 cu ft (15.069L) ONE-WAY LINEAR EXCURSION (XMAX; SPECS ARE DERIVED VIA ONE-WAY VOICE COIL OVERHANG METHOD WITH NO CORRECTION FACTORS APPLIED) 2.75": 0.059" (1.50mm), 6.5": 0.148" (3.75mm) REFERENCE EFFICIENCY (NO) 1": 0.602%, 2.75": 0.1414%, 6.5": 0.344% MOVING MASS (MMS) 2.75": 4.65g, 6.5": 16.42g MECHANICAL COMPLIANCE (CMS) 2.75": 0.00031 m/N, 6.5": 0.000581 m/N MAGNETIC STRENGTH (BL) 2.75": 5.03, 6.5": 5.186 EFFECTIVE PISTON AREA (SD) 2.75": 3.66 in² (0.00236m²), 6.5": 21.4 in² (0.013807m²) DC RESISTANCE (RE) 1" & 6.5": 3.20Ω, 2.75": 3.58Ω TWEETER SPECS FLUSH MOUNT FIXTURE DIAMETER 1": 2.13" (54mm) SURFACE MOUNT FIXTURE DIAMETER 1": 2.11" (54mm) FLUSH MOUNT MOUNTING HOLE DIAMETER 1": 1.85" (47mm) FLUSH MOUNT MOUNTING DEPTH 1": 1.85" (47mm) FLUSH MOUNT TWEETER FRONTAL PROTRUSION 1": 0.30" (8mm) SURFACE MOUNT TWEETER FRONTAL PROTRUSION 1": 1.04" (26mm)

Read more less

Custom-Fit Series 3.5-Inch 35-Watt Factory Replacement Mid Dash Speaker Custom-fit (CF) speakers from JL Audio are engineered to deliver pure, clear midrange audio output in many of today’s most popular vehicles, including Chevrolet, GMC, Cadillac, Dodge, Jeep, RAM, Toyota and more. The units’ slimline designs offer easy, drop-in installation in existing factory speaker locations. General Specifications SIZES 3.5" CONTINUOUS POWER HANDLING (RMS) 3.5": 35 W SENSITIVITY (SPL @ 1 W/1 M) 3.5": 86 dB FREQUENCY RESPONSE (+/- 3 DB) 450 Hz-20 KHz ± 3 dB NOMINAL IMPEDANCE 4 Ω RECOMMENDED AMPLIFIER POWER (RMS) 3.5": 10-50 W/Channel CONE MATERIAL Fiber-reinforced pulp GRILLE(S) INCLUDED WARRANTY 1 year Physical Specifications FRAME OUTER DIAMETER 3.5": 3.46" (88 mm) MOUNTING DEPTH CLEARANCE 3.5": 1.59" (40 mm) FRONTAL GRILLE PROTRUSION 0.26" (7 mm) MOUNTING HOLE 3.5": 3.12" (80 mm) MOTOR OUTER DIAMETER 1.29" (33 mm)

Read more less

Custom-Fit Series 2.75-Inch 30-Watt Factory Replacement Mid Tweeter Custom-fit (CF) speakers from JL Audio are engineered to deliver pure, clear midrange audio output in many of today’s most popular vehicles, including Chevrolet, GMC, Cadillac, Dodge, Jeep, RAM, Toyota and more. The units’ slimline designs offer easy, drop-in installation in existing factory speaker locations. General Specifications SIZES 2.75" CONTINUOUS POWER HANDLING (RMS) 2.75": 30 W SENSITIVITY (SPL @ 1 W/1 M) 2.75": 82 dB FREQUENCY RESPONSE (+/- 3 DB) 450 Hz-20 KHz ± 3 dB NOMINAL IMPEDANCE 4 Ω RECOMMENDED AMPLIFIER POWER (RMS) 2.75": 10-40 W/Channel CONE MATERIAL Fiber-reinforced pulp GRILLE(S) INCLUDED WARRANTY 1 year Physical Specifications FRAME OUTER DIAMETER 2.75": 2.85" (72 mm) MOUNTING DEPTH CLEARANCE 2.75": 1.39" (35 mm) FRONTAL GRILLE PROTRUSION 0.26" (7 mm) MOUNTING HOLE 2.75": 2.48" (63 mm) MOTOR OUTER DIAMETER 1.29" (33 mm)

Read more less
