Description

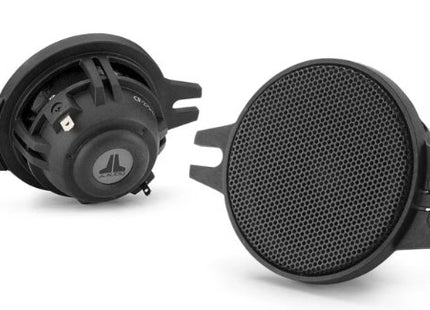

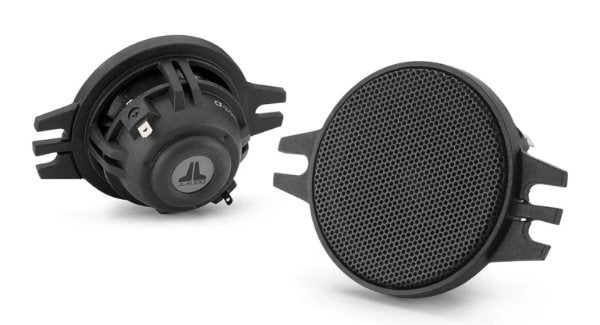

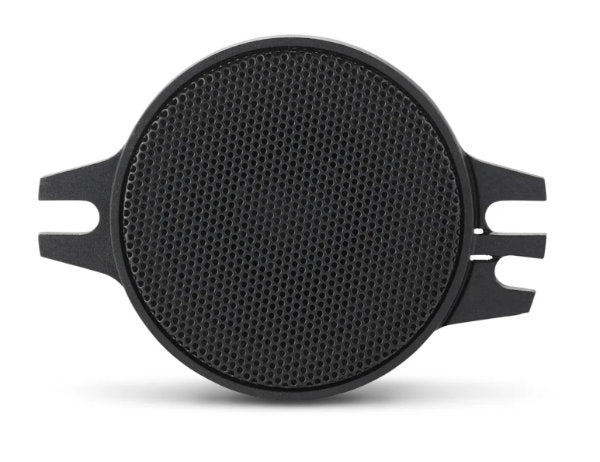

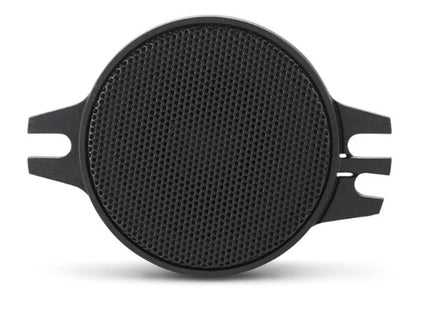

Custom-Fit Series 2.75-Inch 30-Watt Factory Replacement Mid Tweeter
Custom-fit (CF) speakers from JL Audio are engineered to deliver pure, clear midrange audio output in many of today’s most popular vehicles, including Chevrolet, GMC, Cadillac, Dodge, Jeep, RAM, Toyota and more. The units’ slimline designs offer easy, drop-in installation in existing factory speaker locations.
General Specifications
-
| SIZES |
2.75" |
| CONTINUOUS POWER HANDLING (RMS) |
2.75": 30 W |
| SENSITIVITY (SPL @ 1 W/1 M) |
2.75": 82 dB |
| FREQUENCY RESPONSE (+/- 3 DB) |
450 Hz-20 KHz ± 3 dB |
| NOMINAL IMPEDANCE |
4 Ω |
| RECOMMENDED AMPLIFIER POWER (RMS) |
2.75": 10-40 W/Channel |
| CONE MATERIAL |
Fiber-reinforced pulp |
| GRILLE(S) INCLUDED |
|
| WARRANTY |
1 year |
Physical Specifications
-
| FRAME OUTER DIAMETER |
2.75": 2.85" (72 mm) |
| MOUNTING DEPTH CLEARANCE |
2.75": 1.39" (35 mm) |
| FRONTAL GRILLE PROTRUSION |
0.26" (7 mm) |
| MOUNTING HOLE |
2.75": 2.48" (63 mm) |
| MOTOR OUTER DIAMETER |
1.29" (33 mm) |
