Description

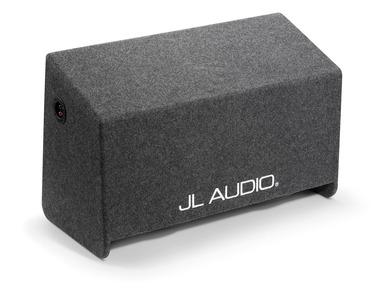

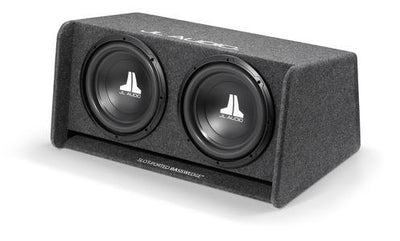

BassWedge-Series Dual 12-Inch 600-Watt Enclosed Subwoofer System, 2Ω Ported Enclosure
This powerful slot-ported BassWedge™ subwoofer system delivers awesome output at an unsurpassed value.
The slot-port runs along the bottom of the enclosure and fires on the same plane as the woofers to produce excellent extension and response smoothness. The port mouth is flared to minimize air-flow noises.
The ultra-versatile BassWedge™ shape has extended sides so that it can be placed with the woofers firing out or straight down, off the floor of the vehicle. The shape works equally well in forward or rear-firing installations. This gives you plenty of options for tweaking the loading of the enclosure into your vehicle.
This subwoofer system is shipped wired, loaded and ready to connect via a push-button terminal.
Finish: Dark gray, high-grade automotive carpet with "JL AUDIO" embroidery on the top edge and "Slot-Ported BassWedge™" embroidered on the port mouth.
Construction: MDF
Recommended amplifier power: 150 - 600W
Nominal Impedance: 2 Ω
General Specifications
| Continuous Power Handling (RMS) |
600 W |
| System Nominal Impedance |
2 Ω |
| Enclosure Type |
Slot-ported |
| Finish |
Gray carpet |
| Grille Included |
No |
Physical Specifications
| External Width (W) |
31.375 in / 797 mm |
| External Height (H) |
15.18 in / 386 mm |
| External Depth (D1) |
20.3 in / 516 mm |
| External Top Surface Depth (D2) |
15.75 in / 400 mm |
| Net Weight |
60.3 lb / 27.35 kg |
