Alpine KTA-30FW : 4ch x 75W RMS @ 2Ω/4Ω Marine Grade Amplifier

Description

Alpine 75-Watts RMS x 4-Channel Marine-Grade Head-Unit Power-Pack Amplifier

The KTA-F30W is perfect for when you want to boost your sound system but don’t have the space for a large amplifier. It is compatible with an aftermarket or factory head unit and adds up to 4 times the power over the head unit's original built-in power.

The KTA-30FW features Alpine’s exclusive Dynamic Peak Power (DPP) technology which uses a new dynamic power supply design that delivers bursts of power during rigorous musical passages. When the amplifier senses that more power is required, the power supply quickly increases the internal gain level, effectively doubling the power for a significant increase in dynamic range at high music volumes.

The KTA-30FW is ready for your adventures. It is weather resistant, rated at IP66 for protection again dust ingress and high-pressure water spray. The KTA-30FW features a rugged chassis and high-quality waterproof connector so it can be used in installations where it will be exposed to the elements, like side-by-sides, boats, open- top vehicles. and motorcycles.

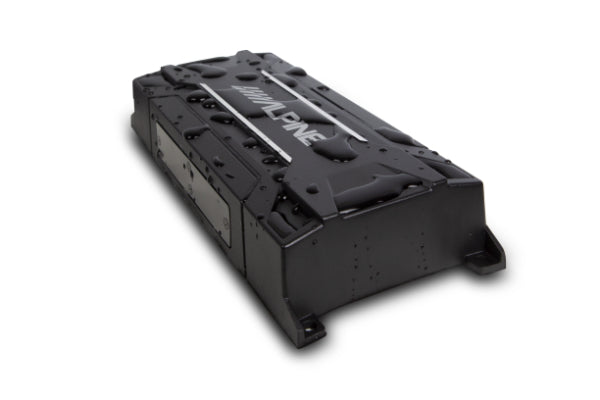

The KTA-30FW measures just 9-3/16" (W) × 1-5/8" (H) x 3-3/4" (D), so its small footprint lets it fit where most amplifiers won't. The KTA-30FW can be tucked away under the dash or in the glove compartment, installed under the dash of a side-by-side, placed in the saddlebag of a motorcycle, or used in other places where space is an issue.

Specifications

  • Alpine's Class D amplifier circuit w/ Dynamic Peak Power (DPP)
  • 75W RMS x 4 @ 2Ω/4Ω, 14.4V, ≤ 1% THD+N
  • 150W DPP x 4 @ 2Ω/4Ω, 14.4V, ≤ 1% THD+N
  • >85dB S/N (ref. 1W into 4Ω)
  • >0.1% THD (ref. 1W into 4Ω)
  • 20-20kHz Frequency response (+/-1dB)
  • Weather resistant (IP66 rating) OEM-grade connector wire harness
  • Speaker/RCA inputs (selectable, High range=0.5-10V, Low range=0.2-4V)
  • Sound control: Crossovers – Off/HP/LP, Fc=50-400Hz @ -12dB/Oct. (variable); Input gain settings (variable); 2ch/4ch input (selectable)

Alpine KTA-30FW Manual

Product form

Alpine 75-Watts RMS x 4-Channel Marine-Grade Head-Unit Power-Pack Amplifier The KTA-F30W is perfect for when you want to boost your... Read more

In-store pickup or installation our shop location

SKU: KTA-30FW

Pre-Order Today!

$449.99$419.99

Description

Alpine 75-Watts RMS x 4-Channel Marine-Grade Head-Unit Power-Pack Amplifier

The KTA-F30W is perfect for when you want to boost your sound system but don’t have the space for a large amplifier. It is compatible with an aftermarket or factory head unit and adds up to 4 times the power over the head unit's original built-in power.

The KTA-30FW features Alpine’s exclusive Dynamic Peak Power (DPP) technology which uses a new dynamic power supply design that delivers bursts of power during rigorous musical passages. When the amplifier senses that more power is required, the power supply quickly increases the internal gain level, effectively doubling the power for a significant increase in dynamic range at high music volumes.

The KTA-30FW is ready for your adventures. It is weather resistant, rated at IP66 for protection again dust ingress and high-pressure water spray. The KTA-30FW features a rugged chassis and high-quality waterproof connector so it can be used in installations where it will be exposed to the elements, like side-by-sides, boats, open- top vehicles. and motorcycles.

The KTA-30FW measures just 9-3/16" (W) × 1-5/8" (H) x 3-3/4" (D), so its small footprint lets it fit where most amplifiers won't. The KTA-30FW can be tucked away under the dash or in the glove compartment, installed under the dash of a side-by-side, placed in the saddlebag of a motorcycle, or used in other places where space is an issue.

Specifications

  • Alpine's Class D amplifier circuit w/ Dynamic Peak Power (DPP)
  • 75W RMS x 4 @ 2Ω/4Ω, 14.4V, ≤ 1% THD+N
  • 150W DPP x 4 @ 2Ω/4Ω, 14.4V, ≤ 1% THD+N
  • >85dB S/N (ref. 1W into 4Ω)
  • >0.1% THD (ref. 1W into 4Ω)
  • 20-20kHz Frequency response (+/-1dB)
  • Weather resistant (IP66 rating) OEM-grade connector wire harness
  • Speaker/RCA inputs (selectable, High range=0.5-10V, Low range=0.2-4V)
  • Sound control: Crossovers – Off/HP/LP, Fc=50-400Hz @ -12dB/Oct. (variable); Input gain settings (variable); 2ch/4ch input (selectable)

Alpine KTA-30FW Manual
