HD-Series 4-Channel Class-D Full-Range Amplifier, 150-Watts x 4ch @ 1.5-4-Ohms
This compact multi-channel powerhouse employs JL's Single-Cycle Control switching design and R.I.P.S. technology to deliver 150W x4 or 300 W x 2. Tight power supply regulation keeps distortion down and maximizes sound quality.
When using the HD750/1 or HD1200/1 to drive a subwoofer system, the HD600/4 is the ideal satellite amplifier, delivering huge dynamics with pristine resolution. From a pure sound quality perspective, JL invites you to compare the real-world, in-car performance of this amplifier to any other amplifier on the market, of any type, at any price.
It can also be deployed on its own as a very capable 3-channel system amplifier with 150W x 2 to the satellites and 300W x 1 to a subwoofer system.

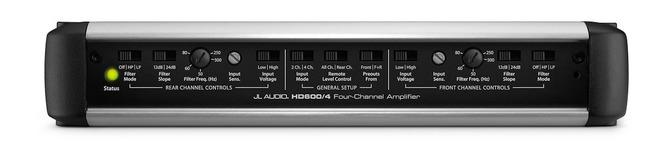

This amplifier features a brushed aluminum finish with black powder-coated cast alloy heat sinks and bottom panel. A black powder-coated, gasketed cover is also provided to protect the controls.
|Frequency Response||6 Hz - 30 kHz (+0, -1dB)|
|S/N Ratio, referred to highest rated power||>110 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)|
|S/N Ratio, referred to 1 W||>88.2 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)|
|Damping Factor @ 4 Ω||>300 / 50 Hz|
|Damping Factor @ 2 Ω||>150 / 50 Hz|
|THD+N @ Rated Power||<0.03% @ 4 Ω per Ch.|

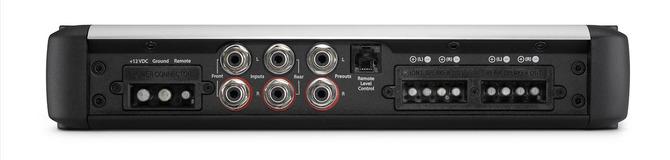

|Input Voltage Range @ RCA Inputs||Switchable from 200 mV - 2 V RMS to 800 mV - 8 V RMS|
|Min.Copper Power / Ground Wire Gauge||4 AWG wire|
|Fuse Rating||50 A (AFS, AGU or MaxiFuse™)|
|@ 4 Ω||150 W RMS x 4|
|@ 3 Ω||150 W RMS x 4|
|@ 2 Ω||150 W RMS x 4|
|@ 1.5 Ω||150 W RMS x 4|
|Bridged @ 8 Ω||300 W RMS x 2|
|Bridged @ 4 Ω||300 W RMS x 2|
|Filter Mode(s)||Low-Pass or High-Pass|
|Filter Slope(s)||12/24 dB/octave|
|Filter Frequency Range||50 Hz - 500 Hz|
|Detented, Calibrated Filter Freq. Potentiometers||Yes|
|Filter Defeat Function||Yes|
|Remote Level Control||Optional (HD-RLC)|
|Remote Level Modes||2 or All Channels|
|Channel Input Mode Switch||Yes (2/4 ch.)|
|Pass-Through Preamp Output||Buffered|
|Source Channel Selection for PreOuts||Yes|
|Height (H)||1.93 in / 49 mm|
|Width (W)||10.74 in / 273 mm|
|Depth (D)||8.29 in / 211 mm|
