Description

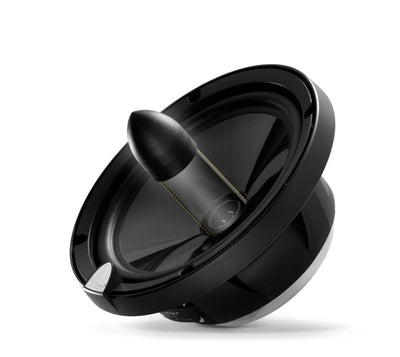

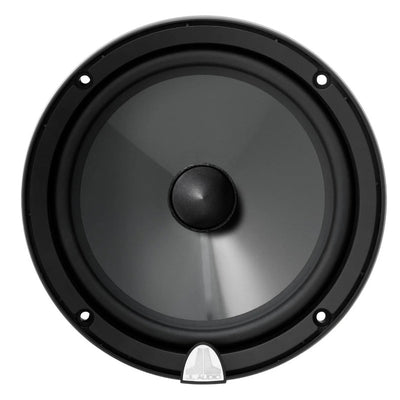

C3-Series 6-Inch 75-Watt Component Woofer with Grille
There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.
The new C3-600cw expands the C3 lineup with a direct-fit product for many Japanese vehicles that will not accept a full-size 6.5-inch speaker.
The C3-600 system features 6-inch (150 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cone and injection-molded polymer basket. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
A woofer grille is included, consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Powerful
Sold individually.

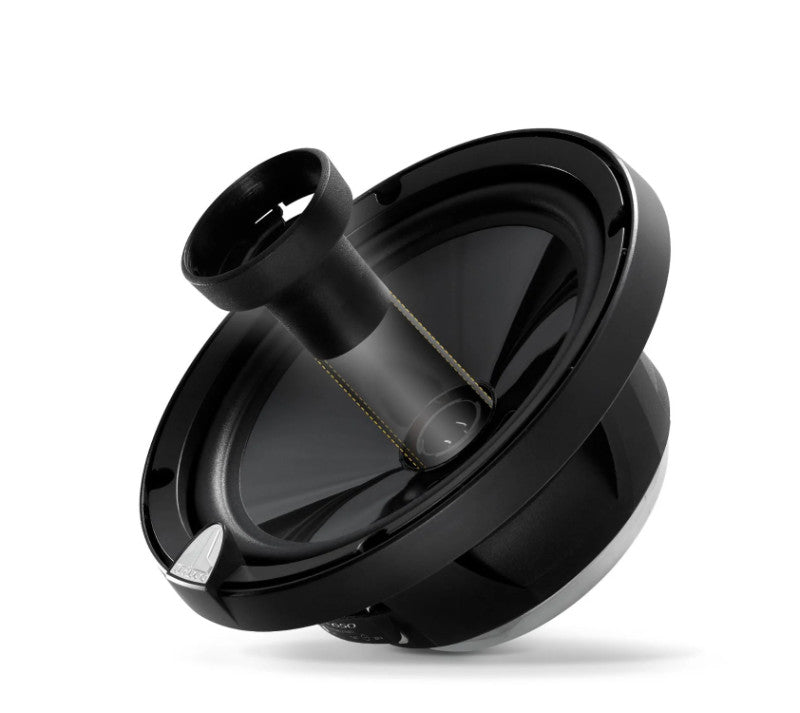

Includes Component Phase Plug and Tweeter Post (Tweeter sold separately).
General Specifications
| Continuous Power Handling (RMS) |
75 W |
| Recommended Amplifier Power (RMS) |
25 - 150 W / Ch. |
| System Efficiency |
89.5 dB @ 1 W / 1 m |
| System Nominal Impedance |
4 Ω |
| System Frequency Response |
50 Hz - 25 KHz ± 3 dB |
Physical Specifications
| Frame Outer Diameter (A) |
6.21 in. / 157.7 mm |
| Grille Tray Outer Diameter (B) |
6.46 in. / 164.1 mm |
| Motor Outer Diameter (C) |
4.08 in. / 103.6 mm |
| Frontal Coaxial Tweeter Protrusion* (D) |
0.81 in. / 20.6 mm |
| Frontal Grille Protrusion** (E) |
1.03 in. / 26.2 mm |
| Mounting Hole Diameter (F) |
5.00 in. / 127 mm |
| Mounting Depth (G) |
2.49 in. / 63 mm |
