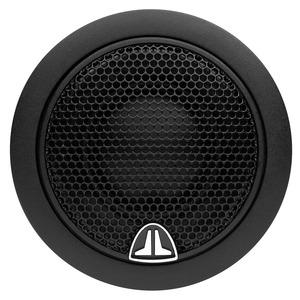

C2-Series 0.75-Inch 60-Watt Silk Dome Tweeters
The silk dome tweeter is prized by audiophiles for delivering realistic, non-fatiguing, high-frequency performance.
The C2 component tweeters are built with 0.75-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs.
Inline 12 dB / octave high-pass filters with tweeter protectors are included with this kit. The C2-075ct is designed to operate above 4 kHz with a minimum high-pass slope of 12 dB / octave.
Sonic character: Clean and Powerful
Sold as a pair.
|Continuous Power Handling (RMS)||60 W|
|Peak Music Power*||150 W|
|Recommended Amplifier Power (RMS)||25 - 100 W / Ch.|
|System Efficiency||91.0 dB @ 1 W / 1 m|
|System Nominal Impedance||4 Ω|
|System Frequency Response||4 kHz - 22 KHz ± 3 dB|
|Flush Mount Fixture Diameter (A1)||1.87 in / 48 mm|
|Surface Mount Fixture Diameter (A2)||1.69 in / 43 mm|
|Flush Mount Mounting Hole Diameter (B)||1.625 in / 41 mm|
|Flush Mount Mounting Depth (C)||0.76 in / 19 mm|
|Flush Mount Tweeter Frontal Protrusion (D1)||0.29 in / 7 mm|
|Surface Mount Tweeter Frontal Protrusion (D2)||0.92 in / 23 mm|
