MHD-Series 5-Channel Class-D 24-Volt Marine Grade Amplifier, 100-Watts x 4ch + 500-Watt Mono @ 1.5-4Ω
Thanks to its ability to act as a "one-box solution", the MHD900/5-24V is ideal for installations where space is at a premium and sound quality is the paramount goal.
While extremely compact, this amazing amplifier will comfortably drive a complete high-performance marine audio system: that is, four satellite speaker systems and a subwoofer system... with a very serious 900 watts of power!
Using JL Audio's Single Cycle Control switching design and R.I.P.S technology, the MHD900/5-24V delivers 100W x 4ch to its four main channels, plus a very meaty 500W to its subwoofer channel. Thanks to R.I.P.S., high power can be delivered over a wide range of load impedances, while the tight power supply regulation keeps distortion down, maximizing sound quality.
This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.
This amplifier is designed for operation in vessels with 24 volt, negative-ground electrical systems. Use of this product in vessels with positive ground and/or voltages other than 24V may result in damage to the product and will void the warranty.
Specifications
Main Channels @ 4 Ω
100 W RMS x 4
Main Channels @ 3 Ω
75 W RMS x 4
Main Channels @ 2 Ω
75 W RMS x 4
Main Channels @ 1.5 Ω
75 W RMS x 4
Main Channels - Bridged @ 8 Ω
200 W RMS x 2
Main Channels - Bridged @ 4 Ω
150 W RMS x 2
Subwoofer Channel @ 4 Ω
500 W RMS x 1
Subwoofer Channel @ 3 Ω
500 W RMS x 1
Subwoofer Channel @ 2 Ω
500 W RMS x 1
Subwoofer Channel @ 1.5 Ω
500 W RMS x 1
Frequency Response (Main Channels)
12 Hz - 28 kHz (+0, -1dB)
Frequency Response (Subwoofer Channel)
12 Hz - 10 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power (Main Channels)
>108.5 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W (Main Channels)
>88.2 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω
>400 / 50 Hz
Damping Factor @ 2 Ω
>200 / 50 Hz
THD+N @ Rated Power (Main Channels)
<0.03% @ 4 Ω
THD+N @ Rated Power (Subwoofer Channel)
<0.05% @ 4 Ω
Input Voltage Range @ RCA Inputs
Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
Min.Copper Power / Ground Wire Gauge
Accepts up to 4 AWG wire
Fuse Rating
30 A (AFS, AGU or MaxiFuse™)
Filter Mode(s): Channels 1 & 2 (front)
High-Pass only
Filter Slope(s): Channels 1 & 2 (front)
12/24 dB/octave
Filter Frequency Range: Channels 1 & 2 (front)
50 Hz - 500 Hz
Filter Mode(s): Channels 3 & 4 (rear)
High-Pass only
Filter Slope(s): Channels 3 & 4 (rear)
12/24 dB/octave
Filter Frequency Range: Channels 3 & 4
50 Hz - 500 Hz
Filter Mode(s): Subwoofer Channel
Low-Pass only
Filter Slope(s): Subwoofer Channel
12/24 dB/octave
Filter Frequency Range: Subwoofer Channel
50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometers
Yes
Filter Defeat Function
Yes
Infrasonic Filter: Subwoofer Channel
30 Hz, Defeatable
Remote Level Control
Optional (HD-RLC)
Remote Level Modes
Sub Ch. only
Channel Input Mode Switch
Yes (2/4/6 ch.)
Pass-Through Preamp Output
None
Source Channel Selection for PreOuts
N/A
JL Audio MHD900/5-24V Manual
MHD-Series 5-Channel Class-D Marine Grade Amplifier, 100-Watts x 4ch + 500-Watt Mono @ 1.5-4Ω
Thanks to its ability to act as a "one-box solution", the MHD900/5 is ideal for installations where space is at a premium and sound quality is the paramount goal.
While extremely compact, this amazing amplifier will comfortably drive a complete high-performance marine audio system: that is, four satellite speaker systems and a subwoofer system... with a very serious 900 watts of power!
Using JL Audio's Single Cycle Control switching design and R.I.P.S technology, the MHD900/5 delivers 100W x 4ch, plus a very meaty 500W to its subwoofer channel. Thanks to R.I.P.S., high power can be delivered over a wide range of load impedances, while the tight power supply regulation keeps distortion down, maximizing sound quality.
This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.
Specifications
Main Channels @ 4 Ω
100 W RMS x 4
Main Channels @ 3 Ω
75 W RMS x 4
Main Channels @ 2 Ω
75 W RMS x 4
Main Channels @ 1.5 Ω
75 W RMS x 4
Main Channels - Bridged @ 8 Ω
200 W RMS x 2
Main Channels - Bridged @ 4 Ω
150 W RMS x 2
Subwoofer Channel @ 4 Ω
500 W RMS x 1
Subwoofer Channel @ 3 Ω
500 W RMS x 1
Subwoofer Channel @ 2 Ω
500 W RMS x 1
Subwoofer Channel @ 1.5 Ω
500 W RMS x 1
Frequency Response (Main Channels)
12 Hz - 28 kHz (+0, -1dB)
Frequency Response (Subwoofer Channel)
12 Hz - 10 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power (Main Channels)
>108.5 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W (Main Channels)
>88.2 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω
>400 / 50 Hz
Damping Factor @ 2 Ω
>200 / 50 Hz
THD+N @ Rated Power (Main Channels)
<0.03% @ 4 Ω
THD+N @ Rated Power (Subwoofer Channel)
<0.05% @ 4 Ω
Input Voltage Range @ RCA Inputs
Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
Min.Copper Power / Ground Wire Gauge
Accepts up to 4 AWG wire
Fuse Rating
60 A (AFS, AGU or MaxiFuse™)
Filter Mode(s): Channels 1 & 2 (front)
High-Pass only
Filter Slope(s): Channels 1 & 2 (front)
12/24 dB/octave
Filter Frequency Range: Channels 1 & 2 (front)
50 Hz - 500 Hz
Filter Mode(s): Channels 3 & 4 (rear)
High-Pass only
Filter Slope(s): Channels 3 & 4 (rear)
12/24 dB/octave
Filter Frequency Range: Channels 3 & 4
50 Hz - 500 Hz
Filter Mode(s): Subwoofer Channel
Low-Pass only
Filter Slope(s): Subwoofer Channel
12/24 dB/octave
Filter Frequency Range: Subwoofer Channel
50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometers
Yes
Filter Defeat Function
Yes
Infrasonic Filter: Subwoofer Channel
30 Hz, Defeatable
Remote Level Control
Optional (HD-RLC)
Remote Level Modes
Sub Ch. only
Channel Input Mode Switch
Yes (2/4/6 ch.)
Pass-Through Preamp Output
None
Source Channel Selection for PreOuts
N/A
JL Audio MHD900/5 Manual
MHD-Series 4-Channel Class-D 24-Volt Marine Grade Amplifier, 150-Watts x 4ch @ 1.5-4-Ohms
This compact, multi-channel powerhouse employs JL's Single-Cycle Control switching design and R.I.P.S. technology to deliver 150W x 4ch or 300W x 2ch's. Tight power supply regulation keeps distortion down and maximizes sound quality.
The MHD600/4-24V is the ideal satellite amplifier, delivering huge dynamics with pristine resolution. It can also be deployed, on its own, as a very capable 3-channel system amplifier with 150W x 2ch to the satellites and 300W x 1 to a subwoofer system.
This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.
This amplifier is designed for operation in vessels with 24 volt, negative-ground electrical systems. Use of this product in vessels with positive ground and/or voltages other than 24 V may result in damage to the product and will void the warranty.
Specifications
@ 4 Ω
150 W RMS x 4
@ 3 Ω
150 W RMS x 4
@ 2 Ω
150 W RMS x 4
@ 1.5 Ω
150 W RMS x 4
Bridged @ 8 Ω
300 W RMS x 2
Bridged @ 4 Ω
300 W RMS x 2
Frequency Response
6 Hz - 30 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power
>110 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W
>88.2 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω
>300 / 50 Hz
Damping Factor @ 2 Ω
>150 / 50 Hz
THD+N @ Rated Power
<0.03% @ 4 Ω per Ch.
Input Voltage Range @ RCA Inputs
Switchable from 200 mV - 2 V RMS to 800 mV - 8 V RMS
Min.Copper Power / Ground Wire Gauge
4 AWG wire
Fuse Rating
25 A (AFS, AGU or MaxiFuse™)
Filter Mode(s)
Low-Pass or High-Pass
Filter Slope(s)
12/24 dB/octave
Filter Frequency Range
50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometers
Yes
Filter Defeat Function
Yes
Remote Level Control
Optional (HD-RLC)
Remote Level Modes
2 or All Channels
Channel Input Mode Switch
Yes (2/4 ch.)
Pass-Through Preamp Output
Buffered
Source Channel Selection for PreOuts
Yes
JL Audio MHD600/4-24V Manual
MHD-Series 4-Channel Class-D Marine Grade Amplifier, 150-Watts x 4ch @ 1.5-4-Ohms
This compact, multi-channel powerhouse employs JL's Single-Cycle Control switching design and R.I.P.S. technology to deliver 150W x 4ch or 300W x 2ch. Tight power supply regulation keeps distortion down and maximizes sound quality.
When using the MHD750/1 to drive a subwoofer system, the MHD600/4 is the ideal satellite amplifier, delivering huge dynamics with pristine resolution. It can also be deployed, on its own, as a very capable 3-channel system amplifier with 150W x 2 to the satellites and 300W x 1 to a subwoofer system.
This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.
Specifications
@ 4 Ω
150 W RMS x 4
@ 3 Ω
150 W RMS x 4
@ 2 Ω
150 W RMS x 4
@ 1.5 Ω
150 W RMS x 4
Bridged @ 8 Ω
300 W RMS x 2
Bridged @ 4 Ω
300 W RMS x 2
Frequency Response
6 Hz - 30 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power
>110 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W
>88.2 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω
>300 / 50 Hz
Damping Factor @ 2 Ω
>150 / 50 Hz
THD+N @ Rated Power
<0.03% @ 4 Ω per Ch.
Input Voltage Range @ RCA Inputs
Switchable from 200 mV - 2 V RMS to 800 mV - 8 V RMS
Min.Copper Power / Ground Wire Gauge
4 AWG wire
Fuse Rating
50 A (AFS, AGU or MaxiFuse™)
Filter Mode(s)
Low-Pass or High-Pass
Filter Slope(s)
12/24 dB/octave
Filter Frequency Range
50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometers
Yes
Filter Defeat Function
Yes
Remote Level Control
Optional (HD-RLC)
Remote Level Modes
2 or All Channels
Channel Input Mode Switch
Yes (2/4 ch.)
Pass-Through Preamp Output
Buffered
Source Channel Selection for PreOuts
Yes
JL Audio MHD600/4 Manual
MHD-Series Monoblock Class-D Marine Grade Amplifier, 750-Watts @ 1.5-4-Ohms
This ultra-compact monoblock amplifier employs JL's Single-Cycle Control switching design and R.I.P.S. technology to deliver 750W of clean power into any impedance between 1.5 and 4Ω, giving you the highest degree of flexibility in designing your subwoofer system.
Tight power supply regulation keeps distortion ultra-low and maximizes your bass performance. While targeted primarily to subwoofer applications, the MHD750/1 is a full-range amplifier and can also be used to drive high-performance mid and high frequency speaker systems.
This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.
Specifications
@ 4 Ω
750 W RMS x 1
@ 3 Ω
750 W RMS x 1
@ 2 Ω
750 W RMS x 1
@ 1.5 Ω
750 W RMS x 1
Frequency Response
6 Hz - 8 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power
>110 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W (Main Channels)
>88 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω
>500 / 50 Hz
Damping Factor @ 2 Ω
>250 / 50 Hz
THD+N @ Rated Power (Main Channels)
<0.03% @ 4 Ω
Input Voltage Range @ RCA Inputs
Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
Min.Copper Power / Ground Wire Gauge
4 AWG wire
Fuse Rating
60 A (AFS, AGU or MaxiFuse™)
Filter Mode(s)
Low-Pass or High-Pass
Filter Slope(s)
12/24 dB/octave
Filter Frequency Range
50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometer
Yes
Filter Defeat Function
Yes
Infrasonic Filter
30 Hz, defeatable
Bass Boost EQ (0 to +12 dB @ 45 Hz)
No
Output Polarity Switch
Yes
Remote Subwoofer Level Control
Optional (HD-RLC)
Pass-Through Preamp Output
Buffered
JL Audio MHD750/1 Manual
XDM-Series 8-Channel Class-D Marine-Grade Amplifier, 100-Watts x 8-Channels @ 2-Ohm or 75-Watts x 8-Channels @ 4-Ohm
The ultra-versatile XDM800/8 delivers eight channels of crystal-clear, full-range power and is capable of delivering a whopping 100-watts to each of its channels @ 2-ohms (14.4V, 1% THD). The technology that makes this much power possible in such a compact chassis is JL's advanced NexD high-speed switching design, which permits full bandwidth Class-D operation with extremely low distortion and remarkable efficiency.
Suitable for car or boat installations, the XDM800/8 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.
The XDM800/8 includes a 12dB / octave filter for each channel bank, which can be configured as a low-pass or high-pass filter, and offers continuously variable cutoff frequency selection from 50-500Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), you have the ability to adjust the level of two, four, or all eight amplifier channels directly from the driver's seat or cockpit.
Here are a few examples of how the XDM800/8 can be used:
Eight-channel Satellite Amp: drive four pairs of speakers with 75W x 8
Big Four-Channel Satellite Amp: bridge to produce 200W x 4 @ 4Ω
Six-Channel System Amp: drive front and rear satellites with 75W x 4 @ 4Ω, plus two 4Ω subwoofers with 200W each
Staggered Six-Channel Satellite Amp: drive front speakers with 200W x 2 @ 4Ω, plus four 4Ω speakers with 75W each
Staggered Five-Channel Satellite Amp: drive three front speakers with 200W @ 4Ω + rear speakers with 75W x 2
Four-Channel System Amp: drive left and right speakers with 200W x 2 @ 4Ω, plus two 4Ω subwoofers with 200W each
Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
Specifications
@ 4 Ω
75 W RMS x 8 @ 14.4V
@ 2 Ω
100 W RMS x 8 @ 14.4V
Bridged @ 4Ω
200 W RMS x 4 @ 14.4V
Frequency Response
12 Hz - 22 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power
>104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W
>84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω
>150 / 50 Hz
Damping Factor @ 2 Ω
>75 / 50 Hz
THD+N @ Rated Power
<1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs
200 mV - 4 V RMS
Min.Copper Power / Ground Wire Gauge
4 AWG wire
Fuse Rating
80 A (AFS, AGU or MaxiFuse™)
Filter Mode(s)
Low-Pass or High-Pass
Filter Slope(s)
12 dB/octave
Filter Frequency Range
50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometers
Yes
Filter Defeat Function
Yes
Remote Level Control

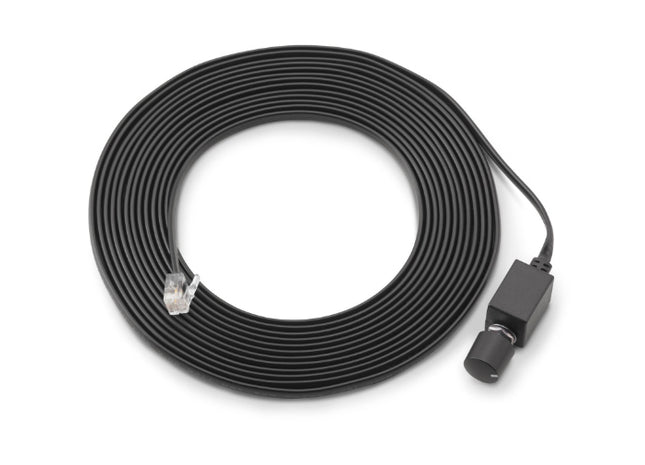

Optional HD-RLC or MHD-RLC (water-resistant)
Remote Level Modes
2 or 4 or All Channels
Channel Input Mode Switch
Yes (2/4/6/8 ch.)
Pass-Through Preamp Output
None
Source Channel Selection for PreOuts
N/A
Height (H)
2.05 in / 52 mm
Width (W)
14.73 in / 374 mm
Depth (D)
7.09 in / 180 mm
JL Audio XDM800/8 Manual
XDM-Series Five-Channel Class-D Marine-Grade Amplifier, 75-Watts x Four-Channels @ 4-Ohm and 600-Watt Mono @ 2-Ohm
The XDM1000/5 delivers up to 1000W of clean power and is ideal for an audiophile-grade, subwoofer + four satellite system. With this potent powerhouse, you can drive two pairs of quality component speaker systems with plenty of clean power (75W x 4 @ 4Ω), while also generating a stout 600W of power for a subwoofer system. The technology that makes this much power possible in such a small chassis is JL-Audio's high-speed NexD switching amplifier design.
Suitable for car or boat installations, the XDM1000/5 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.
The XDM1000/5 includes a 12dB / octave high-pass filter for one main channel pair, a 12dB octave high-pass or bandpass filter for the other main channel pair, plus a variable slope low-pass filter for its subwoofer channel. All three filters offer continuously variable cutoff frequency selection from 50-500Hz. This amplifier's filters can also be configured as a true 3-way crossover, with a low-pass filter for the subwoofer channel, a bandpass filter on Ch. 3 & 4, and a high-pass filter on Ch. 1 & 2. An "x10" multiplier switch on the Ch. 1 & 2 high-pass filter allows its cutoff frequency to be adjusted from 50-500Hz or 500-5000Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), you have the ability to adjust the level of all amplifier channels or just the subwoofer channel directly from the driver's seat or helm.
Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
Specifications
Main Channels @ 4 Ω
75 W RMS x 4 @ 14.4V
Main Channels @ 2 Ω
100 W RMS x 4 @ 14.4V
Main Channels - Bridged @ 4Ω
200 W RMS x 2 @ 14.4V
Subwoofer Channel @ 4 Ω
400 W RMS x 1 @ 14.4V
Subwoofer Channel @ 3 Ω
500 W RMS x 1 @ 14.4V
Subwoofer Channel @ 2 Ω
600 W RMS x 1 @ 14.4V
Subwoofer Channel @ 1.5 Ω
N/A
Main Channels @ 4 Ω
60 W RMS x 4 @ 12.5V
Main Channels @ 2 Ω
90 W RMS x 4 @ 12.5V
Main Channels - Bridged @ 4Ω
180 W RMS x 2 @ 12.5V
Subwoofer Channel @ 4 Ω
360 W RMS x 1 @ 12.5V
Subwoofer Channel @ 3 Ω
480 W RMS x 1 @ 12.5V
Subwoofer Channel @ 2 Ω
600 W RMS x 1 @ 12.5V
Subwoofer Channel @ 1.5 Ω
N/A
Frequency Response (Main Channels)
12 Hz - 22 kHz (+0, -1dB)
Frequency Response (Subwoofer Channel)
10 Hz - 1 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power (Main Channels)
>104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W
>84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω
>150 / 50 Hz
Damping Factor @ 2 Ω
>75 / 50 Hz
THD+N @ Rated Power (Main Channels)
<1% @ 2 Ω per Ch.
THD+N @ Rated Power (Subwoofer Channels)
<1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs
200 mV - 4 V RMS
Min.Copper Power / Ground Wire Gauge
4 AWG wire
Fuse Rating
80 A (AFS, AGU or MaxiFuse™)
Filter Mode(s): Channels 1 & 2 (front)
High-Pass only
Filter Slope(s): Channels 1 & 2 (front)
12 dB/octave
Filter Frequency Range: Channels 1 & 2 (front)
50 Hz - 5 kHz
Filter Mode(s): Channels 3 & 4 (rear)
High-Pass or Bandpass
Filter Slope(s): Channels 3 & 4 (rear)
12 dB/octave
Filter Frequency Range: Channels 3 & 4
50 Hz - 500 Hz
Filter Mode(s): Subwoofer Channel
Low-Pass only
Filter Slope(s): Subwoofer Channel
12/24 dB/octave
Filter Frequency Range: Subwoofer Channel
50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometers
Yes
Filter Defeat Function
Yes
Infrasonic Filter: Subwoofer Channel
none
Remote Level Control
Optional HD-RLC or MHD-RLC (water-resistant)
Remote Level Modes
Sub Ch. or All Channels
Channel Input Mode Switch
Yes (2/4/6 ch.)
Pass-Through Preamp Output
None
Source Channel Selection for PreOuts
N/A
Height (H)
2.05 in / 52 mm
Width (W)
14.73 in / 374 mm
Depth (D)
7.09 in / 180 mm
JL Audio XDM1000/5v2 Manual
XDM-Series Five-Channel Class-D Marine-Grade Amplifier, 75-Watts x Four-Channels @ 4-Ohm and 300-Watt Mono @ 2-Ohm
The XDM700/5 is ideal for a complete audiophile-grade, subwoofer + four satellite system, and fits comfortably in just about any vehicle or vessel. With this incredible little amplifier, you can drive two pairs of quality component speaker systems with plenty of clean power (75W x 4 @ 4Ω), while also generating a solid 300W of power for a subwoofer system. The technology that makes this much power possible in such a small chassis is JL-Audio's high-speed NexD switching amplifier design.
Suitable for car or boat installations, the XDM700/5 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.
The XDM700/5 includes a 12dB / octave high-pass filter for one main channel pair, a 12dB octave high-pass or bandpass filter for the other main channel pair, plus a variable slope low-pass filter for its subwoofer channel. All three filters offer continuously variable cutoff frequency selection from 50-500Hz. This amplifier's filters can also be configured as a true 3-way crossover, with a low-pass filter for the subwoofer channel, a bandpass filter on Ch. 3 & 4, and a high-pass filter on Ch. 1 & 2. An "x10" multiplier switch on the Ch. 1 & 2 high-pass filter allows its cutoff frequency to be adjusted from 50-500Hz or 500-5000Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), you have the ability to adjust the level of all amplifier channels or just the subwoofer channel directly from the driver's seat or helm.
Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
Specifications
Main Channels @ 4 Ω
75 W RMS x 4 @ 14.4V
Main Channels @ 2 Ω
100 W RMS x 4 @ 14.4V
Main Channels - Bridged @ 4Ω
200 W RMS x 2 @ 14.4V
Subwoofer Channel @ 4 Ω
180 W RMS x 1 @ 14.4V
Subwoofer Channel @ 3 Ω
240 W RMS x 1 @ 14.4V
Subwoofer Channel @ 2 Ω
300 W RMS x 1 @ 14.4V
Subwoofer Channel @ 1.5 Ω
N/A
Main Channels @ 4 Ω
60 W RMS x 4 @ 12.5V
Main Channels @ 2 Ω
90 W RMS x 4 @ 12.5V
Main Channels - Bridged @ 4Ω
180 W RMS x 2 @ 12.5V
Subwoofer Channel @ 4 Ω
180 W RMS x 1 @ 12.5V
Subwoofer Channel @ 3 Ω
240 W RMS x 1 @ 12.5V
Subwoofer Channel @ 2 Ω
300 W RMS x 1 @ 12.5V
Subwoofer Channel @ 1.5 Ω
N/A
Frequency Response (Main Channels)
12 Hz - 22 kHz (+0, -1dB)
Frequency Response (Subwoofer Channel)
10 Hz - 1 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power (Main Channels)
>104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W
>84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω
>150 / 50 Hz
Damping Factor @ 2 Ω
>75 / 50 Hz
THD+N @ Rated Power (Main Channels)
<1% @ 2 Ω per Ch.
THD+N @ Rated Power (Subwoofer Channels)
<1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs
200 mV - 4 V RMS
Min.Copper Power / Ground Wire Gauge
4 AWG wire
Fuse Rating
60 A (AFS, AGU or MaxiFuse™)
Filter Mode(s): Channels 1 & 2 (front)
High-Pass only
Filter Slope(s): Channels 1 & 2 (front)
12 dB/octave
Filter Frequency Range: Channels 1 & 2 (front)
50 Hz - 5 kHz
Filter Mode(s): Channels 3 & 4 (rear)
High-Pass or Bandpass
Filter Slope(s): Channels 3 & 4 (rear)
12 dB/octave
Filter Frequency Range: Channels 3 & 4
50 Hz - 500 Hz
Filter Mode(s): Subwoofer Channel
Low-Pass only
Filter Slope(s): Subwoofer Channel
12/24 dB/octave
Filter Frequency Range: Subwoofer Channel
50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometers
Yes
Filter Defeat Function
Yes
Infrasonic Filter: Subwoofer Channel
none
Remote Level Control
Optional HD-RLC or MHD-RLC (water-resistant)
Remote Level Modes
Sub Ch. or All Channels
Channel Input Mode Switch
Yes (2/4/6 ch.)
Pass-Through Preamp Output
None
Source Channel Selection for PreOuts
N/A
Height (H)
2.05 in / 52 mm
Width (W)
10.23 in / 260 mm
Depth (D)
7.09 in / 180 mm
Net Weight
6.15 lb / 2.79 kg
JL Audio XDM700/5 Manual
XDM-Series Six-Channel Class-D Marine-Grade Amplifier, 100-Watts x Six-Channels @ 2-Ohm or 75-Watts x 6-Channels @ Four-Ohm
The incredibly flexible XDM600/6 packs a serious full-range wallop and delivers a stunning 100-watts to each of its six channels into 2-ohms (14.4V, 1% THD). The technology that makes this much power possible in such a compact chassis is Jl's advanced NexD high-speed switching design, which permits full bandwidth Class D operation with extremely low distortion and remarkable efficiency.
Suitable for car or boat installations, the XDM600/6 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.
With the XDM600/6, you have plenty of great use options. Configure it as a six-channel satellite amplifier with 75W x 6 @ 4Ω, or bridge four of its channels to create a staggered power four-channel amplifier with 200W x 2 @ 4Ω for your front satellites and 75W x 2 @ 4Ω for your rear satellites. You can also drive two subwoofers with 200W each, plus a pair of satellites with 75W x 2.
The XDM600/6 includes a 12dB / octave filter for each channel bank, which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), you have the ability to adjust the level of two, four, or all six amplifier channels directly from the driver's seat or cockpit.
Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
Specifications
@ 4 Ω
75 W RMS x 6 @ 14.4V
@ 2 Ω
100 W RMS x 6 @ 14.4V
Bridged @ 4Ω
200 W RMS x 3 @ 14.4V
@ 4 Ω
60 W RMS x 6 @ 12.5V
@ 2 Ω
90 W RMS x 6 @ 12.5V
Bridged @ 4Ω
180 W RMS x 3 @ 12.5V
Frequency Response
12 Hz - 22 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power
>104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W
>84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω
>150 / 50 Hz
Damping Factor @ 2 Ω
>75 / 50 Hz
THD+N @ Rated Power
<1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs
200 mV - 4 V RMS
Min.Copper Power / Ground Wire Gauge
4 AWG wire
Fuse Rating
50 A (AFS, AGU or MaxiFuse™)
Filter Mode(s)
Low-Pass or High-Pass
Filter Slope(s)
12 dB/octave
Filter Frequency Range
50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometers
Yes
Filter Defeat Function
Yes
Remote Level Control
Optional HD-RLC or MHD-RLC (water-resistant)
Remote Level Modes
2 or 4 or All Channels
Channel Input Mode Switch
Yes (2/4/6 ch.)
Pass-Through Preamp Output
None
Source Channel Selection for PreOuts
N/A
Height (H)
2.05 in / 52 mm
Width (W)
10.23 in / 260 mm
Depth (D)
7.09 in / 180 mm
Net Weight
5.8 lb / 2.63 kg
JL Audio XDM600/6v2 Manual
XDM-Series Monoblock Class-D Marine-Grade Amplifier, 1000-Watts @ 2-Ohm or 600-Watts @ 4-Ohm
This monoblock subwoofer powerhouse employs JL-Audio's high-speed NexD switching technology to achieve unprecedented efficiency and amazing power output from a very compact chassis. The XDM1000/1 generates up to 1000W of continuous power into a 2-ohm load (14.4V, 1% THD), making it a great choice to drive higher power subwoofer systems.
Designed for car or boat installations, the XDM1000/1 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.
Intended specifically for subwoofer applications, the XDM1000/1 includes a variable slope low-pass filter with continuously variable cutoff frequency selection from 50-500Hz and a defeatable infrasonic filter (30Hz, 24dB/oct.). With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), the amplifier's level can be adjusted directly from the driver's seat or captain’s chair.
Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
Specifications
@ 4 Ω
600 W RMS x 1 @ 14.4V
@ 3 Ω
800 W RMS x 1
@ 14.4V
@ 2 Ω
1000 W RMS x 1
@ 14.4V
@ 1.5 Ω
N/A
@ 4 Ω
500 W RMS x 1 @ 12.5 V
@ 3 Ω
650 W RMS x 1
@ 12.5 V
@ 2 Ω
800 W RMS x 1
@ 12.5 V
@ 1.5 Ω
N/A
Frequency Response
7 Hz - 500 Hz (+0, -1dB)
S/N Ratio, referred to highest rated power
>83 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W
>53 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω
>1000 / 50 Hz
Damping Factor @ 2 Ω
>500 / 50 Hz
THD+N @ Rated Power
<1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs
200 mV - 4 V RMS
Min.Copper Power / Ground Wire Gauge
4 AWG wire
Fuse Rating
80 A (AFS, AGU or MaxiFuse™)
Filter Mode(s)
Low-Pass only
Filter Slope(s)
12/24 dB/octave
Filter Frequency Range
50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometer
Yes
Filter Defeat Function
Yes
Infrasonic Filter
30 Hz, defeatable
Bass Boost EQ
No
Output Polarity Switch
No
Remote Subwoofer Level Control
Optional HD-RLC or MHD-RLC (water-resistant)
Remote Bass EQ Boost Control
No
Pass-Through Preamp Output
Buffered
Height (H)
2.05 in / 52 mm
Width (W)
14.73 in / 374 mm
Depth (D)
7.09 in / 180 mm
JL Audio XDM1000/1v2 Manual
8-Channel Marine Amplifier, 50-Watt x 8ch @ 4-Ohm, 100-Watt x 8 @ 2-Ohm
This KXM 8ch marine amplifier uses Class D power technology, KickEQ+™ for 18dB of amplified variable bass boost, and a powerful 24dB crossover and subsonic filter to give you onboard acoustic control to quickly tune your setup.
This Kicker KXM 8 channel weatherproof amplifier can be used to power 50-100W for the satellite speakers, 200W RMS power for a sub channel can be readily available when 2 of the eight are bridged.
Specifications
RMS Power [Watts]
@ 14.4V, 4Ω stereo, ≤ 1% THD+N: 50 x 8@ 14.4V, 2Ω stereo, ≤ 1% THD+N: 100 x 8@ 14.4V, 4Ω bridged mono, ≤ 1% THD+N: 200 x 4
Length [in, cm]
14 ¾, 37.4
Height [in, cm]
2 ⅛, 5.5
Width [in, cm]
8 5⁄16 , 21
Frequency Response [Hz]
10Hz–20kHz
Signal-to-Noise Ratio [dB]
95
Input Sensitivity
250mV–10V
Selectable Electronic Crossover
Amp 1 and Amp 2: OFF/HP/LPVariable 10–5,000Hz with X10 switch Amp 3 and Amp 4: OFF/HP/LP/BPVariable HP, 10–500HzVariable LP, 40–5,000Hz with 10X switchSlope: 24dB/octave
KickEQ+™ Bass Boost
0-18dB @ 40Hz
CEA Power
50 x 8 @ 4 ohms, 14.4VDC, 1% THD, CEA-2006B (Watts)
CEA Signal-to-Noise Ratio
-75dB CEA-2006B (ref: 1W, A-weighted)
Kicker KXMA Amplifier Manual
XDM-Series Four-Channel Class-D Marine-Grade Amplifier, 100-Watts x Four-Channels @ 2-Ohm or 75-Watts x 4-Channels @ Four-Ohm
The ultra-compact XDM400/4 packs a serious full-range punch, generating a whopping 100-watts to each of its four channels into 2-ohms (14.4V, 1% THD). The technology that makes this much power possible in such a compact chassis is our advanced NexD high-speed switching design, which permits full bandwidth Class-D operation with extremely low distortion and remarkable efficiency.
Suitable for car or boat installations, the XDM400/4 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.
Combine the XDM400/4 with our XDM600/1 monoblock to build a stunning 1000W amplification system to power four satellites and a subwoofer... and fit the whole thing under a seat or deck. Or, use the XDM400/4 by itself to power two satellites, plus a subwoofer.
The XDM400/4 includes a 12dB / octave filter for each channel bank, which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), you have the ability to adjust the level of all amplifier channels or just the rear channels directly from the driver's seat or cockpit.
Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
Specifications
@ 4 Ω
75 W RMS x 4 @ 14.4V
@ 2 Ω
100 W RMS x 4 @ 14.4V
Bridged @ 4Ω
200 W RMS x 2 @ 14.4V
@ 4 Ω
60 W RMS x 4 @ 12.5V
@ 2 Ω
90 W RMS x 4 @ 12.5V
Bridged @ 4Ω
180 W RMS x 2 @ 12.5V
Frequency Response
12 Hz - 22 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power
>104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W
>84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω
>150 / 50 Hz
Damping Factor @ 2 Ω
>75 / 50 Hz
THD+N @ Rated Power
<1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs
200 mV - 4 V RMS
Min.Copper Power / Ground Wire Gauge
4 AWG wire
Fuse Rating
40 A (AFS, AGU or MaxiFuse™)
Filter Mode(s)
Low-Pass or High-Pass
Filter Slope(s)
12 dB/octave
Filter Frequency Range
50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometers
Yes
Filter Defeat Function
Yes
Remote Level Control
Optional HD-RLC or MHD-RLC (water-resistant)
Remote Level Modes
2 or All channels
Channel Input Mode Switch
Yes (2/4 ch.)
Pass-Through Preamp Output
Buffered
Source Channel Selection for PreOuts
Yes
Filter Mode(s)
Low-Pass or High-Pass
Filter Slope(s)
12 dB/octave
Filter Frequency Range
50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometers
Yes
Filter Defeat Function
Yes
Remote Level Control
Optional HD-RLC or MHD-RLC (water-resistant)
Remote Level Modes
2 or All channels
Channel Input Mode Switch
Yes (2/4 ch.)
Pass-Through Preamp Output
Buffered
Source Channel Selection for PreOuts
Yes
JL Audio XDM400/4v2 Manual
XDM-Series Three-Channel Class-D Marine-Grade Amplifier, 75-Watts x Two-Channels @ 4-Ohm and 300-Watt Mono @ 2-Ohm
Small enough to fit in just about any tight space application, the XDM500/3 is the perfect amplifier for a simple audiophile-grade, subwoofer / satellite system. With its three channels of versatile output, you can drive a pair of quality component speaker systems with plenty of clean power, while also delivering a stout 300W to your subwoofer system. The technology that makes this much power possible in such a small chassis is JL-Audio's advanced NexD switching amplifier design.
Suitable for car or boat installations, the XDM500/3 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.
The XDM500/3 includes a 12dB / octave high-pass filter for its main channels, plus a variable slope low-pass filter for its subwoofer channel. Both filters offer continuously variable cutoff frequency selection from 50-500Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), you have the ability to adjust the level of all amplifier channels or just the subwoofer channel directly from the driver's seat or helm.
Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
Specifications
Main Channels @ 4 Ω
75 W RMS x 2 @ 14.4V
Main Channels @ 2 Ω
100 W RMS x 2
@ 14.4V
Main Channels - Bridged @ 4Ω
200 W RMS x 1
@ 14.4V
Subwoofer Channel @ 4 Ω
180 W RMS x 1
@ 14.4V
Subwoofer Channel @ 3 Ω
240 W RMS x 1
@ 14.4V
Subwoofer Channel @ 2 Ω
300 W RMS x 1
@ 14.4V
Subwoofer Channel @ 1.5 Ω
N/A
Main Channels @ 4 Ω
60 W RMS x 2 @ 12.5V
Main Channels @ 2 Ω
90 W RMS x 2
@ 12.5V
Main Channels - Bridged @ 4Ω
180 W RMS x 1
@ 12.5V
Subwoofer Channel @ 4 Ω
180 W RMS x 1
@ 12.5V
Subwoofer Channel @ 3 Ω
240 W RMS x 1
@ 12.5V
Subwoofer Channel @ 2 Ω
300 W RMS x 1
@ 12.5V
Subwoofer Channel @ 1.5 Ω
N/A
Frequency Response (Main Channels)
12 Hz - 22 kHz (+0, -1dB)
Frequency Response (Subwoofer Channel)
10 Hz - 1 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power (Main Channels)
>104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W
>84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω
>120 / 50 Hz
Damping Factor @ 2 Ω
>60 / 50 Hz
THD+N @ Rated Power (Main Channels)
<1% @ 2 Ω per Ch.
THD+N @ Rated Power (Subwoofer Channels)
<1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs
200 mV - 4 V RMS
Min.Copper Power / Ground Wire Gauge
4 AWG wire
Fuse Rating
50 A (AFS, AGU or MaxiFuse™)
Filter Mode(s): Channels 1 & 2 (front)
High-Pass only
Filter Slope(s): Channels 1 & 2 (front)
12 dB/octave
Filter Frequency Range: Channels 1 & 2 (front)
50 Hz - 500 Hz
Filter Mode(s): Channels 3 & 4 (rear)
N/A
Filter Slope(s): Channels 3 & 4 (rear)
N/A
Filter Frequency Range: Channels 3 & 4
N/A
Filter Mode(s): Subwoofer Channel
Low-Pass only
Filter Slope(s): Subwoofer Channel
12/24 dB/octave
Filter Frequency Range: Subwoofer Channel
50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometers
Yes
Filter Defeat Function
Yes
Infrasonic Filter: Subwoofer Channel
none
Remote Level Control
Optional HD-RLC or MHD-RLC (water-resistant)
Remote Level Modes
Sub Ch. or All Channels
Channel Input Mode Switch
Yes (2/4 ch.)
Pass-Through Preamp Output
Buffered
Source Channel Selection for PreOuts
Yes (1&2/Sum/Sub)
Height (H)
2.05 in / 52 mm
Width (W)
8.52 in / 216 mm
Depth (D)
7.09 in / 180 mm
Net Weight
4.8 lb / 2.18 kg
JL Audio XDM500/3v2 Manual
2-Channel Marine Amplifier, 600-Watt x 2ch @ 2-Ohm, or 300-Watt x 2 @ 4-Ohm
This KXM 2ch marine amplifier uses Class D power technology, KickEQ+™ for 18dB of amplified variable bass boost, and a powerful 24dB crossover and subsonic filter to give you onboard acoustic control to quickly tune your setup. A wireless remote controlled bass knob is also included for tuning your subs on the fly.
This Kicker KXM 2 channel weatherproof amplifier can be used to power 600W into a 2Ω load or 300W into a 4Ω load.
Specifications
RMS Power [Watts]
@ 14.4V, 4Ω stereo, ≤ 1% THD+N : 300 x 2@ 14.4V, 2Ω stereo, ≤ 1% THD+N : 600 x 2
Length [in, cm]
11 3∕16 , 28.4
Height [in, cm]
2 ⅛, 5.5
Width [in, cm]
8 5⁄16 , 21
Frequency Response ± 1dB
10Hz–20kHz
Signal-to-Noise Ratio
95dB
Input Sensitivity
250mV–10V
Selectable Electronic Crossover
OffVariable HP, 10-500HzVariable LP, 40-500Hz; 400Hz–5,000Hz with 10X Switch (BP capable)Slope: 24dB/octave
KickEQ™ Bass Boost
0-18dB @ 40Hz
CEA Power
300 x 2 @ 4 ohms, 14.4VDC, 1% THD, CEA-2006B (Watts)
CEA Signal-to-Noise Ratio
-75dB CEA-2006B (ref: 1W, A-weighted)
Kicker KXMA Amplifier Manual
XDM-Series Monoblock Class-D Marine-Grade Amplifier, 600-Watts @ 2-Ohm or 400-Watts @ 4-Ohm
This potent monoblock amplifier employs JL-Audio's high-speed NexD switching design to achieve unprecedented efficiency and amazing power output from a very compact chassis. Don't let its small size fool you, though... the XDM/600/1 generates serious subwoofer power, delivering a full 600W of continuous power into a 2-ohm load (14.4V, 1% THD).
Designed for car or boat installations, the XDM600/1 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.
Targeted specifically for subwoofer applications, the XDM600/1 includes a variable slope low-pass filter with continuously variable cutoff frequency selection from 50-500Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), the amplifier's level can be adjusted directly from the driver's seat or captain’s chair.
Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
Specifications
@ 4 Ω
400 W RMS x 1 @ 14.4V
@ 3 Ω
500 W RMS x 1 @ 14.4V
@ 2 Ω
600 W RMS x 1 @ 14.4V
@ 1.5 Ω
N/A
@ 4 Ω
300 W RMS x 1 @ 12.5V
@ 3 Ω
400 W RMS x 1 @ 12.5V
@ 2 Ω
500 W RMS x 1 @ 12.5V
@ 1.5 Ω
N/A
Frequency Response
7 Hz - 500 Hz (+0, -1dB)
S/N Ratio, referred to highest rated power
>87 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W
>67 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω
>1000 / 50 Hz
Damping Factor @ 2 Ω
>500 / 50 Hz
THD+N @ Rated Power
<1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs
200 mV - 4 V RMS
Min.Copper Power / Ground Wire Gauge
4 AWG wire
Fuse Rating
50 A (AFS, AGU or MaxiFuse™)
Filter Mode(s)
Low-Pass only
Filter Slope(s)
12/24 dB/octave
Filter Frequency Range
50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometer
Yes
Filter Defeat Function
Yes
Infrasonic Filter
30 Hz, defeatable
Bass Boost EQ
No
Output Polarity Switch
No
Remote Subwoofer Level Control
Optional HD-RLC or MHD-RLC (water-resistant)
Remote Bass EQ Boost Control
No
Pass-Through Preamp Output
Buffered
Height (H)
2.05 in / 52 mm
Width (W)
8.52 in / 216 mm
Depth (D)
7.09 in / 180 mm
Net Weight
6.3 lb / 2.86 kg
JL Audio XDM600/1 Manual
XDM-Series Monoblock Class-D Marine-Grade Amplifier, 300-Watts @ 2-Ohm or 200-Watts @ 4-Ohm
This little monoblock powerhouse employs JL-Audio's high-speed NexD switching design to achieve unprecedented efficiency and amazing power output for its size. It is small enough to fit in most tight space applications, including small boats, pickups, motorcycles and UTV’s (in a weather-tight compartment).
Designed for car or boat installations, the XDM300/1 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.
Targeted specifically for subwoofer applications, the XDM300/1 includes a variable slope low-pass filter with continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), the amplifier's level can be adjusted directly from the driver's seat or captain’s chair.
Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
Specifications
@ 4 Ω
200 W RMS x 1 @ 14.4V
@ 3 Ω
250 W RMS x 1 @ 14.4V
@ 2 Ω
300 W RMS x 1 @ 14.4V
@ 1.5 Ω
N/A
@ 4 Ω
160 W RMS x 1 @ 12.5V
@ 3 Ω
210 W RMS x 1 @ 12.5V
@ 2 Ω
270 W RMS x 1 @ 12.5V
@ 1.5 Ω
N/A
Frequency Response
10 Hz - 1 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power
>100 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W
>80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω
>120 / 50 Hz
Damping Factor @ 2 Ω
>60 / 50 Hz
THD+N @ Rated Power
<1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs
200 mV - 4 V RMS
Min.Copper Power / Ground Wire Gauge
8 AWG wire
Fuse Rating
30 A (AFS, AGU or MaxiFuse™)
Filter Mode(s)
Low-Pass only
Filter Slope(s)
12/24 dB/octave
Filter Frequency Range
50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometer
Yes
Filter Defeat Function
Yes
Infrasonic Filter
none
Bass Boost EQ
No
Output Polarity Switch
No
Remote Subwoofer Level Control
Optional HD-RLC or MHD-RLC (water-resistant)
Remote Bass EQ Boost Control
No
Pass-Through Preamp Output
Buffered
Height (H)
2.05 in / 52 mm
Width (W)
6.85 in / 174 mm
Depth (D)
7.09 in / 180 mm
Net Weight
3.8 lb / 1.72 kg
JL Audio XDM300/1 Manual
XDM-Series 2-Channel Class-D Marine-Grade Amplifier, 100-Watts x 2-Channels @ 2-Ohm or 75-Watts x 2-Channels @ 4-Ohm
The tiny XDM200/2 packs a serious full-range punch, delivering a staggering 100-watts per channel into 2-ohms (14.4V, 1% THD). The technology that makes this much power possible in such a compact chassis is JL's advanced high-speed switching design, which permits full bandwidth Class D operation with extremely low distortion and remarkable efficiency.
Suitable for car or boat installations, the XDM200/2 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.
The XDM200/2 includes a 12dB / octave filter which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), the amplifier's level can be adjusted directly from the driver's seat or cockpit.
Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
Specifications
@ 4 Ω
75 W RMS x 2 @ 14.4V
@ 2 Ω
100 W RMS x 2 @ 14.4V
Bridged @ 4Ω
200 W RMS x 1 @ 14.4V
@ 4 Ω
60 W RMS x 2 @ 12.5V
@ 2 Ω
90 W RMS x 2 @ 12.5V
Bridged @ 4Ω
180 W RMS x 1 @ 12.5V
Frequency Response
12 Hz - 22 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power
>104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W
>84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω
>150 / 50 Hz
Damping Factor @ 2 Ω
>75 / 50 Hz
THD+N @ Rated Power
<1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs
200 mV - 4 V RMS
Min.Copper Power / Ground Wire Gauge
8 AWG wire
Fuse Rating
20 A (AFS, AGU or MaxiFuse™)
Filter Mode(s)
Low-Pass or High-Pass
Filter Slope(s)
12 dB/octave
Filter Frequency Range
50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometer
Yes
Filter Defeat Function
Yes
Remote Level Control
Optional HD-RLC or MHD-RLC (water-resistant)
Security Cover for Controls
Yes
Pass-Through Preamp Output
Buffered
Height (H)
2.05 in / 52 mm
Width (W)
6.85 in / 174 mm
Depth (D)
7.09 in / 180 mm
Net Weight
3.75 lb / 1.70 kg
JL Audio XDM200/2 Manual
MX-Series 75-Watts x 2-Channel Class-D Marine-Grade Amplifier + 400-Watt Subwoofer Out @ 2-Ohm
Engineered specifically for powersports applications, the 3-channel MX600/3 amplifier employs JL's high-speed NexD™ switching design to deliver plenty of clean power, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles.
Generating a solid 75W x 2 into 4 ohms (14.4V, 1% THD), the MX600/3 is the perfect solution for driving a pair of speakers and a subwoofer.
Other features include independent front and rear crossovers with selectable full-range, high-pass or low-pass filter controls and a dual-range input section that accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals.
This amplifier features a black powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.
Specifications
Frequency Response
20 Hz - 20 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power
>88 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W
>68 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω
>92 / 50 Hz
Damping Factor @ 2 Ω
>43 / 50 Hz
THD+N @ Rated Power (Main Channels)
<1% @ 2 Ω per Ch.
THD+N @ Rated Power (Subwoofer Channels)
<1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs
Switchable from 250 mV - 4 V RMS (Low) to 580 mV - 14 V RMS (High)
Min.Copper Power / Ground Wire Gauge
4 AWG wire
Fuse Rating
60 A (AFS, AGU or MaxiFuse™)
Main Channels @ 4 Ω
75 W RMS x 2
Main Channels @ 2 Ω
100 W RMS x 2
Main Channels - Bridged @ 4Ω
200 W RMS x 1
Subwoofer Channel @ 4 Ω
250 W RMS x 1
Subwoofer Channel @ 3 Ω
300 W RMS x 1
Subwoofer Channel @ 2 Ω
400 W RMS x 1
Subwoofer Channel @ 1.5 Ω
N/A
JL Audio MX600/3 Manual
M-Series 4-Channel Class-D Full-Range Marine-Grade Amplifier, 75-Watts x 4-Channel @ 4-Ohm
This tiny amplifier packs a serious full-range punch, delivering a staggering 100W to each of its four channels into 2Ω (14.4V, 1% THD). The breakthrough that makes this much power possible in such a small chassis is JL's NexD™ ultra-high-speed switching design, which allows for full bandwidth Class D operation with extremely low distortion and outstanding efficiency.
Use the M400/4 in combination with JL's M600/1 monoblock to build a 1000W amplification system to power four satellites and a subwoofer... and fit the whole thing under a seat. Or, use the M400/4 by itself to power two satellites, plus a subwoofer. With M-Series amplifier, the possibilities are endless.
The M400/4 includes a 12dB / octave filter for each channel bank, which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500Hz. With the addition of an HD-RLC remote level control (sold separately), the amplifier's Ch. 1 & 2 level or overall level can be directly controlled from a remote location.
This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.
Specifications
@ 4 Ω
75 W RMS x 4
@ 2 Ω
100 W RMS x 4
Bridged @ 4Ω
200 W RMS x 2
Frequency Response
12 Hz - 22 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power
>104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W
>84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω
>150 / 50 Hz
Damping Factor @ 2 Ω
>75 / 50 Hz
THD+N @ Rated Power
<1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs
100 mV - 4 V RMS
Min.Copper Power / Ground Wire Gauge
4 AWG wire
Fuse Rating
40 A (AFS, AGU or MaxiFuse™)
Filter Mode(s)
Low-Pass or High-Pass
Filter Slope(s)
12 dB/octave
Filter Frequency Range
50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometers
Yes
Filter Defeat Function
Yes
Remote Level Control
Optional (HD-RLC)
Remote Level Modes
2 or All channels
Channel Input Mode Switch
Yes (2/4 ch.)
Pass-Through Preamp Output
Buffered
Source Channel Selection for PreOuts
Yes
JL Audio M400/4 Manual
MX-Series 4-Channel Marine-Grade Amplifier, 125-Watts x 4ch @ 2-Ohm or 70-Watts x 4ch @ 4-Ohm
Engineered specifically for powersports applications, the 4-channel MX500/4 amplifier employs JL's high-speed NexD™ switching design to deliver plenty of clean power, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles.
Generating a solid 70W x 4 into 4 ohms (14.4V, 1% THD), the MX500/4 is fully bridgeable, so it can be used as a 3-channel amplifier, or as a 2-channel amplifier producing a potent 250W x 2 into 4 ohms.
Other features include independent front and rear crossovers with selectable full-range, high-pass or low-pass filter controls and a dual-range input section that accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals.
This amplifier features a black powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.
Specifications
Frequency Response
20 Hz - 20 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power
>88 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W
>70.5 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω
>92 / 50 Hz
Damping Factor @ 2 Ω
>43 / 50 Hz
THD+N @ Rated Power
<1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs
Switchable from 250 mV - 4 V RMS (Low) to 750 mV - 15 V RMS (High)
Min.Copper Power / Ground Wire Gauge
4 AWG wire
Fuse Rating
50 A (AFS, AGU or MaxiFuse™)
@ 4 Ω
70 W RMS x 4
@ 2 Ω
125 W RMS x 4
Bridged @ 4Ω
250 W RMS x 2
JL Audio MX500/4 Manual
MX-Series 500-Watt Monoblock Marine-Grade Amplifier @ 2-Ohm or 300W @ 4-Ohm
Engineered specifically for powersports applications, the MX500/1 monoblock amplifier employs JL's high-speed NexD™ switching design to pack a serious audio punch, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles.
With a robust 500W of clean power into a 2-ohm load (14.4V, 1% THD), use one to drive a subwoofer, or grab a pair to deliver stunning output to a subwoofer system. The MX500/1 also features an adjustable low-pass crossover, a bass boost EQ, variable infrasonic filter and output polarity switch.
Its dual-range input section accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals. With the addition of an M-RBC-1 remote level control (sold separately), subwoofer output can be directly controlled from the driver’s seat.
This amplifier features a black powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.
Specifications
Frequency Response
20 Hz - 12 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power
>97 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W
>70 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω
>115 / 50 Hz
Damping Factor @ 2 Ω
>54 / 50 Hz
THD+N @ Rated Power
<1% @ 2 Ω
Input Voltage Range @ RCA Inputs
Switchable from 250 mV - 4 V RMS (Low) to 750 mV - 15 V RMS (High)
Min.Copper Power / Ground Wire Gauge
4 AWG wire
Fuse Rating
50 A (AFS, AGU or MaxiFuse™)
@ 4 Ω
300 W RMS x 1
@ 3 Ω
400 W RMS x 1
@ 2 Ω
500 W RMS x 1
@ 1.5 Ω
N/A
JL Audio MX500/1 Manual
The KTA-F30W is perfect for when you want to boost your sound system but don’t have the space for a large amplifier. It is compatible with an aftermarket or factory head unit and adds up to 4 times the power over the head unit's original built-in power.
The KTA-30FW features Alpine’s exclusive Dynamic Peak Power (DPP) technology which uses a new dynamic power supply design that delivers bursts of power during rigorous musical passages. When the amplifier senses that more power is required, the power supply quickly increases the internal gain level, effectively doubling the power for a significant increase in dynamic range at high music volumes.
Specifications
Alpine's Class D amplifier circuit w/ Dynamic Peak Power (DPP)
75W RMS x 4 @ 2Ω/4Ω, 14.4V, ≤ 1% THD+N
150W DPP x 4 @ 2Ω/4Ω, 14.4V, ≤ 1% THD+N
>85dB S/N (ref. 1W into 4Ω)
>0.1% THD (ref. 1W into 4Ω)
20-20kHz Frequency response (+/-1dB)
Weather resistant (IP66 rating) OEM-grade connector wire harness
Speaker/RCA inputs (selectable, High range=0.5-10V, Low range=0.2-4V)
Sound control: Crossovers – Off/HP/LP, Fc=50-400Hz @ -12dB/Oct. (variable); Input gain settings (variable); 2ch/4ch input (selectable)
Alpine KTA-30FW Manual
Ten-Inch Loaded Marine Subwoofer Enclosure, 400-Watt, 2Ω or 4Ω Final Impedance
This weatherproof TB-Series subwoofer system by Kicker delivers serious bump from any corner of your trunk, behind your truck’s seat, or even in your boat or side-by-side. Surprisingly loud, the TB subs give you the bump you want without losing the space you need. Comes with a thick ABS tube construction, a flexible horizontal or vertical mounting system and spring-loaded speaker terminals. Sub-driver Grilles Included.
The marine grade Kicker 46CWTB102 and 46CWTB104 10-Inch loaded subwoofer enclosures works best with 400-watts of amplified power.
Specifications
Type
Reflex
Size (in., cm)
10, 25
Impedance (ohms)
2
Power Watts (peak/RMS)
800/400
Sensitivity (dB 1w/1m)
85.7
Box Bottom Depth (in, cm)
16-9/16, 42.1
Box Height (in, cm)
Vert. Mount: 17-1/16, 43.4; Horiz. Mount: 10-3/4, 27.3
Box Width (in, cm)
10-5/8, 27
What's in the Box:
1 - Enclosure assembly2 - Vertical mounting brackets1 - Horizontal mount base1 - Horizontal mount hook(retainer)1 - Horizontal mount plate(retaining clamp)7 - stainless steel M5 x 12mm button head screws for horizontal mount plate to base and mounting brackets to enclosure11 - nylon flat washers (to be used on all mounting fasteners)4 - stainless steel pan head phillips M4 x 25mm (for mount base to vehicle)1 - owner’s manual2 - Kicker stickers
Kicker CWTB Subwoofer Enclosure Manual
2-Channel Marine Amplifier, 200-Watt x 2ch @ 2-Ohm, or 100-Watt x 2 @ 4-Ohm
This KXM 2ch marine amplifier uses Class D power technology, KickEQ+™ for 18dB of amplified variable bass boost, and a powerful 24dB crossover and subsonic filter to give you onboard acoustic control to quickly tune your setup. A wireless remote controlled bass knob is also included for tuning your subs on the fly.
This Kicker KXM 2 channel weatherproof amplifier can be used to power 200W into a 2Ω load or 100W into a 4Ω load.
Specifications
RMS Power [Watts]
@ 14.4V, 4Ω stereo, ≤ 1% THD+N : 100 x 2@ 14.4V, 2Ω stereo, ≤ 1% THD+N : 200 x 2@ 14.4V, 4Ω bridged mono, ≤ 1% THD+N: 400 x 1
Length [in, cm]
9 9∕16 , 24.4
Height [in, cm]
2 ⅛, 5.5
Width [in, cm]
8 5⁄16 , 21
Frequency Response ± 1dB
10Hz–20kHz
Signal-to-Noise Ratio [dB]
95
Input Sensitivity
250mV-10V
Selectable Electronic Crossover
OffVariable HP, 10-500HzVariable LP, 40-500Hz; 400Hz–5,000Hz with 10X Switch (BP capable)Slope: 24dB/octave
KickEQ+™ Bass Boost
0-18dB @ 40Hz
CEA Power
100 x 2 @ 4 ohms, 14.4VDC, 1% THD, CEA-2006B (Watts)
CEA Signal-to-Noise Ratio
-75dB CEA-2006B (ref: 1W, A-weighted)
Kicker KXMA Amplifier Manual
Six-Channel Water Resistant Line-Converter with DSP and Optional Add-on Hi-Res Digital Output, Bluetooth Media Player Upgradable
Upgrade your sound system with this universal DSP “Lite” designed for outdoor vehicles. It features a water-resistant enclosure and zip tie mounts to keep it in place and protected from the elements. This solution is ideal for motorcycles, powersports vehicles, boats, and other outdoor vehicles that could expose the DSP to moisture and heavy vibration. This DSP can be used with OE or aftermarket radios and has an internal header port for adding a wireless streaming interface module (the AXDSPL-BT, which is sold separately) if the vehicle does not have a receiver/head unit.
2-Channel Digital Output Upgradeable with AXDSP-SP (sold separately)Convertible to a Media Receiver with AXDSPL-BT (sold separately)
15 Band graphic EQ
4 inputs and 6 individually assignable outputs
Independent equalization for front, rear, and sub
Independent crossover for front, rear, and sub
Selectable slope (12, 24, 36, or 48db per octave)
Front and rear channels can be delayed independently up to 10ms
Easy behind the radio installation in most applications
Water resistant enclosure with zip tie mounts included
Can be used with OE and aftermarket radios
Chime control for GM/Chrysler vehicles
Clipping detection and limiting circuits
Internal header port for adding a Bluetooth interface module
Bass knob included
Retains OE voice prompts (SYNC® and OnStar®)
Retains factory chimes including parking sensor and cross path
detection alerts
Settings adjusted via Bluetooth® in a smart device application (tablet or mobile phone), compatible with both Android™ and Apple® devices
Read, write, and store configurations for future recall
Password protect feature available in the mobile app
Micro-B USB updatable
Axxess AXDSPL-WR Manual
MX-Series 4-Channel Class-D Marine-Grade Amplifier, 70-Watts x 4ch @ 2-Ohm or 50-Watts x 4ch @ 4-Ohm
Engineered specifically for powersports applications, the 4-channel MX280/4 amplifier employs JL's high-speed NexD™ switching design to deliver plenty of clean power, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles.
Generating a solid 50W x 4 into 4 ohms (14.4V, 1% THD), the MX280/4 is fully bridgeable, so it can be used as a 3-channel amplifier, or as a 2-channel amplifier producing a potent 140W x 2 into 4 ohms.
Other features include independent front and rear crossovers with selectable full-range, high-pass or low-pass filter controls and a dual-range input section that accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals.
This amplifier features a black powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.
Specifications
Frequency Response
20 Hz - 20 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power
>89.5 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W
>68 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω
>60 / 50 Hz
Damping Factor @ 2 Ω
>30 / 50 Hz
THD+N @ Rated Power
<1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs
Switchable from 250 mV - 4 V RMS (Low) to 750 mV - 15 V RMS (High)
Min.Copper Power / Ground Wire Gauge
8 AWG wire
Fuse Rating
35 A (AFS, AGU or MaxiFuse™)
@ 4 Ω
50 W RMS x 4
@ 2 Ω
70 W RMS x 4
Bridged @ 4Ω
140 W RMS x 2
JL Audio MX280/4 Manual
MX-Series 300-Watt Monoblock Marine-Grade Amplifier @ 2-Ohm or 160-Watt @ 4-Ohm
Engineered specifically for powersports applications, the MX300/1 monoblock amplifier employs JL's high-speed NexD™ switching design to pack a serious audio punch, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles.
With a robust 300W of clean power into a 2-ohm load (14.4V, 1% THD), use one to drive a subwoofer, or grab a pair to deliver stunning output to a subwoofer system. The MX300/1 also features an adjustable low-pass crossover, a bass boost EQ, variable infrasonic filter and output polarity switch.
Its dual-range input section accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals. With the addition of an M-RBC-1 remote level control (sold separately), subwoofer output can be directly controlled from the driver’s seat.
This amplifier features a black powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.
Specifications
Frequency Response
20 Hz - 12 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power
>85 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W
>64 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω
>150 / 50 Hz
Damping Factor @ 2 Ω
>75 / 50 Hz
THD+N @ Rated Power
<1% @ 2 Ω
Input Voltage Range @ RCA Inputs
Switchable from 250 mV - 4 V RMS (Low) to 750 mV - 15 V RMS (High)
Min.Copper Power / Ground Wire Gauge
8 AWG wire
Fuse Rating
30 A (AFS, AGU or MaxiFuse™)
@ 4 Ω
160 W RMS x 1
@ 3 Ω
220 W RMS x 1
@ 2 Ω
300 W RMS x 1
@ 1.5 Ω
N/A
JL Audio MX300/1 Manual
AM-Series Marine-Grade 4-Channel Amplifier, 100-Watt @ 2-Ohm or 65-Watt @ 4-Ohm
The FUSION AM Series marine amplifiers are purpose-built for the marine environment. Boasting some of the most impressive environmental protection available, they deliver performance on the water like never before.
With 4 channels and a 500 Watt peak power output, the MS-AM504 will power either a pair of Fusion speakers plus a 10” subwoofer, or up to four pairs of speakers (with 2 speakers in parallel each channel at 2 Ohms), to spread the sound around your vessel.
Incorporating heat-tempered and conformal coated PCBs for maximum product life, and gold-plated connectors for improved signal flow, the MS-AM504 reproduces clean and powerful audio with enough power to rock the boat.
Features:
500W peak power output to power up to eight speakers
Class-AB amplifier – power efficient with less cross-over distortion
Conformal coated PCBs – water resistant protection from salt air and moisture
FUTRANZ heat sink technology – transfers heat more efficiently and provides more thermal stability with maximum component reliability
F.R.A.T (Fusion Regulated Amplifier Technology) – provides enormous power output at low voltage.
F.I.S.T (Fusion Intercooled Semi-Conductor Technology) – clamps down internal power switching to rapidly remove heat from all associated semi-conductors
1 year limited Consumer Warranty
The Fusion AM Series marine amplifiers are the perfect complement to any Fusion marine stereo system.
Product Specifications
Amplifier Class
Class-AB
Frequency Response
5Hz - 38kHz +/- 3dB
Peak Power
500 Watts
Rated Power (4 Ohms)
65 Watts RMS x 4 @ 14.4V - 4Ω 1% THD
Rated Power (2 Ohms)
100 Watts RMS x 4 @ 14.4V - 2Ω 1% THD
Rated Power (4 Ohms Bridged)
200 Watts RMS x 2 @ 14.4V - 4Ω Bridged 1% THD
Mounting Dimensions
Length
366mm [14-7/16"]
Depth
229mm [9"]
Height
53mm [2-1/16"]
Fusion AM504 Manual
Dual-Zone DIN-Size Marine-Grade Head-Unit
Introducing the MS-RA70NSX, Fusion’s sleekest value-packed marine stereo now with SiriusXM capability, designed to deliver a quality on-water entertainment experience by incorporating some of the latest marine technologies. The MS-RA70NSX is engineered to seamlessly replace any standard DIN sized non-marinized stereo without the need to reconfigure dash space. Clever styling gives the installer the option of either mounting the stereo with a conventional flush finish or integrating it flat into a glass helm, ensuring a high-end finish to the installation.
Features:
SiriusXM-Ready™ with advanced features (USA only) - SiriusXM satellite radio is available, along with a selection of advanced features:
Instant Replay, where you can replay songs from up to 1 hour past playing, making sure you never have to miss another beat of your favorite tunes.
TuneStart, where you will always hear the song playing on each of your favorite stations from the start, no matter how far along it is when you change the channel.
TuneMix, where you can create your own channel from a mix of your favorites to create your very own custom channel. TuneMix also gives you the ability to skip songs back to the last hour you have been listening across all channels in your mix.
SportsFlash, where you’ll receive key plays and updates from your favorite teams during live games, ensuring you never have to miss the best moments.
Artist, Song and Game Alerts, where you can choose to receive alerts whenever your favorite artists, songs or sports teams start playing.
Note: A SiriusXM Connect vehicle tuner and subscription are required to access SiriusXM satellite radio (available in USA only).
A2DP Bluetooth wireless technology with Fusion-Link app remote control available - Stream your favorite soundtrack from any compatible device with control* available from the stereo or your connected Apple or Android device via the Fusion-Link Bluetooth app. Simply download the free Apple® or Android™ Fusion-Link remote control app for Bluetooth from the Apple App Store® or Google Play™ store and enjoy localized zone control, source navigation, track selection and the freedom of wireless control.
Multiple sources available including USB MP3 playback and AM/FM radio - Listen to USB MP3 audio, connect your supported smartphone or even relax to your local AM/FM station; the MS-RA70NSX delivers marine grade entertainment to those who would normally have to resort to installing rust prone car audio stereos. Rest easy, let Fusion entertain you on the water.
IPX7 water resistant front face with optically bonded LCD - The MS-RA70NSX is designed and engineered specifically for the marine environment, with an IPX7 front panel (when mounted correctly) to withstand the environment like none other, perfectly paired with an optically bonded LCD for crystal clear display on the water.
Flat or flush mounting installation options - Two options are available for installation, giving you the option of a conventional flush mount or seamless integration into a glass helm with a flat finish for high-end aesthetics.
Multi-Zone control (2 zone system) - With two independent audio zones available, each with advanced localized menu controls, including zone naming, you can easily customize and control your listening experience in each zone. Note: Line Out/Sub Out requires additional amplification.
FUSION-Link NMEA 2000 ready for connection and control from any supported Multi-Function Display - The MS-RA70NSX is a Fusion-Link Wired NMEA 2000 certified product and is compatible with a range of the world’s leading Multi-Function Displays for on-screen audio control. When pairing the MS-RA70NSX with a supported chartplotter or fish finder, you bring your music to the big screen, allowing you to keep an eye on the charts or the fish while skipping tracks or adjusting the volume at the same time. In addition to MFD control, the MS-RA70NSX will connect to any Fusion NRX series remote control attached to the same powered NMEA 2000 network for localized control of the audio zones. (Note: the NRX remote must be incorporated onto a powered network. If you are planning on using the MS-RA70NSX and a NRX series remote on a standalone network, additional cabling is required to power the network).
*Play, pause and skip tracks.
The MS-RA70NSX is protected by a 12 month worldwide consumer warranty.
Specifications
Tuner
AM/FM with RDS (where available)
Tuner Region
USA, Australasia, Europe and Japan
Multi-Language User Interface
English, French, German, Spanish, Dutch and Italian
Audio Zones
2 on-board amplified zones
Nameable Zones
Up to 10 characters
Line Out
2 (1 x L + R per zone. Requires amplification)
Subwoofer Out
1 (Zone 1. Requires amplification)
Auxiliary Inputs
1 x stereo RCA input (AUX)
iPod/iPhone
Made for iPod and iPhone - supports IAP2 protocol only. Check device compatibility.
Android Open Accessory (AOA)
Android support is limited to devices which support AOA protocol. Check list of supported devices for details.
SiriusXM-Ready™
Yes - a SiriusXM Connect Vehicle Tuner and subscription are required. Available in USA only.
Display
128x64 monochrome optically bonded LCD
Garmin Watch Compatibility via ANT with Fusion-Link Lite
VivoActive/HR, Fenix 3/HR, Fenix 5/S/X, Quatix 3, D2 Bravo/Titanium, Fenix Chronos, Forerunner 935 - FUSION-Link App via Garmin Connect IQ
Fusion-Link Wireless
Available via Bluetooth with the Fusion-Link remote control app, available for download from the Apple App Store® or Google Play™. The Fusion-Link Lite app is available from the Garmin Connect IQ store to enable wireless control from a compatible Gamin watch.
Fusion-Link Wired
Compatible with a Fusion marine NMEA 2000 wired remote control and any Fusion-Link supported MFD.
NMEA 2000 Certified
LEN:1
Bluetooth Wireless Technology
A2DP Bluetooth Audio Streaming with AVRCP
USB
1 x USB connector at the rear of the unit. Supports 1 amp charging.
USB Audio Format
MP3
Water Resistance (IP Rating)
IPX7 water resistant front panel when installed correctly
Chassis
Electrically isolated glass-filled composite chassis with an aluminium side-fin heat sink with VCT
Amplifier
Class-AB 4 x 50W (@ 4 Ohms)
Dimensions: Length x Height x Depth (Front Panel incl. Volume Encoder)
188mm x 60mm x 23.5mm [7-7/16" x 2-3/8" x 15/16"]
Mounting Dimensions: Height x Depth
50mm x 100mm [2" x 3-15/16"]
Fusion RA70NSX Manual
Eight-Inch Loaded Marine Subwoofer Enclosure, 300-Watt, 2Ω or 4Ω Final Impedance
This weatherproof TB-Series subwoofer system by Kicker delivers serious bump from any corner of your trunk, behind your truck’s seat, or even in your boat or side-by-side. Surprisingly loud, the TB subs give you the bump you want without losing the space you need. Comes with a thick ABS tube construction, a flexible horizontal or vertical mounting system and spring-loaded speaker terminals. Sub-driver Grilles Included.
The marine grade Kicker 46CWTB82 and 46CWTB84 8-Inch loaded subwoofer enclosures works best with 300-watts of amplified power.
Specifications
Type
Reflex
Size (in., cm)
8, 20
Impedance (ohms)
2
Power Watts (peak/RMS)
600/300
Sensitivity (dB 1w/1m)
84.4
Box Bottom Depth (in, cm)
12-7/8, 32.8
Box Height (in, cm)
Vert. Mount: 13-7/16, 34.1; Horiz. Mount: 8-5/8, 21.9
Box Width (in, cm)
8-1/2, 21.6
What's in the Box:
1 - Enclosure assembly2 - Vertical mounting brackets1 - Horizontal mount base1 - Horizontal mount hook(retainer)1 - Horizontal mount plate(retaining clamp)7 - stainless steel M5 x 12mm button head screws for horizontal mount plate to base and mounting brackets to enclosure11 - nylon flat washers (to be used on all mounting fasteners)4 - stainless steel pan head phillips M4 x 25mm (for mount base to vehicle)1 - owner’s manual2 - Kicker stickers
Kicker CWTB Subwoofer Enclosure Manual
MediaMaster-Series Add-on Marine Network Zone Controller with 2.8-Inch Screen
The MMR-40 is a NMEA 2000® Network Controller engineered to add full-function, auxiliary control to MediaMaster® source units.
Outfitted with a NMEA 2000® Micro-C connector, the MMR-40 connects to a host MediaMaster® source unit in two ways:
Direct interface with a vessel's NMEA 2000® network using applicable NMEA 2000® cables and connectors (not included)
Direct connection of one MMR-40 with one host MediaMaster® source unit using MMC-PN2K powered network cables (sold separately) to simulate an isolated, stand-alone NMEA 2000® network
Once connected, the MMR-40 automatically recognizes the host MediaMaster® source unit and will then mirror all host source unit controls and screen info onto the MMR-40's full-color, 2.8-inch LCD display, resulting in a complete MediaMaster® user experience.
The MMR-40 is equipped with independent display theme and lighting controls for maximum mounting location flexibility, regardless of the settings on the host source unit. Engineered for real-world marine (and many outdoor) applications, its weatherproof (IP66 rated) chassis is built to withstand the harshest environments.
The MMR-40 includes the following features:
NMEA 2000® Certified (LEN 4)
Easy-to-read, high-brightness, 2.8-inch full-color LCD display with large backlit controls
Independent day/night display themes and lighting controls
IP66 rated for real marine duty
Protective Sun Cover included
Note: The MMR-40 is not a stand-alone receiver and does not function without a connected MediaMaster® source unit. All remote control functionality of the MMR-40 is solely derived from the host source unit. Functionality of the MMR-40 requires connection to a NMEA 2000® network or use of MMC-PN2K powered network cables (sold separately).
JL Audio MMR-40 Manual
Heise Add-On Universal 3-Inch Pair of Automotive Off-Road Fog-Lights with Switch and Wiring Harness, Blackout Series
Heise’s Blackout Series high output cube LED lights are small but powerful for better coverage at night. These next-generation lights have refined frames and cleaner lines for a sleek yet minimalistic look. The upgraded optics have changed from a direct to an indirect placement allowing more control of the location and pattern of the beam. This allows the lights to be tailored to the vehicle, its entire lighting system, and for the driver’s lighting coverage needs. Each set is rated IP67 and includes a dual light wiring harness (HE-DLWH1) for installation. Flush mount options are also available and sold individually (without harness).
Specifications
2 Light Pack
Input Voltage: 12-24V Dc
Color Temperature: 5700K
Beam Pattern: 100o Flood
Housing Material: Die-Cast Aluminum
Color: Black
Lens Material: Polycarbonate
Electronics: Integrated-Epoxy Encapsulated
Hardware: Stainless 316
Operating Temperature: -40oF To +140oF
Protection: Reverse Polarity
Mounting: Side & Rear
Limited Lifetime Warranty
Size: 3”
4 LEDs
Wattage: 40W
Raw Lumens: 4,800lm
Lux at 10m: 28
Current Consumption @ 13.8V: 2.9A
IP Rating: IP67
WARNING: THIS LIGHTING PRODUCT IS SOLD FOR OFF-ROAD USE ONLY. This product should not be used on the road. Owners should keep the original factory bulbs so that they can replace them for use on public roads. Keep the box that the new bulbs came in to store the bulbs and be sure to handle them with care when removing and re-installing.
6 x 9-Inch 90-Watt RMS Coaxial Motorcycle Speakers, 2-Ohm or 4-Ohm Drivers
The 6x9" P40PS motorcycle coaxial speakers by Kicker are designed by bike riders and power-sports enthusiasts to sound good and last while retaining a weatherproof rating. These 90W Kicker speakers are the perfect solution for motorcycles, ATV’s and Side-by-Sides.
The Kicker PS 6x9" Coaxial Speaker
Includes One Pair Of 6x9" Speakers
2 or 4 Ohm Voice Coil
Recommended Power 90 Watts - Peak 180 Watts
High-Efficiency Titanium Tweeter
Perfect Fairing Drop-Ins
The Kicker 40PS692 and 40PS694 weather-proof drivers are a perfect fairing drop-in on many motorcycles. Use these 6x9-inch speakers with UTV, ATV, marine, or outdoor systems. The rugged PS69 system utilizes heavy-duty ceramic magnets for high power handling and volume for ultra-clear music reproduction through helmets - even at highway speeds.
Specifications
Woofer (in, mm)
6 x 9, 150 x 230
Tweeters (in, mm)
1, 25
Impedance (Ohms)
2
Max Rec Amp Power (watts PEAK/RMS)
180/90
Sensitivity (dB 1w/1m)
87.3
Frequency Response (Hz)
40 - 20k
Mounting Hole Diameter (in, mm)
5/8 x 8-7/16, 143 x 214
Mounting Depth (in, mm)
3 1/4, 83
Weight (oz, g)
43.5, 1233
Grilles
Yes
Kicker 40PS69 Manual
Gauge Style Mechless BT Marine Head Unit
The KMC2 Media Center is a simple, effective solution when you want great tunes in a compact footprint.
Equipped with an easily readable screen, over 200 watts of peak power and several audio inputs (including USB and Bluetooth), this durable Media Center is ready for some fun on the water!
Specifications
Fits in Gauge Opening
IPX6 Certification
Uses USB, RCA, AM/FM and Bluetooth Audio Sources
USB Audio Playback or Charging
Two Sets of RCA Outputs
Compatible with PXiRCX Remote Control
Diameter (in, mm) - 4-1/2, 113
Mounting Depth (in, mm) - 4, 101
Mounting hole cutout (in, mm) - 3-5/8, 92.1
Kicker KMC2 Manual
5.25-Inch 50-Watt Coaxial Motorcycle Speakers, 2-Ohm or 4-Ohm Voice Coil
Kicker 10PS5250 speakers are designed by bike riders and power-sports enthusiasts to sound good and last through every kind of weather.
The Kicker PS 5.25 Inch 2Ω Motorcycle Coaxial Speaker is built to sound great on the road or the trail.These 5 1/4" Motorcycle speakers are weatherproof with a lightweight design featuring titanium tweeters and neodymium magnets. These Kicker 50 watt speakers deliver clean and crisp sound even through road, wind and motor noise. Add a Kicker PXA weatherproof amplifier and you will be ready for the road or the trail.These Kicker 10PS5250 speakers work best with 50 watts of recommended power.
Specifications
Woofer
5 1/4", 133mm
Tweeters
3/4", 20mm
Impedance
2Ω or 4Ω
Max Rec Amp Power (watts PEAK/RMS)
100W/50W
Sensitivity
88.3dB @ 1w/1m
Frequency Response
60Hz - 20kHz
Mounting Hole Diameter
4 7/8", 124mm
Mounting Depth
2 3/16", 56mm
Weight
12.6oz, 358g
Grilles
Yes (H-D Bat-wing)
Kicker 10PS5250 Manual
MediaMaster-Series Add-on Marine 2.3-Inch Remote Controller
The MMR-20-BE is a wired remote controller engineered to add auxiliary control functionality to MediaMaster® source units.
Built for marine and off-road applications, its weatherproof (IP67 rated) design places frequently used functions of your MediaMaster® source unit in a simple, intuitive design that’s easy-to-use. Its large, backlit controls and LED source indicators are easily identifiable, day or night, with brightness settings that can be adjusted using your MediaMaster® source unit.
A small footprint and simple, one-hole design means the MMR-20-BE can be installed in even the tightest of spaces. Depending on your system layout, you may add up to three MMR-20-BE remote controllers to a single MediaMaster® source unit. Each MMR-20 can be connected up to 75 ft. (22.8 m) away from its source unit.
MediaMaster® remote control capabilities include:
Power On/Off
Source Select
Volume Up/Down
Track Up/Down (USB & BT)
Track Fast-Forward/Fast-Rewind (USB)
Favorite Up/Down (Radio)
Play/Pause (USB & BT)
Mute/Unmute (Radio & Aux)
The MMR-20-BE is compatible with these MediaMaster® source units:
MM100s-BE
MM100s
MM50
Note: Requires MMC Connection Cables (sold separately). Connection cables are available in several lengths to fit your specific application. Y-splitters are also available to connect up to three remotes to a MediaMaster® source unit.
JL Audio MMR-20-BE Manual
4-Inch 50-Watt RMS Coaxial Motorcycle Speakers, 2-Ohm or 4-Drivers
The 40PS4 motorcycle speakers by Kicker are designed by bike riders and powersports enthusiasts, to sound good while remaining lightweight and weatherproof. These drivers are the perfect solution for motorcycles, ATV’s and Side by Sides.
The 40PS42 and 40PS44 are weatherproof speakers and are made to deliver clean, crisp music, on the road and off – even through a helmet. Kicker construction that stands up to the elements is combined with high-grade sound quality, without modifying your motorcycle speaker fairing or adding unwanted weight to your power sport machine. Add a Kicker PXA amplifier to your bike to complement the rough roads, and rougher trails.These PSM speakers work best with 50 watts of recommended power.
Specifications
Woofer (in, mm)
4, 100
Tweeters (in, mm)
3/4, 20
Impedance (Ohms)
2
Max Rec Amp Power (watts PEAK/RMS)
100/50
Sensitivity (dB 1w/1m)
85.8
Frequency Response (Hz)
100 - 20k
Mounting Hole Diameter (in, mm)
3 5/8, 93
Mounting Depth (in, mm)
1 11/16, 43
Weight (oz, g)
11.9, 338
Grilles
Yes
Kicker 40PS4 Manual
Hideaway Style Weatherproof Bluetooth Receiver with Panel Mount Controller
Engineered for marine, motorsports and outdoor applications, the MBT-CRXv3 wireless receiver is designed to deliver top-quality streaming audio to almost any sound system over land or water.
Housed in a compact and water-resistant chassis (IP67-rated), this premium audio receiver is well suited for small watercraft, motorcycles, golf carts and utility vehicles. Needing just a single hole for installation, the MBT-CRXv3 wireless receiver can function as a stand-alone, wireless audio source unit or as an add-on, wireless audio controller and receiver. Large backlit controls permit easy operation day or night, and an adaptor plate is included for front-mount applications or where rear access is limited.
Outfitted with BLUETOOTH wireless technology and the Qualcomm® aptX™ HD audio codec, MBT-CRXv3 delivers dynamic, CD-like sound from your compatible streaming device from up to 35’ (11 meters) away. Two sets of stereo preamp outputs (4-volt RMS) are on hand to feed two main audio zones plus a dedicated subwoofer output. Independent audio zone level controls with LED color indicators ensure effortless command of your sound system while your streaming device is tucked away.
The receiver includes +12-volt (1 amp) remote turn-on output for amplifier control.
Specifications
Bluetooth® Core Specification
Version 5.0 with Qualcomm® aptX™-HD audio
Current Draw
83 mA (at idle) / 108 mA (at full output)
Input Operating Voltage
8 - 16 VDC
Fuse Rating
2A Mini ATC
Output Voltage
4V RMS
Frequency Response
20 Hz - 20 kHz (±1dB)
Connection Range*
Up to 35 ft / 11 m
S/N Ratio
101 dB (20 Hz - 20 kHz)
Remote Turn-on Output Capacity
350 mA (max)
Bluetooth® Profile
A2DP (High-Quality, Stereo Audio)
Outputs
Two Stereo Pairs Per Zone, Plus One Mono Subwoofer (RCA Plugs)
JL Audio MBT-CRXv2 Manual
Aftermarket Backup or Forward Facing Surface-Mountable Recessed Add-on Camera with Night Vision
The CM-CKH5 is Rydeen's Keyhole style camera. Recessed bullet style cameras are small cylinder shaped cameras that are great for flush mounting in a vehicles bumper. Bullet cameras have many mounting options and are great for covert or concealed uses. The camera itself comes in a black, waterproof casing with an IP67 rating, 170° viewable angle, and a full color standard resolution display to assist with blind spot visibility.
The CM-CKH5 is equipped with Rydeen's Super CMOS IV Sensor with NightVision Technology, and 480 TV Lines. The CVBS video resolution gives a high quality image for detailed viewing. This high-tech backup camera is a perfect choice where low visual impact on the vehicle is desired, due to it’s barely being visible when flush with the bumper.
Resolution (TV LINES): 480
Minimum illumination: < 0.3 Lux
Viewing Angle: 170o
Operating Voltage: 9 – 16V
Water-proof: IP67
Video System: NTSC (color)
Image: Mirror / Standard Selectable
Selectable Parking Line Display
Body Color: Black (B)
Rydeen CM-CKH5 Manual
MM-Series 400-Watt RMS 10-Inch Subwoofer Driver, 4-Ohm SVC
The fiberglass-reinforced ABS basket resists flexing during heavy excursion, so your sub hits hard without distorting. Ultra-Marine certification and an IP56 rating.
Specifications
10" 4-ohm subwoofer
Titanium-plated composite cone
Butyl rubber surround
Fiberglass-reinforced ABS basket
IP56 rating
Power handling: 400W RMS
Peak power handling: 1200W
Frequency response: 28-2000Hz
Sensitivity: 86dB @ 1W/1M
Top mounting depth: 4.35"
Cutout diameter: 9.1"
Grille not included
Warranty: 1 year
Polk Audio MM1 Subwoofer Manual
1/3-Inch CMOS Backup Camera with Hood
This rugged camera features a 1/3 inch CMOS camera with a metal hood. Complete with 0 lux IR LED night vision and 18 IR LEDs drivers will have visibility in dark or foggy conditions. High quality metal housing and a water resistance IP69K rating ensures that it can withstand the elements during long days of driving. Designed for commercial use – this camera is functional with up to 100 feet of extension cable and includes a 4-Pin Din to RCA connector.
Specifications
High quality metal housing
120 degree viewing angle
1/3 inch CMOS camera
IP69K water resistant
0 lux IR LED night vision
Includes 4-pin Din to RCA connector
18 IR LEDs
2 15/16 inch W X 3 1/16 inch H X 2 3/4 inch D
Functional with up to 100 feet of extension cable
Length of Cable off of camera to 4-pin din is 15"
PAL format
iBeam TE-CCH Manual
Aftermarket Stereo Replacement Add-On SiriusXM-Vehicle Tuner
Connect, control and enjoy SiriusXM though the vehicle's in-dash audio system; no special translators or cable adapters are needed.
Compact size hides discreetly behind the dash for a fully integrated look.
Single interface cable connection to SiriusXM-Ready car stereo simplifies installation.
Pause, Rewind and Replay up to 60 minutes of live Satellite Radio.*
Automatically start songs from the beginning on your favorite channels with TuneStart™.*
Use TuneMix™ to hear a mix of songs from your favorite channel.*
Use TuneScan™ to preview songs that you have not yet heard on your favorite channels.*
Keep up with the big plays for your favorite teams with SportsFlash™.*
Keep Moving with the most current updates using Traffic & Weather Now™.*
Get alerts when your favorite song, artist or team is playing.*
Discover new music and tag for purchase with iTunes® radio tagging.*
Compatible with all SiriusXM-Ready car stereo receivers from leading manufacturers. Look for the SiriusXM-Ready logo.
Includes: SXV300 Tuner and Magnetic Mount Antenna.
*Consult car stereo receiver manufacturer for detailed description of features and operations and capabilities.
Connect, control and enjoy all the wonders of satellite radio on the fly. The compact SXV300 tuner is truly plug-and-play with compatible car stereos and installs easily and discreetly behind the dash for a fully integrated look.
SiriusXM SXV300V1 Manual
Water-Resistant Remote Bass-Knob for Select JL Audio Amplifiers
The MHD-RLC remotely controls the Bass Level of the following JL Audio amplifiers:
HD-Series: All models
XD-Series: All models
MHD-Series: All models
M-Series: All models
When the MHD-RLC is connected to the above amplifiers, it acts as an attenuator on the input gain of the amplifier and is used to adjust the overall level of the amplifier from the front of the vehicle.
The MHD-RLC kit includes the rotary control with a black ABS knob, mounting hardware and one 16.4 ft. (5 m) cable.
A satin-finish aluminum knob can be purchased separately.
3M™ Red Scotchlok™ 22/18 Gauge - Package of 100
3M™ Scotchlok™ Insulation Displacement Connector is a double run or tap connector for tap or parallel splicing. Polypropylene insulated, self stripping and flame retardant.
Red, polypropylene-insulated connector is suitable for tap or parallel splicing
Suitable for general purpose electrical connections on an auto, boat, van or trailer
Accommodates 18 to 14 AWG Run , 22 to 18 AWG Tap
Rated for 600V building wire and 1000V rated for signs, fixtures and luminaires
The connector withstands temperatures of 221 degrees F (105 degrees C)
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
Package of 100
Single-Pole Waterproof Circuit-Breakers for select 50-Amp to 200-Amp Automotive Applications
High amp circuit breakers are typically used in auxiliary and accessory circuits for trucks, buses, RVs and marine applications. All high amp circuit breakers comply with the SAE J1171 standard for ignition protection and have applications in battery charging systems that use battery isolators to manage and protect batteries in multi-battery installations.
Red LED on top of the device gives a visual indication of when the breaker has been tripped open.
Type III — manual reset
Red LED lights when tripped.
Flush mount with push-to-trip button, 42 Vdc
Waterproof, sealed housing
1/4-28 threaded studs
SEMS nuts installed
50-200 Amp
Each
3M™ Scotchlok™ 16/14 & 12/10 Gauge - Package of 100
3M™ Scotchlok™ Insulation Displacement Connector electrically connects a tap wire to a run (through) wire while insulating the connection. This connector is suitable for control circuit wiring, fixture wiring, appliance wiring, signal and PA systems and automotive/boat/RV wiring. Polypropylene insulated and self stripping.
Brown polypropylene-insulated connector
Suitable for general purpose electrical connections on an auto, boat, van or trailer
Accommodates 12 to 10 AWG Run , 16 to 14 AWG Tap
Rated for 600V building wire and 1000V rated for signs, fixtures and luminaires
The connector withstands temperatures of 221 degrees F (105 degrees C)
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
Package of 100
