Description

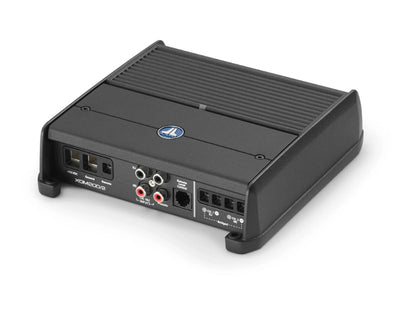

XDM-Series 2-Channel Class-D Marine-Grade Amplifier, 100-Watts x 2-Channels @ 2-Ohm or 75-Watts x 2-Channels @ 4-Ohm
The tiny XDM200/2 packs a serious full-range punch, delivering a staggering 100-watts per channel into 2-ohms (14.4V, 1% THD). The technology that makes this much power possible in such a compact chassis is JL's advanced high-speed switching design, which permits full bandwidth Class D operation with extremely low distortion and remarkable efficiency.
Suitable for car or boat installations, the XDM200/2 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.

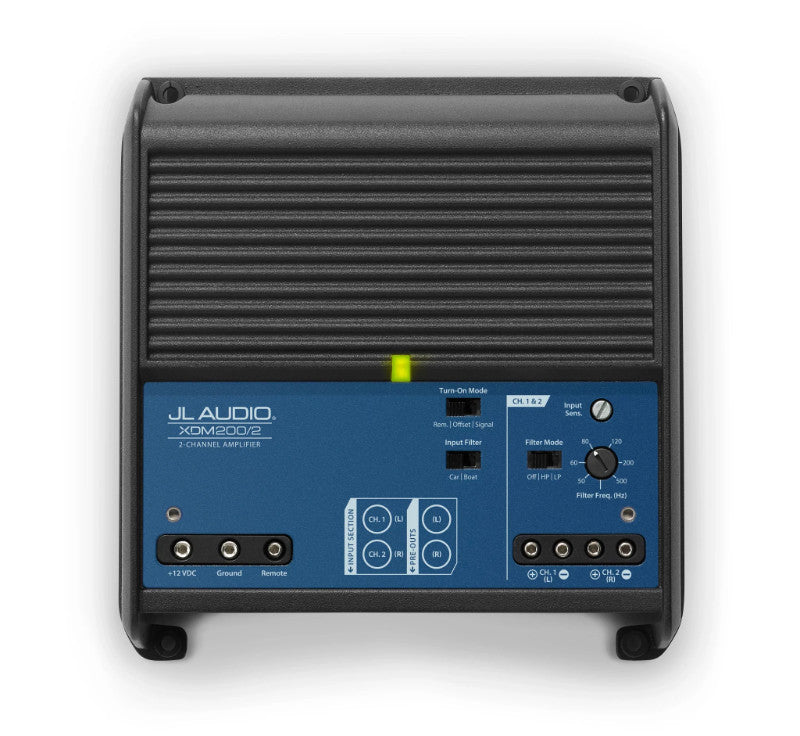

The XDM200/2 includes a 12dB / octave filter which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), the amplifier's level can be adjusted directly from the driver's seat or cockpit.

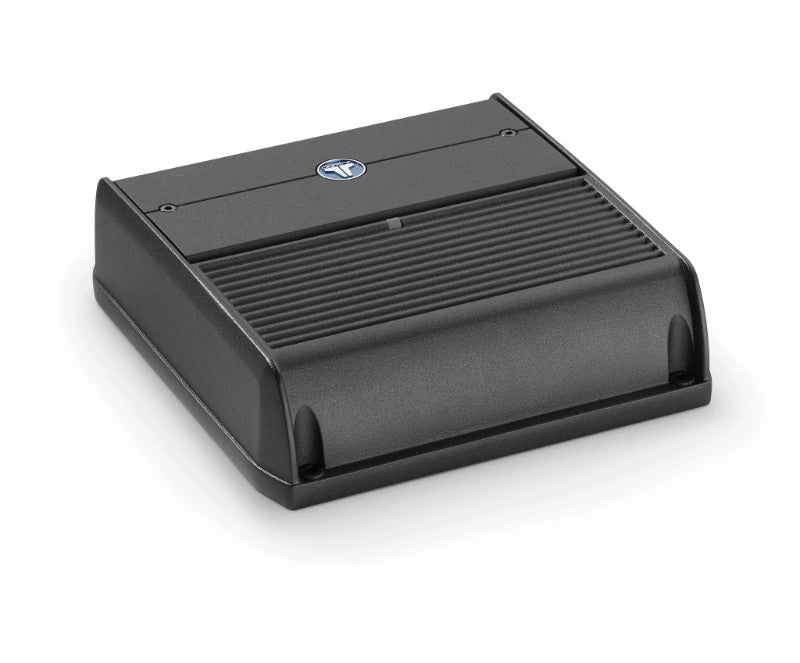

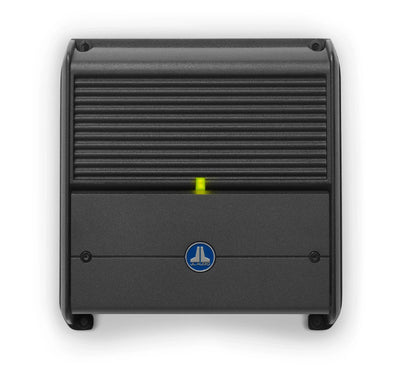

Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
Specifications
| @ 4 Ω |
75 W RMS x 2 @ 14.4V |
| @ 2 Ω |
100 W RMS x 2 @ 14.4V
|
| Bridged @ 4Ω |
200 W RMS x 1 @ 14.4V
|
| @ 4 Ω |
60 W RMS x 2 @ 12.5V |
| @ 2 Ω |
90 W RMS x 2 @ 12.5V
|
| Bridged @ 4Ω |
180 W RMS x 1 @ 12.5V
|
| Frequency Response |
12 Hz - 22 kHz (+0, -1dB) |
| S/N Ratio, referred to highest rated power |
>104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W |
>84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ω |
>150 / 50 Hz |
| Damping Factor @ 2 Ω |
>75 / 50 Hz |
| THD+N @ Rated Power |
<1% @ 2 Ω per Ch. |
| Input Voltage Range @ RCA Inputs |
200 mV - 4 V RMS |
| Min.Copper Power / Ground Wire Gauge |
8 AWG wire |
| Fuse Rating |
20 A (AFS, AGU or MaxiFuse™) |
| Filter Mode(s) |
Low-Pass or High-Pass |
| Filter Slope(s) |
12 dB/octave |
| Filter Frequency Range |
50 Hz - 500 Hz |
| Detented, Calibrated Filter Freq. Potentiometer |
Yes |
| Filter Defeat Function |
Yes |
| Remote Level Control |
Optional HD-RLC or MHD-RLC (water-resistant) |
| Security Cover for Controls |
Yes |
| Pass-Through Preamp Output |
Buffered |
| Height (H) |
2.05 in / 52 mm |
| Width (W) |
6.85 in / 174 mm |
| Depth (D) |
7.09 in / 180 mm |
| Net Weight |
3.75 lb / 1.70 kg |
