Description
MHD-Series 5-Channel Class-D 24-Volt Marine Grade Amplifier, 100-Watts x 4ch + 500-Watt Mono @ 1.5-4Ω
Thanks to its ability to act as a "one-box solution", the MHD900/5-24V is ideal for installations where space is at a premium and sound quality is the paramount goal.
While extremely compact, this amazing amplifier will comfortably drive a complete high-performance marine audio system: that is, four satellite speaker systems and a subwoofer system... with a very serious 900 watts of power!
Using JL Audio's Single Cycle Control switching design and R.I.P.S technology, the MHD900/5-24V delivers 100W x 4ch to its four main channels, plus a very meaty 500W to its subwoofer channel. Thanks to R.I.P.S., high power can be delivered over a wide range of load impedances, while the tight power supply regulation keeps distortion down, maximizing sound quality.

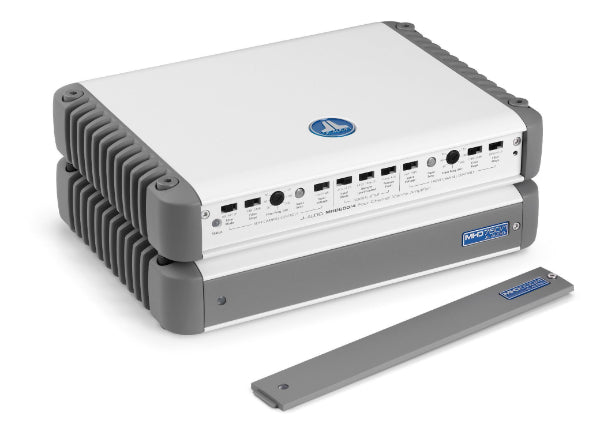

This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.
This amplifier is designed for operation in vessels with 24 volt, negative-ground electrical systems. Use of this product in vessels with positive ground and/or voltages other than 24V may result in damage to the product and will void the warranty.
Specifications
| Main Channels @ 4 Ω |
100 W RMS x 4 |
| Main Channels @ 3 Ω |
75 W RMS x 4 |
| Main Channels @ 2 Ω |
75 W RMS x 4 |
| Main Channels @ 1.5 Ω |
75 W RMS x 4 |
| Main Channels - Bridged @ 8 Ω |
200 W RMS x 2 |
| Main Channels - Bridged @ 4 Ω |
150 W RMS x 2 |
| Subwoofer Channel @ 4 Ω |
500 W RMS x 1 |
| Subwoofer Channel @ 3 Ω |
500 W RMS x 1 |
| Subwoofer Channel @ 2 Ω |
500 W RMS x 1 |
| Subwoofer Channel @ 1.5 Ω |
500 W RMS x 1 |
| Frequency Response (Main Channels) |
12 Hz - 28 kHz (+0, -1dB) |
| Frequency Response (Subwoofer Channel) |
12 Hz - 10 kHz (+0, -1dB) |
| S/N Ratio, referred to highest rated power (Main Channels) |
>108.5 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W (Main Channels) |
>88.2 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ω |
>400 / 50 Hz |
| Damping Factor @ 2 Ω |
>200 / 50 Hz |
| THD+N @ Rated Power (Main Channels) |
<0.03% @ 4 Ω |
| THD+N @ Rated Power (Subwoofer Channel) |
<0.05% @ 4 Ω |

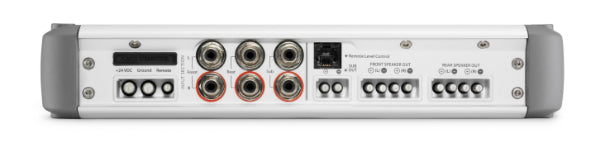

| Input Voltage Range @ RCA Inputs |
Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High) |
| Min.Copper Power / Ground Wire Gauge |
Accepts up to 4 AWG wire |
| Fuse Rating |
30 A (AFS, AGU or MaxiFuse™) |
| Filter Mode(s): Channels 1 & 2 (front) |
High-Pass only |
| Filter Slope(s): Channels 1 & 2 (front) |
12/24 dB/octave |
| Filter Frequency Range: Channels 1 & 2 (front) |
50 Hz - 500 Hz |
| Filter Mode(s): Channels 3 & 4 (rear) |
High-Pass only |
| Filter Slope(s): Channels 3 & 4 (rear) |
12/24 dB/octave |
| Filter Frequency Range: Channels 3 & 4 |
50 Hz - 500 Hz |
| Filter Mode(s): Subwoofer Channel |
Low-Pass only |
| Filter Slope(s): Subwoofer Channel |
12/24 dB/octave |
| Filter Frequency Range: Subwoofer Channel |
50 Hz - 500 Hz |
| Detented, Calibrated Filter Freq. Potentiometers |
Yes |
| Filter Defeat Function |
Yes |
| Infrasonic Filter: Subwoofer Channel |
30 Hz, Defeatable |
| Remote Level Control |
Optional (HD-RLC) |
| Remote Level Modes |
Sub Ch. only |
| Channel Input Mode Switch |
Yes (2/4/6 ch.) |
| Pass-Through Preamp Output |
None |
| Source Channel Selection for PreOuts |
N/A |
