Description
MHD-Series 4-Channel Class-D Marine Grade Amplifier, 150-Watts x 4ch @ 1.5-4-Ohms
This compact, multi-channel powerhouse employs JL's Single-Cycle Control switching design and R.I.P.S. technology to deliver 150W x 4ch or 300W x 2ch. Tight power supply regulation keeps distortion down and maximizes sound quality.
When using the MHD750/1 to drive a subwoofer system, the MHD600/4 is the ideal satellite amplifier, delivering huge dynamics with pristine resolution. It can also be deployed, on its own, as a very capable 3-channel system amplifier with 150W x 2 to the satellites and 300W x 1 to a subwoofer system.

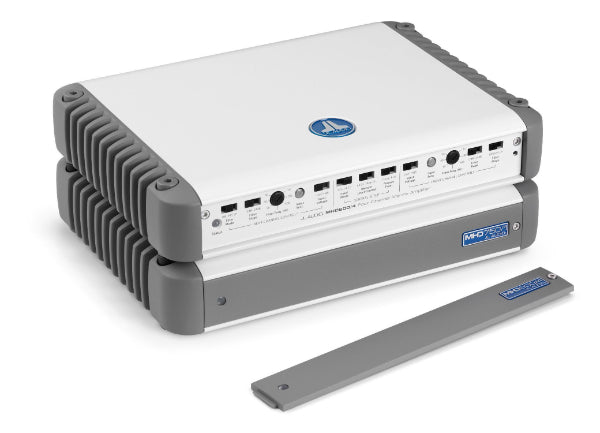

This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.
Specifications
| @ 4 Ω |
150 W RMS x 4 |
| @ 3 Ω |
150 W RMS x 4 |
| @ 2 Ω |
150 W RMS x 4 |
| @ 1.5 Ω |
150 W RMS x 4 |
| Bridged @ 8 Ω |
300 W RMS x 2 |
| Bridged @ 4 Ω |
300 W RMS x 2 |
| Frequency Response |
6 Hz - 30 kHz (+0, -1dB) |
| S/N Ratio, referred to highest rated power |
>110 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W |
>88.2 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ω |
>300 / 50 Hz |
| Damping Factor @ 2 Ω |
>150 / 50 Hz |
| THD+N @ Rated Power |
<0.03% @ 4 Ω per Ch. |
| Input Voltage Range @ RCA Inputs |
Switchable from 200 mV - 2 V RMS to 800 mV - 8 V RMS |
| Min.Copper Power / Ground Wire Gauge |
4 AWG wire |
| Fuse Rating |
50 A (AFS, AGU or MaxiFuse™) |
| Filter Mode(s) |
Low-Pass or High-Pass |
| Filter Slope(s) |
12/24 dB/octave |
| Filter Frequency Range |
50 Hz - 500 Hz |
| Detented, Calibrated Filter Freq. Potentiometers |
Yes |
| Filter Defeat Function |
Yes |
| Remote Level Control |
Optional (HD-RLC) |
| Remote Level Modes |
2 or All Channels |
| Channel Input Mode Switch |
Yes (2/4 ch.) |
| Pass-Through Preamp Output |
Buffered |
| Source Channel Selection for PreOuts |
Yes |
