MX-Series 300-Watt Monoblock Marine-Grade Amplifier @ 2-Ohm or 160-Watt @ 4-Ohm

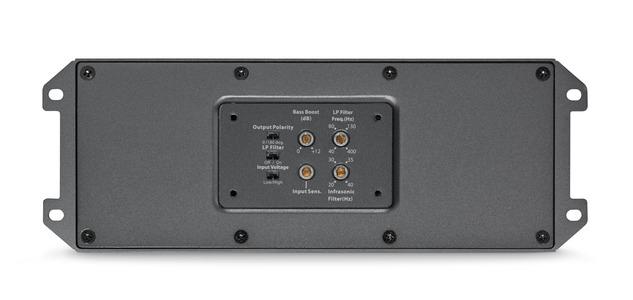

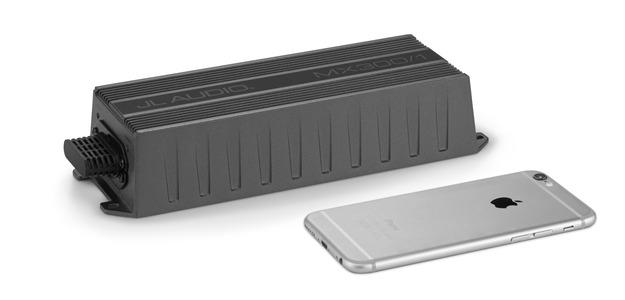

Engineered specifically for powersports applications, the MX300/1 monoblock amplifier employs JL's high-speed NexD™ switching design to pack a serious audio punch, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles.
With a robust 300W of clean power into a 2-ohm load (14.4V, 1% THD), use one to drive a subwoofer, or grab a pair to deliver stunning output to a subwoofer system. The MX300/1 also features an adjustable low-pass crossover, a bass boost EQ, variable infrasonic filter and output polarity switch.
Its dual-range input section accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals. With the addition of an M-RBC-1 remote level control (sold separately), subwoofer output can be directly controlled from the driver’s seat.
This amplifier features a black powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.
|Frequency Response||20 Hz - 12 kHz (+0, -1dB)|
|S/N Ratio, referred to highest rated power||>85 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)|
|S/N Ratio, referred to 1 W||>64 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)|
|Damping Factor @ 4 Ω||>150 / 50 Hz|
|Damping Factor @ 2 Ω||>75 / 50 Hz|
|THD+N @ Rated Power||<1% @ 2 Ω|
|Input Voltage Range @ RCA Inputs||Switchable from 250 mV - 4 V RMS (Low) to 750 mV - 15 V RMS (High)|
|Min.Copper Power / Ground Wire Gauge||8 AWG wire|
|Fuse Rating||30 A (AFS, AGU or MaxiFuse™)|
|@ 4 Ω||160 W RMS x 1|
|@ 3 Ω||220 W RMS x 1|
|@ 2 Ω||300 W RMS x 1|
|@ 1.5 Ω||N/A|
|Filter Mode(s)||Low-Pass only|
|Filter Slope(s)||24 dB/octave|
|Filter Frequency Range||40 Hz - 400 Hz|
|Detented, Calibrated Filter Freq. Potentiometer||Yes|
|Filter Defeat Function||Yes|
|Infrasonic Filter||20 Hz - 40 Hz, variable|
|Bass Boost EQ||0 to +12 dB @ 43 Hz|
|Output Polarity Switch||Yes|
|Remote Subwoofer Level Control||Optional (M-RBC-1)|
|Remote Bass EQ Boost Control||No|
|Pass-Through Preamp Output||None|
|Height (H)||1.77 in / 45 mm|
|Width (W)||8.66 in / 220 mm|
|Depth (D)||3.09 in / 78.5 mm|
|Net Weight||3.18 lb / 1.44 kg|
