JL Audio MX500/1 : 500W Mono Marine Amplifier @ 2Ω

Description

 MX-Series 500-Watt Monoblock Marine-Grade Amplifier @ 2-Ohm or 300W @ 4-Ohm

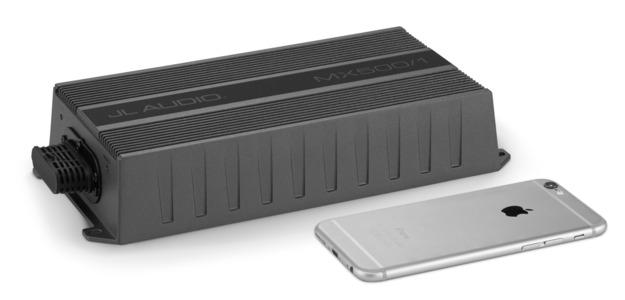

Engineered specifically for powersports applications, the MX500/1 monoblock amplifier employs JL's high-speed NexD™ switching design to pack a serious audio punch, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles.

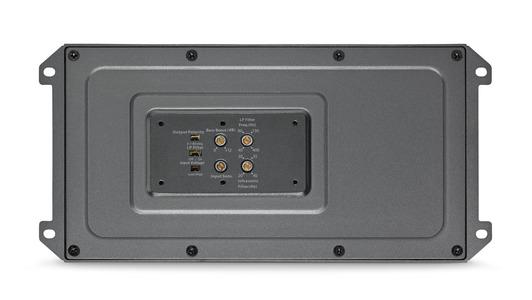

With a robust 500W of clean power into a 2-ohm load (14.4V, 1% THD), use one to drive a subwoofer, or grab a pair to deliver stunning output to a subwoofer system. The MX500/1 also features an adjustable low-pass crossover, a bass boost EQ, variable infrasonic filter and output polarity switch.

Its dual-range input section accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals. With the addition of an M-RBC-1 remote level control (sold separately), subwoofer output can be directly controlled from the driver’s seat.

This amplifier features a black powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.

Specifications

Frequency Response 20 Hz - 12 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power >97 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W >70 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω >115 / 50 Hz
Damping Factor @ 2 Ω >54 / 50 Hz
THD+N @ Rated Power <1% @ 2 Ω
Input Voltage Range @ RCA Inputs Switchable from 250 mV - 4 V RMS (Low) to 750 mV - 15 V RMS (High)
Min.Copper Power / Ground Wire Gauge 4 AWG wire
Fuse Rating 50 A (AFS, AGU or MaxiFuse™)
@ 4 Ω 300 W RMS x 1
@ 3 Ω 400 W RMS x 1
@ 2 Ω 500 W RMS x 1
@ 1.5 Ω N/A

JL Audio MX500/1 Manual

Product form

 MX-Series 500-Watt Monoblock Marine-Grade Amplifier @ 2-Ohm or 300W @ 4-Ohm Engineered specifically for powersports applications, the MX500/1 monoblock amplifier employs JL's high-speed... Read more

In-store pickup or installation our shop(s)

SKU: 98407
Barcode: 699440984072

1 Available for pickup

$449.99

Description

 MX-Series 500-Watt Monoblock Marine-Grade Amplifier @ 2-Ohm or 300W @ 4-Ohm

Engineered specifically for powersports applications, the MX500/1 monoblock amplifier employs JL's high-speed NexD™ switching design to pack a serious audio punch, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles.

With a robust 500W of clean power into a 2-ohm load (14.4V, 1% THD), use one to drive a subwoofer, or grab a pair to deliver stunning output to a subwoofer system. The MX500/1 also features an adjustable low-pass crossover, a bass boost EQ, variable infrasonic filter and output polarity switch.

Its dual-range input section accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals. With the addition of an M-RBC-1 remote level control (sold separately), subwoofer output can be directly controlled from the driver’s seat.

This amplifier features a black powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.

Specifications

Frequency Response 20 Hz - 12 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power >97 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W >70 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω >115 / 50 Hz
Damping Factor @ 2 Ω >54 / 50 Hz
THD+N @ Rated Power <1% @ 2 Ω
Input Voltage Range @ RCA Inputs Switchable from 250 mV - 4 V RMS (Low) to 750 mV - 15 V RMS (High)
Min.Copper Power / Ground Wire Gauge 4 AWG wire
Fuse Rating 50 A (AFS, AGU or MaxiFuse™)
@ 4 Ω 300 W RMS x 1
@ 3 Ω 400 W RMS x 1
@ 2 Ω 500 W RMS x 1
@ 1.5 Ω N/A

JL Audio MX500/1 Manual
