Description
MX-Series 75-Watts x 2-Channel Class-D Marine-Grade Amplifier + 400-Watt Subwoofer Out @ 2-Ohm

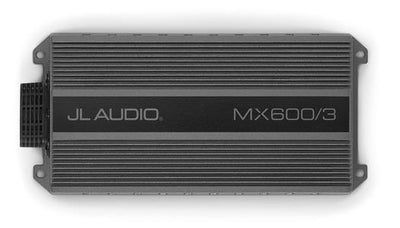

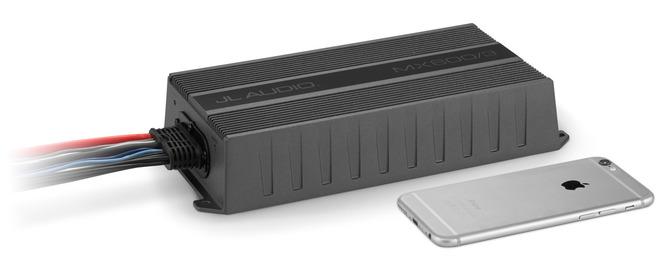

Engineered specifically for powersports applications, the 3-channel MX600/3 amplifier employs JL's high-speed NexD™ switching design to deliver plenty of clean power, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles.
Generating a solid 75W x 2 into 4 ohms (14.4V, 1% THD), the MX600/3 is the perfect solution for driving a pair of speakers and a subwoofer.

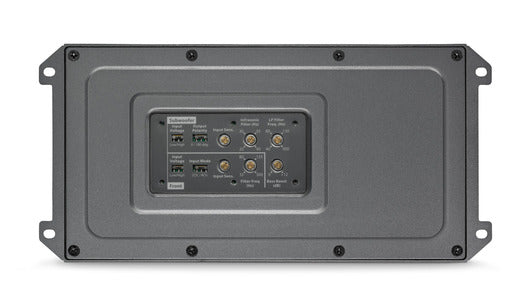

Other features include independent front and rear crossovers with selectable full-range, high-pass or low-pass filter controls and a dual-range input section that accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals.
This amplifier features a black powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.
Specifications
| Frequency Response |
20 Hz - 20 kHz (+0, -1dB) |
| S/N Ratio, referred to highest rated power |
>88 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W |
>68 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ω |
>92 / 50 Hz |
| Damping Factor @ 2 Ω |
>43 / 50 Hz |
| THD+N @ Rated Power (Main Channels) |
<1% @ 2 Ω per Ch. |
| THD+N @ Rated Power (Subwoofer Channels) |
<1% @ 2 Ω per Ch. |
| Input Voltage Range @ RCA Inputs |
Switchable from 250 mV - 4 V RMS (Low) to 580 mV - 14 V RMS (High) |
| Min.Copper Power / Ground Wire Gauge |
4 AWG wire |
| Fuse Rating |
60 A (AFS, AGU or MaxiFuse™) |
| Main Channels @ 4 Ω |
75 W RMS x 2 |
| Main Channels @ 2 Ω |
100 W RMS x 2 |
| Main Channels - Bridged @ 4Ω |
200 W RMS x 1 |
| Subwoofer Channel @ 4 Ω |
250 W RMS x 1 |
| Subwoofer Channel @ 3 Ω |
300 W RMS x 1 |
| Subwoofer Channel @ 2 Ω |
400 W RMS x 1 |
| Subwoofer Channel @ 1.5 Ω |
N/A |
