Description
XDM-Series Monoblock Class-D Marine-Grade Amplifier, 1000-Watts @ 2-Ohm or 600-Watts @ 4-Ohm
This monoblock subwoofer powerhouse employs JL-Audio's high-speed NexD switching technology to achieve unprecedented efficiency and amazing power output from a very compact chassis. The XDM1000/1 generates up to 1000W of continuous power into a 2-ohm load (14.4V, 1% THD), making it a great choice to drive higher power subwoofer systems.
Designed for car or boat installations, the XDM1000/1 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.
Intended specifically for subwoofer applications, the XDM1000/1 includes a variable slope low-pass filter with continuously variable cutoff frequency selection from 50-500Hz and a defeatable infrasonic filter (30Hz, 24dB/oct.). With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), the amplifier's level can be adjusted directly from the driver's seat or captain’s chair.

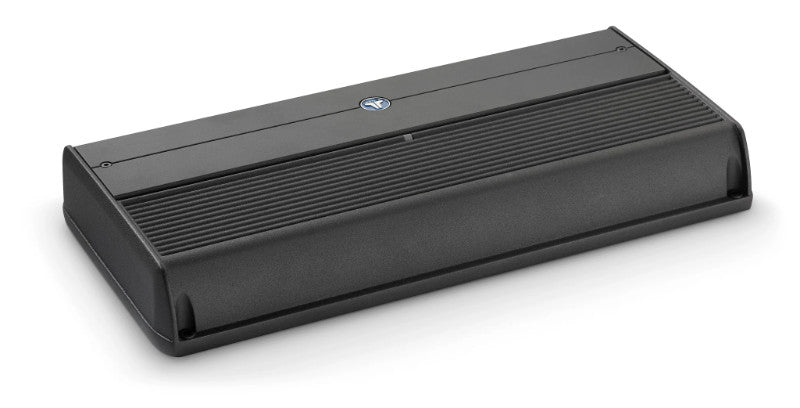

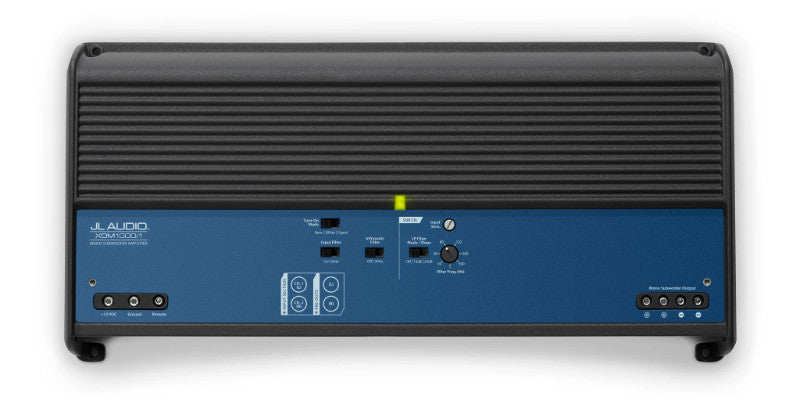

Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
Specifications
-
| @ 4 Ω |
600 W RMS x 1 @ 14.4V |
| @ 3 Ω |
800 W RMS x 1 @ 14.4V
|
| @ 2 Ω |
1000 W RMS x 1 @ 14.4V
|
| @ 1.5 Ω |
N/A |
-
| @ 4 Ω |
500 W RMS x 1 @ 12.5 V |
| @ 3 Ω |
650 W RMS x 1 @ 12.5 V
|
| @ 2 Ω |
800 W RMS x 1 @ 12.5 V
|
| @ 1.5 Ω |
N/A |
-
| Frequency Response |
7 Hz - 500 Hz (+0, -1dB) |
| S/N Ratio, referred to highest rated power |
>83 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W |
>53 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ω |
>1000 / 50 Hz |
| Damping Factor @ 2 Ω |
>500 / 50 Hz |
| THD+N @ Rated Power |
<1% @ 2 Ω per Ch. |
| Input Voltage Range @ RCA Inputs |
200 mV - 4 V RMS |
| Min.Copper Power / Ground Wire Gauge |
4 AWG wire |
| Fuse Rating |
80 A (AFS, AGU or MaxiFuse™) |
-
| Filter Mode(s) |
Low-Pass only |
| Filter Slope(s) |
12/24 dB/octave |
| Filter Frequency Range |
50 Hz - 500 Hz |
| Detented, Calibrated Filter Freq. Potentiometer |
Yes |
| Filter Defeat Function |
Yes |
| Infrasonic Filter |
30 Hz, defeatable |
| Bass Boost EQ |
No |
| Output Polarity Switch |
No |
| Remote Subwoofer Level Control |
Optional HD-RLC or MHD-RLC (water-resistant) |
| Remote Bass EQ Boost Control |
No |
| Pass-Through Preamp Output |
Buffered |
-
| Height (H) |
2.05 in / 52 mm |
| Width (W) |
14.73 in / 374 mm |
| Depth (D) |
7.09 in / 180 mm |
