Description

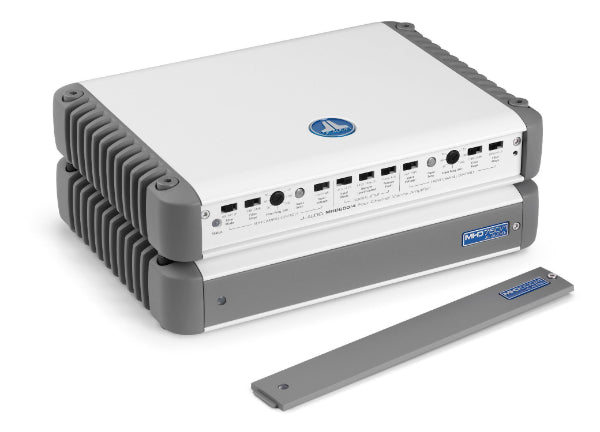

MHD-Series Monoblock Class-D Marine Grade Amplifier, 750-Watts @ 1.5-4-Ohms
This ultra-compact monoblock amplifier employs JL's Single-Cycle Control switching design and R.I.P.S. technology to deliver 750W of clean power into any impedance between 1.5 and 4Ω, giving you the highest degree of flexibility in designing your subwoofer system.
Tight power supply regulation keeps distortion ultra-low and maximizes your bass performance. While targeted primarily to subwoofer applications, the MHD750/1 is a full-range amplifier and can also be used to drive high-performance mid and high frequency speaker systems.
This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.
Specifications
| @ 4 Ω |
750 W RMS x 1 |
| @ 3 Ω |
750 W RMS x 1 |
| @ 2 Ω |
750 W RMS x 1 |
| @ 1.5 Ω |
750 W RMS x 1 |
| Frequency Response |
6 Hz - 8 kHz (+0, -1dB) |
| S/N Ratio, referred to highest rated power |
>110 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W (Main Channels) |
>88 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ω |
>500 / 50 Hz |
| Damping Factor @ 2 Ω |
>250 / 50 Hz |
| THD+N @ Rated Power (Main Channels) |
<0.03% @ 4 Ω |
| Input Voltage Range @ RCA Inputs |
Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High) |
| Min.Copper Power / Ground Wire Gauge |
4 AWG wire |
| Fuse Rating |
60 A (AFS, AGU or MaxiFuse™) |
| Filter Mode(s) |
Low-Pass or High-Pass |
| Filter Slope(s) |
12/24 dB/octave |
| Filter Frequency Range |
50 Hz - 500 Hz |
| Detented, Calibrated Filter Freq. Potentiometer |
Yes |
| Filter Defeat Function |
Yes |
| Infrasonic Filter |
30 Hz, defeatable |
| Bass Boost EQ (0 to +12 dB @ 45 Hz) |
No |
| Output Polarity Switch |
Yes |
| Remote Subwoofer Level Control |
Optional (HD-RLC) |
| Pass-Through Preamp Output |
Buffered |
