Add-On Amplifier OEM Integration Line Converter with DSP for Select 2002-2020 Mazda Vehicles
Upgrade your sound system with this cost-effective, easy-to-install DSP“Lite” package that includes a vehicle-specific T-harness. It works with OEM or aftermarket radios to take fixed level/digitally controlled analog audio and convert it to 6 channels of analog signal for use with an aftermarket amplifier or DSP.
Retain Features with a Built-in InterfaceWhile this may be a “Lite” version, it still provides retention of many important vehicle functions utilizing Axxess’s cutting-edge technology. It features chime control, retains OEM voice prompts and sonar sensors, and has clipping detection and limiting circuits, going beyond what a traditional DSP can do.
Complete Tuning ControlThere are 4 inputs and 6 outputs, including front, rear and subwoofer, and the front and rear outputs can be delayed independently up to 10ms. Full tuning control settings are adjusted via a smart device application for tablets or mobile phones and can be password-protected once set up. Once tuning has been completed, installers can password-protect their settings to prevent anyone else from adjusting, and the information is stored for future recall.

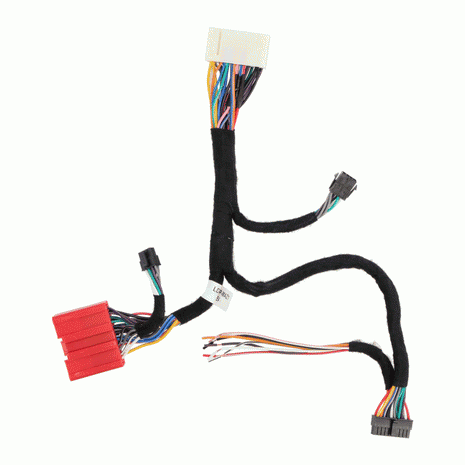

Package includes the AXDSP-L and vehicle-specific T-harness
15-band graphic EQ or 5-band Parametric EQ
Selectable high pass, low pass, or bandpass filters on each channel
4 inputs and 6 individually assignable outputs
Independent equalization on each of the 6 outputs
Selectable slope (12, 24, 36, or 48db per octave)
Each channel can be delayed independently for up to 10 ms
Easy behind the radio installation in most applications
Can be used with OE and aftermarket radios
Clipping detection and limiting circuits
Internal header port for adding interface modules
Bass knob included
Retains factory chimes, including parking sensor and cross path detection alerts with adjustable chime level
Designed for amplified and non-amplified models
Settings adjusted wirelessly in a smart device application (tablet or mobile phone)
Read, write, and store configurations for future recall
Password-protect feature is available in the mobile app
Micro “B” USB updatable
1-year limited warranty
Applications
MAZDA
CX-5
2013-2015
CX-9
2008-2015
Mazda 2
2011-2014
Mazda 3
2004-2015
Mazda 5
2006-2015
Mazda 6
2008-2015
Mazda 6
Without Center Display
2016-2017
MX-5 Miata
2002-2015
MX-5 Miata
Without Center Display
2016-2020
Axxess AXDSPL-MZ1 Manual
Add-On Amplifier OEM Integration Interface for Select 2003-2019 Ford, Lincoln, Mazda and Mercury Vehicles
This vehicle-specific line output converter features a T-harness that installs quickly and makes it easy for installers to add an amplifier for subwoofers or speakers to a factory radio. It is designed to provide (2) channels of low-level audio output from the factory system, with 55 watts per channel. A Gain Controller is included to adjust overall output, and it is 12v-500mA remote-wire activated with signal sense.
Designed to provide (2) channels of low-level audio output from the factory system
Allows for the installation of an amplifier for speakers or subwoofers
Gain Controller included to adjust the overall output
12v-500mA remote wire activated with signal sense
55 watts per channel
Contents
AXLOC-FD1 Wiring Harness
Gain Controller
12v-500mA Remote Wire
Auxiliary Cable
Applications
FORD
Crown Victoria
non-amplified
2003-2011
E-Series
non-amplified
2009-2019
Edge
non-amplified
2007-2010
Explorer
non-amplified
2006-2010
F-Series
non-amplified
2004-2016
F650/F750
non-amplified
2011-2019
Five Hundred
non-amplified
2005-2007
Flex
non-amplified
2009-2012
Focus
non-amplified
2005-2011
Freestar
non-amplified
2004-2007
Freestyle
non-amplified
2005-2007
Fusion
non-amplified
2006-2012
Mustang
non-amplified
2004-2014
Taurus
non-amplified
2008-2012
Thunderbird
non-amplified
2004-2005
Transit Connect
non-amplified
2010-2013
LINCOLN
LS
non-amplified
2003-2006
MKX
non-amplified
2007-2010
MKZ
non-amplified
2007-2009
Navigator
non-amplified
2003-2006
Towncar
non-amplified
2003-2011
Zephyr
non-amplified
2006-2006
MAZDA
Tribute
non-amplified
2008-2011
MERCURY
Grand Marquis
non-amplified
2003-2011
Mariner
non-amplified
2005-2011
Milan
non-amplified
2006-2011
Montego
non-amplified
2005-2007
Monterey
non-amplified
2004-2011
Mountainer
non-amplified
2006-2010
Sable
non-amplified
2008-2009
Axxess AXLOC-FD1 Manual
Head-Unit Replacement USB-Retention Adapter-Cable for Select 2006-UP Chrysler, GM and Ford Vehicles
Converts the factory USB port cable into standard full size male USB so it can be plugged into an aftermarket radio.
Click Here to View Vehicle Compatibility
Stereo-Replacement Antenna-Adapter for Select 2002-UP Buick, Cadillac, Chevy, Chrysler, Dodge, Ford, GMC, Hummer, Jeep, Lincoln, Mazda, Mercury, Mitsubishi, Pontiac and Saturn Vehicles
If you are adding an external device with a built-in FM modulator in your vehicle, these antenna cable adapters ensure that you can continue to use your factory radio and antenna. These are simple yet necessary cables that adapt the vehicle’s original factory radio and antenna connectors to plug into the FM modulator.
Antenna adapter kit
Used to adapt the vehicle’s original factory radio and antenna connectors to use with an FM modulator
Cable #1 has a male Motorola™ connector on one end and female snap-lock antenna connector on the other end
Cable #2 has a female Motorola™ connector on one end and female snap-lock antenna connector on the other end
Applications
BUICK
Enclave
2008-2017
Lucerne
2006-2011
CADILLAC
DTS
2006-2011
Escalade
2007-2014
Escalade ESV
2007-2014
Escalade EXT
2007-2014
SRX
2007-2009
CHEVY
Avalanche
2007-2013
Aveo
2007-2011
Aveo 5
2009-2011
Captiva Sport
2012-2015
Cobalt
2007-2010
Equinox
2007-2009
Express
2008-2021
HHR
2006-2011
Impala
2006-2013
Impala Limited
2014-2016
Malibu
2008-2012
Monte Carlo
2006-2007
Silverado 2500 HD, 3500 HD, Chassis Cab
2014
Silverado
2007-2013
Suburban
2007-2014
Tahoe
2007-2014
Traverse
2009-2017
CHRYSLER
300
2005-2007
300C
2005-2007
300M
2002-2004
Aspen
2007
Concorde
2002-2004
Pacifica
2004-2008
PT Cruiser
2002-2010
Sebring
2002-2006
Sebring Sedan
2002-2005
Town & Country
2002-2007
Voyager
2002-2003
DODGE
Caliber
2007-2008
Caravan
2002-2007
Grand Caravan
2002-2007
Charger
2006-2007
Dakota
2002-2007
Durango
2002-2007
Intrepid
2002-2004
Magnum
2005-2007
Neon
2002-2005
Ram 1500
2002-2008
Ram 2500, 3500
2003-2009
Ram 4500, 5500
2008-2010
Stratus
2002-2006
Viper
2003-2010
FORD
E-Series
2014-2019
Econoline
2009-2013
Edge
2007-2010
Escape
2008-2012
Expedition
2007-2015
Expedition (SSV)
2015
Explorer
2006-2010
Explorer Sport Trac
2006-2010
F-150
2007-2014
F-250/350/450/550
2008-2016
F-650, F-750
2011-2019
Flex
2009-2012
Focus
2008-2011
Fusion
2006-2012
Fusion Hybrid
2013-2020
Mustang
2007-2014
Taurus
2008-2009
Taurus X
2008-2009
Transit Connect
2010-2013
GMC
Acadia
2007-2016
Acadia Limited
2017
Savana
2008-2020
Sierra 2500 HD, 3500 HD, Chassis Cab
2014
Sierra
2007-2013
Yukon
2007-2014
Yukon XL
2007-2014
HUMMER
H2
2008-2009
JEEP
Commander
2006-2007
Compass
2007-2008
Grand Cherokee
2002-2007
Liberty
2002-2007
Patriot
2007-2008
Wrangler
2003-2006
LINCOLN
MKS
2009-2012
MKT
2010-2012
MKX
2007-2010
MKZ
2007-2012
Navigator
2007-2014
Zephyr
2006
MAZDA
Tribute
2008-2011
MERCURY
Mariner Hybrid
2008-2011
Mariner
2008-2011
Milan
2010-2011
Milan
2006-2008
Mountaineer
2006-2010
Sable
2008-2009
MITSUBISHI
Raider
2006-2007
PONTIAC
G3 (sedan)
2007-2009
G5
2005-2010
G6
2009-2010
Solstice
2006-2009
Torrent
2007-2009
Vibe
2009-2010
SATURN
Aura
2007-2009
ION
2006-2007
Outlook
2007-2010
Sky
2007-2009
VUE
2006-2010
Head-Unit Replacement Antenna-Adapter for Select 2005-UP Acura, Fiat, Honda, Mazda and Toyota Vehicles
If you are replacing the radio in your vehicle, this antenna cable adapter ensures that you can continue to use your factory antenna. It is a simple yet necessary cable that adapts the vehicle’s original antenna cable to plug into an aftermarket radio with a male Motorola-style connector, a blue wire lead on one end and a female Honda-style snap-lock antenna connector on the other.
Antenna adapter cable
Used to adapt the vehicle’s antenna cable to use with an aftermarket radio
Male Motorola™ connector and a blue wire lead on one end
Female Honda-style snap-lock antenna connector on the other end
A blue wire is attached to the adapter that connects to the antenna turn-on lead of the aftermarket radio
Applications
ACURA
MDX
2005-2013
RDX
2007-2012
TL
2007-2008
TSX
2009-2014
FIAT
Fiat 124 Spider
2017-2020
HONDA
Accord
2008-2012
Accord Crosstour
2010-2011
Civic
2006-2011
CR-V
2007-2011
Crosstour
2012-2015
Element
2005-2011
Fit
2007-2013
Insight
2010-2014
Odyssey
2005-2010
Pilot
2006-2011
Ridgeline
2005-2014
MAZDA
2
2011-2014
3
2010-2018
5
2012-2015
6
2009-2021
CX-3
2016-2021
CX-5
2013-2020
CX-7
2010-2012
CX-9
2010-2020
MX-5 Miata, MX-5 Miata RF
2016-2020
SUZUKI
Kizashi
2010-2013
TOYOTA
Yaris, Yaris Sedan
2019-2020
Yaris iA
2017-2018
Head-Unit Replacement Female Antenna-Adapter for Select 2005-UP Acura, Fiat, Honda, Mazda and Toyota Vehicles
If you are replacing the factory antenna in your vehicle, this antenna cable adapter ensures that you can continue to use your original factory radio. It is a simple yet necessary cable that adapts the aftermarket antenna cable to plug into the vehicle’s factory radio with a female Motorola™ connector, a blue wire lead on one end and a male Honda-style connector on the other.
Antenna adapter cable
Used to adapt the vehicle’s original factory radio to use with an aftermarket antenna
Female Motorola™ connector and a blue wire lead on one end
Male Honda-style antenna connector on the other end
A blue wire is attached to the adapter that connects to the antenna turn-on lead of the factory radio
Enter your vehicle model to see if this is compatible with your vehicle
Applications
ACURA
MDX
2005-2013
RDX
2007-2012
TL
2007-2008
TSX
2009-2014
FIAT
Fiat 124 Spider
2017-2020
HONDA
Accord
2008-2012
Accord Crosstour
2010-2011
Civic
2006-2011
CR-V
2007-2011
Crosstour
2012-2015
Element
2005-2011
Fit
2007-2013
Insight
2010-2014
Odyssey
2005-2010
Pilot
2006-2011
Ridgeline
2005-2014
MAZDA
2
2011-2014
3
2010-2018
5
2012-2015
6
2009-2021
CX-3
2016-2021
CX-5
2013-2020
CX-7
2010-2012
CX-9
2010-2020
MX-5 Miata, MX-5 Miata RF
2016-2020
SUZUKI
Kizashi
2010-2013
TOYOTA
Yaris, Yaris Sedan
2019-2020
Yaris iA
2017-2018
Head-Unit Add-On Male and Female Antenna-Adapter Cable Set for Select 2005-UP Acura, Fiat, Honda, Mazda and Toyota Vehicles
If you are adding an external device with a built-in FM modulator in your vehicle, these antenna cable adapters ensure that you can continue to use your factory radio and antenna. These are simple yet necessary cables that adapt the vehicle’s original factory radio and antenna connectors to plug into the FM modulator.
Antenna adapter kit
Used to adapt the vehicle’s original factory radio and antenna connectors to use with an FM modulator
Cable #1 has a male Motorola™ connector on one end and a female Honda-style snap-lock antenna connector on the other
Cable #2 has a female Motorola™ connector on one end and a male Honda-style antenna connector on the other
A blue wire is attached to the adapter that connects to the antenna turn-on lead of the radio
Enter your vehicle model to see if this is compatible with your vehicle
Applications
ACURA
MDX
2005-2013
RDX
2007-2012
TL
2007-2008
TSX
2009-2014
FIAT
Fiat 124 Spider
2017-2020
HONDA
Accord
2008-2012
Accord Crosstour
2010-2011
Civic
2006-2011
CR-V
2007-2011
Crosstour
2012-2015
Element
2005-2011
Fit
2007-2013
Insight
2010-2014
Odyssey
2005-2010
Pilot
2006-2011
Ridgeline
2005-2014
MAZDA
2
2011-2014
3
2010-2018
5
2012-2015
6
2009-2021
CX-3
2016-2021
CX-5
2013-2020
CX-7
2010-2012
CX-9
2010-2020
MX-5 Miata, MX-5 Miata RF
2016-2020
SUZUKI
Kizashi
2010-2013
TOYOTA
Yaris, Yaris Sedan
2019-2020
Yaris iA
2017-2018

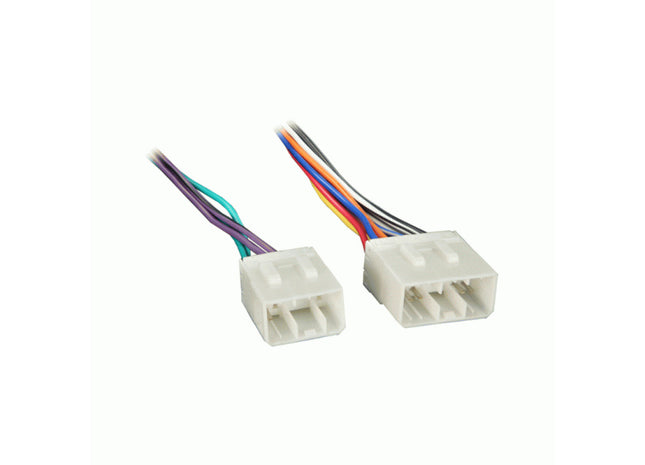

Non-Amplified Head-Unit Replacement Wiring-Harness Adapter for Select 1985-2002 Ford, Lincoln, Mazda and Mercury Vehicles
Install a new car radio faster with this wiring harness that plugs right into the vehicle's connectors, allowing you to hook up the radio into the vehicle's electrical system. On one side, the wiring harness is color-coded with wires that you'll connect or solder into the aftermarket radio/receiver. The other side has a vehicle-specific adapter that connects directly into the original radio connectors for a quicker installation without having to cut each of the wires.
Keep in mind that you may need additional parts to complete your installation, including a dash kit, antenna adapter, and, depending on your vehicle, a special interface adapter to retain audio controls on your steering wheel or other important vehicle functions like navigation, video, and more. Look up your vehicle for more information.
Wiring harness for fast and easy radio installation
Plugs into the car's original radio connectors on one side
Color-coded wires on the other side are connected to the aftermarket radio
No wire cutting needed for factory radio connectors
Provides electrical power to the radio for a four-speaker connection
Non-Amplified Applications
FORD
Aerostar
1985-1997
Aspire
1995-1997
Bronco
1986-1996
Bronco II
1989-1990
Contour
1995-2000
Crown Victoria
1992-1994
Econoline
1986-1997
Escort
1991-1996
Escort, Escort EXP
1986-1990
Explorer
1991-1994
F-150
1997-1998
F-250
1998
F-250/350
1997
F-Series Pickup
1986-1996
LTD/LTD Crown Victoria
1986-1991
Mustang
1986-1998
Probe
1988-1997
Ranger
1986-1997
Taurus
1986-1995
Tempo
1986-1994
Thunderbird
1986-1997
Windstar
1995-1998
JAGUAR
S-type
2000-2002.5
LINCOLN
Continental
1986-1994
Mark VII
1986-1992
Town Car
1986-1994
MAZDA
B-Series Pickup
1994-1997
Navajo
1991-1994
MERCURY
Capri
1986-1994
Cougar
1986-1997
Grand Marquis
1986-1994
Lynx
1986-1987
Mystique
1995-2000
Sable
1986-1995
Topaz
1986-1994
Tracer
1991-1996
Villager
1993-1998
NISSAN
Quest
1993-1998
Aftermarket Head-Unit Replacement Amplified Wiring-Harness for Select 1986-2000 Ford, Lincoln, Mazda, Mercury and Nissan Vehicles
Install a new car radio faster with this factory amplifier integration wiring harness that plugs right into the vehicle’s connectors, allowing you to hook up the radio into the vehicle’s electrical system. On one side, the wiring harness is color-coded with wires that you'll connect or solder into the aftermarket radio/receiver. The other side has a vehicle-specific adapter that connects directly into the original radio connectors for a quicker installation without having to cut each of the wires.
Keep in mind that you may need additional parts to complete your installation, including a dash kit, antenna adapter, and, depending on your vehicle, a special interface adapter to retain audio controls on your steering wheel or other important vehicle functions like navigation, video, and more. Look up your vehicle for more information.
Factory amplifier integration wiring harness for fast and easy radio installation
Plugs into the car's original radio connectors on one side
Designed for all amplified systems using a 35-watt or greater radio
Includes radio power wiring harness and radio speaker wiring harness with RCAs
No wire cutting needed for factory radio connectors
Amplified Applications
FORD
Bronco
1986-1996
Contour
1995-2000
Crown Victoria
1992-1994
Econoline
1994-1996
Explorer
1991-1994
F-150
1997-1998
F-250/350
1997
Mustang
1994-1998
Probe
1993-1997
Taurus
1990-1995
Thunderbird
1989-1997
Windstar
1995-1998
LINCOLN
Continental
1990-1994
Mark VIII
1993-1994
Mark VII
1990-1992
Town Car
1990-1994
MAZDA
Navajo
1991-1994
MERCURY
Cougar
1989-1997
Grand Marquis
1990-1994
Mystique
1995-2000
Sable
1990-1995
Villager
1993-1998
NISSAN
Quest
1993-1995
Amplified Head-Unit Replacement Wiring-Harness Adapter for Select 1995-2004 Ford, Lincoln, Mercury and Mazda Vehicles
For all amplified systems using a 35 Watt or greater radio
Amplifier Integration Harness
12 inch long
Amplified Applications
FORD
Crown Victoria
1995-1997
Escort
1997-2002
Escort ZX2
1997-2002
Expedition
1997-1998
Explorer
1995-1997
F-250
1998-2004
F-350/450/550
1999-2004
Ranger
1995-1997
LINCOLN
Continental
1995-1997
Mark VIII
1995-1998
Navigator
1997-1998
MAZDA
B-Series Pickup
1995-1997
MERCURY
Grand Marquis
1995-1997
Mountaineer
1997
Non-Amplified Head-Unit Replacement Wiring Harness Adapter for Select 2007-UP Chevy, Mazda, Nissan, Subaru and Suzuki Vehicles
Wiring harness for fast and easy radio installation
Plugs into the car’s original radio connectors on one side
Color-coded wires on the other side are connected to the aftermarket radio
No wire cutting needed for factory radio connectors
Provides electrical power to the radio for a four-speaker connection
Non-Amplified Applications
CHEVROLET
City Express
2015-2018
MAZDA
CX-5
Sport trim
2016-2016
NISSAN
370Z
2016-2020
370Z
2009-2015
Altima
coupe
2013-2013
Altima
2010-2012
Altima
2007-2009
Altima
2016-2018
Altima
2014-2015
Altima
sedan
2013-2013
Altima
S
2023-2023
Altima
2019-2022
Cube
2009-2014
Frontier
2022-2024
Frontier
LE, Pro-4X, SE-6 cyl. (black color dash)
2009-2011
Frontier
LE, Pro-4X, SE-6 cyl. (gray color dash)
2009-2011
Frontier
2016-2021
Frontier
all except S trim with King Cab
2013-2015
Frontier
radio delete option
2016-2017
Frontier
S trim with King Cab (w/ or w/o radio delete option)
2013-2015
Frontier
S trim
2012-2012
Frontier
S, SE-4 cyl., XE
2009-2011
Frontier
Base model
2008-2008
GT-R
2009-2016
Juke
2015-2017
Juke
2011-2014
Kicks
2018-2021
LEAF
2018-2019
LEAF
2011-2017
Maxima
2019-2020
Maxima
2016-2018
Maxima
2007-2008
Maxima
w/o tech package (black color dash)
2009-2014
Maxima
w/o tech package (gray color dash)
2009-2014
Maxima
2007-2008
Murano
w/o tech package (climate controls above radio)
2009-2014
Murano
2015-2019
Murano
2009-2014
Murano
w/ tech package
2009-2014
NP 300
Note: International vehicle
2017-2018
NV
2018-2021
NV
2015-2017
NV
2015-2017
NV
2012-2014
NV200
2013-2021
Pathfinder
w/ climate controls above radio
2013-2016
Pathfinder
2017-2020
Quest
w/o RSE
2011-2016
Rogue
2008-2010
Rogue
S and SV w/ SL Package
2012-2013
Rogue
2011-2011
Rogue
S w/ Special Edition Package
2012-2013
Rogue
SV
2012-2013
Rogue
2014-2017
Rogue Select
w/o 4.3-inch display
2014-2015
Rogue Select
w/ 4.3-inch display
2014-2015
Rogue Sport
2017-2017
Sentra
w/o pocket door above radio
2007-2012
Sentra
2019-2019
Sentra
2013-2018
Sentra
2020-2021
Sentra
w/ pocket door above radio
2007-2012
Titan
S trim, a.k.a. base model
2013-2015
Titan
S trim, a.k.a. base model
2008-2012
Titan
all except S trim
2013-2015
Titan XD
w/ matte black radio color
2016-2016
Titan, Titan XD
w/ matte black radio color
2017-2019
Titan, Titan XD
2020-2021
Versa
2015-2019
Versa
SL, SV w/ Convienence Package
2014-2014
Versa
S, S +, SV w/ no options
2014-2014
Versa
2012-2013
Versa
S trim, a.k.a. base model
2020-2022
Versa
2007-2011
Versa Note
2018.5-2019
Versa Note
2014-2018
Xterra
all except X trim (black color dash)
2009-2012
Xterra
all except X trim, 2WD (gray color dash)
2009-2012
Xterra
2014-2015
Xterra
w/ 4.3-inch screen
2013-2013
Xterra
late production (w/o factory amp)
2008.5-2008.5
SUBARU
Forester
2009-2013
Forester
2014-2015
Impreza
2008-2011
Impreza
2012-2014
Impreza Outback Sport
2011-2011
Impreza WRX
2013-2014
Impreza WRX STI
2008-2012
Legacy
w/o factory amp (base radio)
2012-2014
Legacy
2010-2011
Outback
w/o factory amp (base radio)
2012-2014
Outback
2010-2011
WRX
2015-2015
XV Crosstrek
2013-2014
SUZUKI
Equator
crew cab (black color dash)
2009-2011
Equator
crew cab (gray color dash)
2009-2011
DIN-Size Head-Unit Replacement Dash-Kit for Select 1982-2009 Ford, Mazda, Nissan, Toyota and Volvo Vehicles
Stereo installation kit designed to fit any standard 2” tall aftermarket radio
Kit is to be used with factory brackets for ISO Single-DINinstallations or when the factory radio and pocket are not present
Three different trim bezels are included to accommodate most applications
Made from the highest quality ABS plastic for an original factory-like fit and finish
Includes brackets and hardware parts needed with detailed installation instructions
Applications
INFINITI
G20
1999-2002
G20
1995-1996
G20
1991-1994
J30
1993-1997
M30
1990-1992
Q45
1999-2001
Q45
1997-1998
Q45
1990-1996
LEXUS
ES250
w/ cd
1990-1991
ES250
w/ cassette
1990-1991
MAZDA
929
1992-1995
MERCEDES
ML-Class
w/ double DIN factory radio
2000-2005
TOYOTA
Sienna
2000-2003
Sienna
1996-1999
Solara
1999-2003
Supra
1994-1998
Tundra
2000-2002
VOLVO
850
1994-1997
850
w/ double DIN factory radio
1993-1993
960
1992-1997
C70
1998-2004
S40
Base, LSE Limited
2004-2004.5
S40
2000-2003
S70
1998-2000
S90
1998-1998
V40
2001-2004
V40
2000-2000
V70, V70 Cross Country
1998-2000
V90
1998-1998
Metra 88-00-9000 Installation Manual
DDIN-Size Head-Unit Replacement Dash-Kit for Select 1995-2011 Ford, Lincoln, Mazda and Mercury Vehicles
Stereo installation kit designed to fit any standard 4” tall aftermarket radio
Sub-dash modifications are necessary to gain suitable depth and height
Once the kit is snapped in, it cannot be removed without dash panel removal
Made from the highest quality ABS plastic for an original factory-like fit and finish
Includes brackets and hardware parts needed with installation instructions
Applications
FORD
Crown Victoria
1995-2011
Econoline
1997-2008
Escape
2001-2007
Escape Hybrid
2005-2007
Excursion
2000-2005
Explorer
1995-2001
Explorer Sport Trac
2001-2005
F-250/350/450/550
1999-2004
F-650, F-750
2000-2010
Ranger
1995-2011
Windstar
1999-2003
LINCOLN
Continental
1995-1997
Mark VIII
1995-1998
Town Car
1995-2002
MAZDA
B-Series Pickup
1995-2009
MERCURY
Cougar
2000-2002
Grand Marquis
1995-2010
Marauder
2003-2004
Mariner Hybrid
2006-2007
Mariner
2005-2007
Mountaineer
1997-2001
Metra 95-5817 Installation Manual
DIN-Size Head-Unit Replacement Dash-Kit for Select 1982-2000 GMC, Ford, Jeep, Lincoln, Mazda and Mercury Vehicles
This stereo installation kit has been engineered to help you install a 2" tall (Single-DIN) aftermarket radio into the original vehicle dashboard, making radio replacement simple. The dash kit is designed to match the original look and feel of the vehicle's dashboard. Installing an aftermarket radio can upgrade the sound quality and provide additional features the original factory radio couldn't offer but requires this dash kit to make it fit.
Professional Installer Series TurboKit designed to fit any standard 2” tall aftermarket radio
The Metra 86-5618 radio removal tool is required to pull the factory radio from the dash
Made from the highest quality ABS plastic for an original factory-like fit and finish
Includes factory-style rear support, brackets, and hardware parts needed with detailed installation instructions
A tech support number is available for installation help 7 days a week
Applications
FORD
Aerostar
1985-1997
Bronco
1987-1996
Bronco II
1985-1990
Crown Victoria
1992-1994
Econoline
1992-1996
Escort
1985-1996
Escort EXP
1985-1996
Explorer
1991-1994
F-Series
1987-1996
F-250/350
1997
Festiva
1988-1993
LTD
1982-1991
LTD Crown Victoria
1982-1991
Mustang
1994-2000
Probe
1993-1997
Ranger
1983-1994
Taurus
1986-1995
Tempo
1989-1994
Thunderbird
1983-1988
Windstar
1995-1998
LINCOLN
Continental
1985-1994
Mark VII
1984-1992
Mark VIII
1993-1994
Town Car
1985-1994
MAZDA
626
1993-2000
B-Series Pickup
1994
MX-3
1992-1996
MX-6
1993-1997
Navajo
1991-1993
Protégé
1995-2000
MERCURY
Capri
1991-1994
Cougar
1983-1997
Grand Marquis
1979-1994
Lynx
1985-1987
Marquis
1979-1986
Sable
1986-1995
Topaz
1989-1994
Tracer
1988-1996
Villager
1993-1995
JEEP
Cherokee
1984-1996
Comanche
1985-1992
Wrangler
1984-1996
Metra 99-5510 Installation Manual
DIN-Size Head-Unit Replacement Dash-Kit for Select 1995-2011 Ford, Lincoln, Mercury and Mazda Vehicles
This stereo installation kit has been engineered to help you install a 2" tall (Single-DIN) aftermarket radio into the original vehicle dashboard. This dash kit makes radio replacement simple and comes with a built-in pocket that can be above or below the 2" radio to fill the extra space in the radio opening, which can be used for storage. The dash kit is designed to match the original look and feel of the vehicle's dashboard. Installing an aftermarket radio can upgrade the sound quality and provide additional features the original factory radio couldn't offer but requires this dash kit to make it fit.
Stereo installation kit designed to fit any standard 2" tall aftermarket radio
Kit is designed to allow for the built-in pocket to be mounted above or below the radio
Constructed with support ribs to provide a stronger Single-DINopening and pocket
Made from the highest quality ABS plastic for an original factory-like fit and finish
Includes bracket, OEM-style rear support and hardware parts needed with detailed installation instructions
A tech support number is available for installation help 7 days a week
Applications
FORD
Crown Victoria
1995-2011
Econoline
1997-2008
Explorer
1995-1997
F-250
1998
Ranger
1995-1997
LINCOLN
Blackwood
2002
Continental
1995-1997
Navigator
1999-2002
Town Car
1995-2002
MAZDA
B-Series Pickup
1995-2009
MERCURY
Grand Marquis
1995-2010
Marauder
2003-2004
Mountaineer
1997-2001
Metra 99-5802 Installation Manual
Web-Programmable Remote Start Solution for Select Ford, Lincoln, Mazda and Mercury Vehicles
Qty 1 - Omegalink OL-RS-F01 - RF Style Add-on Remote Start System
Remote start solution for selected Ford/Lincoln/Mercury/Mazda models 2006 and up. A compatible range-extender kit may be required and sold separately.
The OL-RS-FO1 is a web-programmable, standalone remote start solution for selected Ford/Lincoln/Mercury/Mazda models 2006 and up. Includes custom t-harness for easy installation. A compatible range-extender kit may be required and sold separately.
NOTE: This system does not have firmware loaded when new. It must be flashed by an authorized Omega Dealer before installation is possible.
Click Here to View Vehicle Coverage InformationNote: Features may vary depending on vehicle year, make, and model. Please consult your installer for more information.
Downloadable Software
Feature Selection
Advanced Feature Programming V2
Door Lock
Door Unlock
Trunk/Hatch Release
Arm OEM Alarm
Disarm OEM Alarm
Horn Ctrl (wire)
Door Stat Output
Trunk Stat Output
Data Immobilizer Bypass
Hood Stat Output
Parking Light Ctrl
Tachometer Output
Brake Pedal Stat Output
E-Brake Output
RAP Shutdown Ctrl
3XLOCK start w/ standalone module
Qty 1 - Your choice of Extended Range Remote Control
None - 1-Way Operation with factory key fab by pressing the Lock Button 3 times. - Limited to Factory Fab Operating Range
OL-RF-15-SST - 2-Way 1-Button Add-on RF Style Remote Start Remote Control - 3000' Range
OL-RF-42-SST - 2-Way 5-Button Add-on RF Style Remote Start Remote Control - 3000' Range
CarLink - Add-on RF Style Cellular Remote Start Remote Control - 1.5 Mile Range
LINKR-LT2 - Add-on Cellular Remote Start Controller, data plan required - Cell Tower Range
Lifetime Warranty with our add-on Professional Remote Start installation.
Lifetime warranty on our un-altered installation
Lifetime warranty on the remote start and bypass system
