Fusion

AM-Series Marine-Grade 4-Channel Amplifier, 100-Watt @ 2-Ohm or 65-Watt @ 4-Ohm The FUSION AM Series marine amplifiers are purpose-built for the marine environment. Boasting some of the most impressive environmental protection available, they deliver performance on the water like never before. With 4 channels and a 500 Watt peak power output, the MS-AM504 will power either a pair of Fusion speakers plus a 10” subwoofer, or up to four pairs of speakers (with 2 speakers in parallel each channel at 2 Ohms), to spread the sound around your vessel. Incorporating heat-tempered and conformal coated PCBs for maximum product life, and gold-plated connectors for improved signal flow, the MS-AM504 reproduces clean and powerful audio with enough power to rock the boat. Features: 500W peak power output to power up to eight speakers Class-AB amplifier – power efficient with less cross-over distortion Conformal coated PCBs – water resistant protection from salt air and moisture FUTRANZ heat sink technology – transfers heat more efficiently and provides more thermal stability with maximum component reliability F.R.A.T (Fusion Regulated Amplifier Technology) – provides enormous power output at low voltage. F.I.S.T (Fusion Intercooled Semi-Conductor Technology) – clamps down internal power switching to rapidly remove heat from all associated semi-conductors 1 year limited Consumer Warranty The Fusion AM Series marine amplifiers are the perfect complement to any Fusion marine stereo system. Product Specifications Amplifier Class Class-AB Frequency Response 5Hz - 38kHz +/- 3dB Peak Power 500 Watts Rated Power (4 Ohms) 65 Watts RMS x 4 @ 14.4V - 4Ω 1% THD Rated Power (2 Ohms) 100 Watts RMS x 4 @ 14.4V - 2Ω 1% THD Rated Power (4 Ohms Bridged) 200 Watts RMS x 2 @ 14.4V - 4Ω Bridged 1% THD Mounting Dimensions Length 366mm [14-7/16"] Depth 229mm [9"] Height 53mm [2-1/16"] Fusion AM504 Manual

Read more less

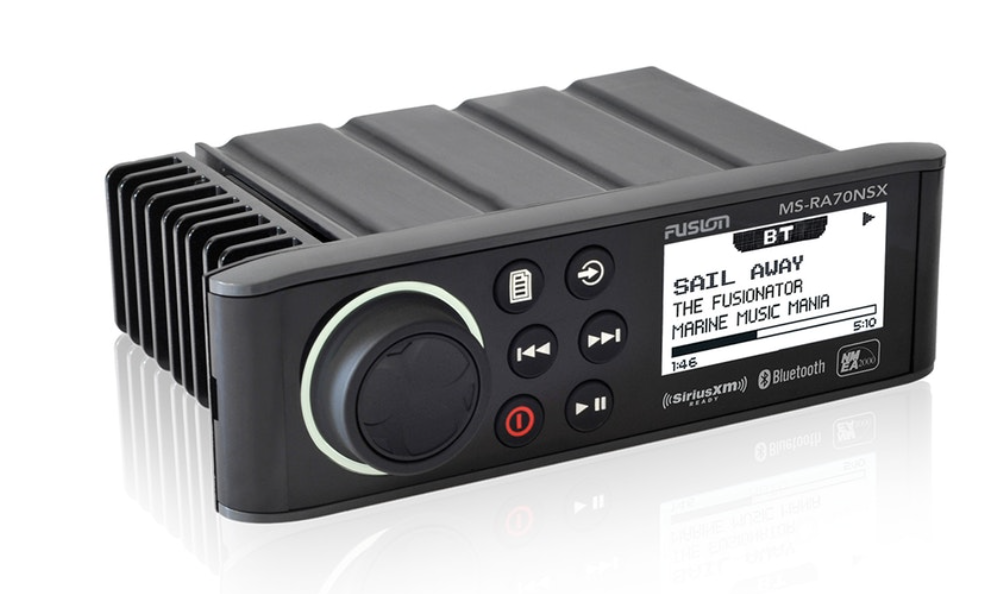

Dual-Zone DIN-Size Marine-Grade Head-Unit Introducing the MS-RA70NSX, Fusion’s sleekest value-packed marine stereo now with SiriusXM capability, designed to deliver a quality on-water entertainment experience by incorporating some of the latest marine technologies. The MS-RA70NSX is engineered to seamlessly replace any standard DIN sized non-marinized stereo without the need to reconfigure dash space. Clever styling gives the installer the option of either mounting the stereo with a conventional flush finish or integrating it flat into a glass helm, ensuring a high-end finish to the installation. Features: SiriusXM-Ready™ with advanced features (USA only) - SiriusXM satellite radio is available, along with a selection of advanced features: Instant Replay, where you can replay songs from up to 1 hour past playing, making sure you never have to miss another beat of your favorite tunes. TuneStart, where you will always hear the song playing on each of your favorite stations from the start, no matter how far along it is when you change the channel. TuneMix, where you can create your own channel from a mix of your favorites to create your very own custom channel. TuneMix also gives you the ability to skip songs back to the last hour you have been listening across all channels in your mix. SportsFlash, where you’ll receive key plays and updates from your favorite teams during live games, ensuring you never have to miss the best moments. Artist, Song and Game Alerts, where you can choose to receive alerts whenever your favorite artists, songs or sports teams start playing. Note: A SiriusXM Connect vehicle tuner and subscription are required to access SiriusXM satellite radio (available in USA only). A2DP Bluetooth wireless technology with Fusion-Link app remote control available - Stream your favorite soundtrack from any compatible device with control* available from the stereo or your connected Apple or Android device via the Fusion-Link Bluetooth app. Simply download the free Apple® or Android™ Fusion-Link remote control app for Bluetooth from the Apple App Store® or Google Play™ store and enjoy localized zone control, source navigation, track selection and the freedom of wireless control. Multiple sources available including USB MP3 playback and AM/FM radio - Listen to USB MP3 audio, connect your supported smartphone or even relax to your local AM/FM station; the MS-RA70NSX delivers marine grade entertainment to those who would normally have to resort to installing rust prone car audio stereos. Rest easy, let Fusion entertain you on the water. IPX7 water resistant front face with optically bonded LCD - The MS-RA70NSX is designed and engineered specifically for the marine environment, with an IPX7 front panel (when mounted correctly) to withstand the environment like none other, perfectly paired with an optically bonded LCD for crystal clear display on the water. Flat or flush mounting installation options - Two options are available for installation, giving you the option of a conventional flush mount or seamless integration into a glass helm with a flat finish for high-end aesthetics. Multi-Zone control (2 zone system) - With two independent audio zones available, each with advanced localized menu controls, including zone naming, you can easily customize and control your listening experience in each zone. Note: Line Out/Sub Out requires additional amplification. FUSION-Link NMEA 2000 ready for connection and control from any supported Multi-Function Display - The MS-RA70NSX is a Fusion-Link Wired NMEA 2000 certified product and is compatible with a range of the world’s leading Multi-Function Displays for on-screen audio control. When pairing the MS-RA70NSX with a supported chartplotter or fish finder, you bring your music to the big screen, allowing you to keep an eye on the charts or the fish while skipping tracks or adjusting the volume at the same time. In addition to MFD control, the MS-RA70NSX will connect to any Fusion NRX series remote control attached to the same powered NMEA 2000 network for localized control of the audio zones. (Note: the NRX remote must be incorporated onto a powered network. If you are planning on using the MS-RA70NSX and a NRX series remote on a standalone network, additional cabling is required to power the network). *Play, pause and skip tracks. The MS-RA70NSX is protected by a 12 month worldwide consumer warranty. Specifications Tuner AM/FM with RDS (where available) Tuner Region USA, Australasia, Europe and Japan Multi-Language User Interface English, French, German, Spanish, Dutch and Italian Audio Zones 2 on-board amplified zones Nameable Zones Up to 10 characters Line Out 2 (1 x L + R per zone. Requires amplification) Subwoofer Out 1 (Zone 1. Requires amplification) Auxiliary Inputs 1 x stereo RCA input (AUX) iPod/iPhone Made for iPod and iPhone - supports IAP2 protocol only. Check device compatibility. Android Open Accessory (AOA) Android support is limited to devices which support AOA protocol. Check list of supported devices for details. SiriusXM-Ready™ Yes - a SiriusXM Connect Vehicle Tuner and subscription are required. Available in USA only. Display 128x64 monochrome optically bonded LCD Garmin Watch Compatibility via ANT with Fusion-Link Lite VivoActive/HR, Fenix 3/HR, Fenix 5/S/X, Quatix 3, D2 Bravo/Titanium, Fenix Chronos, Forerunner 935 - FUSION-Link App via Garmin Connect IQ Fusion-Link Wireless Available via Bluetooth with the Fusion-Link remote control app, available for download from the Apple App Store® or Google Play™. The Fusion-Link Lite app is available from the Garmin Connect IQ store to enable wireless control from a compatible Gamin watch. Fusion-Link Wired Compatible with a Fusion marine NMEA 2000 wired remote control and any Fusion-Link supported MFD. NMEA 2000 Certified LEN:1 Bluetooth Wireless Technology A2DP Bluetooth Audio Streaming with AVRCP USB 1 x USB connector at the rear of the unit. Supports 1 amp charging. USB Audio Format MP3 Water Resistance (IP Rating) IPX7 water resistant front panel when installed correctly Chassis Electrically isolated glass-filled composite chassis with an aluminium side-fin heat sink with VCT Amplifier Class-AB 4 x 50W (@ 4 Ohms) Dimensions: Length x Height x Depth (Front Panel incl. Volume Encoder) 188mm x 60mm x 23.5mm [7-7/16" x 2-3/8" x 15/16"] Mounting Dimensions: Height x Depth 50mm x 100mm [2" x 3-15/16"] Fusion RA70NSX Manual

Read more less
