Mechless DIN-Size Weather-Resistant Bluetooth Receiver featuring a 3" Color Display
Receivers and amplifiers for marine and motor sports applications need to perform in harsh environments exposed to outdoor elements. JVC’s marine and motor sports receivers and amplifiers feature compact size for versatile installation even in tight spaces. Conformal coated main PCBs (printed circuit boards) offer additional protection against moisture and condensation from damaging the product.
A conformal coating is a protective chemical coating to safeguard electronic circuits from harsh environments that may contain moisture or chemical contaminants. It provides a barrier to airborne contaminants from the operating environment, such as salt-spray, thus preventing corrosion.
Linked with a back gear, the display automatically switches to the view from the rear camera.
With an optional rear camera connected, you can check the backward situation any time by just pressing the "CAMERA" key.
In addition to repeat and random playback of music files, you can also easily search for songs using the browsing function. Just look for and choose the song you want to hear from the folder name and song name lists.
With 9-Preset EQ patterns to choose from, it's easy to create the sound you like, based on musical genre or your personal preference. What's more, with 13-band Graphic EQ you can set the levels of Bass, Mid and High individually to finely adjust the sound and further optimize your listening environment.
By setting the time delay on each speaker, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.
The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.
IPX7 Waterproof wired remote control (RM-RK62M) is optionally available.
Hideaway Style Weatherproof Bluetooth Receiver
The MBT-RXv2 wireless receiver is designed to easily add high-quality streaming audio capability to virtually any sound system.
Equipped with BLUETOOTH wireless technology and the Qualcomm® aptX™ HD audio codec, the MBT-RXv2 wireless receiver sends top-quality sound directly to any amplifier or source unit with line-level inputs via a pair of crystal-clear preamp outputs (4-volt RMS).
Housed in a sealed and water-resistant (IPX7-rated) chassis, this premium audio receiver is ideally suited for challenging outdoor applications, plus its tiny design can easily fit in almost any installation location. A simple procedure is all it takes to pair MBT-RXv2 to your device, with automatic reconnection afterward. All playback, including volume and media selection, is controlled by using your compatible streaming device from up to 35’ (11 meters) away.
The receiver includes +12-volt (1 amp) remote turn-on output for amplifier control.
Specifications
Bluetooth® Profile
A2DP (High-Quality, Stereo Audio)
Bluetooth® Core Specification
Version 5.0 with Qualcomm® aptX™-HD audio
Frequency Response
20 Hz - 20 kHz (±1dB)
Outputs
One Stereo Pair, Low-Level RCA Plugs
Output Voltage
4V RMS
S/N Ratio
100 dB (20 Hz - 20 kHz)
Input Operating Voltage
10 - 16 VDC
Current Draw
40 mA
Fuse Rating
2 A Mini ATC
Connection Range*
Up to 35' / 11 m
JL Audio MBT-RX Manual
Six-Channel Water Resistant Line-Converter with DSP and Optional Add-on Hi-Res Digital Output, Bluetooth Media Player Upgradable
Upgrade your sound system with this universal DSP “Lite” designed for outdoor vehicles. It features a water-resistant enclosure and zip tie mounts to keep it in place and protected from the elements. This solution is ideal for motorcycles, powersports vehicles, boats, and other outdoor vehicles that could expose the DSP to moisture and heavy vibration. This DSP can be used with OE or aftermarket radios and has an internal header port for adding a wireless streaming interface module (the AXDSPL-BT, which is sold separately) if the vehicle does not have a receiver/head unit.
2-Channel Digital Output Upgradeable with AXDSP-SP (sold separately)Convertible to a Media Receiver with AXDSPL-BT (sold separately)
15 Band graphic EQ
4 inputs and 6 individually assignable outputs
Independent equalization for front, rear, and sub
Independent crossover for front, rear, and sub
Selectable slope (12, 24, 36, or 48db per octave)
Front and rear channels can be delayed independently up to 10ms
Easy behind the radio installation in most applications
Water resistant enclosure with zip tie mounts included
Can be used with OE and aftermarket radios
Chime control for GM/Chrysler vehicles
Clipping detection and limiting circuits
Internal header port for adding a Bluetooth interface module
Bass knob included
Retains OE voice prompts (SYNC® and OnStar®)
Retains factory chimes including parking sensor and cross path
detection alerts
Settings adjusted via Bluetooth® in a smart device application (tablet or mobile phone), compatible with both Android™ and Apple® devices
Read, write, and store configurations for future recall
Password protect feature available in the mobile app
Micro-B USB updatable
Axxess AXDSPL-WR Manual
Hideaway Style Weatherproof Bluetooth Receiver with Panel Mount Controller
Engineered for marine, motorsports and outdoor applications, the MBT-CRXv3 wireless receiver is designed to deliver top-quality streaming audio to almost any sound system over land or water.
Housed in a compact and water-resistant chassis (IP67-rated), this premium audio receiver is well suited for small watercraft, motorcycles, golf carts and utility vehicles. Needing just a single hole for installation, the MBT-CRXv3 wireless receiver can function as a stand-alone, wireless audio source unit or as an add-on, wireless audio controller and receiver. Large backlit controls permit easy operation day or night, and an adaptor plate is included for front-mount applications or where rear access is limited.
Outfitted with BLUETOOTH wireless technology and the Qualcomm® aptX™ HD audio codec, MBT-CRXv3 delivers dynamic, CD-like sound from your compatible streaming device from up to 35’ (11 meters) away. Two sets of stereo preamp outputs (4-volt RMS) are on hand to feed two main audio zones plus a dedicated subwoofer output. Independent audio zone level controls with LED color indicators ensure effortless command of your sound system while your streaming device is tucked away.
The receiver includes +12-volt (1 amp) remote turn-on output for amplifier control.
Specifications
Bluetooth® Core Specification
Version 5.0 with Qualcomm® aptX™-HD audio
Current Draw
83 mA (at idle) / 108 mA (at full output)
Input Operating Voltage
8 - 16 VDC
Fuse Rating
2A Mini ATC
Output Voltage
4V RMS
Frequency Response
20 Hz - 20 kHz (±1dB)
Connection Range*
Up to 35 ft / 11 m
S/N Ratio
101 dB (20 Hz - 20 kHz)
Remote Turn-on Output Capacity
350 mA (max)
Bluetooth® Profile
A2DP (High-Quality, Stereo Audio)
Outputs
Two Stereo Pairs Per Zone, Plus One Mono Subwoofer (RCA Plugs)
JL Audio MBT-CRXv2 Manual
MediaMaster-Series Add-on Marine 2.3-Inch Remote Controller
The MMR-20-BE is a wired remote controller engineered to add auxiliary control functionality to MediaMaster® source units.
Built for marine and off-road applications, its weatherproof (IP67 rated) design places frequently used functions of your MediaMaster® source unit in a simple, intuitive design that’s easy-to-use. Its large, backlit controls and LED source indicators are easily identifiable, day or night, with brightness settings that can be adjusted using your MediaMaster® source unit.
A small footprint and simple, one-hole design means the MMR-20-BE can be installed in even the tightest of spaces. Depending on your system layout, you may add up to three MMR-20-BE remote controllers to a single MediaMaster® source unit. Each MMR-20 can be connected up to 75 ft. (22.8 m) away from its source unit.
MediaMaster® remote control capabilities include:
Power On/Off
Source Select
Volume Up/Down
Track Up/Down (USB & BT)
Track Fast-Forward/Fast-Rewind (USB)
Favorite Up/Down (Radio)
Play/Pause (USB & BT)
Mute/Unmute (Radio & Aux)
The MMR-20-BE is compatible with these MediaMaster® source units:
MM100s-BE
MM100s
MM50
Note: Requires MMC Connection Cables (sold separately). Connection cables are available in several lengths to fit your specific application. Y-splitters are also available to connect up to three remotes to a MediaMaster® source unit.
JL Audio MMR-20-BE Manual

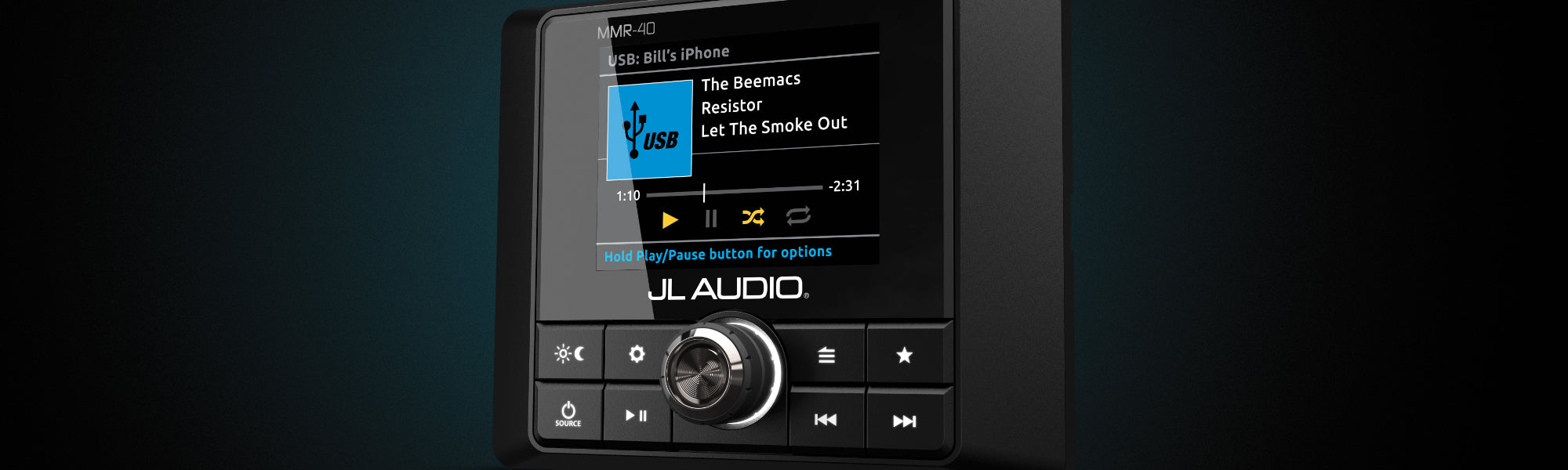

MediaMaster-Series Add-on Marine Network Zone Controller with 2.8-Inch Screen
The MMR-40 is a NMEA 2000® Network Controller engineered to add full-function, auxiliary control to MediaMaster® source units.
Outfitted with a NMEA 2000® Micro-C connector, the MMR-40 connects to a host MediaMaster® source unit in two ways:
Direct interface with a vessel's NMEA 2000® network using applicable NMEA 2000® cables and connectors (not included)
Direct connection of one MMR-40 with one host MediaMaster® source unit using MMC-PN2K powered network cables (sold separately) to simulate an isolated, stand-alone NMEA 2000® network
Once connected, the MMR-40 automatically recognizes the host MediaMaster® source unit and will then mirror all host source unit controls and screen info onto the MMR-40's full-color, 2.8-inch LCD display, resulting in a complete MediaMaster® user experience.
The MMR-40 is equipped with independent display theme and lighting controls for maximum mounting location flexibility, regardless of the settings on the host source unit. Engineered for real-world marine (and many outdoor) applications, its weatherproof (IP66 rated) chassis is built to withstand the harshest environments.
The MMR-40 includes the following features:
NMEA 2000® Certified (LEN 4)
Easy-to-read, high-brightness, 2.8-inch full-color LCD display with large backlit controls
Independent day/night display themes and lighting controls
IP66 rated for real marine duty
Protective Sun Cover included
Note: The MMR-40 is not a stand-alone receiver and does not function without a connected MediaMaster® source unit. All remote control functionality of the MMR-40 is solely derived from the host source unit. Functionality of the MMR-40 requires connection to a NMEA 2000® network or use of MMC-PN2K powered network cables (sold separately).
JL Audio MMR-40 Manual
