Driver Depth 3.5-3.75"

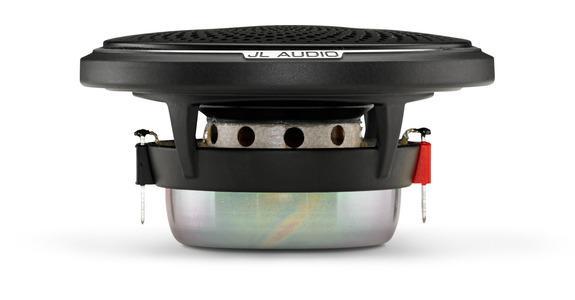

TW3-Series 12-Inch 400-Watt Thin Subwoofer Driver, 4-Ohm or 8-Ohm DVC The 12" TW3 thin subwoofer driver by JL Audio offers a shallow mounting depth with an excursion capability that is remarkably capable of greater excursion than JL's W3v3 full size subwoofers. JL Audio’s TW3 sub utilizes a patented thin-line woofer technology that compresses the architecture of the 12TW3 woofer using a “concentric tube” structure built into the injection-molded cone body. This structure supports the voice coil and spider, while allowing the placement of the large motor structure to be moved further forward on the chassis than with conventional designs. JL Audio 12TW3-D4 and 12TW4-D8 are optimized for small enclosures and offers JL's tab-ear mounting design to maximize cone area within their mounting footprints. Deep, powerful and accurate JL Audio bass is now possible in more applications than ever. Very shallow mounting depth (3.25 / 3.50 Inches) No pole vent: permits mounting close to rear wall of enclosure. Very small sealed enclosure volume requirements Very long linear excursion capability (0.60 In / 15.2 mm, one-way) DMA-optimized motor designs “concentric tube” architecture Patented “floating cone attach method” technology Cast alloy frame Injection molded, mica-filled polypropylene cone Rubber surround Aluminum-alloy dust cap and rear cap with JL Audio logo Precision-built in USA at JL Audio’s Miramar, Florida factory with global components General Specifications Continuous Power Handling 400W RMS Recommended Amplifier Power 200W - 400W RMS Nominal Impedance Dual 4Ω/8Ω JL Audio 12TW3 Manual

Read more less

Six-by-Nine-Inch Coaxial Speaker Drivers, 150-Watt RMS The Kicker KS series 6x9-inch coaxial speakers come with custom bracketing options, built specifically to fit in today’s GM, Chrysler, Subaru, Toyota and Jeep factory speaker locations. KS series speakers let you play at concert-like volume, yet maintain the smoothness and subtlety to please even the most selective ear. They work best with 15 to 150 watts of recommended power. High power handling Tough rubber surrounds Thin-mount design easily fits behind factory grilles Brackets for select GM/Chrysler/Subaru/Jeep and Toyota included Specifications Speaker Design 2-Way Woofer [in, mm] 6 x 9, 160 x 230 Tweeter [in, mm] 1, 25 Rated Impedance [Ω] 4 Recommended Amplifier Power [Watts RMS] 15-150 Sensitivity [1W, 1m] 92 Frequency Response [Hz] 30-21k Mounting Hole Diameter [in, mm] 5-11/16 x 8-7/16, 144 x 215 Top Mount Depth [in, mm] 3-3/16, 81 Bottom Mount Depth [in,mm] 3-11/16, 93 Tweeter Protrusion [in,mm] 1/16, 1 Grilles Yes Tweeter Magnet Material Neodymium Tweeter Dome Material Silk Woofer Cone Material Polypropylene Woofer Surround Material Rubber Kicker KS Series Coaxial Speaker Manual

Read more less

Six-by-Nine-Inch 3-Way Coaxial Speaker Drivers, 150-Watt RMS The Kicker KS series 6x9-inch 3-way coaxial speakers come with custom bracketing options, built specifically to fit in today’s GM, Chrysler, Subaru, Toyota and Jeep factory speaker locations. KS series speakers let you play at concert-like volume, yet maintain the smoothness and subtlety to please even the most selective ear. They work best with 15 to 150 watts of recommended power. High power handling Tough rubber surrounds Thin-mount design easily fits behind factory grilles Brackets for select GM/Chrysler/Subaru/Jeep and Toyota included Specifications Speaker Design 2-Way Woofer [in, mm] 6 x 9, 160 x 230 Midrange [in, mm] 1, 25 Tweeter [in, mm] 3/4, 20 Rated Impedance [Ω] 4 Recommended Amplifier Power [Watts RMS] 15-150 Sensitivity [1W, 1m] 92 Frequency Response [Hz] 30-21k Mounting Hole Diameter [in, mm] 5-11/16 x 8-7/16, 144 x 215 Top Mount Depth [in, mm] 3-1/8, 80 Bottom Mount Depth [in,mm] 3-5/8, 92 Tweeter Protrusion [in,mm] 3/16, 5 Grilles Yes Tweeter Magnet Material Neodymium Tweeter Dome Material Silk Woofer Cone Material Polypropylene Woofer Surround Material Rubber Kicker KS Series Coaxial Speaker Manual

Read more less
