Driver Depth 6.75-7"

Dual 10-Inch Sealed Carpeted Subwoofer-Enclosure for Select 1988-1998 Chevrolet-Silverado and GMC-Sierra Extended-Cab Pickups CLICK HERE TO VIEW SUBWOOFERS THAT FIT THIS BOX! Subwoofer mounting depth: 7.00" Designed specifically for 1988-1998 Chevy Silverado and GMC Sierra Extended Cab Trucks Premium carpeted finish 3/4" Mounting Baffle Hardwood MDF construction Rounded edges Glued and Braced construction Box volume: 0.93 cubic feet (per chamber) Specifications Configuration: Dual Sealed Finish: Charcoal Carpeted Width: 51.75" Height: 9.25" front height - 6.75" rear height Depth: 14.75" front depth - 13.13" rear depth Max Mounting Depth: 7.00" Gross VolumePer Sub: 0.93 per sub Net Volume Per Sub: 0.93 per sub

Read more less

Dual 12-Inch Sealed Carpeted Subwoofer-Enclosure for Select 1988-1998 Chevrolet-Silverado and GMC-Sierra Extended-Cab Pickups CLICK HERE TO VIEW SUBWOOFERS THAT FIT THIS BOX! Subwoofer mounting depth: 7.00" Designed specifically for 1988-1998 Chevy Silverado and GMC Sierra Extended Cab Trucks Premium carpeted finish 3/4" Mounting Baffle Hardwood MDF construction Rounded edges Glued and Braced construction Box volume: 0.93 cubic feet (per chamber) Specifications Configuration: Dual Sealed Finish: Charcoal Carpeted Width: 51.75" Height: 9.25" front height - 6.75" rear height Depth: 14.75" front depth - 13.13" rear depth Max Mounting Depth: 7.00" Gross VolumePer Sub: 0.93 per sub Net Volume Per Sub: 0.93 per sub

Read more less

W6-Series 10-Inch 600-Watt Subwoofer Driver, 4-Ohm DVC The 10W6v3 subwoofer driver offers several technologies similar to JL Audio's W7AE top line of subwoofers to provide powerful advantages in motor linearity and suspension behavior. This 10" automotive sub has a very efficient cooling circuit to deliver reduced distortion and outstanding dynamic balance. This 10" W6v3 driver is best used with an amplifier in the 200W - 600W RMS range and is optimized to operate in a sealed enclosure with only 0.55 cu. ft. (15.6 l) of air space, or a 0.75 cu. ft. (21.2 l) ported enclosure. The JL Audio 10W6V3-D4 subwoofer driver comes with Dual 4Ω voice coils that allow the 10W6v3 to be installed in a 2Ω or 8Ω configuration. General Specifications Continuous Power Handling 600W RMS Recommended Amplifier Power 200 - 600W RMS Nominal Impedance Dual 4Ω JL Audio 10W6v3 Manual

Read more less

W7-Series 8-Inch 500-Watt Subwoofer Driver, 3-Ohm SVC This subwoofer driver has been called the "best damn 8-inch subwoofer ever made" for its remarkable performance capabilities and design attributes. An impressive linear excursion envelope that exceeds 0.75 in. (19 mm) one-way allows it to deliver impact well beyond the range of other 8-inch subwoofer drivers. The 8W7AE is best used with amplifier power in the 200W - 500W range and is optimized to operate in a 0.875 cu. ft. (24.8 l) sealed enclosure, or a 1.0 cu. ft. ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab. W7AE (Anniversary Edition) Subwoofers celebrate the 10th Anniversary of the launch of the W7 subwoofers. Functionally, they are identical to the original W7's, but are they distinguished by the following cosmetic differences: Satin-Black Powdercoated Baskets Bright Anodized Surround Clamp Ring Anniversary Edition Cone Badge Anniversary Edition Terminal Label General Specifications Continuous Power Handling (RMS) 500 W Recommended Amplifier Power (RMS) 200 - 500 W Nominal Impedance (Znom) 3 Ω JL Audio 8W7AE Manual

Read more less

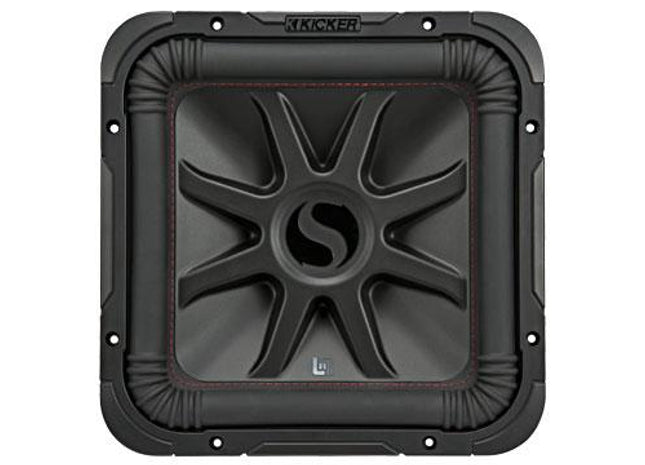

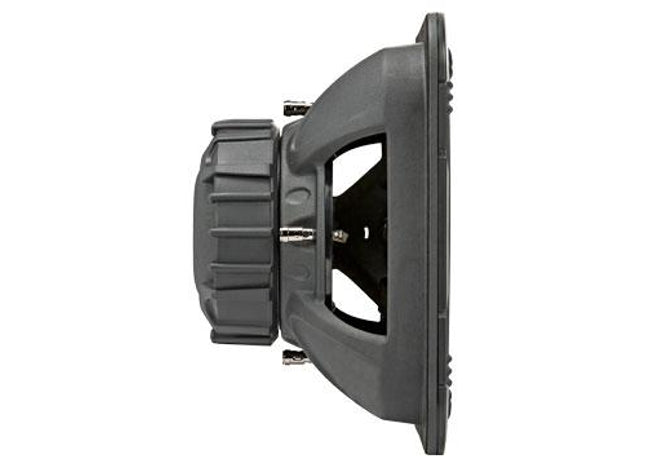

12-Inch 600-Watt Square Subwoofer Driver, 2-Ohm or 4-Ohm DVC This L7 series 12" square woofer by Kicker hosts a heavy-duty motor structure that includes a large-diameter spider for less flex, longer life and superior accuracy. On board the chassis of this 600W driver you will find dual high-temp voice coils, an injection-molded polypropylene cone, SoloKon™ 360-degree back bracing, ribbed santoprene surround with blue stitching and a UniPlate™ back plate and pole piece, plus perimeter venting for thermal heat management. The Kicker 45L7R122 and 45L7R124 square subwoofers are rated for 600W of RMS amplified power. Specifications SIZE [in, cm]: 12, 30 IMPEDANCE [Ohms]: 2 or 4 DVC Recommended Amplifier Power (watts RMS) 600 Peak Power (watts, per ANSI/CTA-2031-A) 1200 SENSITIVITY [dB 1w/1m]: 86.7 MOUNTING DEPTH [in, cm]: 6 7/8, 17.4 MOUNTING DIAMETER [in, cm]: 11 1/16, 28.1 MIN SEALED BOX VOL [cu. ft, L]: .88, 24.92 MAX SEALED BOX VOL [cu. ft, L]: 2, 56.64 MIN VENTED BOX VOL [cu. ft, L]: 1.75, 49.6 MAX VENTED BOX VOL [cu. ft, L]: 3.25, 92 Kicker L7R Subwoofer Manual

Read more less
