75W X 6 @ 4Ω

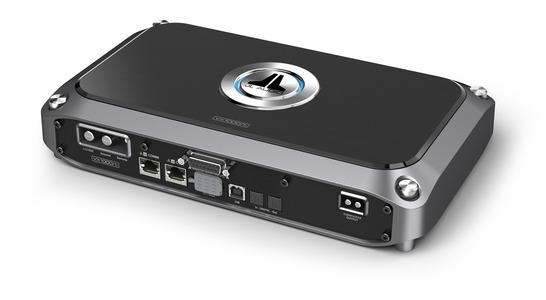

6-Channel Class-D Full-Range Amplifier with Integrated DSP, 100-Watt x 6 @ 2-Ohm / 75-Watt x 6 @ 4-Ohm Designed to simplify great audio, every VXi amplifier combines JL's advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor. With JL's second-generation NexD2™ technology, the VX600/6i full-range amplifier outputs up to 75 watts per channel into 4 ohms, or 100 watts into 2 ohms. It can also be bridged into 4 ohms, producing up a rock-solid 200 W x 3. The NexD2™ full-range technology in this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. The amplifier chassis is ultra-compact, with all connections on one side, to greatly simplify installation into tight spaces. Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN™ Software application installed. Amplifier includes: Power Connector (for 4 AWG wire), Analog Input/Pre-Out Harness, Speaker Output Harness, 6 ft A/B USB Cable TüN™ Software Applications Intuitive setup and tuning, all at your fingertips. Automatically recognizes connected amplifier and displays appropriate interface. TüN™ is available for download for free in a variety of applications, for computers and most handheld devices. Unprecedented, Onboard DSP Tuning Power Premium, triple-core AKM® DSP with an optimized configuration, developed in collaboration with AKM® Hi-Res audio processing at 24 bit/96 kHz High-performance AKM® A/D and D/A converters 10 Bands of fully parametric EQ, per output channel, including pre-outs Shelving EQ option for Band 1 and Band 10 High-Pass & Low-Pass Filters for each output channel, with selectable alignments and slopes: Linkwitz-Riley: 12, 24, 48 dB/octaveButterworth: 6, 12, 18, 24, 36, 48 dB/octave Signal Delay in 0.01 millisecond steps (equivalent to 1/8-inch, 3 mm) All-Pass Filter (Phase EQ), with variable "Q" and corner frequency Polarity Reversal (0 or 180 deg.) Output Level Trim in 0.1 dB steps NexD2™ Switching Amplifier Technology JL's latest generation of high-speed switching technology delivers superb low frequency power and efficiency. Specially optimized for subwoofer applications Ultra-Versatile Analog and Digital Inputs High-performance, differential-balanced analog inputs for outstanding noise rejection Accepts speaker level signals from 200 mV, up to 16V RMS, including those from many factory systems Optical Digital (Toslink) input permits direct connection of S/PDIF digital sources, bypassing A/D converter. Accepts up to 24 bit/192 kHz input. Independently configurable RCA analog and digital pre-outs (24 bit/96 kHz) Automatic turn-on options via Signal-Sensing or DC-Offset sensing Functional Compact Chassis Design Solid cast alloy main unibody and bottom plate deliver superb EMI performance and shielding All connections utilize compact mating connectors for maximum integrity and fitment into tight spaces. Configurable LED logo ring displays status and can display audio preset color code or user-defined color Logo badge can be oriented in 90 degree increments Corner caps engineered to conceal mounting holes and hardware JLid™ System Command and Control with Networking Capabilities JL Audio's digital protocol provides control interface and communication between VXi amplifiers and optional JLid™ accessories, including: DRC-100/DRC-200/DRC-205 Digital Remote Controllers: Offers convenient level and DSP preset control from the driver's seat. VXi-BTC Bluetooth® Communicator: Permits wireless configuration of VXi amplifiers using your compatible Apple® or Android® device. VXi-HUB Optical Network Hub: Provides network connectivity for up to five slave VXi amplifiers, allowing synchronization of DRC controllers and DSP presets. Up to two VXi-HUBs can be daisy-chained to network up to ten VXi amplifiers. Specifications Frequency Response 12 Hz - 24 kHz (+0, -1dB) S/N Ratio, referred to highest rated power (Analog Inputs) 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W (Analog Inputs) 80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to highest rated power (Digital Inputs) 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W (Digital Inputs) 80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Damping Factor @ 4 Ω >100 / 50 Hz Damping Factor @ 2 Ω >50 / 50 Hz THD+N @ Rated Power <1% @ 2 Ω per Ch. Input Voltage Range @ RCA Inputs 200 mV - 16 V RMS Min.Copper Power / Ground Wire Gauge 4 AWG wire Fuse Rating 50 A (AFS, AGU or MaxiFuse™) @ 4 Ω 75 W RMS x 6 @ 2 Ω 100 W RMS x 6 Bridged @ 4Ω 200 W RMS x 3 JL Audio VX600/6i Manual

Read more less

XDM-Series Six-Channel Class-D Marine-Grade Amplifier, 100-Watts x Six-Channels @ 2-Ohm or 75-Watts x 6-Channels @ Four-Ohm The incredibly flexible XDM600/6 packs a serious full-range wallop and delivers a stunning 100-watts to each of its six channels into 2-ohms (14.4V, 1% THD). The technology that makes this much power possible in such a compact chassis is Jl's advanced NexD high-speed switching design, which permits full bandwidth Class D operation with extremely low distortion and remarkable efficiency. Suitable for car or boat installations, the XDM600/6 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades. With the XDM600/6, you have plenty of great use options. Configure it as a six-channel satellite amplifier with 75W x 6 @ 4Ω, or bridge four of its channels to create a staggered power four-channel amplifier with 200W x 2 @ 4Ω for your front satellites and 75W x 2 @ 4Ω for your rear satellites. You can also drive two subwoofers with 200W each, plus a pair of satellites with 75W x 2. The XDM600/6 includes a 12dB / octave filter for each channel bank, which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), you have the ability to adjust the level of two, four, or all six amplifier channels directly from the driver's seat or cockpit. Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access. Specifications @ 4 Ω 75 W RMS x 6 @ 14.4V @ 2 Ω 100 W RMS x 6 @ 14.4V Bridged @ 4Ω 200 W RMS x 3 @ 14.4V @ 4 Ω 60 W RMS x 6 @ 12.5V @ 2 Ω 90 W RMS x 6 @ 12.5V Bridged @ 4Ω 180 W RMS x 3 @ 12.5V Frequency Response 12 Hz - 22 kHz (+0, -1dB) S/N Ratio, referred to highest rated power >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Damping Factor @ 4 Ω >150 / 50 Hz Damping Factor @ 2 Ω >75 / 50 Hz THD+N @ Rated Power <1% @ 2 Ω per Ch. Input Voltage Range @ RCA Inputs 200 mV - 4 V RMS Min.Copper Power / Ground Wire Gauge 4 AWG wire Fuse Rating 50 A (AFS, AGU or MaxiFuse™) Filter Mode(s) Low-Pass or High-Pass Filter Slope(s) 12 dB/octave Filter Frequency Range 50 Hz - 500 Hz Detented, Calibrated Filter Freq. Potentiometers Yes Filter Defeat Function Yes Remote Level Control Optional HD-RLC or MHD-RLC (water-resistant) Remote Level Modes 2 or 4 or All Channels Channel Input Mode Switch Yes (2/4/6 ch.) Pass-Through Preamp Output None Source Channel Selection for PreOuts N/A Height (H) 2.05 in / 52 mm Width (W) 10.23 in / 260 mm Depth (D) 7.09 in / 180 mm Net Weight 5.8 lb / 2.63 kg JL Audio XDM600/6v2 Manual

Read more less
