Add-On Amplifier OEM Integration Interface for Select 2001-2017 Non-Amplified BMW, MINI and Volkswagen Vehicles
This vehicle-specific line output converter features a T-harness that installs quickly and makes it easy for installers to add an amplifier for subwoofers or speakers to a factory radio. It is designed to provide (2) channels of low-level audio output from the factory system, with 55 watts per channel. A Gain Controller is included to adjust overall output, and it is 12v-500mA remote-wire activated with signal sense.
Designed to provide (2) channels of low-level audio output from the factory system
Allows for the installation of an amplifier for speakers or subwoofers
Gain Controller included to adjust the overall output
12v-500mA remote wire activated with signal sense
55 watts per channel

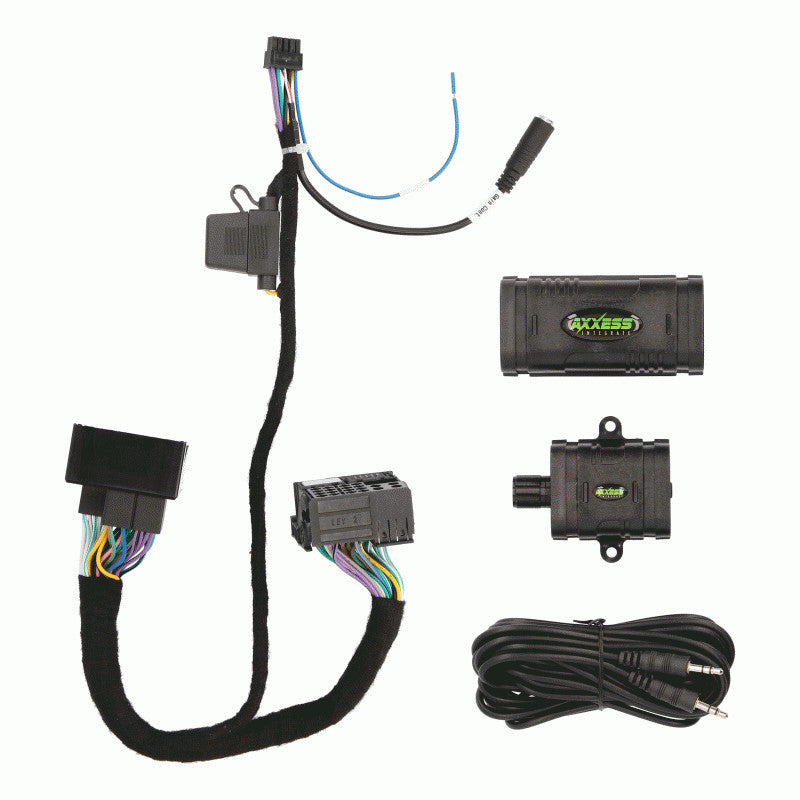

Contents

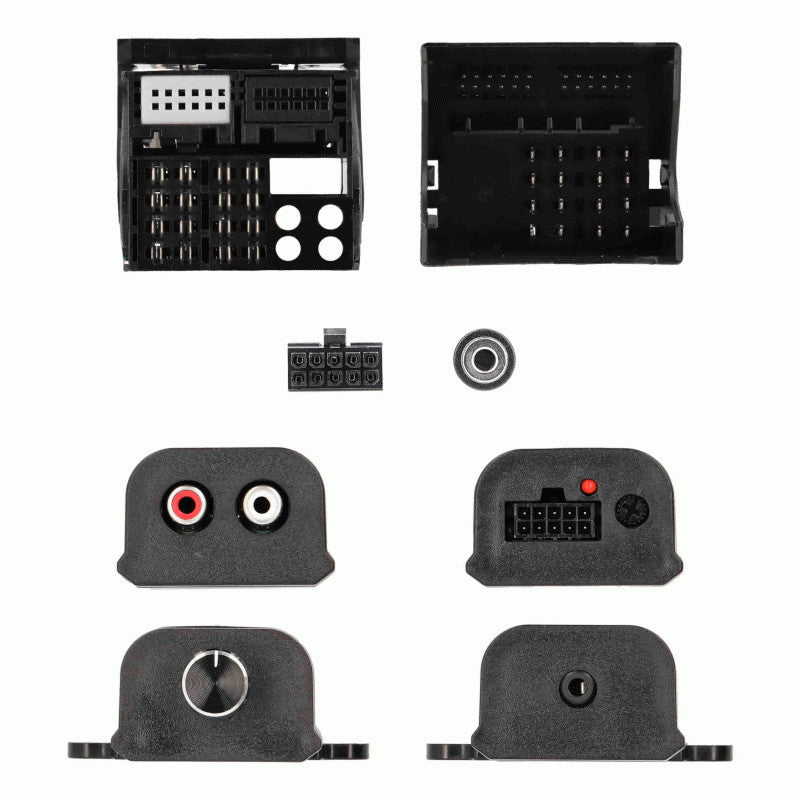

AXLOC-BM1 Wiring Harness
Gain Controller
12v-500mA Remote Wire
Auxiliary Cable
Applications
BMW
3 Series 2002-2006
5 Series 2001-2003
M3 2002-2006
X3 2004-2010
X5 2001-2006
Z4 2003-2008
MINI
Clubman 2008-2014
Convertible 2009-2015
Coupe 2012-2015
Hatchback 2007-2013
Roadster 2012-2015
Volkswagon
Beetle 2012-2015
CC 2009-2017
EOS 2007-2016
Golf 2002-2014
GTI 2006-2014
Jetta 2002-2015
Jetta Sportwagon 2010-2014
Passat 2002-2015
R32 2007-2008
Tiguan 2009-2015
Touareg 2004-2010
Axxess AXLOC-BM1 Manual
