Ford

Add-On Amplifier OEM Integration Line Converter with DSP for Select 2006-2014 Ford Vehicles Upgrade the sound system with this cost-effective, easy-to-install DSP“Lite” package that includes a vehicle-specific T-harness. It works with OEM or aftermarket radios to take fixed level/digitally controlled analog audio and convert it to 6 channels of analog signal for use with an aftermarket amplifier or DSP. Retain Features with a Built-in InterfaceWhile this may be a “Lite” version, it still provides retention of many important vehicle functions utilizing Axxess’s cutting-edge technology. It features chime control, retains OEM voice prompts and sonar sensors, and has clipping detection and limiting circuits, going beyond what a traditional DSP can do. Complete Tuning ControlThere are 4 inputs and 6 outputs, including front, rear and subwoofer, and the front and rear outputs can be delayed independently up to 10ms. Full tuning control settings are adjusted via a smart device application for tablets or mobile phones and can be password-protected once set up. Once tuning has been completed, installers can password-protect their settings to prevent anyone else from adjusting, and the information is stored for future recall. Designed for amplified and non-amplified models Package includes the AXDSP-L and vehicle-specific T-harness 15-band graphic EQ or 5-band Parametric EQ Selectable high pass, low pass, or bandpass filters on each channel 4 inputs and 6 individually assignable outputs Independent equalization on each of the 6 outputs Selectable slope (12, 24, 36, or 48db per octave) Each channel can be delayed independently for up to 10 ms Easy behind the radio installation in most applications Can be used with OE and aftermarket radios Clipping detection and limiting circuits Internal header port for adding interface modules Bass knob included Retains OE voice prompts (Sync®) Retains factory chimes, including parking sensor and cross path detection alerts with adjustable chime level Settings adjusted wirelessly in a smart device application (tablet or mobile phone) Read, write, and store configurations for future recall Password-protect feature is available in the mobile app Applications FORD Edge 2007-2010 Escape 2008-2012 Expedition Non-Sony 2007-2014 F-150 2006-2013 Flex 2009-2012 Focus 2008-2011 Fusion 2006-2012 Mustang 2006-2014 Taurus 2008-2011 Axxess AXDSPL-FD1 Manual

Read more less

Add-On Amplifier OEM Integration Line Converter with DSP for Select 2011-UP Ford Vehicles Upgrade the sound system with this cost-effective, easy-to-install DSP“Lite” package that includes a vehicle-specific T-harness. It works with OEM or aftermarket radios to take fixed level/digitally controlled analog audio and convert it to 6 channels of analog signal for use with an aftermarket amplifier or DSP. Retain Features with a Built-in InterfaceWhile this may be a “Lite” version, it still provides retention of many important vehicle functions utilizing Axxess’s cutting-edge technology. It features chime control, retains OEM voice prompts and sonar sensors, and has clipping detection and limiting circuits, going beyond what a traditional DSP can do. Complete Tuning ControlThere are 4 inputs and 6 outputs, including front, rear and subwoofer, and the front and rear outputs can be delayed independently up to 10ms. Full tuning control settings are adjusted via a smart device application for tablets or mobile phones and can be password-protected once set up. Once tuning has been completed, installers can password-protect their settings to prevent anyone else from adjusting, and the information is stored for future recall. Designed for amplified and non-amplified models Package includes the AXDSP-L and vehicle-specific T-harness 15-band graphic EQ or 5-band Parametric EQ Selectable high pass, low pass, or bandpass filters on each channel 4 inputs and 6 individually assignable outputs Independent equalization on each of the 6 outputs Selectable slope (12, 24, 36, or 48db per octave) Each channel can be delayed independently for up to 10 ms Easy behind the radio installation in most applications Can be used with OE and aftermarket radios Clipping detection and limiting circuits Internal header port for adding interface modules Bass knob included Retains OE voice prompts (Sync®) Retains factory chimes, including parking sensor and cross path detection alerts with adjustable chime level Settings adjusted wirelessly in a smart device application (tablet or mobile phone) Read, write, and store configurations for future recall Password-protect feature is available in the mobile app Applications FORD CMAX non-amplified 2013-2017 EcoSport 2016-2019 Edge Sony or Non-amplified 2011-2018 Edge 2019-2023 Escape 2015-2019 Expedition Sony or Non-amplified 2015-2017 Expedition 2018-2022 Explorer Sony or Non-amplified 2011-2019 F-150 Sony or Non-amplified 2014-2016 F-150 2017-2020 Fiesta 2011-2019 Flex 2013-2019 Focus 2012-2019 Fusion 2013-2020 Mustang 2015-2023 Ranger 2019-2023 Super Duty Sony or Non-amplified 2019-2020 Axxess AXDSPL-FD2 Manual

Read more less

Add-On Amplifier OEM Integration Line Converter with DSP for Select 2020-UP Ford Vehicles Upgrade the sound system with this cost-effective, easy-to-install DSP“Lite” package that includes a vehicle-specific T-harness. It works with OEM or aftermarket radios to take fixed level/digitally controlled analog audio and convert it to 6 channels of analog signal for use with an aftermarket amplifier or DSP. Retain Features with a Built-in InterfaceWhile this may be a “Lite” version, it still provides retention of many important vehicle functions utilizing Axxess’s cutting-edge technology. It features chime control, retains OEM voice prompts and sonar sensors, and has clipping detection and limiting circuits, going beyond what a traditional DSP can do. Complete Tuning ControlThere are 4 inputs and 6 outputs, including front, rear and subwoofer, and the front and rear outputs can be delayed independently up to 10ms. Full tuning control settings are adjusted via a smart device application for tablets or mobile phones and can be password-protected once set up. Once tuning has been completed, installers can password-protect their settings to prevent anyone else from adjusting, and the information is stored for future recall. Designed for non-amplified models Package includes the AXDSP-L and vehicle-specific T-harness Selectable 15-band graphic EQ or 5-band Parametric EQ Selectable high pass, low pass, or bandpass filters on each channel 4 inputs and 6 individually assignable outputs Independent equalization for front, rear and sub Selectable crossover slope (12, 24, 36, or 48db per octave) Each channel can be delayed independently for up to 10ms Easy behind the radio installation with pre-wired harness Can be used with OE and aftermarket radios Clipping detection and limiting circuits Internal header port for adding interface modules Bass knob included for level control of subwoofer amp Settings adjusted via Bluetooth® in a smart device application (tablet or mobile phone) compatible with both Android and Apple devices Read, write, and store configurations for future recall Password-protect feature is available in the mobile app Applications FORD Bronco 2020-2023 Bronco Sport 2020-2023 E series 2021-2023 EcoSport 2020-2023 Escape 2020-2023 Expedition non-amplified 2018-2021 Explorer 2020-2023 F-150 2021-2022 Axxess AXDSPL-FD3 Manual

Read more less

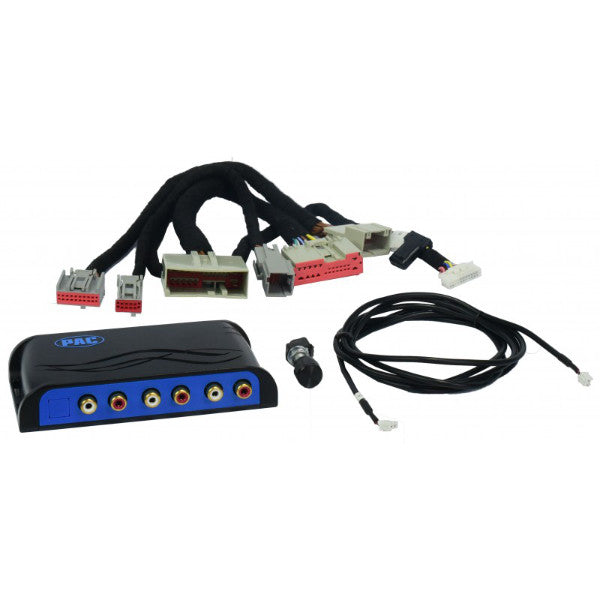

Add-On Amplifier OEM Integration Interface for Select 2007-2014 Amplified Ford and Lincoln Vehicles AmpPRO simplifies the installation of upgraded amplifiers in data-bus-controlled amplified sound systems. With AmpPRO, you can improve audio performance while keeping an original radio’s fit, finish, and features. Benefits Simplifies amplifier installation Prevents the need for summing and DSP devices Provides factory sound system upgrade solution Features It can be used to upgrade the entire sound system or just part of it thanks to the retention of the original amplifier Enables the addition of a subwoofer system to the original sound system Variable volume, fade, balance, bass, mid and treble audio settings Front, rear, sub preamp outputs (5 volt RMS) Provides flat audio output for a solid audio foundation Customized OE bass, mid and treble center frequency selection Retains Sync, Bluetooth audio, and all warning chimes Plug & play installation Sublevel controller Optional TOSLINK optical output (APA-TOS1 sold separately) Includes AmpPRO module 24-pin (MS-CAN) Bass knob Knob harness Manual Also available for fast, easy install: APH-FD01 harness (sold separately) Applications This product is compatible with data-bus-controlled amplified systems only. To identify these systems, look for logos on door speakers, tweeters, dash speakers, or the subwoofer to confirm if the vehicle has a compatible amplified system. If you are unsure of your vehicle having an amplified system, please contact an authorized Ford service center for further clarification. FORD F-150 ALL TRIM LEVELS 2009-2012 FLEX ALL TRIM LEVELS 2009-2012 FUSION ALL TRIM LEVELS 2010-2012 TAURUS ALL TRIM LEVELS 2010-2012 LINCOLN MKS ALL TRIM LEVELS 2009-2012 MKT ALL TRIM LEVELS 2010-2012 MKX ALL TRIM LEVELS 2007-2010 MKZ ALL TRIM LEVELS 2007-2012 NAVIGATOR ALL TRIM LEVELS 2007-2014 Pac Audio AP4-FD11 Manual

Read more less

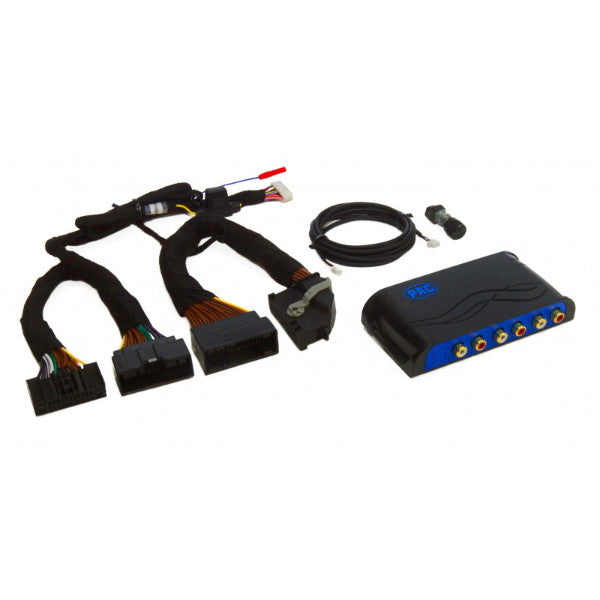

Add-On Amplifier OEM Integration Interface for Select 2011-2020 Amplified Ford and Lincoln Vehicles AmpPRO simplifies the installation of upgraded amplifiers in data-bus controlled amplified sound systems. With AmpPRO, you can improve audio performance while keeping an original radio’s fit, finish and features. Benefits Simplifies amplifier installation Prevents need for summing and DSP devices Provides factory sound system upgrade solution Features Can be used to upgrade the entire sound system or just part of it thanks to retention of original amplifier Enables the addition of a subwoofer system to the original sound system Variable volume, fade, balance, bass, mid and treble audio settings Front, rear, sub preamp outputs (5 volt RMS) Provides flat audio output for a solid audio foundation Customized OE bass, mid and treble center frequency selection Retains Sync, Bluetooth audio and all warning chimes Plug & play installation Sub level controller Optional TOSLINK optical output (APA-TOS1 sold separately) Includes AmpPRO module 24-pin and 54-pin harness (MS CAN) (Dual MS CAN) Bass knob Knob harness Manual Also available for fast easy install: APH-FD01 harness (sold separately) Applications This product is compatible with data-bus controlled amplified systems only. To identify these systems, look for logos on door speakers, tweeters, dash speakers or the subwoofer to confirm that the vehicle has a compatible amplified system. If you are unsure of your vehicle having an amplified system please contact an authorized Ford service center for further clarification. 2018-2019 Super Duty Trucks can have either Sony or B&O systems to be compatible. 2019+ Mustang must have B&O System to be compatible. If the amp looks like the one pictured, it is compatible. The amp can be found in the driver's kick panel. If the system is amplified and not badged then the AP4 is not compatible as this is a completely analog system.  FORD EDGE ALL TRIM LEVELS 2015-2017 ESCAPE ALL TRIM LEVELS 2016 EXPEDITION ALL TRIM LEVELS 2015-2017 EXPLORER ALL TRIM LEVELS 2011-2018 F-150 ALL TRIM LEVELS 2013-2017 F-250 ALL TRIM LEVELS 2013-2019 F-350 ALL TRIM LEVELS 2013-2019 F-450 ALL TRIM LEVELS 2013-2019 F-550 ALL TRIM LEVELS 2013-2019 FOCUS ALL TRIM LEVELS 2012-2017 FUSION ALL TRIM LEVELS 2013-2016 MUSTANG ALL TRIM LEVELS 2019-2020 TAURUS ALL TRIM LEVELS 2013-2015 Pac Audio AP4-FD21 Manual

Read more less

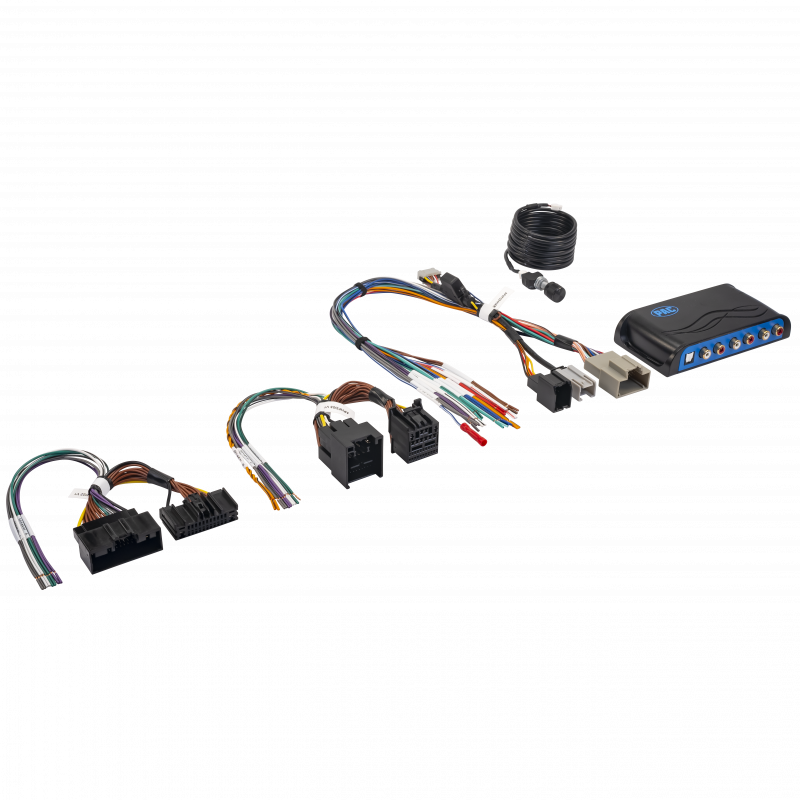

Add-On Amplifier OEM Integration Interface for Select 2018-UP Amplified Ford  Vehicles AmpPRO simplifies the installation of upgraded amplifiers in data-bus controlled amplified sound systems. With AmpPRO, you can improve audio performance while keeping an original radio’s fit, finish and features. Benefits Simplifies amplifier installation Prevents need for summing and DSP devices Provides factory sound system upgrade solution Features Simplifies amplifier installation in data-bus controlled factory sound systems Provides variable volume, control, fade, balance, bass, mid, and treble audio settings Retains warning chimes, navigation prompts, Bluetooth®, and telematics audio (if equipped) Front, rear, and sub preamp outputs (5V RMS) Plug-and-play installation with factory-matched harness Sub level controller included Optical output included Applications Vehicle must be equipped with factory B&O system to be compatible Factory amplifier must be removed from vehicle when installing this interface FORD BRONCO ALL TRIM LEVELS 2021-2023 BRONCO SPORT ALL TRIM LEVELS 2021 ECO SPORT ALL TRIM LEVELS 2021 EDGE ALL TRIM LEVELS 2019-2022 ESCAPE ALL TRIM LEVELS 2021-2022 EXPEDITION ALL TRIM LEVELS 2018-2020 EXPLORER ALL TRIM LEVELS 2020-2023 F-150 ALL TRIM LEVELS 2018-2023 F-250 ALL TRIM LEVELS 2020-2023 F-350 ALL TRIM LEVELS 2020-2023 F-450 ALL TRIM LEVELS 2020 LIGHTNING ALL TRIM LEVELS 2022 MAVERICK ALL TRIM LEVELS 2022 MUSTANG MACH E ALL TRIM LEVELS 2021 RANGER ALL TRIM LEVELS 2020-2023 Pac Audio AP4-FD31 Manual

Read more less
