100W RMS

Aftermarket Status-Series 6.5-Inch 100-Watt Coaxial Speaker System Using expertise gleaned from over five decades of crafting premium car audio products and trickle-down engineering and design from the Ultra Hi-Res AlpineF#1Status system technologies, the Alpine Status system features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand-picked from the highest- quality materials for the highest in-class audio performance, that when used as a complete system, can achieve 192kHz/24bit playback. Drawing inspiration from the AlpineF#1Status system, the HDZ-65 features a unified carbon composite cone construction throughout the speaker components for a unified timbre identity. Alpine Proprietary Double Gathered Edge Surround technology gives the speakers ultra-low distortion and linear diaphragm movement that reproduces music true to the artist’s original intentions. Custom developed for Hi-Res Audio Playback, the HDZ-65 has an ultra-wide bandwidth of 55Hz-40kHz which is perfectly suited for accurate reproduction of even the highest quality of studio recordings. Each speaker component is designed to cover a wider range of playback spectrum giving the tuner a wider range of adjustability. The Alpine Status speaker line features two fitments for flexible installation options including a custom-fix model for custom applications and factory-fit models that were intentionally designed to fit into most factory speaker holes without custom work. The HDZ-65 is a factory-fit model that includes a 6.5-inch mid-bass driver and a 1-inch coaxial high-range driver. The Alpine Status System is sold separately and can be used to build a custom sound system. Three sets of true 4V preamp outputs are included to add additional amplifiers if more power is needed. For best results, install the complete Alpine Status system together as a full system to achieve the highest in-class audio performance only second to the Ultra High-Resolution AlpineF#1System. Features Hi-Res Audio Playback (192kHz/24Bit) w/full Alpine Status system Carbon Composite Diaphragm Material  Alpine Proprietary Double Gathered Edge Surround  6.5” Mid-Bass Driver (16.5cm) 1” Coaxial Tweeter (2.5cm) Specifications 100W RMS 300W Peak Power Handling  Frequency response: 55Hz – 40kHz Sensitivity: 88dB Sold by the Pair Alpine HDZ-65 Manual

Read more less

Aftermarket Status-Series 6.5-Inch 100-Watt 3-Way Component Speaker System Using expertise gleaned from over five decades of crafting premium car audio products and trickle-down engineering and design from the Ultra Hi-Res AlpineF#1Status system technologies, the Alpine Status system features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand-picked from the highest-quality materials for the highest in-class audio performance, that when used as a complete system, can achieve 192kHz/24bit playback. Drawing inspiration from the AlpineF#1Status system, the HDZ-653 features a unified carbon composite cone construction throughout the speaker components for a unified timbre identity. Alpine Proprietary Double Gathered Edge Surround technology gives the speakers ultra-low distortion and linear diaphragm movement that reproduces music true to the artist’s original intentions. Custom developed for Hi-Res Audio Playback, the HDZ-653 has an ultra-wide bandwidth of 55Hz-40kHz which is perfectly suited for accurate reproduction of even the highest quality of studio recordings. Each speaker component is designed to cover a wider range of playback spectrum giving the tuner a wider range of adjustability. The Alpine Status speaker line features two fitments for flexible installation options including a custom-fix model for custom applications and factory-fit models that were intentionally designed to fit into most factory speaker holes without custom work. The HDZ-653 is a custom-fit model that includes a 6.5- inch Mid-Bass driver, a 3.5-inch Midrange driver, and 1.25-inch High-Range driver. The Alpine Status System is sold separately and can be used to build a custom sound system. Three sets of true 4V preamp outputs are included to add additional amplifiers if more power is needed. For best results, install the complete Alpine Status system together as a full system to achieve the highest in-class audio performance only second to the Ultra High-Resolution AlpineF#1System. Features Hi-Res Audio Playback (192kHz/24Bit) w/full Alpine Status system Carbon Composite Diaphragm Material  Alpine Proprietary Double Gathered Edge Surround  6.5” Mid-Bass Driver (16.5cm) 3.5" Midrange Driver (8.5cm) 1.25” High Range Driver (3.2cm) Specifications 100W RMS 300W Peak Power Handling  Frequency response: 55Hz – 40kHz Sensitivity: 88dB Sold by the Pair Alpine HDZ-653 Manual

Read more less

Aftermarket Status-Series 6.5-Inch 100-Watt 3-Way Thin Component Speaker System Using expertise gleaned from over five decades of crafting premium car audio products and trickle-down engineering and design from the Ultra Hi-Res AlpineF#1Status system technologies, the Alpine Status system features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand-picked from the highest-quality materials for the highest in-class audio performance, that when used as a complete system, can achieve 192kHz/24bit playback. Drawing inspiration from the AlpineF#1Status system, the HDZ-653S features a unified carbon composite cone construction throughout the speaker components for a unified timbre identity. Alpine Proprietary Double Gathered Edge Surround technology gives the speakers ultra-low distortion and linear diaphragm movement that reproduces music true to the artist’s original intentions. Custom developed for Hi-Res Audio Playback, the HDZ-653S has an ultra-wide bandwidth of 55Hz-40kHz which is perfectly suited for accurate reproduction of even the highest quality of studio recordings. Each speaker component is designed to cover a wider range of playback spectrum giving the tuner a wider range of adjustability. The Alpine Status speaker line features two fitments for flexible installation options including a custom-fix model for custom applications and factory-fit models that were intentionally designed to fit into most factory speaker holes without custom work. The HDZ-653S is a custom-fit model that includes a 6.5- inch Mid-Bass driver, a 3.5-inch Midrange driver, and 1.25-inch High-Range driver. The Alpine Status System is sold separately and can be used to build a custom sound system. Three sets of true 4V preamp outputs are included to add additional amplifiers if more power is needed. For best results, install the complete Alpine Status system together as a full system to achieve the highest in-class audio performance only second to the Ultra High-Resolution AlpineF#1System. Features Hi-Res Audio Playback (192kHz/24Bit) w/full Alpine Status system Carbon Composite Diaphragm Material  Alpine Proprietary Double Gathered Edge Surround  6.5” Mid-Bass Driver (16.5cm) 3.5" Midrange Driver (8.5cm) 1.25” High Range Driver (3.2cm) Specifications 100W RMS 300W Peak Power Handling  Frequency response: 55Hz – 40kHz Sensitivity: 88dB Sold by the Pair Alpine HDZ-653S Manual

Read more less

Aftermarket Status-Series 6.5-Inch 100-Watt Component Speaker System Using expertise gleaned from over five decades of crafting premium car audio products and trickle-down engineering and design from the Ultra Hi-Res AlpineF#1Status system technologies, the Alpine Status system features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand-picked from the highest-quality materials for the highest in-class audio performance, that when used as a complete system, can achieve 192kHz/24bit playback. Drawing inspiration from the AlpineF#1Status system, the HDZ-65C features a unified carbon composite cone construction throughout the speaker components for a unified timbre identity. Alpine Proprietary Double Gathered Edge Surround technology gives the speakers ultra-low distortion and linear diaphragm movement that reproduces music true to the artist’s original intentions. Custom developed for Hi-Res Audio Playback, the HDZ-65C has an ultra-wide bandwidth of 55Hz-40kHz which is perfectly suited for accurate reproduction of even the highest quality of studio recordings. Each speaker component is designed to cover a wider range of playback spectrum giving the tuner a wider range of adjustability. The Alpine Status speaker line features two fitments for flexible installation options including a custom-fix model for custom applications and factory-fit models that were intentionally designed to fit into most factory speaker holes without custom work. The HDZ-65C is a factory-fit model that includes a 6.5-inch mid-bass driver and a 1-inch coaxial high-range driver. The Alpine Status System is soldseparately and can be used to build acustom sound system. Three sets of true4V preamp outputs are included to add needed. For best results, install the additional amplifiers if more power iscomplete Alpine Status system togetheras a full system to achieve the highestin-class audio performance only second to the Ultra Hi-Resolution AlpineF#1System. Features Hi-Res Audio Playback (192kHz/24Bit) w/full Alpine Status system Carbon Composite Diaphragm Material  Alpine Proprietary Double Gathered Edge Surround  6.5” Mid-Bass Driver (16.5cm) 1.25” High Range Driver (3.2cm) Specifications 100W RMS 300W Peak Power Handling  Frequency response: 55Hz – 40kHz Sensitivity: 88dB Sold by the Pair Alpine HDZ-65C Manual

Read more less

Aftermarket Status-Series 6.5-Inch 100-Watt Thin Component Speaker System Using expertise gleaned from over five decades of crafting premium car audio products and trickle-down engineering and design from the Ultra Hi-Res AlpineF#1Status system technologies, the Alpine Status system features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand-picked from the highest-quality materials for the highest in-class audio performance, that when used as a complete system, can achieve 192kHz/24bit playback. Drawing inspiration from the AlpineF#1Status system, the HDZ-65CS features a unified carbon composite cone construction throughout the speaker components for a unified timbre identity. Alpine Proprietary Double Gathered Edge Surround technology gives the speakers ultra-low distortion and linear diaphragm movement that reproduces music true to the artist’s original intentions. Custom developed for Hi-Res Audio Playback, the HDZ-65CS has an ultra-wide bandwidth of 55Hz-40kHz which is perfectly suited for accurate reproduction of even the highest quality of studio recordings. Each speaker component is designed to cover a wider range of playback spectrum giving the tuner a wider range of adjustability. The Alpine Status speaker line features two fitments for flexible installation options including a custom-fix model for custom applications and factory-fit models that were intentionally designed to fit into most factory speaker holes without custom work. The HDZ-65CS is a factory-fit model that includes a 6.5-inch mid-bass driver and a 1-inch coaxial high-range driver. The Alpine Status System is sold separately and can be used to build a custom sound system. Three sets of true 4V preamp outputs are included to add additional amplifiers if more power is needed. For best results, install the complete Alpine Status system together as a full system to achieve the highest in-class audio performance only second to the Ultra High-Resolution AlpineF#1System. Features Hi-Res Audio Playback (192kHz/24Bit) w/full Alpine Status system Carbon Composite Diaphragm Material  Alpine Proprietary Double Gathered Edge Surround  6.5” Mid-Bass Driver (16.5cm) 1.25” High Range Driver (3.2cm) Specifications 100W RMS 300W Peak Power Handling  Frequency response: 55Hz – 40kHz Sensitivity: 88dB Sold by the Pair Alpine HDZ-65CS Manual

Read more less

R-Series 6.5-Inch 100-Watt Coaxial Speaker System Using “trickle-down” technology, inspired design, and performance cues from the Ultra-High-Resolution AlpineF#1Status systems, the Next-Generation R-Series Speakers are Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This ultra-wide bandwidth brings music even closer to the original source while the classic R-Series design maintains the “loud and fun” performance quality that long-time fans have come to enjoy. The new lightweight and rigid glass fiber-reinforced cone material allows for extreme movement and low distortion which results in an incredibly accurate and clean sound during playback. The Next-Generation R-Series speakers utilize a ferrite magnet, different from the neodymium from previous generations, and a larger motor structure that contributes to more mid-bass during the playback. Despite the larger motor structure, the speakers still maintain the same depth for easy installation. Continuing with the Next-Generation R-Series speaker line is Alpine-exclusive High Amplitude Multi-Roll (HAMR) surround technology that increased excursions while maintaining linearity for more accurate music reproduction. The Next-Generation R-Series speaker line offers two pathways for performance: the “Pro” and “Standard” models. The R2-S65 is a standard coaxial speaker set that includes a 6.5” Mid-Range and 1” Coaxial Tweeter with a flexible in-line crossover network that simplifies installation. Sold as a pair. Features Hi-Res Audio Certified Glass Fiber Reinforced Cone  Ferrite Magnet Structure  High-Amplitude Multi-Roll (H.A.M.R.) Surround  2 Premium-Grade Crossover Networks   Magnesium Hard-Dome Tweeters with Swivel Mount Design and Threaded Removable Housing  Protective Open Mesh Grille Pair Included Specifications 6.5” Mid-Bass with 1” Tweeter Frequency Response: 65Hz -40kHz  Power Handling: 100W RMS / 300W Peak

Read more less

R-Series PRO 6.5-Inch 100-Watt Component Door Speaker System with Aluminum Basket Using “trickle-down” technology, inspired design, and performance cues from the Ultra-High-Resolution AlpineF#1Status systems, the Next-Generation R-Series Speakers are Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This ultra-wide bandwidth brings music even closer to the original source while the classic R-Series design maintains the “loud and fun” performance quality that long-time fans have come to enjoy. The Next-Generation R-Series speakers now come in upgraded 'Pro' models in addition to the standard model lineup. The pro models utilize a highly rigid, die-cast aluminum basket that eliminates flexing and resonance during playback to ensure the highest quality sound performance. The new lightweight and rigid glass fiber-reinforced cone material allows for extreme movement and low distortion which results in an incredibly accurate and clean sound during playback. The Next-Generation R-Series speakers utilize a ferrite magnet, different from the neodymium from previous generations, and a larger motor structure that contributes to more mid-bass during the playback. Despite the larger motor structure, the speakers still maintain the same depth for easy installation. Continuing with the Next-Generation R-Series speaker line is Alpine-exclusive High Amplitude Multi-Roll (HAMR) surround technology that increased excursions while maintaining linearity for more accurate music reproduction. Magnesium, hard-dome tweeters contribute to the “loud and fun” R-series sound signature and feature a swivel- mount design for optimal listening positioning and threaded removable housing for flexible factory applications. The Next-Generation R-Series speaker line offers two pathways for performance: the “Pro” and “Standard” models. The R2-S65C is a standard component speaker set that includes a 6.5” Mid-Range and 1” Tweeter with a flexible in-line crossover network that simplifies installation. Sold as a pair. Features Hi-Res Audio Certified Glass Fiber Reinforced Cone  Die-Cast Aluminum Basket  Ferrite Magnet Structure  High-Amplitude Multi-Roll (H.A.M.R.) Surround  2 Premium-Grade Full Passive Performance Crossover Networks   Magnesium Hard-Dome Tweeters with Swivel Mount Design and Threaded Removable Housing  Protective Open Mesh Grille Pair Included Specifications 6.5” Mid-Bass with 1” Tweeter Frequency Response: 65Hz -40kHz  Power Handling: 100W RMS / 300W Peak

Read more less

R-Series PRO 6.5-Inch 100-Watt Component Door Speaker System with Aluminum Basket Using “trickle-down” technology, inspired design, and performance cues from the Ultra-High-Resolution AlpineF#1Status systems, the Next-Generation R-Series Speakers are Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This ultra-wide bandwidth brings music even closer to the original source while the classic R-Series design maintains the “loud and fun” performance quality that long-time fans have come to enjoy. The Next-Generation R-Series speakers now come in upgraded 'Pro' models in addition to the standard model lineup. The pro models utilize a highly rigid, die-cast aluminum basket that eliminates flexing and resonance during playback to ensure the highest quality sound performance. The new lightweight and rigid glass fiber-reinforced cone material allows for extreme movement and low distortion which results in an incredibly accurate and clean sound during playback. The Next-Generation R-Series speakers utilize a ferrite magnet, different from the neodymium from previous generations, and a larger motor structure that contributes to more mid-bass during the playback. Despite the larger motor structure, the speakers still maintain the same depth for easy installation. Continuing with the Next-Generation R-Series speaker line is Alpine-exclusive High Amplitude Multi-Roll (HAMR) surround technology that increased excursions while maintaining linearity for more accurate music reproduction. Magnesium, hard-dome tweeters contribute to the “loud and fun” R-series sound signature and feature a swivel- mount design for optimal listening positioning and threaded removable housing for flexible factory applications. The Next-Generation R-Series speaker line offers two pathways for performance: the “Pro” and “Standard” models. The R2-S65C is a standard component speaker set that includes a 6.5” Mid-Range and 1” Tweeter with a flexible in-line crossover network that simplifies installation. Sold as a pair. Features Hi-Res Audio Certified Glass Fiber Reinforced Cone  Die-Cast Aluminum Basket  Ferrite Magnet Structure  High-Amplitude Multi-Roll (H.A.M.R.) Surround  2 Premium-Grade Full Passive Performance Crossover Networks   Magnesium Hard-Dome Tweeters with Swivel Mount Design and Threaded Removable Housing  Protective Open Mesh Grille Pair Included Specifications 6.5” Mid-Bass with 1” Tweeter Frequency Response: 65Hz -40kHz  Power Handling: 100W RMS / 300W Peak

Read more less

R-Series 6.5-Inch 100-Watt Component Door Speaker System Using “trickle-down” technology, inspired design, and performance cues from the Ultra-High-Resolution AlpineF#1Status systems, the Next-Generation R-Series Speakers are Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This ultra-wide bandwidth brings music even closer to the original source while the classic R-Series design maintains the “loud and fun” performance quality that long-time fans have come to enjoy. The new lightweight and rigid glass fiber-reinforced cone material allows for extreme movement and low distortion which results in an incredibly accurate and clean sound during playback. The Next-Generation R-Series speakers utilize a ferrite magnet, different from the neodymium from previous generations, and a larger motor structure that contributes to more mid-bass during the playback. Despite the larger motor structure, the speakers still maintain the same depth for easy installation. Continuing with the Next-Generation R-Series speaker line is Alpine-exclusive High Amplitude Multi-Roll (HAMR) surround technology that increased excursions while maintaining linearity for more accurate music reproduction. Magnesium, hard-dome tweeters contribute to the “loud and fun” R-series sound signature and feature a swivel- mount design for optimal listening positioning and threaded removable housing for flexible factory applications. The Next-Generation R-Series speaker line offers two pathways for performance: the “Pro” and “Standard” models. The R2-S65C is a standard component speaker set that includes a 6.5” Mid-Range and 1” Tweeter with a flexible in-line crossover network that simplifies installation. Sold as a pair. Features Hi-Res Audio Certified Glass Fiber Reinforced Cone  Ferrite Magnet Structure  High-Amplitude Multi-Roll (H.A.M.R.) Surround  2 Premium-Grade In-Line Crossover Networks   Magnesium Hard-Dome Tweeters with Swivel Mount Design and Threaded Removable Housing  Protective Open Mesh Grille Pair Included Specifications 6.5” Mid-Bass with 1” Tweeter Frequency Response: 65Hz -40kHz  Power Handling: 100W RMS / 300W Peak

Read more less

R-Series 6X9-Inch 100-Watt Coaxial Door Speaker System Using “trickle-down” technology, inspired design, and performance cues from the Ultra-High-Resolution AlpineF#1Status systems, the Next-Generation R-Series Speakers are Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This ultra-wide bandwidth brings music even closer to the original source while the classic R-Series design maintains the “loud and fun” performance quality that long-time fans have come to enjoy. The new lightweight and rigid glass fiber-reinforced cone material allows for extreme movement and low distortion which results in an incredibly accurate and clean sound during playback. The Next-Generation R-Series speakers utilize a ferrite magnet, different from the neodymium from previous generations, and a larger motor structure that contributes to more mid-bass during the playback. Despite the larger motor structure, the speakers still maintain the same depth for easy installation. Continuing with the Next-Generation R-Series speaker line is Alpine-exclusive High Amplitude Multi-Roll (HAMR) surround technology that increased excursions while maintaining linearity for more accurate music reproduction. The Next-Generation R-Series speaker line offers two pathways for performance: the “Pro” and “Standard” models. The R2-S69 is a standard coaxial speaker set that includes a 6x9” Mid-Range and 1” Tweeter with a flexible in-line crossover network that simplifies installation. Sold as a pair. Features Hi-Res Audio Certified Glass Fiber Reinforced Cone  Die-Cast Aluminum Basket  Ferrite Magnet Structure  High-Amplitude Multi-Roll (H.A.M.R.) Surround  2 Premium-Grade Full Passive Performance Crossover Networks   Magnesium Hard-Dome Tweeters with Swivel Mount Design and Threaded Removable Housing  Protective Open Mesh Grille Pair Included Specifications 6x9” Mid-Bass with 1” Tweeter  Frequency Response: 60Hz -40kHz  Power Handling: 100W RMS / 300W Peak

Read more less

R-Series 6X9-Inch 100-Watt Component Door Speaker System Using “trickle-down” technology, inspired design, and performance cues from the Ultra-High-Resolution AlpineF#1Status systems, the Next-Generation R-Series Speakers are Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This ultra-wide bandwidth brings music even closer to the original source while the classic R-Series design maintains the “loud and fun” performance quality that long-time fans have come to enjoy. The new lightweight and rigid glass fiber-reinforced cone material allows for extreme movement and low distortion which results in an incredibly accurate and clean sound during playback. The Next-Generation R-Series speakers utilize a ferrite magnet, different from the neodymium from previous generations, and a larger motor structure that contributes to more mid-bass during the playback. Despite the larger motor structure, the speakers still maintain the same depth for easy installation. Continuing with the Next-Generation R-Series speaker line is Alpine-exclusive High Amplitude Multi-Roll (HAMR) surround technology that increased excursions while maintaining linearity for more accurate music reproduction. Magnesium, hard-dome tweeters contribute to the “loud and fun” R-series sound signature and feature a swivel- mount design for optimal listening positioning and threaded removable housing for flexible factory applic The Next-Generation R-Series speaker line offers two pathways for performance: the “Pro” and “Standard” models. The R2-S69 is a standard coaxial speaker set that includes a 6x9” Mid-Range and 1” Tweeter with a flexible in-line crossover network that simplifies installation. Sold as a pair. Features Hi-Res Audio Certified Glass Fiber Reinforced Cone  Die-Cast Aluminum Basket  Ferrite Magnet Structure  High-Amplitude Multi-Roll (H.A.M.R.) Surround  2 Premium-Grade Full Passive Performance Crossover Networks   Magnesium Hard-Dome Tweeters with Swivel Mount Design and Threaded Removable Housing  Protective Open Mesh Grille Pair Included Specifications 6x9” Mid-Bass with 1” Tweeter Frequency Response: 60Hz -40kHz  Power Handling: 100W RMS / 300W Peak

Read more less

Alpine 1-Inch Type-S Silk Dome Tweeter Set, 100-Watts RMS The S-S10TW Tweeter’s motor structure was designed to reduce distortion and increase output at high volumes, so you can turn your music up and still experience crystal clear sound. Brighten up your sound stage without sounding overpowering or compromising sound quality. The silk dome design minimizes harsh highs and instead produces a warm and mellow tone. The S-S10TW includes a small, in-line crossover made of high-grade electrical components that seamlessly rolls off your midrange while also passively protecting your tweets from low frequency damage. The small size of the crossover also makes installation fast and convenient. Specifications Max RMS Power Capacity: 80W  Peak Power Capacity: 240W  Material: Silk  Magnet Type: Neodymium  Voice Coil Type: Copper Clad Aluminum  Crossover: Passive 12dB/Octave High-Pass Filter  Frequency Response: 1kHz-22kHz  Sensitivity: 88dB (1W / 1m)  Impedance: 6 Ohm  Flush Mounting Depth: 17.6mm  Cutout Diameter: 51mm

Read more less

C7-Series 1-Inch 100-Watt Aluminum Dome Component Tweeter C7 is the pinnacle of JL Audio automotive loudspeaker design, benefiting from their most advanced development tools and a complete commitment to precision manufacturing. The C7-100ct component tweeter is designed to deliver unparalleled high-frequency performance. Utilizing a corundum ceramic-coated aluminum alloy diaphragm suspended via a treated silk, s-roll surround, it provides spectacularly detailed reproduction of treble frequencies with outstanding off-axis response. Distortion and non-linearities have been minimized through critical optimization of dynamic motor and suspension behaviors. Passive crossover networks are not included with C7 drivers, as they are designed for active systems. Instead, we recommend a high-quality tuning DSP, such as the JL Audio TwK™ 88 or D8, and a dedicated amplifier channel for each C7 loudspeaker in the system. Precise setup of equalization, delay and crossover filters will ensure optimal in-vehicle performance. C7-100ct Design Notes:Dome Diaphragm: Corundum ceramic coated aluminum alloy diaphragm exhibits high stiffness, very low mass and excellent environmental stability. It also helps the tweeter dome to hold its shape and operate as a true piston at higher frequencies, without a penalty in moving mass. Suspension Design: The diaphragm's motion is centered, sprung and damped by a treated silk, s-roll surround. Ferrofluid in the magnetic gap acts as a rear suspension element in this design. The two combine to provide optimum damping without unduly restricting excursion. Motor Design: The C7-100ct employs a high-density magnetic circuit with a neodymium magnet and U-Yoke motor topology. An under-hung voice coil is employed, wound with copper-clad aluminum wire onto an aluminum voice coil former. Motor magnetics have been precisely optimized utilizing advanced FEA tools to lower even order distortion and IMD/AMD. Acoustical Design: The shape of the tweeter housing is designed to boost sensitivity in a very specific bandwidth, helping to flatten the frequency response. It also provides improved control of directivity. Design Bandwidth:With 48 dB/octave filters: 3,000 Hz - 30,000 HzWith 24 dB/octave filters: 4,000 Hz - 30,000 HzWith 12 dB/octave filters: 5,000 Hz - 30,000 Hz Sold individually, with flush and surface mounting fixtures and hardware. One 15μF tweeter protection capacitor is also included. The performance of every C7 driver is tested and verified, then assigned a unique serial number. Register your C7 loudspeaker online to receive a copy of its specific Acoustical Test Report. General Specifications Continuous Power Handling (RMS) 100 W Peak Music Power 200 W Recommended Amplifier Power (RMS) 50 - 150 W / Ch. Nominal Impedance 4 Ω Frequency Response 3 kHz - 30 KHz ± 3 dB JL Audio C7-100ct Manual

Read more less

C7-Series 3.5-Inch 100-Watt Component Midrange Speaker with Grille C7 is the pinnacle of JL Audio automotive loudspeaker design, benefiting from their most advanced development tools and a complete commitment to precision manufacturing. The C7-350cm component midrange is designed to operate in a 3-way system, with a woofer and tweeter. Conceived and purpose-built from the ground up, it offers exceptional transient response and outstanding linearity, resulting in unsurpassed clarity and natural mid-range reproduction. Distortion and non-linearities have been minimized through critical optimization of dynamic motor and suspension behaviors. Passive crossover networks are not included with C7 drivers, as they are designed for active systems. Instead, we recommend a high-quality tuning DSP, such as the JL Audio TwK™ 88 or D8, and a dedicated amplifier channel for each C7 loudspeaker in the system. Precise setup of equalization, delay and crossover filters will ensure optimal in-vehicle performance. C7-350cm Design Notes:Cone and Dust Cap: Vacuum-formed, mineral-filled polypropylene material offers excellent damping and low mass. The cone body features a gentle curvilinear profile to optimize response. A concave dust cap further improves high frequency behavior. Suspension design: The moving assembly is suspended and damped via a linear profile spider formed from a Nomex®/polycotton blend, and a positive-roll, rubber surround. The two combine to provide optimum damping without prematurely restricting excursion. Motor Design: The C7-350cm employs a high-density magnetic circuit with a high-grade, neodymium magnet, and a specially machined, U-Yoke motor topology. Motor magnetics have been precisely optimized utilizing advanced FEA tools to reduce distortion and provide linear motor force throughout the driver's performance range. A 36 mm (1.42 inch) diameter, overhung voice coil is employed, wound with copper-clad aluminum wire onto a fiberglass voice coil former. The oversized voice coil offers extended power handling capability, minimizing thermal compression and distortion at higher listening levels. Chassis Design: A purpose-engineered cast alloy basket is employed, featuring thin spokes to maximize rear open area. Design Bandwidth:With 48 dB/octave filters: 300 Hz - 10 kHzWith 24 dB/octave filters: 400 Hz - 10 kHzWith 12 dB/octave filters: 500 Hz - 10 kHz Built in USA with Global ComponentsSold individually, with a cast-alloy grille tray, one fine mesh steel grille insert and one spiral steel grille insert. The performance of every C7 driver is tested and verified, then assigned a unique serial number. Register your C7 loudspeaker online to receive a copy of its specific Acoustical Test Report. General Specifications Continuous Power Handling (RMS) 100 W Peak Music Power 200 W Recommended Amplifier Power (RMS) 50 - 150 W / Ch. Nominal Impedance 4 Ω Frequency Response 300 Hz - 10 KHz ± 3 dB JL Audio C7-350cm Manual

Read more less

6.75-Inch 100-Watt RMS Convertible Component Automotive Door Speakers The 6.75" QS series audiophile component door speakers by Kicker offer stunning midrange drivers, audiophile precise tweeters and a superior crossover network. The QS 6-3/4 Inch convertible speakers are a matched component system, built for pure sonic reproduction.  The Kicker 41QSS674 crossovers allow you to use a single amplifier channel, or use bi-amplification for even more flexibility and control. These 6.75" QS series convertible speakers can be installed as a pair of components or a coaxial configuration. These Kicker speakers work best with 100 watts of recommended power. See below for more details. Specifications Woofer (in., mm) 6-3/4, 165 Tweeter (in., mm) 1-3/16, 30 Tweeter dome material Tetoron® Rated Impedance [Ω] 4 Recommended Amplifier Power (watts RMS) 100 Peak Power (watts, per ANSI/CTA-2031-A) 200 Sensitivity [1W, 1m] 87dB Frequency Response [Hz] 40-22k Woofer Mounting Hole Diameter [in, mm] 5-7/16, 138 Woofer Bottom Mount Depth [in, mm] 2-1/2, 63.5 Flush Mount Tweeter Hole Diameter [in,mm] 1-13/16, 46 Flush Mount Tweeter Depth [in,mm] 1-1/8, 29 High Pass [dB], at Frequency [Hz] 24, 2800 Low Pass [dB], at Frequency [Hz] 12, 2800 High Frequency Output Attenuation [dB] 0, +3, +6 Kicker QSS Series Manual

Read more less

6-3/4" 100-Watt Coaxial Speakers This pair of QS series 6.75" coaxial audiophile speaker drivers by Kicker feature neodymium magnets on the woofer and tweeter, and are bi-amp capable. Incased within the speaker chassis is you will find a 25mm Teteron® dome tweeter with Kicker's custom wave guide technology for near perfect phase alignment for smooth frequency response. The injection-molded Polypropylene cone of this coaxial door speaker is impregnated with carbon-fiber for tight, accurate midrange. An NBR rubber surround provides superior damping, and complemented by a signature blue double surround stitching. The independent 18dB crossover has been optimized for size, and features built-in tweeter protection. Utilizing Metallized Polypropylene capacitors, high-powered resistors and audiophile-grade air-core inductors, the crossover delivers outstanding overall sound quality and easy mounting in a door or under a seat. These Kicker QS 6-and-3/4 inch door speakers have an amplified RMS power range of 100W. This pair of drivers also has speaker adaptor rings, allowing them to be installed using select factory location mounting. Specifications Woofer (in., mm) 6 ¾, 165 Tweeter (in., mm) 1, 25 Tweeter dome material Teteron® Rated Impedance [Ω] 4 Recommended Amplifier Power (watts RMS) 100 Peak Power (watts, per ANSI/CTA-2031-A) 200 Sensitivity [1W, 1m] 86dB Frequency Response [Hz] 40-20k Woofer Mounting Hole Diameter [in, mm] 5 9/16, 141 Woofer Mounting Depth [in, mm] 2 9/16, 64.9 High Pass [dB], at Frequency [Hz] 18, 5.5k Low Pass [dB], at Frequency [Hz] 18, 5.5k Comments Crossover is bi-amp capable. Kicker QS Series Coaxial Speaker Manual

Read more less

6x9-Inch 100-Watt Coaxial Speakers This pair of QS series 6x9" coaxial audiophile speaker drivers by Kicker feature neodymium magnets on the woofer and tweeter, and are bi-amp capable. Incased within the speaker chassis is you will find a 25mm Teteron® dome tweeter with Kicker's custom wave guide technology for near perfect phase alignment for smooth frequency response. The injection-molded Polypropylene cone of this coaxial door speaker is impregnated with carbon-fiber for tight, accurate midrange. An NBR rubber surround provides superior damping, and complemented by a signature blue double surround stitching. The independent 18dB crossover has been optimized for size, and features built-in tweeter protection. Utilizing Metallized Polypropylene capacitors, high-powered resistors and audiophile-grade air-core inductors, the crossover delivers outstanding overall sound quality and easy mounting in a door or under a seat. These Kicker QS 6x9 inch door speakers have an amplified RMS power range of 100W. This pair of drivers also has speaker adaptor rings, allowing them to be installed using select factory location mounting. Specifications Woofer (in., mm) 6x9, 160x230 Tweeter (in., mm) 1, 25 Tweeter dome material Teteron® Rated Impedance [Ω] 4 Recommended Amplifier Power (watts RMS) 100 Peak Power (watts, per ANSI/CTA-2031-A) 200 Sensitivity [1W, 1m] 88dB Frequency Response [Hz] 30-20k Woofer Mounting Hole Diameter [in, mm] 4-13/16x8-5/8, 121.9x219 Woofer Mounting Depth [in, mm] 3, 76.2 High Pass [dB], at Frequency [Hz] 18, 5.5k Low Pass [dB], at Frequency [Hz] 18, 5.5k Comments Crossover is bi-amp capable. Kicker QS Series Coaxial Speaker Manual

Read more less

100-Watt 6.5-Inch Coaxial Speakers, 4-Ohm These CS series 6.5" coaxial speakers by Kicker are a significant upgrade in your sound. A stamped-steel speaker driver chassis supports a rigid polypropylene cone and UV-treated foam surrounds that stand up to heat and direct sunlight. These 100W coaxial's have neodymium tweeter magnets allow for increased volume in high frequencies. These Kicker CS series 6 and a 1/2" speakers work best with 100 watts of recommended power. Specifications Speaker Design 2 - way Woofer Size | in [mm] 6 1/2 [160] Tweeter Size | in [mm] 1/2 [13] DC Resistance | ohm 3.3 Peak Power | Watts 300 Continuous Power | Watts, RMS 100 Sensitivity [SPLo] | dB @ 1W, 1m 90 Effective Frequency Range | Hz 40-20k Mounting Hole Diameter | in [mm] 4 13/16 [123] Top Mount Depth | in [mm] 3/8 [9] Bottom Mount Depth | in [mm] 1 11/16 [43] Tweeter Protrusion | in [mm] 0 Grilles Yes Tweeter Magnet Material Neodymium Tweeter Dome Material PEI [polyether imide] Tweeter Design Balanced dome Woofer Cone Material Polypropylene Woofer Surround Material Polyester foam Kicker CS Series Coaxial Speaker Manual

Read more less

100-Watt 6.75-Inch Coaxial Speakers, 4-Ohm These CS series 6.75" coaxial speakers by Kicker are a significant upgrade in your sound. A stamped-steel speaker driver chassis supports a rigid polypropylene cone and UV-treated foam surrounds that stand up to heat and direct sunlight. These 100W coaxial's have neodymium tweeter magnets allow for increased volume in high frequencies. The Kicker CS series 6 and a 3/4" speakers work best with 100 watts of recommended power. Specifications Speaker Design 2 - way Woofer Size | in [mm] 6 3/4 [165] Tweeter Size | in [mm] 1/2 [13] DC Resistance | ohm 3.3 Peak Power | Watts 300 Continuous Power | Watts, RMS 100 Sensitivity [SPLo] | dB @ 1W, 1m 90 Effective Frequency Range | Hz 40-20k Mounting Hole Diameter | in [mm] 5 1/2 [140] Top Mount Depth | in [mm] 3/16 [4] Bottom Mount Depth | in [mm] 1 13/16 [47] Tweeter Protrusion | in [mm] 0 Grilles Yes Tweeter Magnet Material Neodymium Tweeter Dome Material PEI [polyether imide] Tweeter Design Balanced dome Woofer Cone Material Polypropylene Woofer Surround Material Polyester foam

Read more less

100-Watt Component Speakers Six-1/2" Drivers The CS Series 6-1/2-inch component speakers by Kicker are designed for easy installation in nearly any vehicle. These components include separate titanium flush, angled or surface-mount tweeters and two-way crossovers with tweeter level control to let you customize your sound for the best sonic quality. The Kicker CS Series 6-1/2" speakers work best with up to 100-watts of recommended power. Specifications Woofer Size | in [mm] 6 1/2 [160] Tweeter Size | in [mm] 3/4 [20] Dome Material Titanium Peak Power | [watts] 300 Continuous Power | [watts RMS] 100 Effective Frequency Range | Hz 35-21k Woofer Mounting Hole Diameter | in [mm] 4 13/16 [123] Woofer Bottom Mount Depth | in [mm] 1 11/16 [43] Flush Mounting Tweeter Hole Diameter | in [mm] 1 9/16 [40] Flush Mount Tweeter Depth | in [mm] 9/16 [14.5] High Pass | dB, at Frequency | Hz 12, 4000 Low Pass | dB, at Frequency | Hz 12, 4000 High Frequency Output Attenuation | dB 0, 3, & 6 Bolt-Thru Grilles Yes Kicker CS Component Speaker Manual

Read more less

100-Watt Component Speakers 6.75-Inch Drivers The CS Series 6-3/4-inch component speakers by Kicker are designed for easy installation in nearly any vehicle. These components include separate titanium flush, angled or surface-mount tweeters and two-way crossovers with tweeter level control to let you customize your sound for the best sonic quality. The Kicker CS Series 6-3/4" speakers work best with up to 100-watts of recommended power. Specifications  Woofer Size | in [mm] 6 3/4 [165] Tweeter Size | in [mm] 3/4 [20] Dome Material Titanium Peak Power | [watts] 300 Continuous Power | [watts RMS] 100 Effective Frequency Range | Hz 35-21k Woofer Mounting Hole Diameter | in [mm] 5 1/2 [140] Woofer Bottom Mount Depth | in [mm] 1 13/16 [47] Flush Mounting Tweeter Hole Diameter | in [mm] 1 9/16 [40] Flush Mount Tweeter Depth | in [mm] 9/16 [14.5] High Pass | dB, at Frequency | Hz 12, 4000 Low Pass | dB, at Frequency | Hz 12, 4000 High Frequency Output Attenuation | dB 0, 3, & 6 Bolt-Thru Grilles Yes Kicker CS Component Speaker Manual

Read more less

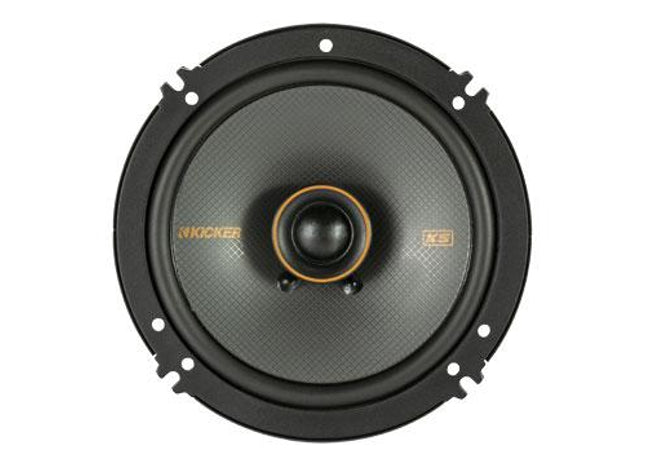

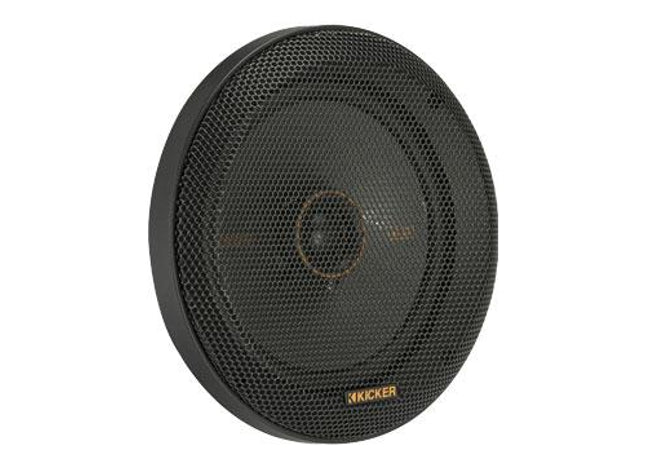

6-1/2-Inch Coaxial Speaker Drivers, 100-Watt RMS The Kicker KS series six-and-a-half-inch coaxial speakers come with three custom bracketing options, built specifically to fit in today’s GM, Chrysler, Subaru, Toyota and Jeep factory speaker locations. KS series speakers let you play at concert-like volume, yet maintain the smoothness and subtlety to please even the most selective ear. They work best with 15 to 100 watts of recommended power. High power handling Tough rubber surrounds Thin-mount design easily fits behind factory grilles Brackets for select GM/Chrysler/Subaru/Jeep and Toyota included Specifications Speaker Design 2-Way Woofer [in, mm] 6-1/2, 160 Tweeter [in, mm] ¾, 20 Rated Impedance [Ω] 4 Recommended Amplifier Power [Watts RMS] 15-100 Sensitivity [1W, 1m] 90 Frequency Response [Hz] 43-21k Mounting Hole Diameter [in, mm] 4-13/16, 123 Top Mount Depth [in, mm] 1-13/16, 46 Bottom Mount Depth [in,mm] 2-3/16, 54 Tweeter Protrusion [in,mm] 5/16, 8 Grilles Yes Tweeter Magnet Material Neodymium Tweeter Dome Material Silk Woofer Cone Material Polypropylene Woofer Surround Material Rubber Kicker KS Series Coaxial Speaker Manual

Read more less

6.75-Inch Coaxial Speaker Drivers, 100-Watt RMS The Kicker KS series six-and-three-quarter-inch coaxial speakers come with three custom bracketing options, built specifically to fit in today’s GM, Chrysler, Subaru, Toyota and Jeep factory speaker locations. KS series speakers let you play at concert-like volume, yet maintain the smoothness and subtlety to please even the most selective ear. They work best with 15 to 100 watts of recommended power. High power handling Tough rubber surrounds Thin-mount design easily fits behind factory grilles Brackets for select GM/Chrysler/Subaru/Jeep and Toyota included Specifications Speaker Design 2-Way Woofer [in, mm] 6-3/4, 165 Tweeter [in, mm] ¾, 20 Rated Impedance [Ω] 4 Recommended Amplifier Power [Watts RMS] 15-100 Sensitivity [1W, 1m] 90 Frequency Response [Hz] 40-21k Mounting Hole Diameter [in, mm] 5-9/16, 141 Top Mount Depth [in, mm] 1-13/16, 46 Bottom Mount Depth [in,mm] 2, 50 Tweeter Protrusion [in,mm] 3/8, 10 Grilles Yes Tweeter Magnet Material Neodymium Tweeter Dome Material Silk Woofer Cone Material Polypropylene Woofer Surround Material Rubber Kicker KS Series Coaxial Speaker Manual

Read more less

5.25-Inch 100-Watt Component or Coaxial Mountable Speaker System Kicker KS-Series door-speakers let you play at concert-like volume while pleasing even the most selective ear. Internally dampened polypropylene cones and durable rubber surrounds assist the woofers in creating precise midrange and bass, while high-quality silk-dome tweeters deliver natural, detailed highs. These 5.25" Kicker speakers component system with separate tweeters, or convert them to a coaxial system. The woofers’ removable bullet-style phase plug is replaced with a special adapter, allowing the 25 millimeter, silk-dome tweeters to rotate and tilt. You get more system design options and superior off-axis performance. They work best with 15 to 100 watts of recommended power. See below for more details. High power handling Silk-dome tweeters for a smooth sound Polypropylene woofer and tough rubber surrounds Thin-mount design easily fits behind factory grilles Four tweeter mounting options Articulating tweeter pod included Smaller crossover makes mounting even easier Grilles included Specifications Woofer [in, mm] 5-¼, 130 Tweeter [in,mm] 1, 25 Dome Material Silk Rated Impedance [Ω] 4 Recommended Amplifier Power [Watts RMS] 15-100 Sensitivity [1W, 1m] 88 Frequency Response [Hz] 38-21k Woofer Mounting Hole Diameter [in, mm] 4-½, 115 Woofer Bottom Mount Depth [in, mm] 1-¾, 45 Flush Mount Tweeter Hole Diameter [in,mm] 1-¾, 45 Flush Mount Tweeter Depth [in,mm] 11⁄16 , 17 High Pass [dB], at Frequency [Hz] 12, 4,000 Low Pass [dB], at Frequency [Hz] none High Frequency Output Attenuation [dB] 0, 4.5, 9 Kicker KS Series Component Speaker Manual

Read more less

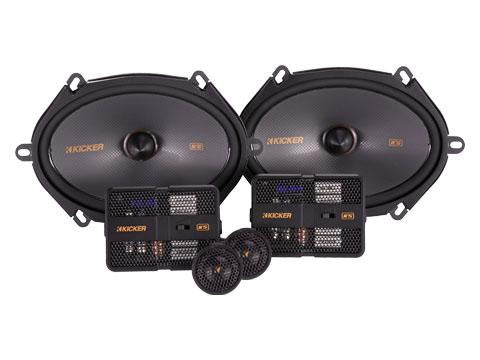

6x8-Inch 100-Watt Component or Coaxial Mountable Speaker System Kicker KS-Series door-speakers let you play at concert-like volume while pleasing even the most selective ear. Internally dampened polypropylene cones and durable rubber surrounds assist the woofers in creating precise midrange and bass, while high-quality silk-dome tweeters deliver natural, detailed highs. These 6x8" Kicker speakers component system with separate tweeters, or convert them to a coaxial system. The woofers’ removable bullet-style phase plug is replaced with a special adapter, allowing the 25 millimeter, silk-dome tweeters to rotate and tilt. You get more system design options and superior off-axis performance. They work best with 15 to 100 watts of recommended power. See below for more details. High power handling Silk-dome tweeters for a smooth sound Polypropylene woofer and tough rubber surrounds Thin-mount design easily fits behind factory grilles Four tweeter mounting options Articulating tweeter pod included Smaller crossover makes mounting even easier Grilles included Specifications Woofer [in, mm] 6x8, 160x200 Tweeter [in,mm] 1, 25 Dome Material Silk Rated Impedance [Ω] 4 Recommended Amplifier Power [Watts RMS] 15-100 Sensitivity [1W, 1m] 91 Frequency Response [Hz] 35-21k Woofer Mounting Hole Diameter [in, mm] 5x7-1⁄8, 127x182 Woofer Bottom Mount Depth [in, mm] 2-¼, 58 Flush Mount Tweeter Hole Diameter [in,mm] 1-¾, 45 Flush Mount Tweeter Depth [in,mm] 11⁄16 , 17 High Pass [dB], at Frequency [Hz] 12, 4,000 Low Pass [dB], at Frequency [Hz] none High Frequency Output Attenuation [dB] 0, 4.5, 9 Kicker KS Series Component Speaker Manual

Read more less
