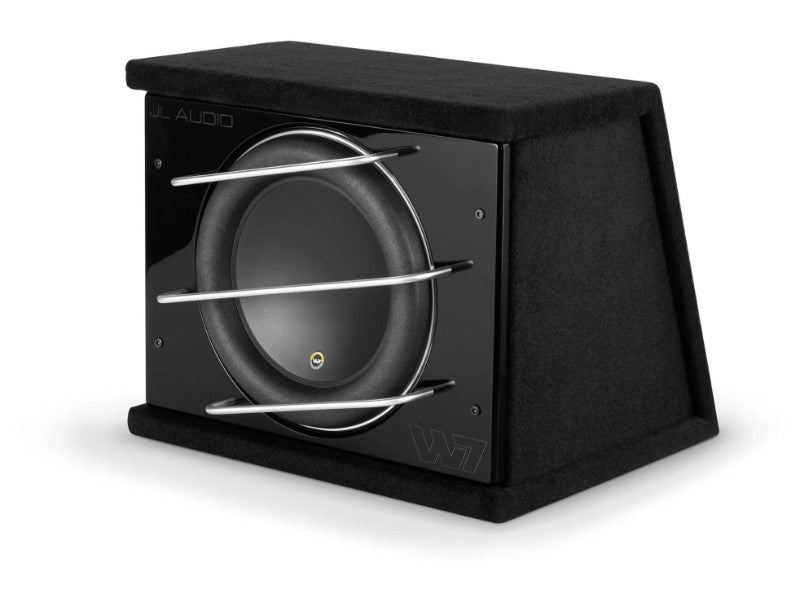

ProWedge-Series 13-Inch 1500-Watt Enclosed Subwoofer System, 1.5Ω Sealed Enclosure
For those who seek the ultimate in compact-enclosure sub-bass fidelity, we offer this sealed ProWedge™ system, in which the superb performance capabilities of the W7AE Subwoofer are harnessed within a compact, sealed enclosure. This system has it all: extension, impact, detail and smooth response... at any listening level.
This enclosure design has been carefully engineered to the optimum sealed enclosure alignment for the 13W7AE-D1.5 and has been fine-tuned through extensive real-world listening.

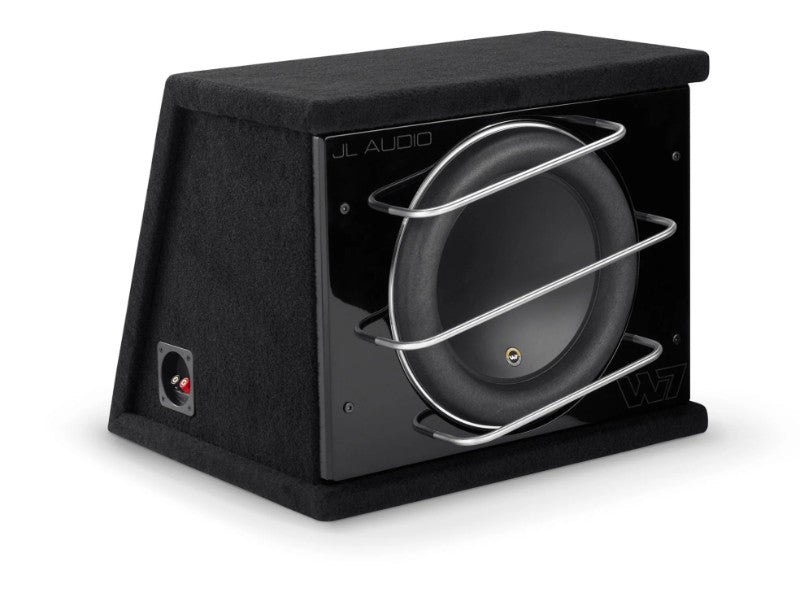

This subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal.
The angled-back design saves precious cargo space by allowing the enclosure to fit tightly against the back of a vehicle's rear seat.
Finish: Black, high-grade automotive carpet, with gloss-black laminated decorative front baffle trim. Three solid aluminum bars provide stylish and rugged woofer protection.
Construction: CNC-Cut High-Grade MDF
Recommended amplifier power: 500 - 1500WNominal Impedance: Dual 1.5 Ω
General Specifications
Continuous Power Handling (RMS)
1500 W
System Nominal Impedance
3 Ω
Enclosure Type
Sealed, rear-firing design
Finish
Black carpet / laminate
Grille Included
Aluminum Bar Grille
Physical Specifications
External Width (W)
22.5 in / 572 mm
External Height (H)
18.25 in / 464 mm
External Depth (D1)
18.25 in / 464 mm
External Top Surface Depth (D2)
11.50 in / 292 mm
Net Weight
103.2 lb / 46.79 kg
JL Audio CLS113RG-W7AE Brochure
