8-Inch Square 750-Watt Subwoofer Driver, 2-Ohm or 4-Ohm DVC

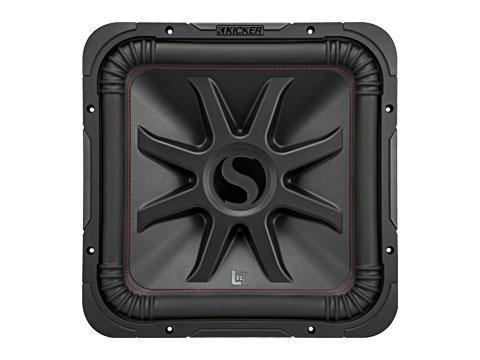

The audiophile competition 8" L7 square sub by Kicker has an advanced motor structure that includes a large-diameter spider for less flex, longer life and superior accuracy. This 8 inch 750W driver has two dual high-temp voice coils, an injection-molded polypropylene cone, SoloKon™ 360-degree back bracing, a ribbed Santoprene surround with blue surround stitching and Kicker's patented UniPlate™ back plate and pole piece. Perimeter venting for thermal heat dispersion management keeps this earth shattering 8 inch square sub nice and cool.
This 8" L7 square sub can handle up to 750W RMS of amplifier power and comes with dual spring-loaded speaker terminals for a solid speaker wire connection.
Specifications
Size (IN.,CM)
8, 20.32
Impedance (OHMS)
2 or 4 DVC
Recommended Amplifier Power (watts RMS)
450
Peak Power (watts, per ANSI/CTA-2031-A)
900
Sensitivity (dB 1w/1m)
83.6
Frequency Response (Hz)
28-100
Mounting Depth (IN.,CM)
4 3/4, 12.1
Mounting Cutout, Square (IN.,CM)
7 1/4, 18.4
Min Rec Sealed Box Volume (CU. FT., Liters)
.5, 14.16
Max Rec Sealed Box Volume (CU. FT., Liters)
.75, 21.24
Min Rec Vented Box Volume (CU. Ft., Liters)**
.66, 18.6
Max Rec Vented Box Volume (CU. Ft., Liters)**
1.0, 28.3
Kicker Solo-Baric L7 Subwoofer Manual
