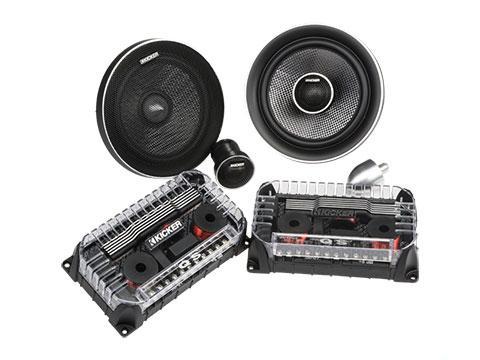

6.5-Inch 90-Watt RMS Convertible Component Automotive Door Speakers
The 6.5" QS series audiophile component door speakers by Kicker offer stunning midrange drivers, audiophile precise tweeters and a superior crossover network. The QS 6-1/2 Inch convertible speakers are a matched component system, built for pure sonic reproduction.
The Kicker 41QSS654 crossovers allow you to use a single amplifier channel, or use bi-amplification for even more flexibility and control. These 6.5" QS series convertible speakers can be installed as a pair of components or a coaxial configuration. These Kicker speakers work best with 90 watts of recommended power. See below for more details.
Specifications
Woofer (in., mm)
6 1/2, 160
Tweeter (in., mm)
1 3/16, 30
Tweeter dome material
Tetoron®
Rated Impedance [Ω]
4
Recommended Amplifier Power (watts RMS)
90
Peak Power (watts, per ANSI/CTA-2031-A)
180
Sensitivity [1W, 1m]
86dB
Frequency Response [Hz]
50 - 22k
Woofer Mounting Hole Diameter [in, mm]
5 1/16, 129
Woofer Bottom Mount Depth [in, mm]
2 1/2, 63.5
Flush Mount Tweeter Hole Diameter [in,mm]
1 13/16, 46
Flush Mount Tweeter Depth [in,mm]
1 1/8, 29
High Pass [dB], at Frequency [Hz]
24, 2800
Low Pass [dB], at Frequency [Hz]
12, 2800
High Frequency Output Attenuation [dB]
0, +3, +6
Kicker QSS Series Manual
