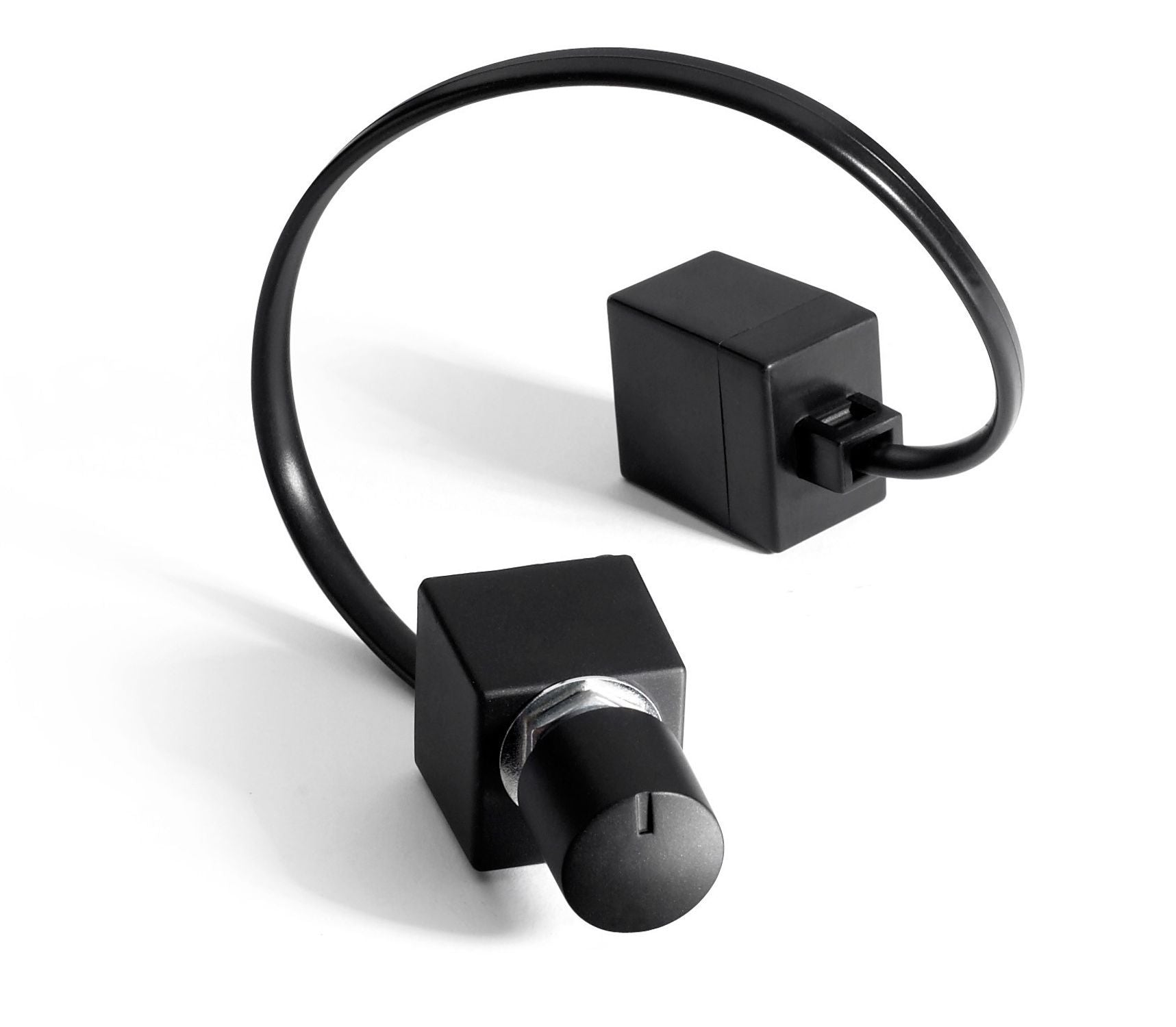

Alpine Amplifier Bass Control Knob
The optional RUX-KNOB remote bass control knob plugs right in to select Alpine amplifiers for quick direct subwoofer control to make bass adjustments on the fly.
Remote Bass Control Knob for Select JL Audio Amplifiers
The DRC-205 is a panel-mount, wired digital remote controller designed to connect to the JLid port of compatible JL Audio electronics.
Functions:
Dual-concentric rotary controls with stops
Push-button mode selector
Status indicator (RGB LED)
Common uses include:
Master Volume
Subwoofer Volume
Preset or Mode Selection
The specific audio functionality of the DRC-205 controller will be determined by the device it is connected to.
The DRC-205 is compatible with the following JL Audio products:
FiX® OEM Integration DSP: All modelsTwK® System Tuning DSP: All modelsVXi-Series Amplifiers: All models
JL Audio DRC-205 Manual
Remote Bass Control Knob for Select JL Audio Amplifiers
The HD-RLC remotely controls the Bass Level of the following JL Audio amplifiers:
HD-Series: All modelsXD-Series: All modelsMHD-Series: All modelsM-Series: All models
When the HD-RLC is connected to the above amplifiers, it acts as an attenuator on the input gain of the amplifier and is used to adjust the overall level of the amplifier from the front of the vehicle.
The HD-RLC kit includes the rotary control with a black ABS knob, mounting hardware and one 18 ft. (5.5 m) cable.
A satin-finish aluminum knob can be purchased separately.
JL Audio HD-RLC Manual
RBC-Series Remote Bass Control Knob for Select JL Amplifiers
The RBC-1 remotely controls the Bass Level of the following JL Audio amplifiers:
JD-Series: JD250/1, JD500/1, JD1000/1
JX-Series: JX250/1, JX250/1D, JX500/1, JX500/1D, JX1000/1D
HX-Series: HX300/1 in Low Pass Mode (Note: M-RBC-1 is also available)
MHX-Series: MHX300/1 in Low Pass Mode (Note: M-RBC-1 is also available)
MX-Series: MX300/1, MX500/1 in Low Pass Mode (Note: M-RBC-1 is also available)
RD-Series: RD500/1, RD1000/1, RD1500/1, RD900/5
When the RBC-1 is connected to the above amplifiers, it acts as an attenuator on the input gain of the amplifier and is used to adjust the overall level of the amplifier from the front of the vehicle.
The RBC-1 remotely controls the Bass Level of the following JL Audio subwoofer systems:
PowerWedge+: All ModelsMicroSub+: All Models
When the RBC-1 is connected to the above subwoofer systems, it acts as an attenuator on the input gain of the amplifier and is used to adjust the overall level of the amplifier from the front of the vehicle.
The RBC-1 remotely controls the Bass EQ boost feature of the following JL Audio amplifiers:
Slash v3 Series: 600/1v3, 1200/1v3
Slash v2 Series: 250/1v2, 500/1v2, 1000/1v2, 450/4v2
Original Slash Series: 500/1, 1000/1, 450/4, 500/5
G-Series: All Models
A-Series: All Models
e-Series: All Models (including marine versions)
M-Series: M1400, M1700, M2150, M2250, M4300, M4500, M6450, M6600
When the RBC-1 is connected to the above amplifiers, the on-board "Boost" control of the amplifier is defeated and the RBC-1 becomes the active controller.
The RBC-1 kit includes the rotary control with a black ABS knob, mounting hardware and one 18 ft. (5.5 m) cable.
JL Audio RBC-1 Manual
Kicker Bass-Knob for Mono CX, DX and PX Series Amplifiers
Customize your bass, right from your front seat with the Kicker 46CXARC add-on mono-amplifier bass-knob.
Kicker 46CXARC Manual
Punch-Series Stereo-Amplifier Bass-Knob
For use with select 2007 and newer PUNCH & POWER amplifiers.
Remote wired bass/treble boost
0dB to +18dB bass boost @ 45 Hz
0dB to +12dB treble boost @ 12.5 kHz
Bass/Treble filtering based upon in-board amplifier crossover setting (HP-LP-AP)
Controls bass on rear outputs of 4-channel amplifiers
Conveniently mount under dash, inside center console or glovebox
Includes bass knob, cable, mounting clip, mounting screws
1 Year Warranty
Cable and mounting hardware included.
