Wiring Harness

Add-On OE Amplifier-Integration Wiring-Harness for Select 2021-UP Amplified Chrysler, Dodge, and RAM Vehicles with uConnect5 Factory Audio Systems  Must be used with AP4-CH41 R.2 Plug and play solution for UConnect5 that allows you to use an AmpPRO with most Chrysler vehicles.  Benefits  Simplifies amplifier installation Prevents the need for summing and DSP devices Provides factory sound system upgrade solution Provides flat audio output for a solid audio foundation Features It can be used to upgrade the entire sound system or just part of it thanks to the retention of the original amplifier Variable volume, fade, balance, bass, mid and treble audio settings Front, rear, sub preamp outputs (5 volt RMS) Customized OE bass, mid and treble center frequency selection Retains uConnect, Bluetooth audio, Navigation prompts, and all warning chimes Plug-n-Play installation Sublevel controller Optional TOSLINK optical output (APA-TOS1 sold separately) Also available for fast, easy install: APH-CH01 harness (sold separately) Select non-amplified vehicles are equipped with an ANC system that requires bypass.  Plug-n-Play bypass harness: ANC-CH01  Applications Must be used with AP4-CH41 R.2 Amplified Vehicles Compatible with all data-bus controlled amplified systems, no matter the screen size. To identify these systems, look for logos on door speakers, tweeters, dash speakers or the subwoofer to confirm if the vehicle has a compatible amplified system: Alpine, Beats or Harman Kardon. Some vehicles may not always have branded compatible systems. Unbranded amplified systems are generally identified by locating a center channel speaker or subwoofer. Non-Amplified Vehicles All other models: Only compatible in vehicles equipped with the 7” or bigger screen. Vehicles equipped with the 5” screen are not compatible. If you are installing the AmpPRO in a vehicle that is not equipped with a factory amplifier, you must add an amplifier to the vehicle's speakers, as the factory radio will no longer have a 4-channel variable output after it has been re-configured by the AmpPRO. For example, this will not work to add only a subwoofer to a non-amplified vehicle, as the radio will no longer power the cabin speakers properly. CHRYSLER Pacifica 7" screen, 8" screen, With factory amplifier 2021-2022 DODGE Durango 7" screen, 8" screen, With factory amplifier 2021 JEEP Gladiator 2024 Wrangler 2024-2025 Wrangler Unlimited 2024-2025 RAM 1500, 2500, 3500  7" screen, 8" screen, With factory amplifier 2022-2024 No Manual Available

Read more less

RadioPRO Radio Replacement Interface Harness for Select 2013-2018 Mercedes Sprinter and Metris Vehicles The RP4.2-MB11 radio replacement interface is your plug-n-play solution to upgrade your factory radio with an aftermarket radio in Mercedes Sprinter or Metris vehicles. Steering wheel controls, 3.5mm AUX input, USB port and the back-up camera function are all retained with the RP4.2-MB11. By adding on the PAC VS41, you have the ability to add front and blind-spot cameras creating a complete camera system. PAC quality and engineering provides you the most professional installation solution available! Retains: Steering wheel controls 3.5mm AUX input USB port Back-up camera function Features: Includes wired outputs for navigation radio installation Rear camera activation while in motion 10 Amp ACC 12 volt output Direct USB updatable Camera system ready - requires PAC VS41 Includes: Vehicle specific harness Interface module Installation instructions Applications Sprinters with the radio delete option need the RP4.2-MB21 harness MERCEDES Metris 2016 Sprinter 2013-2018 Pac Audio RP4.2-MB11 ManualPac Audio RP4.2-MB11 Technical Bulletin

Read more less

Factory Backup-Camera to Aftermarket Head-Unit Wiring Harness for Select 2012-2015 Toyota, Scion and Subaru Vehicles The CAM-TY11 is a reverse camera T-harness that gives the ability to add a reverse camera input for Toyota and select Scion and Subaru 6.1” touchscreen radios. The harness is Plug-and-Play with no need to connect to reverse lamps for the reverse trigger. Applications SCION FRS 2013-2015 IQ 2013-2015 TC 2014-2015 XB 2013-2015 XD 2013-2014 SUBARU BRZ 2013-2015 TOYOTA 4Runner 2012-2014 Avalon 2012-2014 Camry 2012-2014 Corolla 2013 Highlander 2012-2014 Prius 2012-2015 Prius V 2012-2014 RAV4 2012-2014 Sequoia 2013 Tacoma 2012-2013 Venza 2012-2014

Read more less

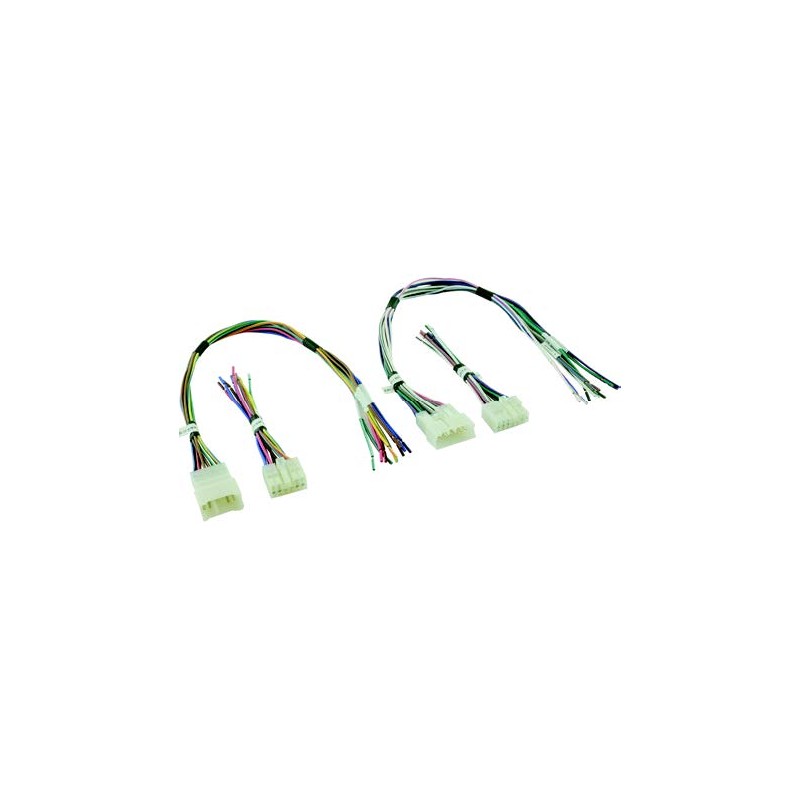

Add-On Amplifier OEM Integration Interface for Select 2006-2024 Amplified Lexus and Toyota Vehicles Easily add amplifier(s) to Toyota and Lexus factory amplified systems without cutting or modifying the original wiring.Simplify speaker wire connections by using the APH-TY04 speaker connection harness when adding aftermarket amplifier(s) to select Toyota and Lexus vehicles. Featuring OEM quality, factory style plugs, the APH-TY04 quickly and securely plugs into the factory amplifier harness allowing an aftermarket amplifier to be more easily installed. Industry-standard wire colors on the APH-TY04 harness make identifying the factory speakers faster and also ensures proper speaker wiring polarity. Key Features Perfect for use with AmpPRO AP4-TY11 and AP4-TY12 EIA standard color-coded wires make identifying factory speaker wires and phase easier APH-TY04 harness eliminates having to run speaker wire throughout the car 18” Harness length Applications 2018-2020 Toyota Sequoia: Only compatible in models equipped with the 14 speaker system LEXUS CT 200H With factory amplifier 2011-2013 ES 350 With factory amplifier 2007-2012 GS 350 With factory amplifier 2007-2011 GS 450H With factory amplifier 2007-2011 GX 460 With factory amplifier 2010-2013 HS 250H With factory amplifier 2010-2012 IS 250 With factory amplifier 2006-2013 IS 350 With factory amplifier 2006-2013 RX 350 With factory amplifier 2008-2012 RX 400H With factory amplifier 2007-2008 RX 450H With factory amplifier 2012 TOYOTA 4Runner With factory JBL amplifier 2010-2017 4Runner With factory JBL amplifier 2019-2024 Avalon With factory JBL amplifier 2011-2012 Land Cruiser With factory JBL amplifier 2008-2011 Sequoia With factory JBL amplifier 2008-2020 Sienna With factory JBL amplifier 2011-2020 Tacoma With factory JBL amplifier 2012-2017 Venza With factory JBL amplifier 2009-2016 Pac Audio APH-TY04 Manual

Read more less

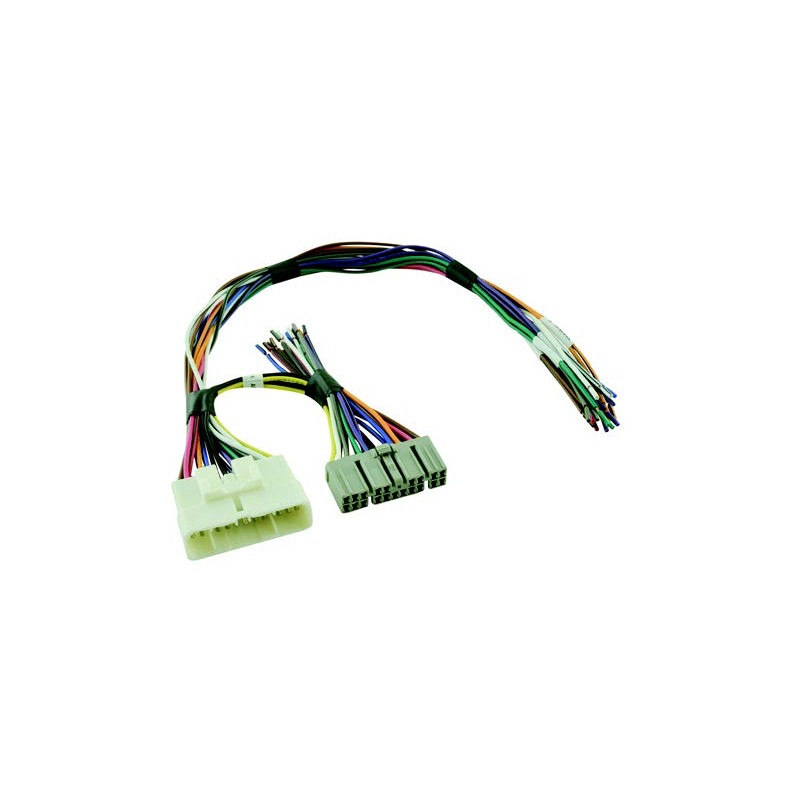

Add-On Amplifier OEM Integration Interface for Select 2003-2010 Amplified Toyota Vehicles Easily add amplifier(s) to Toyota factory amplified systems without cutting or modifying the original wiring.Simplify speaker wire connections using the APH-TY03 speaker connection harness when adding aftermarket amplifier(s) to select Toyota vehicles. Featuring OEM quality, factory style plugs, the APH-TY03 quickly and securely plugs into the factory amplifier harness allowing an aftermarket amplifier to be more easily installed. Industry-standard wire colors on the APH-TY03 harness make identifying the factory speakers faster and also ensures proper speaker wiring polarity. Key Features Perfect for use with AmpPRO AP4-TY11 EIA standard color-coded wires make identifying factory speaker wires and phase easier APH-TY03 harness eliminates having to run speaker wire throughout the car 18” Harness length Applications TOYOTA 4Runner With factory JBL amplifier 2003-2008 Corolla With factory JBL amplifier 2005-2008 Prius With factory JBL amplifier 2004-2005 Rav4 With factory JBL amplifier 2004-2005 Sequoia With factory JBL amplifier 2005-2007 Sienna With factory JBL amplifier 2004-2010 Tacoma With factory JBL amplifier 2005-2008 Tundra With factory JBL amplifier 2005-2006 Pac Audio APH-TY03 Manual

Read more less

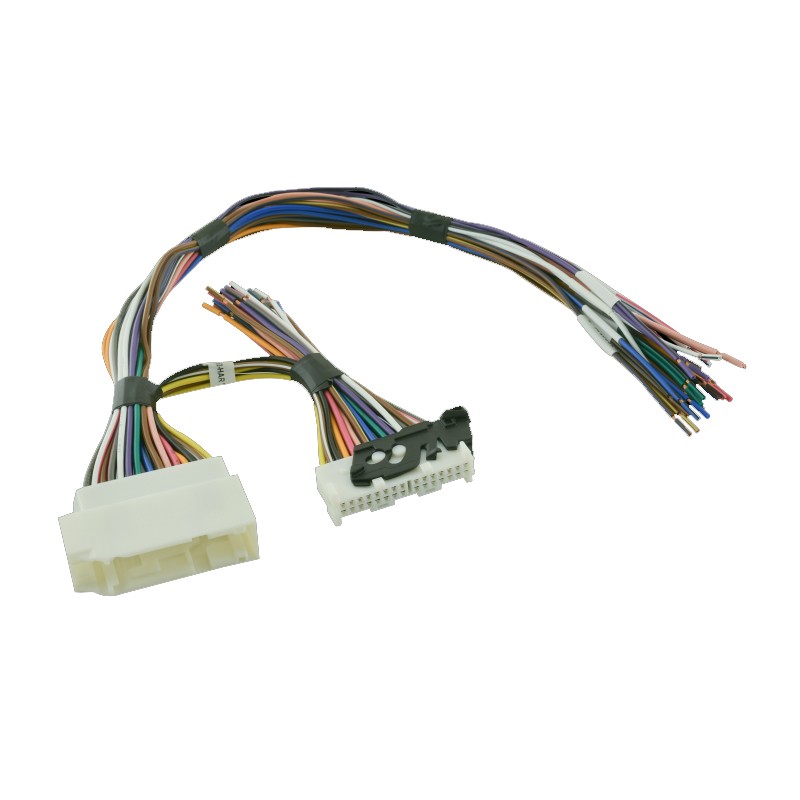

Add-On Amplifier OEM Integration Interface for Select 2007-2025 Amplified Toyota and Lexus Vehicles Easily add amplifier(s) to Toyota and Lexus factory amplified systems without cutting or modifying the original wiring.Simplify speaker wire connections by using the APH-TY02 speaker connection harness when adding aftermarket amplifier(s) to select Toyota and Lexus vehicles. Featuring OEM quality, factory style plugs, the APH-TY02 quickly and securely plugs into the factory amplifier harness allowing an aftermarket amplifier to be more easily installed. Industry-standard wire colors on the APH-TY02 harness make identifying the factory speakers faster and also ensures proper speaker wiring polarity. Key Features Perfect for use with AmpPRO AP4-TY11 or AP4-TY12 EIA standard color-coded wires make identifying factory speaker wires and phase easier APH-TY02 harness eliminates having to run speaker wire throughout the car 18” Harness length Applications 2018 Toyota Avalon: Only compatible in models with 11 speaker system 2019-2020 Toyota Avalon: Only compatible in models with the 14 speaker system LEXUS CT 200H With factory amplifier 2014-2017 ES 250 With factory amplifier 2019-2021 ES 300H With factory amplifier 2013-2020 ES 350 With factory amplifier 2013-2021 GS 350 With factory amplifier 2013-2020 GS 450H With factory amplifier 2013-2018 GX 460 With factory amplifier 2014-2017 IS 200T With factory amplifier 2016-2017 IS 250 With factory amplifier 2014-2015 IS 300 With factory amplifier 2016-2020 NX 200T With factory amplifier 2015-2017 NX 300 With factory amplifier 2019-2021 NX 300H With factory amplifier 2015-2017 RC 200T With factory amplifier 2016-2017 RC 300 With factory amplifier 2016-2020 RC 350 With factory amplifier 2015-2020 RX 350 With factory amplifier 2013-2021 RX 450H With factory amplifier 2016-2021 TOYOTA Avalon With factory JBL amplifier 2013-2020 Camry With factory JBL amplifier 2012-2023 Corolla With factory JBL amplifier 2019-2022 Corolla Hatchback 2023 Highlander 2024 Highlander With factory JBL amplifier 2014-2023 Land Cruiser 2024 Land Cruiser With factory JBL amplifier 2013-2021 Prius With factory JBL amplifier 2012-2024 Rav4 With factory JBL amplifier 2013-2022 Sequoia With factory JBL amplifier 2024 Sienna With factory JBL amplifier 2021 Tacoma With factory JBL amplifier 2024-2025 Tundra With factory JBL amplifier 2022-2024 Tundra With factory JBL amplifier 2007-2013 Pac Audio APH-TY02 Manual

Read more less

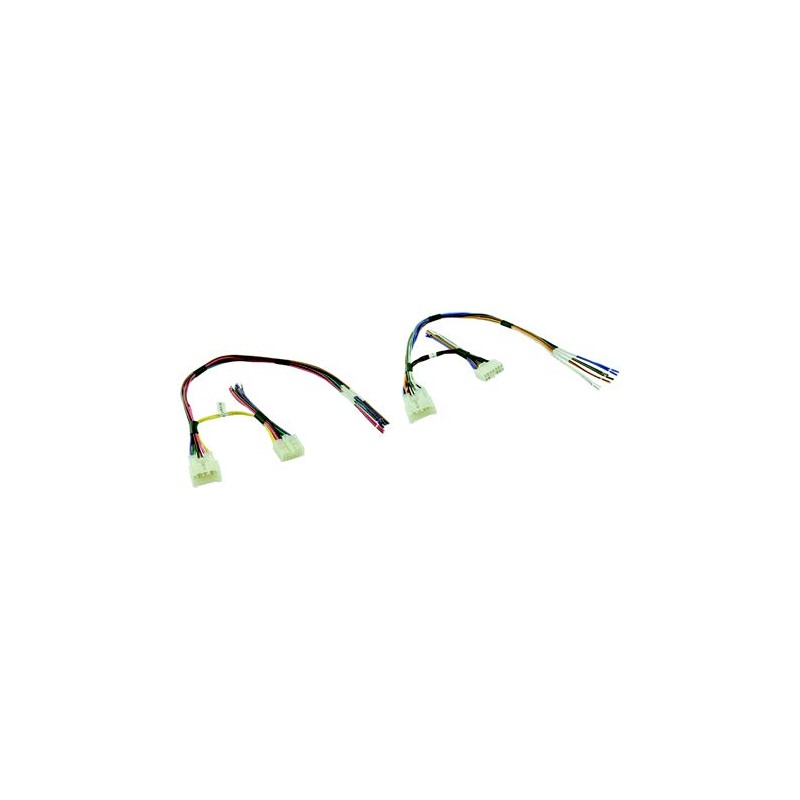

Add-On Amplifier OEM Integration Interface for Select 2005-2023 Amplified Toyota Vehicles Easily add amplifier(s) to Toyota factory amplified systems without cutting or modifying the original wiring.Simplify speaker wire connections by using the APH-TY01 speaker connection harness when adding aftermarket amplifier(s) to select Toyota vehicles. Featuring OEM quality, factory style plugs, the APH-TY01 quickly and securely plugs into the factory amplifier harness allowing an aftermarket amplifier to be more easily installed. Industry-standard wire colors on the APH-TY01 harness make identifying the factory speakers faster and also ensures proper speaker wiring polarity. Key Features Perfect for use with AmpPRO AP4-TY11 EIA standard color-coded wires make identifying factory speaker wires and phase easier APH-TY01 harness eliminates having to run speaker wire throughout the car 18” Harness length Applications TOYOTA Avalon With factory JBL amplifier 2005-2010 Camry With factory JBL amplifier 2007-2011 Corolla With factory JBL amplifier 2009-2011 Highlander With factory JBL amplifier 2008-2013 Prius With factory JBL amplifier 2006-2011 Rav4 With factory JBL amplifier 2006-2011 Tacoma With factory JBL amplifier 2009-2011 Tacoma With factory JBL amplifier 2018-2023 Tundra With factory JBL amplifier 2007-2022 Pac Audio APH-TY01 Manual

Read more less

Add-On Amplifier OEM Integration Interface for Select 2014-2019 Amplified Cadillac, Chevy and GMC Vehicles Simplify speaker wire connections when adding aftermarket amplifiers with Pac-Audio's Speaker Connection Harness. Can easily add amplifiers with no need to cut or modify a vehicle’s original wiring. APH-GM02 works with PAC AmpPRO module: AP4-GM61 Features: Can be used for other installations requiring plug-n-play speaker wire connections Easily add amplifiers without cutting or modifying the vehicle’s original wiring. Provides a plug-n-play connection at the vehicle’s original amplifier location Saves time by quickly utilizing the original speaker wires Harness length 18" Applications CADILLAC Escalade With BOSE 2015-2018 CHEVROLET Camaro With BOSE 2016-2018 Colorado With BOSE 2015-2018 Corvette With BOSE 2014-2019 Cruze With BOSE 2017-2018 Equinox With BOSE 2018 Impala With BOSE 2014-2016 Impala With BOSE 2017-2019 Malibu With BOSE 2016 Malibu With BOSE 2017-2018 Silverado With BOSE 2014-2018 Silverado Classic model, With BOSE 2019 Silverado HD With BOSE 2015-2019 Suburban With BOSE 2015-2018 Tahoe With BOSE 2015-2019 Traverse With BOSE 2018-2019 GMC Acadia With BOSE 2018-2019 Canyon With BOSE 2015-2018 Sierra With BOSE 2014-2018 Sierra HD With BOSE 2015-2019 Terrain With BOSE 2018 Yukon With BOSE 2015-2019 Yukon XL With BOSE 2015-2019 Pac Audio APH-GM02 Manual

Read more less

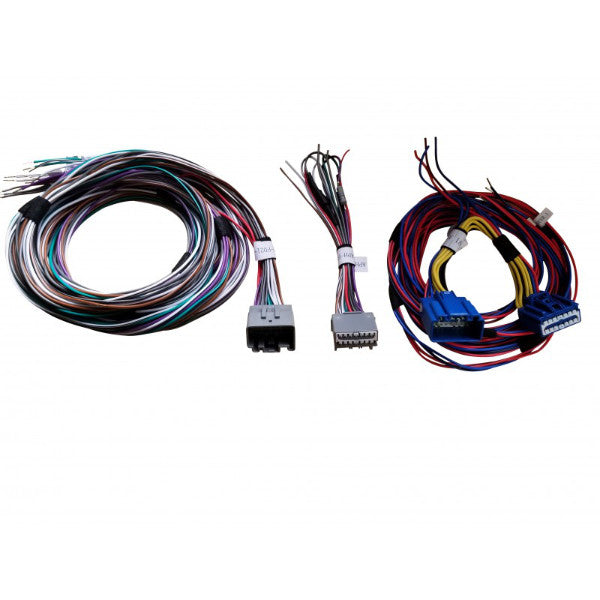

Add-On Amplifier OEM Integration Interface for Select 2009-2019 Amplified Ford Vehicles Simplify speaker wire connections when adding aftermarket amplifiers with Pac-Audio's Speaker Connection Harness. Can easily add amplifiers with no need to cut or modify a vehicle’s original wiring. Features: Works with PAC AmpPRO: AP4-FD11 and AP4-FD21 It can be used for other installations requiring plug-n-play speaker wire connections. Easily add amplifiers without cutting or modifying the vehicle’s original wiring. Provides a plug-n-play connection at the vehicle’s original amplifier location Saves time by quickly utilizing the original speaker wires Harness length 10 feet Applications Not compatible in 2016-2017 Ford Explorer Platinum Edition FORD Edge With factory Sony amplifier 2015-2017 Expedition With factory Sony amplifier 2015-2017 Explorer With factory Sony amplifier 2011-2017 F-150 With factory Sony amplifier 2009-2017 F-250 With factory Sony amplifier 2013-2019 F-350 With factory Sony amplifier 2013-2019 F-450 With factory Sony amplifier 2013-2019 F-550 With factory Sony amplifier 2013-2017 Flex With factory Sony amplifier 2009-2012 Focus With factory Sony amplifier 2012-2017 Fusion With factory Sony amplifier 2010-2016 Mustang With factory Sony amplifier 2019-2023 Taurus With factory Sony amplifier 2010-2015 Pac Audio APH-FD01 Manual

Read more less

Add-On Amplifier OEM Integration Interface for Select 2007-2024 Amplified Chrysler, Dodge, Fiat, Jeep, RAM and Volkswagen Vehicles Simplify speaker wire connections when adding aftermarket amplifiers with Pac-Audio's speaker connection harnesses. This adapter can easily add amplifiers with no need to cut or modify a vehicle’s original wiring. Features: Works with PAC AmpPRO: AP4-CH21, AP4-CH31, and AP4-CH41 Can use it for other installations requiring plug-n-play speaker wire connections Easily add amplifiers without cutting or modifying the vehicle’s original wiring. Provides a plug-n-play connection at the vehicle’s original amplifier location Saves time by quickly utilizing the original speaker wires Harness length 18 inches Applications CHRYSLER 200 With factory amplifier 2015-2017 300 With factory amplifier 2012-2023 Town & Country With factory amplifier 2008-2016 DODGE Challenger With factory amplifier 2015-2023 Charger With factory amplifier 2012-2023 Dart With factory amplifier 2013-2016 Durango With factory amplifier 2011-2023 Grand Caravan With factory amplifier 2008-2020 Journey With factory amplifier 2009-2020 Nitro With factory amplifier 2007-2011 RAM 1500, 2500, 3500 With factory amplifier 2010-2018 RAM 1500, 2500, 3500 Classic model, With factory amplifier 2019-2024 FIAT 500 With factory amplifier 2014-2019 JEEP Cherokee With factory amplifier 2015-2023 Grand Cherokee With factory amplifier 2014-2017 Liberty With factory amplifier 2008-2012 Wrangler JK, With factory amplifier 2018 Wrangler With factory amplifier 2008-2017 Wrangler Unlimited JK, With factory amplifier 2018 Wrangler Unlimited With factory amplifier 2008-2017 RAM 1500, 2500, 3500 With factory amplifier 2010-2018 1500, 2500, 3500 Classic model, With factory amplifier 2019-2024 VOLKSWAGEN Routan With factory amplifier 2010-2014 Pac Audio APH-CH01 Manual

Read more less

  Add-On ANC Integration Wiring-Harness for Select 2015-2019 Chrysler, Dodge, Jeep and RAM Vehicles Many late model Chrysler, Jeep, and RAM vehicles are equipped with an Active Noise Canceling (ANC) module. When adding aftermarket amplifiers in these vehicles, this factory ANC module must be bypassed for proper operation of the aftermarket audio equipment and avoid possible damage to the ANC module. The PAC ANC-CH01 provides a plug-and-play solution for bypassing the ANC module in these vehicles, eliminating the need to cut factory wiring. Quickly and easily bypass the ANC Module. Keeps ANC module on data-bus for vehicle diagnostics health Factory fit plug-in connectors Prevents cutting of factory wires Applications CHRYSLER Pacifica ALL TRIM LEVELS 2017-2019 DODGE RAM 1500, 2500, 3500 NON-CLASSIC 2019 JEEP Cherokee ALL TRIM LEVELS 2019 Grand Cherokee ALL TRIM LEVELS 2015-2016 RAM 1500, 2500, 3500 NON-CLASSIC 2019 Pac Audio ANC-CH01 Manual

Read more less

Pac-Audio Aftermarket Plug-and-Play Backup-Camera Retention Adapter for Select 2014-2018 Mercedes Sprinter and Metris Vehicles Male FAKRA to MALE RCA. May be compatible with other applications and vehicles. Applications MERCEDES Metris 2016 Sprinter 2014-2018

Read more less
