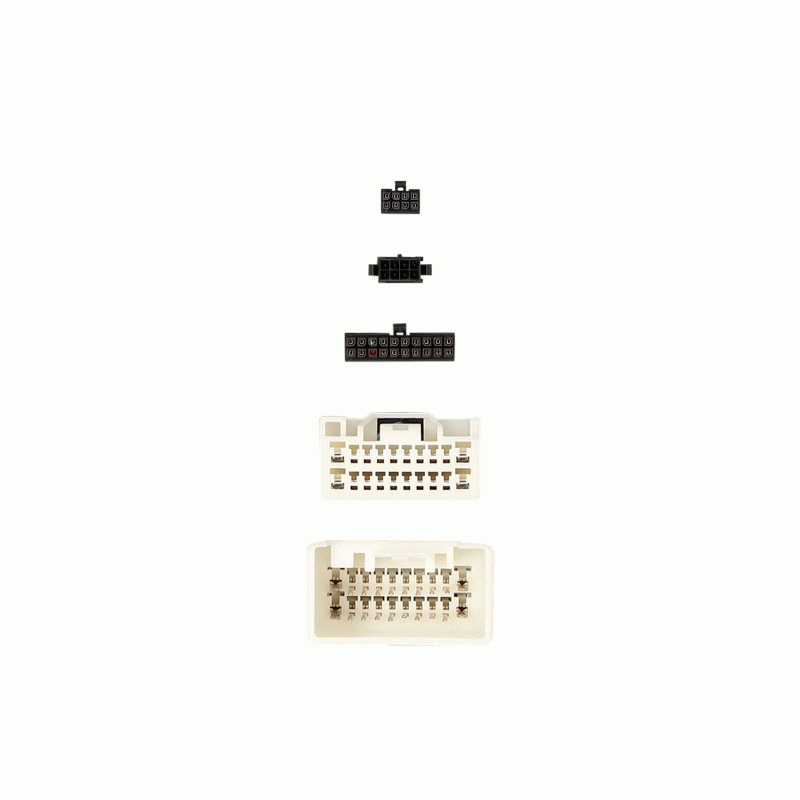

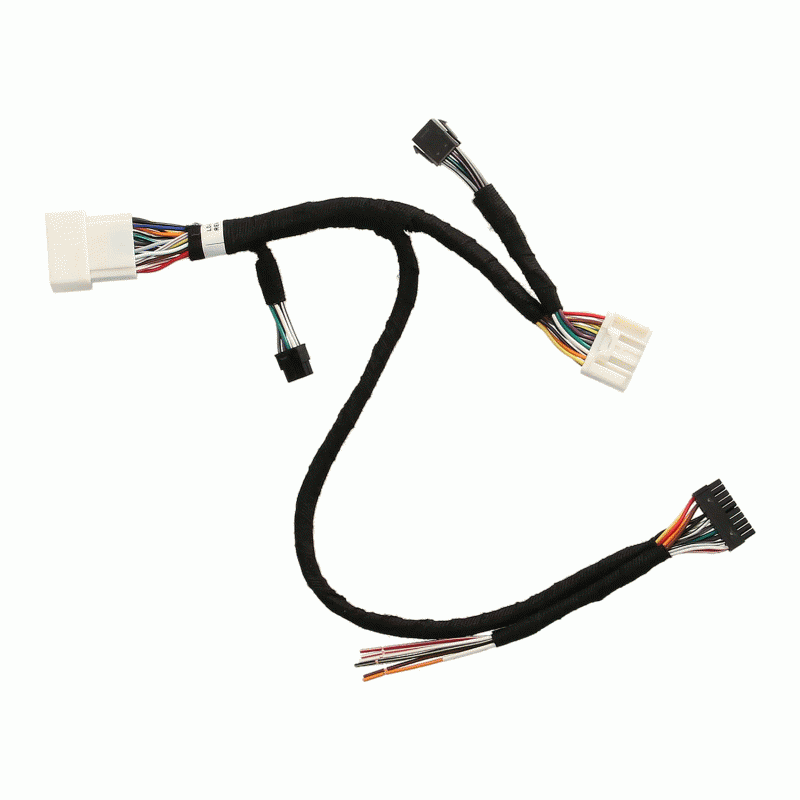

Add-On Amplifier OEM Integration Line Converter with DSP for Select 2007-2020 Mitsubishi Vehicles
Upgrade the sound system with this cost-effective, easy-to-install DSP“Lite” package that includes a vehicle-specific T-harness. It works with OEM or aftermarket radios to take fixed level/digitally controlled analog audio and convert it to 6 channels of analog signal for use with an aftermarket amplifier or DSP.
Retain Features with a Built-in InterfaceWhile this may be a “Lite” version, it still provides retention of many important vehicle functions utilizing Axxess’s cutting-edge technology. It features chime control, retains OEM voice prompts and sonar sensors, and has clipping detection and limiting circuits, going beyond what a traditional DSP can do.
Complete Tuning ControlThere are 4 inputs and 6 outputs, including front, rear and subwoofer, and the front and rear outputs can be delayed independently up to 10ms. Full tuning control settings are adjusted via a smart device application for tablets or mobile phones and can be password-protected once set up. Once tuning has been completed, installers can password-protect their settings to prevent anyone else from adjusting, and the information is stored for future recall.
Designed for non-amplified models
Package includes the AXDSP-L and vehicle-specific T-harness
15-band graphic EQ or 5-band Parametric EQ
Selectable high pass, low pass, or bandpass filters on each channel
4 inputs and 6 individually assignable outputs
Independent equalization on each of the 6 outputs
Selectable slope (12, 24, 36, or 48db per octave)
Each channel can be delayed independently for up to 10 ms
Easy behind the radio installation in most applications
Can be used with OE and aftermarket radios
Clipping detection and limiting circuits
Internal header port for adding interface modules
Bass knob included
Retains factory chimes, including parking sensor and cross path detection alerts with adjustable chime level
Settings adjusted wirelessly in a smart device application (tablet or mobile phone)
Read, write, and store configurations for future recall
Password-protect feature is available in the mobile app
Applications
MITSUBISHI
Eclipse Cross
2018-2020
Lancer
2008-2013
Lancer / Lancer Sportback
2014-2017
Mirage / Mirage G4
2014-2015
Outlander
2007-2019
Axxess AXDSPL-MI2 Manual

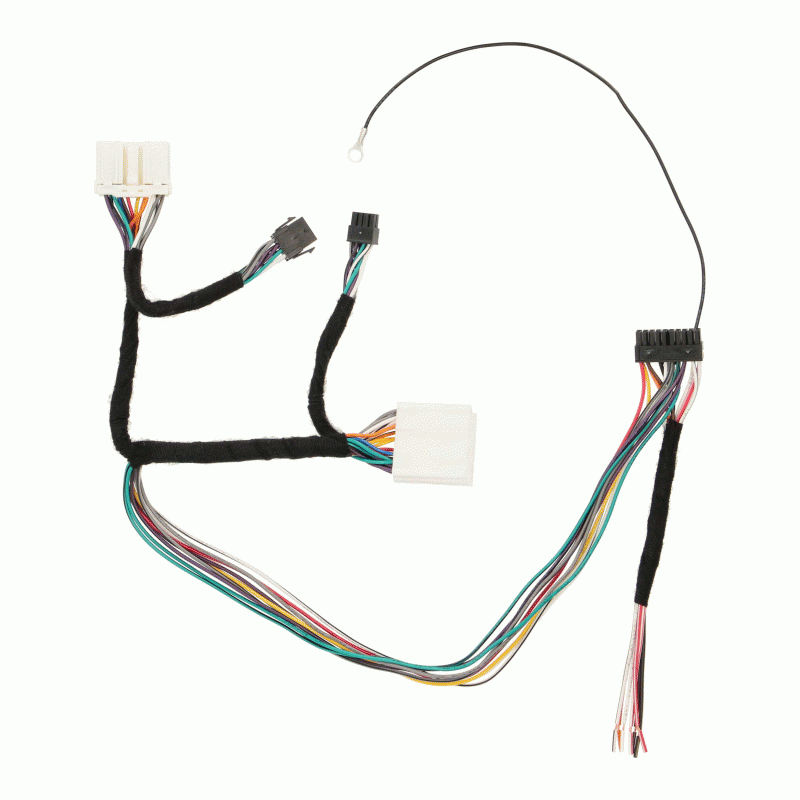

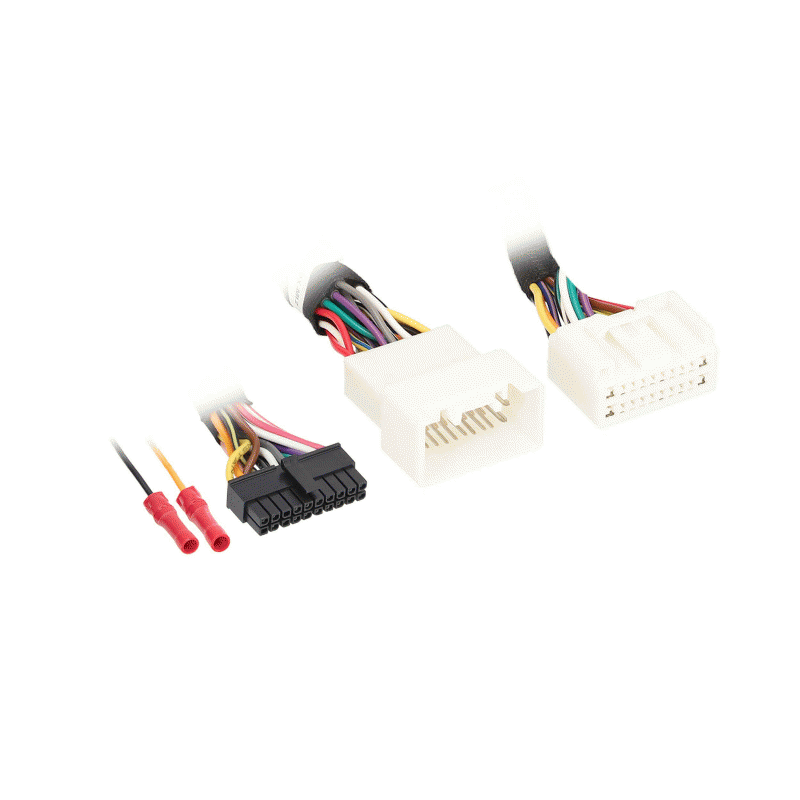

Add-On Amplifier OEM Integration Line Converter with DSP for Select 1992-2012 Mitsubishi Vehicles
Upgrade the sound system with this cost-effective, easy-to-install DSP“Lite” package that includes a vehicle-specific T-harness. It works with OEM or aftermarket radios to take fixed level/digitally controlled analog audio and convert it to 6 channels of analog signal for use with an aftermarket amplifier or DSP.
Retain Features with a Built-in InterfaceWhile this may be a “Lite” version, it still provides retention of many important vehicle functions utilizing Axxess’s cutting-edge technology. It features chime control, retains OEM voice prompts and sonar sensors, and has clipping detection and limiting circuits, going beyond what a traditional DSP can do.
Complete Tuning ControlThere are 4 inputs and 6 outputs, including front, rear and subwoofer, and the front and rear outputs can be delayed independently up to 10ms. Full tuning control settings are adjusted via a smart device application for tablets or mobile phones and can be password-protected once set up. Once tuning has been completed, installers can password-protect their settings to prevent anyone else from adjusting, and the information is stored for future recall.
Designed for non-amplified models
Package includes the AXDSP-L and vehicle-specific T-harness
15-band graphic EQ or 5-band Parametric EQ
Selectable high pass, low pass, or bandpass filters on each channel
4 inputs and 6 individually assignable outputs
Independent equalization on each of the 6 outputs
Selectable slope (12, 24, 36, or 48db per octave)
Each channel can be delayed independently for up to 10 ms
Easy behind the radio installation in most applications
Can be used with OE and aftermarket radios
Clipping detection and limiting circuits
Internal header port for adding interface modules
Bass knob included
Retains factory chimes, including parking sensor and cross path detection alerts with adjustable chime level
Settings adjusted wirelessly in a smart device application (tablet or mobile phone)
Read, write, and store configurations for future recall
Password-protect feature is available in the mobile app
Applications
MITSUBISHI
Diamante
1992
2004
Eclipse
1995
2012
Endeavor
2004
2011
Galant
1994
2012
Lancer
2002
2007
Mirage
1997
2002
Montero
1993
2006
Montero Sport
1997
1999
Outlander
2003
2006
Axxess AXDSPL-MI1 Manual
