6 x 8" Driver

6x8-Inch 100-Watt Component or Coaxial Mountable Speaker System Kicker KS-Series door-speakers let you play at concert-like volume while pleasing even the most selective ear. Internally dampened polypropylene cones and durable rubber surrounds assist the woofers in creating precise midrange and bass, while high-quality silk-dome tweeters deliver natural, detailed highs. These 6x8" Kicker speakers component system with separate tweeters, or convert them to a coaxial system. The woofers’ removable bullet-style phase plug is replaced with a special adapter, allowing the 25 millimeter, silk-dome tweeters to rotate and tilt. You get more system design options and superior off-axis performance. They work best with 15 to 100 watts of recommended power. See below for more details. High power handling Silk-dome tweeters for a smooth sound Polypropylene woofer and tough rubber surrounds Thin-mount design easily fits behind factory grilles Four tweeter mounting options Articulating tweeter pod included Smaller crossover makes mounting even easier Grilles included Specifications Woofer [in, mm] 6x8, 160x200 Tweeter [in,mm] 1, 25 Dome Material Silk Rated Impedance [Ω] 4 Recommended Amplifier Power [Watts RMS] 15-100 Sensitivity [1W, 1m] 91 Frequency Response [Hz] 35-21k Woofer Mounting Hole Diameter [in, mm] 5x7-1⁄8, 127x182 Woofer Bottom Mount Depth [in, mm] 2-¼, 58 Flush Mount Tweeter Hole Diameter [in,mm] 1-¾, 45 Flush Mount Tweeter Depth [in,mm] 11⁄16 , 17 High Pass [dB], at Frequency [Hz] 12, 4,000 Low Pass [dB], at Frequency [Hz] none High Frequency Output Attenuation [dB] 0, 4.5, 9 Kicker KS Series Component Speaker Manual

Read more less

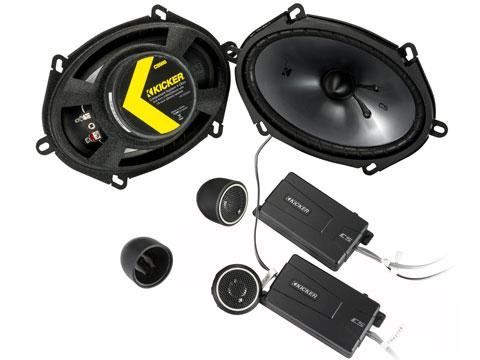

75-Watt Component Speakers Six-x-Eight" Drivers The CS Series 6-x-8 inch component speakers by Kicker are designed for easy installation in nearly any vehicle. These components include separate titanium flush, angled or surface-mount tweeters and two-way crossovers with tweeter level control to let you customize your sound for the best sonic quality. The Kicker CS Series six-by-eight" speakers work best with up to 75-watts of recommended power. Specifications Woofer Size | in [mm] 6x8 [160x200] Tweeter Size | in [mm] 3/4 [20] Dome Material Titanium Peak Power | [watts] 225 Continuous Power | [watts RMS] 75 Effective Frequency Range | Hz 40-21k Woofer Mounting Hole Diameter | in [mm] 5 x 7 3/16 [126x182] Woofer Bottom Mount Depth | in [mm] 2 3/16 [56] Flush Mounting Tweeter Hole Diameter | in [mm] 1 9/16 [40] Flush Mount Tweeter Depth | in [mm] 9/16 [14.5] High Pass | dB, at Frequency | Hz 12, 4000 Low Pass | dB, at Frequency | Hz 12, 4000 High Frequency Output Attenuation | dB 0, 3, & 6 Bolt-Thru Grilles No Kicker CS Component Speaker Manual

Read more less
