Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
ProWedge-Series 13-Inch 1500-Watt Enclosed Subwoofer System, 1.5Ω Sealed Enclosure
For those who seek the ultimate in compact-enclosure sub-bass fidelity, we offer this sealed ProWedge™ system, in which the superb performance capabilities of the W7AE Subwoofer are harnessed within a compact, sealed enclosure. This system has it all: extension, impact, detail and smooth response... at any listening level.
This enclosure design has been carefully engineered to the optimum sealed enclosure alignment for the 13W7AE-D1.5 and has been fine-tuned through extensive real-world listening.
This subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal.
The angled-back design saves precious cargo space by allowing the enclosure to fit tightly against the back of a vehicle's rear seat.
Finish: Black, high-grade automotive carpet, with gloss-black laminated decorative front baffle trim. Three solid aluminum bars provide stylish and rugged woofer protection.
Construction: CNC-Cut High-Grade MDF
Recommended amplifier power: 500 - 1500WNominal Impedance: Dual 1.5 Ω
General Specifications
Continuous Power Handling (RMS)
1500 W
System Nominal Impedance
3 Ω
Enclosure Type
Sealed, rear-firing design
Finish
Black carpet / laminate
Grille Included
Aluminum Bar Grille
Physical Specifications
External Width (W)
22.5 in / 572 mm
External Height (H)
18.25 in / 464 mm
External Depth (D1)
18.25 in / 464 mm
External Top Surface Depth (D2)
11.50 in / 292 mm
Net Weight
103.2 lb / 46.79 kg
JL Audio CLS113RG-W7AE Brochure
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
12-Inch Quad-Loaded Subwoofer Enclosure, 2400-Watt, 2-Ohm Final Impedance
With 2,400-watts of RMS power handling, this computer-designed bass-head subwoofer system makes rattling your ride easier than ever! Four KICKER L7R 12-inch subs come pre-loaded in this enclosure. The port is flared perfectly and tuned to 31Hz for some serious bump - without the expense of a custom enclosure.
This Kicker quad-sub box is made to take the pressure! Heavy, birch-veneer plywood construction and thick internal bracing keeps the enclosure stable, even under extreme SPL levels. Covered in durable black carpet and custom embroidered with the Kicker logo, the 47QL7R12 is pre-wired to a pair of two-Ohm terminals and 2400W of RMS power.
Specifications
Type
QUAD
Woofers/size [in, cm]
4 Solo-Baric L7R 12, 30
Impedance [Ohms]
Dual 2-Ohm Terminals
Recommended Amplifier Power (watts RMS)
2400
SENSITIVITY [dB 1w/1m]
98
Box Depth (in, mm):
28, 711
Box Height (in, mm):
20-1/4, 514
Box Width (in, mm):
35-7/8, 912
What's in the box?
1 47QL7R122, 1 enclosure hardware pack, 1 instruction manual, 2 KICKER stickers,1 47QL7R122, 1 massive sub enclosure, 1 enclosure mounting bracket kit,Customer Info Card w/link to product page (via QR Code).
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
ProWedge-Series 12-Inch 1000-Watt Enclosed Subwoofer System, 3Ω Sealed Enclosure
For those who seek the ultimate in compact-enclosure sub-bass fidelity, we offer this sealed ProWedge™ system, in which the superb performance capabilities of the W7AE subwoofer driver are harnessed within a compact, sealed enclosure. This system has it all: extension, impact, detail and smooth response... at any listening level.
This enclosure design has been carefully engineered to the optimum sealed enclosure alignment for the 12W7AE-3 and has been fine-tuned through extensive real-world listening.
This subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal.
The angled-back design saves precious cargo space by allowing the enclosure to fit tightly against the back of a vehicle's rear seat.
Finish: Black, high-grade automotive carpet, with gloss-black laminated decorative front baffle trim. Three solid aluminum bars provide stylish and rugged woofer protection.
Construction: CNC-Cut High-Grade MDF
Recommended amplifier power: 400 - 1000WNominal Impedance: 3 Ω
General Specifications
Continuous Power Handling (RMS)
1000 W
System Nominal Impedance
3 Ω
Enclosure Type
Sealed, rear-firing design
Finish
Black carpet / laminate
Grille Included
Aluminum Bar Grille
Physical Specifications
External Width (W)
21.25 in / 540 mm
External Height (H)
16.50 in / 419 mm
External Depth (D1)
17 in / 432 mm
External Top Surface Depth (D2)
11.25 in / 286 mm
Net Weight
81.7 lb / 37.10 kg
JL Audio CLS112RG-W7AE Brochure
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
High Output Series 12-Inch 1000-Watt Enclosed Subwoofer System, 3Ω Ported Enclosure
JL Audio's patented High Output Enclosures are designed to deliver the ultimate high-performance bass experience with a rare combination of superb sound quality and awesome output.
JL Audio's patented, chamber-coupled port design (U.S. patent #6,625,292) wraps around the inner enclosure boundary and terminates just above the woofer, coupling the port output to the woofer's direct output. This also provides the necessary surface area and port length to maximize the performance of the W7AE driver.
This enclosure design has been carefully engineered to the optimum ported alignment for the 12W7AE-3 and has been fine-tuned through extensive real-world listening. The high power handling of the 12W7AE, combined with the efficiency of this subwoofer system, produce a devastating performance combination.
This subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal. While no grille is provided, the recessed mounting baffle provides some protection for the woofer.
The angled-back design saves precious cargo space by allowing the enclosure to fit tightly against the back of a vehicle's rear seat.
Finish: Dark gray, high-grade automotive carpet, with black carpet on woofer baffle. "JL AUDIO" is embroidered in silver on the top surface of the enclosure.
Construction: CNC-Cut High-Grade MDF
Recommended amplifier power: 400 - 1000WNominal Impedance: 3Ω
General Specifications
Continuous Power Handling (RMS)
1000 W
System Nominal Impedance
3 Ω
Enclosure Type
Chamber-coupled, slot-ported, rear-firing design
Finish
Dark gray carpet with black insert
Grille Included
No
Physical Specifications
External Width (W)
34.0 in / 864 mm
External Height (H)
17.0 in / 432 mm
External Depth (D1)
20.5 in / 521 mm
External Top Surface Depth (D2)
14.5 in / 368 mm
Net Weight
119.0 lb / 53.95 kg
JL Audio HO112R-W7AE Brochure
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
ProWedge-Series 10-Inch 750-Watt Enclosed Subwoofer System, 3Ω Sealed Enclosure
For those who seek the ultimate in compact-enclosure sub-bass fidelity, we offer this sealed ProWedge™ system, in which the superb performance capabilities of the W7AE subwoofer driver are harnessed within a compact, sealed enclosure. This system has it all: extension, impact, detail and smooth response... at any listening level.
This enclosure design has been carefully engineered to the optimum sealed enclosure alignment for the 10W7AE-3 and has been fine-tuned through extensive real-world listening.
This subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal.
The angled-back design saves precious cargo space by allowing the enclosure to fit tightly against the back of a vehicle's rear seat.
Finish: Black, high-grade automotive carpet, with gloss-black laminated decorative front baffle trim. Three solid aluminum bars provide stylish and rugged woofer protection.
Construction: CNC-Cut High-Grade MDF
Recommended amplifier power: 300 - 750WNominal Impedance: 3 Ω
General Specifications
Continuous Power Handling (RMS)
750 W
System Nominal Impedance
3 Ω
Enclosure Type
Sealed, rear-firing design
Finish
Black carpet / laminate
Grille Included
Aluminum Bar Grille
Physical Specifications
External Width (W)
17.75 in / 451 mm
External Height (H)
14.625 in / 371 mm
External Depth (D1)
16.625 in / 422 mm
External Top Surface Depth (D2)
11.50 in / 292 mm
Net Weight
61.2 lb / 27.77 kg
JL Audio CLS110RG-W7AE Brochure
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!

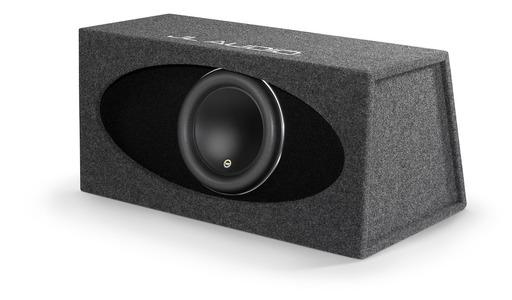

High Output Series 12-Inch 600-Watt Enclosed Subwoofer System, 2Ω Ported Enclosure
JL Audio's patented High Output Enclosures are designed to deliver the ultimate high-performance bass experience with a rare combination of superb sound quality and awesome output. In the HO112-W6v3, the high power handling of the 12W6v3 subwoofer driver, combined with its small enclosure requirements, results in a very compact subwoofer system that is capable of impressive output with moderate amplification.
JL Audio's patented, chamber-coupled port design (U.S. patent #6,625,292) wraps around the inner enclosure boundary and terminates just above the woofer, coupling the port output to the woofer's direct output. This also provides the necessary surface area and port length to maximize the performance of the W6v3 driver. This enclosure design has been carefully engineered to the optimum ported alignment for the 12W6v3, and has been fine-tuned through extensive real-world listening.
This subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal. While no grille is provided, the recessed mounting baffle provides some protection for the woofer. A steel mesh woofer grille insert can be purchased separately (Model: SGR-12W6v2/v3), if additional woofer protection is desired.
Finish: Dark gray, high-grade automotive carpet, with black carpet on woofer baffle. "JL AUDIO" is embroidered in silver on the side surface of the enclosure.
Construction: CNC-Cut High-Grade MDF
Recommended amplifier power: 200 - 600WNominal Impedance: 2Ω
General Specifications
Continuous Power Handling (RMS)
600 W
System Nominal Impedance
2 Ω
Enclosure Type
Chamber-coupled, slot-ported, rear-firing design
Finish
Dark gray carpet with black insert
Grille Included
No
Physical Specifications
External Width (W)
14.5 in / 368 mm
External Height (H)
16 in / 406 mm
External Depth (D1)
24 in / 610 mm
Net Weight
60.7 lb / 27.52 kg
JL Audio HO112-W6v3 Brochure
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Dual 12-Inch 1800-Watt Loaded Subwoofer Enclosure, 2-Ohm Final Impedance
The 12" 41DL71 loaded sub box by Kicker produces a whopping amount of competition bass from a combination of industry-honored L7 subwoofers and well crafted enclosures with an electrifying new look.
Every Kicker L7 sub box gives you incredible bass with a unique port construction. Computer-optimized ports deliver the perfect optimized construction and air flow to make the L7’s sound amazing while staying cool.
The Kicker 41DL7122 loaded subwoofer box is designed with heavy duty construction and internal bracing to allow the L7 sub enclosure to perform at an elite level.
Specifications
Woofer [in, cm]
Dual 12" 2Ω L7s
Recommended Amplifier Power (watts RMS)
1800
Rated Impedance [Ω]
2
Frequency Response [Hz]
20-100
Kicker L7 Enclosure Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
W3-Series 500-Watt Amplified Dual 8-Inch Ported Subwoofer System
With MicroSub+™ systems, the power is built right into the subwoofer system. Housing a proprietary Class D amplifier, this incredible subwoofer system utilizes JL's exclusive DCD™ amplifier technology to extract maximum output from its specially engineered, ultra low-impedance W3v3 drivers. By combining direct power conversion with an ultra-high current output section, DCD™ amplifiers are free of conventional switching power supplies, enabling them to generate remarkable power with unprecedented efficiency.
Key to the enclosure’s performance is its efficient slot-ported design and precise tuning of its dual 8Wv3 subwoofer drivers, each in its separate airspace. Extensive interior bracing permits the use of thinner wall material that maximizes the enclosure's internal volume relative to its exterior volume. The port for each driver wraps around two walls of the enclosure to produce the necessary low tuning frequency that ensures excellent extension and response smoothness. The two flared port entries/exits, one on each end of the enclosure, further enhance sound quality by minimizing air-flow noises through each port.
Integration to OEM and aftermarket head units is a snap thanks to a variety of input options and automatic turn-on capability (via signal sensing or DC offset sensing). Also included is a variable frequency low-pass filter (50-200 Hz), along with output polarity control switch. Adding an optional RBC-1 remote level control (sold separately) lets you control subwoofer levels directly from the driver’s seat. A quick-disconnect power connector makes it easy to remove the subwoofer when you need the extra space. As with all MicroSub™ systems, these amplified versions produce the kind of output and extension normally associated with much larger systems.
Note: DCD™ amplified systems use very specific components. Never use a DCD™ amplifier or its companion subwoofer(s) with incompatible, non-DCD™ products. Doing so will void the warranty and may cause severe damage.
Finish: Black, high-grade automotive carpet with silver "JL AUDIO" embroidery on front baffle. Steel mesh grilles are included to protect the subwoofer drivers.
Construction: CNC-Cut High-Grade MDF
Amplifier power: Built-in DCD™ Class D amplifier (500 W @ 0.20 Ω)Nominal Impedance: 0.20 Ω
Enclosure and Subwoofers Built in USA with global components.
General Specifications
Continuous Power Handling (RMS)
Built-in amplifier 500 W @ 0.20 Ω
System Nominal Impedance
0.20 Ω
Input Voltage Range @ RCA Inputs
70 mV - 1.40 V RMS
Input Voltage Range @ High-Level Inputs
280 mV - 5.4 V RMS
Recommended Copper Power / Ground Wire Gauge
8 AWG wire
Fuse Rating
30 A (ATO or ATC)
Enclosure Type
Slot-ported, Low-profile
Finish
Black carpet
Grille Included
Black Steel Mesh
Signal Processing
Filter Mode(s)
Low-Pass only
Filter Slope(s)
12 dB/octave
Filter Frequency Range
50 Hz - 200 Hz
Output Polarity Switch
Yes
Remote Subwoofer Level Control
Optional (RBC-1)
Physical Specifications
External Width (W)
36.625 in / 905 mm
External Height (H)
11.125 in / 283 mm
External Depth (D1)
5.125 in / 130 mm
Net Weight
34.9 lb / 15.83 kg
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
High Output Series 10-Inch 600-Watt Enclosed Subwoofer System, 2Ω Ported Enclosure
JL Audio's patented High Output Enclosures are designed to deliver the ultimate high-performance bass experience with a rare combination of superb sound quality and awesome output. In the HO110-W6v3, the high power handling of the 10W6v3 subwoofer driver, combined with its small enclosure requirements, results in a very compact subwoofer system that is capable of impressive output with moderate amplification.
JL Audio's patented, chamber-coupled port design (U.S. patent #6,625,292) wraps around the inner enclosure boundary and terminates just above the woofer, coupling the port output to the woofer's direct output. This also provides the necessary surface area and port length to maximize the performance of the W6v3 driver. This enclosure design has been carefully engineered to the optimum ported alignment for the 10W6v3, and has been fine-tuned through extensive real-world listening.
This subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal. While no grille is provided, the recessed mounting baffle provides some protection for the woofer. A steel mesh woofer grille insert can be purchased separately (Model: SGR-10W6v2/v3), if additional woofer protection is desired.
Finish: Dark gray, high-grade automotive carpet, with black carpet on woofer baffle. "JL AUDIO" is embroidered in silver on the side surface of the enclosure.
Construction: CNC-Cut High-Grade MDF
Recommended amplifier power: 200 - 600WNominal Impedance: 2Ω
General Specifications
Continuous Power Handling (RMS)
600 W
System Nominal Impedance
2 Ω
Enclosure Type
Chamber-coupled, slot-ported, rear-firing design
Finish
Dark gray carpet with black insert
Grille Included
No
Physical Specifications
External Width (W)
12.125 in / 308 mm
External Height (H)
14 in / 356 mm
External Depth (D1)
21.75 in / 552 mm
Net Weight
47.8 lb / 21.7 kg
JL Audio HO110-W6v3 Brochure
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
PowerWedge-Series 13-Inch 600-Watt Enclosed Subwoofer System, 2Ω Sealed Enclosure
The 13TW5v2 low-profile subwoofer driver has received awards from around the world for its breakthrough performance capabilities in impossibly tight spaces. In this sealed Truck PowerWedge™ subwoofer system, JL harnessed the performance of this patented subwoofer driver to deliver amazing sub-bass performance from an enclosure that is only 7.25 in. (184 mm) deep at its base and 4.5 in. (114 mm) at the top.
This enclosure design has been carefully engineered to the optimum sealed enclosure alignment for the 13TW5v2 and has been fine-tuned through extensive real-world listening.
This subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal.
Finish: Black, high-grade automotive carpet with "JL AUDIO" embroidered in silver on the front baffle. A steel mesh grille is included to protect the subwoofer driver.
Construction: CNC-Cut High-Grade MDF
Recommended amplifier power: 250 - 600WNominal Impedance: 2 Ω
General Specifications
Continuous Power Handling (RMS)
600 W
System Nominal Impedance
2 Ω
Enclosure Type
Sealed, truck enclosure
Finish
Black carpet
Grille Included
Black Steel Mesh
Physical Specifications
External Width (W)
21.25 in / 540 mm
External Height (H)
15.75 in / 400 mm
External Depth (D1)
7.25 in / 184 mm
External Top Surface Depth (D2)
4.5 in / 114 mm
Net Weight
34 lb / 15.42 kg
JL Audio CS113TG-TW5v2 Brochure
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
PowerWedge-Series Dual 12-Inch Enclosed Subwoofer System, 2Ω Sealed Enclosure
Harnessing the performance and insanely small box requirements of the TW1 Subwoofers, this PowerWedge subwoofer system houses dual 12TW1 subwoofers in a compact sealed enclosure, resulting in deep, powerful bass output from an enclosure that’s only about the size of most other single driver systems.
This low-profile enclosure design has been carefully engineered to the optimum sealed enclosure alignment for dual 12TW1-4 drivers and has been fine-tuned through extensive real-world listening.
The PowerWedge subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal.
Finish: Black, high-grade automotive carpet with "JL AUDIO" embroidered in silver on the front baffle. Steel mesh grilles are included to protect the Subwoofers.
Construction: CNC-Cut High-Grade MDF
Recommended amplifier power: 150-600WNominal Impedance: 2Ω
General Specifications
Continuous Power Handling (RMS)
600 W
System Nominal Impedance
2Ω
Enclosure Type
Sealed
Finish
Black carpet
Grille Included
Black Steel Mesh
Physical Specifications
External Width (W)
26.25 in / 667 mm
External Height (H)
14 in / 356 mm
External Depth (D1)
8.875 in / 225 mm
Net Weight
49.90 lb / 22.6 kg
JL Audio CS212LG-TW1 Brochure
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
R-Series Dual Loaded 750-Watt 8-Inch 2-Ohm Subwoofer Enclosure for Select Jeep Wrangler-JL Gladiator-JT and other Pickup Vehicles
From towing to travel, you depend on your truck to get you where you want to go, but can you rely on getting the best performance from your sound system? Now you can add deep, accurate bass in your truck without compromising valuable cabin space with the new R2-DB8V-TRK dual 8” Alpine Halo R-Series preloaded truck subwoofer enclosure with the ProLink system and amplifier space.
The enclosures were intentionally crafted to fit most full-size trucks. Two 8” subwoofers are preloaded into a compact enclosure for under the seat installation and linked with a ProLink bracket that can adjust from 51”-40”. Centered on the enclosures is an integrated amplifier mount tray that’s optimized for Alpine’s S-A75M Mono Power Amplifier (sold separately). Rubber “feet” are adjustable in height to accommodate uneven truck floors.
These ported subwoofer enclosures feature the next-generation 8” R-Series subwoofers with a more powerful motor that creates deeper bass while Alpine’s High Amplitude Multi-Roll (HAMR) surround technology allows the subwoofer cone to efficiently move air while staying cool for incredible accuracy. A new ceramic composite dust cap has higher heat resistance that ensures non-stop bass performance.
Alpine’s new preloaded truck subwoofer enclosures join the Alpine Halo family with a premium, unmistakable design. The enclosure pulls design cues from the Alpine Halo display with unique, curved edges outlined by a silver trim and a front link bracket cover with an Alpine logo badge. The 5/8” MDF enclosures are covered in a premium black carpet that will elevate the look of your truck.
With two preloaded R2-W8D2 8” R- Series subwoofers that are tuned to 36Hz, R2-DB8V-TRK is optimized to perform with Alpine’s R-Series sound system line. Dual voice coils are wired in parallel for a 2Ω load that’s compatible with Alpine’s R-Series R2-A75M mono power amplifier.
Features
Groundbreaking Alpine Halo Design
ProLink™ Ported Enclosure
Expandable Width from 40" to 51"
Compact, Under-the-Seat Installation in Most Full-Size Trucks
Integrated Amplifier Tray (not applicable with all vehicles)
Rubber, Modular Stackable Foot Design Accommodates Uneven Truck Floor Areas
Ported Enclosures with High-Performance S-Series Subwoofers
Front Link Alpine Branded Bracket
Side-Firing Cabin Loading Ports
Premium Alpine Wire Terminals
CARB Compliant 5/8" MDF Construction
Premium Black Carpet
Specifications
Dimensions: 40"-51" (Adjustable Width) x 8-3/4” (H) x 13-3/4” (D)
750W RMS
Frequency Response: 32Hz-200Hz
Sensitivity: 84dB
Dual voice coils Wired in Parallel for a 2Ω Load (Compatible with R-A75M)
Vented Enclosure Tuning Frequency: 36Hz
Custom spring-loaded speaker terminals fit up to 12AWG speaker wire
Alpine R2-DB8V-TRK BrochureAlpine R2-DB8V-TRK Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
R-Series Loaded 600-Watt Thin 12-Inch 2-Ohm Subwoofer Enclosure
Now you don’t have to choose between bass and space! Alpine’s R-Series Shallow preloaded subwoofer enclosure measures at a minimal 5.25” deep to deliver a loud and fun sound in most vehicle applications. Rubber “feet” are adjustable in height to accommodate uneven vehicle floors.
Don’t let the size fool you – the enclosures feature the same motor movement (20MM of 1-way excursion) as the full-size R2-Series subwoofers for extreme output in a shallow woofer design. At the heart of the R-Series shallow subwoofers is an oversized 4-inch voice coil that houses the lightweight and powerful neodymium magnet for 600W RMS of power handling.
Integrated cooling fins located in the core of the subwoofer help dissipate the heat generated by the rapid subwoofer movement for enhanced cooling reliability and hours of uninterrupted playtime. The unique CoolMount dual-panel mount subwoofer motor enhances cooling.
Alpine’s Gen2 DD-Linear Magnetic Circuit technology, a compact and efficient dual-gap voice coil structure, allows for better control over the motor, resulting in lower distortion and precise bass control. The preloaded enclosures use the subwoofer frame as bracing fora more ridged design and better bass response.
A lightweight yet rigid aluminum dust cap allows the R-Series shallow subwoofer to transition sound quickly with minimal distortion and project the bass off the surface of the speaker for hard-hitting yet smooth bass performance. The included adjustable mounting brackets allow for a downfire mount configuration.
With dual voice coils wired in parallel for a 2Ω load, the Alpine R-Series 12" shallow subwoofer enclosure is optimized to perform with Alpine's S-A60M or R-A75M mono amplifiers.
Features
Optimal sealed cabinet quality
Aluminum Dust Cap
Neodymium Magnet
Alpine Gen2 DD Linear Magnetic Circuit
CARB compliant ¾” MDF construction
Premium Alpine embroidered black carpet
Alpine-branded terminal cup
Pre-installed steel mesh grille
Includes a 12” R-Shallow Subwoofer (RS-W12D4)
Rubber, modular stackable foot design
Specifications
Dimensions: 26.5” W x 5.25” H x 17” D
600W RMS Power Handling
Frequency response: 26Hz – 200Hz
Dual 4Ω voice coils wired in parallel for a 2Ω load (compatible with S-A60M or R-A75M)
Nominal Impedance: 2Ω
Voice Coil: 4”(101.6mm)
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
12-Inch 1500-Watt Loaded Subwoofer Enclosure, 2-Ohm Final Impedance
This 12" L7 dual sub box enclosure features a custom-designed vent/terminal cup with an extra thick front baffle and fortified back bracing for one of the sturdiest enclosures in the industry. Two Solo-Baric L7S 12-Inch subwoofers pound out 1500W bass with a single 2Ω speaker terminal.
Specifications
Type
dual
Woofer [in, cm]
Solo-Baric L7 12"
Impedance [Ohms]
2
Recommended Amplifier Power (watts RMS)
1500
Peak Power (watts, per ANSI/CTA-2031-A)
3000
SENSITIVITY [dB 1w/1m]
89.9
Box Top Depth (in, cm):
16 1/4, 41.3
Box Bottom Depth (in, cm):
19 1/2, 19.4
Box Height (in, cm):
16, 40.6
Box Width (in, cm):
33 3/4, 85.7
Kicker CompC Subwoofer Enclosure Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
R-Series Loaded 600-Watt Thin 10-Inch 2-Ohm Subwoofer Enclosure
Now you don’t have to choose between bass and space! Alpine’s R-Series Shallow preloaded subwoofer enclosure measures at a minimal 5.25” deep to deliver a loud and fun sound in most vehicle applications. Rubber “feet” are adjustable in height to accommodate uneven vehicle floors.
Don’t let the size fool you – the enclosures feature the same motor movement (20MM of 1-way excursion) as the full-size R2-Series subwoofers for extreme output in a shallow woofer design. At the heart of the R-Series shallow subwoofers is an oversized 4-inch voice coil that houses the lightweight and powerful neodymium magnet for 600W RMS of power handling.
Integrated cooling fins located in the core of the subwoofer help dissipate the heat generated by the rapid subwoofer movement for enhanced cooling reliability and hours of uninterrupted playtime. The unique CoolMount dual-panel mount subwoofer motor enhances cooling.
Alpine’s Gen2 DD-Linear Magnetic Circuit technology, a compact and efficient dual-gap voice coil structure, allows for better control over the motor, resulting in lower distortion and precise bass control. The preloaded enclosures use the subwoofer frame as bracing fora more ridged design and better bass response.
A lightweight yet rigid aluminum dust cap allows the R-Series shallow subwoofer to transition sound quickly with minimal distortion and project the bass off the surface of the speaker for hard-hitting yet smooth bass performance. The included adjustable mounting brackets allow for a downfire mount configuration.
With dual voice coils wired in parallel for a 2Ω load, the Alpine R-Series 10" shallow subwoofer enclosure is optimized to perform with Alpine's S-A60M or R-A75M mono amplifiers.
Features
Optimal sealed cabinet quality
Aluminum Dust Cap
Neodymium Magnet
Alpine Gen2 DD Linear Magnetic Circuit
CARB compliant ¾” MDF construction
Premium Alpine embroidered black carpet
Alpine-branded terminal cup
Pre-installed steel mesh grille
Includes a 10” R-Shallow Subwoofer (RS-W10D4)
Rubber, modular stackable foot design
Specifications
Dimensions: 21.15” W x 5.25” H x 16” L
600W RMS Power Handling
Frequency response: 29Hz – 200Hz
Dual 4Ω voice coils wired in parallel for a 2Ω load (compatible with S-A60M or R-A75M)
Nominal Impedance: 2Ω
Voice Coil: 4”(101.6mm)
TW1-Series 400-Watt Amplified 12-Inch Ported Subwoofer System
With MicroSub+™ systems, the power is built right into the subwoofer system. Housing a proprietary Class D amplifier, this incredible subwoofer system utilizes JL's exclusive DCD™ amplifier technology to extract maximum output from its specially engineered, ultra low-impedance TW1 driver. By combining direct power conversion with an ultra-high current output section, DCD™ amplifiers are free of conventional switching power supplies, enabling them to generate remarkable power with unprecedented efficiency.
Key to the enclosure’s performance is its efficient slot-ported design and precise tuning of its 12TW1 subwoofer driver. Extensive interior bracing permits the use of thinner wall material that maximizes the enclosure's internal volume relative to its exterior volume. The port wraps around two walls of the enclosure to produce the necessary low tuning frequency that ensures excellent extension and response smoothness. The flared port entry and exit further enhance sound quality by minimizing air-flow noises through the port.
Integration to OEM and aftermarket head units is a snap thanks to a variety of input options and automatic turn-on capability (via signal sensing or DC offset sensing). Also included is a variable frequency low-pass filter (50-200 Hz), along with output polarity control switch. Adding an optional RBC-1 remote level control (sold separately) lets you control subwoofer levels directly from the driver’s seat. A quick-disconnect power connector makes it easy to remove the subwoofer when you need the extra space. As with all MicroSub™ systems, these amplified versions produce the kind of output and extension normally associated with much larger systems.
Note: DCD™ amplified systems use very specific components. Never use a DCD™ amplifier or its companion subwoofer(s) with incompatible, non-DCD™ products. Doing so will void the warranty and may cause severe damage.
Finish: Black, high-grade automotive carpet with silver "JL AUDIO" embroidery on front baffle. A steel mesh grille is included to protect the subwoofer driver.
Construction: CNC-Cut High-Grade MDF
Amplifier power: Built-in DCD™ Class D amplifier (400 W @ 0.25 Ω)Nominal Impedance: 0.25 Ω
Enclosure and Subwoofer Built in USA with global components
General Specifications
Continuous Power Handling (RMS)
Built-in amplifier 400 W @ 0.25 Ω
System Nominal Impedance
0.25 Ω
Input Voltage Range @ RCA Inputs
70 mV - 1.40 V RMS
Input Voltage Range @ High-Level Inputs
280 mV - 5.4 V RMS
Recommended Copper Power / Ground Wire Gauge
8 AWG wire
Fuse Rating
30 A (ATO or ATC)
Enclosure Type
Slot-ported, Low-profile
Finish
Black carpet
Grille Included
Black Steel Mesh
JL Audio MicroSub+/PowerWedge+ Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
MicroSub-Series 8" Enclosed Dual 8-Inch 500-Watt Subwoofer System, 2Ω Ported Enclosure
This incredible MicroSub™ subwoofer system delivers the kind of output and extension that is normally possible with only much larger systems. The key to its performance lies in the precise tuning of its dual 8W3v3 subwoofer drivers, each in separate airspace, with an efficient slot-ported design.
Extensive interior bracing permits the use of thinner wall material that maximizes the enclosure's internal volume relative to its exterior volume. The port for each driver wraps around two walls of the enclosure to produce the necessary low tuning frequency that ensures excellent extension and response smoothness. The two flared port entries/exits, one on each end of the enclosure, further enhance sound quality by minimizing air-flow noises through these ports.
This subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal.
Finish: Black, high-grade automotive carpet with silver "JL AUDIO" embroidery on front baffle. Steel mesh grilles are included to protect the subwoofer drivers.
Construction: CNC-Cut High-Grade MDF
Recommended amplifier power: 200 - 500WNominal Impedance: 2 Ω
General Specifications
Continuous Power Handling (RMS)
500 W
System Nominal Impedance
2 Ω
Enclosure Type
Slot-ported, Low-profile
Finish
Black carpet
Grille Included
Black Steel Mesh
Physical Specifications
Net Weight
32.2 lb / 14.61 kg
External Width (W)
35.5 in / 902 mm
External Height (H)
11.0 in / 279 mm
External Depth (D1)
5.125 in / 130 mm
JL Audio CP208LG-W3v3 Brochure
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
PowerWedge-Series Dual 10-Inch Enclosed Subwoofer System, 2Ω Sealed Enclosure
Harnessing the performance and insanely small box requirements of the TW1 subwoofer drivers, this PowerWedge™ subwoofer system houses dual 10TW1 subwoofers in a compact sealed enclosure, resulting in deep, powerful bass output from an enclosure that’s only about the size of most other single driver systems.
This low-profile enclosure design has been carefully engineered to the optimum sealed enclosure alignment for dual 10TW1-4 drivers and has been fine-tuned through extensive real-world listening.
The PowerWedge™ subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal.
Finish: Black, high-grade automotive carpet with "JL AUDIO" embroidered in silver on the front baffle. Steel mesh grilles are included to protect the subwoofer drivers.
Construction: CNC-Cut High-Grade MDF
Recommended amplifier power: 150 - 600WNominal Impedance: 2 Ω
General Specifications
Continuous Power Handling (RMS)
600 W
System Nominal Impedance
2 Ω
Enclosure Type
Sealed
Finish
Black carpet
Grille Included
Black Steel Mesh
Physical Specifications
External Width (W)
22 in / 559 mm
External Height (H)
11.75 in / 298 mm
External Depth (D1)
7.313 in / 186 mm
Net Weight
34.20 lb / 15.51 kg
JL Audio CS210LG-TW1 Brochure
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
S-Series Dual Loaded 600-Watt 8-Inch 2-Ohm Subwoofer Enclosure for Select Jeep Wrangler-JL Gladiator-JT and other Pickup Vehicles
From towing to travel, you depend on your truck to get you where you want to go, but can you rely on getting the best performance from your sound system? Now you can add deep, accurate bass in your truck without compromising valuable cabin space with the new S-DB8V-TRK dual 8” Alpine Halo S-Series preloaded truck subwoofer enclosure with the ProLink system and amplifier space.
The enclosures were intentionally crafted to fit most full-size trucks. Two 8” subwoofers are preloaded into a compact enclosure for under the seat installation and linked with a ProLink bracket that can adjust from 51”-40”. Centered on the enclosures is an integrated amplifier mount tray that’s optimized for Alpine’s S-A60M Mono Power Amplifier (sold separately). Rubber “feet” are adjustable in height to accommodate uneven truck floors.
The enclosures are designed for the unique cabin environment of your truck. The ported subwoofer enclosures feature Alpine’s reliable 8” S-Series subwoofers. The subwoofers are designed with an improved voice coil that brings out the full potential of the subwoofer. The custom-stamped steel frame is designed to withstand the rigors of the strong S-Series motor. Frame leg vents, as well as a vented backplate, keep the subwoofer cool for non-stop bass performance.
Alpine’s new preloaded truck subwoofer enclosures join the Alpine Halo family with a premium, unmistakable design. The enclosure pulls design cues from the Alpine Halo display with unique, curved edges outlined by a silver trim and a front link bracket cover with an Alpine logo badge. The 5/8” MDF enclosures are covered in a premium black carpet that will elevate the look of your truck.
With two preloaded S-W8D2 8” S- Series subwoofers that are tuned to 36Hz, the S-DB8V-TRK is optimized to perform with Alpine’s S-Series sound system line. Dual voice coils are wired in parallel for a 2Ω load that’s compatible with Alpine’s S-Series S-A60M mono power amplifier.
Features
Groundbreaking Alpine Halo Design
ProLink™ Ported Enclosure
Expandable Width from 40" to 51"
Compact, Under-the-Seat Installation in Most Full-Size Trucks
Integrated Amplifier Tray (not applicable with all vehicles)
Rubber, Modular Stackable Foot Design Accommodates Uneven Truck Floor Areas
Ported Enclosures with High-Performance S-Series Subwoofers
Front Link Alpine Branded Bracket
Side-Firing Cabin Loading Ports
Premium Alpine Wire Terminals
CARB Compliant 5/8" MDF Construction
Premium Black Carpet
Specifications
Dimensions: 40"-51" (Adjustable Width) x 8-3/4” (H) x 13-3/4” (D)
600W RMS
Frequency Response: 34Hz-200Hz
Sensitivity: 84dB
Dual voice coils Wired in Parallel for a 2Ω Load (Compatible with S-A60M)
Vented Enclosure Tuning Frequency: 36Hz
Custom spring-loaded speaker terminals fit up to 12AWG speaker wire
Alpine S-DB8V-TRK BrochureAlpine S-DB8V-TRK Manual
TW1-Series 400-Watt Amplified 10-Inch Ported Subwoofer System
With MicroSub+™ systems, the power is built right into the subwoofer system. Housing a proprietary Class D amplifier, this incredible subwoofer system utilizes JL's exclusive DCD™ amplifier technology to extract maximum output from its specially engineered, ultra low-impedance TW1 driver. By combining direct power conversion with an ultra-high current output section, DCD™ amplifiers are free of conventional switching power supplies, enabling them to generate remarkable power with unprecedented efficiency.
Key to the enclosure’s performance is its efficient slot-ported design and precise tuning of its 10TW1 subwoofer driver. Extensive interior bracing permits the use of thinner wall material that maximizes the enclosure's internal volume relative to its exterior volume. The port wraps around two walls of the enclosure to produce the necessary low tuning frequency that ensures excellent extension and response smoothness. The flared port entry and exit further enhance sound quality by minimizing air-flow noises through the port.
Integration to OEM and aftermarket head units is a snap thanks to a variety of input options and automatic turn-on capability (via signal sensing or DC offset sensing). Also included is a variable frequency low-pass filter (50-200 Hz), along with output polarity control switch. Adding an optional RBC-1 remote level control (sold separately) lets you control subwoofer levels directly from the driver’s seat. A quick-disconnect power connector makes it easy to remove the subwoofer when you need the extra space. As with all MicroSub™ systems, these amplified versions produce the kind of output and extension normally associated with much larger systems.
Note: DCD™ amplified systems use very specific components. Never use a DCD™ amplifier or its companion subwoofer(s) with incompatible, non-DCD™ products. Doing so will void the warranty and may cause severe damage.
Finish: Black, high-grade automotive carpet with silver "JL AUDIO" embroidery on front baffle. A steel mesh grille is included to protect the subwoofer driver.
Construction: CNC-Cut High-Grade MDF
Amplifier power: Built-in DCD™ Class D amplifier (400 W @ 0.25 Ω)Nominal Impedance: 0.25 Ω
General Specifications
Continuous Power Handling (RMS)
Built-in amplifier 400 W @ 0.25 Ω
System Nominal Impedance
0.25 Ω
Input Voltage Range @ RCA Inputs
70 mV - 1.40 V RMS
Input Voltage Range @ High-Level Inputs
280 mV - 5.4 V RMS
Recommended Copper Power / Ground Wire Gauge
8 AWG wire
Fuse Rating
30 A (ATO or ATC)
Enclosure Type
Slot-ported, Low-profile
Finish
Black carpet
Grille Included
Black Steel Mesh
JL Audio MicroSub+/PowerWedge+ Manual
TW1-Series 400-Watt Amplified 12-Inch Subwoofer System
In PowerWedge+™ systems, the power is built right into the subwoofer system. Housing a proprietary Class D amplifier, this subwoofer system employs JL's exclusive DCD™ amplifier technology to extract maximum output from its specially engineered, ultra low-impedance TW1 driver. By combining direct power conversion with an ultra-high current output section, DCD™ amplifiers are free of conventional switching power supplies, enabling them to generate remarkable power with unprecedented efficiency.
Harnessing the performance and insanely small box requirements of the TW1 subwoofer driver, this subwoofer system is designed to deliver amazing sub-bass from an enclosure that is only 6.625 in. (168 mm) deep. Its low-profile enclosure design has been carefully engineered to the optimum sealed enclosure alignment for the 12TW1 driver and has been fine-tuned through extensive real-world listening.
Integration to OEM and aftermarket head units is a snap thanks to a variety of input options and automatic turn-on capability (via signal sensing or DC offset sensing). Also included is a variable frequency low-pass filter (50-200 Hz), along with output polarity control switch. Adding an optional RBC-1 remote level control (sold separately) lets you control subwoofer levels directly from the driver’s seat. A quick-disconnect power connector makes it easy to remove the subwoofer when you need the extra space.
Note: DCD™ amplified systems use very specific components. Never use a DCD™ amplifier or its companion subwoofer(s) with incompatible, non-DCD™ products. Doing so will void the warranty and may cause severe damage.
Finish: Black, high-grade automotive carpet with silver "JL AUDIO" embroidery on front baffle. A steel mesh grille is included to protect the subwoofer driver.
Construction: CNC-Cut High-Grade MDF
Amplifier power: Built-in DCD™ Class D amplifier (400 W @ 0.25 Ω)Nominal Impedance: 0.25 Ω
Enclosure and Subwoofer built in USA with global components
General Specifications
Continuous Power Handling (RMS)
Built-in amplifier 400 W @ 0.25 Ω
System Nominal Impedance
0.25 Ω
Input Voltage Range @ RCA Inputs
70 mV - 1.40 V RMS
Input Voltage Range @ High-Level Inputs
280 mV - 5.4 V RMS
Recommended Copper Power / Ground Wire Gauge
8 AWG wire
Fuse Rating
30 A (ATO or ATC)
Enclosure Type
Sealed
Finish
Black carpet
Grille Included
Black Steel Mesh
JL Audio MicroSub+/PowerWedge+ Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Alpine 265W Powered Speaker System with Built-in Subwoofer
The PWD-X5’s subwoofer increases the sound system’s overall bass output and when the product is installed under the front seat, it brings the sound stage forward in the vehicle for the best bass and imaging experience. With 165-watts available to the subwoofer and 25-watts x 4 to the speakers, this all-in-one solution lets you create a truly enjoyable and customizable sound experience in just about any in-vehicle cabin space.
The PWD-X5 can also be used in non-traditional ways thanks to the Bluetooth® streaming capabilities. In situations where the car radio cannot be replaced, such as in a classic car, music can be streamed to the PWD-X5’s Bluetooth® connection then played through the car’s speakers while utilizing the PWD-X5’s bass and amplified power. If a head unit does not exist, such as on a motorcycle or a side-by-side, the music streamed from a smartphone to the PWD-X5’s Bluetooth® connection is used as the vehicle’s music source.
Specifications
25W x 4 +165W RMS
50W x 4 +240W Peak
4 RCA/Speaker Level Inputs
10-Band Parametric EQ
Digital Time Correction
Bluetooth Signal Inputs
Remote Commander Included
OS/Android and Desktop PC Tuning Software
13-13/16” x 9-11/16” x 3-3/16”
CES 2019 Innovations Award Winner
Alpine PWD-X5 Manual
TW1-Series 400-Watt Amplified 10-Inch Subwoofer System
In PowerWedge+™ systems, the power is built right into the subwoofer system. Housing a proprietary Class D amplifier, this subwoofer system employs JL's exclusive DCD™ amplifier technology to extract maximum output from its specially engineered, ultra low-impedance TW1 driver. By combining direct power conversion with an ultra-high current output section, DCD™ amplifiers are free of conventional switching power supplies, enabling them to generate remarkable power with unprecedented efficiency.
Harnessing the performance and insanely small box requirements of the TW1 subwoofer driver, this subwoofer system is designed to deliver amazing sub-bass from an enclosure that is only 5 inches (127 mm) deep. Its low-profile enclosure design has been carefully engineered to the optimum sealed enclosure alignment for the 10TW1 driver and has been fine-tuned through extensive real-world listening.
Integration to OEM and aftermarket head units is a snap thanks to a variety of input options and automatic turn-on capability (via signal sensing or DC offset sensing). Also included is a variable frequency low-pass filter (50-200 Hz), along with output polarity control switch. Adding an optional RBC-1 remote level control (sold separately) lets you control subwoofer levels directly from the driver’s seat. A quick-disconnect power connector makes it easy to remove the subwoofer when you need the extra space.
Note: DCD™ amplified systems use very specific components. Never use a DCD™ amplifier or its companion subwoofer(s) with incompatible, non-DCD™ products. Doing so will void the warranty and may cause severe damage.
Finish: Black, high-grade automotive carpet with silver "JL AUDIO" embroidery on front baffle. A steel mesh grille is included to protect the subwoofer driver.
Construction: CNC-Cut High-Grade MDF
Amplifier power: Built-in DCD™ Class D amplifier (400 W @ 0.25 Ω)Nominal Impedance: 0.25 Ω
Enclosure and Subwoofer Built in USA with global components
General Specifications
Continuous Power Handling (RMS)
Built-in amplifier 400 W @ 0.25 Ω
System Nominal Impedance
0.25 Ω
Input Voltage Range @ RCA Inputs
70 mV - 1.40 V RMS
Input Voltage Range @ High-Level Inputs
280 mV - 5.4 V RMS
Recommended Copper Power / Ground Wire Gauge
8 AWG wire
Fuse Rating
30 A (ATO or ATC)
Enclosure Type
Sealed
Finish
Black carpet
Grille Included
Black Steel Mesh
JL Audio MicroSub+/PowerWedge+ Manual
High Output Series 12-Inch 500-Watt Enclosed Subwoofer System, 2Ω Ported Enclosure
JL Audio's patented High Output Enclosures are designed to deliver the ultimate high-performance bass experience with a rare combination of superb sound quality and awesome output.
JL Audio's patented, chamber-coupled port design (U.S. patent #6,625,292) wraps around the inner enclosure boundary and terminates on one side of the woofer, coupling the port output to the woofer's direct output. This also provides the necessary surface area and port length to maximize the performance of the W3v3 driver.
This enclosure design has been carefully engineered to the optimum ported alignment for the 12W3v3, and has been fine-tuned through extensive real-world listening. This efficient system will produce superb output with as little as 150W of amplifier power, but performs best with 300 - 500W of power.
This subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal. Three solid aluminum bars provide stylish and rugged woofer protection.
The angled-back design saves precious cargo space by allowing the enclosure to fit tightly against the back of a vehicle's rear seat.
Finish: Dark gray, high-grade automotive carpet, with black carpet on woofer baffle. "JL AUDIO" is embroidered in silver on the top surface of the enclosure.
Construction: CNC-Cut High-Grade MDF
Recommended amplifier power: 150 - 500WNominal Impedance: 2Ω
General Specifications
Continuous Power Handling (RMS)
500 W
System Nominal Impedance
2 Ω
Enclosure Type
Chamber-coupled, slot-ported, rear-firing design
Finish
Dark gray carpet with black insert
Grille Included
Aluminum Bar Grille
Physical Specifications
External Width (W)
32.25 in / 819 mm
External Height (H)
15.25 in / 387 mm
External Depth (D1)
13.5 in / 343 mm
External Top Surface Depth (D2)
7.5 in / 190.5 mm
Net Weight
46.9 lb / 21.27 kg
JL Audio HO112RG-W3v3 Brochure
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Dual 12-Inch 1200-Watt Loaded Subwoofer Enclosure, 2-Ohm Final Impedance
This L7 series dual 12" loaded sub box by Kicker comes with two Solo-Baric L7S sub loaded into a custom engineered to spec subwoofer enclosure made of thick MDF construction with a custom port design. Heavy internal bracing with thick black carpeting complement the Kicker embroidered logo on this box.
This 12-inch L7 dual subwoofer enclosure is best suited with 1200W RMS of amplified power.
Specifications
Type
dual
Woofers/size [in, cm]
2 Solo-Baric L7R 12"
Impedance [Ohms]
2
Recommended Amplifier Power [watts RMS]
1200
SENSITIVITY [dB 1w/1m]
95
Box Top Depth (in, cm):
15 1/4, 38.7
Box Bottom Depth (in, cm):
20 3/8, 51.8
Box Height (in, cm):
15 7/8, 40.2
Box Width (in, cm):
33 3/4, 85.7
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
12-Inch 900-Watt Loaded Square Subwoofer Enclosure, 2-Ohm Final Impedance
The 12" L7 loaded subwoofer box by Kicker outputs competition bass from a 10-Inch L7 subwoofer and a well constructed enclosure. A computer-optimized port moves the precise amount of air to make the L7’s sound every bit as good as they look. Heavy duty internal bracing make this 10" L7 subwoofer enclosure perform at an competition level. This kind of performance only comes with the know-how Kicker brings to the table.
Specifications
Woofer [in, cm]
12" 2Ω L7
Recommended Amplifier Power (watts RMS)
900
Rated Impedance [Ω]
2
Frequency Response [Hz]
20 - 100
Kicker L7 Subwoofer Enclosure Manual
W3-Series 250-Watt Amplified 8-Inch Ported Subwoofer System
With MicroSub+™ systems, the power is built right into the subwoofer system. Housing a proprietary Class D amplifier, this incredible subwoofer system utilizes JL Audio's exclusive DCD™ amplifier technology to extract maximum output from its specially engineered, ultra low-impedance W3v3 driver. By combining direct power conversion with an ultra-high current output section, DCD™ amplifiers are free of conventional switching power supplies, enabling them to generate remarkable power with unprecedented efficiency.
Key to the enclosure’s performance is its efficient slot-ported design and precise tuning of its 8Wv3 subwoofer driver. Extensive interior bracing permits the use of thinner wall material that maximizes the enclosure's internal volume relative to its exterior volume. The port wraps around two walls of the enclosure to produce the necessary low tuning frequency that ensures excellent extension and response smoothness. The flared port entry and exit further enhance sound quality by minimizing air-flow noises through the port.
Integration to OEM and aftermarket head units is a snap thanks to a variety of input options and automatic turn-on capability (via signal sensing or DC offset sensing). Also included is a variable frequency low-pass filter (50-200 Hz), along with output polarity control switch. Adding an optional RBC-1 remote level control (sold separately) lets you control subwoofer levels directly from the driver’s seat. A quick-disconnect power connector makes it easy to remove the subwoofer when you need the extra space. As with all MicroSub™ systems, these amplified versions produce the kind of output and extension normally associated with much larger systems.
Note: DCD™ amplified systems use very specific components. Never use a DCD™ amplifier or its companion subwoofer(s) with incompatible, non-DCD™ products. Doing so will void the warranty and may cause severe damage.
Finish: Black, high-grade automotive carpet with silver "JL AUDIO" embroidery on front baffle. A steel mesh grille is included to protect the subwoofer driver.
Construction: CNC-Cut High-Grade MDF
Amplifier power: Built-in DCD™ Class D amplifier (250 W @ 0.40 Ω)Nominal Impedance: 0.40 Ω
Enclosure and Subwoofer Built in USA with global components.
General Specifications
Continuous Power Handling (RMS)
Built-in amplifier 250 W @ 0.40 Ω
System Nominal Impedance
0.40 Ω
Input Voltage Range @ RCA Inputs
70 mV - 1.40 V RMS
Input Voltage Range @ High-Level Inputs
280 mV - 5.4 V RMS
Recommended Copper Power / Ground Wire Gauge
8 AWG wire
Fuse Rating
30 A (ATO or ATC)
Enclosure Type
Slot-ported, Low-profile
Finish
Black carpet
Grille Included
Black Steel Mesh
JL Audio MicroSub+/PowerWedge+ Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
8-Inch 500-Watt Square Subwoofer Loaded Enclosure
The 8" L7 automotive square subwoofers by Kicker stand alone as the most unique 8-Inch subwoofer on the market, with a cone shape that is exclusively designed to produce more output.
The Kicker 41L78 subwoofer again reaches new heights in technology and design. A winner of the 2015 CES® Innovation Award solidified the L7 series sub as the crown jewel among competition subwoofers. For more than a decade, KICKER’s square woofer earned numerous awards including several CES accolades, and the 2015 version once again makes distinctive improvements on its way to another honor.
The Kicker 41L784 square subwoofer that is loaded into this enclosure delivers 20% more surface area than a comparable 8" circular sub. A bigger cone disperses more air for each excursion thus producing more sound! Oversized magnets and an aluminum voice coil allow maximum performance while remaining cool in operation. The Uniplate™ is a KICKER original, combining the pole piece and back plate as a single, seamless unit to pull damaging heat away from the sub.
Kicker's patented Santoprene™ corners allow the L7 subs to play smooth, distortion-free music at any volume level. Kicker's Blue Lace™ spider and ribbed surround work together to give you the best suspension. You get unparalleled accuracy and volume to feel every note - every time.
Specifications
Subwoofer
Single 8" 2Ω L7
Continuous Power Handling
500 Watts RMS
Rated Impedance
2Ω
Frequency Response
28-100Hz
Height
9 9/16"
Width
9 5/16"
Depth
27 1/2"
Kicker 43L7QB82 Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
PowerWedge-Series 12-Inch 400-Watt Enclosed Subwoofer System, 2Ω Sealed Enclosure
In this sealed Truck PowerWedge™ subwoofer system, JL harnesses the performance of the 12TW3 to deliver amazing sub-bass from an enclosure that is only 7 in. (178 mm) deep at its base and 4.5 in. (114 mm) at the top.
This enclosure design has been carefully engineered to the optimum sealed enclosure alignment for the 12TW3 and has been fine-tuned through extensive real-world listening.
This subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal.
Finish: Black, high-grade automotive carpet with "JL AUDIO" embroidered in silver on the front baffle. A steel mesh grille is included to protect the subwoofer driver.
Construction: CNC-Cut High-Grade MDF
Recommended amplifier power: 100 - 400WNominal Impedance: 2 Ω
General Specifications
System Nominal Impedance
2 Ω
Grille Included
Black Steel Mesh
Finish
Black carpet
Enclosure Type
Sealed, truck enclosure
Continuous Power Handling (RMS)
400 W
Physical Specifications
External Width (W)
21.75 in / 537 mm
External Height (H)
14.625 in / 371 mm
External Depth (D1)
7 in / 178 mm
External Top Surface Depth (D2)
4.5 in / 114 mm
Net Weight
29 lb / 13.2 kg
JL Audio CS112TG-TW3 Brochure
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
PowerWedge-Series 12-Inch 400-Watt Enclosed Subwoofer System, 2Ω Sealed Enclosure
In this low-profile PowerWedge™ subwoofer system, JL harnesses the performance of the 12TW3 to deliver amazing sub-bass from an enclosure that is only 4.5 in. (114 mm) deep.
This low-profile enclosure design has been carefully engineered to the optimum sealed enclosure alignment for the 12TW3-D4 and has been fine-tuned through extensive real-world listening.
The PowerWedge™ subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal.
Finish: Black, high-grade automotive carpet with "JL AUDIO" embroidered in silver on the front baffle. A steel mesh grille is included to protect the subwoofer driver.
Construction: CNC-Cut High-Grade MDF
Recommended amplifier power: 100 - 400WNominal Impedance: 2 Ω
General Specifications
Continuous Power Handling (RMS)
400 W
System Nominal Impedance
2 Ω
Enclosure Type
Sealed
Finish
Black carpet
Grille Included
Black Steel Mesh
Physical Specifications
External Width (W)
23.75 in / 603 mm
External Height (H)
15.625 in / 397 mm
External Depth (D1)
5.0625 in / 129 mm
Net Weight
30.5 lb / 13.8 kg
JL Audio CS112LG-TW3 Brochure
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
High Output Series 10-Inch 500-Watt Enclosed Subwoofer System, 2Ω Ported Enclosure
JL Audio's patented High Output Enclosures are designed to deliver the ultimate high-performance bass experience with a rare combination of superb sound quality and awesome output.
JL Audio's patented, chamber-coupled port design (U.S. patent #6,625,292) wraps around the inner enclosure boundary and terminates on one side of the woofer, coupling the port output to the woofer's direct output. This also provides the necessary surface area and port length to maximize the performance of the W3v3 driver.
This enclosure design has been carefully engineered to the optimum ported alignment for the 10W3v3, and has been fine-tuned through extensive real-world listening. This efficient system will produce superb output with as little as 150W of amplifier power, but performs best with 300 - 500W of power.
This subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal. Three solid aluminum bars provide stylish and rugged woofer protection.
The angled-back design saves precious cargo space by allowing the enclosure to fit tightly against the back of a vehicle's rear seat.
Finish: Dark gray, high-grade automotive carpet, with black carpet on woofer baffle. "JL AUDIO" is embroidered in silver on the top surface of the enclosure.
Construction: CNC-Cut High-Grade MDF
Recommended amplifier power: 150 - 500WNominal Impedance: 2Ω
General Specifications
Continuous Power Handling (RMS)
500 W
System Nominal Impedance
2 Ω
Enclosure Type
Chamber-coupled, slot-ported, rear-firing design
Finish
Dark gray carpet with black insert
Grille Included
Aluminum Bar Grille
Physical Specifications
External Width (W)
29.5 in / 749 mm
External Height (H)
13.5 in / 343 mm
External Depth (D1)
12.0 in / 305 mm
External Top Surface Depth (D2)
7.5 in / 190.5 mm
Net Weight
34.7 lb / 15.74 kg
JL Audio HO110RG-W3v3 Brochure
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
PowerWedge-Series 10-Inch 400-Watt Enclosed Subwoofer System, 2Ω Sealed Enclosure
In this sealed Truck PowerWedge™ subwoofer system, JL harnesses the performance of the 10TW3 to deliver amazing sub-bass from an enclosure that is only 6.25 in. (159 mm) deep at its base and 4.1 in. (104 mm) at the top.
This enclosure design has been carefully engineered to the optimum sealed enclosure alignment for the 10TW3 and has been fine-tuned through extensive real-world listening.
This subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal.
Finish: Black, high-grade automotive carpet with "JL AUDIO" embroidered in silver on the front baffle. A steel mesh grille is included to protect the subwoofer driver.
Construction: CNC-Cut High-Grade MDF
Recommended amplifier power: 100 - 400WNominal Impedance: 2 Ω
General Specifications
Continuous Power Handling (RMS)
400 W
System Nominal Impedance
2 Ω
Enclosure Type
Sealed, truck enclosure
Finish
Black carpet
Grille Included
Black Steel Mesh
Physical Specifications
External Width (W)
19 in / 483 mm
External Height (H)
12.375 in / 314 mm
External Depth (D1)
6.25 in / 159 mm
External Top Surface Depth (D2)
4.1 in / 104 mm
Net Weight
21.2 lb / 9.6 kg
JL Audio CS110TG-TW3 Brochure
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
PowerWedge-Series 10-Inch 400-Watt Enclosed Subwoofer System, 2Ω Sealed Enclosure
In this low-profile PowerWedge™ subwoofer system, JL harnesses the performance of the 10TW3 to deliver amazing sub-bass from an enclosure that is only 4.5 in. (114 mm) deep.
This low-profile enclosure design has been carefully engineered to the optimum sealed enclosure alignment for the 10TW3-D4 and has been fine-tuned through extensive real-world listening.
The PowerWedge™ subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal.
Finish: Black, high-grade automotive carpet with "JL AUDIO" embroidered in silver on the front baffle. A steel mesh grille is included to protect the subwoofer driver.
Construction: CNC-Cut High-Grade MDF
Recommended amplifier power: 100 - 400WNominal Impedance: 2 Ω
General Specifications
Continuous Power Handling (RMS)
400 W
System Nominal Impedance
2 Ω
Enclosure Type
Sealed
Finish
Black carpet
Grille Included
Black Steel Mesh
Physical Specifications
External Width (W)
20.75 in / 527 mm
External Height (H)
14 in / 357 mm
External Depth (D1)
4.5 in / 114 mm
Net Weight
21.2 lb / 9.6 kg
JL Audio CS110LG-TW3 Brochure
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
PowerWedge-Series 12-Inch 300-Watt Enclosed Subwoofer System, 2Ω Sealed Enclosure
In this low-profile PowerWedge™ subwoofer system, JL harnesses the performance and insanely small box requirements of the TW1 subwoofer driver to deliver amazing sub-bass from an enclosure that is only 6.6 in. (168 mm) deep.
This low-profile enclosure design has been carefully engineered to the optimum sealed enclosure alignment for the 12TW1 and has been fine-tuned through extensive real-world listening.
The PowerWedge™ subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal.
Finish: Black, high-grade automotive carpet with "JL AUDIO" embroidered in silver on the top surface of the enclosure. A steel mesh grille is included to protect the subwoofer driver.
Construction: CNC-Cut High-Grade MDF
Recommended amplifier power: 75 - 300WNominal Impedance: 2 Ω
General Specifications
Continuous Power Handling (RMS)
300 W
System Nominal Impedance
2 Ω
Enclosure Type
Sealed
Finish
Black carpet
Grille Included
Black Steel Mesh
Physical Specifications
External Width (W)
18 in / 457 mm
External Height (H)
13.75 in / 349 mm
External Depth (D1)
6.625 in / 168 mm
Net Weight
26.02 lb / 11.80 kg
JL Audio CS112LG-TW1-2 Brochure
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
BassWedge-Series Dual 12-Inch 600-Watt Enclosed Subwoofer System, 2Ω Ported Enclosure
This powerful slot-ported BassWedge™ subwoofer system delivers awesome output at an unsurpassed value.
The slot-port runs along the bottom of the enclosure and fires on the same plane as the woofers to produce excellent extension and response smoothness. The port mouth is flared to minimize air-flow noises.
The ultra-versatile BassWedge™ shape has extended sides so that it can be placed with the woofers firing out or straight down, off the floor of the vehicle. The shape works equally well in forward or rear-firing installations. This gives you plenty of options for tweaking the loading of the enclosure into your vehicle.
This subwoofer system is shipped wired, loaded and ready to connect via a push-button terminal.
Finish: Dark gray, high-grade automotive carpet with "JL AUDIO" embroidery on the top edge and "Slot-Ported BassWedge™" embroidered on the port mouth.
Construction: MDF
Recommended amplifier power: 150 - 600WNominal Impedance: 2 Ω
General Specifications
Continuous Power Handling (RMS)
600 W
System Nominal Impedance
2 Ω
Enclosure Type
Slot-ported
Finish
Gray carpet
Grille Included
No
Physical Specifications
External Width (W)
31.375 in / 797 mm
External Height (H)
15.18 in / 386 mm
External Depth (D1)
20.3 in / 516 mm
External Top Surface Depth (D2)
15.75 in / 400 mm
Net Weight
60.3 lb / 27.35 kg
JL Audio CP212-W0v3 Brochure
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
MicroSub-Series 12-Inch 300-Watt Enclosed Subwoofer System, 2Ω Ported Enclosure
This incredible MicroSub™ subwoofer system delivers the kind of output and extension that is normally possible with only much larger systems. The key to its performance lies in the precise tuning of its 12TW1 subwoofer driver into an efficient slot-ported design.
Extensive interior bracing permits the use of thinner wall material that maximizes the enclosure's internal volume relative to its exterior volume. The port wraps around two walls of the enclosure to produce the necessary low tuning frequency that ensures excellent extension and response smoothness. The flared port entry and exit further enhance sound quality by minimizing air-flow noises through the port.
This subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal.
Finish: Black, high-grade automotive carpet with silver "JL AUDIO" embroidery on front baffle. A steel mesh grille is included to protect the subwoofer driver.
Construction: CNC-Cut High-Grade MDF
Recommended amplifier power: 75 - 300WNominal Impedance: 2 Ω
General Specifications
Continuous Power Handling (RMS)
300 W
System Nominal Impedance
2 Ω
Enclosure Type
Slot-ported, Low-profile
Finish
Black carpet
Grille Included
Black Steel Mesh
Physical Specifications
External Width (W)
23.75 in / 603 mm
External Height (H)
15.751 in / 400 mm
External Depth (D1)
9.25 in / 235 mm
Net Weight
38.3 lb / 17.37 kg
JL Audio CP112LG-TW1-2 Brochure
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
10-Inch 750-Watt Loaded Square Subwoofer Enclosure, 2-Ohm Final Impedance
The 10" TL7 loaded subwoofer box by Kicker outputs competition bass from a 10-Inch L7 thin subwoofer and a well constructed enclosure. A computer-optimized port moves the precise amount of air to make the TL7’s sound every bit as good as they look. Heavy duty internal bracing make this 10" TL7 subwoofer enclosure perform at an competition level. This kind of performance only comes with the know-how Kicker brings to the table.
Specifications
Woofer [in, cm]
10" 2Ω L7
Recommended Amplifier Power (watts RMS)
750
Rated Impedance [Ω]
2
Frequency Response [Hz]
24-100
Kicker L7 Subwoofer Enclosure Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
MicroSub-Series 10-Inch 300-Watt Enclosed Subwoofer System, 2Ω Ported Enclosure
This incredible MicroSub™ subwoofer system delivers the kind of output and extension that is normally possible with only much larger systems. The key to its performance lies in the precise tuning of its 10TW1 subwoofer driver into an efficient slot-ported design.
Extensive interior bracing permits the use of thinner wall material that maximizes the enclosure's internal volume relative to its exterior volume. The port wraps around two walls of the enclosure to produce the necessary low tuning frequency that ensures excellent extension and response smoothness. The flared port entry and exit further enhance sound quality by minimizing air-flow noises through the port.
This subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal.
Finish: Black, high-grade automotive carpet with silver "JL AUDIO" embroidery on front baffle. A steel mesh grille is included to protect the subwoofer driver.
Construction: CNC-Cut High-Grade MDF
Recommended amplifier power: 75 - 300WNominal Impedance: 2 Ω
General Specifications
Continuous Power Handling (RMS)
300 W
System Nominal Impedance
2 Ω
Enclosure Type
Slot-ported, Low-profile
Finish
Black carpet
Grille Included
Black Steel Mesh
Physical Specifications
External Width (W)
20.875 in / 530 mm
External Height (H)
13.25 in / 337 mm
External Depth (D1)
6.375 in / 162 mm
Net Weight
25.70 lb / 11.66 kg
JL Audio CP110LG-TW1-2 Brochure
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
12-Inch 750-Watt Loaded Subwoofer Enclosure, 2-Ohm Final Impedance
This L7 series 12" loaded sub box by Kicker comes with one Solo-Baric L7S sub loaded into a custom engineered to spec subwoofer enclosure made of thick MDF construction with a custom port design. Heavy internal bracing with thick black carpeting complement the Kicker embroidered logo on this box.
This 12-inch L7 subwoofer enclosure is best suited with 750W RMS of amplified power.
Specifications
Type
single
Woofer [in, cm]
Solo-Baric L7 12"
Impedance [Ohms]
2
Recommended Amplifier Power (watts RMS)
750
Peak Power (watts, per ANSI/CTA-2031-A)
1500
SENSITIVITY [dB 1w/1m]
86.9
Box Top Depth (in, cm):
14 3/4, 37.4
Box Bottom Depth (in, cm):
17 7/8, 45.5
Box Height (in, cm):
16, 40.6
Box Width (in, cm):
18-3/4, 47.6
Kicker L7 Solo-Baric Subwoofer Enclosure Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
BassWedge-Series Dual 10-Inch 600-Watt Enclosed Subwoofer System, 2Ω Ported Enclosure
This powerful slot-ported BassWedge™ subwoofer system delivers awesome output at an unsurpassed value.
The slot-port runs along the bottom of the enclosure and fires on the same plane as the woofers to produce excellent extension and response smoothness. The port mouth is flared to minimize air-flow noises.
The ultra-versatile BassWedge™ shape has extended sides so that it can be placed with the woofers firing out or straight down, off the floor of the vehicle. The shape works equally well in forward or rear-firing installations. This gives you plenty of options for tweaking the loading of the enclosure into your vehicle.
This subwoofer system is shipped wired, loaded and ready to connect via a push-button terminal.
Finish: Dark gray, high-grade automotive carpet with "JL AUDIO" embroidery on the top edge and "Slot-Ported BassWedge™" embroidered on the port mouth.
Construction: MDF
Recommended amplifier power: 150 - 600WNominal Impedance: 2 Ω
General Specifications
Continuous Power Handling (RMS)
600 W
System Nominal Impedance
2 Ω
Enclosure Type
Slot-ported
Finish
Gray carpet
Grille Included
No
Physical Specifications
External Width (W)
29.61 in / 752 mm
External Height (H)
13.77 in / 350 mm
External Depth (D1)
17.38 in / 441 mm
External Top Surface Depth (D2)
14 in / 356 mm
Net Weight
50.7 lb / 23 kg
JL Audio CP210-W0v3 Brochure
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
MicroSub-Series 8-Inch 250-Watt Enclosed Subwoofer System, 4Ω Ported Enclosure
This incredible MicroSub™ subwoofer system delivers the kind of output and extension that is normally possible with only much larger systems. The key to its performance lies in the precise tuning of its 8W3v3 subwoofer driver into an efficient slot-ported design.
Extensive interior bracing permits the use of thinner wall material that maximizes the enclosure's internal volume relative to its exterior volume. The port wraps around two walls of the enclosure to produce the necessary low tuning frequency that ensures excellent extension and response smoothness. The flared port entry and exit further enhance sound quality by minimizing air-flow noises through the port.
This subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal.
Finish: Black, high-grade automotive carpet with silver "JL AUDIO" embroidery on front baffle. A steel mesh grille is included to protect the subwoofer driver.
Construction: CNC-Cut High-Grade MDF
Recommended amplifier power: 100 - 250WNominal Impedance: 4 Ω
General Specifications
Continuous Power Handling (RMS)
250 W
System Nominal Impedance
4 Ω
Enclosure Type
Slot-ported, Low-profile
Finish
Black carpet
Grille Included
Black Steel Mesh
Physical Specifications
External Width (W)
18.625 in / 473 mm
External Height (H)
11.0 in / 279 mm
External Depth (D1)
5.125 in / 130 mm
Net Weight
17.40 lb / 7.89 kg
JL Audio CP108LG-W3v3 Brochure
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
PowerWedge-Series 10-Inch 300-Watt Enclosed Subwoofer System, 2Ω Sealed Enclosure
In this low-profile PowerWedge™ subwoofer system, JL harnesses the performance and insanely small box requirements of the TW1 subwoofer driver to deliver amazing sub-bass from an enclosure that is only 5.56 in. (141 mm) deep.
This low-profile enclosure design has been carefully engineered to the optimum sealed enclosure alignment for the 10TW1 and has been fine-tuned through extensive real-world listening.
The PowerWedge™ subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal.
Finish: Black, high-grade automotive carpet with "JL AUDIO" embroidered in silver on the top surface of the enclosure. A steel mesh grille is included to protect the subwoofer driver.
Construction: CNC-Cut High-Grade MDF
Recommended amplifier power: 75 - 300WNominal Impedance: 2 Ω
General Specifications
Continuous Power Handling (RMS)
300 W
System Nominal Impedance
2 Ω
Enclosure Type
Sealed
Finish
Black carpet
Grille Included
Black Steel Mesh
Physical Specifications
External Width (W)
15 in / 381 mm
External Height (H)
11.75 in / 298 mm
External Depth (D1)
5.563 in / 141 mm
Net Weight
17.42 lb / 7.90 kg
JL Audio CS110LG-TW1-2 Brochure
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Ten-Inch Loaded Marine Subwoofer Enclosure, 400-Watt, 2Ω or 4Ω Final Impedance
This weatherproof TB-Series subwoofer system by Kicker delivers serious bump from any corner of your trunk, behind your truck’s seat, or even in your boat or side-by-side. Surprisingly loud, the TB subs give you the bump you want without losing the space you need. Comes with a thick ABS tube construction, a flexible horizontal or vertical mounting system and spring-loaded speaker terminals. Sub-driver Grilles Included.
The marine grade Kicker 46CWTB102 and 46CWTB104 10-Inch loaded subwoofer enclosures works best with 400-watts of amplified power.
Specifications
Type
Reflex
Size (in., cm)
10, 25
Impedance (ohms)
2
Power Watts (peak/RMS)
800/400
Sensitivity (dB 1w/1m)
85.7
Box Bottom Depth (in, cm)
16-9/16, 42.1
Box Height (in, cm)
Vert. Mount: 17-1/16, 43.4; Horiz. Mount: 10-3/4, 27.3
Box Width (in, cm)
10-5/8, 27
What's in the Box:
1 - Enclosure assembly2 - Vertical mounting brackets1 - Horizontal mount base1 - Horizontal mount hook(retainer)1 - Horizontal mount plate(retaining clamp)7 - stainless steel M5 x 12mm button head screws for horizontal mount plate to base and mounting brackets to enclosure11 - nylon flat washers (to be used on all mounting fasteners)4 - stainless steel pan head phillips M4 x 25mm (for mount base to vehicle)1 - owner’s manual2 - Kicker stickers
Kicker CWTB Subwoofer Enclosure Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
12-Inch Thin Loaded Subwoofer Enclosure, 600-Watts RMS, 2-Ohm or 4-Ohm Impedance
Barely seven inches deep, the Kicker TL7T 10-Inch thin subwoofer enclosure is perfect for big bass under or behind your seats.
Genuine Kicker L7T subwoofer included
Angled design for excellent fit
Heavy internal bracing
Single 2-Ohm or 4-Ohm terminal
Easy to install and wire
Thick black carpeting
Rounded corners
Embroidered Kicker logo
Thick MDF construction
Specifications
Woofer [in, cm]
Solo-Baric L7T 12" 2 Ω or 4Ω
Impedance [Ohms]
2 or 4
Recommended Amplifier Power [watts RMS]
600
SENSITIVITY [dB 1w/1m]
86.54
Box Top Depth (in, cm):
4-3/8, 11.2
Box Bottom Depth (in, cm):
7-3/4, 19.6
Box Height (in, cm):
13-3/4, 35
Box Width (in, cm):
21-1/2, 54.6
What's in the box?
one loaded enclosure with one 12-inch subwoofermounting hardware (4 - black brackets, 4 - #10 black wood screws x 20mm, 8 - #8 black wood screws 20mm long)one owner's manualtwo stickers
Kicker L7T Subwoofer Enclosure Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
12-Inch 600-Watt Loaded Square Subwoofer Enclosure, 2-Ohm Final Impedance
With this L7R series 12" square sub box you get up to 20% more air movement compared to a round driver. This 600W loaded enclosure has an angled back, heavy duty internal bracing, thick MDF construction and black carpeting with a Kicker embroidered logo.
This L7R subwoofer enclosure contains a single 12 Inch square driver with an RMS power rating of 600W @ 2Ω.
Specifications
Type
single
Woofer [in, cm]
Solo-Baric L7R 12"
Impedance [Ohms]
2
Recommended Amplifier Power [watts RMS]
600
SENSITIVITY [dB 1w/1m]
94
Box Top Depth (in, cm):
8 1/2, 21.7
Box Bottom Depth (in, cm):
14 7/8, 37.8
Box Height (in, cm):
15, 38.1
Box Width (in, cm):
28, 71.1
What's in the box?
one loaded enclosure with one 12-inch subwoofermounting hardware (4 - black brackets, 4 - #10 black wood screws x 20mm, 8 - #8 black wood screws 20mm long)one owner's manualtwo stickers
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Alpine Compact Powered 8" Subwoofer System
The compact PWE-S8 amplified subwoofer system lets you add deep, accurate bass to your sound system without taking up much space in your vehicle.
With the PWE-S8, the high-excursion 8-inch subwoofer and 120W gives strong bass output.
Specifications
RCA and speaker level inputs
120 Watt amp
Frequency Response: 25Hz-152Hz
Dimensions 13- 7/16" Wide x 9-1/16" Long x 2-13/16" Deep
Alpine PWE-S8 Manual
