Description

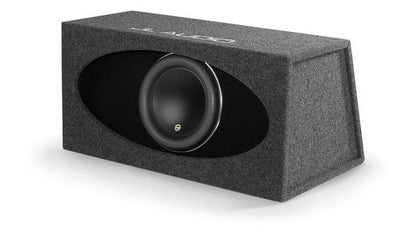

High Output Series 12-Inch 1000-Watt Enclosed Subwoofer System, 3Ω Ported Enclosure
JL Audio's patented High Output Enclosures are designed to deliver the ultimate high-performance bass experience with a rare combination of superb sound quality and awesome output.
JL Audio's patented, chamber-coupled port design (U.S. patent #6,625,292) wraps around the inner enclosure boundary and terminates just above the woofer, coupling the port output to the woofer's direct output. This also provides the necessary surface area and port length to maximize the performance of the W7AE driver.
This enclosure design has been carefully engineered to the optimum ported alignment for the 12W7AE-3 and has been fine-tuned through extensive real-world listening. The high power handling of the 12W7AE, combined with the efficiency of this subwoofer system, produce a devastating performance combination.
This subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal. While no grille is provided, the recessed mounting baffle provides some protection for the woofer.
The angled-back design saves precious cargo space by allowing the enclosure to fit tightly against the back of a vehicle's rear seat.
Finish: Dark gray, high-grade automotive carpet, with black carpet on woofer baffle. "JL AUDIO" is embroidered in silver on the top surface of the enclosure.
Construction: CNC-Cut High-Grade MDF
Recommended amplifier power: 400 - 1000W
Nominal Impedance: 3Ω
General Specifications
| Continuous Power Handling (RMS) |
1000 W |
| System Nominal Impedance |
3 Ω |
| Enclosure Type |
Chamber-coupled, slot-ported, rear-firing design |
| Finish |
Dark gray carpet with black insert |
| Grille Included |
No |
Physical Specifications
| External Width (W) |
34.0 in / 864 mm |
| External Height (H) |
17.0 in / 432 mm |
| External Depth (D1) |
20.5 in / 521 mm |
| External Top Surface Depth (D2) |
14.5 in / 368 mm |
| Net Weight |
119.0 lb / 53.95 kg |
