RadioPRO Radio Replacement Interface Harness for Select 2013-2018 Mercedes Sprinter and Metris Vehicles
The RP4.2-MB11 radio replacement interface is your plug-n-play solution to upgrade your factory radio with an aftermarket radio in Mercedes Sprinter or Metris vehicles.
Steering wheel controls, 3.5mm AUX input, USB port and the back-up camera function are all retained with the RP4.2-MB11. By adding on the PAC VS41, you have the ability to add front and blind-spot cameras creating a complete camera system. PAC quality and engineering provides you the most professional installation solution available!
Retains:
Steering wheel controls
3.5mm AUX input
USB port
Back-up camera function
Features:
Includes wired outputs for navigation radio installation
Rear camera activation while in motion
10 Amp ACC 12 volt output
Direct USB updatable
Camera system ready - requires PAC VS41
Includes:
Vehicle specific harness
Interface module
Installation instructions
Applications
Sprinters with the radio delete option need the RP4.2-MB21 harness
MERCEDES
Metris
2016
Sprinter
2013-2018
Pac Audio RP4.2-MB11 ManualPac Audio RP4.2-MB11 Technical Bulletin

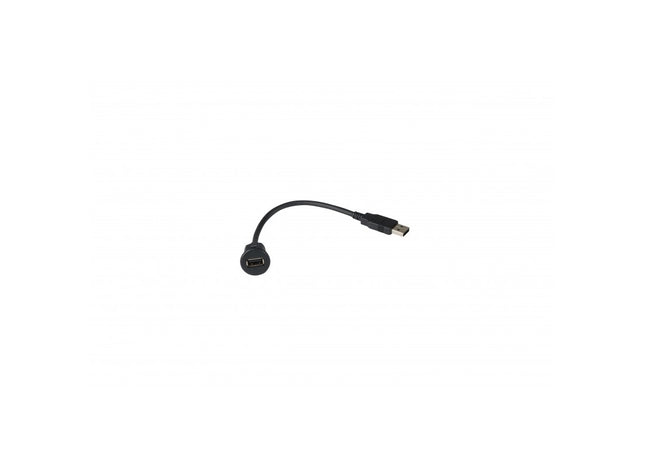

Aftermarket Radio Add-on Vehicle USB-Port with 12-Inch Extension
The female end of the cable features a flush mountable design. You can simply drill a 3/4” hole at the desired mounting location and snap the end of the cable in for an OEM look. Ideal for er aftermarket head units such as Pioneer, Kenwood and Alpine that feature a rear USB input

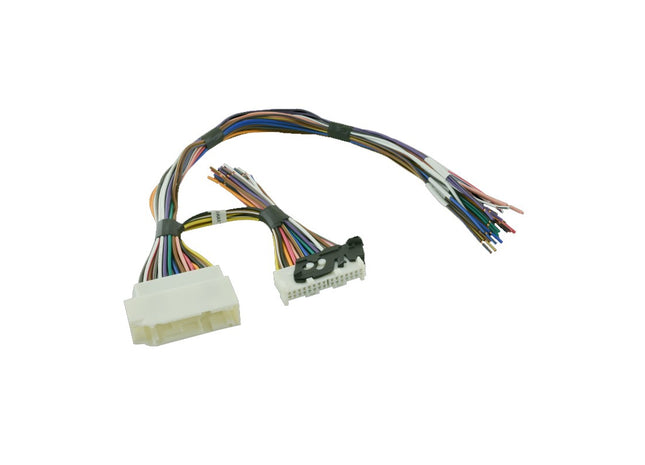

Add-On Amplifier OEM Integration Interface for Select 2007-2025 Amplified Toyota and Lexus Vehicles
Easily add amplifier(s) to Toyota and Lexus factory amplified systems without cutting or modifying the original wiring.Simplify speaker wire connections by using the APH-TY02 speaker connection harness when adding aftermarket amplifier(s) to select Toyota and Lexus vehicles. Featuring OEM quality, factory style plugs, the APH-TY02 quickly and securely plugs into the factory amplifier harness allowing an aftermarket amplifier to be more easily installed. Industry-standard wire colors on the APH-TY02 harness make identifying the factory speakers faster and also ensures proper speaker wiring polarity.
Key Features

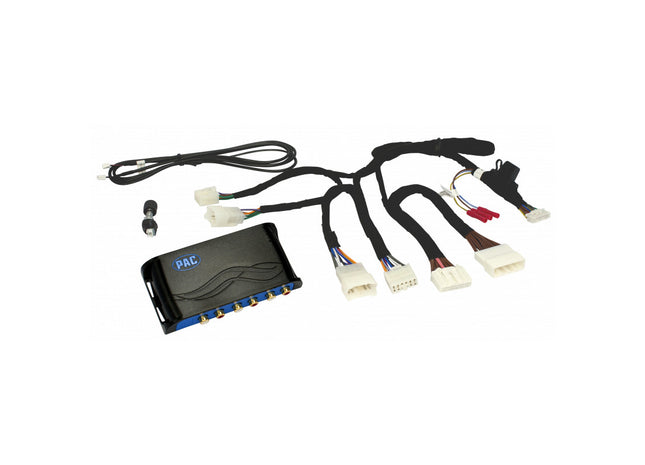

Perfect for use with AmpPRO AP4-TY11 or AP4-TY12
EIA standard color-coded wires make identifying factory speaker wires and phase easier
APH-TY02 harness eliminates having to run speaker wire throughout the car
18” Harness length
Applications
2018 Toyota Avalon: Only compatible in models with 11 speaker system
2019-2020 Toyota Avalon: Only compatible in models with the 14 speaker system
LEXUS
CT 200H
With factory amplifier
2014-2017
ES 250
With factory amplifier
2019-2021
ES 300H
With factory amplifier
2013-2020
ES 350
With factory amplifier
2013-2021
GS 350
With factory amplifier
2013-2020
GS 450H
With factory amplifier
2013-2018
GX 460
With factory amplifier
2014-2017
IS 200T
With factory amplifier
2016-2017
IS 250
With factory amplifier
2014-2015
IS 300
With factory amplifier
2016-2020
NX 200T
With factory amplifier
2015-2017
NX 300
With factory amplifier
2019-2021
NX 300H
With factory amplifier
2015-2017
RC 200T
With factory amplifier
2016-2017
RC 300
With factory amplifier
2016-2020
RC 350
With factory amplifier
2015-2020
RX 350
With factory amplifier
2013-2021
RX 450H
With factory amplifier
2016-2021
TOYOTA
Avalon
With factory JBL amplifier
2013-2020
Camry
With factory JBL amplifier
2012-2023
Corolla
With factory JBL amplifier
2019-2022
Corolla Hatchback
2023
Highlander
2024
Highlander
With factory JBL amplifier
2014-2023
Land Cruiser
2024
Land Cruiser
With factory JBL amplifier
2013-2021
Prius
With factory JBL amplifier
2012-2024
Rav4
With factory JBL amplifier
2013-2022
Sequoia
With factory JBL amplifier
2024
Sienna
With factory JBL amplifier
2021
Tacoma
With factory JBL amplifier
2024-2025
Tundra
With factory JBL amplifier
2022-2024
Tundra
With factory JBL amplifier
2007-2013
Pac Audio APH-TY02 Manual

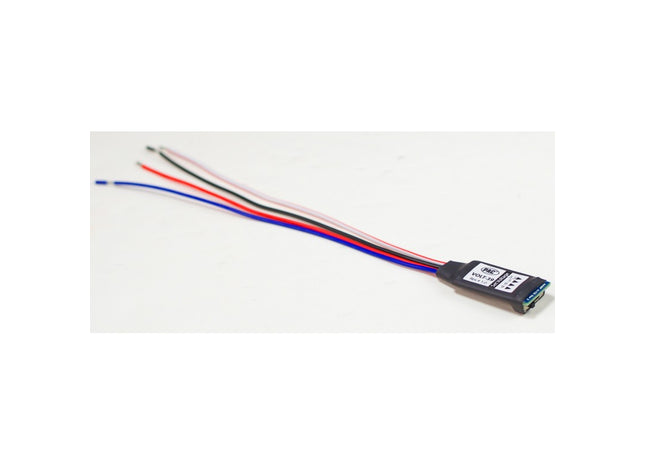

Input Voltage of 10V to 24V*, Selectable Output to 3.3V, 5V, 6V or 9V
No programming is required. Use the 4-position switch to select the desired voltage output and install the VOLT-39.
Not intended for installation in 24V systems
Add-On Amplifier OEM Integration Interface for Select 2013-2023 Chrysler, Dodge, Jeep, Maserati and RAM Vehicles
This latest version of the Pac-Audio AmpPRO simplifies the installation of upgraded amplifiers in select non-amplified and amplified sound systems With AmpPRO, you can improve audio performance while keeping an original radio’s fit, finish and features.
Benefits
Simplifies amplifier installation
Prevents need for summing and DSP devices
Provides factory sound system upgrade solution
Provides flat audio output for a solid audio foundation
Features
Can be used to upgrade the entire sound system or just part of it thanks to retention of the original amplifier
Enables the addition of a subwoofer to an amplified sound system
Variable volume, fade, balance, bass, mid and treble audio settings
Front, rear, sub preamp outputs (5 volt RMS)
Customized OE bass, mid and treble center frequency selection
Retains uConnect, Bluetooth audio, Navigation prompts, and all warning chimes
Plug-n-Play installation
Sub level controller
Optional TOSLINK optical output (APA-TOS1 sold separately)
Includes
AmpPRO module
52-pin harness (MS-CAN)
Bass knob with harness
Manual
Also available for fast, easy install: APH-CH01 harness (sold separately)
Select non-amplified vehicles are equipped with an ANC system that requires bypass. Plug-n-Play bypass harness: ANC-CH01
Applications
Compatible with both amplified and non-amplified factory systems.
Jeep Cherokee, Chrysler 200, and Maserati: These vehicles must be equipped with a factory amplifier as the AP4 cannot reprogram the factory radio to think that an amplifier is present.

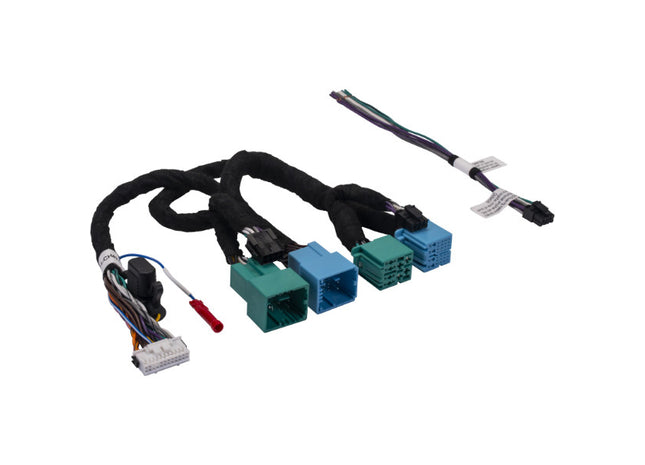

When installing into any of the following vehicles, the APHCH42 is required (sold separately):
CHRYSLER
200
With factory amplifier
2015-2017
300
2015-2023
Pacifica
7" screen, 8" screen
2017-2019
DODGE
Challenger
7" screen, 8" screen
2015-2023
Charger
7" screen, 8" screen
2015-2023
Durango
7" screen, 8" screen
2014-2020
RAM 1500, 2500, 3500
7" screen, 8" screen
2013-2018
RAM 1500, 2500, 3500
All other sizes, Classic model
2019-2021
JEEP
Cherokee
With factory amplifier
2015-2021
Gladiator
2020-2023
Grand Cherokee
7" screen, 8" screen
2014-2020
Grand Cherokee
7" screen, 8" screen, WK
2021-2022
Wrangler
JL
2018
Wrangler
2019-2023
Wrangler Unlimited
JL
2018
Wrangler Unlimited
2019-2023
MASERATI
Levante
With factory amplifier
2018
Quattroporte
With factory amplifier
2017
RAM
1500, 2500, 3500
7" screen, 8" screen
2013-2018
1500, 2500, 3500
All other sizes, Classic model, New model
2019-2021
Pac Audio AP4-CH41 R.2 ManualPac Audio AP4-CH41 ANC and Amplifier LocationsPac Audio AP4-CH41 R.2 Technical Bulletin

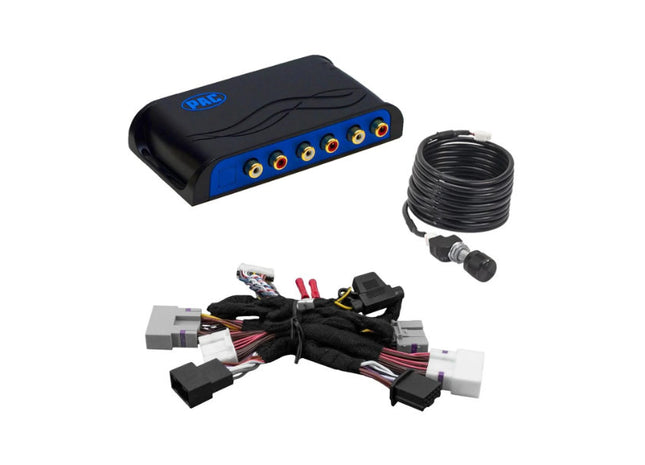

Add-On Amplifier OEM Integration Interface for Select 2022-UP Amplified Toyota Vehicles
Today's modern vehicle audio systems are becoming increasingly more sophisticated and complex. PAC engineered AmpPRO to dramatically simplify the installation of upgraded amplifiers in data-bus-controlled amplified sound systems.AmpPRO allows you to keep the original radio's fit, finish, and features while giving you the freedom to improve the audio performance in record time!
Factory amplifier must be removed from vehicle when installing this interface
Features
Upgrade solution for factory, fixed level, data-bus controlled sound systems
The time-saving design prevents the need for summing and audio correction devices.
Variable volume, fade, balance, bass, mid, and treble audio settings
Retains OnStar, Bluetooth, navigation, safety systems, and all warning chimes
Front, rear, sub, and center channel preamp outputs (5 volt RMS)
Provides full range, flat audio output for a solid audio foundation
Customized OE bass, mid, and treble center frequency selection
Plug-n-play installation
Remote sub level controller INCLUDED
Optional TOSLINK optical output with APA-TOS1 (sold separately)
Includes
AmpPRO module
Harness
Bass knob
Knob harness
Manual
Applications
TOYOTA
4Runner
With factory JBL amplifier
2025-2026
Camry
With factory JBL amplifier
2025
Corolla Hatchback
With factory JBL amplifier
2023
Crown
With factory JBL amplifier
2025
Highlander
With factory JBL amplifier
2024
Land Cruiser
With factory JBL amplifier
2024
Prius
With factory JBL amplifier
2024
Rav4
With factory JBL amplifier
2024-2025
Sequoia
With factory JBL amplifier
2024
Tacoma
With factory JBL amplifier
2024-2025
Tundra
With factory JBL amplifier
2022-2025
Pac Audio AP4-TY14 Manual

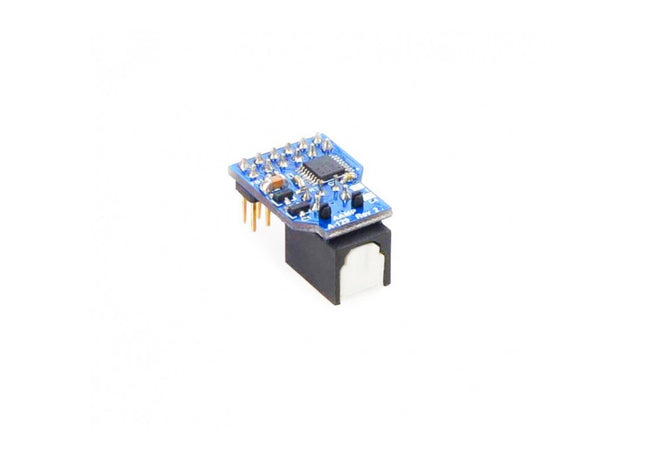

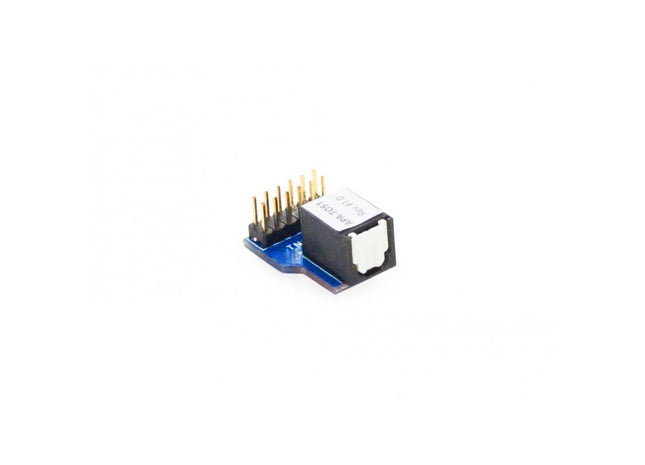

Add-On Fiber Optic Output for Select Pac-Audio AmpPro Interfaces
The APA-TOS1 is a fiber-optic audio output add-on accessory for use with an AmpPRO interface. The APA-TOS1 easily installs in your AmpPRO interface and instantly provides a digital Toslink output.
APA-TOS1 is compatible with any brand and length of Toslink cable for connection into a Toslink equipped DSP, or amplifier.
Benefits
APA-TOS1 provides a pure digital output for aftermarket amplifier and/or DSP installationDigital audio signals are less susceptible to noise/hiss or interference
Features
Quick and easy installation into any AmpPRO interfaceProvides digital fiber-optic variable audio signal outputCompatible with Toslink equipped DSPs or amplifiers
NOTE: Toslink cable is not included
Pac Audio AP4-TOS1 Manual
Replacement Tip-Sleeve Microphone for Select Pioneer Head-Units
Replacement Microphone for Bluetooth enabled Pioneer stereos with a tip and sleeve connector.

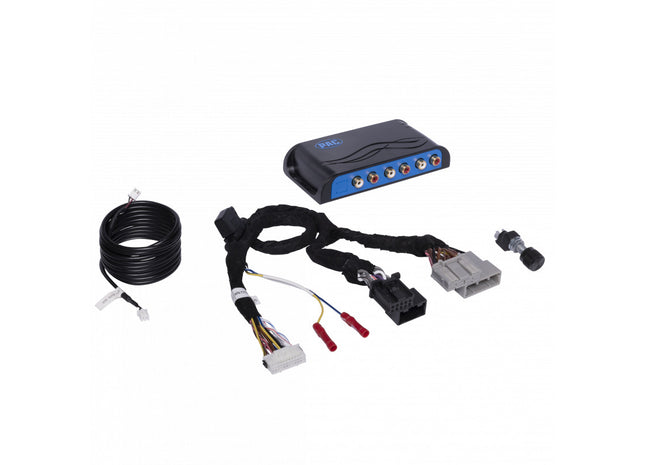

Add-On Amplifier OEM Integration Interface for Select 2018-2023 Amplified Lexus and Toyota Vehicles
Quickly and seamlessly add aftermarket amplifier(s) for improved audio performance while retaining the factory radio. AmpPRO is a Plug-n-Play solution that plugs into the factory radio harness and provides Front/Rear/Sub RCA outputs (5 Volt RMS) to connect to your aftermarket amplifiers. The AmpPRO design avoids the disappointing results and hassle of interfacing after the factory amplifier.
The harness connects to the radio for easier installation.
Provides variable volume, fade, and balance
Provides bass, mid and treble audio settings
Retains warning chimes and navigation prompts
Retains Bluetooth and telematic audio (if equipped)
Front/Rear/Sub RCA outputs (5 Volt RMS)
Includes sub level controller
Optional TOSLINK optical output (APA-TOS1) sold separately.
Optional speaker connection harness (APH-TY02) sold separately.
Applications
Lexus ES250, ES350, and NX300: Only compatible in models equipped with the 8" screen
Lexus RX350 and RX450: Not compatible in models equipped with navigation
In 2018+ models Toyota used three different styles of connectors on the factory radios. In order for the AP4-TY13 to be compatible, the radio must have the 28 / 10-pin new Toyota style connector. Vehicles equipped with the 20-pin BHA8113 or the 10 / 6 pin BHA1761 style connectors are not compatible. The only way to know what connector the radio has is to physically remove it from the dash and look at it. Please see pictures below for reference.
LEXUS
ES 250
8" screen
2019-2021
ES 350
8" screen
2019-2021
NX 300
8" screen
2019-2021
RX 350
Without Navigation
2019-2021
RX 450H
Without Navigation
2019-2020
TOYOTA
4Runner
With factory JBL amplifier
2019-2022
Avalon
With factory JBL amplifier
2019-2021
Camry
With factory JBL amplifier
2018-2023
Corolla
With factory JBL amplifier
2019
Highlander
With factory JBL amplifier
2020-2023
Rav4
With factory JBL amplifier
2019-2020
Sequoia
With factory JBL amplifier
2019-2021
Sienna
With factory JBL amplifier
2018-2020
Tacoma
With factory JBL amplifier
2019-2023
Tundra
With factory JBL amplifier
2020-2022
Pac Audio AP4-TY13 (R.2) Manual

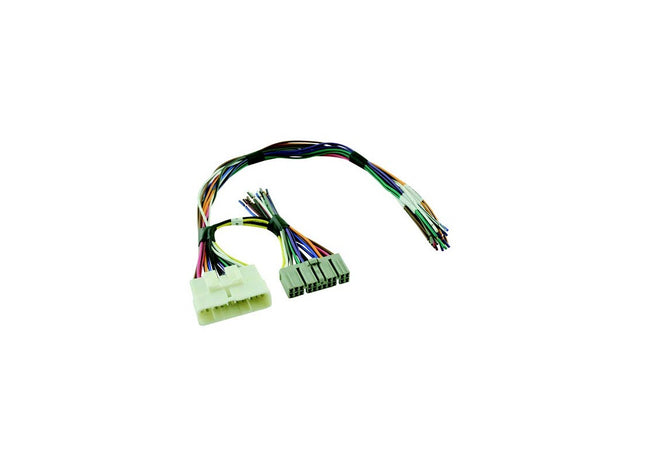

Add-On Amplifier OEM Integration Interface for Select 2003-2010 Amplified Toyota Vehicles
Easily add amplifier(s) to Toyota factory amplified systems without cutting or modifying the original wiring.Simplify speaker wire connections using the APH-TY03 speaker connection harness when adding aftermarket amplifier(s) to select Toyota vehicles. Featuring OEM quality, factory style plugs, the APH-TY03 quickly and securely plugs into the factory amplifier harness allowing an aftermarket amplifier to be more easily installed. Industry-standard wire colors on the APH-TY03 harness make identifying the factory speakers faster and also ensures proper speaker wiring polarity.
Key Features
Perfect for use with AmpPRO AP4-TY11
EIA standard color-coded wires make identifying factory speaker wires and phase easier
APH-TY03 harness eliminates having to run speaker wire throughout the car
18” Harness length
Applications
TOYOTA
4Runner
With factory JBL amplifier
2003-2008
Corolla
With factory JBL amplifier
2005-2008
Prius
With factory JBL amplifier
2004-2005
Rav4
With factory JBL amplifier
2004-2005
Sequoia
With factory JBL amplifier
2005-2007
Sienna
With factory JBL amplifier
2004-2010
Tacoma
With factory JBL amplifier
2005-2008
Tundra
With factory JBL amplifier
2005-2006
Pac Audio APH-TY03 Manual

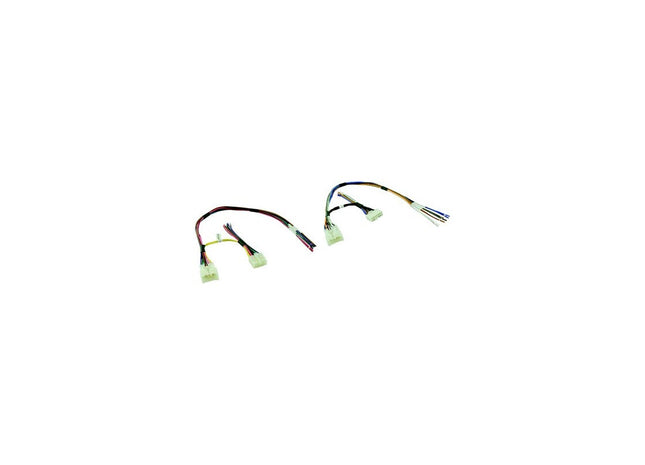

Add-On Amplifier OEM Integration Interface for Select 2005-2023 Amplified Toyota Vehicles
Easily add amplifier(s) to Toyota factory amplified systems without cutting or modifying the original wiring.Simplify speaker wire connections by using the APH-TY01 speaker connection harness when adding aftermarket amplifier(s) to select Toyota vehicles. Featuring OEM quality, factory style plugs, the APH-TY01 quickly and securely plugs into the factory amplifier harness allowing an aftermarket amplifier to be more easily installed. Industry-standard wire colors on the APH-TY01 harness make identifying the factory speakers faster and also ensures proper speaker wiring polarity.
Key Features
Perfect for use with AmpPRO AP4-TY11
EIA standard color-coded wires make identifying factory speaker wires and phase easier
APH-TY01 harness eliminates having to run speaker wire throughout the car
18” Harness length
Applications
TOYOTA
Avalon
With factory JBL amplifier
2005-2010
Camry
With factory JBL amplifier
2007-2011
Corolla
With factory JBL amplifier
2009-2011
Highlander
With factory JBL amplifier
2008-2013
Prius
With factory JBL amplifier
2006-2011
Rav4
With factory JBL amplifier
2006-2011
Tacoma
With factory JBL amplifier
2009-2011
Tacoma
With factory JBL amplifier
2018-2023
Tundra
With factory JBL amplifier
2007-2022
Pac Audio APH-TY01 Manual

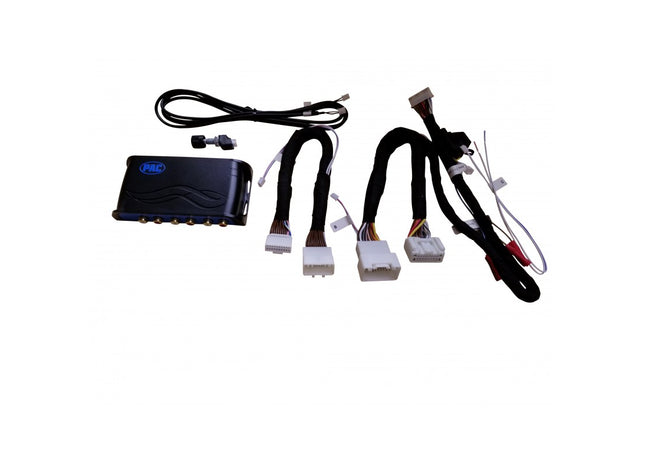

Add-On Amplifier OEM Integration Interface for Select 2011-2020 Amplified Ford and Lincoln Vehicles
AmpPRO simplifies the installation of upgraded amplifiers in data-bus controlled amplified sound systems. With AmpPRO, you can improve audio performance while keeping an original radio’s fit, finish and features.
Benefits
Simplifies amplifier installation
Prevents need for summing and DSP devices
Provides factory sound system upgrade solution
Features
Can be used to upgrade the entire sound system or just part of it thanks to retention of original amplifier
Enables the addition of a subwoofer system to the original sound system
Variable volume, fade, balance, bass, mid and treble audio settings
Front, rear, sub preamp outputs (5 volt RMS)
Provides flat audio output for a solid audio foundation
Customized OE bass, mid and treble center frequency selection
Retains Sync, Bluetooth audio and all warning chimes
Plug & play installation
Sub level controller
Optional TOSLINK optical output (APA-TOS1 sold separately)
Includes
AmpPRO module
24-pin and 54-pin harness (MS CAN) (Dual MS CAN)
Bass knob
Knob harness
Manual
Also available for fast easy install: APH-FD01 harness (sold separately)
Applications
This product is compatible with data-bus controlled amplified systems only. To identify these systems, look for logos on door speakers, tweeters, dash speakers or the subwoofer to confirm that the vehicle has a compatible amplified system. If you are unsure of your vehicle having an amplified system please contact an authorized Ford service center for further clarification.
2018-2019 Super Duty Trucks can have either Sony or B&O systems to be compatible.
2019+ Mustang must have B&O System to be compatible. If the amp looks like the one pictured, it is compatible. The amp can be found in the driver's kick panel. If the system is amplified and not badged then the AP4 is not compatible as this is a completely analog system.
FORD
Edge
With factory Sony amplifier
2015-2017
Escape
With factory Sony amplifier
2016
Expedition
With factory Sony amplifier
2015-2017
Explorer
With factory Sony amplifier
2011-2018
F-150
With factory Sony amplifier
2013-2017
F-250
With factory Sony amplifier
2013-2019
F-350
With factory Sony amplifier
2013-2019
F-450
With factory Sony amplifier
2013-2019
F-550
With factory Sony amplifier
2013-2019
Focus
With factory Sony amplifier
2012-2017
Fusion
With factory Sony amplifier
2013-2016
Mustang
With factory B&O amplifier
2019-2020
Taurus
With factory Sony amplifier
2013-2015
Pac Audio AP4-FD21 Manual
Add-On Amplifier OEM Integration Interface for Select 2009-2019 Amplified Ford Vehicles
Simplify speaker wire connections when adding aftermarket amplifiers with Pac-Audio's Speaker Connection Harness. Can easily add amplifiers with no need to cut or modify a vehicle’s original wiring.
Features:
Works with PAC AmpPRO: AP4-FD11 and AP4-FD21
It can be used for other installations requiring plug-n-play speaker wire connections.
Easily add amplifiers without cutting or modifying the vehicle’s original wiring.
Provides a plug-n-play connection at the vehicle’s original amplifier location
Saves time by quickly utilizing the original speaker wires
Harness length 10 feet
Applications
Not compatible in 2016-2017 Ford Explorer Platinum Edition
FORD
Edge
With factory Sony amplifier
2015-2017
Expedition
With factory Sony amplifier
2015-2017
Explorer
With factory Sony amplifier
2011-2017
F-150
With factory Sony amplifier
2009-2017
F-250
With factory Sony amplifier
2013-2019
F-350
With factory Sony amplifier
2013-2019
F-450
With factory Sony amplifier
2013-2019
F-550
With factory Sony amplifier
2013-2017
Flex
With factory Sony amplifier
2009-2012
Focus
With factory Sony amplifier
2012-2017
Fusion
With factory Sony amplifier
2010-2016
Mustang
With factory Sony amplifier
2019-2023
Taurus
With factory Sony amplifier
2010-2015
Pac Audio APH-FD01 Manual
Add-On Amplifier OEM Integration Interface for Select 2007-2024 Amplified Chrysler, Dodge, Fiat, Jeep, RAM and Volkswagen Vehicles
Simplify speaker wire connections when adding aftermarket amplifiers with Pac-Audio's speaker connection harnesses. This adapter can easily add amplifiers with no need to cut or modify a vehicle’s original wiring.
Features:
Works with PAC AmpPRO: AP4-CH21, AP4-CH31, and AP4-CH41
Can use it for other installations requiring plug-n-play speaker wire connections
Easily add amplifiers without cutting or modifying the vehicle’s original wiring.
Provides a plug-n-play connection at the vehicle’s original amplifier location
Saves time by quickly utilizing the original speaker wires
Harness length 18 inches
Applications
CHRYSLER
200
With factory amplifier
2015-2017
300
With factory amplifier
2012-2023
Town & Country
With factory amplifier
2008-2016
DODGE
Challenger
With factory amplifier
2015-2023
Charger
With factory amplifier
2012-2023
Dart
With factory amplifier
2013-2016
Durango
With factory amplifier
2011-2023
Grand Caravan
With factory amplifier
2008-2020
Journey
With factory amplifier
2009-2020
Nitro
With factory amplifier
2007-2011
RAM 1500, 2500, 3500
With factory amplifier
2010-2018
RAM 1500, 2500, 3500
Classic model, With factory amplifier
2019-2024
FIAT
500
With factory amplifier
2014-2019
JEEP
Cherokee
With factory amplifier
2015-2023
Grand Cherokee
With factory amplifier
2014-2017
Liberty
With factory amplifier
2008-2012
Wrangler
JK, With factory amplifier
2018
Wrangler
With factory amplifier
2008-2017
Wrangler Unlimited
JK, With factory amplifier
2018
Wrangler Unlimited
With factory amplifier
2008-2017
RAM
1500, 2500, 3500
With factory amplifier
2010-2018
1500, 2500, 3500
Classic model, With factory amplifier
2019-2024
VOLKSWAGEN
Routan
With factory amplifier
2010-2014
Pac Audio APH-CH01 Manual
HDMI and USB-Port With Splash-Resistant Cover and Optional Mounting-Bracket
Single piece design mounts both an HDMI and USB extension cable to your vehicle for use with your aftermarket head unit. Extension cables are each 3 feet long. The Splash-resistant cover is perfect for boats, or recreational vehicles. The optional dash-bracket provides an additional mounting surface if needed.
Replacement Tip-Sleeve Microphone for Select Alpine Head-Units
Replacement Microphone for Bluetooth enabled Alpine stereos with a tip and sleeve connector.
Add-On Amplifier OEM Integration Interface for Select 2019-UP Amplified Chevy and GMC Vehicles
Today's modern vehicle audio systems are becoming increasingly more sophisticated and complex. PAC engineered AmpPRO to dramatically simplify the installation of upgraded amplifiers in data-bus-controlled amplified sound systems.AmpPRO allows you to keep the original radio's fit, finish, and features while giving you the freedom to improve the audio performance in record time!
Retains GM Super Cruise feature
Factory amplifier must be removed from vehicle when installing this interface
Features
Upgrade solution for factory, fixed level, data-bus controlled sound systems
The time-saving design prevents the need for summing and audio correction devices.
Variable volume, fade, balance, bass, mid, and treble audio settings
Retains OnStar, Bluetooth, navigation, safety systems, and all warning chimes
Front, rear, sub, and center channel preamp outputs (5 volt RMS)
Provides full range, flat audio output for a solid audio foundation
Customized OE bass, mid, and treble center frequency selection
Plug-n-play installation
Remote sub level controller INCLUDED
Optional TOSLINK optical output with APA-TOS1 (sold separately)
Includes
AmpPRO module
Harness
Bass knob
Knob harness
Manual
Applications
CADILLAC
CT5
With Bose
2020-2024
CHEVROLET
Blazer
With Bose
2019-2025
Camaro
With Bose
2019-2024
Colorado
With Bose
2019-2022
Silverado 1500
New model, With Bose
2019
Silverado 1500
With Bose
2020-2025
Silverado 2500/3500HD
With Bose
2021-2025
Suburban
With Bose
2021-2024
Tahoe
With Bose
2021-2024
Traverse
With Bose
2020-2023
GMC
Acadia
With Bose
2020-2023
Canyon
With Bose
2019-2022
Sierra 1500
With Bose
2019-2025
Sierra 2500/3500 HD
With Bose
2021-2025
Yukon
With Bose
2021-2024
Yukon XL
With Bose
2021-2024
Pac Audio AP4-GM71 Manual
Ten-Inch-Size Heigh10 Head-Unit Replacement Dash Kit for Select 2013-2021 Amplified and Non-Amplified RAM Pickups
Compatible with all OEM radio options including base, 5-inch, and 8.4-inch infotainment systems
RadioPRO Advanced fully integrated RAM kit for Stinger’s HEIGH10* infotainment system. The kit enables you to replace a RAM factory radio with a show-stopping HEIGH10 multimedia display while retaining most factory features and adding even more upgraded features, including Apple CarPlay, Android Auto, and more to your RAM Truck stereo system!
*UN1810/HEIGH10 sold separately
Flush-mounted plastics for a seamless OEM experience. Includes plastics for all OEM radio options.View and adjust vehicle information through customized screens:
Complete climate controls
Real-time performance gauges
Tire pressures, door status, engine status, and other vehicle information
Access to over 70+ customizable vehicle settings (when equipped)
KIT INCLUDES EVERYTHING NEEDED FOR THE INSTALLATION* INCLUDING:
Factory matched mounting dash kits for HEIGH10 (sold separately)
CH4A-SRK RadioPRO Advanced vehicle integration module
PAC-Link adapter for Stinger multimedia units
High-definition factory camera retention module
Vehicle specific plug-n-play wire harness
Satellite antenna adapter
AM/FM antenna adapter
USB retention cables
External chime speaker
Applications - confirmed as of 2/10/2023
Year(s)
Make
Model
Trim Level
Additional Info
2013-2018
DODGE
RAM TRUCK
ALL TRIM LEVELS
—
2019-2021
DODGE
RAM TRUCK
CLASSIC
—
2013-2018
RAM
RAM TRUCK
ALL TRIM LEVELS
—
2019-2021
RAM
RAM TRUCK
CLASSIC
—
Pac Audio SRK-RAM13H Installation Manual
Ten-Inch-Size Heigh10 Head-Unit Replacement Dash Kit for Select 2018-UP Amplified and Non-Amplified Wrangler-JL and Gladiator-JT Vehicles
RadioPRO Advanced fully integrated Jeep kit for Stinger’s HEIGH10 multimedia head unit. SRK-JW18EH enables you to replace a Jeep Wrangler or Gladiator factory radio with a show-stopping HEIGH10 while retaining factory features and adding even more upgraded features!
*UN1810/HEIGH10 sold separately
Dash kit and mounting hardware included for a beautiful factory look with either the HEIGH10* Stinger multimedia head unit
Enables interactive on-screen climate controls, vehicle settings, & customizable vehicle performance apps
Provides more control over your installation with RadioPRO Advanced controlled camera triggers, steering wheel controls, and factory amplifier control
All factory cameras in full high-definition
Dual-zone and Manual factory climate control (please check Compatibility Notes tab)
Factory amplifier
Factory USB ports
Safety group chimes, including ParkSense®
Steering wheel controls
Auxiliary switch panel settings
Heated seats / heated steering wheel
On-screen vehicle settings menu
KIT INCLUDES EVERYTHING NEEDED FOR THE INSTALLATION* INCLUDING:
Factory-matched mounting dash kits for HEIGH10
RadioPRO Advanced vehicle integration module
PAC-Link adapter for Stinger multimedia units
High-definition factory camera retention module
Vehicle-specific plug-n-play wire harness
Satellite antenna adapter
AM/FM antenna adapter
USB retention cables
External chime speaker
Applications - confirmed as of 2/10/2023
Year(s)
Make
Model
Trim Level
Additional Info
2020-2022
JEEP
GLADIATOR
ALL TRIM LEVELS
—
2018-2022
JEEP
WRANGLER
JL
—
2018-2022
JEEP
WRANGLER UNLIMITED
JL
—
Pac Audio SRK-JW18EH Installation Manual
Ten-Inch-Size Heigh10 Head-Unit Replacement Dash Kit for Select 2015-2021 Amplified and Non-Amplified Dodge and Chrysler Vehicles
RadioPRO Advanced fully integrated kit for Stinger’s HEIGH10 infotainment system. The kit enables you to replace your car's factory radio with a show-stopping HEIGH10 multimedia display, while retaining most factory features and adding even more upgraded features, including Apple CarPlay, Android Auto, and more to your car's stereo system!
*Not compatible with SRT or Hellcat Models
*UN1810/HEIGH10 sold separately
Flush-mounted plastics for a seamless OEM experience. Includes plastics for all OEM radio options.View and adjust vehicle information through customized screens:
Complete climate controls
Real-time performance gauges
Tire pressures, door status, engine status, and other vehicle information
Access to over 70+ customizable vehicle settings (when equipped)
KIT INCLUDES EVERYTHING NEEDED FOR THE INSTALLATION* INCLUDING:
Factory matched mounting dash kits for HEIGH10 (sold separately)
CH4A-SRK RadioPRO Advanced vehicle integration module
PAC-Link adapter for Stinger multimedia units
High-definition factory camera retention module
Vehicle specific plug-n-play wire harness
Satellite antenna adapter
AM/FM antenna adapter
USB retention cables
External chime speaker
PERFORMANCE CONSOLE
Speed
RPM
Current/Best 0-60-mph time
Current/Best 60-0-mph brake
distance
Current/best ¼ mile time
VEHICLE GAUGES
Eight gauges on screen, save up to 2 presets
Battery voltage
Oil temperature
Oil pressure
Transmission temperature
Coolant temperature
and many more functions
VEHICLE INFORMATION SCREEN
Tire pressure with custom pressure threshold
Current vehicle status - including door open/closed
View and clear check engine status
CLIMATE CONTROL SCREEN
On-screen climate control retained
Applications - confirmed as of 2/10/2023
Year(s)
Make
Model
Trim Level
Additional Info
2015-2021
CHRYSLER
300
ALL TRIM LEVELS
—
2015-2021
DODGE
CHALLENGER
ALL TRIM LEVELS
—
2015-2021
DODGE
CHARGER
ALL TRIM LEVELS
—
Pac Audio SRK-CHR15H Installer GuidePac-Audio SRK-CHR15H Charger Installation ManualPac-Audio SRK-CHR15H Challenger Installation ManualPac-Audio SRK-CHR15H Chrysler-300 Installation Manual
Ten-Inch-Size Heigh10 Head-Unit Replacement Dash Kit for Select 2011-2018 Amplified and Non-Amplified Wrangler Vehicles
RadioPRO Jeep kit for Stinger’s HEIGH10 infotainment system. The kit enables you to replace a Jeep Wrangler JK factory radio with a show-stopping HEIGH10 multimedia display while retaining most factory features and adding even more upgraded features, including Apple CarPlay, Android Auto, and more to your Jeep's stereo system!
*UN1810/HEIGH10 sold separately
Dash kit and mounting included for a beautiful factory look with the HEIGH10 Stinger display (not included).
Complete feature retention: warning chimes, steering-wheel-mounted radio controls, factory amplifier (if equipped)
Vehicle-to-radio connectivity: vehicle speed, illumination, reverse, and parking brake signals
Dual USB connection ports
Complete plug-and-play system: no vehicle modifications needed!
Flush-mounted plastics for a seamless OEM experience
FLUSH-FITTED TO MINIMIZE VIBRATION & SHAKING
The rugged mounting system was engineered to hold your HEIGH10 system securely to withstand any bumps, dips, and potholes that are on your trail.
KIT INCLUDES EVERYTHING NEEDED FOR THE INSTALLATION* INCLUDING:
Factory-Matched Radio Mounting Panels for HEIGH10
RP4-CH11 RadioPRO for Jeep Vehicles
Complete Plug-N-Play Installation Harnesses
Dash-Mount Dual USB Cable
Antenna Adapters for Satellite and AM/FM Radio
*HEIGH10 sold separately
**Not compatible with Panoramic View Monitor (PVM) camera vehicles
Due to continual development, features and specifications are subject to change.
Applications - confirmed as of 2/10/2023
Year(s)
Make
Model
Trim Level
Additional Info
2011-2017
JEEP
WRANGLER
ALL TRIM LEVELS
—
2018
JEEP
WRANGLER
JK
—
2011-2017
JEEP
WRANGLER UNLIMITED
ALL TRIM LEVELS
—
2018
JEEP
WRANGLER UNLIMITED
JK
—
Pac Audio SR-JK11H Installation Manual
Ten-Inch-Size Heigh10 Head-Unit Replacement Dash Kit for Select 2016-2021 Amplified and Non-Amplified Toyota Tacoma Vehicles
RadioPRO Tacoma kit for Stinger’s HEIGH10 infotainment system. The kit enables you to replace a Tacoma factory radio with a show-stopping HEIGH10 multimedia display while retaining most factory features and adding even more upgraded features, including Apple CarPlay, Android Auto, and more to your truck's stereo system!
*UN1810/HEIGH10 sold separately
Dash kit and mounting included for a beautiful factory look with the HEIGH10 Stinger display (not included).
Complete feature retention: warning chimes, steering-wheel-mounted radio controls, factory amplifier (if equipped)
Vehicle-to-radio connectivity: vehicle speed, illumination, reverse, and parking brake signals
Complete plug-n-play system: no vehicle modifications needed!
Flush-mounted plastics for a seamless OEM experience
FLUSH-FITTED TO MINIMIZE VIBRATION & SHAKING
The secure mounting system was engineered to hold your HEIGH10 system securely to withstand any bumps, dips while towing or carrying anything in your truck bed.
KIT INCLUDES EVERYTHING NEEDED FOR THE INSTALLATION* INCLUDING:
Factory-Matched Radio Mounting Panels for HEIGH10
RP4.2-TY11 RadioPro for Toyota Vehicles
Complete Plug-N-Play Installation Harnesses
Adapters for AM/FM, GPS, USB, and Sirius XM (SXV Module Required)
**Not compatible with Panoramic View Monitor (PVM) camera vehicles
Due to continual development, features and specifications are subject to change.
Applications - confirmed as of 2/10/2023
Year(s)
Make
Model
Trim Level
Additional Info
2016-2021
TOYOTA
TACOMA
ALL TRIM LEVELS
—
Pac Audio SR-TAC16H Installation Manual
Ten-Inch-Size Heigh10 Head-Unit Replacement Dash Kit for Select 2014-2019 Non-Amplified Silverado and Sierra Vehicles
PAC's RadioPRO GM full-size truck kit is for Stinger's HEIGH10 multimedia head unit. The SR-GM14H kit enables you to replace a GM factory radio with a show-stopping HEIGH10 infotainment system while retaining most OEM features and maintaining a flush, factory look and feel, and adds upgraded features including Apple CarPlay, Android Auto, and more to your GM truck's stereo system
*UN1810/HEIGH10 sold separately
Complete feature retention: warning chimes, OnStar, factory WiFi, SWC
OEM safety: front park assist, rear park assist, reverse camera (if equipped)
Custom-tuned vehicle settings with a PAC-UP USB adapter (sold separately)
Complete plug-n-play system: no vehicle modifications needed!
Flush-mounted plastics for a seamless OEM experience
FLUSH-FITTED TO MINIMIZE VIBRATION & SHAKING
The secure mounting system was engineered to hold your HEIGH10 system securely to withstand any bumps, dips while towing or carrying anything in your truck bed.
KIT INCLUDES EVERYTHING NEEDED FOR THE INSTALLATION* INCLUDING:
Factory-matched radio mounting panels for HEIGH10 (for any previous size of OEM radio)
RP5-GM51 RadioPRO for GM vehicles*
PAC CMX chime module
Complete installation harnesses
Dash-mount dual USB cable
Antenna adapters for satellite and AM/FM radio
*Not compatible with BOSE-equipped vehicles
Applications - confirmed as of 2/10/2023
Year(s)
Make
Model
Trim Level
Additional Info
2014-2018
CHEVROLET
SILVERADO
ALL TRIM LEVELS
—
2019
CHEVROLET
SILVERADO
CLASSIC
—
2015-2019
CHEVROLET
SILVERADO HD
ALL TRIM LEVELS
—
2014-2018
GMC
SIERRA
ALL TRIM LEVELS
—
2015-2019
GMC
SIERRA HD
ALL TRIM LEVELS
—
Pac Audio SR-GM14H Installation Manual
Ten-Inch-Size Heigh10 Head-Unit Replacement Dash Kit for Select 2014-2021 Amplified and Non-Amplified Toyota Tundra Vehicles
RadioPRO Tundra kit for Stinger’s HEIGH10 infotainment system. The kit enables you to replace a Tundra factory radio with a show-stopping HEIGH10 multimedia display while retaining most factory features and adding even more upgraded features, including Apple CarPlay, Android Auto, and more to your truck's stereo system!
*UN1810/HEIGH10 sold separately
Dash kit and mounting included for a beautiful factory look with the HEIGH10 Stinger display (not included).
Complete feature retention: warning chimes, steering-wheel-mounted radio controls, factory amplifier (if equipped)
Vehicle-to-radio connectivity: vehicle speed, illumination, reverse, and parking brake signals
Complete plug-n-play system: no vehicle modifications needed!
Flush-mounted plastics for a seamless OEM experience
FLUSH-FITTED TO MINIMIZE VIBRATION & SHAKING
The secure mounting system was engineered to hold your HEIGH10 system securely to withstand any bumps, dips while towing or carrying anything in your truck bed.
KIT INCLUDES EVERYTHING NEEDED FOR THE INSTALLATION* INCLUDING:
Factory-Matched Radio Mounting Panels for HEIGH10
RP4.2-TY11 RadioPro for Toyota Vehicles
Complete Plug-N-Play Installation Harnesses
Adapters for AM/FM, GPS, USB, and Sirius XM (SXV Module Required)
Applications - confirmed as of 2/10/2023
Year(s)
Make
Model
Trim Level
Additional Info
2014-2021
TOYOTA
TUNDRA
ALL TRIM LEVELS
—
Pac Audio SR-TUN14H Installation Manual
Add-On Amplifier OEM Integration Interface for Select 2012-2019 Amplified Lexus and Toyota Vehicles
Today's modern vehicle audio systems are becoming increasingly more sophisticated and complex. PAC engineered AmpPRO to dramatically simplify the installation of upgraded amplifiers in data-bus-controlled amplified sound systems.
AmpPRO allows you to keep the original radio's fit, finish, and features while giving you the freedom to improve the audio performance in record time!
Benefits
Simplifies amplifier installation
Prevents the need for summing and DSP devices
Provides factory sound system upgrade solution
Features
It can be used to upgrade the entire sound system or just part of it thanks to the retention of the original amplifier
Enables the addition of a subwoofer system to the original sound system
Upgrade solution for factory, fixed level, data-bus controlled sound systems
Everything you need in one box to install your choice of aftermarket amplifier(s)
The time-saving design prevents the need for summing and audio correction devices.
Variable volume, fade, balance, bass, mid, and treble audio settings
Retains Bluetooth, navigation, safety system, and all warning chimes
Front, rear, sub preamp outputs (5 volt RMS)
Provides flat audio output for a solid audio foundation
Customized OE bass, mid, and treble center frequency selection
Plug-n-play installation with two 20-pin connectors (IE Bus)
Remote sub level controller included
Optional TOSLINK optical output (APA-TOS1 sold separately)
Includes
AmpPRO module
Harness (IE Bus)
Bass knob
Knob harness
Manual
Applications
Vehicles with Telematics (ie: SOS, Enform, etc) will require some additional wiring. See manual for details.
Vehicle must be equipped with a JBL system. There must be an actual visible label that says JBL or JBL Synthesis. If the vehicle is equipped with a factory amplifier but does not say JBL, it is not compatible because the amplifier is analog and not digital.
Lexus vehicles equipped with the Mark Levinson system are not compatible.
Lexus vehicles equipped with navigation are not compatible.
Lexus CT200h: Must be equipped with a center channel and a subwoofer
Between 2012-2015 Toyota used two different styles of connectors. In order for the AP4-TY12 to be compatible, the radio must have the 10 / 6-pin BHA1761 style connector. Vehicles equipped with the 20-pin BHA8113 style connector are not compatible. The only way to know what connector the radio has is to physically remove it from the dash and look at it. Please see pictures below for reference.
LEXUS
CT 200H
ALL TRIM LEVELS
For AmpPRO: Without Navigation
2014-2017
ES 350
ALL TRIM LEVELS
For AmpPRO: Without Navigation
2015-2017
GX 460
ALL TRIM LEVELS
For AmpPRO: Without Navigation
2014-2017
IS 200T
ALL TRIM LEVELS
For AmpPRO: Without Navigation
2016-2017
IS 250
ALL TRIM LEVELS
For AmpPRO: Without Navigation
2014-2015
IS 300
ALL TRIM LEVELS
For AmpPRO: Without Navigation
2016-2017
NX 200T
ALL TRIM LEVELS
For AmpPRO: Without Navigation
2015-2017
NX 300H
ALL TRIM LEVELS
For AmpPRO: Without Navigation
2015-2017
RC 200T
ALL TRIM LEVELS
For AmpPRO: Without Navigation
2016-2017
RC 300
ALL TRIM LEVELS
For AmpPRO: Without Navigation
2016-2017
RC 350
ALL TRIM LEVELS
For AmpPRO: Without Navigation
2015-2017
RX 350
ALL TRIM LEVELS
For AmpPRO: Without Navigation
2016-2017
TOYOTA
4Runner
ALL TRIM LEVELS
—
2014-2018
Avalon
ALL TRIM LEVELS
For AmpPRO: Equipped with JBL and 10/6-pin BHA1761 style harness
2013-2014
Avalon
ALL TRIM LEVELS
—
2015-2018
Camry
ALL TRIM LEVELS
For AmpPRO: Equipped with JBL and 10/6-pin BHA1761 style harness
2012-2014
Camry
ALL TRIM LEVELS
—
2015-2017
Highlander
ALL TRIM LEVELS
—
2014-2018
Prius
ALL TRIM LEVELS
For AmpPRO: Equipped with JBL and 10/6-pin BHA1761 style harness
2012-2015
Prius
ALL TRIM LEVELS
—
2016-2017
Rav4
ALL TRIM LEVELS
For AmpPRO: Equipped with JBL and 10/6-pin BHA1761 style harness
2014
Rav4
ALL TRIM LEVELS
—
2015-2018
Sequoia
ALL TRIM LEVELS
For AmpPRO: Equipped with JBL and 10 / 6-pin BHA1761 Style Radio Harness
2013
Sequoia
ALL TRIM LEVELS
For AmpPRO: Equipped with JBL and 10/6-pin BHA1761 style harness
2014
Sequoia
ALL TRIM LEVELS
—
2015-2018
Sienna
ALL TRIM LEVELS
—
2015-2017
Tacoma
ALL TRIM LEVELS
—
2014-2018
Tundra
ALL TRIM LEVELS
For AmpPRO: Equipped with JBL and 10 / 6-pin BHA1761 Style Radio Harness
2014-2015
Tundra
ALL TRIM LEVELS
—
2016-2019
Venza
ALL TRIM LEVELS
For AmpPRO: Equipped with JBL and 10/6-pin BHA1761 style harness
2013-2014
Venza
ALL TRIM LEVELS
—
2015-2016
Pac Audio AP4-TY12 ManualPac Audio AP4-TY12 Technical Bulletin
Add-On Amplifier OEM Integration Interface for Select 2006-2024 Amplified Lexus and Toyota Vehicles
Easily add amplifier(s) to Toyota and Lexus factory amplified systems without cutting or modifying the original wiring.Simplify speaker wire connections by using the APH-TY04 speaker connection harness when adding aftermarket amplifier(s) to select Toyota and Lexus vehicles. Featuring OEM quality, factory style plugs, the APH-TY04 quickly and securely plugs into the factory amplifier harness allowing an aftermarket amplifier to be more easily installed. Industry-standard wire colors on the APH-TY04 harness make identifying the factory speakers faster and also ensures proper speaker wiring polarity.
Key Features
Perfect for use with AmpPRO AP4-TY11 and AP4-TY12
EIA standard color-coded wires make identifying factory speaker wires and phase easier
APH-TY04 harness eliminates having to run speaker wire throughout the car
18” Harness length
Applications
2018-2020 Toyota Sequoia: Only compatible in models equipped with the 14 speaker system
LEXUS
CT 200H
With factory amplifier
2011-2013
ES 350
With factory amplifier
2007-2012
GS 350
With factory amplifier
2007-2011
GS 450H
With factory amplifier
2007-2011
GX 460
With factory amplifier
2010-2013
HS 250H
With factory amplifier
2010-2012
IS 250
With factory amplifier
2006-2013
IS 350
With factory amplifier
2006-2013
RX 350
With factory amplifier
2008-2012
RX 400H
With factory amplifier
2007-2008
RX 450H
With factory amplifier
2012
TOYOTA
4Runner
With factory JBL amplifier
2010-2017
4Runner
With factory JBL amplifier
2019-2024
Avalon
With factory JBL amplifier
2011-2012
Land Cruiser
With factory JBL amplifier
2008-2011
Sequoia
With factory JBL amplifier
2008-2020
Sienna
With factory JBL amplifier
2011-2020
Tacoma
With factory JBL amplifier
2012-2017
Venza
With factory JBL amplifier
2009-2016
Pac Audio APH-TY04 Manual
Add-On Amplifier OEM Integration Interface for Select 2002-2015 Amplified Lexus and Toyota Vehicles
Today's modern vehicle audio systems are becoming increasingly more sophisticated and complex. PAC engineered AmpPRO to dramatically simplify the installation of upgraded amplifiers in data-bus-controlled amplified sound systems.
AmpPRO allows you to keep the original radio's fit, finish, and features while giving you the freedom to improve the audio performance in record time!
Benefits
Simplifies amplifier installation
Prevents the need for summing and DSP devices
Provides factory sound system upgrade solution
Features
It can be used to upgrade the entire sound system or just part of it thanks to the retention of the original amplifier
Enables the addition of a subwoofer system to the original sound system
Upgrade solution for factory, fixed level, data-bus controlled sound systems
Everything you need in one box to install your choice of aftermarket amplifier(s)
The time-saving design prevents the need for summing and audio correction devices.
Variable volume, fade, balance, bass, mid, and treble audio settings
Retains Bluetooth, navigation, safety system, and all warning chimes
Front, rear, sub preamp outputs (5 volt RMS)
Provides flat audio output for a solid audio foundation
Customized OE bass, mid, and treble center frequency selection
Plug-n-play installation with two 20-pin connectors (IE Bus)
Remote sub level controller included
Optional TOSLINK optical output (APA-TOS1 sold separately)
Includes
AmpPRO module
Harness (IE Bus)
Bass knob
Knob harness
Manual
Applications
Vehicles with Telematics (ie: SOS, Enform, etc) will require some additional wiring. See manual for details.
Toyota vehicle must be equipped with a JBL system. There must be an actual visible label that says JBL or JBL Synthesis. If the vehicle is equipped with a factory amplifier but does not say JBL, it is not compatible because the amplifier is analog and not digital.
Lexus vehicles must be equipped with a center channel and a subwoofer in order for the AP4-TY11 to be compatible:
Between 2012-2015 Toyota used two different styles of connectors. In order for the AP4-TY11 to be compatible, the radio must have the 20-pin BHA8113 style connector. Vehicles equipped with the 10 / 6-pin BHA1761 style connector are not compatible. The only way to know what connector the radio has is to physically remove it from the dash and look at it. Please see pictures below for reference
Applications
LEXUS
CT 200H
With factory center channel, Without Navigation
2011-2013
ES 300
With factory center channel
2002-2003
ES 300H
With factory center channel, Without Navigation
2013-2014
ES 330
With factory center channel
2004-2006
ES 350
With factory center channel, Without Navigation
2007-2014
GX 460
With factory center channel, Without Navigation
2009-2013
GX 470
With factory center channel
2004-2009
HS 250H
With factory center channel, Without Navigation
2010-2012
IS 250
With factory center channel, Without Navigation
2006-2013
IS 350
With factory center channel, Without Navigation
2006-2013
IS F
With factory center channel, Without Navigation
2010-2012
LS 430
With factory center channel
2001-2006
RX 330
With factory center channel
2004-2006
RX 350
With factory center channel, Without Navigation
2007-2015
RX 400H
With factory center channel
2006-2008
RX 450H
With factory center channel, Without Navigation
2010-2015
TOYOTA
4Runner
With factory JBL amplifier
2003-2013
Avalon
With factory JBL amplifier
2005-2012
Avalon
8113, With factory JBL amplifier
2013-2014
Camry
With factory JBL amplifier
2007-2011
Camry
8113, With factory JBL amplifier
2012-2014
Corolla
With factory JBL amplifier
2005-2011
FJ Cruiser
With factory JBL amplifier
2011-2014
Highlander
With factory JBL amplifier
2008-2013
Land Cruiser
With factory JBL amplifier
2008
Prius
With factory JBL amplifier
2004-2011
Prius
8113, With factory JBL amplifier
2012-2015
Rav4
With factory JBL amplifier
2004-2013
Rav4
8113, With factory JBL amplifier
2014
Sequoia
With factory JBL amplifier
2005-2012
Sequoia
8113, With factory JBL amplifier
2013-2014
Sienna
With factory JBL amplifier
2004-2014
Tacoma
With factory JBL amplifier
2005-2013
Tundra
With factory JBL amplifier
2005-2013
Venza
With factory JBL amplifier
2009-2012
Venza
8113, With factory JBL amplifier
2013-2014
Pac Audio AP4-TY11 Manual
Add-On Amplifier OEM Integration Interface for Select 2014-2019 Amplified Cadillac, Chevy and GMC Vehicles
Simplify speaker wire connections when adding aftermarket amplifiers with Pac-Audio's Speaker Connection Harness. Can easily add amplifiers with no need to cut or modify a vehicle’s original wiring. APH-GM02 works with PAC AmpPRO module: AP4-GM61
Features:
Can be used for other installations requiring plug-n-play speaker wire connections
Easily add amplifiers without cutting or modifying the vehicle’s original wiring.
Provides a plug-n-play connection at the vehicle’s original amplifier location
Saves time by quickly utilizing the original speaker wires
Harness length 18"
Applications
CADILLAC
Escalade
With BOSE
2015-2018
CHEVROLET
Camaro
With BOSE
2016-2018
Colorado
With BOSE
2015-2018
Corvette
With BOSE
2014-2019
Cruze
With BOSE
2017-2018
Equinox
With BOSE
2018
Impala
With BOSE
2014-2016
Impala
With BOSE
2017-2019
Malibu
With BOSE
2016
Malibu
With BOSE
2017-2018
Silverado
With BOSE
2014-2018
Silverado
Classic model, With BOSE
2019
Silverado HD
With BOSE
2015-2019
Suburban
With BOSE
2015-2018
Tahoe
With BOSE
2015-2019
Traverse
With BOSE
2018-2019
GMC
Acadia
With BOSE
2018-2019
Canyon
With BOSE
2015-2018
Sierra
With BOSE
2014-2018
Sierra HD
With BOSE
2015-2019
Terrain
With BOSE
2018
Yukon
With BOSE
2015-2019
Yukon XL
With BOSE
2015-2019
Pac Audio APH-GM02 Manual
Add-On Amplifier OEM Integration Interface for Select 2014-2019 Amplified Cadillac, Chevy and GMC Vehicles
Today's modern vehicle audio systems are becoming increasingly more sophisticated and complex. PAC engineered AmpPRO to dramatically simplify the installation of upgraded amplifiers in data-bus-controlled amplified sound systems.AmpPRO allows you to keep the original radio's fit, finish, and features while giving you the freedom to improve the audio performance in record time!
Benefits
Factory sound system upgrade
Time-saving design
Prevents the need for summing and audio correction devices
Reliable PAC quality
Features
Upgrade solution for factory, fixed level, data-bus controlled sound systems
The time-saving design prevents the need for summing and audio correction devices.
Variable volume, fade, balance, bass, mid, and treble audio settings
Retains OnStar, Bluetooth, navigation, safety systems, and all warning chimes
Front, rear, sub, and center channel preamp outputs (5 volt RMS)
Provides full range, flat audio output for a solid audio foundation
Customized OE bass, mid, and treble center frequency selection
Plug-n-play installation
Remote sub level controller INCLUDED
Optional TOSLINK optical output with APA-TOS1 (sold separately)
Includes
AmpPRO module
Harness
Bass knob
Knob harness
Manual
Also available for fast, easy install: APH-GM02 harness (sold separately)
Applications
Must have BOSE factory sound system.
Must have Infotainment system RPO code IO5 or IO6 to be compatible.
To verify the "IO" RPO code on your vehicle, check the glove compartment or spare tire well for a silver sticker with these codes. If this sticker is not present, you must scan the QR code on the GM label found in the driver's door jamb. The RPO codes will be listed in alphabetical order in either scenario.
CADILLAC
ATS
8" screen
2015
CT6
8" screen
2017
Escalade
8" screen
2015-2019
CHEVROLET
Camaro
8" screen
2016-2018
Colorado
8" screen
2015-2018
Corvette
8" screen
2014-2019
Cruze
8" screen
2017-2018
Equinox
8" screen
2018
Impala
8" screen
2014-2019
Malibu
8" screen
2016-2018
Silverado
8" screen, Classic model
2019
Silverado
8" screen
2014-2018
Silverado HD
8" screen
2015-2019
Suburban
8" screen
2015-2019
Tahoe
8" screen
2015-2019
Traverse
8" screen
2018-2019
Volt
8" screen
2016-2018
GMC
Acadia
8" screen
2018-2019
Canyon
8" screen
2015-2018
Sierra
8" screen
2014-2018
Sierra HD
8" screen
2015-2019
Terrain
8" screen
2018
Yukon
8" screen
2015-2019
Yukon XL
8" screen
2015-2019
Pac Audio AP4-GM61 ManualPac Audio AP3-GM61 Radio Locations
Add-On Amplifier OEM Integration Interface for Select 2018-UP Amplified Ford Vehicles
AmpPRO simplifies the installation of upgraded amplifiers in data-bus controlled amplified sound systems. With AmpPRO, you can improve audio performance while keeping an original radio’s fit, finish and features.
Benefits
Simplifies amplifier installation
Prevents need for summing and DSP devices
Provides factory sound system upgrade solution
Features
Simplifies amplifier installation in data-bus controlled factory sound systems
Provides variable volume, control, fade, balance, bass, mid, and treble audio settings
Retains warning chimes, navigation prompts, Bluetooth®, and telematics audio (if equipped)
Front, rear, and sub preamp outputs (5V RMS)
Plug-and-play installation with factory-matched harness
Sub level controller included
Optical output included
Applications
Vehicle must be equipped with factory B&O system to be compatible
Factory amplifier must be removed from vehicle when installing this interface
FORD
Bronco
With factory B&O amplifier
2021-2024
Bronco Sport
With factory B&O amplifier
2021-2024
Eco Sport
With factory B&O amplifier
2021
Edge
With factory B&O amplifier
2019-2022
Escape
With factory B&O amplifier
2021-2025
Expedition
With factory B&O amplifier
2018-2023
Explorer
With factory B&O amplifier
2020-2024
F-150
With factory B&O amplifier
2018-2024
F-250
With factory B&O amplifier
2020-2024
F-350
With factory B&O amplifier
2020-2024
F-450
With factory B&O amplifier
2020
Lightning
With factory B&O amplifier
2022
Maverick
With factory B&O amplifier
2022-2024
Mustang
With factory B&O amplifier
2024-2025
Mustang Mach E
With factory B&O amplifier
2021-2024
Ranger
With factory B&O amplifier
2020-2024
Pac Audio AP4-FD31 Manual
Add-On Amplifier OEM Integration Interface for Select 2007-2014 Amplified Ford and Lincoln Vehicles
AmpPRO simplifies the installation of upgraded amplifiers in data-bus-controlled amplified sound systems. With AmpPRO, you can improve audio performance while keeping an original radio’s fit, finish, and features.
Benefits
Simplifies amplifier installation
Prevents the need for summing and DSP devices
Provides factory sound system upgrade solution
Features
It can be used to upgrade the entire sound system or just part of it thanks to the retention of the original amplifier
Enables the addition of a subwoofer system to the original sound system
Variable volume, fade, balance, bass, mid and treble audio settings
Front, rear, sub preamp outputs (5 volt RMS)
Provides flat audio output for a solid audio foundation
Customized OE bass, mid and treble center frequency selection
Retains Sync, Bluetooth audio, and all warning chimes
Plug & play installation
Sublevel controller
Optional TOSLINK optical output (APA-TOS1 sold separately)
Includes
AmpPRO module
24-pin (MS-CAN)
Bass knob
Knob harness
Manual
Also available for fast, easy install: APH-FD01 harness (sold separately)
Applications
This product is compatible with data-bus-controlled amplified systems only. To identify these systems, look for logos on door speakers, tweeters, dash speakers, or the subwoofer to confirm if the vehicle has a compatible amplified system. If you are unsure of your vehicle having an amplified system, please contact an authorized Ford service center for further clarification.
FORD
F-150
With or Without factory Sony amplifier
2009-2012
Flex
With or Without factory Sony amplifier
2009-2012
Fusion
With or Without factory Sony amplifier
2010-2012
Taurus
With or Without factory Sony amplifier
2010-2012
LINCOLN
MKS
With or Without factory Sony amplifier
2009-2012
MKT
With or Without factory Sony amplifier
2010-2012
MKX
With or Without factory Sony amplifier
2007-2010
MKZ
With or Without factory Sony amplifier
2007-2012
Navigator
With or Without factory Sony amplifier
2007-2014
Pac Audio AP4-FD11 Manual
Add-On Amplifier OEM Integration Interface for Select 2011-2016 Amplified Chrysler, Dodge and Maserati Vehicles
AmpPRO simplifies the installation of upgraded amplifiers in data-bus-controlled amplified sound systems. With AmpPRO, you can improve audio performance while keeping an original radio’s fit, finish, and features.
Benefits
Simplifies amplifier installation
Prevents the need for summing and DSP devices
Provides factory sound system upgrade solution
Features
It can be used to upgrade the entire sound system or just part of it thanks to the retention of the original amplifier
Enables the addition of a subwoofer system to the original sound system
Variable volume, fade, balance, bass, mid and treble audio settings
Front, rear, sub preamp outputs (5 volt RMS)
Provides flat audio output for a solid audio foundation
Customized OE bass, mid and treble center frequency selection
Retains uConnect, Bluetooth audio, and all warning chimes
Plug & play installation
Sublevel controller
Optional TOSLINK optical output (APA-TOS1 sold separately)
Includes
AmpPRO module
22-pin harness (Dual MS-CAN)
Bass knob
Knob harness
Manual
Also available for fast, easy install: APH-CH01 harness (sold separately)
Applications
This product is compatible with data-bus-controlled amplified systems only. To identify these systems, look for logos on door speakers, tweeters, dash speakers, or the subwoofer to confirm if the vehicle has a compatible amplified system: Alpine, Beats, or Harman Kardon. Vehicle manufacturers do not always brand compatible systems. Unbranded amplified systems are generally identified by locating a center channel speaker or subwoofer.
CHRYSLER
300
ALL TRIM LEVELS
2011-2014
DODGE
Charger
ALL TRIM LEVELS
2011-2014
Journey
ALL TRIM LEVELS
2011-2015
MASERATI
Ghibli
ALL TRIM LEVELS
2015
Quattroporte
ALL TRIM LEVELS
2014-2016
Pac Audio AP4-CH31 Manual
Add-On Amplifier OEM Integration Interface for Select 2007-2018 Amplified Chrysler, Dodge, Jeep and RAM Vehicles
AmpPRO simplifies the installation of upgraded amplifiers in data-bus-controlled amplified sound systems. With AmpPRO, you can improve audio performance while keeping an original radio’s fit, finish, and features.
Benefits
Simplifies amplifier installation
It prevents the need for summing and DSP devices
Provides factory sound system upgrade solution
Features
It can be used to upgrade the entire sound system or just part of it, thanks to the original amplifier's retention.
Enables the addition of a subwoofer system to the original sound system
Variable volume, fade, balance, bass, mid and treble audio settings
Front, rear, sub preamp outputs (5 volt RMS)
Provides flat audio output for a solid audio foundation
Customized OE bass, mid and treble center frequency selection
Retains uConnect, Bluetooth audio, and all warning chimes
Plug & play installation
Sublevel controller
Optional TOSLINK optical output (APA-TOS1 sold separately)
Includes
AmpPRO module
22-pin harness (MS-CAN)
Bass knob
Knob harness
Manual
Also available for fast, easy install: APH-CH01 harness (sold separately)
Applications
This product is compatible with data-bus-controlled amplified systems only. To identify these systems, look for logos on door speakers, tweeters, dash speakers, or the subwoofer to confirm if the vehicle has a compatible amplified system: Alpine, Beats, or Harman Kardon. Vehicle manufacturers do not always brand compatible systems. Unbranded amplified systems are generally identified by locating a center channel speaker or subwoofer.
CHRYSLER
Town & Country
With factory amplifier
2008-2016
DODGE
Challenger
With factory amplifier
2008-2014
Charger
With factory amplifier
2008-2010
Durango
With factory amplifier
2011-2013
Durango
With factory amplifier
2009
Grand Caravan
With factory amplifier
2008-2018
RAM 1500, 2500, 3500
With factory amplifier
2009-2012
JEEP
Grand Cherokee
With factory amplifier
2008-2013
Wrangler
JK, With factory amplifier
2018
Wrangler
With factory amplifier
2007-2017
Wrangler Unlimited
JK, With factory amplifier
2018
Wrangler Unlimited
With factory amplifier
2007-2017
RAM
1500, 2500, 3500
With factory amplifier
2010-2012
Pac Audio AP4-CH21 Manual
Add-On OE Amplifier-Integration Wiring-Harness for Select 2021-UP Amplified Chrysler, Dodge, and RAM Vehicles with uConnect5 Factory Audio Systems
Must be used with AP4-CH41 R.2
Plug and play solution for UConnect5 that allows you to use an AmpPRO with most Chrysler vehicles.
Benefits
Simplifies amplifier installation
Prevents the need for summing and DSP devices
Provides factory sound system upgrade solution
Provides flat audio output for a solid audio foundation
Features
It can be used to upgrade the entire sound system or just part of it thanks to the retention of the original amplifier
Variable volume, fade, balance, bass, mid and treble audio settings
Front, rear, sub preamp outputs (5 volt RMS)
Customized OE bass, mid and treble center frequency selection
Retains uConnect, Bluetooth audio, Navigation prompts, and all warning chimes
Plug-n-Play installation
Sublevel controller
Optional TOSLINK optical output (APA-TOS1 sold separately)
Also available for fast, easy install: APH-CH01 harness (sold separately)
Select non-amplified vehicles are equipped with an ANC system that requires bypass. Plug-n-Play bypass harness: ANC-CH01
Applications
Must be used with AP4-CH41 R.2
Amplified Vehicles
Compatible with all data-bus controlled amplified systems, no matter the screen size. To identify these systems, look for logos on door speakers, tweeters, dash speakers or the subwoofer to confirm if the vehicle has a compatible amplified system: Alpine, Beats or Harman Kardon. Some vehicles may not always have branded compatible systems. Unbranded amplified systems are generally identified by locating a center channel speaker or subwoofer.
Non-Amplified Vehicles
All other models: Only compatible in vehicles equipped with the 7” or bigger screen. Vehicles equipped with the 5” screen are not compatible.
If you are installing the AmpPRO in a vehicle that is not equipped with a factory amplifier, you must add an amplifier to the vehicle's speakers, as the factory radio will no longer have a 4-channel variable output after it has been re-configured by the AmpPRO. For example, this will not work to add only a subwoofer to a non-amplified vehicle, as the radio will no longer power the cabin speakers properly.
CHRYSLER
Pacifica
7" screen, 8" screen, With factory amplifier
2021-2022
DODGE
Durango
7" screen, 8" screen, With factory amplifier
2021
JEEP
Gladiator
2024
Wrangler
2024-2025
Wrangler Unlimited
2024-2025
RAM
1500, 2500, 3500
7" screen, 8" screen, With factory amplifier
2022-2024
No Manual Available
Add-On ANC Integration Wiring-Harness for Select 2015-2019 Chrysler, Dodge, Jeep and RAM Vehicles
Many late model Chrysler, Jeep, and RAM vehicles are equipped with an Active Noise Canceling (ANC) module. When adding aftermarket amplifiers in these vehicles, this factory ANC module must be bypassed for proper operation of the aftermarket audio equipment and avoid possible damage to the ANC module. The PAC ANC-CH01 provides a plug-and-play solution for bypassing the ANC module in these vehicles, eliminating the need to cut factory wiring.
Quickly and easily bypass the ANC Module.
Keeps ANC module on data-bus for vehicle diagnostics health
Factory fit plug-in connectors
Prevents cutting of factory wires
Applications
CHRYSLER
Pacifica
ALL TRIM LEVELS
2017-2019
DODGE
RAM 1500, 2500, 3500
NON-CLASSIC
2019
JEEP
Cherokee
ALL TRIM LEVELS
2019
Grand Cherokee
ALL TRIM LEVELS
2015-2016
RAM
1500, 2500, 3500
NON-CLASSIC
2019
Pac Audio ANC-CH01 Manual
Factory Backup-Camera to Aftermarket Head-Unit Wiring Harness for Select 2012-2015 Toyota, Scion and Subaru Vehicles
The CAM-TY11 is a reverse camera T-harness that gives the ability to add a reverse camera input for Toyota and select Scion and Subaru 6.1” touchscreen radios. The harness is Plug-and-Play with no need to connect to reverse lamps for the reverse trigger.
Applications
SCION
FRS
2013-2015
IQ
2013-2015
TC
2014-2015
XB
2013-2015
XD
2013-2014
SUBARU
BRZ
2013-2015
TOYOTA
4Runner
2012-2014
Avalon
2012-2014
Camry
2012-2014
Corolla
2013
Highlander
2012-2014
Prius
2012-2015
Prius V
2012-2014
RAV4
2012-2014
Sequoia
2013
Tacoma
2012-2013
Venza
2012-2014
