Fully Active 2-Channel Speaker Level to Line Output Converter
Designed by JL Audio Sr. Engineer Bruce Macmillan, the LoC-22 is an active two-channel processor engineered for applications requiring the attenuation of factory audio signals for use with aftermarket amplifiers and signal processors.
The LoC-22 utilizes a fully regulated, switching MOSFET power supply and an all-analog circuit design to deliver flat frequency response, at any signal level (3 Hz – 32 kHz, +0, -1dB), without altering bass response at high levels, like many passive line output converters do.
Engineered to combat induced cable noise, the LoC-22 features a differential-balanced input architecture making it compatible with virtually any analog audio signal. Capable of accepting up to 40V RMS per channel (equivalent to 400W @ 4 ohms), the LoC-22 easily handles the most powerful factory amplifier outputs. An onboard dual-range input load switch allows compatibility with most factory amplifiers that employ impedance sensing to mute channels.
Ideal for full-range or low-frequency applications, the LoC-22 is equipped with a pair of analog RCA-type, line-level output jacks (up to 8V RMS) to feed audio signals to your aftermarket system. Analog outputs are compatible with most types of aftermarket signal processors or amplifiers. Setting output levels is super simple and easy, thanks to a specially calibrated, onboard clipping indicator that works with test tones or music. The LoC-22 offers two automatic turn-on methods (DC-Offset Sensing or Signal Sensing) and provides a positive 12V turn-on output to activate aftermarket amplifiers or other downstream electronics.
The LoC-22 includes the following features:
Fully active, all analog circuit design by Bruce Macmillan, handles powerful factory amplifier outputs, up to 40 volts per channel
Differential-balanced input architecture offers noise rejection and compatibility with most analog outputs from OEM source units and amplifiers
Dual range input load switch (20 kΩ/Normal, 60 Ω/Low Z, thermally protected) for maximum compatibility with OEM amplifiers
One stereo pair of crystal-clear, line-level RCA output jacks (up to 8V RMS)
Automatic turn-on via DC-Offset or Signal-Sensing
A dedicated 12V remote turn-on output (maximum 100 mA) to activate aftermarket signal processors or amplifiers
Onboard LED clipping indicator makes output level setting quick & easy
Ultra-compact chassis design fits into just about any installation location!
Specifications
Power Supply Type
Switching, MOSFET PWM, Regulated
Operating Voltage
9 - 16 V DC
Standby Current Draw
<1.6 mA
Operating Current Draw
0.13 A at 13.8V
Frequency Response
3 Hz - 32 kHz (+0 dB, -1dB)
S/N Ratio @ 2V RMS
Gain at Min: 118 dB Gain at Max: 103 dB (20 kHz Bandwidth)
Remote Output Capacity
100 mA (maximum)
Recommended Fuse Value
1 A
Recommended Fuse Type
Fast-Acting, ATO/ATC or similar
Input Channels
Two
Input Type
Differential-Balanced
Input Voltage
40V RMS per channel (maximum)
Input Impedance
Normal: 20kΩLow Z: 60Ω
Turn-On Threshold
Signal-Sensing: 5 mV On/3.5 mV Off at1 kHz (Left Input) DC-Offset: 4.5 V
Output Channels
Two
Analog Output
Unbalanced, stereo RCA jacks
Max. Unclipped Output
8V RMS
Output Impedance
450 Ω
Gain Range
-27.3 dB (full CCW) to +3.2 dB (full CW)
THD+N
0.01% at 2V RMS (1kHz)
JL Audio LoC-22 Manual
RBC-Series Remote Bass Control Knob for Select JL Amplifiers
The RBC-1 remotely controls the Bass Level of the following JL Audio amplifiers:
JD-Series: JD250/1, JD500/1, JD1000/1
JX-Series: JX250/1, JX250/1D, JX500/1, JX500/1D, JX1000/1D
HX-Series: HX300/1 in Low Pass Mode (Note: M-RBC-1 is also available)
MHX-Series: MHX300/1 in Low Pass Mode (Note: M-RBC-1 is also available)
MX-Series: MX300/1, MX500/1 in Low Pass Mode (Note: M-RBC-1 is also available)
RD-Series: RD500/1, RD1000/1, RD1500/1, RD900/5
When the RBC-1 is connected to the above amplifiers, it acts as an attenuator on the input gain of the amplifier and is used to adjust the overall level of the amplifier from the front of the vehicle.
The RBC-1 remotely controls the Bass Level of the following JL Audio subwoofer systems:
PowerWedge+: All ModelsMicroSub+: All Models
When the RBC-1 is connected to the above subwoofer systems, it acts as an attenuator on the input gain of the amplifier and is used to adjust the overall level of the amplifier from the front of the vehicle.
The RBC-1 remotely controls the Bass EQ boost feature of the following JL Audio amplifiers:
Slash v3 Series: 600/1v3, 1200/1v3
Slash v2 Series: 250/1v2, 500/1v2, 1000/1v2, 450/4v2
Original Slash Series: 500/1, 1000/1, 450/4, 500/5
G-Series: All Models
A-Series: All Models
e-Series: All Models (including marine versions)
M-Series: M1400, M1700, M2150, M2250, M4300, M4500, M6450, M6600
When the RBC-1 is connected to the above amplifiers, the on-board "Boost" control of the amplifier is defeated and the RBC-1 becomes the active controller.
The RBC-1 kit includes the rotary control with a black ABS knob, mounting hardware and one 18 ft. (5.5 m) cable.
JL Audio RBC-1 Manual
Amplifier Mounting Bracket for Under-The-Seat Locations in Select 2018-UP Jeep Wrangler-JL and Gladiator-JL Vehicles
The SBA-J-JLU-UAR Universal Amplifier Rack fits under either front seat to securely mount one of several different JL Audio amplifier models (sold separately). Featuring an angled design to maximize rear seat foot space, the SBA-J-JLU-UAR Amplifier Rack requires no drilled holes and installs using factory hardware. Engineered and Built in USA.
Includes predrilled mounting locations and hardware to install one of the following amplifier models:
VXi: All models.XDv2: All models, except XD800/8v2, XD1000/1v2 and XD1000/5v2.*M-Series: All models, except M800/8v2, M1000/1v2 and M1000/5v2.RD: All models, except RD1000/1, RD1500/1 and RD900/5.MX: All models; up to two of MX280/4 and MX300/1.*** includes XD versions** includes HX and MHX versions
JL Audio SBA-J-JLU-UAR Manual

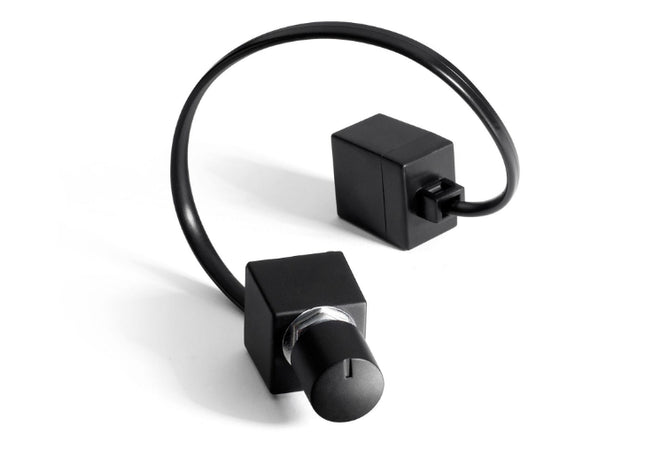

Remote Bass Control Knob for Select JL Audio Amplifiers
The HD-RLC remotely controls the Bass Level of the following JL Audio amplifiers:
HD-Series: All modelsXD-Series: All modelsMHD-Series: All modelsM-Series: All models
When the HD-RLC is connected to the above amplifiers, it acts as an attenuator on the input gain of the amplifier and is used to adjust the overall level of the amplifier from the front of the vehicle.
The HD-RLC kit includes the rotary control with a black ABS knob, mounting hardware and one 18 ft. (5.5 m) cable.
A satin-finish aluminum knob can be purchased separately.
JL Audio HD-RLC Manual
Ten-Inch Black-Mesh Grille for Select JL-Audio Subwoofer-Drivers
Provide attractive, sturdy protection to your Subwoofer with this fine steel mesh grille insert, powder-coated in a satin black finish. The insert is designed to fit snugly onto the woofer's grille receiver ring.
Fits: 10WX, 10WXv2, 10W0v2, 10W0v3, 10W1v2, 10W1v3, 10W3v3
Twelve-Inch Black-Mesh Grille for Select JL-Audio Subwoofer-Drivers
Provide attractive, sturdy protection to your Subwoofer with this fine steel mesh grille insert, powder-coated in a satin black finish. The insert is designed to fit snugly onto the woofer's grille receiver ring.
Fits: 12WX, 12WXv2, 12W0v2, 12W0v3, 12W1v2, 12W1v3, 12W3v3
FiX-86 OEM Integration DSP with Automatic Time Correction and Digital EQ
The FiX™ 86 is a state-of-the-art digital signal processor engineered to deliver outstanding sound from factory source units, while retaining OEM fader control.
Unlike typical OEM interface products, the FiX™ 86 automatically corrects time-delayed factory outputs prior to signal summing and EQ correction. Calibration takes just a single button press and about 30 seconds to complete, with no special equipment needed.
With a powerful 24-bit DSP processor and quad 1/3 octave equalizers onboard, complex factory signals, up to 3-way front and 2-way rear, are combined and level matched automatically into six, full-range stereo signals: Front (fader-controlled), Rear (fader-controlled) and Subwoofer (non-fading, front+rear summed) outputs.
By connecting a PC running TüN™ Software via USB, you can also access a complete suite of diagnostic panels that show the frequency response of input signals, as well as the corrected outputs. Adjustments can be made to input polarity, muting, and filtering, and new calibrations can be initiated from the PC as well. By clicking on the “TUNE” tab of the TüN™ interface, you can also access four, user-adjustable, 10-band, graphic equalizers to fine tune the output signals.
Differential-balanced inputs accept virtually any OEM analog audio signal, from low-voltage, line-level to high-power, amplified speaker-level outputs (up to 30V RMS).
Activation methods include 12-volt or Auto Turn-On (Signal/DC-Offset Sensing) to trigger a dedicated remote turn-on output for aftermarket equipment.
An optional DRC-100 or DRC-200 Digital Remote Controller (sold separately) adds Master Volume Control and/or Subwoofer Level Control from the driver’s seat.
Achieving great sound from your factory stereo has never been easier, or sounded better... Now with fader retention and subwoofer output!
General Specifications
Power Supply Type
Regulated DC-DC SMPS
Input Operating Voltage
10 - 16 VDC
Standby Current Draw
<1.5 mA
Operating Current Draw
0.7 A
Recommended Fuse Value
1 A
Input Channels
Eight
Input Type
Differential-Balanced
Input Voltage Range
250 mV - 30 V RMS
Minimum Input Voltage
10 mV RMS
Input Level Setting
Fully automatic
Output Channels
Six (Front/Rear/Sub Output Pairs)
Analog Output
Unbalanced, stereo RCA jacks
Digital Output
N/A
Output Impedance
450 Ω
S/N Ratio
96 dB (A-Weighted, referred to 4V RMS Output)
THD+N @ Rated Output
0.02% (20 Hz - 20 kHz)
JL Audio FiX-86 Manual
Fuse-Holder Mounting Bracket for Under-The-Hood Locations in Select 2018-UP Jeep Wrangler-JL and Gladiator-JL Vehicles
The SBA-J-JL-FHB Fuse Holder Bracket is designed to securely mount up to two JL Audio XB-MFBU-ANL Master ANL Fuse Blocks (sold separately). Engineered and Built in USA, the SBA-J-JL-FHB Fuse Holder Bracket requires no drilled holes and installs using factory hardware.
The Hard Data: Attaches to the vehicle's firewall using factory hardware. Fits 2-Door or 4-Door models. Will not fit Rubicon 392 or models equipped with the EcoDiesel engine.
Will not fit any 2018 "JK" Jeep® models.
JL Audio SBA-J-JL-FHB Installation Manual
Fuse-Holder Mounting Bracket for Under-The-Hood Locations in Select 2007-2017 Jeep Wrangler-JK Vehicles
The SBA-J-JK-FHB Fuse Holder Bracket easily and securely mounts up to two JL Audio XB-MFBU-ANL Master Fuse Blocks (sold separately). Attaches to the firewall of your 2-door or 4-door Wrangler using factory hardware (no drilling required). Powder-coated steel, engineered and built in USA.
JL Audio SBA-J-JK-FHB Installation Manual
Amplifier Mounting Bracket for Under-The-Seat Locations in Select 2007-2017 Jeep Wrangler-JK Vehicles
The SBA-J-JKU-UAR Universal Amplifier Rack fits under either front seat of your 4-door Wrangler to securely mount one of several different JL Audio amplifier models (sold separately). Installs using factory hardware and requires no drilled holes. Powder-coated steel, engineered and built in USA.
Will not fit 2-Door models.
Includes predrilled mounting locations and hardware to install one of the following amplifier models:
VXi: All models.XDv2: All models, except XD800/8v2, XD1000/1v2 and XD1000/5v2.*M-Series: All models, except M800/8v2, M1000/1v2 and M1000/5v2.RD: All models, except RD1000/1, RD1500/1 and RD900/5.MX: All models; up to two of MX280/4 and MX300/1.*** includes XD versions** includes HX and MHX versions
JL Audio SBA-J-JKU-UAR Installation Manual
Water-Resistant Remote Bass-Knob for Select JL Audio Amplifiers
The MHD-RLC remotely controls the Bass Level of the following JL Audio amplifiers:
HD-Series: All models
XD-Series: All models
MHD-Series: All models
M-Series: All models
When the MHD-RLC is connected to the above amplifiers, it acts as an attenuator on the input gain of the amplifier and is used to adjust the overall level of the amplifier from the front of the vehicle.
The MHD-RLC kit includes the rotary control with a black ABS knob, mounting hardware and one 16.4 ft. (5 m) cable.
A satin-finish aluminum knob can be purchased separately.
MediaMaster-Series Add-on Marine 2.3-Inch Remote Controller
The MMR-20-BE is a wired remote controller engineered to add auxiliary control functionality to MediaMaster® source units.
Built for marine and off-road applications, its weatherproof (IP67 rated) design places frequently used functions of your MediaMaster® source unit in a simple, intuitive design that’s easy-to-use. Its large, backlit controls and LED source indicators are easily identifiable, day or night, with brightness settings that can be adjusted using your MediaMaster® source unit.
A small footprint and simple, one-hole design means the MMR-20-BE can be installed in even the tightest of spaces. Depending on your system layout, you may add up to three MMR-20-BE remote controllers to a single MediaMaster® source unit. Each MMR-20 can be connected up to 75 ft. (22.8 m) away from its source unit.
MediaMaster® remote control capabilities include:
Power On/Off
Source Select
Volume Up/Down
Track Up/Down (USB & BT)
Track Fast-Forward/Fast-Rewind (USB)
Favorite Up/Down (Radio)
Play/Pause (USB & BT)
Mute/Unmute (Radio & Aux)
The MMR-20-BE is compatible with these MediaMaster® source units:
MM100s-BE
MM100s
MM50
Note: Requires MMC Connection Cables (sold separately). Connection cables are available in several lengths to fit your specific application. Y-splitters are also available to connect up to three remotes to a MediaMaster® source unit.
JL Audio MMR-20-BE Manual
MediaMaster-Series Add-on Marine Network Zone Controller with 2.8-Inch Screen
The MMR-40 is a NMEA 2000® Network Controller engineered to add full-function, auxiliary control to MediaMaster® source units.
Outfitted with a NMEA 2000® Micro-C connector, the MMR-40 connects to a host MediaMaster® source unit in two ways:
Direct interface with a vessel's NMEA 2000® network using applicable NMEA 2000® cables and connectors (not included)
Direct connection of one MMR-40 with one host MediaMaster® source unit using MMC-PN2K powered network cables (sold separately) to simulate an isolated, stand-alone NMEA 2000® network
Once connected, the MMR-40 automatically recognizes the host MediaMaster® source unit and will then mirror all host source unit controls and screen info onto the MMR-40's full-color, 2.8-inch LCD display, resulting in a complete MediaMaster® user experience.
The MMR-40 is equipped with independent display theme and lighting controls for maximum mounting location flexibility, regardless of the settings on the host source unit. Engineered for real-world marine (and many outdoor) applications, its weatherproof (IP66 rated) chassis is built to withstand the harshest environments.
The MMR-40 includes the following features:
NMEA 2000® Certified (LEN 4)
Easy-to-read, high-brightness, 2.8-inch full-color LCD display with large backlit controls
Independent day/night display themes and lighting controls
IP66 rated for real marine duty
Protective Sun Cover included
Note: The MMR-40 is not a stand-alone receiver and does not function without a connected MediaMaster® source unit. All remote control functionality of the MMR-40 is solely derived from the host source unit. Functionality of the MMR-40 requires connection to a NMEA 2000® network or use of MMC-PN2K powered network cables (sold separately).
JL Audio MMR-40 Manual
System-Tuning DSP with TüN software, Digital-Input Only with 8-Channel Analog-Outputs
System Tuning DSP with Digital Optical Input / 8-ch. Stereo RCA Outputs / 1 Digital Optical Output.
The TwK™ D8 is a state-of-the-art digital signal processor engineered to deliver world-class system tuning capabilities in an easy-to-use format. Equipped with an advanced 24-bit DSP processor, the TwK™ D8 is equipped with a digital optical (Toslink) input and connects directly to our FiX™ 82 OEM Integration DSP, or any 2-channel digital (S/PDIF) output, to maintain an all-digital signal path.
The TwK™ D8 is also equipped with flexible output options, 80 total bands of equalization and powerful mixing tools. The included DRC-200 Digital Remote Controller offers dual level controls, toggles up to six presets, and has an LED indicator.
Control the TwK™ D8’s entire feature set by connecting it to your PC via USB, using the companion TüN™ Software interface.
All-digital, optical (Toslink) input connects directly to any digital (S/PDIF) output.
Flexible input mixer allows left and right input channels to be combined with full control over each input’s level and polarity.
8 banks of 10-band graphic or parametric equalizers with configurable EQ assignment
Powerful crossover section with fully variable, high-pass and low-pass filters, crossover slopes are selectable from 6 dB/octave to 48 dB/octave (in 6 dB/octave increments)
Configurable polarity and delay settings, with separate entries for speaker distance plus offset control; fully linkable with other channels, in any combination, for adjustment
Precise output level controls, adjustable in 0.5 or 0.1 dB increments, fully linkable with other channels, in any combination
8 analog, line-level RCA output jacks (4V RMS)
Optical (Toslink) output jack provides a pass-through digital audio (S/PDIF) signal from any pair of input channels, with no signal processing applied.
JL Audio TwK-D8 Manual
System-Tuning DSP with 8-Channel Stereo RCA Inputs and 2-Digital (Optical and Coaxial) Inputs / 8 ch. Stereo RCA Outputs / 1 Digital Optical Output
The TwK™ 88 is a state-of-the-art digital signal processor engineered to deliver world-class system tuning capabilities in an easy-to-use format. Equipped with an advanced 24-bit DSP processor, the TwK™ 88 includes flexible input/output options, 80 total bands of equalization and powerful mixing tools. The included DRC-200 Digital Remote Controller offers dual level controls, toggles up to six presets, and has an LED indicator.
Control the TwK™ 88’s entire feature set by connecting it to your PC via USB, using the companion TüN™ Software interface.
Flexible input design with 8 differential-balanced, line-level analog inputs (RCA), accepting line-level signals up to 7.1V (RMS)
Separate optical (Toslink) and coaxial digital inputs for connection to digital S/PDIF sources.
Flexible input mixer allows input channels to be combined with full control over each input’s level and polarity.
8 banks of 10-band graphic or parametric equalizers with configurable EQ assignment
Powerful crossover section with fully variable, high-pass and low-pass filters, crossover slopes are selectable from 6 dB/octave to 48 dB/octave (in 6 dB/octave increments)
Configurable polarity and delay settings, with separate entries for speaker distance plus offset control; fully linkable with other channels, in any combination, for adjustment
Precise output level controls, adjustable in 0.5 or 0.1 dB increments, fully linkable with other channels, in any combination
8 analog, line-level RCA output jacks (4V RMS)
Optical (Toslink) output jack provides a pass-through digital audio (S/PDIF) signal from any pair of input channels, with no signal processing applied.
Remote turn-on output (+12VDC) for activating aftermarket audio equipment.
JLid™ Port allows connection of the included DRC-200 Digital Remote Controller to add dual configurable level controls, preset selection and LED status reporting from the driver's seat.
JL Audio TwK-88 Manual
FiX-82 OEM Integration DSP with Automatic Time Correction and Digital EQ
The FiX™ 82 is a state-of-the-art digital signal processor engineered to deliver world-class sound from factory audio systems, without replacing the OEM source unit. The FiX™ 82 is the first DSP to automatically correct time delayed factory outputs prior to signal summing and EQ correction.
With a powerful 24-bit DSP processor and dual 1/3 octave equalizers onboard, complex 2-way, 3-way and 4-way factory audio outputs are combined and level-matched automatically into a flat, full-range stereo signal. Differential-balanced inputs accept virtually any OEM analog audio signal, from low-voltage, line-level to high-power, amplified speaker-level outputs (up to 30V RMS).
Calibration is initiated with just a single button press and takes only about 30 seconds to complete, with no special equipment needed!
By connecting a PC running TüN™ Software via USB, you can also access a complete suite of diagnostic panels that show the frequency response of input signals, as well as the corrected outputs. Adjustments can be made to input polarity, muting, and filtering, and new calibrations can be initiated from the PC as well. By clicking on the “TUNE” tab of the TüN™ interface, you can also access a pair of user-adjustable, 10-band, graphic equalizers to fine tune the output signals.
Output options include dual RCA jacks (4V RMS) or a digital optical (Toslink) output, supporting PCM audio (S/PDIF) at 24 bit/48 kHz resolution.
Activation methods include 12-volt or automatic (Signal/DC-Offset Sensing), plus a dedicated remote turn-on output for activating your aftermarket equipment.
Connect the optional DRC-100 Digital Remote Controller (sold separately) to add Master Volume Control capabilities from the driver’s seat. Clipped input signals and overall condition are also reported via the DRC-100's multi-color status LED.
Achieving great sound from your factory stereo has never been easier, or sounded better.
General Specifications
Power Supply Type
Regulated DC-DC SMPS
Input Operating Voltage
10 - 16 VDC
Standby Current Draw
<1.5 mA
Operating Current Draw
0.7 A
Recommended Fuse Value
1 A
Input Channels
Eight
Input Type
Differential-Balanced
Input Voltage Range
250 mV - 30 V RMS
Minimum Input Voltage
10 mV RMS
Input Level Setting
Fully automatic
Output Channels
Two
Analog Output
Unbalanced, stereo RCA jacks
Digital Output
Optical (Toslink) output (S/PDIF)
Output Impedance
450 Ω
S/N Ratio
96 dB (A-Weighted, referred to 4V RMS Output)
THD+N @ Rated Output
0.02% (20 Hz - 20 kHz)
JL Audio FiX-82 Manual
C1-Series 1-Inch Aluminum Dome 60-Watt Tweeters
C1 component tweeters are engineered to deliver refined performance, with excellent off-axis response and high-frequency extension. Utilizing true, edge driven 1.0-inch aluminum domes with silk suspensions, the C1-100ct component tweeters provide smooth, detailed reproduction of treble frequencies from 3.6 – 22 kHz.
The tweeters can be flush-mounted or surface-mounted with the supplied fixtures to fit a wide variety of installation needs. Inline, outboard, 12 dB / octave, high-pass filters are included to ensure smooth response and reliability. These fliters also are equipped with Advanced Tweeter Protection Circuitry to improve power handling and reliability.
When it comes to value, C1 is the real deal!
Sold as a pair. Surface-mount and flush-mount fixtures and grilles are included.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power*
150 W
Recommended Amplifier Power (RMS)
20 - 60 W / Ch.
System Efficiency
91.5 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
3.6 kHz - 22 KHz ± 3 dB
JL Audio C1-100ct Manual
