10-Inch 300-Watt Subwoofer Driver, 2-Ohm or 4-Ohm SVC
The JL Audio 10" TW1 automotive thin subwoofer driver chassis offers a shallow mounting depth and excellent linear excursion capability while requiring a small enclosure (0.35 cu.ft. / 10 liters). The cast alloy frame design on the JL 10TW1 is capable of operating in very tight spaces like under-seat installations in trucks.
The 10TW1 design uses a "concentric tube" structure built into the injection-molded cone body. This structure supports the voice coil and a full annular spider, while permitting the placement of a large motor structure further forward in the speaker than with conventional designs.
The 10TW1 thin subwoofer also features a clever frame design that minimizes the frontal clearance required for the excursion of the driver. This is accomplished by recessing the suspension attachment surface, so that most of the forward excursion occurs within the frame's dimensions. Thanks to this feature, the 10TW1 requires only 0.87 inches (22 mm) of frontal clearance, even with its grille installed. This allows for more efficient use of space and increased enclosure volume within a given overall depth.
Although the JL Audio 10TW1-2 and 10TW1-4 thin subwoofer drivers are optimized for an enclosure much smaller than most other 10 inch subwoofer drivers, they never sound like a big woofer struggling in a tiny box...instead, the 10TW1's delivers all the rich, deep, controlled bass you have come to expect from a JL Audio subwoofer system.
Very shallow mounting depth (4.36 in / 111 mm)
No pole vent: permits mounting close to rear wall of enclosure
Extremely small sealed enclosure volume requirements
Long linear excursion capability (0.40 in / 10 mm, one-way)
DMA-optimized motor design
Patented "concentric tube" architecture
Patented "floating cone attach method" technology
Cast alloy frame with flat edges for tight driver grouping
Injection molded, mica-filled polypropylene cone
Rubber surround
Steel mesh grille included with each driver
Precision-built in USA at JL Audio’s Miramar, Florida factory with global components
General Specifications
Continuous Power Handling
300W RMS
Recommended Amplifier Power
75W - 300W RMS
Nominal Impedance
2Ω/4Ω
JL Audio 10TW1 Manual

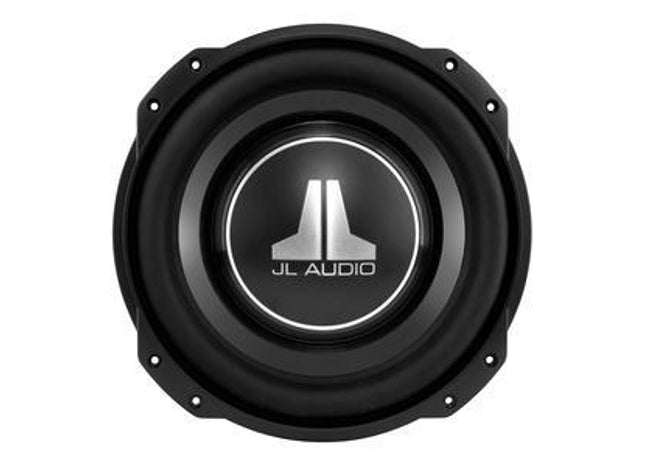

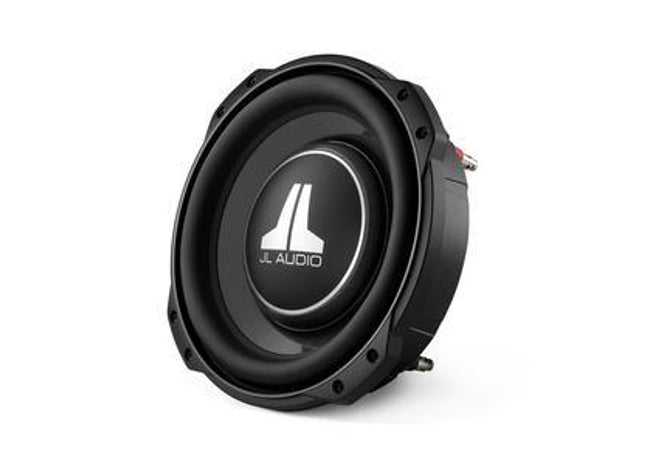

TW3-Series 10-Inch 400-Watt Automotive Subwoofer Driver, 4Ω or 8Ω DVC
The 10" TW3 thin subwoofer driver by JL Audio delivers a powerful combination of shallow mounting depth and excursion capability. In fact, they are capable of greater excursion than JL's W3v3 subwoofers!
JL Audio’s patented thin-line woofer technology compresses the architecture of the 10TW3 using a “concentric tube” structure built into the injection-molded cone body. This structure supports the voice coil and a full annular spider, while permitting the placement of the large motor structure further forward in the speaker than with conventional 10-Inch thin subwoofer designs.
The 10TW3-D4 and 10TW3-D8 subwoofers are optimized for small enclosures and offer JL's tab-ear mounting design to maximize cone area within their mounting footprints.
Very shallow mounting depth (3.25 / 3.50 Inches)
No pole vent: permits mounting close to rear wall of enclosure.
Very small sealed enclosure volume requirements
Very long linear excursion capability (0.60 In / 15.2 mm, one-way)
DMA-optimized motor designs
“concentric tube” architecture
Patented “floating cone attach method” technology
Cast alloy frame
Injection molded, mica-filled polypropylene cone
Rubber surround
Aluminum-alloy dust cap and rear cap with JL Audio logo
Precision-built in USA at JL Audio’s Miramar, Florida factory with global components
General Specifications
Continuous Power Handling
400W RMS
Recommended Amplifier Power
200W - 400W RMS
Nominal Impedance
Dual 4Ω/8Ω
JL Audio 10TW3 Manual
W0-Series 10-Inch 300-Watt Subwoofer Driver, 4-Ohm SVC
The JL Audio 10" W0v3 subwoofer driver is a rugged performer with excellent excursion capability and linearity while sporting a 2 inch diameter voice coil and JL's patented Elevated Frame Cooling design for enhanced power handling and reliability.
This 10 inch subwoofer is best used with an amplifier in the 75W - 300W range and is optimized to operate in a compact 0.65 cu. ft. (18.4 l) sealed enclosure, or a 1.125 cu. ft. (31.9 l) ported enclosure.
General Specifications
Continuous Power Handling (RMS)
300W RMS
Recommended Amplifier Power (RMS)
75W - 300W RMS
Nominal Impedance (Znom)
4Ω
JL Audio 10W0v3 Manual
W1-Series 10-Inch 300-Watt Subwoofer Driver, 2-Ohm or 4-Ohm SVC
The JL Audio 10" W1v3 subwoofer driver is a very suitable option when space is limited with smaller amplifiers. It features a low mounting depth of 4.6 inches and a compact motor structure that allows it to comfortably fit in tight mounting locations. There is no pole vent on the rear of the subwoofer which allows the motor structure to be placed directly against an enclosure boundary. Excellent excursion capability and linearity allow the 10W1v3 to reproduce sub-bass with shocking extension and quality.
The JL Audio 10W1v3 is best used with an amplifier in the 75W - 300W RMS range and is optimized to operate in a compact 0.55 cu. ft. (15.57 l) sealed enclosure.
General Specifications
Continuous Power Handling
300W RMS
Recommended Amplifier Power
75W - 300W RMS
Nominal Impedance
2Ω/4Ω
JL Audio 10W1v3 Manual
W3-Series 10-Inch 500-Watt Subwoofer Driver, 2-Ohm or 4-Ohm SVC
The JL Audio 10W3v3 subwoofer driver has excellent power handling, reasonable enclosure requirements, and a long excursion for its chassis to deliver excellent bass reproduction in 500W RMS power applications. JL Audio technologies and proprietary assembly designs in the 10W3v3-2 and 10W3v3-4 subwoofers enhance linearity and reliable performance results.
The JL Audio 10W3v3 is best used with an amplifier in the 150W - 500W RMS range and is optimized to operate in a compact 0.625 cu. ft. (17.7 l) sealed enclosure, or a 1.25 cu. ft. (35.4 l) ported enclosure.
General Specifications
Continuous Power Handling
500W RMS
Recommended Amplifier Power
150- 500W RMS
Nominal Impedance
2Ω
JL Audio 10W3v3 Manual

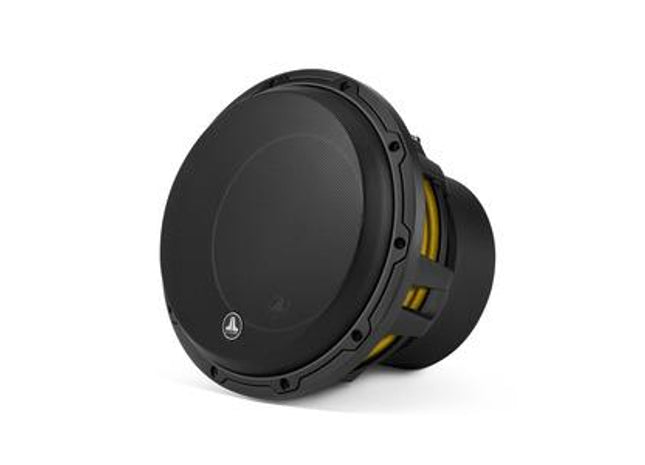

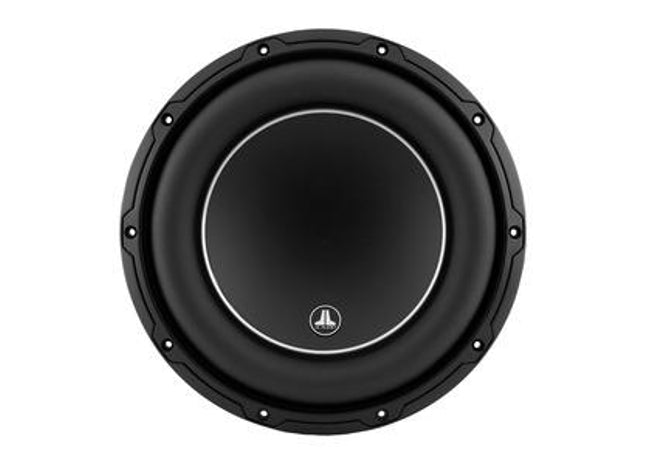

W6-Series 10-Inch 600-Watt Subwoofer Driver, 4-Ohm DVC
The 10W6v3 subwoofer driver offers several technologies similar to JL Audio's W7AE top line of subwoofers to provide powerful advantages in motor linearity and suspension behavior. This 10" automotive sub has a very efficient cooling circuit to deliver reduced distortion and outstanding dynamic balance.
This 10" W6v3 driver is best used with an amplifier in the 200W - 600W RMS range and is optimized to operate in a sealed enclosure with only 0.55 cu. ft. (15.6 l) of air space, or a 0.75 cu. ft. (21.2 l) ported enclosure.
The JL Audio 10W6V3-D4 subwoofer driver comes with Dual 4Ω voice coils that allow the 10W6v3 to be installed in a 2Ω or 8Ω configuration.
General Specifications
Continuous Power Handling
600W RMS
Recommended Amplifier Power
200 - 600W RMS
Nominal Impedance
Dual 4Ω
JL Audio 10W6v3 Manual

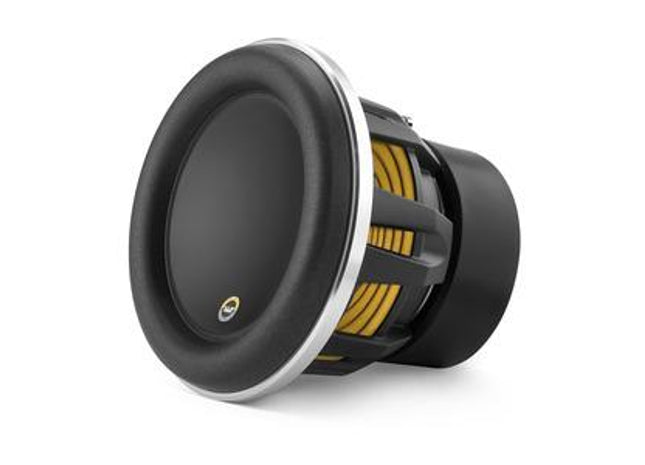

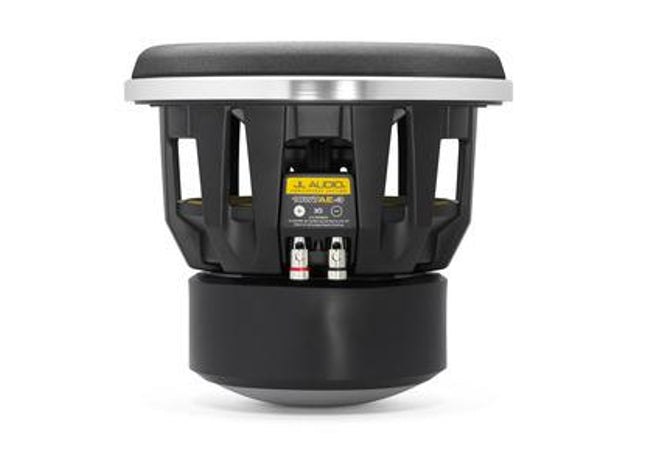

W7-Series 10-Inch 750-Watt Subwoofer Driver, 3-Ohm SVC
The audiophile 10W7AE subwoofer driver delivers amazing excursion capability while maintaining undeniable tracking accuracy under power in the low end sound spectrum.
This 10" W7AE sub is best used with an amplifier in the 300W - 750W RMS range and is optimized to operate in a 1.25 cu. ft. (35.4 l) sealed enclosure, or a 1.5 cu. ft. (42.5 l) ported enclosure.
The JL Audio 10W7AE-3 Anniversary Edition subwoofer driver is the 10th Anniversary of the launch of the JL W7 subwoofers. They are identical to the original W7's drivers but they are distinguished by the following cosmetic differences:
Satin-Black Powdercoated Baskets
Bright Anodized Surround Clamp Ring
Anniversary Edition Cone Badge
Anniversary Edition Terminal Label
General Specifications
Continuous Power Handling
750W RMS
Recommended Amplifier Power
300W - 750W RMS
Nominal Impedance
3Ω
JL Audio 10W7AE Manual

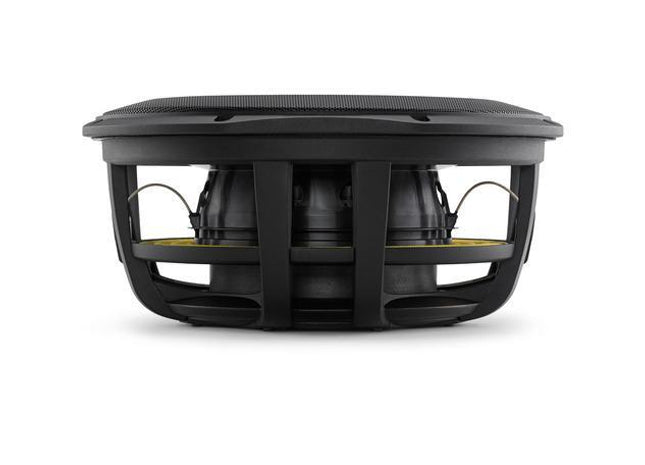

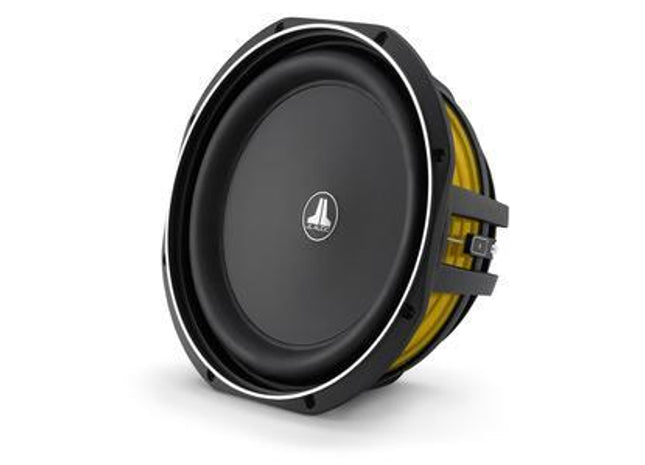

TW1-Series 12-Inch 300-Watt Subwoofer Driver, 2-Ohm or 4-Ohm SVC
The 12" TW1 thin subwoofer driver by JL Audio has a shallow mounting depth while maintaining excellent excursion capability in a thin mounty chassis design to fit into an enclosure no bigger than (0.65 cu.ft. / 18.4 liters). This 12TW1 subwoofer is capable of operating in extremely tight spaces including under-seat installations in trucks and other automotive applications requiring a compact, low profile subwoofer design.
JL Audio's patented thin-line woofer technology utilizes a "concentric tube" structure built into the injection-molded cone body supporting the voice coil and spider. This patented design places the large motor structure further forward in the speaker than conventional thin subwoofer designs.
The JL Audio 12TW1 sub also features a chassis design that minimizes the top clearance required for the linear excursion limits of the subwoofer driver. This is accomplished by recessing the suspension attachment surface, so that most of the forward excursion occurs within the frame's dimensions. The 12TW1 requires only 0.87 inches (22 mm) of frontal clearance with or without the subwoofer grille installed.
The JL Audio 12" 12TW1-2 and 12TW1-4 subwoofer drivers are optimized for an enclosure much smaller than any other JL Audio twelve-inch subwoofer driver, it never sounds like a big woofer struggling in a tiny box...instead, it delivers all the rich, deep, controlled bass you have come to expect from a JL Audio subwoofer system.
Very shallow mounting depth (4.62 in / 117 mm)
No pole vent: permits mounting close to rear wall of enclosure
Extremely small sealed enclosure volume requirements
Long linear excursion capability (0.40 in / 10 mm, one-way)
DMA-optimized motor design
Patented "concentric tube" architecture
Patented "floating cone attach method" technology
Cast alloy frame with flat edges for tight driver grouping
Injection molded, mica-filled polypropylene cone
Rubber surround
Steel mesh grille included with each driver
Precision-built in USA at JL Audio’s Miramar, Florida factory with global components
General Specifications
Continuous Power Handling ()
300W RMS
Recommended Amplifier Power (RMS)
75W - 300W RMS
Nominal Impedance (Znom)
2Ω
JL Audio 12TW1 Manual

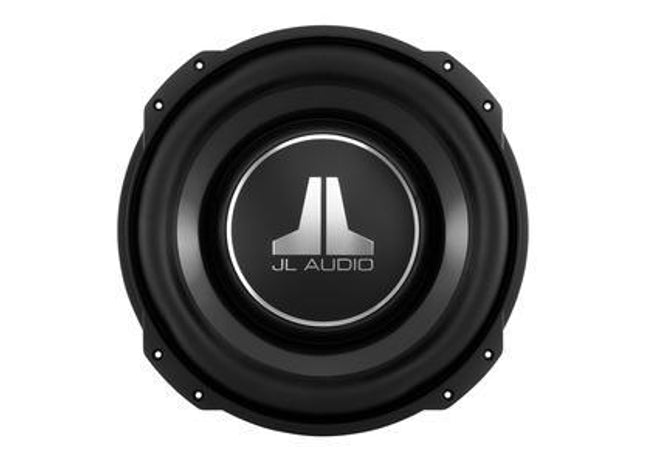

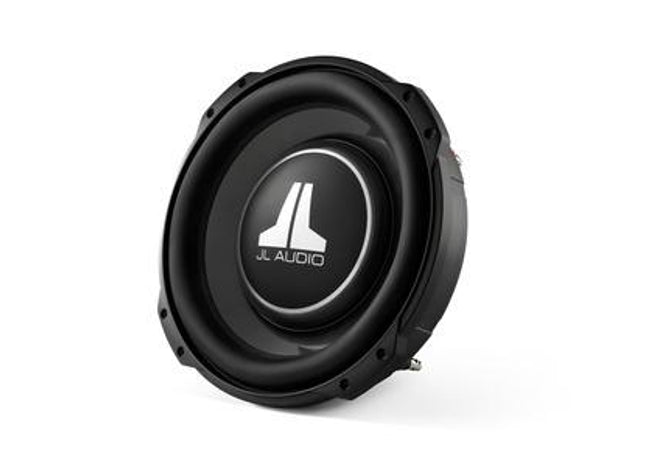

TW3-Series 12-Inch 400-Watt Thin Subwoofer Driver, 4-Ohm or 8-Ohm DVC
The 12" TW3 thin subwoofer driver by JL Audio offers a shallow mounting depth with an excursion capability that is remarkably capable of greater excursion than JL's W3v3 full size subwoofers.
JL Audio’s TW3 sub utilizes a patented thin-line woofer technology that compresses the architecture of the 12TW3 woofer using a “concentric tube” structure built into the injection-molded cone body. This structure supports the voice coil and spider, while allowing the placement of the large motor structure to be moved further forward on the chassis than with conventional designs.
JL Audio 12TW3-D4 and 12TW4-D8 are optimized for small enclosures and offers JL's tab-ear mounting design to maximize cone area within their mounting footprints.
Deep, powerful and accurate JL Audio bass is now possible in more applications than ever.
Very shallow mounting depth (3.25 / 3.50 Inches)
No pole vent: permits mounting close to rear wall of enclosure.
Very small sealed enclosure volume requirements
Very long linear excursion capability (0.60 In / 15.2 mm, one-way)
DMA-optimized motor designs
“concentric tube” architecture
Patented “floating cone attach method” technology
Cast alloy frame
Injection molded, mica-filled polypropylene cone
Rubber surround
Aluminum-alloy dust cap and rear cap with JL Audio logo
Precision-built in USA at JL Audio’s Miramar, Florida factory with global components
General Specifications
Continuous Power Handling
400W RMS
Recommended Amplifier Power
200W - 400W RMS
Nominal Impedance
Dual 4Ω/8Ω
JL Audio 12TW3 Manual
W0-Series 12-Inch 300-Watt Subwoofer Driver, 4-Ohm SVC
The 12" W0v3 subwoofer driver by JL Audio delivers excellent efficiency, excursion capability and linearity. This 12" subwoofer comes with a price point under $150.00 while supporting a beefy 2 in. diameter voice coil and JL's patented Elevated Frame Cooling design for enhanced power handling and reliability.
The JL Audio 12W0v3-4 sub is best used with amplifier power in the 75W - 300W range and is optimized to operate in a moderately sized 1.375 cu. ft. (38.9 l) sealed enclosure, or a 1.75 cu. ft. (49.6 l) ported enclosure.
General Specifications
Continuous Power Handling
300W RMS
Recommended Amplifier Power
75W - 300W RMS
Nominal Impedance
4Ω
JL Audio 12W0v3 Manual
W1-Series 12-Inch 300-Watt Subwoofer Driver, 2-Ohm or 4-Ohm SVC
The 12" W1v3 automotive subwoofer driver by JL Audio is a lightweight 12-inch driver with excellent performance capabilities at a moderate 300-Watts. The design of the chassis allows an average mounting depth with no pole-vent on the back side of the magnet so the rear of the motor structure can be placed directly against an enclosure boundary. This 12" subwoofer can reproduce sub-bass with shocking extension and quality.
The JL Audio 12W1v3-2 and 12W1v3-4 subwoofers are best used with an amplifier in the 75W - 300W range and is optimized to operate in a compact 1.10 cu. ft. (31.5 l) sealed enclosure.
General Specifications
Continuous Power Handling
300W RMS
Recommended Amplifier Power
75W - 300W RMS
Nominal Impedance
2Ω
JL Audio 12W1v3 Manual

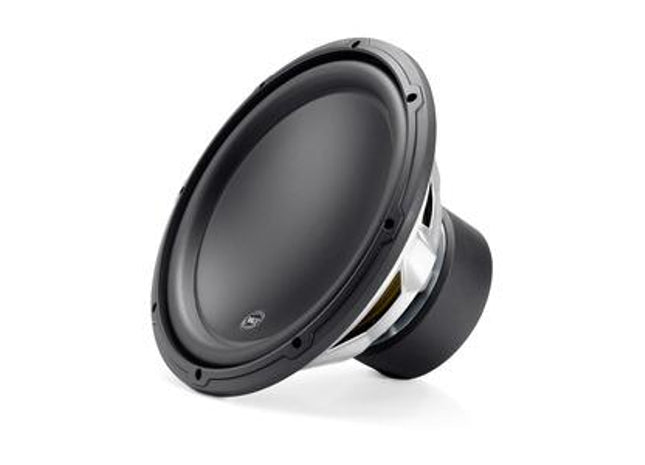

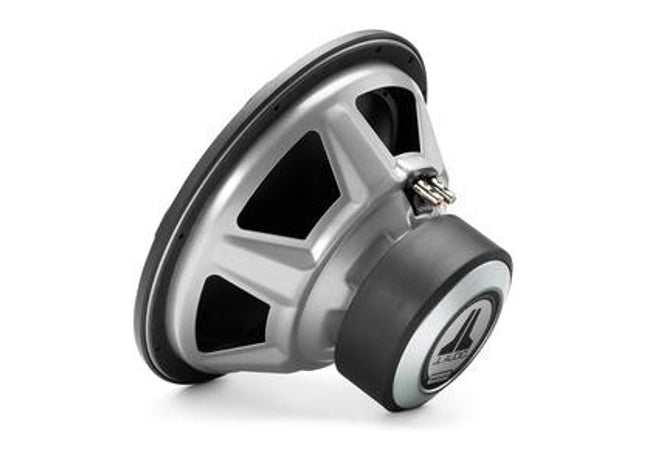

W3-Series 12-Inch 500-Watt Subwoofer Driver, 2-Ohm or 4-Ohm Single Voice Coil
This 12-inch W3v3 subwoofer driver by JL Audio delivers world-class sound quality in a 500W RMS power package.
The JL Audio 12W3v3-2 and 12W3v3-4 automotive subs are best used with an amplifier in the 150-Watt - 500-Watt RMS range and are optimized to operate in a compact 1.25 cu. ft. (35.4 l) sealed enclosure, or a 1.75 cu. ft. (49.6 l) ported enclosure.
General Specifications
Continuous Power Handling (RMS)
500 W
Recommended Amplifier Power (RMS)
150 - 500 W
Nominal Impedance (Znom)
2 Ω
JL Audio 12W3v3 Manual

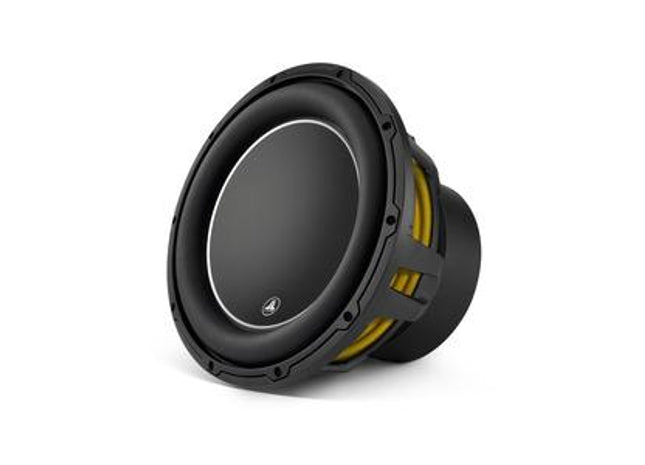

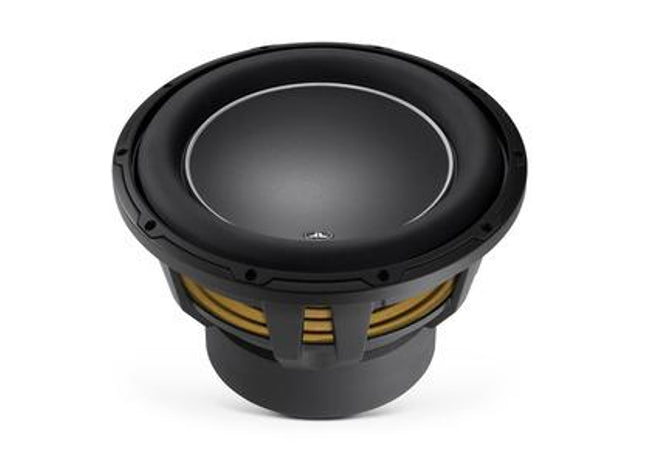

W6-Series 12-Inch 600-Watt Subwoofer Driver, 4-Ohm DVC
The 12" W6v3 subwoofer driver is an audiophile subwoofer that offers powerful advantages in motor linearity and suspension behavior. The 12W6v3 sub offers a very efficient cooling circuit to deliver reduced distortion and outstanding dynamic balance.
The JL 12W6v3-4 automotive sub is best used with an amplifier in the 200-Watt - 600-Watt RMS range and is optimized to operate in a sealed enclosure with only 1.0 cu. ft. (28.3 l) of air space, or a 1.3 cu. ft (36.8 l) ported enclosure.
Greater excursion capability and higher power handling distinguish the 12" JL W6v3 subwoofer from the 12W3v3 12-inch subwoofer driver, allowing for higher output. Dual 4Ω voice coils allow the W6v3 to be wired in a 2Ω or 8Ω configuration.
General Specifications
Continuous Power Handling
600W RMS
Recommended Amplifier Power
200W - 600W RMS
Nominal Impedance
Dual 4Ω
JL Audio 12W6v3 Manual

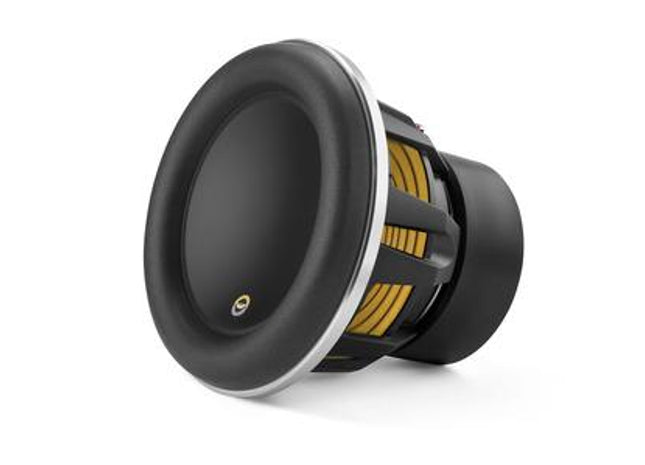

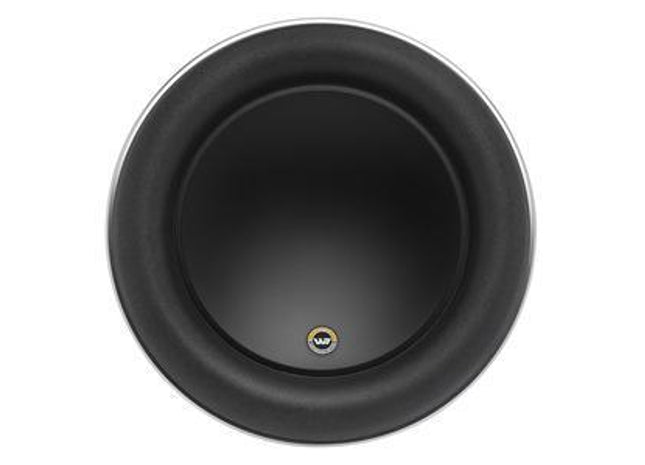

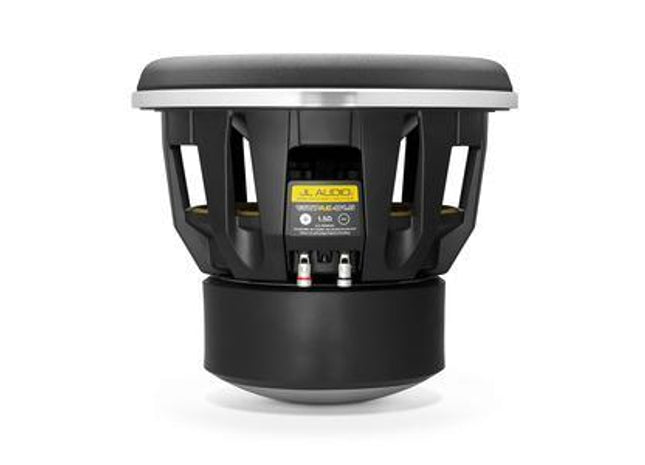

W7-Series 12-Inch 1000-Watt Subwoofer Driver, 3-Ohm SVC
The JL Audio 12" W7AE audiophile reference subwoofer driver delivers the ultimate performance by combining long-excursion W7 driver design with a large 12-inch bore. It has been called "addictive," "seductive" and "the new subwoofer reference", with limitless dynamics and exceptional balance and world-class sound quality.
This 12W7AE automotive reference sub is best used with an amplifier in the 400-Watt - 1000-Watt range and is optimized to operate in a 1.375 cu. ft. (38.9 l) sealed enclosure, or a 1.75 cu. ft. (49.6 l) ported enclosure.
The JL Audio 12W7AE-3 (Anniversary Edition) subwoofer celebrate the 10th Anniversary of the launch of the W7 subwoofers. Functionally, they are identical to the original W7's, but are they distinguished by the following cosmetic differences:
Satin-Black Powdercoated Baskets
Bright Anodized Surround Clamp Ring
Anniversary Edition Cone Badge
Anniversary Edition Terminal Label
General Specifications
Continuous Power Handling (RMS)
1000 W
Recommended Amplifier Power (RMS)
400 - 1000 W
Nominal Impedance (Znom)
3 Ω
JL Audio 12W7AE Manual

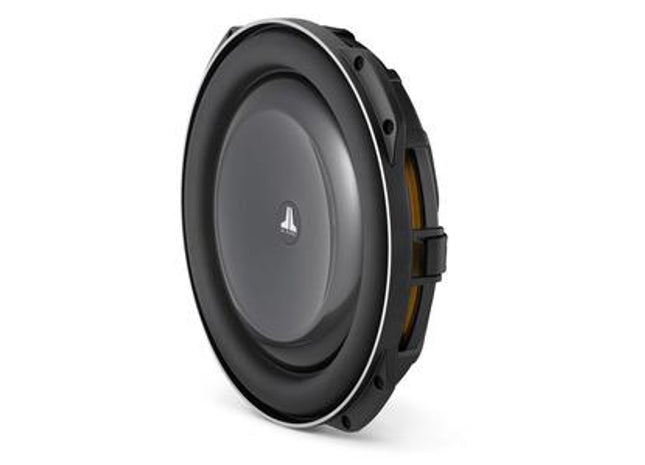

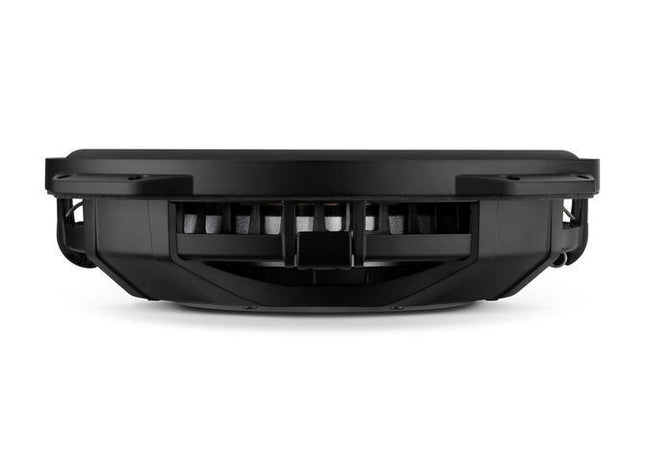

TW5-Series 13.5-Inch 600-Watt Thin Subwoofer Driver, 2-Ohm or 4-Ohm SVC
The JL Audio 13.5" TW5v2 thin subwoofer driver uses a chassis with a “concentric tube” structure that supports the 7-inch diameter voice coil and the suspension attachments. This permits placement of the large motor structure much further forward in the subwoofer chassis than with conventional thin sub designs, while allowing excellent linear excursion capability and mechanical stability.
The 13TW5v2 improves upon the original 13-Inch TW5 driver with 13% greater linear excursion capability. The cast alloy chassis has also been modified for greater strength and the redesigned motor now features an annular vent. The v2 is available in single 2-ohm and single 4-ohm voice coil configurations.
In keeping with its “tight-spaces” mission, the 13TW5v2 is optimized for enclosures that are far smaller than most 12-inch woofers require and only a bit larger than the air space needs of a typical, small-box 12-inch woofer. The mounting system is designed to fit in about the same footprint as a typical 12-inch woofer.
The JL Audio 13TW5v2-2 and the 13TW5v2-4 thin subwoofers are best used with amplifier power in the 250-Watt - 600-Watt range and is optimized to operate in a 0.80 cu. ft. (22.7 l) sealed enclosure.
Never has such high-quality subwoofers-bass been possible in the most challenging thin installation applications.
General Specifications
Continuous Power Handling
600W RMS
Recommended Amplifier Power
250W - 600W RMS
Nominal Impedance
2Ω
JL Audio 13TW5v2 Manual
W3-Series 13-Inch 600-Watt Subwoofer Driver, 2-Ohm or 4-Ohm Single Voice Coil
If you have the space, it makes a tremendous sense to maximize your subwoofer system's piston area to enhance efficiency (and output). It gets even better when the larger driver delivers additional power handling and excursion. For the preceding reasons, the 13W3v3 can be the best choice for those seeking high output with great sound quality at medium power levels.
As with the smaller W3v3's, several exclusive JL Audio technologies and proprietary assembly techniques are applied to the 13W3v3 to enhance linearity and reliability.
The 13W3v3 2Ω or 4Ω model is best used with an amplifier powered in the 150W - 600W range and is optimized to operate in a moderate size 1.5 cu. ft. (42.5 l) sealed enclosure, or a 2.25 cu. ft. (63.7 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.
General Specifications
Continuous Power Handling (RMS)
600W
Recommended Amplifier Power (RMS)
150 - 600W
Nominal Impedance (Znom)
4Ω
Nominal Diameter
13.5 in / 345 mm
Overall Diameter (A)
14.0 in / 356 mm
Mounting Hole Diameter (B)
12.5625 in / 319 mm
Bolt Hole Circle Diameter (C)
13.2 in / 335 mm
Motor Outer Diameter (D)
5.79 in / 147 mm
Mounting Depth (E)
7.63 in / 194 mm
Driver Displacement
0.096 cu ft / 2.72 liters
Net Weight
17.75 lb / 8.05 kg
Free Air Resonance (Fs)
23.66 Hz
Electrical “Q” (Qes)
0.465
Mechanical “Q” (Qms)
6.774
Total Speaker “Q” (Qts)
0.435
Equivalent Compliance (Vas)
4.793 cu ft / 135.74 L
One-Way Linear Excursion (Xmax)*
0.610 in / 15.5 mm
Reference Efficiency (no)
0.37%
Efficiency (1 W / 1 m)**
87.90 dB SPL
Effective Piston Area (Sd)
103.850 sq in / 0.0670 sq m
DC Resistance (Re)
3.569 Ω
JL Audio 13W3v3 Manual
W7-Series 13.5-Inch 1500-Watt RMS Subwoofer Driver, 1.5-Ohm DVC
The JL Audio 13.5" W7AE audiophile reference grade automotive subwoofer driver offers a staggering linear excursion envelope that exceeds 1.25 inches (32 mm) one-way, with a suspension excursion of over 4-inches, peak-to-peak. The performance from this 13.5-Inch driver is reserved for the most demanding applications. The JL 13W7AE sub is not ideal for light capacity vehicles with small enclosure spaces. In larger capacity vehicles, enclosure limits simply vanish and amazing sub-bass from this 13.5" W7AE driver happens... on all fronts, at any level.
JL's most potent subwoofer driver is best used with an amplifier in the 500W - 1500W RMS range and is optimized to operate in a 1.875 cu. ft. (53.1 l) sealed enclosure, or a 2.375 cu. ft. (67.3 l) ported enclosure.
The JL Audio 13W7AE-D1.5 (Anniversary Edition) Subwoofers celebrate the 10th Anniversary of the launch of the W7 subwoofers. Functionally, they are identical to the original W7's, but are they distinguished by the following cosmetic differences:
Satin-Black Powdercoated Baskets
Bright Anodized Surround Clamp Ring
Anniversary Edition Cone Badge
Anniversary Edition Terminal Label
General Specifications
Continuous Power Handling
1500W RMS
Recommended Amplifier Power
500W - 1500W RMS
Nominal Impedance
Dual 1.5Ω
JL Audio 13W7AE Manual
W0-Series 15-Inch 500-Watt Subwoofer Driver, 4-Ohm SVC
The JL Audio 15" W0v3 automotive subwoofer driver offers excellent excursion capability and linearity in a 500W price point. This 15-Inch sub features a very beefy 2.5 in. diameter voice coil and JL's patented Elevated Frame Cooling design for enhanced power handling and reliability.
The 15W0v3-4 is best used with an amplifier in the 150-Watt - 500-Watt range and is optimized to operate in a moderately sized 1.875 cu. ft. (53.1 l) sealed enclosure, or a 2.75 cu. ft. (77.88 l) ported enclosure.
General Specifications
Continuous Power Handling
500W RMS
Recommended Amplifier Power
150W - 500W RMS
Nominal Impedance
4Ω
JL Audio 15W0v3 Manual
W6-Series 6.5-Inch 150-Watt Subwoofer Driver, 4-Ohm
If you need a small-format subwoofer that really delivers in extremely small enclosures, this is where your search ends. The 6W3v3 is a true subwoofer, through-and-through. It employs the same technologies as its larger diameter brethren to deliver a whopping 0.35 in. (8.9 mm) one-way linear excursion.
The 6W3v3-4 is best used with amplifier power in the 50W - 150W range and is optimized to operate in a tiny 0.15 cu. ft. (4.2 l) sealed enclosure, or a 0.25 cu. ft. ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.
General Specifications
Continuous Power Handling (RMS)
150 W
Recommended Amplifier Power (RMS)
50 - 150 W
Nominal Impedance (Znom)
4 Ω
JL Audio 6W3v3 Manual
W1-Series 8-Inch 150-Watt Subwoofer Driver, 4-Ohm SVC
The 8W1v3 is an outstanding choice when space is very tight and amplifier power is moderate. It features shallow mounting depth (3.86 in. / 98 mm) and a compact motor structure, allowing it to comfortably fit in a lot of spaces where a typical 8-inch driver will not. Lacking a pole vent, the rear of the motor structure can be placed directly against an enclosure boundary. Excellent excursion capability and linearity allow it to reproduce sub-bass with shocking extension and quality. Several of JL Audio's proprietary technologies enhance its performance and reliability.
The 8W1v3-4 is best used with amplifier power in the 50W - 150W range and is optimized to operate in a compact 0.350 cu. ft. (9.90 l) sealed enclosure.
General Specifications
Continuous Power Handling (RMS)
150 W
Recommended Amplifier Power (RMS)
50 - 150 W
Nominal Impedance (Znom)
4 Ω
JL Audio 8W1v3 Manual
W3-Series 8-Inch 250-Watt Subwoofer Driver, 4-Ohm SVC
If you need an 8-inch subwoofer that can create outstanding bass in extremely small enclosures, the 8W3v3 will do the job and surprise you with its power and accuracy. It employs the same technologies as its larger diameter brethren to deliver a whopping 0.375 in. (10 mm) of controlled, one-way, linear excursion.
The 8W3v3-4 is best used with amplifier power in the 75W - 250W range and is optimized to operate in a tiny 0.30 cu. ft. (8.5 l) sealed enclosure, or a 0.35 cu. ft. ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.
General Specifications
Continuous Power Handling (RMS)
250 W
Recommended Amplifier Power (RMS)
75- 250 W
Nominal Impedance (Znom)
4 Ω
JL Audio 8W3v3 Manual
W7-Series 8-Inch 500-Watt Subwoofer Driver, 3-Ohm SVC
This subwoofer driver has been called the "best damn 8-inch subwoofer ever made" for its remarkable performance capabilities and design attributes. An impressive linear excursion envelope that exceeds 0.75 in. (19 mm) one-way allows it to deliver impact well beyond the range of other 8-inch subwoofer drivers.
The 8W7AE is best used with amplifier power in the 200W - 500W range and is optimized to operate in a 0.875 cu. ft. (24.8 l) sealed enclosure, or a 1.0 cu. ft. ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.
W7AE (Anniversary Edition) Subwoofers celebrate the 10th Anniversary of the launch of the W7 subwoofers. Functionally, they are identical to the original W7's, but are they distinguished by the following cosmetic differences:
Satin-Black Powdercoated Baskets
Bright Anodized Surround Clamp Ring
Anniversary Edition Cone Badge
Anniversary Edition Terminal Label
General Specifications
Continuous Power Handling (RMS)
500 W
Recommended Amplifier Power (RMS)
200 - 500 W
Nominal Impedance (Znom)
3 Ω
JL Audio 8W7AE Manual
W3-Series 250-Watt Amplified 8-Inch Ported Subwoofer System
With MicroSub+™ systems, the power is built right into the subwoofer system. Housing a proprietary Class D amplifier, this incredible subwoofer system utilizes JL Audio's exclusive DCD™ amplifier technology to extract maximum output from its specially engineered, ultra low-impedance W3v3 driver. By combining direct power conversion with an ultra-high current output section, DCD™ amplifiers are free of conventional switching power supplies, enabling them to generate remarkable power with unprecedented efficiency.
Key to the enclosure’s performance is its efficient slot-ported design and precise tuning of its 8Wv3 subwoofer driver. Extensive interior bracing permits the use of thinner wall material that maximizes the enclosure's internal volume relative to its exterior volume. The port wraps around two walls of the enclosure to produce the necessary low tuning frequency that ensures excellent extension and response smoothness. The flared port entry and exit further enhance sound quality by minimizing air-flow noises through the port.
Integration to OEM and aftermarket head units is a snap thanks to a variety of input options and automatic turn-on capability (via signal sensing or DC offset sensing). Also included is a variable frequency low-pass filter (50-200 Hz), along with output polarity control switch. Adding an optional RBC-1 remote level control (sold separately) lets you control subwoofer levels directly from the driver’s seat. A quick-disconnect power connector makes it easy to remove the subwoofer when you need the extra space. As with all MicroSub™ systems, these amplified versions produce the kind of output and extension normally associated with much larger systems.
Note: DCD™ amplified systems use very specific components. Never use a DCD™ amplifier or its companion subwoofer(s) with incompatible, non-DCD™ products. Doing so will void the warranty and may cause severe damage.
Finish: Black, high-grade automotive carpet with silver "JL AUDIO" embroidery on front baffle. A steel mesh grille is included to protect the subwoofer driver.
Construction: CNC-Cut High-Grade MDF
Amplifier power: Built-in DCD™ Class D amplifier (250 W @ 0.40 Ω)Nominal Impedance: 0.40 Ω
Enclosure and Subwoofer Built in USA with global components.
General Specifications
Continuous Power Handling (RMS)
Built-in amplifier 250 W @ 0.40 Ω
System Nominal Impedance
0.40 Ω
Input Voltage Range @ RCA Inputs
70 mV - 1.40 V RMS
Input Voltage Range @ High-Level Inputs
280 mV - 5.4 V RMS
Recommended Copper Power / Ground Wire Gauge
8 AWG wire
Fuse Rating
30 A (ATO or ATC)
Enclosure Type
Slot-ported, Low-profile
Finish
Black carpet
Grille Included
Black Steel Mesh
JL Audio MicroSub+/PowerWedge+ Manual
TW1-Series 400-Watt Amplified 10-Inch Ported Subwoofer System
With MicroSub+™ systems, the power is built right into the subwoofer system. Housing a proprietary Class D amplifier, this incredible subwoofer system utilizes JL's exclusive DCD™ amplifier technology to extract maximum output from its specially engineered, ultra low-impedance TW1 driver. By combining direct power conversion with an ultra-high current output section, DCD™ amplifiers are free of conventional switching power supplies, enabling them to generate remarkable power with unprecedented efficiency.
Key to the enclosure’s performance is its efficient slot-ported design and precise tuning of its 10TW1 subwoofer driver. Extensive interior bracing permits the use of thinner wall material that maximizes the enclosure's internal volume relative to its exterior volume. The port wraps around two walls of the enclosure to produce the necessary low tuning frequency that ensures excellent extension and response smoothness. The flared port entry and exit further enhance sound quality by minimizing air-flow noises through the port.
Integration to OEM and aftermarket head units is a snap thanks to a variety of input options and automatic turn-on capability (via signal sensing or DC offset sensing). Also included is a variable frequency low-pass filter (50-200 Hz), along with output polarity control switch. Adding an optional RBC-1 remote level control (sold separately) lets you control subwoofer levels directly from the driver’s seat. A quick-disconnect power connector makes it easy to remove the subwoofer when you need the extra space. As with all MicroSub™ systems, these amplified versions produce the kind of output and extension normally associated with much larger systems.
Note: DCD™ amplified systems use very specific components. Never use a DCD™ amplifier or its companion subwoofer(s) with incompatible, non-DCD™ products. Doing so will void the warranty and may cause severe damage.
Finish: Black, high-grade automotive carpet with silver "JL AUDIO" embroidery on front baffle. A steel mesh grille is included to protect the subwoofer driver.
Construction: CNC-Cut High-Grade MDF
Amplifier power: Built-in DCD™ Class D amplifier (400 W @ 0.25 Ω)Nominal Impedance: 0.25 Ω
General Specifications
Continuous Power Handling (RMS)
Built-in amplifier 400 W @ 0.25 Ω
System Nominal Impedance
0.25 Ω
Input Voltage Range @ RCA Inputs
70 mV - 1.40 V RMS
Input Voltage Range @ High-Level Inputs
280 mV - 5.4 V RMS
Recommended Copper Power / Ground Wire Gauge
8 AWG wire
Fuse Rating
30 A (ATO or ATC)
Enclosure Type
Slot-ported, Low-profile
Finish
Black carpet
Grille Included
Black Steel Mesh
JL Audio MicroSub+/PowerWedge+ Manual
TW1-Series 400-Watt Amplified 12-Inch Ported Subwoofer System
With MicroSub+™ systems, the power is built right into the subwoofer system. Housing a proprietary Class D amplifier, this incredible subwoofer system utilizes JL's exclusive DCD™ amplifier technology to extract maximum output from its specially engineered, ultra low-impedance TW1 driver. By combining direct power conversion with an ultra-high current output section, DCD™ amplifiers are free of conventional switching power supplies, enabling them to generate remarkable power with unprecedented efficiency.
Key to the enclosure’s performance is its efficient slot-ported design and precise tuning of its 12TW1 subwoofer driver. Extensive interior bracing permits the use of thinner wall material that maximizes the enclosure's internal volume relative to its exterior volume. The port wraps around two walls of the enclosure to produce the necessary low tuning frequency that ensures excellent extension and response smoothness. The flared port entry and exit further enhance sound quality by minimizing air-flow noises through the port.
Integration to OEM and aftermarket head units is a snap thanks to a variety of input options and automatic turn-on capability (via signal sensing or DC offset sensing). Also included is a variable frequency low-pass filter (50-200 Hz), along with output polarity control switch. Adding an optional RBC-1 remote level control (sold separately) lets you control subwoofer levels directly from the driver’s seat. A quick-disconnect power connector makes it easy to remove the subwoofer when you need the extra space. As with all MicroSub™ systems, these amplified versions produce the kind of output and extension normally associated with much larger systems.
Note: DCD™ amplified systems use very specific components. Never use a DCD™ amplifier or its companion subwoofer(s) with incompatible, non-DCD™ products. Doing so will void the warranty and may cause severe damage.
Finish: Black, high-grade automotive carpet with silver "JL AUDIO" embroidery on front baffle. A steel mesh grille is included to protect the subwoofer driver.
Construction: CNC-Cut High-Grade MDF
Amplifier power: Built-in DCD™ Class D amplifier (400 W @ 0.25 Ω)Nominal Impedance: 0.25 Ω
Enclosure and Subwoofer Built in USA with global components
General Specifications
Continuous Power Handling (RMS)
Built-in amplifier 400 W @ 0.25 Ω
System Nominal Impedance
0.25 Ω
Input Voltage Range @ RCA Inputs
70 mV - 1.40 V RMS
Input Voltage Range @ High-Level Inputs
280 mV - 5.4 V RMS
Recommended Copper Power / Ground Wire Gauge
8 AWG wire
Fuse Rating
30 A (ATO or ATC)
Enclosure Type
Slot-ported, Low-profile
Finish
Black carpet
Grille Included
Black Steel Mesh
JL Audio MicroSub+/PowerWedge+ Manual
W3-Series 500-Watt Amplified Dual 8-Inch Ported Subwoofer System
With MicroSub+™ systems, the power is built right into the subwoofer system. Housing a proprietary Class D amplifier, this incredible subwoofer system utilizes JL's exclusive DCD™ amplifier technology to extract maximum output from its specially engineered, ultra low-impedance W3v3 drivers. By combining direct power conversion with an ultra-high current output section, DCD™ amplifiers are free of conventional switching power supplies, enabling them to generate remarkable power with unprecedented efficiency.
Key to the enclosure’s performance is its efficient slot-ported design and precise tuning of its dual 8Wv3 subwoofer drivers, each in its separate airspace. Extensive interior bracing permits the use of thinner wall material that maximizes the enclosure's internal volume relative to its exterior volume. The port for each driver wraps around two walls of the enclosure to produce the necessary low tuning frequency that ensures excellent extension and response smoothness. The two flared port entries/exits, one on each end of the enclosure, further enhance sound quality by minimizing air-flow noises through each port.
Integration to OEM and aftermarket head units is a snap thanks to a variety of input options and automatic turn-on capability (via signal sensing or DC offset sensing). Also included is a variable frequency low-pass filter (50-200 Hz), along with output polarity control switch. Adding an optional RBC-1 remote level control (sold separately) lets you control subwoofer levels directly from the driver’s seat. A quick-disconnect power connector makes it easy to remove the subwoofer when you need the extra space. As with all MicroSub™ systems, these amplified versions produce the kind of output and extension normally associated with much larger systems.
Note: DCD™ amplified systems use very specific components. Never use a DCD™ amplifier or its companion subwoofer(s) with incompatible, non-DCD™ products. Doing so will void the warranty and may cause severe damage.
Finish: Black, high-grade automotive carpet with silver "JL AUDIO" embroidery on front baffle. Steel mesh grilles are included to protect the subwoofer drivers.
Construction: CNC-Cut High-Grade MDF
Amplifier power: Built-in DCD™ Class D amplifier (500 W @ 0.20 Ω)Nominal Impedance: 0.20 Ω
Enclosure and Subwoofers Built in USA with global components.
General Specifications
Continuous Power Handling (RMS)
Built-in amplifier 500 W @ 0.20 Ω
System Nominal Impedance
0.20 Ω
Input Voltage Range @ RCA Inputs
70 mV - 1.40 V RMS
Input Voltage Range @ High-Level Inputs
280 mV - 5.4 V RMS
Recommended Copper Power / Ground Wire Gauge
8 AWG wire
Fuse Rating
30 A (ATO or ATC)
Enclosure Type
Slot-ported, Low-profile
Finish
Black carpet
Grille Included
Black Steel Mesh
Signal Processing
Filter Mode(s)
Low-Pass only
Filter Slope(s)
12 dB/octave
Filter Frequency Range
50 Hz - 200 Hz
Output Polarity Switch
Yes
Remote Subwoofer Level Control
Optional (RBC-1)
Physical Specifications
External Width (W)
36.625 in / 905 mm
External Height (H)
11.125 in / 283 mm
External Depth (D1)
5.125 in / 130 mm
Net Weight
34.9 lb / 15.83 kg
TW1-Series 400-Watt Amplified 10-Inch Subwoofer System
In PowerWedge+™ systems, the power is built right into the subwoofer system. Housing a proprietary Class D amplifier, this subwoofer system employs JL's exclusive DCD™ amplifier technology to extract maximum output from its specially engineered, ultra low-impedance TW1 driver. By combining direct power conversion with an ultra-high current output section, DCD™ amplifiers are free of conventional switching power supplies, enabling them to generate remarkable power with unprecedented efficiency.
Harnessing the performance and insanely small box requirements of the TW1 subwoofer driver, this subwoofer system is designed to deliver amazing sub-bass from an enclosure that is only 5 inches (127 mm) deep. Its low-profile enclosure design has been carefully engineered to the optimum sealed enclosure alignment for the 10TW1 driver and has been fine-tuned through extensive real-world listening.
Integration to OEM and aftermarket head units is a snap thanks to a variety of input options and automatic turn-on capability (via signal sensing or DC offset sensing). Also included is a variable frequency low-pass filter (50-200 Hz), along with output polarity control switch. Adding an optional RBC-1 remote level control (sold separately) lets you control subwoofer levels directly from the driver’s seat. A quick-disconnect power connector makes it easy to remove the subwoofer when you need the extra space.
Note: DCD™ amplified systems use very specific components. Never use a DCD™ amplifier or its companion subwoofer(s) with incompatible, non-DCD™ products. Doing so will void the warranty and may cause severe damage.
Finish: Black, high-grade automotive carpet with silver "JL AUDIO" embroidery on front baffle. A steel mesh grille is included to protect the subwoofer driver.
Construction: CNC-Cut High-Grade MDF
Amplifier power: Built-in DCD™ Class D amplifier (400 W @ 0.25 Ω)Nominal Impedance: 0.25 Ω
Enclosure and Subwoofer Built in USA with global components
General Specifications
Continuous Power Handling (RMS)
Built-in amplifier 400 W @ 0.25 Ω
System Nominal Impedance
0.25 Ω
Input Voltage Range @ RCA Inputs
70 mV - 1.40 V RMS
Input Voltage Range @ High-Level Inputs
280 mV - 5.4 V RMS
Recommended Copper Power / Ground Wire Gauge
8 AWG wire
Fuse Rating
30 A (ATO or ATC)
Enclosure Type
Sealed
Finish
Black carpet
Grille Included
Black Steel Mesh
JL Audio MicroSub+/PowerWedge+ Manual
TW1-Series 400-Watt Amplified 12-Inch Subwoofer System
In PowerWedge+™ systems, the power is built right into the subwoofer system. Housing a proprietary Class D amplifier, this subwoofer system employs JL's exclusive DCD™ amplifier technology to extract maximum output from its specially engineered, ultra low-impedance TW1 driver. By combining direct power conversion with an ultra-high current output section, DCD™ amplifiers are free of conventional switching power supplies, enabling them to generate remarkable power with unprecedented efficiency.
Harnessing the performance and insanely small box requirements of the TW1 subwoofer driver, this subwoofer system is designed to deliver amazing sub-bass from an enclosure that is only 6.625 in. (168 mm) deep. Its low-profile enclosure design has been carefully engineered to the optimum sealed enclosure alignment for the 12TW1 driver and has been fine-tuned through extensive real-world listening.
Integration to OEM and aftermarket head units is a snap thanks to a variety of input options and automatic turn-on capability (via signal sensing or DC offset sensing). Also included is a variable frequency low-pass filter (50-200 Hz), along with output polarity control switch. Adding an optional RBC-1 remote level control (sold separately) lets you control subwoofer levels directly from the driver’s seat. A quick-disconnect power connector makes it easy to remove the subwoofer when you need the extra space.
Note: DCD™ amplified systems use very specific components. Never use a DCD™ amplifier or its companion subwoofer(s) with incompatible, non-DCD™ products. Doing so will void the warranty and may cause severe damage.
Finish: Black, high-grade automotive carpet with silver "JL AUDIO" embroidery on front baffle. A steel mesh grille is included to protect the subwoofer driver.
Construction: CNC-Cut High-Grade MDF
Amplifier power: Built-in DCD™ Class D amplifier (400 W @ 0.25 Ω)Nominal Impedance: 0.25 Ω
Enclosure and Subwoofer built in USA with global components
General Specifications
Continuous Power Handling (RMS)
Built-in amplifier 400 W @ 0.25 Ω
System Nominal Impedance
0.25 Ω
Input Voltage Range @ RCA Inputs
70 mV - 1.40 V RMS
Input Voltage Range @ High-Level Inputs
280 mV - 5.4 V RMS
Recommended Copper Power / Ground Wire Gauge
8 AWG wire
Fuse Rating
30 A (ATO or ATC)
Enclosure Type
Sealed
Finish
Black carpet
Grille Included
Black Steel Mesh
JL Audio MicroSub+/PowerWedge+ Manual
C1-Series 0.75-Inch Aluminum Dome 60-Watt Tweeters
C1 component tweeters are engineered to deliver refined performance, with excellent off-axis response and high-frequency extension. Utilizing true, edge driven 0.75-inch aluminum domes with silk suspensions, the C1-075ct component tweeters provide smooth, detailed reproduction of treble frequencies from 4 – 24 kHz.
The tweeters can be flush-mounted or surface-mounted with the supplied fixtures to fit a wide variety of installation needs. Inline, outboard, 12 dB / octave, high-pass filters are included to ensure smooth response and reliability. These fliters also are equipped with Advanced Tweeter Protection Circuitry to improve power handling and reliability.
When it comes to value, C1 is the real deal!
Sold as a pair. Surface-mount and flush-mount fixtures and grilles are included.
General Specifications
Continuous Power Handling (RMS)
50 W
Peak Music Power*
150 W
Recommended Amplifier Power (RMS)
20 - 50 W / Ch.
System Efficiency
91.0 dB @ 1 W / 1 m
System Nominal Impedance
6 Ω
System Frequency Response
4 kHz - 24 KHz ± 3 dB
JL Audio C1-075ct Manual
C1-Series 1-Inch Aluminum Dome 60-Watt Tweeters
C1 component tweeters are engineered to deliver refined performance, with excellent off-axis response and high-frequency extension. Utilizing true, edge driven 1.0-inch aluminum domes with silk suspensions, the C1-100ct component tweeters provide smooth, detailed reproduction of treble frequencies from 3.6 – 22 kHz.
The tweeters can be flush-mounted or surface-mounted with the supplied fixtures to fit a wide variety of installation needs. Inline, outboard, 12 dB / octave, high-pass filters are included to ensure smooth response and reliability. These fliters also are equipped with Advanced Tweeter Protection Circuitry to improve power handling and reliability.
When it comes to value, C1 is the real deal!
Sold as a pair. Surface-mount and flush-mount fixtures and grilles are included.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power*
150 W
Recommended Amplifier Power (RMS)
20 - 60 W / Ch.
System Efficiency
91.5 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
3.6 kHz - 22 KHz ± 3 dB
JL Audio C1-100ct Manual
C1-Series 4-Inch 35-Watt Coaxial Speaker System
C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles.
To facilitate fit, breakaway mounting tabs on the woofer frame allow the C1-400x to be installed in four-hole or two-hole mounting configurations.
C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-400x is a proprietary, stamped, steel 4-inch (100 mm) frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered spider at the top of the voice coil, to precisely control motion and prevent impact between the voice coil and the back plate. Tinsel leads are carefully routed and attached to the spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.
Equipped with a true, edge-driven, aluminum dome tweeter, C1 speakers stand further apart from others in its category with superior high-frequency clarity and definition. The tweeter’s design has inherently excellent off-axis response and high-frequency extension. It also benefits from the damping of a silk surround suspension and Ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit. A true, 2nd order high-pass filter is employed to further enhance smoothness and improve power handling.
When it comes to value, C1 is the real deal!
Sold as a pair. Grilles not available.
General Specifications
Continuous Power Handling (RMS)
35 W
Peak Music Power
105 W
Recommended Amplifier Power (RMS)
10 - 50 W / Ch.
System Efficiency
84.5 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
64 Hz - 24 KHz ± 3 dB
JL Audio C1-400x Manual
C1-Series 5.25-Inch 50-Watt Coaxial Speaker System
C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles.
C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-525x is a proprietary, stamped, steel 5.25-inch (130 mm) frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control motion and prevent impact between the voice coil and the back plate. Tinsel leads are carefully routed and attached to the spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.
Equipped with a true, edge-driven, aluminum dome tweeter, C1 speakers stand further apart from others in its category with superior high-frequency clarity and definition. The tweeter’s design has inherently excellent off-axis response and high-frequency extension. It also benefits from the damping of a silk surround suspension and Ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit. A true, 2nd order high-pass filter is employed to further enhance smoothness and improve power handling.
When it comes to value, C1 is the real deal!
Sold as a pair. Grilles not available.
General Specifications
Continuous Power Handling (RMS)
50 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
10 - 75 W / Ch.
System Efficiency
89.0 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
54 Hz - 24 KHz ± 3 dB
JL Audio C1-525x Manual
C1-Series 5x7-Inch 50-Watt Coaxial Speaker System
C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles.
To facilitate fit, spacer/adaptor rings are included, allowing the C1-570x to be installed in bottom-mount applications. The speaker baskets are also equipped with slotted mounting holes to fit into 6 x 8-inch factory speaker locations.
C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-570x is a proprietary, stamped, steel 5 x 7-inch (125 x 180 mm) oval frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control motion and prevent impact between the voice coil and the back plate. Tinsel leads are carefully routed and attached to the spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.
Equipped with a true, edge-driven, aluminum dome tweeter, C1 speakers stand further apart from others in its category with superior high-frequency clarity and definition. The tweeter’s design has inherently excellent off-axis response and high-frequency extension. It also benefits from the damping of a silk surround suspension and Ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit. A true, 2nd order high-pass filter is employed to further enhance smoothness and improve power handling.
When it comes to value, C1 is the real deal!
Sold as a pair. Grilles not available.
General Specifications
Continuous Power Handling (RMS)
50 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
10 - 75 W / Ch.
System Efficiency
90.5 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
40 Hz - 24 KHz ± 3 dB
JL Audio C1-570x Manual
C1-Series 6.5-Inch 50-Watt Component Speaker System
C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles.
To facilitate fit, multi-application adaptor rings are included for the C1-650 woofers, allowing easy, drop-in installation in vehicles equipped with oversized 6.5-inch and 6.75-inch speaker openings. Without the ring, the woofers will also fit into many "6-inch" speaker locations as well. Surface and flush mounts are included with C1 tweeters for maximum installation versatility.
C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-650 is a proprietary, stamped, steel 6.50-inch (165 mm) frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control the voice coil's motion. Tinsel leads are carefully routed and attached to the spiders to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.
Equipped with a true, edge-driven, aluminum dome tweeter, C1 speakers stand further apart from others in its category with superior high-frequency clarity and definition. The tweeter’s design has inherently excellent off-axis response and high-frequency extension. It also benefits from the damping of a silk surround suspension and Ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit. An in-line, outboard 2nd order high-pass filter, with Advanced Tweeter Protection Circuitry, is included to further enhance smoothness and improve power handling.
When it comes to value, C1 is the real deal!
Sold as a pair. Grilles not available.
General Specifications
Continuous Power Handling (RMS)
50 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
10 - 75 W / Ch.
System Efficiency
91.0 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
59 Hz - 22 KHz ± 3 dB
JL Audio C1-650 Manual
C1-Series 6.5-Inch 50-Watt Coaxial Speaker System
C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles.
To facilitate fit, multi-application adaptor rings are included with the C1-650x allowing easy, drop-in installation in vehicles equipped with oversized 6.5-inch and 6.75-inch speaker openings. Without the ring, the speaker will fit into many "6-inch" speaker locations as well.
C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-650x is a proprietary, stamped, steel 6.50-inch (165 mm) frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control the voice coil's motion. Tinsel leads are carefully routed and attached to the spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.
Equipped with a true, edge-driven, aluminum dome tweeter, C1 speakers stand further apart from others in its category with superior high-frequency clarity and definition. The tweeter’s design has inherently excellent off-axis response and high-frequency extension. It also benefits from the damping of a silk surround suspension and Ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit. A true, 2nd order high-pass filter is employed to further enhance smoothness and improve power handling.
When it comes to value, C1 is the real deal!
Sold as a pair. Grilles not available.
General Specifications
Continuous Power Handling (RMS)
50 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
10 - 75 W / Ch.
System Efficiency
90.5 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
48 Hz - 24 KHz ± 3 dB
JL Audio C1-650x Manual
C1-Series 6x9-Inch 60-Watt Component Speaker System
C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles.
To facilitate fit, spacer/adaptor rings are included allowing the C1-690 woofers to be installed in bottom-mount applications. Surface and flush mounts are included with C1 tweeters for maximum installation versatility.
C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-690 is a proprietary, stamped, steel 6 x 9-inch (150 x 230 mm) oval frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control motion and prevent impact between the voice coil and the back plate. Tinsel leads are carefully routed and attached to the spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.
Equipped with a true, edge-driven, 1-inch aluminum dome tweeter, the C1-690 stands further apart from others in its category with superior high-frequency clarity and definition. The tweeter’s design has inherently excellent off-axis response and high-frequency extension. It also benefits from the damping of a silk surround suspension and Ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit. An in-line, outboard 2nd order high-pass filter, with Advanced Tweeter Protection Circuitry, is included to further enhance smoothness and improve power handling.
When it comes to value, C1 is the real deal!
Sold as a pair. Grilles not available.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
10 - 100 W / Ch.
System Efficiency
89.0 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
39 Hz - 22 KHz ± 3 dB
JL Audio C1-690 Manual
C1-Series 6x9-Inch 60-Watt Coaxial Speaker System, 3-Way
C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles.
To facilitate fit, spacer adaptor rings are included allowing the C1-690tx to be installed in bottom-mount applications.
C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-690tx is a proprietary, stamped, steel 6 x 9-inch (150 x 230 mm) oval frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control motion and prevent impact between the voice coil and the back plate. Tinsel leads are carefully routed and attached to the spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.
Equipped with dual true, edge-driven, aluminum dome tweeters, the C1-690tx stands apart from others in its category with superior high-frequency clarity and separation. The design of each tweeter delivers inherently excellent off-axis response and high-frequency extension. Both high-frequency drivers also benefit from the damping of silk surround suspensions and Ferrofluid in the voice coil gaps, along with the superior strength of neodymium magnetics. A true, mixed order filter network is employed to further enhance smoothness and improve power handling.
When it comes to value, C1 is the real deal!
Sold as a pair. Grilles not available.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
10 - 100 W / Ch.
System Efficiency
90.5 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
36 Hz - 24 KHz ± 3 dB
JL Audio C1-690tx Manual
C1-Series 6x9-Inch 60-Watt Coaxial Speaker System
C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles.
To facilitate fit, spacer/adaptor rings are included allowing the C1-690x to be installed in bottom-mount applications.
C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-690x is a proprietary, stamped, steel 6 x 9-inch (150 x 230 mm) oval frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control motion and prevent impact between the voice coil and the back plate. Tinsel leads are carefully routed and attached to the spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.
Equipped with a true, edge-driven, aluminum dome tweeter, C1 speakers stand further apart from others in its category with superior high-frequency clarity and definition. The tweeter’s design has inherently excellent off-axis response and high-frequency extension. It also benefits from the damping of a silk surround suspension and Ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit. A true, 2nd order high-pass filter is employed to further enhance smoothness and improve power handling.
When it comes to value, C1 is the real deal!
Sold as a pair. Grilles not available.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
10 - 100 W / Ch.
System Efficiency
91.5 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
39 Hz - 22 KHz ± 3 dB
JL Audio C1-690x Manual
C2-Series 0.75-Inch 60-Watt Silk Dome Tweeters
The silk dome tweeter is prized by audiophiles for delivering realistic, non-fatiguing, high-frequency performance.
The C2 component tweeters are built with 0.75-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs.
Inline 12 dB / octave high-pass filters with tweeter protectors are included with this kit. The C2-075ct is designed to operate above 4 kHz with a minimum high-pass slope of 12 dB / octave.
Sonic character: Clean and Powerful
Sold as a pair.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power*
150 W
Recommended Amplifier Power (RMS)
25 - 100 W / Ch.
System Efficiency
91.0 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
4 kHz - 22 KHz ± 3 dB
JL Audio C2-075ct Manual
C2-Series 3.5-Inch 25-Watt Coaxial Speaker System
The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and precision-engineered woofer designs.
The C2-350x system features 3.5-inch (90 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
Tweeters are coaxially mounted and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles.
Speaker grilles are not available for this speaker system.
Sonic character: Clean and Dynamic
Sold as a pair.
General Specifications
Continuous Power Handling (RMS)
25 W
Peak Music Power
75 W
Recommended Amplifier Power (RMS)
10 - 40 W / Ch.
System Efficiency
83 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
130 Hz - 22 KHz ± 3 dB
JL Audio C2-350x Manual
C2-Series 4-Inch 35-Watt Coaxial Speaker System
The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and precision-engineered woofer designs.
The C2-400x system features 4-inch (100 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
Breakaway mounting tabs on the woofer frame allow the C2-400x to be installed in four-hole or two-hole configurations. Injection-Molded adaptor plates are also included to allow mounting of the C2-400x speakers into a 4 x 6 (100 x 150 mm) speaker location.
Tweeters are coaxially mounted and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles.
Speaker grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Dynamic
Sold as a pair.
General Specifications
Continuous Power Handling (RMS)
35 W
Peak Music Power
105 W
Recommended Amplifier Power (RMS)
10 - 50 W / Ch.
System Efficiency
84.5 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
71 Hz - 22 KHz ± 3 dB
JL Audio C2-400x Manual
C2-Series 5.25-Inch 60-Watt Component Speaker System
The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and long linear excursion woofer designs.
The C2-525 system features 5.25-inch (130 mm) component woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
The C2 component tweeters are built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs.
C2 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Three levels of tweeter attenuation are provided, as well as a tweeter protector.
Woofer grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Dynamic
Sold as a pair.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
15 - 100 W / Ch.
System Efficiency
89.0 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
63 Hz - 22 KHz ± 3 dB
JL Audio C2-525 Manual
C2-Series 5.25-Inch 60-Watt Component Woofer, with Grille
The C2-525cw is a 5.25-inch (130 mm) component woofer capable of accurate reproduction between 63 Hz and 8 kHz. It features a mineral-filled polypropylene cone and stamped steel basket. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
A grille is included, consisting of a black grille tray and a black steel mesh grille.
Sonic character: Clean and Powerful
Sold individually.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power
150 W
Recommended Amplifier Power (RMS)
15 - 100 W / Ch.
System Efficiency
89.0 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
63 Hz - 8 KHz ± 3 dB
JL Audio C2-525 Manual
C2-Series 5.25-Inch 60-Watt Coaxial Speaker System
The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and precision-engineered woofer designs.
The C2-525x system features 5.25-inch (130 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
Tweeters are coaxially mounted and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles.
Speaker grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Dynamic
Sold as a pair.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
15 - 100 W / Ch.
System Efficiency
89.0 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
63 Hz - 22 KHz ± 3 dB
JL Audio C2-525x Manual
C2-Series 5x7-Inch 60-Watt Coaxial Speaker System
The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and precision-engineered woofer designs.
Many people mistakenly believe that an oval speaker cannot perform as well as a round one, leading to many instances of 5.25-inch speakers being installed into 5 x 7-inch openings. JL Audio has put in the engineering time and effort to create fantastic-sounding speakers that drop into oval openings and deliver equivalent performance to JL's 6.5-inch (165 mm) round speaker systems... guaranteed. So, don't make the mistake of losing cone area and efficiency by stepping down to a smaller round speaker... these ovals are as impressive as our round format systems.
The C2-570x system features 5 x 7 / 6 x 8-inch (125 x 180 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
Tweeters are coaxially mounted and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles.
Grilles are not available for this speaker system.
Sonic character: Clean and Dynamic
Sold as a pair.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
15 - 100 W / Ch.
System Efficiency
90.5 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
53 Hz - 22 KHz ± 3 dB
JL Audio C2-570x Manual
C2-Series 6-Inch 60-Watt Component Speaker System
The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and long linear excursion woofer designs.
The C2-600 system features 6-inch (150 mm) component woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
The 6-inch (150 mm) format is a direct fit in many Japanese vehicles where a full-size 6.5-inch speaker (165 mm) will not fit without modification. Multiple mounting patterns are provided on the woofer frame for easy installation into most vehicles that accept a 6-inch (150 mm) speaker.
The C2 component tweeters are built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs.
C2 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Three levels of tweeter attenuation are provided, as well as a tweeter protector.
Woofer grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Dynamic
Sold as a pair.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
15 - 100 W / Ch.
System Efficiency
90.5 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
59 Hz - 22 KHz ± 3 dB
JL Audio C2-600 Manual
C2-Series 6-Inch 60-Watt Component Woofer, with Grille
The C2-600cw is a 6-inch (150 mm) component woofer capable of accurate reproduction between 59 Hz and 7 kHz. It features a mineral-filled polypropylene cone and stamped steel basket. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
A grille is included, consisting of a black grille tray and a black steel mesh grille.
Sonic character: Clean and Powerful
Sold individually.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power
150 W
Recommended Amplifier Power (RMS)
15 - 100 W / Ch.
System Efficiency
90.5 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
59 Hz - 7 KHz ± 3 dB
JL Audio C2-600 Manual
C2-Series 6-Inch 60-Watt Coaxial Speaker System
The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and precision-engineered woofer designs.
The C2-600x system features 6-inch (150 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
The 6-inch (150 mm) format is a direct fit in many vehicles. Multiple mounting patterns are provided on the woofer frame for easy installation into most vehicles that accept a 6.5-inch (165 mm) speaker.
Tweeters are coaxially mounted and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles.
Woofer grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Dynamic
Sold as a pair.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
15 - 100 W / Ch.
System Efficiency
90.5 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
59 Hz - 22 KHz ± 3 dB
JL Audio C2-600x Manual
