Add-On ANC Integration Wiring-Harness for Select 2015-2019 Chrysler, Dodge, Jeep and RAM Vehicles
Many late model Chrysler, Jeep, and RAM vehicles are equipped with an Active Noise Canceling (ANC) module. When adding aftermarket amplifiers in these vehicles, this factory ANC module must be bypassed for proper operation of the aftermarket audio equipment and avoid possible damage to the ANC module. The PAC ANC-CH01 provides a plug-and-play solution for bypassing the ANC module in these vehicles, eliminating the need to cut factory wiring.
Quickly and easily bypass the ANC Module.
Keeps ANC module on data-bus for vehicle diagnostics health
Factory fit plug-in connectors
Prevents cutting of factory wires
Applications - confirmed as of 2/1/2023
Year(s)
Make
Model
Trim Level
Additional Info
2017-2019
CHRYSLER
PACIFICA
ALL TRIM LEVELS
—
2019
DODGE
RAM TRUCK
NON-CLASSIC
—
2019
JEEP
CHEROKEE
ALL TRIM LEVELS
—
2015-2016
JEEP
GRAND CHEROKEE
ALL TRIM LEVELS
—
2019
RAM
RAM TRUCK
NON-CLASSIC
—
Pac Audio ANC-CH01 Manual
Add-On Amplifier OEM Integration Interface for Select 2007-2018 Amplified Chrysler, Dodge, Jeep and RAM Vehicles
AmpPRO simplifies the installation of upgraded amplifiers in data-bus-controlled amplified sound systems. With AmpPRO, you can improve audio performance while keeping an original radio’s fit, finish, and features.
Compatibility Note: This product is compatible with data-bus-controlled amplified systems only. To identify these systems, look for logos on door speakers, tweeters, dash speakers, or the subwoofer to confirm if the vehicle has a compatible amplified system: Alpine, Beats, or Harman Kardon. Vehicle manufacturers do not always brand compatible systems. Unbranded amplified systems are generally identified by locating a center channel speaker or subwoofer.
Benefits
Simplifies amplifier installation
It prevents the need for summing and DSP devices
Provides factory sound system upgrade solution
Features
It can be used to upgrade the entire sound system or just part of it, thanks to the original amplifier's retention.
Enables the addition of a subwoofer system to the original sound system
Variable volume, fade, balance, bass, mid and treble audio settings
Front, rear, sub preamp outputs (5 volt RMS)
Provides flat audio output for a solid audio foundation
Customized OE bass, mid and treble center frequency selection
Retains uConnect, Bluetooth audio, and all warning chimes
Plug & play installation
Sublevel controller
Optional TOSLINK optical output (APA-TOS1 sold separately)
Includes
AmpPRO module
22-pin harness (MS-CAN)
Bass knob
Knob harness
Manual
Also available for fast, easy install: APH-CH01 harness (sold separately)
Applications
Year(s)
Make
Model
Trim Level
Additional Info
2008-2016
CHRYSLER
TOWN & COUNTRY
ALL TRIM LEVELS
—
2008-2014
DODGE
CHALLENGER
ALL TRIM LEVELS
—
2008-2010
DODGE
CHARGER
ALL TRIM LEVELS
—
2009, 2011-2013
DODGE
DURANGO
ALL TRIM LEVELS
—
2008-2018
DODGE
GRAND CARAVAN
ALL TRIM LEVELS
—
2009-2012
DODGE
RAM TRUCK
ALL TRIM LEVELS
—
2008-2013
JEEP
GRAND CHEROKEE
ALL TRIM LEVELS
—
2007-2017
JEEP
WRANGLER
ALL TRIM LEVELS
—
2018
JEEP
WRANGLER
JK
—
2007-2017
JEEP
WRANGLER UNLIMITED
ALL TRIM LEVELS
—
2018
JEEP
WRANGLER UNLIMITED
JK
—
2010-2012
RAM
RAM TRUCK
ALL TRIM LEVELS
—
Pac Audio AP4-CH21 Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Add-On Amplifier OEM Integration Interface for Select 2011-2016 Amplified Chrysler, Dodge and Maserati Vehicles
AmpPRO simplifies the installation of upgraded amplifiers in data-bus-controlled amplified sound systems. With AmpPRO, you can improve audio performance while keeping an original radio’s fit, finish, and features.
Compatibility Note: This product is compatible with data-bus-controlled amplified systems only. To identify these systems, look for logos on door speakers, tweeters, dash speakers, or the subwoofer to confirm if the vehicle has a compatible amplified system: Alpine, Beats, or Harman Kardon. Vehicle manufacturers do not always brand compatible systems. Unbranded amplified systems are generally identified by locating a center channel speaker or subwoofer.
Benefits
Simplifies amplifier installation
Prevents the need for summing and DSP devices
Provides factory sound system upgrade solution
Features
It can be used to upgrade the entire sound system or just part of it thanks to the retention of the original amplifier
Enables the addition of a subwoofer system to the original sound system
Variable volume, fade, balance, bass, mid and treble audio settings
Front, rear, sub preamp outputs (5 volt RMS)
Provides flat audio output for a solid audio foundation
Customized OE bass, mid and treble center frequency selection
Retains uConnect, Bluetooth audio, and all warning chimes
Plug & play installation
Sublevel controller
Optional TOSLINK optical output (APA-TOS1 sold separately)
Includes
AmpPRO module
22-pin harness (Dual MS-CAN)
Bass knob
Knob harness
Manual
Also available for fast, easy install: APH-CH01 harness (sold separately)
Applications
Year(s)
Make
Model
Trim Level
Additional Info
2011-2014
CHRYSLER
300
ALL TRIM LEVELS
—
2011-2014
DODGE
CHARGER
ALL TRIM LEVELS
—
2011-2015
DODGE
JOURNEY
ALL TRIM LEVELS
—
2015
MASERATI
GHIBLI
ALL TRIM LEVELS
—
2014-2016
MASERATI
QUATTROPORTE
ALL TRIM LEVELS
—
Pac Audio AP4-CH31 Manual

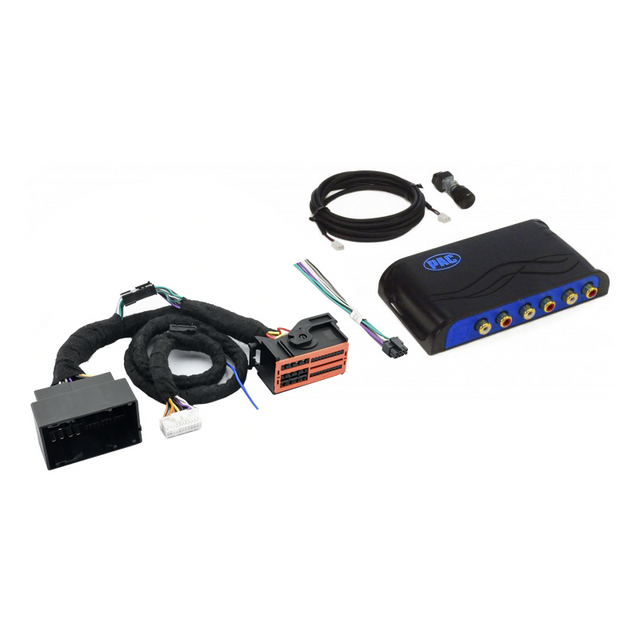

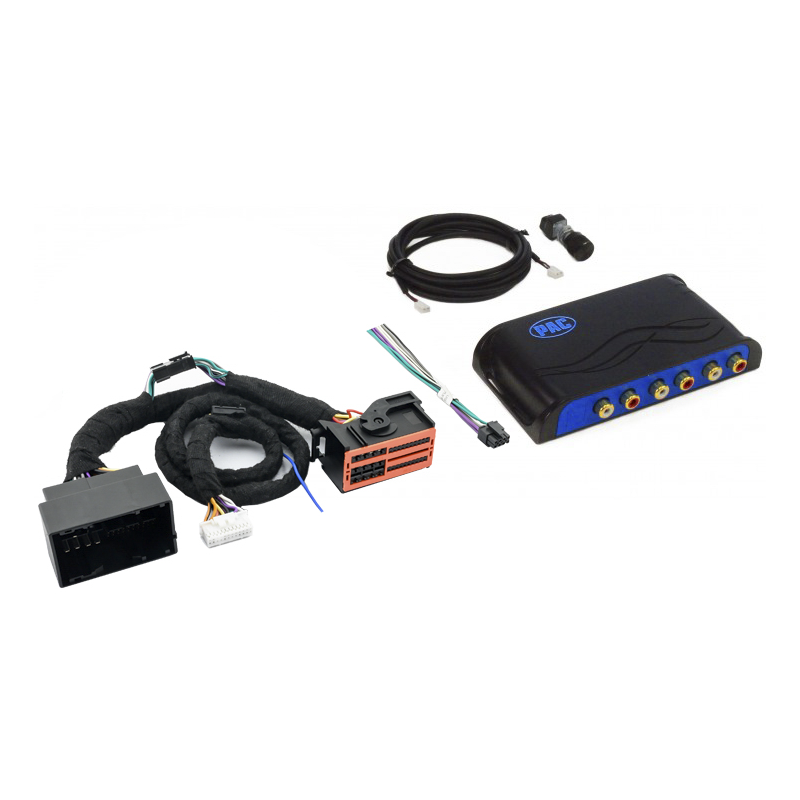

Add-On Amplifier OEM Integration Interface for Select 2013-2022 Amplified Chrysler, Dodge, Jeep, Maserati and RAM Vehicles
This latest version of the Pac-Audio AmpPRO simplifies the installation of upgraded amplifiers in select non-amplified and amplified sound systems With AmpPRO, you can improve audio performance while keeping an original radio’s fit, finish and features.
Benefits
Simplifies amplifier installation
Prevents need for summing and DSP devices
Provides factory sound system upgrade solution
Provides flat audio output for a solid audio foundation
Features
Can be used to upgrade the entire sound system or just part of it thanks to retention of the original amplifier
Enables the addition of a subwoofer to an amplified sound system
Variable volume, fade, balance, bass, mid and treble audio settings
Front, rear, sub preamp outputs (5 volt RMS)
Customized OE bass, mid and treble center frequency selection
Retains uConnect, Bluetooth audio, Navigation prompts, and all warning chimes
Plug-n-Play installation
Sub level controller
Optional TOSLINK optical output (APA-TOS1 sold separately)
Includes
AmpPRO module
52-pin harness (MS-CAN)
Bass knob with harness
Manual
Also available for fast, easy install: APH-CH01 harness (sold separately)
Select non-amplified vehicles are equipped with an ANC system that requires bypass. Plug-n-Play bypass harness: ANC-CH01
Current Vehicle Compatibility as of 1/25/2023
Year(s)
Make
Model
Trim Level
Additional Info
2015-2017
CHRYSLER
200
ALL TRIM LEVELS
—
2015-2022
CHRYSLER
300
ALL TRIM LEVELS
—
2017-2022
CHRYSLER
PACIFICA
ALL TRIM LEVELS
—
2015-2022
DODGE
CHALLENGER
ALL TRIM LEVELS
—
2015-2022
DODGE
CHARGER
ALL TRIM LEVELS
—
2014-2020
DODGE
DURANGO
ALL TRIM LEVELS
—
2021
DODGE
DURANGO
ALL TRIM LEVELS
10.1" Screen
2021
DODGE
DURANGO
ALL TRIM LEVELS
8.4" Screen
2013-2021
DODGE
RAM TRUCK
ALL TRIM LEVELS
—
2022
DODGE
RAM TRUCK
NON-CLASSIC
—
2015-2021
JEEP
CHEROKEE
ALL TRIM LEVELS
—
2020-2022
JEEP
GLADIATOR
ALL TRIM LEVELS
—
2014-2021
JEEP
GRAND CHEROKEE
ALL TRIM LEVELS
—
2022
JEEP
GRAND CHEROKEE
WK
—
2018-2022
JEEP
WRANGLER
JL
—
2021-2022
JEEP
WRANGLER
4XE
—
2018-2022
JEEP
WRANGLER UNLIMITED
JL
—
2018
MASERATI
LEVANTE
ALL TRIM LEVELS
—
2017
MASERATI
QUATTROPORTE
ALL TRIM LEVELS
—
2013-2021
RAM
RAM TRUCK
ALL TRIM LEVELS
—
2022
RAM
RAM TRUCK
NON-CLASSIC
—
Pac Audio AP4-CH41 R.2 ManualPac Audio AP4-CH41 ANC and Amplifier LocationsPac Audio AP4-CH41 R.2 Technical Bulletin
Compatible with both amplified and non-amplified factory systems.
Jeep Cherokee, Chrysler 200, and Maserati: These vehicles must be equipped with a factory amplifier as the AP4 cannot reprogram the factory radio to think that an amplifier is present.
When installing into any of the following vehicles, the APHCH42 is required (sold separately):
Year(s)
Make
Model
Trim Level
Additional Info
2021-2022
CHRYSLER
PACIFICA
ALL TRIM LEVELS
—
2021
DODGE
DURANGO
ALL TRIM LEVELS
10.1" Screen
2022
DODGE
RAM TRUCK
NON-CLASSIC
—
2022
RAM
RAM TRUCK
NON-CLASSIC
—
Amplified Vehicles
Compatible with all data-bus controlled amplified systems, no matter the screen size (including the new 12" screen). To identify these systems, look for logos on door speakers, tweeters, dash speakers or the subwoofer to confirm if the vehicle has a compatible amplified system: Alpine, Beats or Harman Kardon. Some vehicles may not always have branded compatible systems. Unbranded amplified systems are generally identified by locating a center channel speaker or subwoofer.
Non-Amplified Vehicles
Jeep Wrangler/Gladiator: Compatible with all screen sizes (5”, 7”, and 8”).
All other models: Only compatible in vehicles equipped with the 7” or 8” screen. Vehicles equipped with the 5” screen are not compatible.
If you are installing the AmpPRO in a vehicle that is not equipped with a factory amplifier, you must add an amplifier to the vehicle's speakers, as the factory radio will no longer have a 4 channel variable output after it has been re-configured by the AmpPRO. For example, this will not work to add only a subwoofer to a non-amplified vehicle, as the radio will no longer power the cabin speakers properly.
Non-amplified vehicles equipped with an Active Noise Cancellation (ANC) system require the ANC module to be bypassed. This can be done manually or with the ANC bypass harness ANC-CH01 (coming soon). Click here to see how to tell the difference between an amplifier and an ANC module and for module locations.
The following vehicles have an ANC module that needs to be bypassed:
2017-2019 Chrysler Pacifica
2015-2016 Jeep Grand Cherokee
2019 RAM Truck (Non-Classic)
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Add-On Amplifier OEM Integration Interface for Select 2007-2014 Amplified Ford and Lincoln Vehicles
AmpPRO simplifies the installation of upgraded amplifiers in data-bus-controlled amplified sound systems. With AmpPRO, you can improve audio performance while keeping an original radio’s fit, finish, and features.
Compatibility Note: This product is compatible with data-bus-controlled amplified systems only. To identify these systems, look for logos on door speakers, tweeters, dash speakers, or the subwoofer to confirm if the vehicle has a compatible amplified system. If you are unsure of your vehicle having an amplified system, please contact an authorized Ford service center for further clarification.
Benefits
Simplifies amplifier installation
Prevents the need for summing and DSP devices
Provides factory sound system upgrade solution
Features
It can be used to upgrade the entire sound system or just part of it thanks to the retention of the original amplifier
Enables the addition of a subwoofer system to the original sound system
Variable volume, fade, balance, bass, mid and treble audio settings
Front, rear, sub preamp outputs (5 volt RMS)
Provides flat audio output for a solid audio foundation
Customized OE bass, mid and treble center frequency selection
Retains Sync, Bluetooth audio, and all warning chimes
Plug & play installation
Sublevel controller
Optional TOSLINK optical output (APA-TOS1 sold separately)
Includes
AmpPRO module
24-pin (MS-CAN)
Bass knob
Knob harness
Manual
Also available for fast, easy install: APH-FD01 harness (sold separately)
Applications
Year(s)
Make
Model
Trim Level
Additional Info
2009-2012
FORD
F-150
ALL TRIM LEVELS
—
2009-2012
FORD
FLEX
ALL TRIM LEVELS
—
2010-2012
FORD
FUSION
ALL TRIM LEVELS
—
2010-2012
FORD
TAURUS
ALL TRIM LEVELS
—
2009-2012
LINCOLN
MKS
ALL TRIM LEVELS
—
2010-2012
LINCOLN
MKT
ALL TRIM LEVELS
—
2007-2010
LINCOLN
MKX
ALL TRIM LEVELS
—
2007-2012
LINCOLN
MKZ
ALL TRIM LEVELS
—
2007-2014
LINCOLN
NAVIGATOR
ALL TRIM LEVELS
—
Pac Audio AP4-FD11 Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Add-On Amplifier OEM Integration Interface for Select 2011-2020 Amplified Ford and Lincoln Vehicles
AmpPRO simplifies the installation of upgraded amplifiers in data-bus controlled amplified sound systems. With AmpPRO, you can improve audio performance while keeping an original radio’s fit, finish and features.
Benefits
Simplifies amplifier installation
Prevents need for summing and DSP devices
Provides factory sound system upgrade solution
Features
Can be used to upgrade the entire sound system or just part of it thanks to retention of original amplifier
Enables the addition of a subwoofer system to the original sound system
Variable volume, fade, balance, bass, mid and treble audio settings
Front, rear, sub preamp outputs (5 volt RMS)
Provides flat audio output for a solid audio foundation
Customized OE bass, mid and treble center frequency selection
Retains Sync, Bluetooth audio and all warning chimes
Plug & play installation
Sub level controller
Optional TOSLINK optical output (APA-TOS1 sold separately)
Includes
AmpPRO module
24-pin and 54-pin harness (MS CAN) (Dual MS CAN)
Bass knob
Knob harness
Manual
Also available for fast easy install: APH-FD01 harness (sold separately)
Applications - confirmed through 2/3/2023
Year(s)
Make
Model
Trim Level
Additional Info
2015-2017
FORD
EDGE
ALL TRIM LEVELS
—
2016
FORD
ESCAPE
ALL TRIM LEVELS
—
2015-2017
FORD
EXPEDITION
ALL TRIM LEVELS
—
2011-2018
FORD
EXPLORER
ALL TRIM LEVELS
—
2013-2017
FORD
F-150
ALL TRIM LEVELS
—
2013-2019
FORD
F-250
ALL TRIM LEVELS
—
2013-2019
FORD
F-350
ALL TRIM LEVELS
—
2013-2019
FORD
F-450
ALL TRIM LEVELS
—
2013-2019
FORD
F-550
ALL TRIM LEVELS
—
2012-2017
FORD
FOCUS
ALL TRIM LEVELS
—
2013-2016
FORD
FUSION
ALL TRIM LEVELS
—
2019-2020
FORD
MUSTANG
ALL TRIM LEVELS
—
2013-2015
FORD
TAURUS
ALL TRIM LEVELS
—
Pac Audio AP4-FD21 Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Add-On Amplifier OEM Integration Interface for Select 2018-2022 Amplified Ford Vehicles
AmpPRO simplifies the installation of upgraded amplifiers in data-bus controlled amplified sound systems. With AmpPRO, you can improve audio performance while keeping an original radio’s fit, finish and features.
Benefits
Simplifies amplifier installation
Prevents need for summing and DSP devices
Provides factory sound system upgrade solution
Features
Simplifies amplifier installation in data-bus controlled factory sound systems
Provides variable volume, control, fade, balance, bass, mid, and treble audio settings
Retains warning chimes, navigation prompts, Bluetooth®, and telematics audio (if equipped)
Front, rear, and sub preamp outputs (5V RMS)
Plug-and-play installation with factory-matched harness
Sub level controller included
Optical output included
Applications - confirmed as of 2/4/2023
Year(s)
Make
Model
Trim Level
Additional Info
2021
FORD
BRONCO
ALL TRIM LEVELS
—
2021
FORD
BRONCO SPORT
ALL TRIM LEVELS
—
2021
FORD
ECO SPORT
ALL TRIM LEVELS
—
2019-2022
FORD
EDGE
ALL TRIM LEVELS
—
2021-2022
FORD
ESCAPE
ALL TRIM LEVELS
—
2018-2020
FORD
EXPEDITION
ALL TRIM LEVELS
—
2020-2022
FORD
EXPLORER
ALL TRIM LEVELS
—
2018-2022
FORD
F-150
ALL TRIM LEVELS
—
2020-2022
FORD
F-250
ALL TRIM LEVELS
—
2020
FORD
F-350
ALL TRIM LEVELS
—
2020
FORD
F-450
ALL TRIM LEVELS
—
2022
FORD
LIGHTNING
ALL TRIM LEVELS
—
2022
FORD
MAVERICK
ALL TRIM LEVELS
—
2021
FORD
MUSTANG MACH E
ALL TRIM LEVELS
—
2020
FORD
RANGER
ALL TRIM LEVELS
—
Pac Audio AP4-FD31 Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Add-On Amplifier OEM Integration Interface for Select 2014-2019 Amplified Cadillac, Chevy and GMC Vehicles
Today's modern vehicle audio systems are becoming increasingly more sophisticated and complex. PAC engineered AmpPRO to dramatically simplify the installation of upgraded amplifiers in data-bus-controlled amplified sound systems.AmpPRO allows you to keep the original radio's fit, finish, and features while giving you the freedom to improve the audio performance in record time!
Benefits
Factory sound system upgrade
Time-saving design
Prevents the need for summing and audio correction devices
Reliable PAC quality
Features
Upgrade solution for factory, fixed level, data-bus controlled sound systems
The time-saving design prevents the need for summing and audio correction devices.
Variable volume, fade, balance, bass, mid, and treble audio settings
Retains OnStar, Bluetooth, navigation, safety systems, and all warning chimes
Front, rear, sub, and center channel preamp outputs (5 volt RMS)
Provides full range, flat audio output for a solid audio foundation
Customized OE bass, mid, and treble center frequency selection
Plug-n-play installation
Remote sub level controller INCLUDED
Optional TOSLINK optical output with APA-TOS1 (sold separately)
Includes
AmpPRO module
Harness
Bass knob
Knob harness
Manual
Also available for fast, easy install: APH-GM02 harness (sold separately)
Applications - confirmed as of 2/4/2023
Year(s)
Make
Model
Trim Level
Additional Info
2015
CADILLAC
ATS
ALL TRIM LEVELS
—
2017
CADILLAC
CT6
ALL TRIM LEVELS
—
2015-2019
CADILLAC
ESCALADE
ALL TRIM LEVELS
—
2016-2018
CHEVROLET
CAMARO
ALL TRIM LEVELS
—
2015-2018
CHEVROLET
COLORADO
ALL TRIM LEVELS
—
2014-2019
CHEVROLET
CORVETTE
ALL TRIM LEVELS
—
2017-2018
CHEVROLET
CRUZE
ALL TRIM LEVELS
—
2018
CHEVROLET
EQUINOX
ALL TRIM LEVELS
—
2014-2016
CHEVROLET
IMPALA
NON-CLASSIC
—
2017-2019
CHEVROLET
IMPALA
ALL TRIM LEVELS
—
2016
CHEVROLET
MALIBU
NON-CLASSIC
—
2017-2018
CHEVROLET
MALIBU
ALL TRIM LEVELS
—
2014-2018
CHEVROLET
SILVERADO
ALL TRIM LEVELS
—
2019
CHEVROLET
SILVERADO
CLASSIC
—
2015-2019
CHEVROLET
SILVERADO HD
ALL TRIM LEVELS
—
2015-2019
CHEVROLET
SUBURBAN
ALL TRIM LEVELS
—
2015-2019
CHEVROLET
TAHOE
ALL TRIM LEVELS
—
2018-2019
CHEVROLET
TRAVERSE
ALL TRIM LEVELS
—
2016-2018
CHEVROLET
VOLT
ALL TRIM LEVELS
—
2018-2019
GMC
ACADIA
ALL TRIM LEVELS
—
2015-2018
GMC
CANYON
ALL TRIM LEVELS
—
2014-2018
GMC
SIERRA
ALL TRIM LEVELS
—
2015-2019
GMC
SIERRA HD
ALL TRIM LEVELS
—
2018
GMC
TERRAIN
ALL TRIM LEVELS
—
2015-2019
GMC
YUKON
ALL TRIM LEVELS
—
2015-2019
GMC
YUKON XL
ALL TRIM LEVELS
—
Pac Audio AP4-GM61 ManualPac Audio AP3-GM61 Radio Locations
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Add-On Amplifier OEM Integration Interface for Select 2002-2015 Amplified Lexus and Toyota Vehicles
Today's modern vehicle audio systems are becoming increasingly more sophisticated and complex. PAC engineered AmpPRO to dramatically simplify the installation of upgraded amplifiers in data-bus-controlled amplified sound systems.
AmpPRO allows you to keep the original radio's fit, finish, and features while giving you the freedom to improve the audio performance in record time!
Benefits
Simplifies amplifier installation
Prevents the need for summing and DSP devices
Provides factory sound system upgrade solution
Features
It can be used to upgrade the entire sound system or just part of it thanks to the retention of the original amplifier
Enables the addition of a subwoofer system to the original sound system
Upgrade solution for factory, fixed level, data-bus controlled sound systems
Everything you need in one box to install your choice of aftermarket amplifier(s)
The time-saving design prevents the need for summing and audio correction devices.
Variable volume, fade, balance, bass, mid, and treble audio settings
Retains Bluetooth, navigation, safety system, and all warning chimes
Front, rear, sub preamp outputs (5 volt RMS)
Provides flat audio output for a solid audio foundation
Customized OE bass, mid, and treble center frequency selection
Plug-n-play installation with two 20-pin connectors (IE Bus)
Remote sub level controller included
Optional TOSLINK optical output (APA-TOS1 sold separately)
Includes
AmpPRO module
Harness (IE Bus)
Bass knob
Knob harness
Manual
Applications - confirmed of 2/4/2023
Year(s)
Make
Model
Trim Level
Additional Info
2011-2013
LEXUS
CT 200H
ALL TRIM LEVELS
For AmpPRO: Without Navigation
2002-2003
LEXUS
ES 300
ALL TRIM LEVELS
For AmpPRO: With Double DIN Radio
2013-2014
LEXUS
ES 300H
ALL TRIM LEVELS
For AmpPRO: Without Navigation
2004-2006
LEXUS
ES 330
ALL TRIM LEVELS
For AmpPRO: With Double DIN Radio
2007-2009
LEXUS
ES 350
ALL TRIM LEVELS
—
2010-2014
LEXUS
ES 350
ALL TRIM LEVELS
For AmpPRO: Without Navigation
2009-2013
LEXUS
GX460
ALL TRIM LEVELS
For AmpPRO: Without Navigation
2004-2009
LEXUS
GX470
ALL TRIM LEVELS
—
2010-2012
LEXUS
HS 250H
ALL TRIM LEVELS
For AmpPRO: Without Navigation
2006-2009
LEXUS
IS 250
ALL TRIM LEVELS
—
2010-2013
LEXUS
IS 250
ALL TRIM LEVELS
For AmpPRO: Without Navigation
2006-2009
LEXUS
IS 350
ALL TRIM LEVELS
—
2010-2013
LEXUS
IS 350
ALL TRIM LEVELS
For AmpPRO: Without Navigation
2010-2012
LEXUS
IS F
ALL TRIM LEVELS
For AmpPRO: Without Navigation
2001-2006
LEXUS
LS 430
ALL TRIM LEVELS
—
2004-2006
LEXUS
RX 330
ALL TRIM LEVELS
—
2007-2009
LEXUS
RX 350
ALL TRIM LEVELS
—
2010-2015
LEXUS
RX 350
ALL TRIM LEVELS
For AmpPRO: Without Navigation
2006-2008
LEXUS
RX 400H
ALL TRIM LEVELS
—
2010-2015
LEXUS
RX 450H
ALL TRIM LEVELS
For AmpPRO: Without Navigation
2003-2013
TOYOTA
4RUNNER
ALL TRIM LEVELS
—
2005-2012
TOYOTA
AVALON
ALL TRIM LEVELS
—
2013-2014
TOYOTA
AVALON
ALL TRIM LEVELS
For AmpPRO: Equipped with JBL and 20-pin BHA8113 style harness
2007-2011
TOYOTA
CAMRY
ALL TRIM LEVELS
—
2012-2014
TOYOTA
CAMRY
ALL TRIM LEVELS
For AmpPRO: Equipped with JBL and 20-pin BHA8113 style harness
2005-2011
TOYOTA
COROLLA
ALL TRIM LEVELS
—
2011-2014
TOYOTA
FJ CRUISER
ALL TRIM LEVELS
—
2008-2013
TOYOTA
HIGHLANDER
ALL TRIM LEVELS
—
2008
TOYOTA
LAND CRUISER
ALL TRIM LEVELS
—
2004-2011
TOYOTA
PRIUS
ALL TRIM LEVELS
—
2012-2015
TOYOTA
PRIUS
ALL TRIM LEVELS
For AmpPRO: Equipped with JBL and 20-pin BHA8113 style harness
2004-2013
TOYOTA
RAV-4
ALL TRIM LEVELS
—
2014
TOYOTA
RAV-4
ALL TRIM LEVELS
For AmpPRO: Equipped with JBL and 20-pin BHA8113 style harness
2005-2012
TOYOTA
SEQUOIA
ALL TRIM LEVELS
—
2013
TOYOTA
SEQUOIA
ALL TRIM LEVELS
For AmpPRO: Equipped with JBL and 20-pin BHA8113 style radio harness
2014
TOYOTA
SEQUOIA
ALL TRIM LEVELS
For AmpPRO: Equipped with JBL and 20-pin BHA8113 style harness
2004-2014
TOYOTA
SIENNA
ALL TRIM LEVELS
—
2005-2013
TOYOTA
TACOMA
ALL TRIM LEVELS
—
2005-2013
TOYOTA
TUNDRA
ALL TRIM LEVELS
—
2009-2012
TOYOTA
VENZA
ALL TRIM LEVELS
—
2013-2014
TOYOTA
VENZA
ALL TRIM LEVELS
For AmpPRO: Equipped with JBL and 20-pin BHA8113 style harness
Pac Audio AP4-TY11 Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Add-On Amplifier OEM Integration Interface for Select 2012-2019 Amplified Lexus and Toyota Vehicles
Today's modern vehicle audio systems are becoming increasingly more sophisticated and complex. PAC engineered AmpPRO to dramatically simplify the installation of upgraded amplifiers in data-bus-controlled amplified sound systems.
AmpPRO allows you to keep the original radio's fit, finish, and features while giving you the freedom to improve the audio performance in record time!
Benefits
Simplifies amplifier installation
Prevents the need for summing and DSP devices
Provides factory sound system upgrade solution
Features
It can be used to upgrade the entire sound system or just part of it thanks to the retention of the original amplifier
Enables the addition of a subwoofer system to the original sound system
Upgrade solution for factory, fixed level, data-bus controlled sound systems
Everything you need in one box to install your choice of aftermarket amplifier(s)
The time-saving design prevents the need for summing and audio correction devices.
Variable volume, fade, balance, bass, mid, and treble audio settings
Retains Bluetooth, navigation, safety system, and all warning chimes
Front, rear, sub preamp outputs (5 volt RMS)
Provides flat audio output for a solid audio foundation
Customized OE bass, mid, and treble center frequency selection
Plug-n-play installation with two 20-pin connectors (IE Bus)
Remote sub level controller included
Optional TOSLINK optical output (APA-TOS1 sold separately)
Includes
AmpPRO module
Harness (IE Bus)
Bass knob
Knob harness
Manual
Applications - confirmed as of 2/4/2023
Year(s)
Make
Model
Trim Level
Additional Info
2014-2017
LEXUS
CT 200H
ALL TRIM LEVELS
For AmpPRO: Without Navigation
2015-2017
LEXUS
ES 350
ALL TRIM LEVELS
For AmpPRO: Without Navigation
2014-2017
LEXUS
GX 460
ALL TRIM LEVELS
For AmpPRO: Without Navigation
2016-2017
LEXUS
IS 200T
ALL TRIM LEVELS
For AmpPRO: Without Navigation
2014-2015
LEXUS
IS 250
ALL TRIM LEVELS
For AmpPRO: Without Navigation
2016-2017
LEXUS
IS 300
ALL TRIM LEVELS
For AmpPRO: Without Navigation
2015-2017
LEXUS
NX 200T
ALL TRIM LEVELS
For AmpPRO: Without Navigation
2015-2017
LEXUS
NX 300H
ALL TRIM LEVELS
For AmpPRO: Without Navigation
2016-2017
LEXUS
RC 200T
ALL TRIM LEVELS
For AmpPRO: Without Navigation
2016-2017
LEXUS
RC 300
ALL TRIM LEVELS
For AmpPRO: Without Navigation
2015-2017
LEXUS
RC 350
ALL TRIM LEVELS
For AmpPRO: Without Navigation
2016-2017
LEXUS
RX 350
ALL TRIM LEVELS
For AmpPRO: Without Navigation
2014-2018
TOYOTA
4RUNNER
ALL TRIM LEVELS
—
2013-2014
TOYOTA
AVALON
ALL TRIM LEVELS
For AmpPRO: Equipped with JBL and 10/6-pin BHA1761 style harness
2015-2018
TOYOTA
AVALON
ALL TRIM LEVELS
—
2012-2014
TOYOTA
CAMRY
ALL TRIM LEVELS
For AmpPRO: Equipped with JBL and 10/6-pin BHA1761 style harness
2015-2017
TOYOTA
CAMRY
ALL TRIM LEVELS
—
2014-2018
TOYOTA
HIGHLANDER
ALL TRIM LEVELS
—
2012-2015
TOYOTA
PRIUS
ALL TRIM LEVELS
For AmpPRO: Equipped with JBL and 10/6-pin BHA1761 style harness
2016-2017
TOYOTA
PRIUS
ALL TRIM LEVELS
—
2014
TOYOTA
RAV-4
ALL TRIM LEVELS
For AmpPRO: Equipped with JBL and 10/6-pin BHA1761 style harness
2015-2018
TOYOTA
RAV4
ALL TRIM LEVELS
—
2013
TOYOTA
SEQUOIA
ALL TRIM LEVELS
For AmpPRO: Equipped with JBL and 10 / 6-pin BHA1761 Style Radio Harness
2014
TOYOTA
SEQUOIA
ALL TRIM LEVELS
For AmpPRO: Equipped with JBL and 10/6-pin BHA1761 style harness
2015-2018
TOYOTA
SEQUOIA
ALL TRIM LEVELS
—
2015-2017
TOYOTA
SIENNA
ALL TRIM LEVELS
—
2014-2018
TOYOTA
TACOMA
ALL TRIM LEVELS
—
2014-2015
TOYOTA
TUNDRA
ALL TRIM LEVELS
For AmpPRO: Equipped with JBL and 10 / 6-pin BHA1761 Style Radio Harness
2016-2019
TOYOTA
TUNDRA
ALL TRIM LEVELS
—
2013-2014
TOYOTA
VENZA
ALL TRIM LEVELS
For AmpPRO: Equipped with JBL and 10/6-pin BHA1761 style harness
2015-2016
TOYOTA
VENZA
ALL TRIM LEVELS
—
Pac Audio AP4-TY12 ManualPac Audio AP4-TY12 Technical Bulletin
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Add-On Amplifier OEM Integration Interface for Select 2018-2021 Amplified Lexus and Toyota Vehicles
Quickly and seamlessly add aftermarket amplifier(s) for improved audio performance while retaining the factory radio. AmpPRO is a Plug-n-Play solution that plugs into the factory radio harness and provides Front/Rear/Sub RCA outputs (5 Volt RMS) to connect to your aftermarket amplifiers. The AmpPRO design avoids the disappointing results and hassle of interfacing after the factory amplifier.
The harness connects to the radio for easier installation.
Provides variable volume, fade, and balance
Provides bass, mid and treble audio settings
Retains warning chimes and navigation prompts
Retains Bluetooth and telematic audio (if equipped)
Front/Rear/Sub RCA outputs (5 Volt RMS)
Includes sub level controller
Optional TOSLINK optical output (APA-TOS1) sold separately.
Optional speaker connection harness (APH-TY02) sold separately.
Applications - confirmed as of 2/4/2023
Year(s)
Make
Model
Trim Level
Additional Info
2019-2021
LEXUS
ES 250
ALL TRIM LEVELS
—
2019-2021
LEXUS
ES 350
ALL TRIM LEVELS
—
2019-2021
LEXUS
NX 300
ALL TRIM LEVELS
—
2019-2021
LEXUS
RX 350
ALL TRIM LEVELS
—
2019-2020
LEXUS
RX 450H
ALL TRIM LEVELS
—
2019-2020
TOYOTA
4RUNNER
ALL TRIM LEVELS
—
2019-2021
TOYOTA
AVALON
ALL TRIM LEVELS
—
2018-2021
TOYOTA
CAMRY
ALL TRIM LEVELS
—
2019
TOYOTA
COROLLA
ALL TRIM LEVELS
—
2020-2021
TOYOTA
HIGHLANDER
ALL TRIM LEVELS
—
2019-2020
TOYOTA
RAV-4
ALL TRIM LEVELS
—
2019-2021
TOYOTA
SEQUOIA
ALL TRIM LEVELS
—
2018-2020
TOYOTA
SIENNA
ALL TRIM LEVELS
—
2019-2021
TOYOTA
TACOMA
ALL TRIM LEVELS
—
2019-2021
TOYOTA
TUNDRA
ALL TRIM LEVELS
—
Pac Audio AP4-TY13 (R.2) Manual
Add-On Fiber Optic Output for Select Pac-Audio AmpPro Interfaces
The APA-TOS1 is a fiber-optic audio output add-on accessory for use with an AmpPRO interface. The APA-TOS1 easily installs in your AmpPRO interface and instantly provides a digital Toslink output.
APA-TOS1 is compatible with any brand and length of Toslink cable for connection into a Toslink equipped DSP, or amplifier.
Benefits
APA-TOS1 provides a pure digital output for aftermarket amplifier and/or DSP installationDigital audio signals are less susceptible to noise/hiss or interference
Features
Quick and easy installation into any AmpPRO interfaceProvides digital fiber-optic variable audio signal outputCompatible with Toslink equipped DSPs or amplifiers
NOTE: Toslink cable is not included
Pac Audio AP4-TOS1 Manual
Add-On Amplifier OEM Integration Interface for Select 2007-2020 Amplified Alfa -Romeo, Chrysler, Dodge, Fiat, Jeep, Maserati, RAM and Volkswagen Vehicles
Simplify speaker wire connections when adding aftermarket amplifiers with Pac-Audio's speaker connection harnesses. This adapter can easily add amplifiers with no need to cut or modify a vehicle’s original wiring.
Features:
Works with PAC AmpPRO: AP4-CH21, AP4-CH31, and AP4-CH41
Can use it for other installations requiring plug-n-play speaker wire connections
Easily add amplifiers without cutting or modifying the vehicle’s original wiring.
Provides a plug-n-play connection at the vehicle’s original amplifier location
Saves time by quickly utilizing the original speaker wires
Harness length 18 inches
Applications confirmed as of 2/1/2023
Year(s)
Make
Model
Trim Level
Additional Info
2018-2020
ALFA ROMEO
4C
ALL TRIM LEVELS
—
2015-2017
CHRYSLER
200
ALL TRIM LEVELS
—
2012-2019
CHRYSLER
300
ALL TRIM LEVELS
—
2008-2016
CHRYSLER
TOWN & COUNTRY
ALL TRIM LEVELS
—
2015-2020
DODGE
CHALLENGER
ALL TRIM LEVELS
—
2012-2020
DODGE
CHARGER
ALL TRIM LEVELS
—
2013-2016
DODGE
DART
ALL TRIM LEVELS
—
2011-2020
DODGE
DURANGO
ALL TRIM LEVELS
—
2008-2020
DODGE
GRAND CARAVAN
ALL TRIM LEVELS
—
2009-2020
DODGE
JOURNEY
ALL TRIM LEVELS
—
2007-2011
DODGE
NITRO
ALL TRIM LEVELS
—
2010-2018
DODGE
RAM TRUCK
ALL TRIM LEVELS
—
2014-2019
FIAT
500
ALL TRIM LEVELS
—
2015-2020
JEEP
CHEROKEE
ALL TRIM LEVELS
—
2014-2017
JEEP
GRAND CHEROKEE
ALL TRIM LEVELS
—
2008-2012
JEEP
LIBERTY
ALL TRIM LEVELS
—
2008-2017
JEEP
WRANGLER
ALL TRIM LEVELS
—
2018
JEEP
WRANGLER
JK
—
2008-2017
JEEP
WRANGLER UNLIMITED
ALL TRIM LEVELS
—
2018
JEEP
WRANGLER UNLIMITED
JK
—
2010-2015
RAM
RAM TRUCK
ALL TRIM LEVELS
—
2010-2014
VOLKSWAGEN
ROUTAN
ALL TRIM LEVELS
—
Pac Audio APH-CH01 Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Add-On Amplifier OEM Integration Interface for Select 2009-2019 Amplified Ford Vehicles
Simplify speaker wire connections when adding aftermarket amplifiers with Pac-Audio's Speaker Connection Harness. Can easily add amplifiers with no need to cut or modify a vehicle’s original wiring.
Features:
Works with PAC AmpPRO: AP4-FD11 and AP4-FD21
It can be used for other installations requiring plug-n-play speaker wire connections.
Easily add amplifiers without cutting or modifying the vehicle’s original wiring.
Provides a plug-n-play connection at the vehicle’s original amplifier location
Saves time by quickly utilizing the original speaker wires
Harness length 10 feet
Applications
Year(s)
Make
Model
Trim Level
Additional Info
2015-2017
FORD
EDGE
ALL TRIM LEVELS
—
2015-2017
FORD
EXPEDITION
ALL TRIM LEVELS
—
2011-2017
FORD
EXPLORER
ALL TRIM LEVELS
—
2009-2017
FORD
F-150
ALL TRIM LEVELS
—
2013-2019
FORD
F-250
ALL TRIM LEVELS
—
2013-2019
FORD
F-350
ALL TRIM LEVELS
—
2013-2019
FORD
F-450
ALL TRIM LEVELS
—
2013-2017
FORD
F-550
ALL TRIM LEVELS
—
2009-2012
FORD
FLEX
ALL TRIM LEVELS
—
2012-2017
FORD
FOCUS
ALL TRIM LEVELS
—
2010-2016
FORD
FUSION
ALL TRIM LEVELS
—
2010-2015
FORD
TAURUS
ALL TRIM LEVELS
—
Pac Audio APH-FD01 Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Add-On Amplifier OEM Integration Interface for Select 2014-2019 Amplified Cadillac, Chevy and GMC Vehicles
Simplify speaker wire connections when adding aftermarket amplifiers with Pac-Audio's Speaker Connection Harness. Can easily add amplifiers with no need to cut or modify a vehicle’s original wiring. APH-GM02 works with PAC AmpPRO module: AP4-GM61
Features:
Can be used for other installations requiring plug-n-play speaker wire connections
Easily add amplifiers without cutting or modifying the vehicle’s original wiring.
Provides a plug-n-play connection at the vehicle’s original amplifier location
Saves time by quickly utilizing the original speaker wires
Harness length 18"
Applications - confirmed as of 2/5/2023
Year(s)
Make
Model
Trim Level
Additional Info
2015-2018
CADILLAC
ESCALADE
ALL TRIM LEVELS
—
2016-2018
CHEVROLET
CAMARO
ALL TRIM LEVELS
—
2015-2018
CHEVROLET
COLORADO
ALL TRIM LEVELS
—
2014-2019
CHEVROLET
CORVETTE
ALL TRIM LEVELS
—
2017-2018
CHEVROLET
CRUZE
ALL TRIM LEVELS
—
2018
CHEVROLET
EQUINOX
ALL TRIM LEVELS
—
2014-2016
CHEVROLET
IMPALA
NON-CLASSIC
—
2017-2019
CHEVROLET
IMPALA
ALL TRIM LEVELS
—
2016
CHEVROLET
MALIBU
NON-CLASSIC
—
2017-2018
CHEVROLET
MALIBU
ALL TRIM LEVELS
—
2014-2018
CHEVROLET
SILVERADO
ALL TRIM LEVELS
—
2019
CHEVROLET
SILVERADO
CLASSIC
—
2015-2019
CHEVROLET
SILVERADO HD
ALL TRIM LEVELS
—
2015-2018
CHEVROLET
SUBURBAN
ALL TRIM LEVELS
—
2015-2019
CHEVROLET
TAHOE
ALL TRIM LEVELS
—
2018-2019
CHEVROLET
TRAVERSE
ALL TRIM LEVELS
—
2018-2019
GMC
ACADIA
ALL TRIM LEVELS
—
2015-2018
GMC
CANYON
ALL TRIM LEVELS
—
2014-2018
GMC
SIERRA
ALL TRIM LEVELS
—
2015-2019
GMC
SIERRA HD
ALL TRIM LEVELS
—
2018
GMC
TERRAIN
ALL TRIM LEVELS
—
2015-2019
GMC
YUKON
ALL TRIM LEVELS
—
2015-2019
GMC
YUKON XL
ALL TRIM LEVELS
—
Pac Audio APH-GM02 Manual
Add-On Amplifier OEM Integration Interface for Select 2005-2021 Amplified Toyota Vehicles
Easily add amplifier(s) to Toyota factory amplified systems without cutting or modifying the original wiring.Simplify speaker wire connections by using the APH-TY01 speaker connection harness when adding aftermarket amplifier(s) to select Toyota vehicles. Featuring OEM quality, factory style plugs, the APH-TY01 quickly and securely plugs into the factory amplifier harness allowing an aftermarket amplifier to be more easily installed. Industry-standard wire colors on the APH-TY01 harness make identifying the factory speakers faster and also ensures proper speaker wiring polarity.
Key Features
Perfect for use with AmpPRO AP4-TY11
EIA standard color-coded wires make identifying factory speaker wires and phase easier
APH-TY01 harness eliminates having to run speaker wire throughout the car
18” Harness length
Applications - confirmed as of 2/4/2023
Year(s)
Make
Model
Trim Level
Additional Info
2005-2010
TOYOTA
AVALON
ALL TRIM LEVELS
—
2007-2011
TOYOTA
CAMRY
ALL TRIM LEVELS
—
2009-2011
TOYOTA
COROLLA
ALL TRIM LEVELS
—
2008-2013
TOYOTA
HIGHLANDER
ALL TRIM LEVELS
—
2006-2011
TOYOTA
PRIUS
ALL TRIM LEVELS
—
2006-2011
TOYOTA
RAV-4
ALL TRIM LEVELS
—
2009-2011, 2018-2021
TOYOTA
TACOMA
ALL TRIM LEVELS
—
2007-2021
TOYOTA
TUNDRA
ALL TRIM LEVELS
—
Pac Audio APH-TY01 Manual
Add-On Amplifier OEM Integration Interface for Select 2012-2022 Amplified Toyota and Lexus Vehicles
Easily add amplifier(s) to Toyota and Lexus factory amplified systems without cutting or modifying the original wiring.Simplify speaker wire connections by using the APH-TY02 speaker connection harness when adding aftermarket amplifier(s) to select Toyota and Lexus vehicles. Featuring OEM quality, factory style plugs, the APH-TY02 quickly and securely plugs into the factory amplifier harness allowing an aftermarket amplifier to be more easily installed. Industry-standard wire colors on the APH-TY02 harness make identifying the factory speakers faster and also ensures proper speaker wiring polarity.
Key Features
Perfect for use with AmpPRO AP4-TY11 or AP4-TY12
EIA standard color-coded wires make identifying factory speaker wires and phase easier
APH-TY02 harness eliminates having to run speaker wire throughout the car
18” Harness length
Applications - confirmed as of 2/4/2023
Year(s)
Make
Model
Trim Level
Additional Info
2014-2017
LEXUS
CT 200H
ALL TRIM LEVELS
—
2019-2021
LEXUS
ES 250
ALL TRIM LEVELS
—
2013-2020
LEXUS
ES 300H
ALL TRIM LEVELS
—
2013-2021
LEXUS
ES 350
ALL TRIM LEVELS
—
2013-2020
LEXUS
GS 350
ALL TRIM LEVELS
—
2013-2018
LEXUS
GS 450H
ALL TRIM LEVELS
—
2014-2017
LEXUS
GX 460
ALL TRIM LEVELS
—
2016-2017
LEXUS
IS 200T
ALL TRIM LEVELS
—
2014-2015
LEXUS
IS 250
ALL TRIM LEVELS
—
2016-2020
LEXUS
IS 300
ALL TRIM LEVELS
—
2015-2017
LEXUS
NX 200T
ALL TRIM LEVELS
—
2019-2021
LEXUS
NX 300
ALL TRIM LEVELS
—
2015-2017
LEXUS
NX 300H
ALL TRIM LEVELS
—
2016-2017
LEXUS
RC 200T
ALL TRIM LEVELS
—
2016-2020
LEXUS
RC 300
ALL TRIM LEVELS
—
2015-2020
LEXUS
RC 350
ALL TRIM LEVELS
—
2013-2021
LEXUS
RX 350
ALL TRIM LEVELS
—
2016-2021
LEXUS
RX 450H
ALL TRIM LEVELS
—
2013-2020
TOYOTA
AVALON
ALL TRIM LEVELS
—
2012-2021
TOYOTA
CAMRY
ALL TRIM LEVELS
—
2019-2021
TOYOTA
COROLLA
ALL TRIM LEVELS
—
2014-2021
TOYOTA
HIGHLANDER
ALL TRIM LEVELS
—
2013-2021
TOYOTA
LAND CRUISER
ALL TRIM LEVELS
—
2012-2021
TOYOTA
PRIUS
ALL TRIM LEVELS
—
2013-2021
TOYOTA
RAV-4
ALL TRIM LEVELS
—
2021
TOYOTA
SIENNA
ALL TRIM LEVELS
—
2007-2013, 2022
TOYOTA
TUNDRA
ALL TRIM LEVELS
—
Pac Audio APH-TY02 Manual
Add-On Amplifier OEM Integration Interface for Select 2003-2010 Amplified Toyota Vehicles
Easily add amplifier(s) to Toyota factory amplified systems without cutting or modifying the original wiring.Simplify speaker wire connections using the APH-TY03 speaker connection harness when adding aftermarket amplifier(s) to select Toyota vehicles. Featuring OEM quality, factory style plugs, the APH-TY03 quickly and securely plugs into the factory amplifier harness allowing an aftermarket amplifier to be more easily installed. Industry-standard wire colors on the APH-TY03 harness make identifying the factory speakers faster and also ensures proper speaker wiring polarity.
Key Features
Perfect for use with AmpPRO AP4-TY11
EIA standard color-coded wires make identifying factory speaker wires and phase easier
APH-TY03 harness eliminates having to run speaker wire throughout the car
18” Harness length
Applications - confirmed as of 2/4/2023
Year(s)
Make
Model
Trim Level
Additional Info
2003-2008
TOYOTA
4RUNNER
ALL TRIM LEVELS
—
2005-2008
TOYOTA
COROLLA
ALL TRIM LEVELS
—
2004-2005
TOYOTA
PRIUS
ALL TRIM LEVELS
—
2004-2005
TOYOTA
RAV-4
ALL TRIM LEVELS
—
2005-2007
TOYOTA
SEQUOIA
ALL TRIM LEVELS
—
2004-2010
TOYOTA
SIENNA
ALL TRIM LEVELS
—
2005-2008
TOYOTA
TACOMA
ALL TRIM LEVELS
—
2005-2006
TOYOTA
TUNDRA
ALL TRIM LEVELS
—
Pac Audio APH-TY03 Manual
Add-On Amplifier OEM Integration Interface for Select 2006-2021 Amplified Lexus and Toyota Vehicles
Easily add amplifier(s) to Toyota and Lexus factory amplified systems without cutting or modifying the original wiring.Simplify speaker wire connections by using the APH-TY04 speaker connection harness when adding aftermarket amplifier(s) to select Toyota and Lexus vehicles. Featuring OEM quality, factory style plugs, the APH-TY04 quickly and securely plugs into the factory amplifier harness allowing an aftermarket amplifier to be more easily installed. Industry-standard wire colors on the APH-TY04 harness make identifying the factory speakers faster and also ensures proper speaker wiring polarity.
Key Features
Perfect for use with AmpPRO AP4-TY11 and AP4-TY12
EIA standard color-coded wires make identifying factory speaker wires and phase easier
APH-TY04 harness eliminates having to run speaker wire throughout the car
18” Harness length
Applications - confirmed as of 2/4/2023
Year(s)
Make
Model
Trim Level
Additional Info
2011-2013
LEXUS
CT 200H
ALL TRIM LEVELS
—
2007-2012
LEXUS
ES 350
ALL TRIM LEVELS
—
2007-2011
LEXUS
GS 350
ALL TRIM LEVELS
—
2007-2011
LEXUS
GS 450H
ALL TRIM LEVELS
—
2010-2013
LEXUS
GX 460
ALL TRIM LEVELS
—
2010-2012
LEXUS
HS 250H
ALL TRIM LEVELS
—
2006-2013
LEXUS
IS 250
ALL TRIM LEVELS
—
2006-2013
LEXUS
IS 350
ALL TRIM LEVELS
—
2008-2012
LEXUS
RX 350
ALL TRIM LEVELS
—
2007-2008
LEXUS
RX 400H
ALL TRIM LEVELS
—
2012
LEXUS
RX 450H
ALL TRIM LEVELS
—
2010-2017, 2019-2021
TOYOTA
4RUNNER
ALL TRIM LEVELS
—
2011-2012
TOYOTA
AVALON
ALL TRIM LEVELS
—
2008-2011
TOYOTA
LAND CRUISER
ALL TRIM LEVELS
—
2008-2020
TOYOTA
SEQUOIA
ALL TRIM LEVELS
—
2011-2020
TOYOTA
SIENNA
ALL TRIM LEVELS
—
2012-2017
TOYOTA
TACOMA
ALL TRIM LEVELS
—
2009-2016
TOYOTA
VENZA
ALL TRIM LEVELS
—
Pac Audio APH-TY04 Manual
Add-On OE Amplifier-Integration Wiring-Harness for Select 2015-2019 Amplified Chrysler, Dodge, Jeep and RAM Vehicles with uConnect5 Factory Audio Systems
Must be used with AP4-CH41 R.2
Plug and play solution for UConnect5 that allows you to use an AmpPRO with most Chrysler vehicles.
Benefits
Simplifies amplifier installation
Prevents the need for summing and DSP devices
Provides factory sound system upgrade solution
Provides flat audio output for a solid audio foundation
Features
It can be used to upgrade the entire sound system or just part of it thanks to the retention of the original amplifier
Variable volume, fade, balance, bass, mid and treble audio settings
Front, rear, sub preamp outputs (5 volt RMS)
Customized OE bass, mid and treble center frequency selection
Retains uConnect, Bluetooth audio, Navigation prompts, and all warning chimes
Plug-n-Play installation
Sublevel controller
Optional TOSLINK optical output (APA-TOS1 sold separately)
Also available for fast, easy install: APH-CH01 harness (sold separately)
Select non-amplified vehicles are equipped with an ANC system that requires bypass. Plug-n-Play bypass harness: ANC-CH01
Applications - confirmed as of 2/1/2023
Year(s)
Make
Model
Trim Level
Additional Info
2021-2022
CHRYSLER
PACIFICA
ALL TRIM LEVELS
—
2021
DODGE
DURANGO
ALL TRIM LEVELS
10.1" Screen
2022
DODGE
RAM TRUCK
NON-CLASSIC
—
2022
RAM
RAM TRUCK
NON-CLASSIC
—
No Manual Available
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
HDMI and USB-Port With Splash-Resistant Cover and Optional Mounting-Bracket
Single piece design mounts both an HDMI and USB extension cable to your vehicle for use with your aftermarket head unit. Extension cables are each 3 feet long. The Splash-resistant cover is perfect for boats, or recreational vehicles. The optional dash-bracket provides an additional mounting surface if needed.
RadioPRO Radio Replacement Interface Harness for Select Mercedes Sprinter and Metris
The RP4.2-MB11 radio replacement interface is your plug-n-play solution to upgrade your factory radio with an aftermarket radio in Mercedes Sprinter or Metris vehicles.
Steering wheel controls, 3.5mm AUX input, USB port and the back-up camera function are all retained with the RP4.2-MB11. By adding on the PAC VS41, you have the ability to add front and blind-spot cameras creating a complete camera system. PAC quality and engineering provides you the most professional installation solution available!
Retains:
Steering wheel controls
3.5mm AUX input
USB port
Back-up camera function
Features:
Includes wired outputs for navigation radio installation
Rear camera activation while in motion
10 Amp ACC 12 volt output
Direct USB updatable
Camera system ready - requires PAC VS41
Includes:
Vehicle specific harness
Interface module
Installation instructions
Applications
2016
MERCEDES-BENZ
METRIS
2013-2018
MERCEDES-BENZ
SPRINTER
Pac Audio RP4.2-MB11 ManualPac Audio RP4.2-MB11 Technical Bulletin
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Ten-Inch-Size Heigh10 Head-Unit Replacement Dash Kit for Select 2014-2019 Non-Amplified Silverado and Sierra Vehicles
PAC's RadioPRO GM full-size truck kit is for Stinger's HEIGH10 multimedia head unit. The SR-GM14H kit enables you to replace a GM factory radio with a show-stopping HEIGH10 infotainment system while retaining most OEM features and maintaining a flush, factory look and feel, and adds upgraded features including Apple CarPlay, Android Auto, and more to your GM truck's stereo system
*UN1810/HEIGH10 sold separately
Complete feature retention: warning chimes, OnStar, factory WiFi, SWC
OEM safety: front park assist, rear park assist, reverse camera (if equipped)
Custom-tuned vehicle settings with a PAC-UP USB adapter (sold separately)
Complete plug-n-play system: no vehicle modifications needed!
Flush-mounted plastics for a seamless OEM experience
FLUSH-FITTED TO MINIMIZE VIBRATION & SHAKING
The secure mounting system was engineered to hold your HEIGH10 system securely to withstand any bumps, dips while towing or carrying anything in your truck bed.
KIT INCLUDES EVERYTHING NEEDED FOR THE INSTALLATION* INCLUDING:
Factory-matched radio mounting panels for HEIGH10 (for any previous size of OEM radio)
RP5-GM51 RadioPRO for GM vehicles*
PAC CMX chime module
Complete installation harnesses
Dash-mount dual USB cable
Antenna adapters for satellite and AM/FM radio
*Not compatible with BOSE-equipped vehicles
Applications - confirmed as of 2/10/2023
Year(s)
Make
Model
Trim Level
Additional Info
2014-2018
CHEVROLET
SILVERADO
ALL TRIM LEVELS
—
2019
CHEVROLET
SILVERADO
CLASSIC
—
2015-2019
CHEVROLET
SILVERADO HD
ALL TRIM LEVELS
—
2014-2018
GMC
SIERRA
ALL TRIM LEVELS
—
2015-2019
GMC
SIERRA HD
ALL TRIM LEVELS
—
Pac Audio SR-GM14H Installation Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Ten-Inch-Size Heigh10 Head-Unit Replacement Dash Kit for Select 2011-2018 Amplified and Non-Amplified Wrangler Vehicles
RadioPRO Jeep kit for Stinger’s HEIGH10 infotainment system. The kit enables you to replace a Jeep Wrangler JK factory radio with a show-stopping HEIGH10 multimedia display while retaining most factory features and adding even more upgraded features, including Apple CarPlay, Android Auto, and more to your Jeep's stereo system!
*UN1810/HEIGH10 sold separately
Dash kit and mounting included for a beautiful factory look with the HEIGH10 Stinger display (not included).
Complete feature retention: warning chimes, steering-wheel-mounted radio controls, factory amplifier (if equipped)
Vehicle-to-radio connectivity: vehicle speed, illumination, reverse, and parking brake signals
Dual USB connection ports
Complete plug-and-play system: no vehicle modifications needed!
Flush-mounted plastics for a seamless OEM experience
FLUSH-FITTED TO MINIMIZE VIBRATION & SHAKING
The rugged mounting system was engineered to hold your HEIGH10 system securely to withstand any bumps, dips, and potholes that are on your trail.
KIT INCLUDES EVERYTHING NEEDED FOR THE INSTALLATION* INCLUDING:
Factory-Matched Radio Mounting Panels for HEIGH10
RP4-CH11 RadioPRO for Jeep Vehicles
Complete Plug-N-Play Installation Harnesses
Dash-Mount Dual USB Cable
Antenna Adapters for Satellite and AM/FM Radio
*HEIGH10 sold separately
**Not compatible with Panoramic View Monitor (PVM) camera vehicles
Due to continual development, features and specifications are subject to change.
Applications - confirmed as of 2/10/2023
Year(s)
Make
Model
Trim Level
Additional Info
2011-2017
JEEP
WRANGLER
ALL TRIM LEVELS
—
2018
JEEP
WRANGLER
JK
—
2011-2017
JEEP
WRANGLER UNLIMITED
ALL TRIM LEVELS
—
2018
JEEP
WRANGLER UNLIMITED
JK
—
Pac Audio SR-JK11H Installation Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Ten-Inch-Size Heigh10 Head-Unit Replacement Dash Kit for Select 2016-2021 Amplified and Non-Amplified Toyota Tacoma Vehicles
RadioPRO Tacoma kit for Stinger’s HEIGH10 infotainment system. The kit enables you to replace a Tacoma factory radio with a show-stopping HEIGH10 multimedia display while retaining most factory features and adding even more upgraded features, including Apple CarPlay, Android Auto, and more to your truck's stereo system!
*UN1810/HEIGH10 sold separately
Dash kit and mounting included for a beautiful factory look with the HEIGH10 Stinger display (not included).
Complete feature retention: warning chimes, steering-wheel-mounted radio controls, factory amplifier (if equipped)
Vehicle-to-radio connectivity: vehicle speed, illumination, reverse, and parking brake signals
Complete plug-n-play system: no vehicle modifications needed!
Flush-mounted plastics for a seamless OEM experience
FLUSH-FITTED TO MINIMIZE VIBRATION & SHAKING
The secure mounting system was engineered to hold your HEIGH10 system securely to withstand any bumps, dips while towing or carrying anything in your truck bed.
KIT INCLUDES EVERYTHING NEEDED FOR THE INSTALLATION* INCLUDING:
Factory-Matched Radio Mounting Panels for HEIGH10
RP4.2-TY11 RadioPro for Toyota Vehicles
Complete Plug-N-Play Installation Harnesses
Adapters for AM/FM, GPS, USB, and Sirius XM (SXV Module Required)
**Not compatible with Panoramic View Monitor (PVM) camera vehicles
Due to continual development, features and specifications are subject to change.
Applications - confirmed as of 2/10/2023
Year(s)
Make
Model
Trim Level
Additional Info
2016-2021
TOYOTA
TACOMA
ALL TRIM LEVELS
—
Pac Audio SR-TAC16H Installation Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Ten-Inch-Size Heigh10 Head-Unit Replacement Dash Kit for Select 2014-2021 Amplified and Non-Amplified Toyota Tundra Vehicles
RadioPRO Tundra kit for Stinger’s HEIGH10 infotainment system. The kit enables you to replace a Tundra factory radio with a show-stopping HEIGH10 multimedia display while retaining most factory features and adding even more upgraded features, including Apple CarPlay, Android Auto, and more to your truck's stereo system!
*UN1810/HEIGH10 sold separately
Dash kit and mounting included for a beautiful factory look with the HEIGH10 Stinger display (not included).
Complete feature retention: warning chimes, steering-wheel-mounted radio controls, factory amplifier (if equipped)
Vehicle-to-radio connectivity: vehicle speed, illumination, reverse, and parking brake signals
Complete plug-n-play system: no vehicle modifications needed!
Flush-mounted plastics for a seamless OEM experience
FLUSH-FITTED TO MINIMIZE VIBRATION & SHAKING
The secure mounting system was engineered to hold your HEIGH10 system securely to withstand any bumps, dips while towing or carrying anything in your truck bed.
KIT INCLUDES EVERYTHING NEEDED FOR THE INSTALLATION* INCLUDING:
Factory-Matched Radio Mounting Panels for HEIGH10
RP4.2-TY11 RadioPro for Toyota Vehicles
Complete Plug-N-Play Installation Harnesses
Adapters for AM/FM, GPS, USB, and Sirius XM (SXV Module Required)
Applications - confirmed as of 2/10/2023
Year(s)
Make
Model
Trim Level
Additional Info
2014-2021
TOYOTA
TUNDRA
ALL TRIM LEVELS
—
Pac Audio SR-TUN14H Installation Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Ten-Inch-Size Heigh10 Head-Unit Replacement Dash Kit for Select 2015-2021 Amplified and Non-Amplified Dodge and Chrysler Vehicles
RadioPRO Advanced fully integrated kit for Stinger’s HEIGH10 infotainment system. The kit enables you to replace your car's factory radio with a show-stopping HEIGH10 multimedia display, while retaining most factory features and adding even more upgraded features, including Apple CarPlay, Android Auto, and more to your car's stereo system!
*Not compatible with SRT or Hellcat Models
*UN1810/HEIGH10 sold separately
Flush-mounted plastics for a seamless OEM experience. Includes plastics for all OEM radio options.View and adjust vehicle information through customized screens:
Complete climate controls
Real-time performance gauges
Tire pressures, door status, engine status, and other vehicle information
Access to over 70+ customizable vehicle settings (when equipped)
KIT INCLUDES EVERYTHING NEEDED FOR THE INSTALLATION* INCLUDING:
Factory matched mounting dash kits for HEIGH10 (sold separately)
CH4A-SRK RadioPRO Advanced vehicle integration module
PAC-Link adapter for Stinger multimedia units
High-definition factory camera retention module
Vehicle specific plug-n-play wire harness
Satellite antenna adapter
AM/FM antenna adapter
USB retention cables
External chime speaker
PERFORMANCE CONSOLE
Speed
RPM
Current/Best 0-60-mph time
Current/Best 60-0-mph brake
distance
Current/best ¼ mile time
VEHICLE GAUGES
Eight gauges on screen, save up to 2 presets
Battery voltage
Oil temperature
Oil pressure
Transmission temperature
Coolant temperature
and many more functions
VEHICLE INFORMATION SCREEN
Tire pressure with custom pressure threshold
Current vehicle status - including door open/closed
View and clear check engine status
CLIMATE CONTROL SCREEN
On-screen climate control retained
Applications - confirmed as of 2/10/2023
Year(s)
Make
Model
Trim Level
Additional Info
2015-2021
CHRYSLER
300
ALL TRIM LEVELS
—
2015-2021
DODGE
CHALLENGER
ALL TRIM LEVELS
—
2015-2021
DODGE
CHARGER
ALL TRIM LEVELS
—
Pac Audio SRK-CHR15H Installer GuidePac-Audio SRK-CHR15H Charger Installation ManualPac-Audio SRK-CHR15H Challenger Installation ManualPac-Audio SRK-CHR15H Chrysler-300 Installation Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Ten-Inch-Size Heigh10 Head-Unit Replacement Dash Kit for Select 2018-UP Amplified and Non-Amplified Wrangler-JL and Gladiator-JT Vehicles
RadioPRO Advanced fully integrated Jeep kit for Stinger’s HEIGH10 multimedia head unit. SRK-JW18EH enables you to replace a Jeep Wrangler or Gladiator factory radio with a show-stopping HEIGH10 while retaining factory features and adding even more upgraded features!
*UN1810/HEIGH10 sold separately
Dash kit and mounting hardware included for a beautiful factory look with either the HEIGH10* Stinger multimedia head unit
Enables interactive on-screen climate controls, vehicle settings, & customizable vehicle performance apps
Provides more control over your installation with RadioPRO Advanced controlled camera triggers, steering wheel controls, and factory amplifier control
All factory cameras in full high-definition
Dual-zone and Manual factory climate control (please check Compatibility Notes tab)
Factory amplifier
Factory USB ports
Safety group chimes, including ParkSense®
Steering wheel controls
Auxiliary switch panel settings
Heated seats / heated steering wheel
On-screen vehicle settings menu
KIT INCLUDES EVERYTHING NEEDED FOR THE INSTALLATION* INCLUDING:
Factory-matched mounting dash kits for HEIGH10
RadioPRO Advanced vehicle integration module
PAC-Link adapter for Stinger multimedia units
High-definition factory camera retention module
Vehicle-specific plug-n-play wire harness
Satellite antenna adapter
AM/FM antenna adapter
USB retention cables
External chime speaker
Applications - confirmed as of 2/10/2023
Year(s)
Make
Model
Trim Level
Additional Info
2020-2022
JEEP
GLADIATOR
ALL TRIM LEVELS
—
2018-2022
JEEP
WRANGLER
JL
—
2018-2022
JEEP
WRANGLER UNLIMITED
JL
—
Pac Audio SRK-JW18EH Installation Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Ten-Inch-Size Heigh10 Head-Unit Replacement Dash Kit for Select 2013-2021 Amplified and Non-Amplified RAM Pickups
Compatible with all OEM radio options including base, 5-inch, and 8.4-inch infotainment systems
RadioPRO Advanced fully integrated RAM kit for Stinger’s HEIGH10* infotainment system. The kit enables you to replace a RAM factory radio with a show-stopping HEIGH10 multimedia display while retaining most factory features and adding even more upgraded features, including Apple CarPlay, Android Auto, and more to your RAM Truck stereo system!
*UN1810/HEIGH10 sold separately
Flush-mounted plastics for a seamless OEM experience. Includes plastics for all OEM radio options.View and adjust vehicle information through customized screens:
Complete climate controls
Real-time performance gauges
Tire pressures, door status, engine status, and other vehicle information
Access to over 70+ customizable vehicle settings (when equipped)
KIT INCLUDES EVERYTHING NEEDED FOR THE INSTALLATION* INCLUDING:
Factory matched mounting dash kits for HEIGH10 (sold separately)
CH4A-SRK RadioPRO Advanced vehicle integration module
PAC-Link adapter for Stinger multimedia units
High-definition factory camera retention module
Vehicle specific plug-n-play wire harness
Satellite antenna adapter
AM/FM antenna adapter
USB retention cables
External chime speaker
Applications - confirmed as of 2/10/2023
Year(s)
Make
Model
Trim Level
Additional Info
2013-2018
DODGE
RAM TRUCK
ALL TRIM LEVELS
—
2019-2021
DODGE
RAM TRUCK
CLASSIC
—
2013-2018
RAM
RAM TRUCK
ALL TRIM LEVELS
—
2019-2021
RAM
RAM TRUCK
CLASSIC
—
Pac Audio SRK-RAM13H Installation Manual
Replacement Tip-Sleeve Microphone for Select Alpine Head-Units
Replacement Microphone for Bluetooth enabled Alpine stereos with a tip and sleeve connector.
Factory Backup-Camera to Aftermarket Head-Unit Wiring Harness for Select 2012-2015 Toyota, Scion and Subaru Vehicles
The CAM-TY11 is a reverse camera T-harness that gives the ability to add a reverse camera input for Toyota and select Scion and Subaru 6.1” touchscreen radios. The harness is Plug-and-Play with no need to connect to reverse lamps for the reverse trigger.
Applications
Toyota
4Runner - 2012-2014
Avalon - 2012-2014
Camry - 2012-2014
Highlander - 2012-2014
Prius 3, Prius C, Prius V - 2012-2014
Rav-4 - 2012-2014
Venza - 2012-2014
Scion
FR-S - 2013-2014
xB - 2013
Subaru
BRZ - 2013-2014
Aftermarket Radio Add-on Vehicle USB-Port with 12-Inch Extension
The female end of the cable features a flush mountable design. You can simply drill a 3/4” hole at the desired mounting location and snap the end of the cable in for an OEM look. Ideal for er aftermarket head units such as Pioneer, Kenwood and Alpine that feature a rear USB input
Input Voltage of 10V to 24V*, Selectable Output to 3.3V, 5V, 6V or 9V
No programming is required. Use the 4-position switch to select the desired voltage output and install the VOLT-39.
Not intended for installation in 24V systems
