Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!

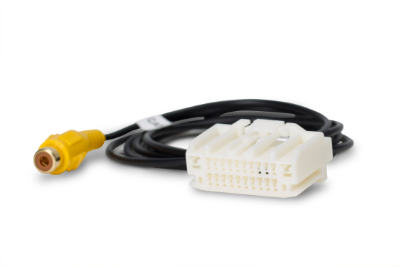

Add-on Aftermarket Backup-Camera Wiring-Harness for Select 2007-2017 Jeep Wrangler-JK Vehicles
The ALP-HRN-CAMCH is a Wrangler JK specific custom wiring harness and is just the correct length (4-foot RCA Input Cable) to reach down to the passenger side kick panel where the connection is made. It is a perfect match for the Jeep Wrangler specific Spare Tire Rear View Camera System (HCE-TCAM1-WRA). It also works with any Alpine rear view camera system that has a universal connection, like the HCE-C114, HCE-C125, or the HCE-C305R. After installation, the factory radio will require programming to activate the camera input. Programming to open the camera input required by your local Jeep dealership.
Alpine ALP-HRN-CAMCH Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!

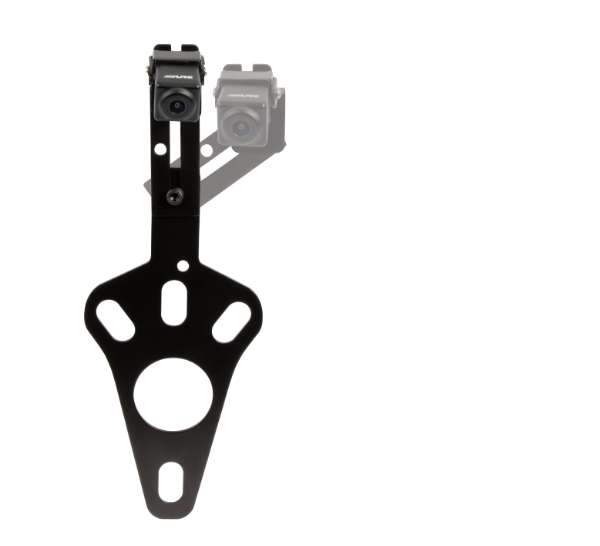

Spare-Tire Rearview Camera-System for 2007-2023 Jeep-Wrangler, and other spare tire mount applications
The HCE-RCAM-WRA lets you easily add an Alpine rear-view camera to your 2007-2018 Jeep Wrangler JK. It is compatible with Alpine in-dash screen systems, the factory Jeep screen or other aftermarket screens. If used with the factory screen, you can add the Alpine SGS-CH01 Camera Interface (sold separately) with Active Guide Lines, – without factory screen re-programming.
With tons of wheel choices for the Wrangler, you need a versatile camera that works with any of them. The HCE-RCAM-WRA consists of the HCE-C1100 Rear-View Camera and bracket that is mounted between the spare tire and the Wrangler’s 5x5 wheel pattern. The upper portion of the bracket can be positioned to the left or right of the wheel’s spokes, ensuring that the attached camera has a clear line of sight behind the vehicle and is not blocked by the wheel.
Backing out of garages or riding through shady trails can be tough on a back-up camera. Standard cameras have difficulty managing changes in light, causing images to wash out and making it difficult to see what’s behind you at times. The HCE-RCAM-WRA has High Dynamic Range (HDR) technology for improved image quality. HDR technology can manage a wider range of luminance through the camera’s sensor as compared to standard cameras. Bright and dark areas are captured and adjusted for even exposure and white balance, preventing the image from being washed-out or too dark as you drive between sunlight and low-light conditions.
Specifications
Includes HCE-C1100 Rear Camera
Adjustable bracket positions the camera in-between the wheel spokes
Adjustable camera angle and height
Alpine HCE-RCAM-WRA Manual
Alpine Spare-Tire Rear-View Camera and Light-System for 2007-2023 Jeep-Wrangler, and other spare tire mount applications
It has a 7-inch diameter footprint and fits directly onto the spare tire mount, along with the tire itself. The result is a clean, integrated look that eliminates the need to drill holes to mount the camera into the bumper. The 6.25” W x 2” H LED third brake light provides added safety, while an additional reverse LED light illuminates the camera’s viewing angle for increased image visibility when your Wrangler is backing up. The optimized camera angle provides visibility for near and far objects behind your Jeep Wrangler; straight down and rear view (+5° up from horizontal which can be displayed on a factory or aftermarket in-dash screen (sold separately).The HCE-TCAM1-WRA is ready for your off-road adventures. The camera is waterproof and, dust-proof (at IP66 ratings), and the camera’s angle is optimized for viewing both near and far objects. The camera housing has a matte black finish with gun metal gray powder coat accents.
Specifications
Compatible with most Aftermarket and OEM wheels using spare tire mount
Works with Aftermarket or OEM in-dash display
P66 waterproof and dust-proof rugged camera system design
Built-in brake and reverse lights for increased visibility
Lug nut mounting for easy removal and wheel locking
Optimized camera angle for near and far objects
3 mounting posts included for wheel/tire depth
Alpine HCE-TCAM1-WRA Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Status-Series 4-Channel Class-D Full-Range Hi-Resolution Automotive-Grade Amplifier, 100-Watts x 4-Channel @ 4-Ohm
Using expertise gleaned from over five decades of crafting premium car audio products and trickle-down engineering and design from the Ultra Hi-Res AlpineF#1Status system technologies, the Alpine Status System features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand-picked from the highest-quality materials for the highest in-class audio performance, that when used as a complete system, can achieve 192kHz/24Bit playback.
Powering a Hi-Res sound system without contributing noise during playback requires efficiency and precision and the HDA-F60 was intentionally designed to provide impressive power output to the system while ensuring the purest audio performance. The amplifier’s wide dynamic range capability provides impressive output in a compact chassis that fits most vehicle applications.
The HDA-F60 features a high-efficiency digital circuit design that ensures ultra- low distortion levels for precise sound reproduction and superb sound quality. Intentional designs, like a copper-plated chassis and black circuit board, bring the signal-to-noise ratio up to 83dB and minimize noise and distortion during playback for complete music fidelity that’s true to the original source.
Featuring technology unique to Alpine, the amplifier features Alpine’s dual negative feedback control circuit to improve linearity for the most accurate sound amplification. This technology also stabilizes the amplifier output while driving the speakers for ultimate reliability.
The HDA-F60 features Alpine’s quick- connect power and speaker connectors for quick and safe installation. The one- sided terminal layout and top-panel sound controls give the user quick access to controls on the amplifier.
The Alpine Status System is sold separately and can be used to build a custom sound system. Three sets of true 4V preamp outputs are included to add additional amplifiers if more power is needed. For best results, install the complete Alpine Status system together as a full system to achieve the highest in-class audio performance only second to the Ultra High-Resolution AlpineF#1System.
Features
Hi-Res Audio Playback (192kHz/24Bit)
4-Channel Amplifier
High-Efficiency Digital Circuit Design
Alpine’s Dual Negative Feedback Control Circuit
High Bandwidth Amplifier
Alpine’s Premium Class D Circuit Design
Copper-plated chassis
Black circuit board
One-sided terminal layout
Top panel sound controls
Quick connect power and speaker terminals
Optional Remote bass knob compatible (requires RUX-KNOB.2 or RUX-H01, sold separately)
Specifications
Dimensions: 11.4375” x 7.5” x 2.125”
Power Rating: (14.4V, ≤1.0% THD+N)
100W x 4 @ 4Ω
150W x 4 @ 2Ω
Bridged: 300W x 2 @ 4Ω
THD+N: 0.02% (10W into 4ohm)
S/N Ratio: 87dB (1W into 4ohm)
Frequency response: 10-60kHz (-3dB)
Damping factor: 500
Selectable input level – HI/LO
Selectable 2/4ch input
Variable High pass / Low pass crossover
Auto-turn on with remote sensing
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Status-Series Mono Class-D Full-Range Hi-Resolution Automotive-Grade Amplifier, 800-Watts x 1-Channel @ 2-Ohm
Using expertise gleaned from over five decades of crafting premium car audio products and trickle-down engineering and design from the Ultra Hi-Res AlpineF#1Status system technologies, the Alpine Status System features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand-picked from the highest-quality materials for the highest in-class audio performance, that when used as a complete system, can achieve 192kHz/24Bit playback.
Powering a Hi-Res sound system without contributing noise during playback requires efficiency and precision and the HDA-M80 was intentionally designed to provide impressive power output to the system while ensuring the purest audio performance. The amplifier’s wide dynamic range capability provides impressive output in a compact chassis that fits most vehicle applications.
The HDA-M80 features a high-efficiency digital circuit design that ensures ultra- low distortion levels for precise sound reproduction and superb sound quality. Intentional designs, like a copper-plated chassis and black circuit board, bring the signal-to-noise ratio up to 83dB and minimize noise and distortion during playback for complete music fidelity that’s true to the original source.
Featuring technology unique to Alpine, the amplifier features Alpine’s dual negative feedback control circuit to improve linearity for the most accurate sound amplification. This technology also stabilizes the amplifier output while driving the subwoofers for ultimate reliability.
The HDA- M80 features Alpine’s quick- connect power and speaker connectors for quick and safe installation. The one- sided terminal layout and top-panel sound controls give the user quick access to controls on the amplifier.
The Alpine Status System is sold separately and can be used to build a custom sound system. Three sets of true 4V preamp outputs are included to add additional amplifiers if more power is needed. For best results, install the complete Alpine Status system together as a full system to achieve the highest in-class audio performance only second to the Ultra High-Resolution AlpineF#1System.
Features
Hi-Res Audio Playback (192kHz/24Bit)
Mono-Channel Amplifier
High-Efficiency Digital Circuit Design
Alpine’s Dual Negative Feedback Control Circuit
High Bandwidth Amplifier
Alpine’s Premium Class D Circuit Design
Copper-plated chassis
Black circuit board
One-sided terminal layout
Top panel sound controls
Quick connect power and speaker terminals
Optional Remote bass knob compatible (requires RUX-KNOB.2 or RUX-H01, sold separately)
Specifications
Dimensions: 11.4375” x 7.5” x 2.125”
Power Rating: (14.4V, ≤1.0% THD+N)
800W x 1 @ 2Ω
500W x 1 @ 4Ω
THD+N: 0.02% (10W into 4ohm)
S/N Ratio: 83dB (1W into 4ohm)
Frequency response: 8-400Hz (-3dB)
Damping factor: 1500
Selectable input level – HI/LO
Variable High pass / Low pass crossover
Variable Subsonic filter
Bass EQ (0 to +12dB, Variable)
Auto-turn on with remote sensing
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!

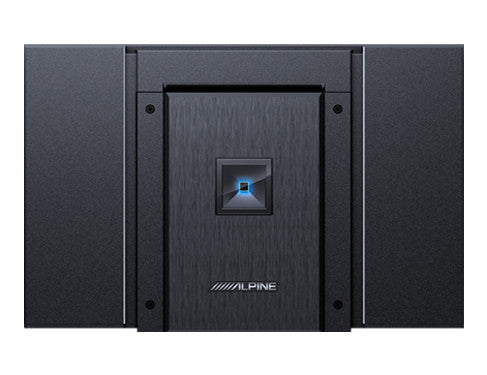

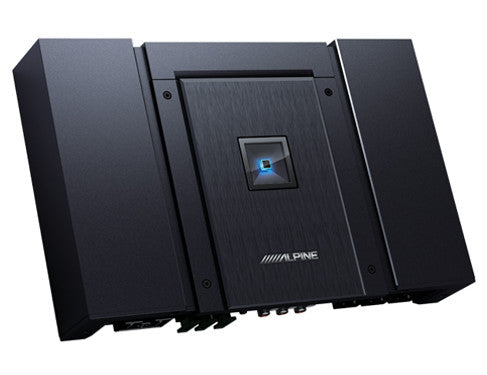

Status-Series 5-Channel Class-D Full-Range Hi-Resolution Automotive-Grade Amplifier, 75-Watts x 4-Channel @ 4-Ohm + 500-Watts Mono @ 2-Ohm
Using expertise gleaned from over five decades of crafting premium car audio products and trickle-down engineering and design from the Ultra Hi-Res Alpine-F#1Status system technologies, the Alpine Status-System features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand-picked from the highest-quality materials for the highest in-class audio performance, that when used as a complete system, can achieve 192kHz/24Bit playback.
Powering a Hi-Res sound system without contributing noise during playback requires efficiency and precision and the HDA-V90 was intentionally designed to provide impressive power output to the system while ensuring the purest audio performance. The amplifier’s wide dynamic range capability provides impressive output in a compact chassis that fits most vehicle applications.
The HDA-V90 features a high-efficiency digital circuit design that ensures ultra- low distortion levels for precise sound reproduction and superb sound quality. Intentional designs, like a copper-plated chassis and black circuit board, bring the signal-to-noise ratio up to 87dB and minimize noise and distortion during playback for complete music fidelity that’s true to the original source.
Featuring technology unique to Alpine, the amplifier features Alpine’s dual negative feedback control circuit to improve linearity for the most accurate sound amplification. This technology also stabilizes the amplifier output while driving the speakers and subwoofers for ultimate reliability.
The HDA-V90 features Alpine’s quick- connect power and speaker connectors for quick and safe installation. The one- sided terminal layout and top-panel sound controls give the user quick access to controls on the amplifier.
The Alpine Status System is sold separately and can be used to build a custom sound system. Three sets of true 4V preamp outputs are included to add additional amplifiers if more power is needed. For best results, install the complete Alpine Status system together as a full system to achieve the highest in-class audio performance only second to the Ultra High-Resolution AlpineF#1System.
Specifications
Dimensions: 11.4375” x 7.5” x 2.125”
Power Rating: (14.4V, ≤1.0% THD+N)
75W x 4 + 300W x 1 @ 4Ω
100W x 4 + 500W x 1 @ 2Ω
Bridged: 200W x 2 @ 4Ω (ch1/2, ch3/4 only)
THD+N: 0.02% (10W into 4ohm)
S/N Ratio: 87dB (1W into 4ohm)
Frequency response: 8-60kHz (-3dB)
Damping factor: 500 (ch1/2/3/4), 1000 (subwoofer)
Selectable input level – HI/LO
Selectable 2/4/6ch input
Variable High pass / Low pass crossover
Variable Subsonic filter (subwoofer)
Bass EQ (0 to +12dB, Variable)
Auto-turn on with remote sensing
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!

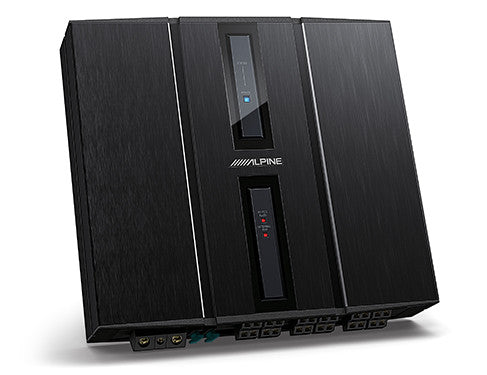

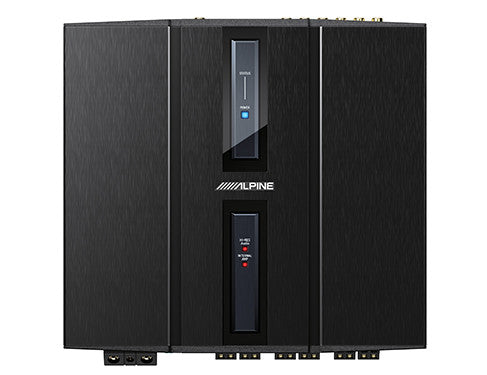

Status-Series 12-Channel Class-D Full-Range Hi-Resolution Automotive-Grade Amplifier, 50-Watts x 8-Channels @ 4-Ohm + 80-Watts x 4-Channels @ 4-Ohm
Using expertise gleaned from over five decades of crafting premium car audio products and trickle-down engineering and design from the Ultra Hi-Res AlpineF#1Status system technologies, the Alpine Status system features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand-picked from the highest quality materials for the highest in-class audio performance, that when used as a complete system, can achieve 192kHz/24bit playback.
Building a sound system while overcoming acoustical challenges in the interior environment of the vehicle is no easy feat, however, the HDP-D90 14-Channel Hi-Res Digital Sound Processor Amplifier provides flexible system building and Hi-Res processing power up to 192kHz/24 Bit for an infallible listening experience.
Custom developed for Hi-Res Playback, the HDP-D90 has a 192kHz/64Bit internal sampling rate and an ultra-wide audio bandwidth of 10Hz-110kHz for recording studio-level sound. Intentional designs, like a copper-plated chassis, bring the signal-to-noise ratio up to >110dB and minimize noise and distortion during playback for complete music fidelity that’s true to the original source.
The HDP-D90 includes multiple source inputs for flexible system building for the option to retain a factory head unit, add an aftermarket head unit, or the Alpine Status HDS-990 Digital Media Controller. For older vehicles with no source player, the HDP-D90 can also function as a standalone music source and can receive music sent directly from a smartphone with Bluetooth® wireless streaming.
When paired with the Hi-Res HDS-990 Digital Media Player, you unlock even more control options for your processor while getting the highest-quality playback possible in your vehicle.
With 12-channels of amplifier outputs, the HDP-D90 can be used as a standalone source to power a 2-Way Speaker System, or for a more dynamic listening experience, includes 10- channels of RCA output for adding additional amplifiers to power a 3-way speaker system.
The Alpine Status System is sold separately and can be used to build a custom sound system. For best results, install the complete Alpine Status system together as a full system to achieve the highest in-class audio performance only second to the Ultra High-Resolution AlpineF#1System.
Features
High-Performance 14-Channel Digital Sound Processor Amplifier
Hi-Res Audio Playback (192kHz/24Bit)
PC Tuning Application
Selectable pre-configured sound system configurations
Embedded RTA signals for sound tuning
Bluetooth® audio streaming with included external module
Optional Controller
Specifications
Hi-Res Audio Playback (192kHz/24Bit)
14-Channel Inputs (All DSP control)
Inputs: 12-Channel Hi-level/2-Channel RCA/Optical (SPDIF)/Coaxial (Digital)
Outputs: 10-Channel RCA output/ 12-Channel High-Level amplified outputs (50W x 8 @ 4ohm + 80W x 4 @4ohm)
31 Band Parametric or Graphic EQ
Channel mixing by Matrix Input Summing
Sampling Rate = Internal: 192kHz/32Bit
S/N: >110dB, THD: <0.001%
Hi pass/low pass crossover per channel
Time correction: up to7mm delay per channel
Sigma DSP (ADAU1467x2)
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!

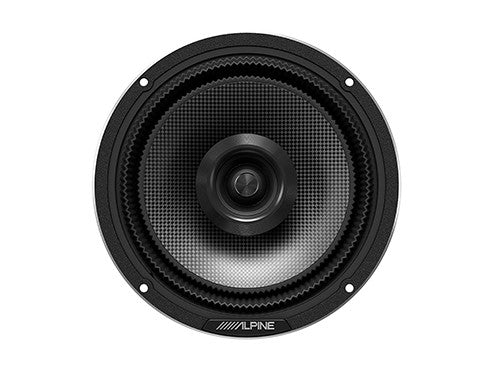

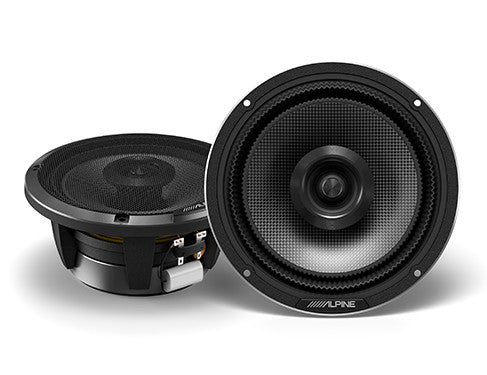

Aftermarket Status-Series 6.5-Inch 100-Watt Coaxial Speaker System
Using expertise gleaned from over five decades of crafting premium car audio products and trickle-down engineering and design from the Ultra Hi-Res AlpineF#1Status system technologies, the Alpine Status system features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand-picked from the highest- quality materials for the highest in-class audio performance, that when used as a complete system, can achieve 192kHz/24bit playback.
Drawing inspiration from the AlpineF#1Status system, the HDZ-65 features a unified carbon composite cone construction throughout the speaker components for a unified timbre identity. Alpine Proprietary Double Gathered Edge Surround technology gives the speakers ultra-low distortion and linear diaphragm movement that reproduces music true to the artist’s original intentions.
Custom developed for Hi-Res Audio Playback, the HDZ-65 has an ultra-wide bandwidth of 55Hz-40kHz which is perfectly suited for accurate reproduction of even the highest quality of studio recordings. Each speaker component is designed to cover a wider range of playback spectrum giving the tuner a wider range of adjustability.
The Alpine Status speaker line features two fitments for flexible installation options including a custom-fix model for custom applications and factory-fit models that were intentionally designed to fit into most factory speaker holes without custom work. The HDZ-65 is a factory-fit model that includes a 6.5-inch mid-bass driver and a 1-inch coaxial high-range driver.
The Alpine Status System is sold separately and can be used to build a custom sound system. Three sets of true 4V preamp outputs are included to add additional amplifiers if more power is needed. For best results, install the complete Alpine Status system together as a full system to achieve the highest in-class audio performance only second to the Ultra High-Resolution AlpineF#1System.
Features
Hi-Res Audio Playback (192kHz/24Bit) w/full Alpine Status system
Carbon Composite Diaphragm Material
Alpine Proprietary Double Gathered Edge Surround
6.5” Mid-Bass Driver (16.5cm)
1” Coaxial Tweeter (2.5cm)
Specifications
100W RMS
300W Peak Power Handling
Frequency response: 55Hz – 40kHz
Sensitivity: 88dB
Sold by the Pair
Alpine HDZ-65 Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!

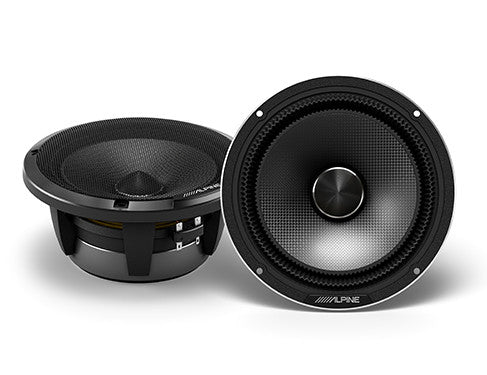

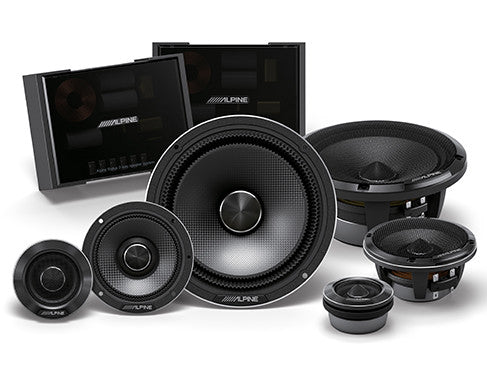

Aftermarket Status-Series 6.5-Inch 100-Watt 3-Way Component Speaker System
Using expertise gleaned from over five decades of crafting premium car audio products and trickle-down engineering and design from the Ultra Hi-Res AlpineF#1Status system technologies, the Alpine Status system features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand-picked from the highest-quality materials for the highest in-class audio performance, that when used as a complete system, can achieve 192kHz/24bit playback.
Drawing inspiration from the AlpineF#1Status system, the HDZ-653 features a unified carbon composite cone construction throughout the speaker components for a unified timbre identity. Alpine Proprietary Double Gathered Edge Surround technology gives the speakers ultra-low distortion and linear diaphragm movement that reproduces music true to the artist’s original intentions.
Custom developed for Hi-Res Audio Playback, the HDZ-653 has an ultra-wide bandwidth of 55Hz-40kHz which is perfectly suited for accurate reproduction of even the highest quality of studio recordings. Each speaker component is designed to cover a wider range of playback spectrum giving the tuner a wider range of adjustability.
The Alpine Status speaker line features two fitments for flexible installation options including a custom-fix model for custom applications and factory-fit models that were intentionally designed to fit into most factory speaker holes without custom work. The HDZ-653 is a custom-fit model that includes a 6.5- inch Mid-Bass driver, a 3.5-inch Midrange driver, and 1.25-inch High-Range driver.
The Alpine Status System is sold separately and can be used to build a custom sound system. Three sets of true 4V preamp outputs are included to add additional amplifiers if more power is needed. For best results, install the complete Alpine Status system together as a full system to achieve the highest in-class audio performance only second to the Ultra High-Resolution AlpineF#1System.
Features
Hi-Res Audio Playback (192kHz/24Bit) w/full Alpine Status system
Carbon Composite Diaphragm Material
Alpine Proprietary Double Gathered Edge Surround
6.5” Mid-Bass Driver (16.5cm)
3.5" Midrange Driver (8.5cm)
1.25” High Range Driver (3.2cm)
Specifications
100W RMS
300W Peak Power Handling
Frequency response: 55Hz – 40kHz
Sensitivity: 88dB
Sold by the Pair
Alpine HDZ-653 Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Aftermarket Status-Series 6.5-Inch 100-Watt 3-Way Thin Component Speaker System
Using expertise gleaned from over five decades of crafting premium car audio products and trickle-down engineering and design from the Ultra Hi-Res AlpineF#1Status system technologies, the Alpine Status system features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand-picked from the highest-quality materials for the highest in-class audio performance, that when used as a complete system, can achieve 192kHz/24bit playback.
Drawing inspiration from the AlpineF#1Status system, the HDZ-653S features a unified carbon composite cone construction throughout the speaker components for a unified timbre identity. Alpine Proprietary Double Gathered Edge Surround technology gives the speakers ultra-low distortion and linear diaphragm movement that reproduces music true to the artist’s original intentions.
Custom developed for Hi-Res Audio Playback, the HDZ-653S has an ultra-wide bandwidth of 55Hz-40kHz which is perfectly suited for accurate reproduction of even the highest quality of studio recordings. Each speaker component is designed to cover a wider range of playback spectrum giving the tuner a wider range of adjustability.
The Alpine Status speaker line features two fitments for flexible installation options including a custom-fix model for custom applications and factory-fit models that were intentionally designed to fit into most factory speaker holes without custom work. The HDZ-653S is a custom-fit model that includes a 6.5- inch Mid-Bass driver, a 3.5-inch Midrange driver, and 1.25-inch High-Range driver.
The Alpine Status System is sold separately and can be used to build a custom sound system. Three sets of true 4V preamp outputs are included to add additional amplifiers if more power is needed. For best results, install the complete Alpine Status system together as a full system to achieve the highest in-class audio performance only second to the Ultra High-Resolution AlpineF#1System.
Features
Hi-Res Audio Playback (192kHz/24Bit) w/full Alpine Status system
Carbon Composite Diaphragm Material
Alpine Proprietary Double Gathered Edge Surround
6.5” Mid-Bass Driver (16.5cm)
3.5" Midrange Driver (8.5cm)
1.25” High Range Driver (3.2cm)
Specifications
100W RMS
300W Peak Power Handling
Frequency response: 55Hz – 40kHz
Sensitivity: 88dB
Sold by the Pair
Alpine HDZ-653S Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!

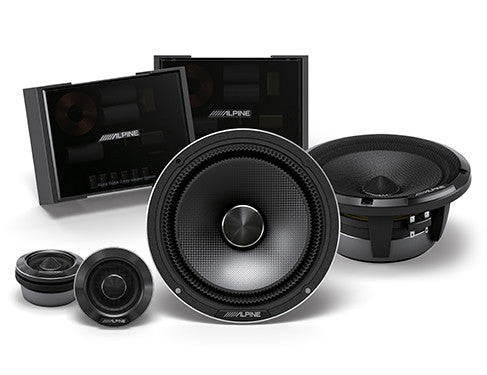

Aftermarket Status-Series 6.5-Inch 100-Watt Component Speaker System
Using expertise gleaned from over five decades of crafting premium car audio products and trickle-down engineering and design from the Ultra Hi-Res AlpineF#1Status system technologies, the Alpine Status system features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand-picked from the highest-quality materials for the highest in-class audio performance, that when used as a complete system, can achieve 192kHz/24bit playback.
Drawing inspiration from the AlpineF#1Status system, the HDZ-65C features a unified carbon composite cone construction throughout the speaker components for a unified timbre identity. Alpine Proprietary Double Gathered Edge Surround technology gives the speakers ultra-low distortion and linear diaphragm movement that reproduces music true to the artist’s original intentions.
Custom developed for Hi-Res Audio Playback, the HDZ-65C has an ultra-wide bandwidth of 55Hz-40kHz which is perfectly suited for accurate reproduction of even the highest quality of studio recordings. Each speaker component is designed to cover a wider range of playback spectrum giving the tuner a wider range of adjustability.
The Alpine Status speaker line features two fitments for flexible installation options including a custom-fix model for custom applications and factory-fit models that were intentionally designed to fit into most factory speaker holes without custom work. The HDZ-65C is a factory-fit model that includes a 6.5-inch mid-bass driver and a 1-inch coaxial high-range driver.
The Alpine Status System is soldseparately and can be used to build acustom sound system. Three sets of true4V preamp outputs are included to add needed. For best results, install the additional amplifiers if more power iscomplete Alpine Status system togetheras a full system to achieve the highestin-class audio performance only second to the Ultra Hi-Resolution AlpineF#1System.
Features
Hi-Res Audio Playback (192kHz/24Bit) w/full Alpine Status system
Carbon Composite Diaphragm Material
Alpine Proprietary Double Gathered Edge Surround
6.5” Mid-Bass Driver (16.5cm)

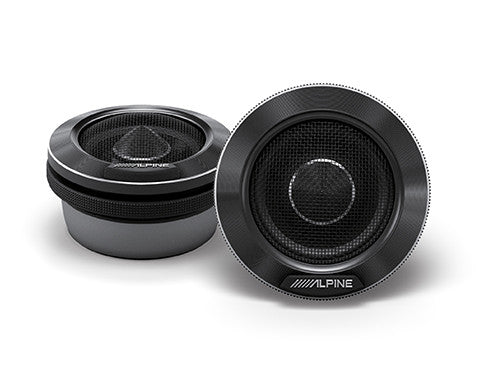

1.25” High Range Driver (3.2cm)
Specifications
100W RMS
300W Peak Power Handling
Frequency response: 55Hz – 40kHz
Sensitivity: 88dB
Sold by the Pair
Alpine HDZ-65C Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!

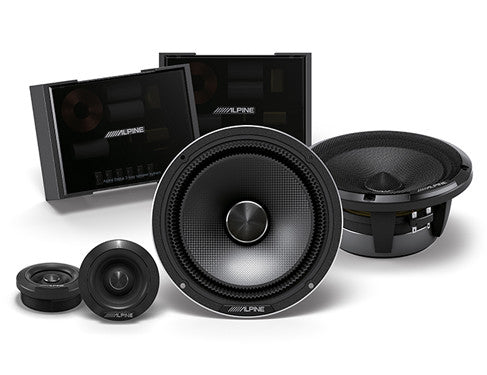

Aftermarket Status-Series 6.5-Inch 100-Watt Thin Component Speaker System
Using expertise gleaned from over five decades of crafting premium car audio products and trickle-down engineering and design from the Ultra Hi-Res AlpineF#1Status system technologies, the Alpine Status system features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand-picked from the highest-quality materials for the highest in-class audio performance, that when used as a complete system, can achieve 192kHz/24bit playback.
Drawing inspiration from the AlpineF#1Status system, the HDZ-65CS features a unified carbon composite cone construction throughout the speaker components for a unified timbre identity. Alpine Proprietary Double Gathered Edge Surround technology gives the speakers ultra-low distortion and linear diaphragm movement that reproduces music true to the artist’s original intentions.
Custom developed for Hi-Res Audio Playback, the HDZ-65CS has an ultra-wide bandwidth of 55Hz-40kHz which is perfectly suited for accurate reproduction of even the highest quality of studio recordings. Each speaker component is designed to cover a wider range of playback spectrum giving the tuner a wider range of adjustability.
The Alpine Status speaker line features two fitments for flexible installation options including a custom-fix model for custom applications and factory-fit models that were intentionally designed to fit into most factory speaker holes without custom work. The HDZ-65CS is a factory-fit model that includes a 6.5-inch mid-bass driver and a 1-inch coaxial high-range driver.
The Alpine Status System is sold separately and can be used to build a custom sound system. Three sets of true 4V preamp outputs are included to add additional amplifiers if more power is needed. For best results, install the complete Alpine Status system together as a full system to achieve the highest in-class audio performance only second to the Ultra High-Resolution AlpineF#1System.
Features
Hi-Res Audio Playback (192kHz/24Bit) w/full Alpine Status system
Carbon Composite Diaphragm Material
Alpine Proprietary Double Gathered Edge Surround
6.5” Mid-Bass Driver (16.5cm)
1.25” High Range Driver (3.2cm)
Specifications
100W RMS
300W Peak Power Handling
Frequency response: 55Hz – 40kHz
Sensitivity: 88dB
Sold by the Pair
Alpine HDZ-65CS Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
DDIN-Style Mechless Bluetooth Stereo with a Seven-Inch Touchscreen for Select 2007-2018 Jeep Wrangler-JK Vehicles
This custom-designed dash solution gives you the latest smartphone and entertainment features, all on an intuitive, 7-inch touchscreen. The dash kit replaces your factory radio and includes Jeep-specific wiring adapters that plug directly into your factory setup for plug-and-play installation.
The i407-WRA-JK allows you to use features on your smartphone while keeping your hands on the wheel and eyes on the road. Apple CarPlay, Android Auto, and bluetooth hands-free calling and music streaming can be controlled with voice commands so you can access your phone calls, text messages, and more with a simple voice command on the included external microphone. Use your smartphone for third-party navigation apps like Google Maps or Waze.
The i407-WRA-JK “Works with Apple CarPlay” and lets iPhone users make and receive calls, access text messages, play music, and get directions in a way that allows them to stay focused on the road. Apple CarPlay is accessed through the capacitive touch screen or the mic button to activate Siri voice control and is compatible with iPhone 5 and later (iPhone must be connected via Apple lightning cable).
The i407-WRA-JK includes Android Auto and works with the Google Assistant (requires both a USB cable and Bluetooth® connection; requires an Android phone running 5.0 [Lollipop] or higher and the Android Auto app). To access the Google Assistant on Android Auto, say "OK Google" or select the mic button. Google Assistant in Android Auto allows users to play their favorite music, get driving directions to their destination, interact with smart home devices and reply to text messages – hands free.
Customize the screen exactly the way you want it by using drag-and-drop motions with your finger to add, remove, or move over 29 available widgets. You can prioritize your three home screens so you can quickly find the apps you want like Apple CarPlay, AndroidAuto, Camera, bluetooth functions, and more. Add a customizable wallpaper from your photos through a thumb drive.
Keep the factory controls you use the most, like voice-activated media player, bluetooth technology, and steering wheel controls with the included iDataLink Maestro Module. The iDatalink adapter can also integrate with the Jeep diagnostic port so select vehicle information like tire pressure, battery voltage, door status, engine codes, and user-customizable gauges can be monitored on the 7-inch touchscreen. The i407-WRA-JK also retains the factory backup camera with rear-guideline display.
While the i407-WRA-JK is mech-less (no CD/DVD player), you still have plenty of entertainment options that will make every drive exciting. A rear USB port allows you to listen to your music or video file via USB or connect by searching song title, artist info, or your smartphone to access your music album. The i407-WRA-JK has built-in HD Radio. SiriusXM Radio is also available with an optional SXV-300 tuner and paid subscription. And HDMI input is available should you choose to connect a CD or DVD player for all-digital audio and video connection through a single cable.
Retain the Alpine OEM Premium Amplified System with the KCX-F200INT premium audio interface. The KCX-F200INT is designed to retain the Alpine OEM Premium Amplifier when installing the i407-WRA-JK into the 2007–2018 Jeep Wrangler JK. The KCX-F200INT mimics the signals from your Alpine OEM Premium Amplifier to retain the integrity of your system while upgrading the technology on your dash.
Features
7-inch Anti-glare 2-DIN Touchscreen Display
Premium Quality OEM-fit Dash System
Plug-and-Play Installation
Shallow Mount Design (2-6/16" Depth)
Customizable User Interface (29 available widgets/apps)
Customizable Background/Wallpaper
PowerStack™ Capable with the KTA-450 and KTA-200M (sold separately)
Works with Apple CarPlay®
The Google Assistant is available on Android Auto™
Bluetooth® built-in for hands-free calling and audio streaming
SiriusXM-Ready® (SXV300 Connect Vehicle Tuner Kit sold separately; SiriusXM subscription required)
Built-in HD Radio®
HDMI Input
iDatalink® Maestro Connectivity (retains factory controls)
2 RCA Camera Inputs
Rearview Camera Distance Guide Display
MediaXpander®
Specifications
Width: 7" (178mm)
Height: 4" (100mm)
Depth: 2-6/16" (60mm)
Screen Size: 7"
Screen Resolution: WVGA 800 x 480px
PowerStack™ Capable: Yes
HDMI Input: 1
Camera Input: 2 RCA
USB Input: 1
4V Pre-Outs: 3
Built-in Amplifier: 16W RMS/50W peak x 4
EQ: 5-Band Graphic
DAC: 24 Bit
Subwoofer level control
High pass crossover/ low pass crossover
6-channel time correction
Audio Playback: AAC, FLAC, MP3, WMA, WAV
Photo Playback: JPG, PNG, BMP
Video Playback: AVI, MP4, MPG, MOV, WMV
CTA-2006 compliant
Alpine i407-WRA-JK Installation ManualAlpine i407-WRA-JK Manual Part-1Alpine i407-WRA-JK Manual Part-2
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
DDIN-Style Mechless Bluetooth Stereo with a Seven-Inch Touchscreen for Select 2018-2022 Jeep Wrangler-JL and Gladiator-JT Vehicles
This custom-designed dash solution gives you the latest smartphone and entertainment features, all on an intuitive, 7-inch touchscreen. The dash kit replaces your factory radio and includes Jeep-specific wiring adapters that plug directly into your factory setup for plug-and-play installation.
The i407-WRA-JL allows you to use features on your smartphone while keeping your hands on the wheel and eyes on the road. Apple CarPlay, Android Auto, and bluetooth hands-free calling and music streaming can be controlled with voice commands so you can access your phone calls, text messages, and more with a simple voice command on the included external microphone. Use your smartphone for third-party navigation apps like Google Maps or Waze.
The i407-WRA-JL “Works with Apple CarPlay” and lets iPhone users make and receive calls, access text messages, play music, and get directions in a way that allows them to stay focused on the road. Apple CarPlay is accessed through the capacitive touch screen or the mic button to activate Siri voice control and is compatible with iPhone 5 and later (iPhone must be connected via Apple lightning cable).
The i407-WRA-JL includes Android Auto and works with the Google Assistant (requires both a USB cable and Bluetooth® connection; requires an Android phone running 5.0 [Lollipop] or higher and the Android Auto app). To access the Google Assistant on Android Auto, say "OK Google" or select the mic button. Google Assistant in Android Auto allows users to play their favorite music, get driving directions to their destination, interact with smart home devices and reply to text messages – hands free.
Customize the screen exactly the way you want it by using drag-and-drop motions with your finger to add, remove, or move over 29 available widgets. You can prioritize your three home screens so you can quickly find the apps you want like Apple CarPlay, AndroidAuto, Camera, bluetooth functions, and more. Add a customizable wallpaper from your photos through a thumb drive.
Keep the factory controls you use the most, like voice-activated media player, bluetooth technology, and steering wheel controls with the included iDataLink Maestro Module. The iDatalink adapter can also integrate with the Jeep diagnostic port so select vehicle information like tire pressure, battery voltage, door status, engine codes, and user-customizable gauges can be monitored on the 7-inch touchscreen. The i407-WRA-JL also retains the factory backup camera with rear-guideline display.
While the i407-WRA-JL is mech-less (no CD/DVD player), you still have plenty of entertainment options that will make every drive exciting. A rear USB port allows you to listen to your music or video file via USB or connect by searching song title, artist info, or your smartphone to access your music album. The i407-WRA-JL has built-in HD Radio. SiriusXM Radio is also available with an optional SXV-300 tuner and paid subscription. And HDMI input is available should you choose to connect a CD or DVD player for all-digital audio and video connection through a single cable.
Retain the Alpine OEM Premium Amplified System with the KCX-F200INT premium audio interface. The KCX-F200INT is designed to retain the Alpine OEM Premium Amplifier when installing the i407-WRA-JL into the 2018–Up Jeep Wrangler and 2020–Up Jeep Gladiator. The KCX-F200INT mimics the signals from your Alpine OEM Premium Amplifier to retain the integrity of your system while upgrading the technology on your dash.
Features
7-inch Anti-glare 2-DIN Touchscreen Display
Premium Quality OEM-fit Dash System
Plug-and-Play Installation
Shallow Mount Design (2-6/16" Depth)
Customizable User Interface (29 available widgets/apps)
Customizable Background/Wallpaper
Works with Apple CarPlay®
The Google Assistant is available on Android Auto™
Bluetooth® built-in for hands-free calling and audio streaming
SiriusXM-Ready® (SXV300 Connect Vehicle Tuner Kit sold separately; SiriusXM subscription required)
Built-in HD Radio®
HDMI Input
iDatalink® Maestro Connectivity (retains factory controls)
2 RCA Camera Inputs
Rearview Camera Distance Guide Display
MediaXpander®
Retain the Alpine OEM Premium Amplified System with the KCX-F200INT Premium Audio System Interface (sold separately)
Specifications
Width: 7" (178mm)
Height: 4" (100mm)
Depth: 2-6/16" (60mm)
Screen Size: 7"
Screen Resolution: WVGA 800 x 480px
HDMI Input: 1
Camera Input: 2 RCA
USB Input: 1
4V Pre-Outs: 3
Built-in Amplifier: 16W RMS/50W peak x 4
EQ: 5-Band Graphic
DAC: 24 Bit
Subwoofer level control
High pass crossover/ low pass crossover
6-channel time correction
Audio Playback: AAC, FLAC, MP3, WMA, WAV
Photo Playback: JPG, PNG, BMP
Video Playback: AVI, MP4, MPG, MOV, WMV
CTA-2006 compliant
Alpine i407-WRA-JL Installation ManualAlpine i407-WRA-JL Manual Part-1Alpine i407-WRA-JL Manual Part-2
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
DDIN-Style Mechless Bluetooth Stereo with a Nine-Inch Touchscreen for Select 2011-2018 Jeep Wrangler-JK Vehicles
The display is housed in a Jeep-specific trim bezel that emulates the look and feel of the Jeep® dash. A Jeep-specific harness is included with the receiver to take out the guesswork during installation and make it a true plug-and-play solution. The weather-resistant display features a Jeep-specific opening screen and LED color scheme for a consistent design with factory Jeep® settings.
Experience incredible music detail with Hi-Res Audio Playback. High-precision music reproduction brings out the full potential of every song and makes every drive feel like an intimate recording studio session with your favorite artist. Access your favorite songs on popular Hi-Res streaming services like Apple Music, Tidal, Amazon Music HD, and more. The i509-WRA-JK plays Hi-Res music at it's intended spec of 96kHz/24Bit via a wired USB connection to a smartphone or wirelessly through Bluetooth connection. You can also purchase and download Hi-Res music files onto a USB drive from platforms like HDtracks and plug directly into the receiver for Hi-Res playback.
The i509-WRA-JK Works with Apple CarPlay wirelessly and lets iPhone users make and receive calls, access text messages, play music, and get directions in a way that allows them to stay focused on the road. Apple CarPlay® is accessed through the capacitive touchscreen or the mic button to activate Siri voice control and is compatible with iPhone 5 and later.
The i509-WRA-JK includes Android Auto and works with the Google Assistant (requires both a USB cable and Bluetooth connection; requires an Android phone running 5.0 [Lollipop] or higher and the Android Auto app). To access the Google Assistant on Android Auto, say “OK Google” or select the mic button. Google Assistant in Android Auto allows users to play their favorite music, get driving directions to their destination, interact with smart home devices, and reply to text messages – hands-free.
Enhance your Jeep driving experience with the high-resolution i509-WRA-JK. Features Apple CarPlay, Android AutoTM, and built-in bluetooth hands- free which allow access to music, messages, phone calls, and maps on a smartphone via either a wired USB connection or wirelessly. Get even more entertainment options with built-in HD Radio, Pandora Internet Radio (via iPhone or Android connection), and SiriusXM for even more choices in entertainment (tuner and subscription sold separately).
The i509-WRA-JK has on-board tuning features including a 13-band parametric EQ per channel, for continuous frequency control. The 6-channel time correction ensures that music is staged properly in the front and center of the vehicle. If more power is needed, additional amplifiers can be added using the three sets of true 4V preamp outputs with front, rear, and subwoofer control.
The i509-WRA-JK includes an iDatalink® Maestro module to allow select factory features like voice- activated media player, Bluetooth® technology, and steering wheel controls to be retained and vehicle information displayed on the screen. The iDatalink® can also integrate with the Jeep® diagnostic port so select vehicle information like tire pressure, battery voltage, door status, engine codes, and user-customizable gauges can be monitored on the display.
Whether commuting or off-roading, the i509-WRA-JK includes two camera inputs to add a front, side, or rearview camera (sold separately) and make blind spots a distant memory. The rearview camera includes a distance guide display that overlays guidelines onto the screen for ease when moving in reverse.
Take driving safety even further by connecting your i509-WRA-JK with the DVR-C320R Premium 1080P Front and Rear Dash Camera with built-in drive assist (sold separately). View real-time and recorded drives in high definition on your i509-WRA-JK, plus receive drive assist features that help get you to your destination.
Features
9-inch HD Anti-Glare Display with Jeep Specific Trim Bezel
Weather-Resistant (Rated IP53)
Plug-and-Play Installation
Jeep® Specific Tuning
Hi-Res Audio Playback (96kHz / 24bit)
Wireless Hi-Res Audio (requires LDAC compatible device)
Hi-Res music streaming with TIDAL (A TIDAL subscription is required and sold separately; Alpine Head Unit must be tethered to a mobile or smartphone hotspot; Data rates may apply)
Apple Carplay® (Wired & Wireless)
Android Auto™ (Wired & Wireless)
The Google Assistant is Available on Android Auto™
Bluetooth® Hands-Free
SiriusXM-Ready® (compatible with SXV300 (G2) add-on tuner, sold separately; SiriusXM subscription required)
Built-in HD Radio®
Retain Factory Media Controls and Vehicle Info with the included iDatalink Maestro module
Retain Factory Amplifier with KCX-F200INT (sold separately)
Alpine DVR-C320R Dash Cam Compatible (sold separately)
Media Xpander®
Specifications
Screen Resolution: WXGA 1280 x 720px (720p HD)
AUX Input: 1
HDMI Input: 1
HDMI Output: 1
Camera Inputs: 2 Direct (1 Rear input & 1 input that can be set as Front, Side, or Other)
Dash Cam Input: 1 (Works best with Alpine DVR-C320R - sold separately)
USB Inputs: 2 (1 data & 1 charge only port)
4V Pre-Outs: 3
Built-in Amplifier: 18W RMS x 4
EQ: 13-Band Parametric (per channel)
Time Correction: 6-Channel
DAC: 24 Bit
Crossover: High Pass / Low Pass
Audio Playback: AAC, APE, FLAC, MP3, WMA, WAV
Video Playback: AVC, FLV, H.263, H.264, MP4, MPEG-1, MPEG-2, MPEG-4, MKV, MOV
Alpine i509-WRA-JK Installation ManualAlpine i509-WRA-JK Tech SheetAlpine I509-WRA-JK Manual Part 1Alpine i509-WRA-JK Manual Part 2
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
DDIN-Style Mechless Bluetooth Stereo with a Nine-Inch Touchscreen for Select 2018-2022 Jeep Wrangler-JL and Gladiator-JT Vehicles
The display is housed in a Jeep-specific trim bezel that emulates the look and feel of the Jeep dash. A Jeep-specific harness is included with the receiver to take out the guesswork during installation and make it a true plug-and-play solution. The weather-resistant display features a Jeep-specific opening screen and LED color scheme for a consistent design with factory Jeep settings.
Experience incredible music detail with Hi-Res Audio Playback. High-precision music reproduction brings out the full potential of every song and makes every drive feel like an intimate recording studio session with your favorite artist. Access your favorite songs on popular Hi-Res streaming services like Apple Music, Tidal, Amazon Music HD, and more. The i509-WRA-JL plays Hi-Res music at it's intended spec of 96kHz/24Bit via a wired USB connection to a smartphone or wirelessly through Bluetooth® connection. You can also purchase and download Hi-Res music files onto a USB drive from platforms like HDtracks and plug directly into the receiver for Hi-Res playback.
The i509-WRA-JL Works with Apple CarPlay wirelessly and lets iPhone users make and receive calls, access text messages, play music, and get directions in a way that allows them to stay focused on the road. Apple CarPlay is accessed through the capacitive touchscreen or the mic button to activate Siri voice control and is compatible with iPhone 5 and later.
The i509-WRA-JL includes Android Auto wirelessly and works with the Google Assistant (requires both a USB cable and Bluetooth connection; requires an Android phone running 5.0 [Lollipop] or higher and the Android Auto app). To access the Google Assistant on Android Auto, say “OK Google” or select the mic button. Google Assistant in Android Auto allows users to play their favorite music, get driving directions to their destination, interact with smart home devices, and reply to text messages – hands-free.
Enhance your Jeep driving experience with the high-resolution i509-WRA-JL. Features Apple CarPlay, Android Auto, and built-in bluetooth hands-free which allow access to music, messages, phone calls, and maps on a smartphone via either a wired USB connection or wirelessly. Get even more entertainment options with built-in HD Radio, Pandora Internet Radio (via iPhone or Android connection), and SiriusXM for even more choices in entertainment (tuner and subscription sold separately).
The i509-WRA-JL has on-board tuning features including a 13-band parametric EQ per channel, for continuous frequency control. The 6-channel time correction ensures that music is staged properly in the front and center of the vehicle. If more power is needed, additional amplifiers can be added using the three sets of true 4V preamp outputs with front, rear, and subwoofer control.
The i509-WRA-JL includes an iDatalink Maestro module to allow select factory features like voice- activated media player, bluetooth technology, and steering wheel controls to be retained and vehicle information displayed on the screen. The iDatalink can also integrate with the Jeep diagnostic port so select vehicle information like tire pressure, battery voltage, door status, engine codes, and user-customizable gauges can be monitored on the display.
Whether commuting or off-roading, the i509-WRA-JL includes two camera inputs to add additional front, side, or rearview cameras (sold separately) and make blind spots a distant memory. The factory rearview camera and dynamic guidelines are retained.
Take driving safety even further by connecting your i509-WRA-JL with the DVR-C320R Premium 1080P Front and Rear Dash Camera with built-in drive assist (sold separately). View real-time and recorded drives in high definition on your i509-WRA-JL, plus receive drive assist features that help get you to your destination.
Features
9-inch HD Anti-Glare Display with Jeep Specific Trim Bezel
Weather-Resistant (Rated IP53)
Plug-and-Play Installation
Jeep® Specific Tuning
Hi-Res Audio Playback (96kHz / 24bit)
Wireless Hi-Res Audio (requires LDAC compatible device)
Hi-Res music streaming with TIDAL (A TIDAL subscription is required and sold separately; Alpine Head Unit must be tethered to a mobile or smartphone hotspot; Data rates may apply)
Apple Carplay® (Wired & Wireless)
Android Auto™ (Wired & Wireless)
The Google Assistant is Available on Android Auto™
Bluetooth® Hands-Free
SiriusXM-Ready® (compatible with SXV300 (G2) add-on tuner, sold separately; SiriusXM subscription required)
Built-in HD Radio®
Retain Factory Media Controls and Vehicle Info with the included iDatalink Maestro module
Retain Factory Amplifier with KCX-F200INT (sold separately)
Alpine DVR-C320R Dash Cam Compatible (sold separately)
Media Xpander®
Specifications
Screen Resolution: WXGA 1280 x 720px (720p HD)
AUX Input: 1
HDMI Input: 1
HDMI Output: 1
Camera Inputs: 2 Direct (1 Rear input & 1 input that can be set as Front, Side, or Other)
Dash Cam Input: 1 (Works best with Alpine DVR-C320R - sold separately)
USB Inputs: 2 (1 data & 1 charge only port)
4V Pre-Outs: 3
Built-in Amplifier: 18W RMS x 4
EQ: 13-Band Parametric (per channel)
Time Correction: 6-Channel
DAC: 24 Bit
Crossover: High Pass / Low Pass
Audio Playback: AAC, APE, FLAC, MP3, WMA, WAV
Video Playback: AVC, FLV, H.263, H.264, MP4, MPEG-1, MPEG-2, MPEG-4, MKV, MOV
Alpine i509-WRA-JL Installation ManualAlpine i509-WRA-JL Tech SheetAlpine i509-WRA-JL Manual Part 1Alpine i509-WRA-JL Manual Part 2
Alpine 7-Inch Mech-less In-Dash Receiver with Apple CarPlay, Android Auto and iDatalink Compatiblility
Customize the screen exactly the way you want it by using drag-and-drop motions with your finger to add, remove, or move over 29 available widgets. You can prioritize your three home screens so you can quickly find the apps you want like Apple CarPlay®, Android Auto™, Camera, Bluetooth® functions, and more. Add a customizable wallpaper from your photos through a thumb drive.
Measuring at only 2.4” deep, the iLX-407 can fit into vehicles that don’t have a lot of space behind the dashboard. The shallow chassis is optimized to mount either the KTA-450 4-channel or KTA-200M Mono Power Pack Amplifiers (sold separately). Alpine’s award-winning PowerStack™ design adds more power to your sound system while occupying the same depth as a traditional 2-DIN radio.
The iLX-407 “Works with Apple CarPlay” and lets iPhone users make and receive calls, access text messages, play music, and get directions in a way that allows them to stay focused on the road. Apple CarPlay is accessed through the capacitive touch screen or the mic button to activate Siri voice control and is compatible with iPhone 5 and later (iPhone must be connected via Apple lightning cable).
The iLX-407 includes Android Auto and works with the Google Assistant (requires both a USB cable and Bluetooth® connection; requires an Android™ phone running 5.0 [Lollipop] or higher and the Android Auto app). To access the Google Assistant on Android Auto, say "OK Google" or select the mic button. Google Assistant in Android Auto allows users to play their favorite music, get driving directions to their destination, interact with smart home devices and reply to text messages – hands-free.
While the iLX-407 is mech-less (no CD/DVD player), you still have plenty of entertainment options that will make every drive exciting. A rear USB port allows you to listen to your music or video file via USB or connect your smartphone to access your music by searching song title, artist info, or album. The iLX-407 has built-in HD-Radio and can also connect to Pandora internet radio through your iPhone or Android smartphone. SiriusXM radio is also available with an optional tuner and paid subscription. And HDMI input is available should you choose to connect a CD or DVD player for all-digital audio and video connection through a single cable.
Upgrading dash technology can often result in a loss of factory functionality, such as climate controls and vehicle function settings. The iLX-407 is compatible with the iDatalink Maestro Module (sold separately) some select OEM features are retained and vehicle information is displayed on the screen.
See your drive on a 7-inch, anti-glare screen with dual camera inputs that allow you to add a front or rear-view camera to your vehicle. The iLX-407 comes with a built-in rearview camera distance guide display that makes blindspots a distant memory.
Get the most from your music by using the 5-band graphic equalizer and 6-channel time correction tool to customize the sound the way you want it. If you’re looking for more power, add additional amplifiers using the three sets of true 4V preamp outputs with subwoofer level control on the third set.
Features
7-inch Anti-glare 2-DIN Touchscreen Display
Shallow Mount Design (2-6/16" Depth)
PowerStack™ Capable with the KTA-450 and KTA-200M (sold separately)
Customizable User Interface (29 available widgets/apps)
Customizable Wallpaper
Works with Apple CarPlay®
The Google Assistant is available on Android Auto™
Bluetooth® built-in for hands-free calling and audio streaming
SiriusXM-Ready® (SXV300 Connect Vehicle Tuner Kit sold separately; SiriusXM subscription required)
Built-in HD Radio®
HDMI Input
iDatalink® Maestro Connectivity
2 RCA Camera Inputs
Rearview Camera Distance Guide Display
MediaXpander®
Specifications
Width: 7" (178mm)
Height: 4" (100mm)
Depth: 2-6/16" (60mm)
Screen Size: 7"
Screen Resolution: WVGA 800 x 480px
PowerStack™ Capable: Yes
HDMI Input: 1
Camera Input: 2 RCA
USB Input: 1
4V Pre-Outs: 3
Built-in Amplifier: 16W RMS/50W peak x 4
EQ: 5-Band Graphic
DAC: 24 Bit
Subwoofer level control
High pass crossover/ low pass crossover
6-channel time correction
Audio Playback: AAC, FLAC, MP3, WMA, WAV
Photo Playback: JPG, PNG, BMP
Video Playback: AVI, MP4, MPG, MOV, WMV
CTA-2006 compliant
Alpine iLX-407 Manual Part 1Alpine iLX-407 Manual Part 2
6.95" DDIN-Size Mechless BlueTooth Head-Unit with Wireless Android-Auto, Apple-CarPlay and iDatalink Compatibility
The iLX-507 features Apple CarPlay, Android Auto, and built-in bluetooth hands-free which allow access to music, messages, phone calls, and maps on a smartphone via either a wired USB connection or wirelessly. Get even more entertainment options with built-in HD Radio, Pandora Internet Radio (via iPhone or Android connection), and SiriusXM for even more choices in entertainment (tuner and subscription sold separately).
Experience incredible music detail with Hi-Res audio playback. High-precision music reproduction brings out the full potential of every song and makes every drive feel like an intimate recording studio session with your favorite artist. Access your favorite songs on popular Hi-Res streaming services like Apple Music and more. The Alpine iLX-507 plays Hi-Res music at it's intended spec of 96kHz/24Bit via a wired USB connection to a smartphone or wirelessly through Bluetooth connection. You can also purchase and download Hi-Res music files onto a USB drive from platforms like HD-tracks for Hi-Res playback on the iLX-507.
The iLX-507 Works with Apple CarPlay and lets iPhone users make and receive calls, access text messages, play music, and get directions in a way that allows them to stay focused on the road. Apple CarPlay is accessed through the capacitive touchscreen or the mic button to activate Siri voice control and is compatible with iPhone 5 and later.
The iLX-507 includes Android Auto and works with the Google Assistant (requires both a USB cable and Bluetooth connection; requires an Android phone running 5.0 [Lollipop] or higher and the Android Auto app). To access the Google Assistant on Android Auto, say “OK Google” or select the mic button. Google Assistant in Android Auto allows users to play their favorite music, get driving directions to their destination, interact with smart home devices, and reply to text messages – hands-free.
Enhanced on-board tuning features now include a 13-band parametric EQ per channel, for continuous frequency control. The 6-channel time correction ensures that music is staged properly in the front and center of the vehicle. If more power is needed, additional amplifiers can be added using the three sets of true 4V preamp outputs with front, rear, and subwoofer control.
Experience music as the artist originally intended with the industry’s first full TIDAL integration. The iLX-507 allows you to access select TIDAL features directly on the head unit and receive a high-res streaming experience with the TIDAL catalog of over 90 million songs. Lossless audio and high-fidelity music options are also available for TIDAL HiFi and HiFi Plus members, for superior sound quality that elevates the music experience. A TIDAL subscription is required and sold separately. To access TIDAL on the Alpine head unit, the head unit must be tethered to a mobile or smartphone hotspot. Data rates may apply.
The iLX-507 is compatible with the iDatalink Maestro Module (sold separately) to retain and display vehicle information. Information such as steering wheel controls, tire pressure, engine codes, and HVAC control may be accessible from the iLX-507 (information will vary by vehicle).
The iLX-507 includes two camera inputs to add a front, side, or rearview camera (sold separately). The rearview camera includes a distance guide display that overlays guidelines onto the screen for ease when moving in reverse.
Take driving safety even further by connecting your iLX-507 with the DVR-C320R premium 1080P front and rear dash camera with built-in drive assist (sold separately). View real-time and recorded drives in high definition right on the screen, plus receive drive assist features that help get you to your destination safely.
The new RUX-H02 Alpine Halo subwoofer controller (sold separately) can be mounted to the dash for quick- access controls to the subwoofer and main volume through a wireless bluetooth connection.
Features
7-inch 720p HD Display
Standard Double-Din Fitment
Hi-Res Audio Playback (96kHz / 24bit)
Wireless Hi-Res Audio (requires LDAC compatible device)
Hi-Res Music Streaming with TIDAL (A TIDAL subscription is required and sold separately; Alpine Head Unit must be tethered to a mobile or smartphone hotspot; Data rates may apply)
Apple Carplay® (Wired & Wireless)
Android Auto™ (Wired & Wireless)
The Google Assistant is Available on Android Auto™
Bluetooth® Hands-Free
SiriusXM-Ready® (compatible with SXV300 (G2) add-on tuner, sold separately; SiriusXM subscription required)
Built-in HD Radio®
iDatalink® Maestro Compatible
Alpine DVR-C320E Dash Cam Compatible(sold separately)
Navigation Compatible with KTX-NS01 (sold separately)
Media Xpander®
Specifications
Screen Size: 7”
Screen Resolution: WXGA 1280 x 720px (720p HD)
AUX Input: 1
HDMI Input: 1
HDMI Output: 1
Camera Inputs: 2 Direct (1 Rear input & 1 input that can be set as Front, Side, or Other)
Dash Cam Input: 1 (Alpine DVR-C320R)
USB Inputs: 2 (1 data & 1 charge only port)
4V Pre-Outs: 3
Built-in Amplifier: 18W RMS x 4
EQ: 13-Band Parametric (per channel)
Time Correction: 6-Channel
DAC: 24 Bit
Crossover: High Pass / Low Pass
Audio Playback: AAC, APE, FLAC, MP3, WMA, WAV
Video Playback: AVC, FLV, H.263, H.264, MP4, MPEG-1, MPEG-2, MPEG-4, MKV, MOV
Alpine iLX-507 Tech SheetAlpine iLX-507 Manual Part 1Alpine iLX-507 Manual Part 2
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Halo-Style Mechless Bluetooth Stereo with a Nine-Inch Floating-Touchscreen
The Next-Gen Alpine Halo9 features Apple CarPlay, Android Auto, and built-in Bluetooth hands-free which allow access to music, messages, phone calls, and maps on a smartphone via either a wired USB connection or wirelessly. Get even more entertainment options with built-in HD Radio, Pandora Internet Radio (via iPhone or Android connection), and SiriusXM for even more choices in entertainment (tuner and subscription sold separately).
Experience incredible music detail with Hi-Res Audio Playback. High-precision music reproduction brings out the full potential of every song and makes every drive feel like an intimate recording studio session with your favorite artist. Access your favorite songs on popular Hi-Res streaming services like Apple Music, Tidal, Amazon Music, HD and more. The Alpine Halo9 plays Hi-Res music at it's intended spec of 96kHz/24Bit via a wired USB connection to a smartphone or wirelessly through Bluetooth connection. You can also purchase and download Hi-Res music files onto a USB drive from platforms like HD-Tracks and plugs directly into the Alpine Halo9 for Hi-Res playback.
The iLX-F509 Works with Apple CarPlay wirelessly and lets iPhone users make and receive calls, access text messages, play music, and get directions in a way that allows them to stay focused on the road. Apple CarPlay® is accessed through the capacitive touchscreen or the mic button to activate Siri voice control and is compatible with iPhone 5 and later.
The iLX-F509 includes Android Auto wirelessly and works with the Google Assistant (requires both a USB cable and Bluetooth connection; requires an Android phone running 5.0 [Lollipop] or higher and the Android Auto app). To access the Google Assistant on Android Auto, say “OK Google” or select the mic button. Google Assistant in Android Auto allows users to play their favorite music, get driving directions to their destination, interact with smart home devices, and reply to text messages – hands- free.
The Alpine Halo9 has on-board tuning features including a 13-band parametric EQ per channel, for continuous frequency control. The 6-channel time correction ensures that music is staged properly in the front and center of the vehicle. If more power is needed, additional amplifiers can be added using the three sets of true 4V preamp outputs with front, rear, and subwoofer control.
Experience music as the artist originally intended with the industry’s first full TIDAL integration. The iLX-F509 allows you to access select TIDAL features directly on the head unit and receive a high-res streaming experience with the TIDAL catalog of over 90 million songs. Lossless audio and high-fidelity music options are also available for TIDAL HiFi and HiFi Plus Members, for superior sound quality that elevates the music experience. A TIDAL subscription is required and sold separately. To access TIDAL on the Alpine Head Unit, the head unit must be tethered to a mobile or smartphone hotspot. Data rates may apply.
The screen is attached to an adjustable mount on a single-DIN chassis that’s designed to fit in most dash openings. Once the unit is installed, the screen has five vertical adjustments and two separate depths that lock into position for a sturdy installation. A new pressure tilt mechanism allows for more flexibility when positioning the screen for optimized viewing and access to dash and HVAC controls.
The Alpine Halo9 is compatible with the iDatalink Maestro Module (sold separately) to retain and display vehicle information on the extra large, 11-inch screen. Information such as steering wheel controls, tire pressure, and engine codes, and HVAC control may be accessible from the ILX-F509 (information will vary by vehicle).
The Alpine Halo9 includes two camera inputs to add a front, side, or rearview camera (sold separately). The rearview camera includes a distance guide display that overlays guidelines onto the screen for ease when moving in reverse.
Take driving safety even further by connecting your Alpine Halo9 with the DVR-C320R Premium 1080P Front and Rear Dash Camera with built-in drive assist (sold separately). View real-time and recorded drives in high definition on your Alpine Halo11, plus receive drive assist features that help get you to your destination.
The new RUX-H02 Alpine Halo Subwoofer Controller (sold separately) easily mounts to the Alpine Halo Display and allows quick-access controls to the subwoofer and main volume through a wireless Bluetooth® connection. The sleek, tapered lines and silver trim of the RUX-H02 compliments the Alpine Halo Display design.
Features
9-inch Adjustable Floating Style Display (Adjustable Height, Depth, and Viewing Angle)
Standard 1-DIN Chassis for Flexible Vehicle Application
Tapered Display Housing and Silver Trim for a Clean, Modern Fit & Finish
Hi-Res Audio Playback (96kHz / 24bit)
Wireless Hi-Res Audio (requires LDAC compatible device)
Hi-Res music streaming with TIDAL (A TIDAL subscription is required and sold separately; Alpine Head Unit must be tethered to a mobile or smartphone hotspot; Data rates may apply)
Apple Carplay® (Wired & Wireless)
Android Auto™ (Wired & Wireless)
The Google Assistant is Available on Android Auto™
Bluetooth® Hands-Free
SiriusXM-Ready® (compatible with SXV300 (G2) add-on tuner, sold separately; SiriusXM subscription required)
Built-in HD Radio®
iDatalink® Maestro Compatible
Alpine DVR-C320R Dash Cam Compatible (sold separately)
Navigation Compatible with KTX-NS01 (sold separately)
Media Xpander®
Specifications
Screen Resolution:
WXGA 1280 x 720px (720p HD)
AUX Input: 1
HDMI Input: 1
HDMI Output: 1
Camera Inputs: 2 Direct (1 Rear input & 1 input that can be set as Front, Side, or Other)
Dash Cam Input: 1 (Alpine DVR-C320R)
USB Inputs: 2 (1 data & 1 charge only port)
4V Pre-Outs: 3
Built-in Amplifier: 18W RMS x 4
EQ: 13-Band Parametric (per channel)
Time Correction: 6-Channel
DAC: 24 Bit
Crossover: High Pass / Low Pass
Audio Playback: AAC, APE, FLAC, MP3, WMA, WAV
Video Playback: AVC, FLV, H.263, H.264, MP4, MPEG-1, MPEG-2, MPEG-4, MKV, MOV
Alpine iLX-F509 Tech SheetAlpine iLX-F509 Manual Part 1Alpine iLX-F509 Manual Part 2
Halo-Style Mechless Bluetooth Stereo with an Eleven-Inch Floating-Touchscreen
The Next-Gen Alpine Halo11 features Apple CarPlay, Android Auto, and built-in Bluetooth hands-free which allow access to music, messages, phone calls, and maps on a smartphone via either a wired USB connection or wirelessly. Get even more entertainment options with built-in HD Radio, Pandora Internet Radio (via iPhone or Android connection), and SiriusXM for even more choices in entertainment (tuner and subscription sold separately).
Experience incredible music detail with Hi-Res Audio Playback. High-precision music reproduction brings out the full potential of every song and makes every drive feel like an intimate recording studio session with your favorite artist. Access your favorite songs on popular Hi-Res streaming services like Apple Music, Tidal, Amazon Music, HD and more. The Alpine Halo11 plays Hi-Res music at it's intended spec of 96kHz/24Bit via a wired USB connection to a smartphone or wirelessly through Bluetooth connection. You can also purchase and download Hi-Res music files onto a USB drive from platforms like HD-Tracks and plugs directly into the Alpine Halo11 for Hi-Res playback.
The iLX-F511 Works with Apple CarPlay wirelessly and lets iPhone users make and receive calls, access text messages, play music, and get directions in a way that allows them to stay focused on the road. Apple CarPlay® is accessed through the capacitive touchscreen or the mic button to activate Siri voice control and is compatible with iPhone 5 and later.
The iLX-F511 includes Android Auto wirelessly and works with the Google Assistant (requires both a USB cable and Bluetooth connection; requires an Android phone running 5.0 [Lollipop] or higher and the Android Auto app). To access the Google Assistant on Android Auto, say “OK Google” or select the mic button. Google Assistant in Android Auto allows users to play their favorite music, get driving directions to their destination, interact with smart home devices, and reply to text messages – hands- free.
The Alpine Halo11 has on-board tuning features including a 13-band parametric EQ per channel, for continuous frequency control. The 6-channel time correction ensures that music is staged properly in the front and center of the vehicle. If more power is needed, additional amplifiers can be added using the three sets of true 4V preamp outputs with front, rear, and subwoofer control.
Experience music as the artist originally intended with the industry’s first full TIDAL integration. The iLX-F511 allows you to access select TIDAL features directly on the head unit and receive a high-res streaming experience with the TIDAL catalog of over 90 million songs. Lossless audio and high-fidelity music options are also available for TIDAL HiFi and HiFi Plus Members, for superior sound quality that elevates the music experience. A TIDAL subscription is required and sold separately. To access TIDAL on the Alpine Head Unit, the head unit must be tethered to a mobile or smartphone hotspot. Data rates may apply.
The screen is attached to an adjustable mount on a single-DIN chassis that’s designed to fit in most dash openings. Once the unit is installed, the screen has five vertical adjustments and two separate depths that lock into position for a sturdy installation. A new pressure tilt mechanism allows for more flexibility when positioning the screen for optimized viewing and access to dash and HVAC controls.
The Alpine Halo11 is compatible with the iDatalink Maestro Module (sold separately) to retain and display vehicle information on the extra large, 11-inch screen. Information such as steering wheel controls, tire pressure, and engine codes, and HVAC control may be accessible from the ILX-F511 (information will vary by vehicle).
The Alpine Halo11 includes two camera inputs to add a front, side, or rearview camera (sold separately). The rearview camera includes a distance guide display that overlays guidelines onto the screen for ease when moving in reverse.
Take driving safety even further by connecting your Alpine Halo11 with the DVR-C320R Premium 1080P Front and Rear Dash Camera with built-in drive assist (sold separately). View real-time and recorded drives in high definition on your Alpine Halo11, plus receive drive assist features that help get you to your destination.
The new RUX-H02 Alpine Halo Subwoofer Controller (sold separately) easily mounts to the Alpine Halo Display and allows quick-access controls to the subwoofer and main volume through a wireless Bluetooth® connection. The sleek, tapered lines and silver trim of the RUX-H02 compliments the Alpine Halo Display design.
Features
11-inch Adjustable Floating Style Display (Adjustable Height, Depth, and Viewing Angle)
Standard 1-DIN Chassis for Flexible Vehicle Application
Tapered Display Housing and Silver Trim for a Clean, Modern Fit & Finish
Hi-Res Audio Playback (96kHz / 24bit)
Wireless Hi-Res Audio (requires LDAC compatible device)
Hi-Res music streaming with TIDAL (A TIDAL subscription is required and sold separately; Alpine Head Unit must be tethered to a mobile or smartphone hotspot; Data rates may apply)
Apple Carplay® (Wired & Wireless)
Android Auto™ (Wired & Wireless)
The Google Assistant is Available on Android Auto™
Bluetooth® Hands-Free
SiriusXM-Ready® (compatible with SXV300 (G2) add-on tuner, sold separately; SiriusXM subscription required)
Built-in HD Radio®
iDatalink® Maestro Compatible
Alpine DVR-C320R Dash Cam Compatible (sold separately)
Navigation Compatible with KTX-NS01 (sold separately)
Media Xpander®
Specifications
Screen Resolution: WXGA 1280 x 720px (720p HD)
AUX Input: 1
HDMI Input: 1
HDMI Output: 1
Camera Inputs: 2 Direct (1 Rear input & 1 input that can be set as Front, Side, or Other)
Dash Cam Input: 1 (Alpine DVR-C320R)
USB Inputs: 2 (1 data & 1 charge only port)
4V Pre-Outs: 3
Built-in Amplifier: 18W RMS x 4
EQ: 13-Band Parametric (per channel)
Time Correction: 6-Channel
DAC: 24 Bit
Crossover: High Pass / Low Pass
Audio Playback: AAC, APE, FLAC, MP3, WMA, WAV
Video Playback: AVC, FLV, H.263, H.264, MP4, MPEG-1, MPEG-2, MPEG-4, MKV, MOV
Alpine iLX-F511 Tech SheetAlpine iLX-F511 Manual Part 1Alpine iLX-F511 Manual Part 2
Alpine 7-Inch Mech-less In-Dash Receiver with Apple CarPlay and Android Auto
Control your music while keeping your eyes on the road with the iLX-W650. Use two-finger swipe motions anywhere on the 7-inch touchscreen to control volume up or down, skip forward or back, and pause by swiping up, down, left, or right.
The iLX-W650 “Works with Apple CarPlay” and lets iPhone users make and receive calls, access text messages, play music, and get directions in a way that allows them to stay focused on the road. Apple CarPlay is accessed through the capacitive touch screen or the mic button to activate Siri voice control and is compatible with iPhone 5 and later (iPhone must be connected via Apple lightning cable).
The iLX-W650 includes Android Auto and works with the Google Assistant (requires both a USB cable and Bluetooth® connection; requires an AndroidTM phone running 5.0 [Lollipop] or higher and the Android Auto app). To access the Google Assistant on Android Auto, say "OK Google" or select the mic button. Google Assistant in Android Auto allows users to play their favorite music, get driving directions to their destination, interact with smart home devices and reply to text messages – hands free.
Use your smartphone in your car while keeping your eyes on the road with Apple CarPlay, Android Auto, Waze, and built-in Bluetooth calling and audio streaming. The screen is designed to maximize the app icons on your smartphone, so you can find what you need fast. You can also use voice commands with the external microphone to activate your apps, make calls, send texts, and get directions – all handsfree.
The iLX-W650 is SiriusXM-Ready (SXV300 Connect Vehicle Tuner Kit sold separately; SiriusXM subscription required) and works with Pandora Music so there’s nothing stopping you from listening to your favorite music. You can also access your music, videos, and photos via USB input.
See your drive on a 7-inch, anti-glare screen with the dual camera inputs. Add a front or rear-view camera to your vehicle and control the angles from your screen. The iLX-W650 comes with a built-in rearview camera distance guide display that makes blind spots a distant memory.
Get the most from your music by using the 9-band parametric equalizer and 6-channel time correction tool to control the powerful, built-in amplifier. Control the bass in your music on the fly with the built-in subwoofer level control. If you’re looking for more power, add additional amplifiers using the three sets of true 4V preamp outputs with subwoofer level control on the third set.
Features
7-inch anti-glare WVGA display with a capacitive touchscreen
Two-finger swipe user interface (volume up, volume down, skip forward, skip back, and pause)
50mm shallow mount chassis design
Works with Apple CarPlay®
The Google Assistant is available on Android Auto™
Bluetooth® built-in for hands-free calling and audio streaming
SiriusXM-Ready® (SXV300 Connect Vehicle Tuner Kit sold separately; SiriusXM subscription required)
Works with Pandora® Music for iPhone and Android phones
Rear camera input (camera sold separately)
FLAC/MP3/WMA/WAV/AAC/ music playback via USB
AVI/MP4/MPG/MOV/WMV USB video playback
JPG/PNG/BMP USB photo viewer
MediaXpander®
Compatible with most factory steering wheel audio controls (adapter required)
2 camera input (Rear, Front, Side, Other) configurations
Rearview camera distance guide display
External microphone included
1.0m right angle USB cable included
Specifications
Built-in amplifier (16 watts RMS/45 peak x 4 channels)
3 PreOuts (True 4V)
Subwoofer level control on the third set
24 Bit DAC
3-Band Graphic EQ
9-band Parametric EQ
High pass crossover / low pass crossover
6-channel time correction
CTA-2006 compliant
Alpine iLX-W650 Manual Part 1Alpine iLX-W650 Manual Part 2
Alpine DDIN-Size CD/DVD Receiver with Built-In Navigation, Bluetooth, and a 6.5-Inch Touch Screen
You can rely on INE-W970HD’s navigation system for access to the most up-to-date maps of the United States and Canada. Choose 3D mapping for a realistic viewing option that allows you to see your map in vivid detail or get fast and easy directions from start to finish with turn-by-turn instructions delivered by Text-to-Speech (TTS) technology.
Listen to your music, answer calls, respond to texts, and get directions hands-free with Apple CarPlay and Android Auto. Connect your smartphone via a USB input (additional bluetooth connection required for Android Auto).
Keep your eyes on the road and hands on the wheel with the INE-W970HD’s built-in bluetooth hands-free calling and streaming. The external pre-tuned microphone reduces noise interference and feedback for the best sound quality possible, so you can stay focused on your drive.
Now there are even more ways to listen to your favorite music with the INE-W970HD’s built-in HD Radio and SiriusXM capable (tuner and subscription required). The INE-W970HD also comes with a built-in DVD and CD mechanism and included HDMI input for non-stop entertainment (HDMI cable sold separately).
The INE-W970HD “Works with Apple CarPlay” and lets iPhone users make and receive calls, access text messages, play music, and get directions in a way that allows them to stay focused on the road. Apple CarPlay is accessed through the WVGA touchscreen and is compatible with iPhone 5 and later (iPhone must be connected via USB input).The INE-W970HD includes Android Auto and works with the Google Assistant (requires both a USB cable and bluetooth connection; requires an Android phone running 5.0 [Lollipop] or higher and the Android Auto app). Google Assistant in Android Auto allows users to play their favorite music, get driving directions to their destination, interact with smart home devices and reply to text messages – hands-free.
Features
6.5” Touchscreen
Apple CarPlay® (requires USB connection)
Android Auto™ (requires USB connection)
Bluetooth® Audio with Hands-Free
Built-in Navigation
Built-in HD Radio™
DVD/CD Player
SiriusXM-Ready™ (tuner sold separately)
Smartphone Mirroring via HDMI
Quick Access Sound Key
Specifications
Dimensions (WxHxD): 7" x 3.9" x 5.6"
Screen Resolution: WVGA (800x480)
Aspect Ratio: 16:9
Built-in Amplifier: 45W x 4
RCA Preouts: 3 (4V)
AUX Inputs: 1
USB Inputs: 2
Camera Inputs: 2 (Front and Rear)
HDMI Inputs: 1
Component Video Outputs: 1
16W RMS CEA-2006
Alpine INE-W970HD Manual Part 1Alpine INE-W970HD Manual Part 2Alpine INE-W970HD Installation Manual
Alpine DDIN-Size Mechless Receiver with Built-in Navigation, Bluetooth and a 7-Inch Touch Screen
Use the INE-W987HD’s intuitive interface to swipe left, right, up, or down for navigation, entertainment sources, settings, or Bluetooth, respectively. While using the navigation feature, use pinch-to-zoom motions to zoom in on the view of your map for improved navigation.
Control your vehicle’s accessories conveniently from the INE-W987HD’s touchscreen. If you upgraded your vehicle with a winch, lights, air suspension, or a motorized tonneau cover, add a KAC-001 (sold separately) to connect and control up to eight relay-connected accessories.
You can rely on the INE-W987HD’s navigation system to give your preloaded HERE® map data of the United States and Canada, including Alaska, Hawaii, Puerto Rico, and the Virgin Islands.
The iLX-W650 “Works with Apple CarPlay” and lets iPhone users make and receive calls, access text messages, play music, and get directions in a way that allows them to stay focused on the road. Apple CarPlay is accessed through the capacitive touch screen or the mic button to activate Siri voice control and is compatible with iPhone 5 and later (iPhone must be connected via Apple lightning cable).
The iLX-W650 includes Android Auto and works with the Google Assistant (requires both a USB cable and Bluetooth® connection; requires an Android™ phone running 5.0 [Lollipop] or higher and the Android Auto app). To access the Google Assistant on Android Auto, say "OK Google" or select the mic button. Google Assistant in Android Auto allows users to play their favorite music, get driving directions to their destination, interact with smart home devices and reply to text messages – hands free.
Specifications
7" Touchscreen
Apple CarPlay® (requires USB connection)
Android Auto™ (requires USB connection)
Bluetooth® Audio with Hands-Free
Built-in Navigation
Built-In HD Radio™
SiriusXM-Ready™ (tuner sold separately)
iDatalink® Maestro™ compatible
Accessory Control Ready (KAC-001 Required)
Audio Playback (MP3, AAC, FLAC, WMA, WAV)
Video Playback (MPEG-1, MPEG-2, MPEG-4, WMV, AVI)
Alpine TuneIt App compatible
Alpine Connect App compatible
RCA Preouts: 3 (4V)
Built-in Amplifier: 50W x 4
CTA-2006 Power Rating: 18W x 4
1 HDMI input and 1 HDMI output
3 4-Volt Pre-amp Outputs
1 Camera Input
Alpine iNE-W987HD Manual Part 1Alpine iNE-W987HD Manual Part 2
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Alpine Add-On External Accessory Control Module
Does your vehicle have electrical controls such as a winch, lights, air suspension, automatic trunk, motorized tonneau cover, etc? No need to add switches that clutter your dash anymore. Now you can conveniently control these accessories directly from your Alpine Dash System* touchscreen!
The KAC-001 Accessory Controller turns your Alpine Dash System* into a hub to connect and control these accessories. This module includes eight individual outputs are available to control eight relay-connected 12V accessories, and the accessories can be configured as Pulsed, Latched or Momentary Outputs. Graphical icons can be assigned to each accessory for quick identification on the screen.
Specifications
(8) 250mA (-) accessory outputs
Pulsed, latched, or momentary output selection
Compatible with Alpine Head Units like the X209 series, i209 series, i207-WRA, iLX-107, iLX-207, iLX-F309, X110-SLV, X110-SRA, X109D, X108U, INE-W967HD
Alpine KAC-001 Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Alpine Multi-Camera Touchscreen Selector
Allows up to 3 cameras to be added to Alpine Head Units like the X209 series, i209-WRA, INE-W977HD and iLX-2077 3M direct camera input cable included
No Manual Available
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Alpine Universal Front and Rear Camera Selector
Front and Rear Camera with view mode selection by external control button (included)
2 Direct Inputs for front and rear cameras
1 RCA Input for other cameras (Exclusive with Direct Input Rear Camera)
Universal RCA Output for other display devices
Compatible with all Alpine direct and universal cameras (sold separately)
Easily control your single view camera or Alpine direct multi-view cameras with the KCX-C2600B Front and Rear Camera Switcher.
YOUR CAMERA CONTROL CENTERUse the two-button controller to choose the desired camera and toggle through the various viewing modes from the camera (when connected to a multi-view camera). The controller can be mounted on your dashboard for easy access.
EXPAND YOUR CAMERA OPTIONS ON YOUR AFTERMARKET OR FACTORY SCREENThe KCX-C2600B features two direct inputs for the front and rear cameras, and one RCA input for a non-Alpine rear camera. It also has one universal RCA output for other display devices such as a factory screen (third party factory camera interface required).
Alpine KCX-C2600B Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Alpine 75-Watt x 4-Channel Weather Resistant Power Pack Amplifier
The KTA-F30W is perfect for when you want to boost your sound system but don’t have the space for a large amplifier. It is compatible with an aftermarket or factory head unit and adds up to 4 times the power over the head unit's original built-in power.
The KTA-30FW features Alpine’s exclusive Dynamic Peak Power (DPP) technology which uses a new dynamic power supply design that delivers bursts of power during rigorous musical passages. When the amplifier senses that more power is required, the power supply quickly increases the internal gain level, effectively doubling the power for a significant increase in dynamic range at high music volumes.
Specifications
Alpine's Class D amplifier circuit w/ Dynamic Peak Power (DPP)
75W RMS x 4 @ 2Ω/4Ω, 14.4V, ≤ 1% THD+N
150W DPP x 4 @ 2Ω/4Ω, 14.4V, ≤ 1% THD+N
>85dB S/N (ref. 1W into 4Ω)
>0.1% THD (ref. 1W into 4Ω)
20-20kHz Frequency response (+/-1dB)
Weather resistant (IP66 rating) OEM-grade connector wire harness
Speaker/RCA inputs (selectable, High range=0.5-10V, Low range=0.2-4V)
Sound control: Crossovers – Off/HP/LP, Fc=50-400Hz @ -12dB/Oct. (variable); Input gain settings (variable); 2ch/4ch input (selectable)
Alpine KTA-30FW Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Alpine 300-Watt Mono Weather Resistant Power Pack Amplifier
Get big amp performance in a compact, resilient package. With Alpine’s exclusive technology, Dynamic Peak Power (D.P.P.), the KTA-30MW Weather Resistant Tough Power Pack is sure to deliver powerful bass output for subwoofers used in those open cab vehicles and toys. This small and efficient amplifier can be installed with an aftermarket or factory head unit while adding up to 600 watts of D.P.P. power. Its weather resistance makes the KTA-30MW a good choice for use in exposed installations like side-by-sides, boats, open-top vehicles, and motorcycles saddlebags.
The KTA-30MW is ready for your adventures. It is weather resistant, rated at IP66 for protection again dust ingress and high-pressure water spray. Its rugged chassis and high-quality waterproof connector can be used in installations where it will be exposed to the outdoor elements.
Specifications
Alpine's Class D amplifier circuit with Dynamic Peak Power (DPP)
300W RMS x 1@ 2Ω, 14.4V, ≤ 1% THD+N
600W DPP x 1@ 2Ω, 14.4V, ≤1% THD+N
>83dB S/N (ref. 1W into 4Ω)
0.1% THD (ref 1W into 4Ω)
20-400Hz Frequency response (+/-1dB)
Cast Aluminum chassis
Weather resistant (IP66 rating) OEM-grade connector wire harness
Speaker/RCA inputs (selectable, High range=0.5-10V, Low range=0.2-4V)
Sound control:LP filter – Off/LP, Fc=50-400Hz @ -24dB/Oct. (variable); Subsonic filter: Fc=5-40Hz (variable); Input gain settings (variable); Bass EQ: 0 to +12dB, Fc=50Hz (variable)
No Manual Available
Alpine 45-Watts x 4-Channel Power Pack Amplifier
45W RMS x 4 (4Ω/2Ω, 14.4V, ≤ 1% THD+N)
82dB S/N (ref: 1W into 4Ω)
Compact size (fits easily inside dashboard of most vehicles)
Works with select 2005+Alpine head units
The KTP-445A Power Pack amplifies power output on select 2005 and newer Alpine head units, resulting in up to a 150 percent power increase over the original power from the head unit's built-in amplifier.
COMPACTCompact size lets the KTP-445A fit where most amplifiers won’t. The KTP-445A comes equipped with direct plug-in connectors for select 2005 and newer Alpine head units and it fits behind the dash of most vehicles. It's small and compact at only 7-7/16” x 1-1/2” x 2-1/2”. Its size and flexible wires make the Power Pack an easy choice to save space.
BEST SIGNAL-TO-NOISE CONTENDER IN ITS CLASSIn order to ensure that Alpine sound quality is heard, we’ve created a platform that offers an unbelievably low noise floor, taking extra care to ensure a clean signal path, with no extraneous interference. The end result: The Power Pack boasts 1 Watt Signal-to-Noise Ratio of 82dB or better.
No Manual Avialable
Alpine 45-Watts x 4-Channel Power Pack Amplifier
45W RMS x 4 (4Ω/2Ω, 14.4V, ≤ 1% THD+N)
82dB S/N (ref: 1W into 4Ω)
Compact size (fits easily inside dashboard of most vehicles)
Works with any aftermarket and most OEM head units
Bridgeable
Gain, high-pass crossovers and input select
Add higher output and more dynamic response with this easy-to-install Universal Power Pack upgrade.
COMPACT
Compact size lets the KTP-445U fit where most amplifiers won’t. The KTP-445U comes equipped with the RCA and Auto-Sensing-Speaker level connectors and it fits behind the head unit in the dash of most vehicles. It's small and compact at only 7-7/16” x 1-1/2” x 2-1/2”. The size and flexible wires make the Power Pack an easy choice to save space.
INDEPENDENT FILTERS FOR REAR & FRONT INPUTS
High-Pass selectable switches for Front & Rear allow frequency filtering for a wide variety of speakers. Choose from full range to selectable range: 60Hz, 80Hz or 120Hz to fine-tune your crossover points.
CONFIGURABLE INPUTS
Need configurable options for Speaker-Level or RCA inputs to the Power Pack? On the bottom panel of the Power Pack there are selectable input options to accommodate Speaker-Level (0.5V-10V) or RCA (0.2V – 4V) inputs. Selectable 2 Channel and 4 Channel options give you the control to determine source inputs, and can eliminate the need for Y-adapters.
ACCESSIBLE FRONT & REAR GAINS
The Power Pack provides simple variable gain controls on the end panel for flexibility and a wide variety of system applications.
BEST SIGNAL-TO-NOISE CONTENDER IN ITS CLASS
In order to ensure that Alpine sound quality is heard at your ears, we’ve created a platform that offers an unbelievably low noise floor, taking extra care to ensure a clean signal path, with no extraneous interference. The end result: The Power Pack boasts 1 Watt Signal-to-Noise Ratio of 82dB or better.
TOTAL HARMONIC DISTORTION (THD+N) VS. FREQUENCY
Uniquely, the Power Pack distortion actually decreases at higher frequencies, resulting in a clean and clear signal where your ear is most sensitive to distortion. - < 0.03% THD+N @ 1W, 1% THD+N @ rated power.
Alpine KTP-445U Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Alpine 600-Watt Direct-Fit Weather-Resistant Powered Speaker-System with Built-in Subwoofer for 2011-2018 Jeep-Wrangler JK-Unlimited
A premium sound system for your Jeep Wrangler JK Unlimited is. The PSS-22WRA is a 1200-watt, 9-speaker sound system for 2011-2018 Jeep Wrangler JK Unlimited, providing excellent sound performance with the top on or off.
Caught with the top off in inclement weather? Not to worry. The PSS-22WRA is IP55 rated, so it can withstand rain and dust. The subwoofer uses rust resistant hardware and can handle water from off-roading adventures or a quick rinse down.
The PSS-22WRA’s subwoofer and amplifier don’t take up any usable space since they mount under the passenger’s seat for an easy bolt-in installation with simple wire routing. All necessary installation accessories are included.
The included T-harness gets the necessary audio signal connections from behind the Wrangler’s radio, making installation a breeze. The PSS-22WRA is compatible with any Alpine Restyle Jeep Wrangler dash system, the Jeep factory base radio, or other aftermarket radio.
Specifications
Direct fit weather resistant (IP55) speaker package for non-amplified 2011– 2018 4-door Jeep® Wrangler JK Unlimited
600W RMS System
SPV-65X-WRA 6.5-inch Convertible Component/Coax water resistant speaker kit
SBV-10-WRA 10-inch under passenger seat water resistant enclosed subwoofer
KTA-30FW – 75W X 4ch Water Resistant Amplifier
KTA-30MW – 300W Water Resistant Mono Amplifier
Plug & play sound system
Compatible with an Alpine Restyle In-Dash system, aftermarket head unit, or with the factory Jeep radio
Includes remote bass knob, vehicle specific harnesses and mounting brackets
Alpine PSS-22WRA Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Alpine 300-Watt Powered Speaker-System Upgrade with Built-in Subwoofer for Select 2018-2022 Jeep-Wrangler and Gladiator-JT Vehicles
Enjoy premium sound quality even with your JL’s top off! The PSS-23WRA is a 300 watt powered system upgrade featuring a powered subwoofer, amplifier, and tweeters for the 2018-Up Jeep Wrangler-Unlimited-JL and Gladiator-JT vehicles without the factory amplified system. The PSS-23WRA provides excellent sound performance whether the JL’s top is on or off.
The PWE-S8 subwoofer is engineered to load and disperse lower frequency sound into the passenger’s foot well area to maximize bass extension throughout the Jeep for great sound with the top on or off. Included with the subwoofer is a remote bass knob so you can control the bass level from the convenience of your dashboard. The Included 4-channel amplifier more than doubles the power over the factory system allowing you to enjoy your tunes with the top off.
The PWE-S8 Powered Subwoofer and KTP-445U Power Pack Amplifier don’t take up much since they mount under the passenger’s seat. The two products come pre-connected for easy, bolt-in installation with simple wire routing. Mounting brackets for the products are included as well.
The SPR-10TW Component Tweeters replace the factory tweeters on the top of the dash. These high performance tweeters add much needed high frequency response that is lacking in the factory Jeep JL systems. An EQ Ring improves the tweeter’s dispersion characteristics and delivers a wide, flat frequency response.
The included T-harness gets the necessary audio signal connections from behind the Wrangler’s radio, making installation a breeze. The PSS-23WRA is compatible with Alpine universal head units, the factory Jeep base radio, or other aftermarket radios.
Specifications
Direct fit for non-amplified 2018–Up 4-door Jeep Wrangler JL Unlimited
Direct fit for non-amplified 2019–Up 2-door Jeep Wrangler
Direct fit for non-amplified 2020–Up Jeep Gladiator JT
300 Watts RMS
Plug & Play Sound System
Compatible with aftermarket radio, or with factory Jeep Radio
Includes remote bass knob, vehicle specific harnesses and mounting bracket
Alpine PSS-23WRA Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
300-Watt Door-Speaker and Add-On Subwoofer Kit for Select 2018-UP Jeep Wrangler-JL and Gladiator-JT Vehicles
The PSS-24WRA is a 300-Watt Complete Sound System Upgrade Package for the four-door, non-amplified 2018–Up Jeep Wrangler-JL and non-amplified 2020–Up Jeep Gladiator-JT.
Go beyond your wildest expectations for sound with this complete sound upgrade package. The PSS-24WRA has 5-channels of powered sound that replaces your factory system. The package includes two sets of 6.5” weather-resistant mid-bas drivers and 1” weather-resist tweeters that replace the front and rear soundbar factory speakers, an 8” powered, compact subwoofer and a 4-channel power pack amplifier.
Specifications
Complete, five-channel powered sound system upgrade package
Compatible with four-door, non-amplified 2018 - Up Jeep® Wrangler and non-amplified 2020 – Up Jeep® Gladiator
Also compatible with two-door, non-scissor front seats in 2019 - Up Jeep® Wrangler
Includes Alpine’s SPV-65X-WRA, SPV-65-JLT, PWE-S8, and KTP-445U
180W, 4-channel Power Pack amplifier
120W, 8” powered subwoofer
(2x) 6.5” weather-resistant mid-bass drivers
(2x) 1” weather-resistant teteron dome tweeters with vehicle-specific connectors and crossovers
Vehicle specific front speaker pods with vehicle-specific connectors
Tweeter adapter plates allow for use of the original factory tweeter locations
SPV-65-JLT weather-resistant rear soundbar speaker system
Rugged, premium grills designed to emulate the factory look and appeal
Vehicle-specific connectors for plug-and-play speaker installation
Utilizes factory bolt locations
Durable stamped, steel frame speaker basket design
Includes template for mounting
Vehicle specific T-harness for installation with OEM radio into compatible 2018 – Up Jeep® Wrangler and 2020 – Up Jeep® Gladiator vehicles
Vehicle specific mounting brackets allow for the powered sub and amp to be secured under the passenger seat without drilling
What's in the Box:
KTP-445U Universal 4-Channel Power Amplifier
PWE-S8 8" Compact Powered Subwoofer
SPV-65X-WRA Front Component Speakers
SPV-65-JLT Rear Sound Bar Speakers
ALP-POD-JLT Front Speaker Pod
PSU-BKT-JL-R PWE Right Bracket JL
PSU-BKT-JL-L PWE Left Bracket JL
ALP-HRN-PSU300 PSU Power Harness
ALP-THRN-CH2 Chrysler T-Harness
CT6 6" Cable Ties
PHPSM412 Pan Head Phillips Screw M4x12
SLWM4 M4 Split Lock Washers
PHSCR832 8-32 Pan Head Phillips screws
PSS-WRA-IM Installation Manual
Specifications
Front (SPV-65X-WRA)
Power handling: 75 watts RMS (225 watts peak)
Frequency response: 65kHz – 22kHz
Nominal impedance: 4 ohms
Weather-resistant: IP55
Rear (SPV-65-JLT)
Power handling: 90 watts RMS (270 watts peak)
Frequency response: 50kHz – 22kHz
Nominal impedance: 4 ohms
Weather-resistant: IP55
Powered Subwoofer (PWE-S8)
120 watts RMS (240 watts peak)
Frequency response: 32 - 150Hz
Variable low-pass crossover (80-200 Hz)
Variable phase control (0-180 degrees)
preamp- and speaker-level inputs
Four Channel Power Pack Amplifier (KTP-445U)
45 watts RMS x 4 at 4 or 2 ohms
90 watts RMS x 2 bridged at 4 ohms
Selectable high-pass filters (60, 80, or 120 Hz at 12 dB/octave)
Switchable RCA or speaker-level inputs|
Dimensions:
27” L x 18.5” W x 19.5” H
40lbs
Direct fit for non-amplified 2018–Up 4-door Jeep Wrangler JL Unlimited
Direct fit for non-amplified 2019–Up 2-door Jeep Wrangler
Direct fit for non-amplified 2020–Up Jeep Gladiator JT
Alpine PSS-24WRA Installation Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Alpine 265W Powered Speaker System with Built-in Subwoofer
The PWD-X5’s subwoofer increases the sound system’s overall bass output and when the product is installed under the front seat, it brings the sound stage forward in the vehicle for the best bass and imaging experience. With 165-watts available to the subwoofer and 25-watts x 4 to the speakers, this all-in-one solution lets you create a truly enjoyable and customizable sound experience in just about any in-vehicle cabin space.
The PWD-X5 can also be used in non-traditional ways thanks to the Bluetooth® streaming capabilities. In situations where the car radio cannot be replaced, such as in a classic car, music can be streamed to the PWD-X5’s Bluetooth® connection then played through the car’s speakers while utilizing the PWD-X5’s bass and amplified power. If a head unit does not exist, such as on a motorcycle or a side-by-side, the music streamed from a smartphone to the PWD-X5’s Bluetooth® connection is used as the vehicle’s music source.
Specifications
25W x 4 +165W RMS
50W x 4 +240W Peak
4 RCA/Speaker Level Inputs
10-Band Parametric EQ
Digital Time Correction
Bluetooth Signal Inputs
Remote Commander Included
OS/Android and Desktop PC Tuning Software
13-13/16” x 9-11/16” x 3-3/16”
CES 2019 Innovations Award Winner
Alpine PWD-X5 Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Alpine Compact Powered 8" Subwoofer System
The compact PWE-S8 amplified subwoofer system lets you add deep, accurate bass to your sound system without taking up much space in your vehicle.
With the PWE-S8, the high-excursion 8-inch subwoofer and 120W gives strong bass output.
Specifications
RCA and speaker level inputs
120 Watt amp
Frequency Response: 25Hz-152Hz
Dimensions 13- 7/16" Wide x 9-1/16" Long x 2-13/16" Deep
Alpine PWE-S8 Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Alpine 8-Inch 120-Watt Compact Powered Subwoofer-System for 2011-UP 4-Door Jeep-Wrangler Unlimited
The small, but powerful PWE-S8-WRA consists of an 8-inch powered subwoofer with a built-in 120 watt amp, a bracket designed to bolt the subwoofer under the Wrangler driver’s seat, a remote bass knob and Wrangler-specific wiring harnesses for plug-and-play connection to your aftermarket or factory in-dash system. The powered subwoofer measures just 13.5” L x 9” W x 3” D, so you can add low, punchy, accurate bass to your Jeep without taking up usable storage space.
Subwoofer controls like Phase, Gain, LP Crossover and Remote Sub Level are found on the side panel, or mount the remote bass knob on your dash and use it to easily make bass level adjustments.
Specifications
120 Watts bass upgrade for 2011-UP 4-door Jeep Wrangler*
Under driver seat plug & play system for improved bass/mid-bass performance
Works with an Alpine or aftermarket head unit, or with the factory Jeep radio
Includes powered 8" subwoofer, remote bass knob, harnesses and mounting brackets
Not compatible with the factory equipped subwoofer system
Alpine PWE-S8-WRA Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
Alpine R-Series 400-Watt 4-Channel Amplifier
The R-Series amplifiers utilize Alpine’s advanced amplifier platform that takes the classic Class-D amplifier circuit and adds dual post-filter feedback loops for unmatched accuracy and control. This technology., originally launched in the premium X-Series amplifiers,, produces efficient power with enhanced dynamic range, qualifying the R-Series amplifiers to be Hi-Resolution Audio compliant.
This new technology minimizes audible imperfections like excessive phase shift and internal noise which can deteriorate sound quality. With an incredibly low phase shift of 46°, the R-A60F 4-channel amplifier delivers accurate imaging compared to well over 100° of phase shift by a competitive amplifier model. This superior phase curve ensures a proper sound stage among the singers and instruments.
Specifications
Alpine's Class D amplifier circuit
100W RMS x 4 (4Ω, 14.4V, ≤ 1% THD+N)
150W RMS x 4 (2Ω, 14.4V, ≤ 1% THD+N)
Bridged: 300W x 2 (4Ω, 14.4V, ≤ 1% THD+N)
S/N >85dB (ref. 1W into 4Ω) • THD+N≤ 0.03% (ref. 1W into 4Ω)
Frequency response =10Hz to 45kHz (+/- 3dB)
Damping Factor >500
Alpine R-A60F Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
R-Series Mono Class-D Full-Range Hi-Resolution Automotive-Grade Amplifier, 750-Watts x 1-Channel @ 2-Ohm or 500-Watts x 1-Channels @ 4-Ohm
The R-Series amplifiers utilize Alpine’s advanced amplifier platform that takes the classic Class-D amplifier circuit and adds dual post-filter feedback loops for unmatched accuracy and control. This technology., originally launched in the premium X-Series amplifiers,, produces efficient power with enhanced dynamic range, qualifying the R-Series amplifiers to be Hi-Resolution Audio compliant.
This new technology minimizes audible imperfections like excessive phase shift and internal noise which can deteriorate sound quality. With an incredibly low phase shift of 46°, the R-A60F 4-channel amplifier delivers accurate imaging compared to well over 100° of phase shift by a competitive amplifier model. This superior phase curve ensures a proper sound stage among the singers and instruments.
R-Series amplifiers have a built-in bandpass filter which lets you design an active speaker set-up without a separate processor. Improve the sound quality of component speakers by ditching your passive network. Avoid added phase shifts and power losses by individually powering each component and assigning your own frequency bands for the incredible sound you’re looking for.
The “R” line of speakers and subwoofers have a heritage of sound quality you can hear from a block away, and the newly added R-Series amplifiers are no exception. Aside from their best-in-class performance, these amplifiers are tuned to emphasize the characteristics of the R-Series speakers and subwoofers, giving you that legendary R-Series experience.
Specifications
Alpine’s Class D Amplifier Circuit
CTA-2006-B Power Rating: 500W RMS x 1 (4omh, 14.4V, < 1% THD+N); 750W RMS x 1 (2ohm, 14.4V, < 1% THD+N)
S/N ratio: > 85dB (ref. 1W into 4ohm)
THD+N < 0.02% (ref. 1W into 4ohm)
Frequency Response: 10Hz to 400 Hz (+/- 3dB)
Damping Factor: > 1500
Remote bass knob compatible (requires RUX-KNOB.2, sold separately)
Alpine R-A75M Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
R-Series 6-Channel Class-D Full-Range Hi-Resolution Automotive-Grade Amplifier, 75-Watts x 4-Channel @ 4-Ohm + 250-Watts x 2-Channels @ 2-Ohm
The R-A90S has a unique staggered power channel layout that has double the power on the last two channels. When looking to power a dual subwoofer configuration, the R-A90S’s 5th and 6th channels can be bridged to provide up to 500-watts at 4Ω. The R-A90S is matched in power and performance for the Dual 10-inch Alpine Halo S-Series Preloaded Subwoofer Enclosures with ProLink™.
Thanks to the unique staggered power channel layout, the R-A90S can host different levels of power on each channel, compared to traditional, multi-channel amplifiers. This allows the R-A90S to grow with you as it can effectively function as both a 3-way active amplifier and a 5-channel amplifier by delivering the power you need to the channels where you need it the most.
Hear the subtle details you’ve been missing in your music. The R-A90S maintains an extremely low phase shift throughout the music spectrum, which minimizes audible imperfections in your music and allows your music to stay faithful to the original recording. With a hi-resolution frequency response, the R- A90S can reproduce sound with incredible accuracy that stays true to the artist’s intention.
Using custom Alpine internal components originally launched in Alpine’s premium X-Series amplifiers, the R-A90S has dual post-filter feedback loops that correct signal distortion by making the output as close as possible to the original input for accurate sound reproduction.
For the best possible sound experience, use the built-in bandpass, high pass, or low pass filter to individually power each component in your sound system and assign frequency bands for accurate and reliable sound reproduction.
The R-A90S has input capability to add an optional RUX-KNOB.2 Remote Bass Control Knob (sold separately). The remote bass knob controls the bass in your subwoofer by adjusting the gain on your amplifier for quick bass adjustments when needed.
Alpine’s R-Series line of speakers, subwoofers, and amplifiers have a heritage of sound quality that can be heard from a block away. The R-A90S is tuned to emphasize the characteristics of the R- Series speakers and subwoofers for a legendary R-Series experience.
Features
6-Channel Amp with 5-Channel Power– With double the power on the last two channels, the R-A90S’s 5th and 6th channels can be bridged to provide up to 500-watts at 4Ω to a subwoofer system such as a pair of S-SB12Vs.
An Amp that Grows with You – When you’re ready to upgrade your Alpine system, use the R-A90S to amplify a 3-way active system with enough mid-bass power to create the up-front bass impact you crave.
Accurate Sound Reproduction – With incredibly low phase shift and hi-resolution frequency response, the R-A90S can reproduce sound with incredible accuracy that stays true to the artist’s intention.
Specifications
Dimensions: 12.75" x 10.75" x 2"
Hi-Resolution Audio Compliant (40k Hz)
Alpine’s Class D Amplifier Circuit
75W x 4 + 150W x 2 (4Ω, 14.4V, < 1% THD +N)
100W x 4 + 250W x 2 (2Ω, 14.4V, < 1% THD +N)
Bridged: 200W x 2 + 500W x 1 (4Ω, 14.4V, < 1% THD +N)
S/N > 85dB (ref. 1W into 4Ω)
THD + N < 0.03% (ref. 10W into 4Ω)
Frequency response: 10-45kHz (0/-3dB)
Damping factor > 500
CTA-2006
Alpine R-A90S Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
R-Series Dual Loaded 750-Watt 8-Inch 2-Ohm Subwoofer Enclosure for Select Jeep Wrangler-JL Gladiator-JT and other Pickup Vehicles
From towing to travel, you depend on your truck to get you where you want to go, but can you rely on getting the best performance from your sound system? Now you can add deep, accurate bass in your truck without compromising valuable cabin space with the new R2-DB8V-TRK dual 8” Alpine Halo R-Series preloaded truck subwoofer enclosure with the ProLink system and amplifier space.
The enclosures were intentionally crafted to fit most full-size trucks. Two 8” subwoofers are preloaded into a compact enclosure for under the seat installation and linked with a ProLink bracket that can adjust from 51”-40”. Centered on the enclosures is an integrated amplifier mount tray that’s optimized for Alpine’s S-A75M Mono Power Amplifier (sold separately). Rubber “feet” are adjustable in height to accommodate uneven truck floors.
These ported subwoofer enclosures feature the next-generation 8” R-Series subwoofers with a more powerful motor that creates deeper bass while Alpine’s High Amplitude Multi-Roll (HAMR) surround technology allows the subwoofer cone to efficiently move air while staying cool for incredible accuracy. A new ceramic composite dust cap has higher heat resistance that ensures non-stop bass performance.
Alpine’s new preloaded truck subwoofer enclosures join the Alpine Halo family with a premium, unmistakable design. The enclosure pulls design cues from the Alpine Halo display with unique, curved edges outlined by a silver trim and a front link bracket cover with an Alpine logo badge. The 5/8” MDF enclosures are covered in a premium black carpet that will elevate the look of your truck.
With two preloaded R2-W8D2 8” R- Series subwoofers that are tuned to 36Hz, R2-DB8V-TRK is optimized to perform with Alpine’s R-Series sound system line. Dual voice coils are wired in parallel for a 2Ω load that’s compatible with Alpine’s R-Series R2-A75M mono power amplifier.
Features
Groundbreaking Alpine Halo Design
ProLink™ Ported Enclosure
Expandable Width from 40" to 51"
Compact, Under-the-Seat Installation in Most Full-Size Trucks
Integrated Amplifier Tray (not applicable with all vehicles)
Rubber, Modular Stackable Foot Design Accommodates Uneven Truck Floor Areas
Ported Enclosures with High-Performance S-Series Subwoofers
Front Link Alpine Branded Bracket
Side-Firing Cabin Loading Ports
Premium Alpine Wire Terminals
CARB Compliant 5/8" MDF Construction
Premium Black Carpet
Specifications
Dimensions: 40"-51" (Adjustable Width) x 8-3/4” (H) x 13-3/4” (D)
750W RMS
Frequency Response: 32Hz-200Hz
Sensitivity: 84dB
Dual voice coils Wired in Parallel for a 2Ω Load (Compatible with R-A75M)
Vented Enclosure Tuning Frequency: 36Hz
Custom spring-loaded speaker terminals fit up to 12AWG speaker wire
Alpine R2-DB8V-TRK BrochureAlpine R2-DB8V-TRK Manual
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
R-Series 6.5-Inch 100-Watt Coaxial Speaker System
Using “trickle-down” technology, inspired design, and performance cues from the Ultra-High-Resolution AlpineF#1Status systems, the Next-Generation R-Series Speakers are Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This ultra-wide bandwidth brings music even closer to the original source while the classic R-Series design maintains the “loud and fun” performance quality that long-time fans have come to enjoy.
The new lightweight and rigid glass fiber-reinforced cone material allows for extreme movement and low distortion which results in an incredibly accurate and clean sound during playback.
The Next-Generation R-Series speakers utilize a ferrite magnet, different from the neodymium from previous generations, and a larger motor structure that contributes to more mid-bass during the playback. Despite the larger motor structure, the speakers still maintain the same depth for easy installation.
Continuing with the Next-Generation R-Series speaker line is Alpine-exclusive High Amplitude Multi-Roll (HAMR) surround technology that increased excursions while maintaining linearity for more accurate music reproduction.
The Next-Generation R-Series speaker line offers two pathways for performance: the “Pro” and “Standard” models. The R2-S65 is a standard coaxial speaker set that includes a 6.5” Mid-Range and 1” Coaxial Tweeter with a flexible in-line crossover network that simplifies installation.
Sold as a pair.
Features
Hi-Res Audio Certified
Glass Fiber Reinforced Cone
Ferrite Magnet Structure
High-Amplitude Multi-Roll (H.A.M.R.) Surround
2 Premium-Grade Crossover Networks
Magnesium Hard-Dome Tweeters with Swivel Mount Design and Threaded Removable Housing
Protective Open Mesh Grille Pair Included
Specifications
6.5” Mid-Bass with 1” Tweeter
Frequency Response: 65Hz -40kHz
Power Handling: 100W RMS / 300W Peak
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
R-Series PRO 6.5-Inch 100-Watt Component Door Speaker System with Aluminum Basket
Using “trickle-down” technology, inspired design, and performance cues from the Ultra-High-Resolution AlpineF#1Status systems, the Next-Generation R-Series Speakers are Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This ultra-wide bandwidth brings music even closer to the original source while the classic R-Series design maintains the “loud and fun” performance quality that long-time fans have come to enjoy.
The Next-Generation R-Series speakers now come in upgraded 'Pro' models in addition to the standard model lineup. The pro models utilize a highly rigid, die-cast aluminum basket that eliminates flexing and resonance during playback to ensure the highest quality sound performance.
The new lightweight and rigid glass fiber-reinforced cone material allows for extreme movement and low distortion which results in an incredibly accurate and clean sound during playback.
The Next-Generation R-Series speakers utilize a ferrite magnet, different from the neodymium from previous generations, and a larger motor structure that contributes to more mid-bass during the playback. Despite the larger motor structure, the speakers still maintain the same depth for easy installation.
Continuing with the Next-Generation R-Series speaker line is Alpine-exclusive High Amplitude Multi-Roll (HAMR) surround technology that increased excursions while maintaining linearity for more accurate music reproduction.
Magnesium, hard-dome tweeters contribute to the “loud and fun” R-series sound signature and feature a swivel- mount design for optimal listening positioning and threaded removable housing for flexible factory applications.
The Next-Generation R-Series speaker line offers two pathways for performance: the “Pro” and “Standard” models. The R2-S652 is a standard component speaker set that includes a 6.5” Mid-Range and 1” Tweeter with an outboard crossover network the professional installation.
Sold as a pair.
Features
Hi-Res Audio Certified
Glass Fiber Reinforced Cone
Die-Cast Aluminum Basket
Ferrite Magnet Structure
High-Amplitude Multi-Roll (H.A.M.R.) Surround
2 Premium-Grade Full Passive Performance Crossover Networks
Magnesium Hard-Dome Tweeters with Swivel Mount Design and Threaded Removable Housing
Protective Open Mesh Grille Pair Included
Specifications
6.5” Mid-Bass with 1” Tweeter
Frequency Response: 65Hz -40kHz
Power Handling: 100W RMS / 300W Peak
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
R-Series PRO 6.5-Inch 100-Watt Component Door Speaker System with Aluminum Basket
Using “trickle-down” technology, inspired design, and performance cues from the Ultra-High-Resolution AlpineF#1Status systems, the Next-Generation R-Series Speakers are Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This ultra-wide bandwidth brings music even closer to the original source while the classic R-Series design maintains the “loud and fun” performance quality that long-time fans have come to enjoy.
The Next-Generation R-Series speakers now come in upgraded 'Pro' models in addition to the standard model lineup. The pro models utilize a highly rigid, die-cast aluminum basket that eliminates flexing and resonance during playback to ensure the highest quality sound performance.
The new lightweight and rigid glass fiber-reinforced cone material allows for extreme movement and low distortion which results in an incredibly accurate and clean sound during playback.
The Next-Generation R-Series speakers utilize a ferrite magnet, different from the neodymium from previous generations, and a larger motor structure that contributes to more mid-bass during the playback. Despite the larger motor structure, the speakers still maintain the same depth for easy installation.
Continuing with the Next-Generation R-Series speaker line is Alpine-exclusive High Amplitude Multi-Roll (HAMR) surround technology that increased excursions while maintaining linearity for more accurate music reproduction.
Magnesium, hard-dome tweeters contribute to the “loud and fun” R-series sound signature and feature a swivel- mount design for optimal listening positioning and threaded removable housing for flexible factory applications.
The Next-Generation R-Series speaker line offers two pathways for performance: the “Pro” and “Standard” models. The R2-S65C is a standard component speaker set that includes a 6.5” Mid-Range and 1” Tweeter with a flexible in-line crossover network that simplifies installation.
Sold as a pair.
Features
Hi-Res Audio Certified
Glass Fiber Reinforced Cone
Die-Cast Aluminum Basket
Ferrite Magnet Structure
High-Amplitude Multi-Roll (H.A.M.R.) Surround
2 Premium-Grade Full Passive Performance Crossover Networks
Magnesium Hard-Dome Tweeters with Swivel Mount Design and Threaded Removable Housing
Protective Open Mesh Grille Pair Included
Specifications
6.5” Mid-Bass with 1” Tweeter
Frequency Response: 65Hz -40kHz
Power Handling: 100W RMS / 300W Peak
Pre-Order Today! - we will notify you when to pick-up or to schedule an installation!
R-Series 6.5-Inch 100-Watt Component Door Speaker System
Using “trickle-down” technology, inspired design, and performance cues from the Ultra-High-Resolution AlpineF#1Status systems, the Next-Generation R-Series Speakers are Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This ultra-wide bandwidth brings music even closer to the original source while the classic R-Series design maintains the “loud and fun” performance quality that long-time fans have come to enjoy.
The new lightweight and rigid glass fiber-reinforced cone material allows for extreme movement and low distortion which results in an incredibly accurate and clean sound during playback.
The Next-Generation R-Series speakers utilize a ferrite magnet, different from the neodymium from previous generations, and a larger motor structure that contributes to more mid-bass during the playback. Despite the larger motor structure, the speakers still maintain the same depth for easy installation.
Continuing with the Next-Generation R-Series speaker line is Alpine-exclusive High Amplitude Multi-Roll (HAMR) surround technology that increased excursions while maintaining linearity for more accurate music reproduction.
Magnesium, hard-dome tweeters contribute to the “loud and fun” R-series sound signature and feature a swivel- mount design for optimal listening positioning and threaded removable housing for flexible factory applications.
The Next-Generation R-Series speaker line offers two pathways for performance: the “Pro” and “Standard” models. The R2-S65C is a standard component speaker set that includes a 6.5” Mid-Range and 1” Tweeter with a flexible in-line crossover network that simplifies installation.
Sold as a pair.
Features
Hi-Res Audio Certified
Glass Fiber Reinforced Cone
Ferrite Magnet Structure
High-Amplitude Multi-Roll (H.A.M.R.) Surround
2 Premium-Grade In-Line Crossover Networks
Magnesium Hard-Dome Tweeters with Swivel Mount Design and Threaded Removable Housing
Protective Open Mesh Grille Pair Included
Specifications
6.5” Mid-Bass with 1” Tweeter
Frequency Response: 65Hz -40kHz
Power Handling: 100W RMS / 300W Peak
