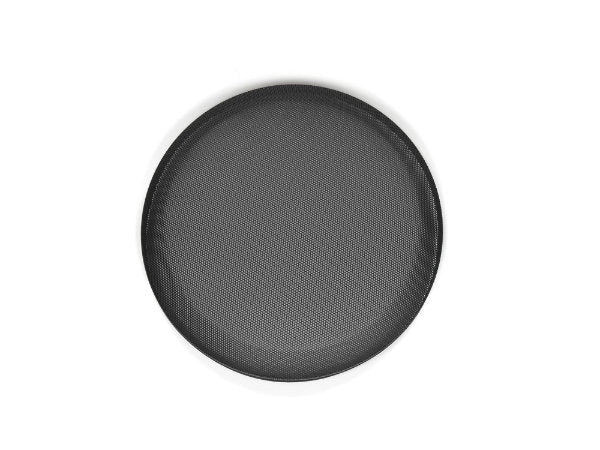

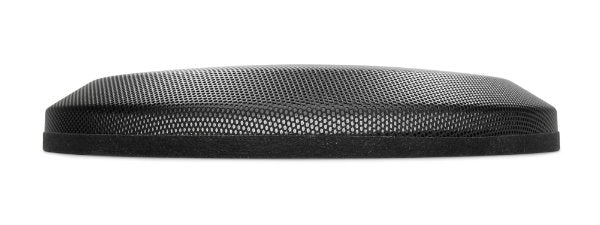

Ten-Inch Black-Mesh Grille for Select JL-Audio Subwoofer-Drivers
Provide attractive, sturdy protection to your Subwoofer with this fine steel mesh grille insert, powder-coated in a satin black finish. The insert is designed to fit snugly onto the woofer's grille receiver ring.
Fits: 10WX, 10WXv2, 10W0v2, 10W0v3, 10W1v2, 10W1v3, 10W3v3
Hideaway Style Weatherproof Bluetooth Receiver
The MBT-RXv2 wireless receiver is designed to easily add high-quality streaming audio capability to virtually any sound system.
Equipped with BLUETOOTH wireless technology and the Qualcomm® aptX™ HD audio codec, the MBT-RXv2 wireless receiver sends top-quality sound directly to any amplifier or source unit with line-level inputs via a pair of crystal-clear preamp outputs (4-volt RMS).
Housed in a sealed and water-resistant (IPX7-rated) chassis, this premium audio receiver is ideally suited for challenging outdoor applications, plus its tiny design can easily fit in almost any installation location. A simple procedure is all it takes to pair MBT-RXv2 to your device, with automatic reconnection afterward. All playback, including volume and media selection, is controlled by using your compatible streaming device from up to 35’ (11 meters) away.
The receiver includes +12-volt (1 amp) remote turn-on output for amplifier control.
Specifications
Bluetooth® Profile
A2DP (High-Quality, Stereo Audio)
Bluetooth® Core Specification
Version 5.0 with Qualcomm® aptX™-HD audio
Frequency Response
20 Hz - 20 kHz (±1dB)
Outputs
One Stereo Pair, Low-Level RCA Plugs
Output Voltage
4V RMS
S/N Ratio
100 dB (20 Hz - 20 kHz)
Input Operating Voltage
10 - 16 VDC
Current Draw
40 mA
Fuse Rating
2 A Mini ATC
Connection Range*
Up to 35' / 11 m
JL Audio MBT-RX Manual

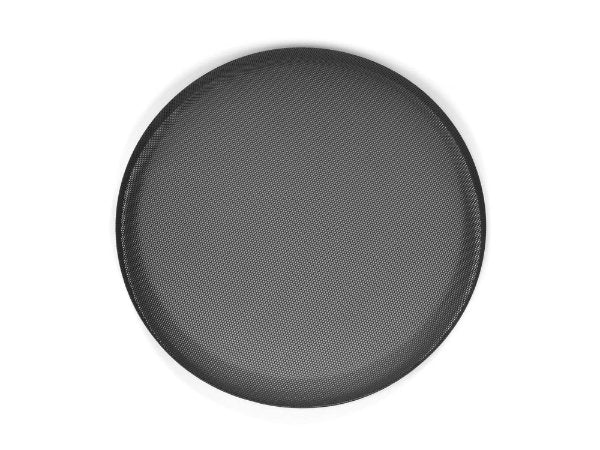

Twelve-Inch Black-Mesh Grille for Select JL-Audio Subwoofer-Drivers
Provide attractive, sturdy protection to your Subwoofer with this fine steel mesh grille insert, powder-coated in a satin black finish. The insert is designed to fit snugly onto the woofer's grille receiver ring.
Fits: 12WX, 12WXv2, 12W0v2, 12W0v3, 12W1v2, 12W1v3, 12W3v3
RBC-Series Remote Bass Control Knob for Select JL Amplifiers
The RBC-1 remotely controls the Bass Level of the following JL Audio amplifiers:
JD-Series: JD250/1, JD500/1, JD1000/1
JX-Series: JX250/1, JX250/1D, JX500/1, JX500/1D, JX1000/1D
HX-Series: HX300/1 in Low Pass Mode (Note: M-RBC-1 is also available)
MHX-Series: MHX300/1 in Low Pass Mode (Note: M-RBC-1 is also available)
MX-Series: MX300/1, MX500/1 in Low Pass Mode (Note: M-RBC-1 is also available)
RD-Series: RD500/1, RD1000/1, RD1500/1, RD900/5
When the RBC-1 is connected to the above amplifiers, it acts as an attenuator on the input gain of the amplifier and is used to adjust the overall level of the amplifier from the front of the vehicle.
The RBC-1 remotely controls the Bass Level of the following JL Audio subwoofer systems:
PowerWedge+: All ModelsMicroSub+: All Models
When the RBC-1 is connected to the above subwoofer systems, it acts as an attenuator on the input gain of the amplifier and is used to adjust the overall level of the amplifier from the front of the vehicle.
The RBC-1 remotely controls the Bass EQ boost feature of the following JL Audio amplifiers:
Slash v3 Series: 600/1v3, 1200/1v3
Slash v2 Series: 250/1v2, 500/1v2, 1000/1v2, 450/4v2
Original Slash Series: 500/1, 1000/1, 450/4, 500/5
G-Series: All Models
A-Series: All Models
e-Series: All Models (including marine versions)
M-Series: M1400, M1700, M2150, M2250, M4300, M4500, M6450, M6600
When the RBC-1 is connected to the above amplifiers, the on-board "Boost" control of the amplifier is defeated and the RBC-1 becomes the active controller.
The RBC-1 kit includes the rotary control with a black ABS knob, mounting hardware and one 18 ft. (5.5 m) cable.
JL Audio RBC-1 Manual

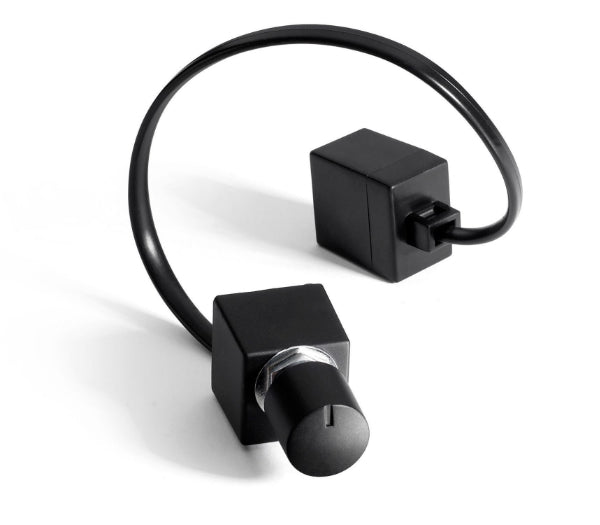

Remote Bass Control Knob for Select JL Audio Amplifiers
The HD-RLC remotely controls the Bass Level of the following JL Audio amplifiers:
HD-Series: All modelsXD-Series: All modelsMHD-Series: All modelsM-Series: All models
When the HD-RLC is connected to the above amplifiers, it acts as an attenuator on the input gain of the amplifier and is used to adjust the overall level of the amplifier from the front of the vehicle.
The HD-RLC kit includes the rotary control with a black ABS knob, mounting hardware and one 18 ft. (5.5 m) cable.
A satin-finish aluminum knob can be purchased separately.
JL Audio HD-RLC Manual
C1-Series 0.75-Inch Aluminum Dome 60-Watt Tweeters
C1 component tweeters are engineered to deliver refined performance, with excellent off-axis response and high-frequency extension. Utilizing true, edge driven 0.75-inch aluminum domes with silk suspensions, the C1-075ct component tweeters provide smooth, detailed reproduction of treble frequencies from 4 – 24 kHz.
The tweeters can be flush-mounted or surface-mounted with the supplied fixtures to fit a wide variety of installation needs. Inline, outboard, 12 dB / octave, high-pass filters are included to ensure smooth response and reliability. These fliters also are equipped with Advanced Tweeter Protection Circuitry to improve power handling and reliability.
When it comes to value, C1 is the real deal!
Sold as a pair. Surface-mount and flush-mount fixtures and grilles are included.
General Specifications
Continuous Power Handling (RMS)
50 W
Peak Music Power*
150 W
Recommended Amplifier Power (RMS)
20 - 50 W / Ch.
System Efficiency
91.0 dB @ 1 W / 1 m
System Nominal Impedance
6 Ω
System Frequency Response
4 kHz - 24 KHz ± 3 dB
JL Audio C1-075ct Manual
C1-Series 1-Inch Aluminum Dome 60-Watt Tweeters
C1 component tweeters are engineered to deliver refined performance, with excellent off-axis response and high-frequency extension. Utilizing true, edge driven 1.0-inch aluminum domes with silk suspensions, the C1-100ct component tweeters provide smooth, detailed reproduction of treble frequencies from 3.6 – 22 kHz.
The tweeters can be flush-mounted or surface-mounted with the supplied fixtures to fit a wide variety of installation needs. Inline, outboard, 12 dB / octave, high-pass filters are included to ensure smooth response and reliability. These fliters also are equipped with Advanced Tweeter Protection Circuitry to improve power handling and reliability.
When it comes to value, C1 is the real deal!
Sold as a pair. Surface-mount and flush-mount fixtures and grilles are included.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power*
150 W
Recommended Amplifier Power (RMS)
20 - 60 W / Ch.
System Efficiency
91.5 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
3.6 kHz - 22 KHz ± 3 dB
JL Audio C1-100ct Manual

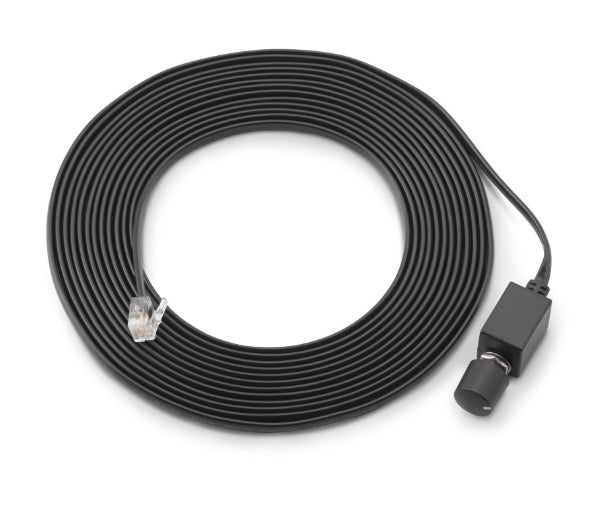

Water-Resistant Remote Bass-Knob for Select JL Audio Amplifiers
The MHD-RLC remotely controls the Bass Level of the following JL Audio amplifiers:
HD-Series: All models
XD-Series: All models
MHD-Series: All models
M-Series: All models
When the MHD-RLC is connected to the above amplifiers, it acts as an attenuator on the input gain of the amplifier and is used to adjust the overall level of the amplifier from the front of the vehicle.
The MHD-RLC kit includes the rotary control with a black ABS knob, mounting hardware and one 16.4 ft. (5 m) cable.
A satin-finish aluminum knob can be purchased separately.
C1-Series 4-Inch 35-Watt Coaxial Speaker System
C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles.
To facilitate fit, breakaway mounting tabs on the woofer frame allow the C1-400x to be installed in four-hole or two-hole mounting configurations.
C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-400x is a proprietary, stamped, steel 4-inch (100 mm) frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered spider at the top of the voice coil, to precisely control motion and prevent impact between the voice coil and the back plate. Tinsel leads are carefully routed and attached to the spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.
Equipped with a true, edge-driven, aluminum dome tweeter, C1 speakers stand further apart from others in its category with superior high-frequency clarity and definition. The tweeter’s design has inherently excellent off-axis response and high-frequency extension. It also benefits from the damping of a silk surround suspension and Ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit. A true, 2nd order high-pass filter is employed to further enhance smoothness and improve power handling.
When it comes to value, C1 is the real deal!
Sold as a pair. Grilles not available.
General Specifications
Continuous Power Handling (RMS)
35 W
Peak Music Power
105 W
Recommended Amplifier Power (RMS)
10 - 50 W / Ch.
System Efficiency
84.5 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
64 Hz - 24 KHz ± 3 dB
JL Audio C1-400x Manual
Fully Active 2-Channel Speaker Level to Line Output Converter
Designed by JL Audio Sr. Engineer Bruce Macmillan, the LoC-22 is an active two-channel processor engineered for applications requiring the attenuation of factory audio signals for use with aftermarket amplifiers and signal processors.
The LoC-22 utilizes a fully regulated, switching MOSFET power supply and an all-analog circuit design to deliver flat frequency response, at any signal level (3 Hz – 32 kHz, +0, -1dB), without altering bass response at high levels, like many passive line output converters do.
Engineered to combat induced cable noise, the LoC-22 features a differential-balanced input architecture making it compatible with virtually any analog audio signal. Capable of accepting up to 40V RMS per channel (equivalent to 400W @ 4 ohms), the LoC-22 easily handles the most powerful factory amplifier outputs. An onboard dual-range input load switch allows compatibility with most factory amplifiers that employ impedance sensing to mute channels.
Ideal for full-range or low-frequency applications, the LoC-22 is equipped with a pair of analog RCA-type, line-level output jacks (up to 8V RMS) to feed audio signals to your aftermarket system. Analog outputs are compatible with most types of aftermarket signal processors or amplifiers. Setting output levels is super simple and easy, thanks to a specially calibrated, onboard clipping indicator that works with test tones or music. The LoC-22 offers two automatic turn-on methods (DC-Offset Sensing or Signal Sensing) and provides a positive 12V turn-on output to activate aftermarket amplifiers or other downstream electronics.
The LoC-22 includes the following features:
Fully active, all analog circuit design by Bruce Macmillan, handles powerful factory amplifier outputs, up to 40 volts per channel
Differential-balanced input architecture offers noise rejection and compatibility with most analog outputs from OEM source units and amplifiers
Dual range input load switch (20 kΩ/Normal, 60 Ω/Low Z, thermally protected) for maximum compatibility with OEM amplifiers
One stereo pair of crystal-clear, line-level RCA output jacks (up to 8V RMS)
Automatic turn-on via DC-Offset or Signal-Sensing
A dedicated 12V remote turn-on output (maximum 100 mA) to activate aftermarket signal processors or amplifiers
Onboard LED clipping indicator makes output level setting quick & easy
Ultra-compact chassis design fits into just about any installation location!
Specifications
Power Supply Type
Switching, MOSFET PWM, Regulated
Operating Voltage
9 - 16 V DC
Standby Current Draw
<1.6 mA
Operating Current Draw
0.13 A at 13.8V
Frequency Response
3 Hz - 32 kHz (+0 dB, -1dB)
S/N Ratio @ 2V RMS
Gain at Min: 118 dB Gain at Max: 103 dB (20 kHz Bandwidth)
Remote Output Capacity
100 mA (maximum)
Recommended Fuse Value
1 A
Recommended Fuse Type
Fast-Acting, ATO/ATC or similar
Input Channels
Two
Input Type
Differential-Balanced
Input Voltage
40V RMS per channel (maximum)
Input Impedance
Normal: 20kΩLow Z: 60Ω
Turn-On Threshold
Signal-Sensing: 5 mV On/3.5 mV Off at1 kHz (Left Input) DC-Offset: 4.5 V
Output Channels
Two
Analog Output
Unbalanced, stereo RCA jacks
Max. Unclipped Output
8V RMS
Output Impedance
450 Ω
Gain Range
-27.3 dB (full CCW) to +3.2 dB (full CW)
THD+N
0.01% at 2V RMS (1kHz)
JL Audio LoC-22 Manual
Fuse-Holder Mounting Bracket for Under-The-Hood Locations in Select 2018-UP Jeep Wrangler-JL and Gladiator-JL Vehicles
The SBA-J-JL-FHB Fuse Holder Bracket is designed to securely mount up to two JL Audio XB-MFBU-ANL Master ANL Fuse Blocks (sold separately). Engineered and Built in USA, the SBA-J-JL-FHB Fuse Holder Bracket requires no drilled holes and installs using factory hardware.
The Hard Data: Attaches to the vehicle's firewall using factory hardware. Fits 2-Door or 4-Door models. Will not fit Rubicon 392 or models equipped with the EcoDiesel engine.
Will not fit any 2018 "JK" Jeep® models.
JL Audio SBA-J-JL-FHB Installation Manual
C1-Series 5.25-Inch 50-Watt Coaxial Speaker System
C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles.
C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-525x is a proprietary, stamped, steel 5.25-inch (130 mm) frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control motion and prevent impact between the voice coil and the back plate. Tinsel leads are carefully routed and attached to the spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.
Equipped with a true, edge-driven, aluminum dome tweeter, C1 speakers stand further apart from others in its category with superior high-frequency clarity and definition. The tweeter’s design has inherently excellent off-axis response and high-frequency extension. It also benefits from the damping of a silk surround suspension and Ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit. A true, 2nd order high-pass filter is employed to further enhance smoothness and improve power handling.
When it comes to value, C1 is the real deal!
Sold as a pair. Grilles not available.
General Specifications
Continuous Power Handling (RMS)
50 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
10 - 75 W / Ch.
System Efficiency
89.0 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
54 Hz - 24 KHz ± 3 dB
JL Audio C1-525x Manual
C1-Series 5x7-Inch 50-Watt Coaxial Speaker System
C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles.
To facilitate fit, spacer/adaptor rings are included, allowing the C1-570x to be installed in bottom-mount applications. The speaker baskets are also equipped with slotted mounting holes to fit into 6 x 8-inch factory speaker locations.
C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-570x is a proprietary, stamped, steel 5 x 7-inch (125 x 180 mm) oval frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control motion and prevent impact between the voice coil and the back plate. Tinsel leads are carefully routed and attached to the spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.
Equipped with a true, edge-driven, aluminum dome tweeter, C1 speakers stand further apart from others in its category with superior high-frequency clarity and definition. The tweeter’s design has inherently excellent off-axis response and high-frequency extension. It also benefits from the damping of a silk surround suspension and Ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit. A true, 2nd order high-pass filter is employed to further enhance smoothness and improve power handling.
When it comes to value, C1 is the real deal!
Sold as a pair. Grilles not available.
General Specifications
Continuous Power Handling (RMS)
50 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
10 - 75 W / Ch.
System Efficiency
90.5 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
40 Hz - 24 KHz ± 3 dB
JL Audio C1-570x Manual
C1-Series 6.5-Inch 50-Watt Coaxial Speaker System
C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles.
To facilitate fit, multi-application adaptor rings are included with the C1-650x allowing easy, drop-in installation in vehicles equipped with oversized 6.5-inch and 6.75-inch speaker openings. Without the ring, the speaker will fit into many "6-inch" speaker locations as well.
C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-650x is a proprietary, stamped, steel 6.50-inch (165 mm) frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control the voice coil's motion. Tinsel leads are carefully routed and attached to the spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.
Equipped with a true, edge-driven, aluminum dome tweeter, C1 speakers stand further apart from others in its category with superior high-frequency clarity and definition. The tweeter’s design has inherently excellent off-axis response and high-frequency extension. It also benefits from the damping of a silk surround suspension and Ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit. A true, 2nd order high-pass filter is employed to further enhance smoothness and improve power handling.
When it comes to value, C1 is the real deal!
Sold as a pair. Grilles not available.
General Specifications
Continuous Power Handling (RMS)
50 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
10 - 75 W / Ch.
System Efficiency
90.5 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
48 Hz - 24 KHz ± 3 dB
JL Audio C1-650x Manual
Fuse-Holder Mounting Bracket for Under-The-Hood Locations in Select 2007-2018 Jeep Wrangler-JK Vehicles
The SBA-J-JK-FHB Fuse Holder Bracket easily and securely mounts up to two JL Audio XB-MFBU-ANL Master Fuse Blocks (sold separately). Attaches to the firewall of your 2-door or 4-door Wrangler using factory hardware (no drilling required). Powder-coated steel, engineered and built in USA.
JL Audio SBA-J-JK-FHB Installation Manual
W0-Series 10-Inch 300-Watt Subwoofer Driver, 4-Ohm SVC
The JL Audio 10" W0v3 subwoofer driver is a rugged performer with excellent excursion capability and linearity while sporting a 2 inch diameter voice coil and JL's patented Elevated Frame Cooling design for enhanced power handling and reliability.
This 10 inch subwoofer is best used with an amplifier in the 75W - 300W range and is optimized to operate in a compact 0.65 cu. ft. (18.4 l) sealed enclosure, or a 1.125 cu. ft. (31.9 l) ported enclosure.
General Specifications
Continuous Power Handling (RMS)
300W RMS
Recommended Amplifier Power (RMS)
75W - 300W RMS
Nominal Impedance (Znom)
4Ω
JL Audio 10W0v3 Manual
Remote Bass Control Knob for Select JL Audio Amplifiers
The DRC-205 is a panel-mount, wired digital remote controller designed to connect to the JLid port of compatible JL Audio electronics.
Functions:
Dual-concentric rotary controls with stops
Push-button mode selector
Status indicator (RGB LED)
Common uses include:
Master Volume
Subwoofer Volume
Preset or Mode Selection
The specific audio functionality of the DRC-205 controller will be determined by the device it is connected to.
The DRC-205 is compatible with the following JL Audio products:
FiX® OEM Integration DSP: All modelsTwK® System Tuning DSP: All modelsVXi-Series Amplifiers: All models
JL Audio DRC-205 Manual
W0-Series 12-Inch 300-Watt Subwoofer Driver, 4-Ohm SVC
The 12" W0v3 subwoofer driver by JL Audio delivers excellent efficiency, excursion capability and linearity. This 12" subwoofer comes with a price point under $150.00 while supporting a beefy 2 in. diameter voice coil and JL's patented Elevated Frame Cooling design for enhanced power handling and reliability.
The JL Audio 12W0v3-4 sub is best used with amplifier power in the 75W - 300W range and is optimized to operate in a moderately sized 1.375 cu. ft. (38.9 l) sealed enclosure, or a 1.75 cu. ft. (49.6 l) ported enclosure.
General Specifications
Continuous Power Handling
300W RMS
Recommended Amplifier Power
75W - 300W RMS
Nominal Impedance
4Ω
JL Audio 12W0v3 Manual
C2-Series 3.5-Inch 25-Watt Coaxial Speaker System
The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and precision-engineered woofer designs.
The C2-350x system features 3.5-inch (90 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
Tweeters are coaxially mounted and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles.
Speaker grilles are not available for this speaker system.
Sonic character: Clean and Dynamic
Sold as a pair.
General Specifications
Continuous Power Handling (RMS)
25 W
Peak Music Power
75 W
Recommended Amplifier Power (RMS)
10 - 40 W / Ch.
System Efficiency
83 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
130 Hz - 22 KHz ± 3 dB
JL Audio C2-350x Manual
C2-Series 5.25-Inch 60-Watt Component Woofer, with Grille
The C2-525cw is a 5.25-inch (130 mm) component woofer capable of accurate reproduction between 63 Hz and 8 kHz. It features a mineral-filled polypropylene cone and stamped steel basket. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
A grille is included, consisting of a black grille tray and a black steel mesh grille.
Sonic character: Clean and Powerful
Sold individually.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power
150 W
Recommended Amplifier Power (RMS)
15 - 100 W / Ch.
System Efficiency
89.0 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
63 Hz - 8 KHz ± 3 dB
JL Audio C2-525 Manual
C2-Series 6-Inch 60-Watt Component Woofer, with Grille
The C2-600cw is a 6-inch (150 mm) component woofer capable of accurate reproduction between 59 Hz and 7 kHz. It features a mineral-filled polypropylene cone and stamped steel basket. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
A grille is included, consisting of a black grille tray and a black steel mesh grille.
Sonic character: Clean and Powerful
Sold individually.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power
150 W
Recommended Amplifier Power (RMS)
15 - 100 W / Ch.
System Efficiency
90.5 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
59 Hz - 7 KHz ± 3 dB
JL Audio C2-600 Manual
C2-Series 6.5-Inch 60-Watt Component Woofer with Grille
The C2-650cw is a 6.5-inch (165 mm) component woofer capable of accurate reproduction between 59 Hz and 6 kHz. It features a mineral-filled polypropylene cone and stamped steel basket. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
A grille is included, consisting of a black grille tray and a black steel mesh grille.
Sonic character: Clean and Powerful
Sold individually.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power
150 W
Recommended Amplifier Power (RMS)
15 - 100 W / Ch.
System Efficiency
91.0 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
59 Hz - 6 KHz ± 3 dB
JL Audio C2-650 Manual
C2-Series 0.75-Inch 60-Watt Silk Dome Tweeters
The silk dome tweeter is prized by audiophiles for delivering realistic, non-fatiguing, high-frequency performance.
The C2 component tweeters are built with 0.75-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs.
Inline 12 dB / octave high-pass filters with tweeter protectors are included with this kit. The C2-075ct is designed to operate above 4 kHz with a minimum high-pass slope of 12 dB / octave.
Sonic character: Clean and Powerful
Sold as a pair.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power*
150 W
Recommended Amplifier Power (RMS)
25 - 100 W / Ch.
System Efficiency
91.0 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
4 kHz - 22 KHz ± 3 dB
JL Audio C2-075ct Manual
C1-Series 6.5-Inch 50-Watt Component Speaker System
C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles.
To facilitate fit, multi-application adaptor rings are included for the C1-650 woofers, allowing easy, drop-in installation in vehicles equipped with oversized 6.5-inch and 6.75-inch speaker openings. Without the ring, the woofers will also fit into many "6-inch" speaker locations as well. Surface and flush mounts are included with C1 tweeters for maximum installation versatility.
C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-650 is a proprietary, stamped, steel 6.50-inch (165 mm) frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control the voice coil's motion. Tinsel leads are carefully routed and attached to the spiders to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.
Equipped with a true, edge-driven, aluminum dome tweeter, C1 speakers stand further apart from others in its category with superior high-frequency clarity and definition. The tweeter’s design has inherently excellent off-axis response and high-frequency extension. It also benefits from the damping of a silk surround suspension and Ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit. An in-line, outboard 2nd order high-pass filter, with Advanced Tweeter Protection Circuitry, is included to further enhance smoothness and improve power handling.
When it comes to value, C1 is the real deal!
Sold as a pair. Grilles not available.
General Specifications
Continuous Power Handling (RMS)
50 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
10 - 75 W / Ch.
System Efficiency
91.0 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
59 Hz - 22 KHz ± 3 dB
JL Audio C1-650 Manual
Hideaway Style Weatherproof Bluetooth Receiver with Panel Mount Controller
Engineered for marine, motorsports and outdoor applications, the MBT-CRXv3 wireless receiver is designed to deliver top-quality streaming audio to almost any sound system over land or water.
Housed in a compact and water-resistant chassis (IP67-rated), this premium audio receiver is well suited for small watercraft, motorcycles, golf carts and utility vehicles. Needing just a single hole for installation, the MBT-CRXv3 wireless receiver can function as a stand-alone, wireless audio source unit or as an add-on, wireless audio controller and receiver. Large backlit controls permit easy operation day or night, and an adaptor plate is included for front-mount applications or where rear access is limited.
Outfitted with BLUETOOTH wireless technology and the Qualcomm® aptX™ HD audio codec, MBT-CRXv3 delivers dynamic, CD-like sound from your compatible streaming device from up to 35’ (11 meters) away. Two sets of stereo preamp outputs (4-volt RMS) are on hand to feed two main audio zones plus a dedicated subwoofer output. Independent audio zone level controls with LED color indicators ensure effortless command of your sound system while your streaming device is tucked away.
The receiver includes +12-volt (1 amp) remote turn-on output for amplifier control.
Specifications
Bluetooth® Core Specification
Version 5.0 with Qualcomm® aptX™-HD audio
Current Draw
83 mA (at idle) / 108 mA (at full output)
Input Operating Voltage
8 - 16 VDC
Fuse Rating
2A Mini ATC
Output Voltage
4V RMS
Frequency Response
20 Hz - 20 kHz (±1dB)
Connection Range*
Up to 35 ft / 11 m
S/N Ratio
101 dB (20 Hz - 20 kHz)
Remote Turn-on Output Capacity
350 mA (max)
Bluetooth® Profile
A2DP (High-Quality, Stereo Audio)
Outputs
Two Stereo Pairs Per Zone, Plus One Mono Subwoofer (RCA Plugs)
JL Audio MBT-CRXv2 Manual
C1-Series 6x9-Inch 60-Watt Coaxial Speaker System
C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles.
To facilitate fit, spacer/adaptor rings are included allowing the C1-690x to be installed in bottom-mount applications.
C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-690x is a proprietary, stamped, steel 6 x 9-inch (150 x 230 mm) oval frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control motion and prevent impact between the voice coil and the back plate. Tinsel leads are carefully routed and attached to the spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.
Equipped with a true, edge-driven, aluminum dome tweeter, C1 speakers stand further apart from others in its category with superior high-frequency clarity and definition. The tweeter’s design has inherently excellent off-axis response and high-frequency extension. It also benefits from the damping of a silk surround suspension and Ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit. A true, 2nd order high-pass filter is employed to further enhance smoothness and improve power handling.
When it comes to value, C1 is the real deal!
Sold as a pair. Grilles not available.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
10 - 100 W / Ch.
System Efficiency
91.5 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
39 Hz - 22 KHz ± 3 dB
JL Audio C1-690x Manual
MediaMaster-Series Add-on Marine 2.3-Inch Remote Controller
The MMR-20-BE is a wired remote controller engineered to add auxiliary control functionality to MediaMaster® source units.
Built for marine and off-road applications, its weatherproof (IP67 rated) design places frequently used functions of your MediaMaster® source unit in a simple, intuitive design that’s easy-to-use. Its large, backlit controls and LED source indicators are easily identifiable, day or night, with brightness settings that can be adjusted using your MediaMaster® source unit.
A small footprint and simple, one-hole design means the MMR-20-BE can be installed in even the tightest of spaces. Depending on your system layout, you may add up to three MMR-20-BE remote controllers to a single MediaMaster® source unit. Each MMR-20 can be connected up to 75 ft. (22.8 m) away from its source unit.
MediaMaster® remote control capabilities include:
Power On/Off
Source Select
Volume Up/Down
Track Up/Down (USB & BT)
Track Fast-Forward/Fast-Rewind (USB)
Favorite Up/Down (Radio)
Play/Pause (USB & BT)
Mute/Unmute (Radio & Aux)
The MMR-20-BE is compatible with these MediaMaster® source units:
MM100s-BE
MM100s
MM50
Note: Requires MMC Connection Cables (sold separately). Connection cables are available in several lengths to fit your specific application. Y-splitters are also available to connect up to three remotes to a MediaMaster® source unit.
JL Audio MMR-20-BE Manual
C3-Series 1-Inch 75-Watt Silk Dome Tweeters
The silk dome tweeter is prized by audiophiles for delivering realistic, non-fatiguing, high-frequency performance.
The C3 component tweeters are built with 1-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. They can also be installed coaxially onto the C3 woofers using the fixtures included with the C3 Component / Coaxial Systems.
Inline 12 dB / octave high-pass filters with tweeter protectors are included with this kit. The C3-100ct is designed to operate above 4 kHz with a minimum high-pass slope of 12 dB / octave.
Sonic character: Clean and Powerful
Sold as a pair.
General Specifications
Continuous Power Handling (RMS)
75 W
Peak Music Power*
225 W
Recommended Amplifier Power (RMS)
25 - 150 W / Ch.
System Efficiency
90.0 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
4 kHz - 25 KHz ± 3 dB
JL Audio C3-650 Manual
C2-Series 4-Inch 35-Watt Coaxial Speaker System
The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and precision-engineered woofer designs.
The C2-400x system features 4-inch (100 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
Breakaway mounting tabs on the woofer frame allow the C2-400x to be installed in four-hole or two-hole configurations. Injection-Molded adaptor plates are also included to allow mounting of the C2-400x speakers into a 4 x 6 (100 x 150 mm) speaker location.
Tweeters are coaxially mounted and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles.
Speaker grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Dynamic
Sold as a pair.
General Specifications
Continuous Power Handling (RMS)
35 W
Peak Music Power
105 W
Recommended Amplifier Power (RMS)
10 - 50 W / Ch.
System Efficiency
84.5 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
71 Hz - 22 KHz ± 3 dB
JL Audio C2-400x Manual
C1-Series 6x9-Inch 60-Watt Component Speaker System
C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles.
To facilitate fit, spacer/adaptor rings are included allowing the C1-690 woofers to be installed in bottom-mount applications. Surface and flush mounts are included with C1 tweeters for maximum installation versatility.
C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-690 is a proprietary, stamped, steel 6 x 9-inch (150 x 230 mm) oval frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control motion and prevent impact between the voice coil and the back plate. Tinsel leads are carefully routed and attached to the spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.
Equipped with a true, edge-driven, 1-inch aluminum dome tweeter, the C1-690 stands further apart from others in its category with superior high-frequency clarity and definition. The tweeter’s design has inherently excellent off-axis response and high-frequency extension. It also benefits from the damping of a silk surround suspension and Ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit. An in-line, outboard 2nd order high-pass filter, with Advanced Tweeter Protection Circuitry, is included to further enhance smoothness and improve power handling.
When it comes to value, C1 is the real deal!
Sold as a pair. Grilles not available.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
10 - 100 W / Ch.
System Efficiency
89.0 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
39 Hz - 22 KHz ± 3 dB
JL Audio C1-690 Manual
C3-Series 6.5-Inch 75-Watt Component Woofer with Grille
There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.
The C3-650cw is a 6.5-inch (165 mm) component woofer with an oversized 1.2-inch (30.5 mm) voice coil, mineral-filled polypropylene cone and injection-molded polymer basket. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
A woofer grille is included, consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Powerful
Sold individually.
Includes Component Phase Plug and Tweeter Post (Tweeter sold separately).
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power
150 W
Recommended Amplifier Power (RMS)
15 - 100 W / Ch.
System Efficiency
91.0 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
59 Hz - 6 KHz ± 3 dB
Physical Specifications
Frame Outer Diameter (A)
6.50 in / 165 mm
Grille Tray Outer Diameter (B)
6.74 in / 171 mm
Motor Outer Diameter (C)
4.08 in / 104 mm
Frontal Coaxial Tweeter Protrusion* (D)
0.75 in / 19 mm
Frontal Grille Protrusion** (E)
1.03 in / 26 mm
Mounting Hole Diameter (F)
5.56 in / 141 mm
Mounting Depth (G)
2.55 in / 65 mm
JL Audio C3-650cw Manual
C3-Series 6-Inch 75-Watt Component Woofer with Grille
There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.
The new C3-600cw expands the C3 lineup with a direct-fit product for many Japanese vehicles that will not accept a full-size 6.5-inch speaker.
The C3-600 system features 6-inch (150 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cone and injection-molded polymer basket. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
A woofer grille is included, consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Powerful
Sold individually.
Includes Component Phase Plug and Tweeter Post (Tweeter sold separately).
General Specifications
Continuous Power Handling (RMS)
75 W
Recommended Amplifier Power (RMS)
25 - 150 W / Ch.
System Efficiency
89.5 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
50 Hz - 25 KHz ± 3 dB
Physical Specifications
Frame Outer Diameter (A)
6.21 in. / 157.7 mm
Grille Tray Outer Diameter (B)
6.46 in. / 164.1 mm
Motor Outer Diameter (C)
4.08 in. / 103.6 mm
Frontal Coaxial Tweeter Protrusion* (D)
0.81 in. / 20.6 mm
Frontal Grille Protrusion** (E)
1.03 in. / 26.2 mm
Mounting Hole Diameter (F)
5.00 in. / 127 mm
Mounting Depth (G)
2.49 in. / 63 mm
JL Audio C3-600cw Manual
C3-Series 5x7-Inch 75-Watt Component Woofer with Grille
There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.
Many people mistakenly believe that an oval speaker cannot perform as well as a round one, leading to many instances of 5.25-inch speakers being installed into 5 x 7-inch openings. JL Audio has put in the engineering time and effort to create fantastic-sounding speakers that drop into oval openings and deliver equivalent performance to our 6.5-inch (165 mm) round speaker systems... guaranteed. So, don't make the mistake of losing cone area and efficiency by stepping down to a smaller round speaker... these ovals are as impressive as our round format systems.
The C3-570cw is a 5 x 7 / 6 x 8-inch (125 x 180 mm) component woofer with oversized 1.2-inch (30.5 mm) voice coil, mineral-filled polypropylene cone and injection-molded polymer basket. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
Woofer grilles are not available for this product.
Sonic character: Clean and Powerful
Sold individually.
Includes Component Phase Plug and Tweeter Post (Tweeter sold separately).
General Specifications
Continuous Power Handling (RMS)
75 W
Recommended Amplifier Power (RMS)
25 - 150 W / Ch.
System Efficiency
90.0 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
48 Hz - 25 KHz ± 3 dB
Physical Specifications
Frame Outer Diameter* (A)
5.52 x 7.68 in / 140 x 195 mm
Grille Tray Outer Diameter (B)
N/A
Motor Outer Diameter (C)
4.08 in / 104 mm
Frontal Coaxial Tweeter Protrusion** (D)
0.78 in / 20 mm
Frontal Grille Protrusion (E)
N/A
Mounting Hole Diameter (F)
N/A
Mounting Depth (G)
2.52 in / 64 mm
JL Audio C3-570cw Manual
C3-Series 5.25-Inch 75-Watt Component Woofer with Grille
There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.
The C3-525cw is a 5.25-inch (130 mm) component woofer with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cones and injection-molded polymer basket. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
Woofer grilles are included, each consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Powerful
Sold individually.
Includes Component Phase Plug and Tweeter Post (Tweeter sold separately).
General Specifications
Continuous Power Handling (RMS)
75 W
Recommended Amplifier Power (RMS)
25 - 150 W / Ch.
System Efficiency
90.0 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
48 Hz - 25 KHz ± 3 dB
Physical Specifications
Frame Outer Diameter* (A)
5.80 in / 147 mm
Grille Tray Outer Diameter (B)
6.00 in / 152 mm
Motor Outer Diameter** (C)
3.38 in / 86 mm
Frontal Coaxial Tweeter Protrusion*** (D)
0.69 in / 18 mm
Frontal Grille Protrusion**** (E)
1.00 in / 25 mm
Mounting Hole Diameter (F)
4.56 in / 116 mm
Mounting Depth (G)
2.27 in / 58 mm
JL Audio C3-525cw Manual
BassWedge-Series 10-Inch 300-Watt Enclosed Subwoofer System, 4Ω Ported Enclosure
This powerful slot-ported BassWedge™ subwoofer system delivers awesome output at an unsurpassed value.
The slot-port runs along the bottom of the enclosure and fires on the same plane as the woofer to produce excellent extension and response smoothness. The port mouth is flared to minimize air-flow noises.
The ultra-versatile BassWedge™ shape has extended sides so that it can be placed with the woofer firing out or straight down, off the floor of the vehicle. The shape works equally well in forward or rear-firing installations. This gives you plenty of options for tweaking the loading of the enclosure into your vehicle.
This subwoofer system is shipped wired, loaded and ready to connect via a push-button terminal.
Finish: Dark gray, high-grade automotive carpet with "JL AUDIO" embroidery on the top edge and "Slot-Ported BassWedge™" embroidered on the port mouth.
Construction: MDF
Recommended amplifier power: 75 - 300WNominal Impedance: 4 Ω
General Specifications
Continuous Power Handling (RMS)
300 W
System Nominal Impedance
4 Ω
Enclosure Type
Slot-ported
Finish
Gray carpet
Grille Included
No
Physical Specifications
External Width (W)
15.51 in / 394 mm
External Height (H)
13.77 in / 350 mm
External Depth (D1)
17.38 in / 441 mm
External Top Surface Depth (D2)
14 in / 356 mm
Net Weight
29 lb / 13.15 kg
JL Audio CP110-W0v3 Brochure
W1-Series 8-Inch 150-Watt Subwoofer Driver, 4-Ohm SVC
The 8W1v3 is an outstanding choice when space is very tight and amplifier power is moderate. It features shallow mounting depth (3.86 in. / 98 mm) and a compact motor structure, allowing it to comfortably fit in a lot of spaces where a typical 8-inch driver will not. Lacking a pole vent, the rear of the motor structure can be placed directly against an enclosure boundary. Excellent excursion capability and linearity allow it to reproduce sub-bass with shocking extension and quality. Several of JL Audio's proprietary technologies enhance its performance and reliability.
The 8W1v3-4 is best used with amplifier power in the 50W - 150W range and is optimized to operate in a compact 0.350 cu. ft. (9.90 l) sealed enclosure.
General Specifications
Continuous Power Handling (RMS)
150 W
Recommended Amplifier Power (RMS)
50 - 150 W
Nominal Impedance (Znom)
4 Ω
JL Audio 8W1v3 Manual
C1-Series 6x9-Inch 60-Watt Coaxial Speaker System, 3-Way
C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles.
To facilitate fit, spacer adaptor rings are included allowing the C1-690tx to be installed in bottom-mount applications.
C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-690tx is a proprietary, stamped, steel 6 x 9-inch (150 x 230 mm) oval frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control motion and prevent impact between the voice coil and the back plate. Tinsel leads are carefully routed and attached to the spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.
Equipped with dual true, edge-driven, aluminum dome tweeters, the C1-690tx stands apart from others in its category with superior high-frequency clarity and separation. The design of each tweeter delivers inherently excellent off-axis response and high-frequency extension. Both high-frequency drivers also benefit from the damping of silk surround suspensions and Ferrofluid in the voice coil gaps, along with the superior strength of neodymium magnetics. A true, mixed order filter network is employed to further enhance smoothness and improve power handling.
When it comes to value, C1 is the real deal!
Sold as a pair. Grilles not available.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
10 - 100 W / Ch.
System Efficiency
90.5 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
36 Hz - 24 KHz ± 3 dB
JL Audio C1-690tx Manual
W1-Series 10-Inch 300-Watt Subwoofer Driver, 2-Ohm or 4-Ohm SVC
The JL Audio 10" W1v3 subwoofer driver is a very suitable option when space is limited with smaller amplifiers. It features a low mounting depth of 4.6 inches and a compact motor structure that allows it to comfortably fit in tight mounting locations. There is no pole vent on the rear of the subwoofer which allows the motor structure to be placed directly against an enclosure boundary. Excellent excursion capability and linearity allow the 10W1v3 to reproduce sub-bass with shocking extension and quality.
The JL Audio 10W1v3 is best used with an amplifier in the 75W - 300W RMS range and is optimized to operate in a compact 0.55 cu. ft. (15.57 l) sealed enclosure.
General Specifications
Continuous Power Handling
300W RMS
Recommended Amplifier Power
75W - 300W RMS
Nominal Impedance
2Ω/4Ω
JL Audio 10W1v3 Manual
JD-Series Monoblock Amplifier, 250-Watt @ 2-Ohm or 150-Watt @ 4-Ohm
Designed to produce a healthy 250 watts into 2 ohms (14.4V, 1% THD), the JD250/1 amplifier is a great solution for powering subwoofers in a cost-conscious system. JL Audio's proprietary NexD™ switching technology delivers large amounts of real-world power output with excellent efficiency and ultra-low distortion.
The JD250/1’s controls are located on the input panel. while the power and speaker connections can be found along the opposite end of its extruded aluminum chassis. Signal processing features include a 12 dB / octave low-pass filter, with continuously variable frequency selection from 50-500 Hz, and a variable bass boost EQ. Dual-range, differential-balanced inputs are also on-hand, capable of accepting line-level and speaker-level signals. Automatic turn-on capability (via signal sensing or DC-offset sensing) is standard, along with a set of preamp outputs so you can easily pass signals to another amplifier.
The JD250/1 is also equipped with an onboard LED-clipping indicator ring, surrounding the input sensitivity control. This useful feature lets you easily set your amplifier’s input sensitivity, quickly and accurately, without special equipment. With the addition of an RBC-1 remote level control (sold separately), you can control the subwoofer level from the driver’s seat.
General Specifications
@ 4 Ω
150 W RMS x 1
@ 3 Ω
200 W RMS x 1
@ 2 Ω
250 W RMS x 1
Frequency Response
7 Hz - 500 Hz (+0, -1dB)
S/N Ratio, referred to highest rated power
>80 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W
>60 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω
>1000 / 50 Hz
Damping Factor @ 2 Ω
>500 / 50 Hz
THD+N @ Rated Power
<1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs
Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
Min.Copper Power / Ground Wire Gauge
8 AWG wire
Fuse Rating
30 A (AFS, AGU or MaxiFuse™)
Filter Mode(s)
Low-Pass only
Filter Slope(s)
12 dB/octave
Filter Frequency Range
50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometer
No
Filter Defeat Function
No
Infrasonic Filter
No
Bass Boost EQ
Yes
Output Polarity Switch
No
Remote Subwoofer Level Control
Optional (RBC-1)
Remote Bass EQ Boost Control
No
Pass-Through Preamp Output
Buffered
JL Audio JD250/1 Manual
BassWedge-Series 12-Inch 300-Watt Enclosed Subwoofer System, 4Ω Ported Enclosure
This powerful slot-ported BassWedge™ subwoofer system delivers awesome output at an unsurpassed value.
The slot-port runs along the bottom of the enclosure and fires on the same plane as the woofer to produce excellent extension and response smoothness. The port mouth is flared to minimize air-flow noises.
The ultra-versatile BassWedge™ shape has extended sides so that it can be placed with the woofer firing out or straight down, off the floor of the vehicle. The shape works equally well in forward or rear-firing installations. This gives you plenty of options for tweaking the loading of the enclosure into your vehicle.
This subwoofer system is shipped wired, loaded and ready to connect via a push-button terminal.
Finish: Dark gray, high-grade automotive carpet with "JL AUDIO" embroidery on the top edge and "Slot-Ported BassWedge™" embroidered on the port mouth.
Construction: MDF
Recommended amplifier power: 75 - 300WNominal Impedance: 4 Ω
General Specifications
Continuous Power Handling (RMS)
300 W
System Nominal Impedance
4 Ω
Enclosure Type
Slot-ported
Finish
Gray carpet
Grille Included
No
Physical Specifications
External Width (W)
16.31 in / 414 mm
External Height (H)
15.18 in / 386 mm
External Depth (D1)
20.3 in / 516 mm
External Top Surface Depth (D2)
15.75 in / 400 mm
Net Weight
33.1 lb / 15 kg
JL Audio CP112-W0v3 Brochure
W1-Series 12-Inch 300-Watt Subwoofer Driver, 2-Ohm or 4-Ohm SVC
The 12" W1v3 automotive subwoofer driver by JL Audio is a lightweight 12-inch driver with excellent performance capabilities at a moderate 300-Watts. The design of the chassis allows an average mounting depth with no pole-vent on the back side of the magnet so the rear of the motor structure can be placed directly against an enclosure boundary. This 12" subwoofer can reproduce sub-bass with shocking extension and quality.
The JL Audio 12W1v3-2 and 12W1v3-4 subwoofers are best used with an amplifier in the 75W - 300W range and is optimized to operate in a compact 1.10 cu. ft. (31.5 l) sealed enclosure.
General Specifications
Continuous Power Handling
300W RMS
Recommended Amplifier Power
75W - 300W RMS
Nominal Impedance
2Ω
JL Audio 12W1v3 Manual
C2-Series 5.25-Inch 60-Watt Coaxial Speaker System
The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and precision-engineered woofer designs.
The C2-525x system features 5.25-inch (130 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
Tweeters are coaxially mounted and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles.
Speaker grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Dynamic
Sold as a pair.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
15 - 100 W / Ch.
System Efficiency
89.0 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
63 Hz - 22 KHz ± 3 dB
JL Audio C2-525x Manual
C2-Series 5x7-Inch 60-Watt Coaxial Speaker System
The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and precision-engineered woofer designs.
Many people mistakenly believe that an oval speaker cannot perform as well as a round one, leading to many instances of 5.25-inch speakers being installed into 5 x 7-inch openings. JL Audio has put in the engineering time and effort to create fantastic-sounding speakers that drop into oval openings and deliver equivalent performance to JL's 6.5-inch (165 mm) round speaker systems... guaranteed. So, don't make the mistake of losing cone area and efficiency by stepping down to a smaller round speaker... these ovals are as impressive as our round format systems.
The C2-570x system features 5 x 7 / 6 x 8-inch (125 x 180 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
Tweeters are coaxially mounted and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles.
Grilles are not available for this speaker system.
Sonic character: Clean and Dynamic
Sold as a pair.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
15 - 100 W / Ch.
System Efficiency
90.5 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
53 Hz - 22 KHz ± 3 dB
JL Audio C2-570x Manual
C2-Series 6-Inch 60-Watt Coaxial Speaker System
The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and precision-engineered woofer designs.
The C2-600x system features 6-inch (150 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
The 6-inch (150 mm) format is a direct fit in many vehicles. Multiple mounting patterns are provided on the woofer frame for easy installation into most vehicles that accept a 6.5-inch (165 mm) speaker.
Tweeters are coaxially mounted and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles.
Woofer grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Dynamic
Sold as a pair.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
15 - 100 W / Ch.
System Efficiency
90.5 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
59 Hz - 22 KHz ± 3 dB
JL Audio C2-600x Manual
C2-Series 6.5-Inch 60-Watt Coaxial Speaker System
The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and precision-engineered woofer designs.
The C2-650x system features 6.5-inch (165 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
The 6.5-inch (165 mm) format is a direct fit in many vehicles. Multiple mounting patterns are provided on the woofer frame for easy installation into most vehicles that accept a 6.5-inch (165 mm) speaker.
Tweeters are coaxially mounted and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles.
Woofer grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Dynamic
Sold as a pair.
General Specifications
Continuous Power Handling (RMS)
60 W
Peak Music Power
225 W
Recommended Amplifier Power (RMS)
15 - 100 W / Ch.
System Efficiency
91 dB @ 1 W / 1 m
System Nominal Impedance
4 Ω
System Frequency Response
59 Hz - 22 KHz ± 3 dB
JL Audio C2-650x Manual
