JL Audio

JD-Series Monoblock Amplifier, 250-Watt @ 2-Ohm or 150-Watt @ 4-Ohm Designed to produce a healthy 250 watts into 2 ohms (14.4V, 1% THD), the JD250/1 amplifier is a great solution for powering subwoofers in a cost-conscious system. JL Audio's proprietary NexD™ switching technology delivers large amounts of real-world power output with excellent efficiency and ultra-low distortion. The JD250/1’s controls are located on the input panel. while the power and speaker connections can be found along the opposite end of its extruded aluminum chassis. Signal processing features include a 12 dB / octave low-pass filter, with continuously variable frequency selection from 50-500 Hz, and a variable bass boost EQ. Dual-range, differential-balanced inputs are also on-hand, capable of accepting line-level and speaker-level signals. Automatic turn-on capability (via signal sensing or DC-offset sensing) is standard, along with a set of preamp outputs so you can easily pass signals to another amplifier.  The JD250/1 is also equipped with an onboard LED-clipping indicator ring, surrounding the input sensitivity control. This useful feature lets you easily set your amplifier’s input sensitivity, quickly and accurately, without special equipment. With the addition of an RBC-1 remote level control (sold separately), you can control the subwoofer level from the driver’s seat. General Specifications @ 4 Ω 150 W RMS x 1 @ 3 Ω 200 W RMS x 1 @ 2 Ω 250 W RMS x 1 Frequency Response 7 Hz - 500 Hz (+0, -1dB) S/N Ratio, referred to highest rated power >80 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W >60 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Damping Factor @ 4 Ω >1000 / 50 Hz Damping Factor @ 2 Ω >500 / 50 Hz THD+N @ Rated Power <1% @ 2 Ω per Ch. Input Voltage Range @ RCA Inputs Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High) Min.Copper Power / Ground Wire Gauge 8 AWG wire Fuse Rating 30 A (AFS, AGU or MaxiFuse™) Filter Mode(s) Low-Pass only Filter Slope(s) 12 dB/octave Filter Frequency Range 50 Hz - 500 Hz Detented, Calibrated Filter Freq. Potentiometer No Filter Defeat Function No Infrasonic Filter No Bass Boost EQ Yes Output Polarity Switch No Remote Subwoofer Level Control Optional (RBC-1) Remote Bass EQ Boost Control No Pass-Through Preamp Output Buffered JL Audio JD250/1 Manual

Read more less

JD-Series Monoblock Amplifier, 500-Watt @ 2-Ohm or 250-Watt @ 4-Ohm Designed to produce a whopping 500 watts into 2 ohms (14.4V, 1% THD), the JD500/1 amplifier is a great solution for powering subwoofers in a cost-conscious system. JL Audio's proprietary NexD™ switching technology delivers large amounts of real-world power output with excellent efficiency and ultra-low distortion. The JD500/1’s controls are located on the input panel. while the power and speaker connections can be found along the opposite end of its extruded aluminum chassis. Signal processing features include a 12 dB / octave low-pass filter, with continuously variable frequency selection from 50-500 Hz, and a variable bass boost EQ. Dual-range, differential-balanced inputs are also on-hand, capable of accepting line-level and speaker-level signals. Automatic turn-on capability (via signal sensing or DC-offset sensing) is standard, along with a set of preamp outputs so you can easily pass signals to another amplifier.  The JD500/1 is also equipped with an onboard LED-clipping indicator ring, surrounding the input sensitivity control. This useful feature lets you set your amplifier’s input sensitivity, quickly and accurately, without special equipment. With the addition of an RBC-1 remote level control (sold separately), you can control the subwoofer level from the driver’s seat. General Specifications @ 4 Ω 250 W RMS x 1 @ 3 Ω 350 W RMS x 1 @ 2 Ω 500 W RMS x 1 Frequency Response 7 Hz - 500 Hz (+0, -1dB) S/N Ratio, referred to highest rated power >80 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W >60 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Damping Factor @ 4 Ω >1000 / 50 Hz Damping Factor @ 2 Ω >500 / 50 Hz THD+N @ Rated Power <1% @ 2 Ω per Ch. Input Voltage Range @ RCA Inputs Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High) Min.Copper Power / Ground Wire Gauge 4 AWG wire Fuse Rating 50 A (AFS, AGU or MaxiFuse™) Filter Mode(s) Low-Pass only Filter Slope(s) 12 dB/octave Filter Frequency Range 50 Hz - 500 Hz Detented, Calibrated Filter Freq. Potentiometer No Filter Defeat Function No Infrasonic Filter No Bass Boost EQ Yes Output Polarity Switch No Remote Subwoofer Level Control Optional (RBC-1) Remote Bass EQ Boost Control No Pass-Through Preamp Output Buffered JL Audio JD500/1 Manual

Read more less

MX-Series 300-Watt Monoblock Marine-Grade Amplifier @ 2-Ohm or 160-Watt @ 4-Ohm Engineered specifically for powersports applications, the MX300/1 monoblock amplifier employs JL's high-speed NexD™ switching design to pack a serious audio punch, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles. With a robust 300W of clean power into a 2-ohm load (14.4V, 1% THD), use one to drive a subwoofer, or grab a pair to deliver stunning output to a subwoofer system. The MX300/1 also features an adjustable low-pass crossover, a bass boost EQ, variable infrasonic filter and output polarity switch. Its dual-range input section accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals. With the addition of an M-RBC-1 remote level control (sold separately), subwoofer output can be directly controlled from the driver’s seat. This amplifier features a black powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability. Specifications Frequency Response 20 Hz - 12 kHz (+0, -1dB) S/N Ratio, referred to highest rated power >85 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W >64 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Damping Factor @ 4 Ω >150 / 50 Hz Damping Factor @ 2 Ω >75 / 50 Hz THD+N @ Rated Power <1% @ 2 Ω Input Voltage Range @ RCA Inputs Switchable from 250 mV - 4 V RMS (Low) to 750 mV - 15 V RMS (High) Min.Copper Power / Ground Wire Gauge 8 AWG wire Fuse Rating 30 A (AFS, AGU or MaxiFuse™) @ 4 Ω 160 W RMS x 1 @ 3 Ω 220 W RMS x 1 @ 2 Ω 300 W RMS x 1 @ 1.5 Ω N/A JL Audio MX300/1 Manual

Read more less

RD-Series 500-Watt Monoblock Subwoofer Amplifier @ 2-Ohms Born to produce a whopping 500 watts into 2 ohms (14.4V, 1% THD), the RD500/1 amplifier was engineered to generate tons of pure subwoofer bliss from a sleek, ultra-compact chassis. The secret behind its power proficiency is JL's proprietary NexD™ switching technology, which delivers large amounts of power output with precise efficiency and ultra-low distortion. For your convenience, the RD500/1’s controls are located on top of the amplifier, beneath a protective cover, with all connections found along one side of its chassis. Signal processing features include a 12 dB / octave low-pass filter, with continuously variable frequency selection from 50-500 Hz, and a variable bass boost EQ. Dual-range, differential-balanced inputs are also on-hand, capable of accepting most input voltage levels. Automatic turn-on capability (via signal sensing or DC-offset sensing) is standard, along with a set of preamp outputs so you can easily pass signals to another amplifier. The RD500/1 is also equipped with an onboard LED-clipping indicator. This all-new, innovative feature lets you easily set your amplifier’s input sensitivity setting, quickly and accurately, with no special equipment needed. The RD500/1 features a durable, black powder-coated finish and a top-mounted, dual-color LED light strip that reports the overall status and condition. With the addition of an RBC-1 remote level control (sold separately), you can control the subwoofer output directly from the driver’s seat. Specifications Frequency Response 7 Hz - 500 Hz (+0, -1dB) S/N Ratio, referred to highest rated power >80 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W >60 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Damping Factor @ 4 Ω >1000 / 50 Hz Damping Factor @ 2 Ω >500 / 50 Hz THD+N @ Rated Power <1% @ 2 Ω per Ch. Input Voltage Range @ RCA Inputs Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High) Min.Copper Power / Ground Wire Gauge 4 AWG wire Fuse Rating 50 A (AFS, AGU or MaxiFuse™) @ 4 Ω 250 W RMS x 1 @ 3 Ω 350 W RMS x 1 @ 2 Ω 500 W RMS x 1 @ 1.5 Ω N/A JL Audio RD500/1 Manual

Read more less

JD-Series Monoblock Amplifier, 1000-Watt @ 2-Ohm or 600-Watt @ 4-Ohm Designed to produce a serious 1000 watts into 2 ohms (14.4V, 1% THD), the JD1000/1 amplifier is a great solution for powering subwoofers in a cost-conscious system. JL Audio's proprietary NexD™ switching technology delivers large amounts of real-world power output with excellent efficiency and ultra-low distortion. The JD1000/1’s controls are located on the input panel. while the power and speaker connections can be found along the opposite end of its extruded aluminum chassis. Signal processing features include a 12 dB / octave low-pass filter, with continuously variable frequency selection from 50-500 Hz, and a variable bass boost EQ. Dual-range, differential-balanced inputs are also on-hand, capable of accepting line-level and speaker-level signals. Automatic turn-on capability (via signal sensing or DC-offset sensing) is standard, along with a set of preamp outputs so you can easily pass signals to another amplifier.  The JD1000/1 is also equipped with an onboard LED-clipping indicator ring, surrounding the input sensitivity control. This useful feature lets you set your amplifier’s input sensitivity, quickly and accurately, without special equipment. With the addition of an RBC-1 remote level control (sold separately), you can control the subwoofer level from the driver’s seat. General Specifications @ 4 Ω 600 W RMS x 1 @ 3 Ω 800 W RMS x 1 @ 2 Ω 1000 W RMS x 1 Frequency Response 7 Hz - 500 Hz (+0, -1dB) S/N Ratio, referred to highest rated power >80 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W >50 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Damping Factor @ 4 Ω >1000 / 50 Hz Damping Factor @ 2 Ω >500 / 50 Hz THD+N @ Rated Power <1% @ 2 Ω per Ch. Input Voltage Range @ RCA Inputs Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High) Min.Copper Power / Ground Wire Gauge 4 AWG wire Fuse Rating 80 A (AFS, AGU or MaxiFuse™) Filter Mode(s) Low-Pass only Filter Slope(s) 12 dB/octave Filter Frequency Range 50 Hz - 500 Hz Detented, Calibrated Filter Freq. Potentiometer No Filter Defeat Function No Infrasonic Filter No Bass Boost EQ Yes Output Polarity Switch No Remote Subwoofer Level Control Optional (RBC-1) Remote Bass EQ Boost Control No Pass-Through Preamp Output Buffered JL Audio JD1000/1 Manual

Read more less

 MX-Series 500-Watt Monoblock Marine-Grade Amplifier @ 2-Ohm or 300W @ 4-Ohm Engineered specifically for powersports applications, the MX500/1 monoblock amplifier employs JL's high-speed NexD™ switching design to pack a serious audio punch, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles. With a robust 500W of clean power into a 2-ohm load (14.4V, 1% THD), use one to drive a subwoofer, or grab a pair to deliver stunning output to a subwoofer system. The MX500/1 also features an adjustable low-pass crossover, a bass boost EQ, variable infrasonic filter and output polarity switch. Its dual-range input section accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals. With the addition of an M-RBC-1 remote level control (sold separately), subwoofer output can be directly controlled from the driver’s seat. This amplifier features a black powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability. Specifications Frequency Response 20 Hz - 12 kHz (+0, -1dB) S/N Ratio, referred to highest rated power >97 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W >70 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Damping Factor @ 4 Ω >115 / 50 Hz Damping Factor @ 2 Ω >54 / 50 Hz THD+N @ Rated Power <1% @ 2 Ω Input Voltage Range @ RCA Inputs Switchable from 250 mV - 4 V RMS (Low) to 750 mV - 15 V RMS (High) Min.Copper Power / Ground Wire Gauge 4 AWG wire Fuse Rating 50 A (AFS, AGU or MaxiFuse™) @ 4 Ω 300 W RMS x 1 @ 3 Ω 400 W RMS x 1 @ 2 Ω 500 W RMS x 1 @ 1.5 Ω N/A JL Audio MX500/1 Manual

Read more less

XDM-Series Monoblock Class-D Marine-Grade Amplifier, 300-Watts @ 2-Ohm or 200-Watts @ 4-Ohm This little monoblock powerhouse employs JL-Audio's high-speed NexD switching design to achieve unprecedented efficiency and amazing power output for its size. It is small enough to fit in most tight space applications, including small boats, pickups, motorcycles and UTV’s (in a weather-tight compartment). Designed for car or boat installations, the XDM300/1 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades. Targeted specifically for subwoofer applications, the XDM300/1 includes a variable slope low-pass filter with continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), the amplifier's level can be adjusted directly from the driver's seat or captain’s chair. Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access. Specifications @ 4 Ω 200 W RMS x 1 @ 14.4V @ 3 Ω 250 W RMS x 1 @ 14.4V @ 2 Ω 300 W RMS x 1 @ 14.4V @ 1.5 Ω N/A @ 4 Ω 160 W RMS x 1 @ 12.5V @ 3 Ω 210 W RMS x 1 @ 12.5V @ 2 Ω 270 W RMS x 1 @ 12.5V @ 1.5 Ω N/A Frequency Response 10 Hz - 1 kHz (+0, -1dB) S/N Ratio, referred to highest rated power >100 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W >80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Damping Factor @ 4 Ω >120 / 50 Hz Damping Factor @ 2 Ω >60 / 50 Hz THD+N @ Rated Power <1% @ 2 Ω per Ch. Input Voltage Range @ RCA Inputs 200 mV - 4 V RMS Min.Copper Power / Ground Wire Gauge 8 AWG wire Fuse Rating 30 A (AFS, AGU or MaxiFuse™) Filter Mode(s) Low-Pass only Filter Slope(s) 12/24 dB/octave Filter Frequency Range 50 Hz - 500 Hz Detented, Calibrated Filter Freq. Potentiometer Yes Filter Defeat Function Yes Infrasonic Filter none Bass Boost EQ No Output Polarity Switch No Remote Subwoofer Level Control Optional HD-RLC or MHD-RLC (water-resistant) Remote Bass EQ Boost Control No Pass-Through Preamp Output Buffered Height (H) 2.05 in / 52 mm Width (W) 6.85 in / 174 mm Depth (D) 7.09 in / 180 mm Net Weight 3.8 lb / 1.72 kg JL Audio XDM300/1 Manual

Read more less

RD-Series 1000-Watt Monoblock Subwoofer Amplifier @ 2-Ohms Purpose-built for subwoofer applications, the RD1000/1 monoblock amplifier delivers 1000 watts of jaw-dropping bass output into 2 ohms (14.4V, 1% THD). At the heart of this ultra-sleek and compact power plant is JL Audio’s exclusive NexD™ Class D technology, permitting high power output with exceptional efficiency and low distortion. For your convenience, all of the RD1000/1’s controls are located on top of the amplifier, beneath a protective cover, with all connections found along one side of its chassis. Signal processing features include a 12 dB / octave low-pass filter, with continuously variable frequency selection from 50-500 Hz, and a variable bass boost EQ. Dual-range, differential-balance inputs are also onboard, capable of accepting most input voltage levels. Automatic turn-on capability (via signal sensing or DC-offset sensing) is standard, along with a set of preamp outputs so you can easily pass signals to another amplifier. The RD1000/1 is also equipped with an onboard LED-clipping indicator. This all-new, innovative feature lets you easily set your amplifier’s input sensitivity setting, quickly and accurately, with no special equipment needed. The RD1000/1 features a durable, black powder-coated finish and a top-mounted, dual-color LED light strip that reports the overall status and condition. Control of the subwoofer level from the driver’s seat is easily accomplished with the addition of the optional RBC-1 remote level control (sold separately). Specifications Frequency Response 7 Hz - 500 Hz (+0, -1dB) S/N Ratio, referred to highest rated power >80 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W >50 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Damping Factor @ 4 Ω >1000 / 50 Hz Damping Factor @ 2 Ω >500 / 50 Hz THD+N @ Rated Power <1% @ 2 Ω per Ch. Input Voltage Range @ RCA Inputs Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High) Min.Copper Power / Ground Wire Gauge 4 AWG wire Fuse Rating 80 A (AFS, AGU or MaxiFuse™) @ 4 Ω 600 W RMS x 1 @ 3 Ω 800 W RMS x 1 @ 2 Ω 1000 W RMS x 1 @ 1.5 Ω N/A JL Audio RD1000/1 Manual

Read more less

XDM-Series Monoblock Class-D Marine-Grade Amplifier, 600-Watts @ 2-Ohm or 400-Watts @ 4-Ohm This potent monoblock amplifier employs JL-Audio's high-speed NexD switching design to achieve unprecedented efficiency and amazing power output from a very compact chassis. Don't let its small size fool you, though... the XDM/600/1 generates serious subwoofer power, delivering a full 600W of continuous power into a 2-ohm load (14.4V, 1% THD). Designed for car or boat installations, the XDM600/1 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades. Targeted specifically for subwoofer applications, the XDM600/1 includes a variable slope low-pass filter with continuously variable cutoff frequency selection from 50-500Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), the amplifier's level can be adjusted directly from the driver's seat or captain’s chair. Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access. Specifications @ 4 Ω 400 W RMS x 1 @ 14.4V @ 3 Ω 500 W RMS x 1 @ 14.4V @ 2 Ω 600 W RMS x 1 @ 14.4V @ 1.5 Ω N/A @ 4 Ω 300 W RMS x 1 @ 12.5V @ 3 Ω 400 W RMS x 1 @ 12.5V @ 2 Ω 500 W RMS x 1 @ 12.5V @ 1.5 Ω N/A Frequency Response 7 Hz - 500 Hz (+0, -1dB) S/N Ratio, referred to highest rated power >87 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W >67 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Damping Factor @ 4 Ω >1000 / 50 Hz Damping Factor @ 2 Ω >500 / 50 Hz THD+N @ Rated Power <1% @ 2 Ω per Ch. Input Voltage Range @ RCA Inputs 200 mV - 4 V RMS Min.Copper Power / Ground Wire Gauge 4 AWG wire Fuse Rating 50 A (AFS, AGU or MaxiFuse™) Filter Mode(s) Low-Pass only Filter Slope(s) 12/24 dB/octave Filter Frequency Range 50 Hz - 500 Hz Detented, Calibrated Filter Freq. Potentiometer Yes Filter Defeat Function Yes Infrasonic Filter 30 Hz, defeatable Bass Boost EQ No Output Polarity Switch No Remote Subwoofer Level Control Optional HD-RLC or MHD-RLC (water-resistant) Remote Bass EQ Boost Control No Pass-Through Preamp Output Buffered Height (H) 2.05 in / 52 mm Width (W) 8.52 in / 216 mm Depth (D) 7.09 in / 180 mm Net Weight 6.3 lb / 2.86 kg JL Audio XDM600/1 Manual

Read more less

RD-Series 1500-Watt Monoblock Class-D Subwoofer Amplifier @ 2-Ohms Engineered for high-power, subwoofer applications, the RD1500/1 monoblock amplifier is built to deliver staggering amounts of world-class bass output. Equipped with a special low impedance circuit, the RD1500/1 is capable of generating a whopping 1500 watts of output power, at either 1 or 2 ohms (14.4V, 1% THD). At the heart of this ultra-sleek and compact power plant is JL Audio’s exclusive NexD™ Class D technology, permitting high power output with exceptional efficiency and low distortion. For your convenience, all of the RD1500/1’s controls are located on top of the amplifier, beneath a protective cover, with all connections found along one side of its chassis. Signal processing features include a 12 dB / octave low-pass filter, with continuously variable frequency selection from 50-500 Hz, and a variable bass boost EQ. Dual-range, differential-balance inputs are also onboard, capable of accepting most input voltage levels. Automatic turn-on capability (via signal sensing or DC-offset sensing) is standard, along with a set of preamp outputs so you can easily pass signals to another amplifier. The RD1500/1 is also equipped with an onboard LED-clipping indicator. This all-new, innovative feature lets you easily set your amplifier’s input sensitivity setting, quickly and accurately, with no special equipment needed. The RD1500/1 features a durable, black powder-coated finish and a top-mounted, dual-color LED light strip that reports the overall status and condition. Control of the subwoofer level from the driver’s seat is easily accomplished with the addition of the optional RBC-1 remote level control (sold separately). Specifications Frequency Response 7 Hz - 500 Hz (+0, -1dB) S/N Ratio, referred to highest rated power >82 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W >50 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Damping Factor @ 4 Ω >1100 / 50 Hz Damping Factor @ 2 Ω >550 / 50 Hz THD+N @ Rated Power <1% @ 2 Ω per Ch. Input Voltage Range @ RCA Inputs Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High) Min.Copper Power / Ground Wire Gauge 2 AWG wire Fuse Rating 150A (AFS or AGU) @ 4 Ω 750 W RMS x 1 @ 3 Ω 1000 W RMS x 1 @ 2 Ω 1500 W RMS x 1 @ 1 Ω 1500 W RMS x 1 JL Audio RD1500/1 Manual

Read more less

XDM-Series Monoblock Class-D Marine-Grade Amplifier, 1000-Watts @ 2-Ohm or 600-Watts @ 4-Ohm This monoblock subwoofer powerhouse employs JL-Audio's high-speed NexD switching technology to achieve unprecedented efficiency and amazing power output from a very compact chassis. The XDM1000/1 generates up to 1000W of continuous power into a 2-ohm load (14.4V, 1% THD), making it a great choice to drive higher power subwoofer systems. Designed for car or boat installations, the XDM1000/1 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades. Intended specifically for subwoofer applications, the XDM1000/1 includes a variable slope low-pass filter with continuously variable cutoff frequency selection from 50-500Hz and a defeatable infrasonic filter (30Hz, 24dB/oct.). With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), the amplifier's level can be adjusted directly from the driver's seat or captain’s chair. Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access. Specifications @ 4 Ω 600 W RMS x 1 @ 14.4V @ 3 Ω 800 W RMS x 1 @ 14.4V @ 2 Ω 1000 W RMS x 1 @ 14.4V @ 1.5 Ω N/A @ 4 Ω 500 W RMS x 1 @ 12.5 V @ 3 Ω 650 W RMS x 1 @ 12.5 V @ 2 Ω 800 W RMS x 1 @ 12.5 V @ 1.5 Ω N/A Frequency Response 7 Hz - 500 Hz (+0, -1dB) S/N Ratio, referred to highest rated power >83 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W >53 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Damping Factor @ 4 Ω >1000 / 50 Hz Damping Factor @ 2 Ω >500 / 50 Hz THD+N @ Rated Power <1% @ 2 Ω per Ch. Input Voltage Range @ RCA Inputs 200 mV - 4 V RMS Min.Copper Power / Ground Wire Gauge 4 AWG wire Fuse Rating 80 A (AFS, AGU or MaxiFuse™) Filter Mode(s) Low-Pass only Filter Slope(s) 12/24 dB/octave Filter Frequency Range 50 Hz - 500 Hz Detented, Calibrated Filter Freq. Potentiometer Yes Filter Defeat Function Yes Infrasonic Filter 30 Hz, defeatable Bass Boost EQ No Output Polarity Switch No Remote Subwoofer Level Control Optional HD-RLC or MHD-RLC (water-resistant) Remote Bass EQ Boost Control No Pass-Through Preamp Output Buffered Height (H) 2.05 in / 52 mm Width (W) 14.73 in / 374 mm Depth (D) 7.09 in / 180 mm JL Audio XDM1000/1v2 Manual

Read more less

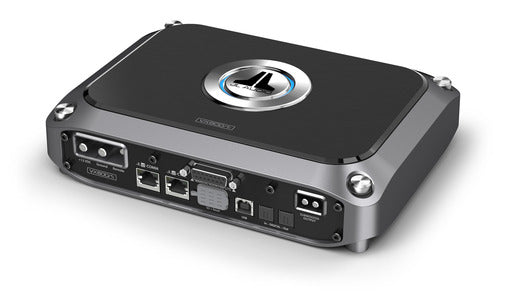

Monoblock Class D Subwoofer Amplifier with Integrated DSP, 600-Watt x 1 @ 2-Ohm / 400-Watt x 1 @ 4-Ohm Designed to simplify great audio, every VXi amplifier combines JL's advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor. The VX600/1i monoblock subwoofer amplifier outputs up to 400 watts into 4 ohms, or a staggering 600 watts into 2 ohms. A specialized, low-frequency version of JL's NexD2™ amplifier technology delivers rock-solid bass performance and fidelity, with outstanding efficiency. Compact dimensions with all connections placed on one side, via mating plugs, greatly simplify installation into tight spaces. Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN™ Software application installed. Amplifier includes: Power Connector (for 4 AWG wire), Analog Input/Pre-Out Harness, Subwoofer Output Connector, 6 ft A/B USB Cable TüN™ Software Applications Intuitive setup and tuning, all at your fingertips. Automatically recognizes connected amplifier and displays appropriate interface. TüN™ is available for download for free in a variety of applications, for computers and most handheld devices. Unprecedented, Onboard DSP Tuning Power Premium, triple-core AKM® DSP with an optimized configuration, developed in collaboration with AKM® Hi-Res audio processing at 24 bit/96 kHz High-performance AKM® A/D and D/A converters 10 Bands of fully parametric EQ, per output channel, including pre-outs Shelving EQ option for Band 1 and Band 10 High-Pass & Low-Pass Filters for each output channel, with selectable alignments and slopes: Linkwitz-Riley: 12, 24, 48 dB/octaveButterworth: 6, 12, 18, 24, 36, 48 dB/octave Signal Delay in 0.01 millisecond steps (equivalent to 1/8-inch, 3 mm) All-Pass Filter (Phase EQ), with variable "Q" and corner frequency Polarity Reversal (0 or 180 deg.) Output Level Trim in 0.1 dB steps NexD2™ Switching Amplifier Technology JL's latest generation of high-speed switching technology delivers superb low frequency power and efficiency. Specially optimized for subwoofer applications Ultra-Versatile Analog and Digital Inputs High-performance, differential-balanced analog inputs for outstanding noise rejection Accepts speaker level signals from 200 mV, up to 16V RMS, including those from many factory systems Optical Digital (Toslink) input permits direct connection of S/PDIF digital sources, bypassing A/D converter. Accepts up to 24 bit/192 kHz input. Independently configurable RCA analog and digital pre-outs (24 bit/96 kHz) Automatic turn-on options via Signal-Sensing or DC-Offset sensing Functional Compact Chassis Design Solid cast alloy main unibody and bottom plate deliver superb EMI performance and shielding All connections utilize compact mating connectors for maximum integrity and fitment into tight spaces. Configurable LED logo ring displays status and can display audio preset color code or user-defined color Logo badge can be oriented in 90 degree increments Corner caps engineered to conceal mounting holes and hardware JLid™ System Command and Control with Networking Capabilities JL Audio's digital protocol provides control interface and communication between VXi amplifiers and optional JLid™ accessories, including: DRC-100/DRC-200/DRC-205 Digital Remote Controllers: Offers convenient level and DSP preset control from the driver's seat. VXi-BTC Bluetooth® Communicator: Permits wireless configuration of VXi amplifiers using your compatible Apple® or Android® device. VXi-HUB Optical Network Hub: Provides network connectivity for up to five slave VXi amplifiers, allowing synchronization of DRC controllers and DSP presets. Up to two VXi-HUBs can be daisy-chained to network up to ten VXi amplifiers. Specifications Frequency Response 12 Hz - 500 Hz (+0, -1dB) S/N Ratio, referred to highest rated power(Analog Inputs) 90 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W(Analog Inputs) 64 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to highest rated power(Digital Inputs) 90 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W(Digital Inputs) 64 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Damping Factor @ 4 Ω >125 / 50 Hz Damping Factor @ 2 Ω >125 / 50 Hz THD+N @ Rated Power <1% @ 2 Ω per Ch. Input Voltage Range @ RCA Inputs 200 mV - 16 V RMS Min.Copper Power / Ground Wire Gauge 4 AWG wire Fuse Rating 50 A (AFS, AGU or MaxiFuse™) @ 4 Ω 400 W RMS x 1 @ 3 Ω 500 W RMS x 1 @ 2 Ω 600 W RMS x 1 @ 1.5 Ω N/A JL Audio VX600/1i Manual

Read more less

HD-Series Monoblock Class-D Wide-Range Amplifier, 750-Watts x 1ch @ 1.5-4-Ohms This ultra-compact monoblock amplifier employs JL's Single-Cycle Control switching design and R.I.P.S. technology to deliver 750W of clean power into any impedance between 1.5 and 4Ω, giving you the highest degree of flexibility in designing your subwoofer system. Tight power supply regulation keeps distortion down and maximizes your bass quality. From a pure sound quality perspective, JL invites you to compare the real-world, in-car performance of this amplifier to any other amplifier on the market, of any type, at any price. While targeted primarily to subwoofer applications, the HD750/1 is a wide-range amplifier and can also be used to drive high-performance mid-range speaker systems. This amplifier features a brushed aluminum finish with black powder-coated cast alloy heat sinks and bottom panel. A black powder-coated, gasketed cover is also provided to protect the controls. General Specifications Frequency Response 6 Hz - 8 kHz (+0, -1dB) S/N Ratio, referred to highest rated power >110 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W (Main Channels) >88 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Damping Factor @ 4 Ω >500 / 50 Hz Damping Factor @ 2 Ω >250 / 50 Hz THD+N @ Rated Power (Main Channels) <0.03% @ 4 Ω Input Voltage Range @ RCA Inputs Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High) Min.Copper Power / Ground Wire Gauge 4 AWG wire Fuse Rating 60 A (AFS, AGU or MaxiFuse™) @ 4 Ω 750 W RMS x 1 @ 3 Ω 750 W RMS x 1 @ 2 Ω 750 W RMS x 1 @ 1.5 Ω 750 W RMS x  JL Audio HD750/1 Brochure

Read more less

MHD-Series Monoblock Class-D Marine Grade Amplifier, 750-Watts @ 1.5-4-Ohms This ultra-compact monoblock amplifier employs JL's Single-Cycle Control switching design and R.I.P.S. technology to deliver 750W of clean power into any impedance between 1.5 and 4Ω, giving you the highest degree of flexibility in designing your subwoofer system. Tight power supply regulation keeps distortion ultra-low and maximizes your bass performance. While targeted primarily to subwoofer applications, the MHD750/1 is a full-range amplifier and can also be used to drive high-performance mid and high frequency speaker systems. This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment. Specifications @ 4 Ω 750 W RMS x 1 @ 3 Ω 750 W RMS x 1 @ 2 Ω 750 W RMS x 1 @ 1.5 Ω 750 W RMS x 1 Frequency Response 6 Hz - 8 kHz (+0, -1dB) S/N Ratio, referred to highest rated power >110 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W (Main Channels) >88 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Damping Factor @ 4 Ω >500 / 50 Hz Damping Factor @ 2 Ω >250 / 50 Hz THD+N @ Rated Power (Main Channels) <0.03% @ 4 Ω Input Voltage Range @ RCA Inputs Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High) Min.Copper Power / Ground Wire Gauge 4 AWG wire Fuse Rating 60 A (AFS, AGU or MaxiFuse™) Filter Mode(s) Low-Pass or High-Pass Filter Slope(s) 12/24 dB/octave Filter Frequency Range 50 Hz - 500 Hz Detented, Calibrated Filter Freq. Potentiometer Yes Filter Defeat Function Yes Infrasonic Filter 30 Hz, defeatable Bass Boost EQ (0 to +12 dB @ 45 Hz) No Output Polarity Switch Yes Remote Subwoofer Level Control Optional (HD-RLC) Pass-Through Preamp Output Buffered JL Audio MHD750/1 Manual

Read more less

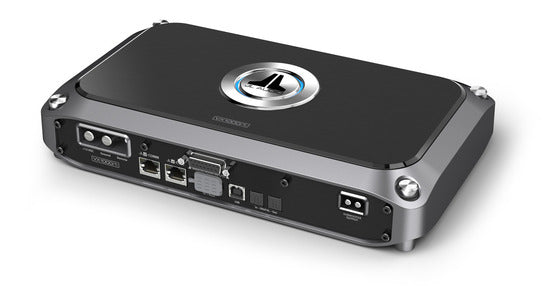

Monoblock Class D Subwoofer Amplifier with Integrated DSP, 1000-Watt x 1 @ 2-Ohm / 600-Watt x 1 @ 4-Ohm Designed to simplify great audio, every VXi amplifier combines JL's advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor. The VX1000/1i monoblock subwoofer amplifier outputs up to 600 watts into 4 ohms, or a jaw-dropping 1000 watts into 2 ohms. A specialized, low-frequency version of JL's NexD2™ amplifier technology delivers rock-solid bass performance and fidelity, with outstanding efficiency. Compact dimensions with all connections placed on one side, via mating plugs, greatly simplify installation into tight spaces. Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN™ Software application installed. Amplifier includes: Power Connector (for 2 AWG wire), Analog Input/Pre-Out Harness, Subwoofer Output Connector, 6 ft A/B USB Cable TüN™ Software Applications Intuitive setup and tuning, all at your fingertips. Automatically recognizes connected amplifier and displays appropriate interface. TüN™ is available for download for free in a variety of applications, for computers and most handheld devices. Unprecedented, Onboard DSP Tuning Power Premium, triple-core AKM® DSP with an optimized configuration, developed in collaboration with AKM® Hi-Res audio processing at 24 bit/96 kHz High-performance AKM® A/D and D/A converters 10 Bands of fully parametric EQ, per output channel, including pre-outs Shelving EQ option for Band 1 and Band 10 High-Pass & Low-Pass Filters for each output channel, with selectable alignments and slopes: Linkwitz-Riley: 12, 24, 48 dB/octaveButterworth: 6, 12, 18, 24, 36, 48 dB/octave Signal Delay in 0.01 millisecond steps (equivalent to 1/8-inch, 3 mm) All-Pass Filter (Phase EQ), with variable "Q" and corner frequency Polarity Reversal (0 or 180 deg.) Output Level Trim in 0.1 dB steps NexD2™ Switching Amplifier Technology JL's latest generation of high-speed switching technology delivers superb low frequency power and efficiency. Specially optimized for subwoofer applications Ultra-Versatile Analog and Digital Inputs High-performance, differential-balanced analog inputs for outstanding noise rejection Accepts speaker level signals from 200 mV, up to 16V RMS, including those from many factory systems Optical Digital (Toslink) input permits direct connection of S/PDIF digital sources, bypassing A/D converter. Accepts up to 24 bit/192 kHz input. Independently configurable RCA analog and digital pre-outs (24 bit/96 kHz) Automatic turn-on options via Signal-Sensing or DC-Offset sensing Functional Compact Chassis Design Solid cast alloy main unibody and bottom plate deliver superb EMI performance and shielding All connections utilize compact mating connectors for maximum integrity and fitment into tight spaces. Configurable LED logo ring displays status and can display audio preset color code or user-defined color Logo badge can be oriented in 90 degree increments Corner caps engineered to conceal mounting holes and hardware JLid™ System Command and Control with Networking Capabilities JL Audio's digital protocol provides control interface and communication between VXi amplifiers and optional JLid™ accessories, including: DRC-100/DRC-200/DRC-205 Digital Remote Controllers: Offers convenient level and DSP preset control from the driver's seat. VXi-BTC Bluetooth® Communicator: Permits wireless configuration of VXi amplifiers using your compatible Apple® or Android® device. VXi-HUB Optical Network Hub: Provides network connectivity for up to five slave VXi amplifiers, allowing synchronization of DRC controllers and DSP presets. Up to two VXi-HUBs can be daisy-chained to network up to ten VXi amplifiers. Specifications Frequency Response 12 Hz - 500 Hz (+0, -1dB) S/N Ratio, referred to highest rated power (Analog Inputs) 87 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W (Analog Inputs) 60 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to highest rated power (Digital Inputs) 87 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W (Digital Inputs) 56 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Damping Factor @ 4 Ω >400 / 50 Hz Damping Factor @ 2 Ω >300 / 50 Hz THD+N @ Rated Power <1% @ 2 Ω per Ch. Input Voltage Range @ RCA Inputs 200 mV - 16 V RMS Min.Copper Power / Ground Wire Gauge 4 AWG wire Fuse Rating 80 A (AFS, AGU or MaxiFuse™) @ 4 Ω 600 W RMS x 1 @ 3 Ω 800 W RMS x 1 @ 2 Ω 1000 W RMS x 1 @ 1.5 Ω N/A JL Audio VX1000/1i Manual

Read more less

HD-Series Monoblock Class-D Wide-Range Amplifier, 1200-Watts x 1ch @ 1.5-4-Ohms JL's most powerful HD amplifier employs their advanced Single-Cycle Control switching design and R.I.P.S. technology to deliver 1200W of clean power into any impedance between 1.5 and 4Ω, giving you the highest degree of flexibility in designing your subwoofer system. Tight power supply regulation keeps distortion down and maximizes your bass quality. From a pure sound quality perspective, JL invites you to compare the real-world, in-car performance of this amplifier to any other amplifier on the market, of any type, at any price. While targeted primarily to subwoofer applications, the HD1200/1 is a wide-range amplifier and can also be used to drive high-performance mid-range speaker systems. This amplifier features a brushed aluminum finish with black powder-coated cast alloy heat sinks and bottom panel. A black powder-coated, gasketed cover is also provided to protect the controls. General Specifications Frequency Response 6 Hz - 8 kHz (+0, -1dB) S/N Ratio, referred to highest rated power >110 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W (Main Channels) >79 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Damping Factor @ 4 Ω >500 / 50 Hz Damping Factor @ 2 Ω >250 / 50 Hz THD+N @ Rated Power (Main Channels) <0.03% @ 4 Ω Input Voltage Range @ RCA Inputs Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High) Min.Copper Power / Ground Wire Gauge 2 AWG wire Fuse Rating 100 A (AFS, AGU or MaxiFuse™) @ 4 Ω 1200 W RMS x 1 @ 3 Ω 1200 W RMS x 1 @ 2 Ω 1200 W RMS x 1 @ 1.5 Ω 1200 W RMS x 1 JL Audio HD1200/1 Manual

Read more less
